The "No-Computer" Method: Transfer Embroidery Designs from iPad to Brother Machines (Step-by-Step)

If you have ever stood in front of your embroidery machine thinking, "My designs are on my iPad upstairs… but my machine is downstairs… and I really don't want to boot up the old laptop," you are not alone.

In my 20 years of teaching machine embroidery, I have seen more beginners quit over file management than over thread tension. It creates a "friction loop"—the harder it is to get the design to the machine, the less likely you are to stitch.

The good news: You can transfer a design file to a Brother machine without a traditional computer. The better news: Once you learn the "clean" way, it becomes a muscle-memory routine that takes less than 60 seconds.

This guide will walk you through the iPad-to-USB workflow, adding the safety checks and professional nuances that most tutorials skip.

1. The Hardware Trinity: iPad, Adapter, and Stick

The workflow relies on one simple concept: your iPad can act as a "computer" just long enough to copy a file onto a USB stick. However, hardware compatibility is where 50% of users fail before they start.

Here is the exact kit you need:

1. An Apple iPad: This works on both older models (Lightning port) and newer models (USB-C port).
2. The Bridge (Adapter):
   • For older iPads: A Lightning to USB Camera Adapter.
   • For newer iPads: A USB-C to USB Adapter.
3. The Vessel (USB Flash Drive): A standard, low-capacity USB drive (2GB–8GB is the sweet spot; machines often struggle to read massive 64GB+ drives).


Pro Tip (The "Dedicated Kit" Rule): Don't use the same USB stick you use for family photos. Buy a dedicated USB stick and adapter, put them in a small zippered pouch, and Velcro it to the side of your machine. When you treat file transfer like a physical tool rather than a digital task, you stop losing time hunting for cables.

Warning: Protect Your Port
The combined weight of a USB stick and an adapter acts like a lever. If you let it dangle from your iPad, gravity can damage your charging port over time.
The Fix: Always rest the iPad flat on a table during transfer, or support the adapter with your hand. Never unplug by yanking the stick sideways.

Prep Checklist: The "Hardware Handshake"

• Identify Port Type: Look at your charging cable. Is it the flat, reversible Lightning (older) or the oval USB-C (newer)? Match the adapter.
• Connection Order: Plug the USB stick into the adapter FIRST, then plug the adapter into the iPad. Listen for a subtle "click" to ensure it is seated.
• Cleanliness Check: Blow gently into the USB stick port to ensure no lint creates a bad connection.
• The "One-File" Discipline: Decide exactly which single design you are transferring. Professionals move one file at a time to prevent version errors.


2. The Source: Downloading Designs to the "Files" App

The video usage demonstrates downloading directly from a website (Sweet Pea) using Safari. The logic applies to any site (Etsy, format libraries, etc.).

1. Open Safari on the iPad.
2. Log into your account/email.
3. Tap the Download button for your design.

The Sensory Cue: When the download starts, look at the top right of the Safari address bar. You will see a small arrow inside a circle jump or bounce. That is your confirmation.

Common Friction Point: New users often panic asking, "Where did it go?" Unlike a PC where files might land on a desktop, iOS buries them in the Files app inside a folder usually named "Downloads." Treat this folder like your digital loading dock—it is for receiving inventory, not for permanent storage.

3. The "Unzip" Trick: Cracking the Shell

Most embroidery designs come inside a ZIP file.

• The Physics of it: A ZIP file is like a sealed cardboard box. Your embroidery machine cannot stitch a cardboard box; it needs the product inside.
• The iOS Advantage: Apple devices allow you to look inside the ZIP without needing third-party software.

The Steps:

1. Tap the blue download arrow in Safari to open Downloads.
2. Locate the ZIP file (e.g., “Files_and_Instructions_Freeform_Coasters.zip”).
3. Tap the ZIP file once.


Visual Anchor: You will instantly see a blue folder icon appear next to the ZIP file. This is the "opened box." Ignore the ZIP file from now on. You only want what is inside the blue folder.

4. The Format Filter: Why ".PES" Matters

This is the step where most beginners get burned. You open the folder and see 10 different files with the same name but different extensions (.DST, .EXP, .JEF, .PES).

The Golden Rule: If you are stitching on a brother embroidery machine, you must select the .PES file.

• DST: Industrial machine standard (Tajima).
• EXP: Bernina/Melco.
• PES: Brother/Babylock.

In the video, the user navigates into the 5x5 folder (selecting the hoop size first) and finds “Freeform Coaster 1 5x5.PES”.

Mental Check: Do not just grab the first file you see. Read the end of the filename. If you feed your Brother machine a .JEF file, it’s like trying to put diesel in a gasoline car—it simply won’t run (or even show up on the screen).

5. The "Clean Copy" Method

Now we move the file from the iPad to the USB stick.

1. Long Press: Place your finger on the .PES file and hold it there until a menu pops up (tactile feel: like holding a button).
2. Tap Copy.
3. Navigator: On the left sidebar of the Files app, look under "Locations." You should see your USB drive (often named "NO NAME," "USB," or in this video, “MARTYN 2”).
4. Paste: Tap the USB drive name. Long press in any empty white space. Tap Paste.






The Visual Verification: Do not unplug yet! Look at the screen. Do you see the .PES file listed under the USB drive?

• Pass: The file name is visible.
• Fail: The screen is blank or you only see "Downloads."

Setup Checklist: The "Before You Unplug" Sanity Check

• Did you copy the unzipped .PES file (not the whole ZIP folder)?
• Did you select the correct hoop size folder (e.g., 5x5) for your physical hoop?
• Is the file size reasonable? (If it says "0 KB", something went wrong).

6. The Moment of Truth: Loading on the Machine

Now, walk to your machine.

1. Insert: Plug the USB stick into the machine’s USB port. Sensory check: Feel for a firm seating, but never force it.

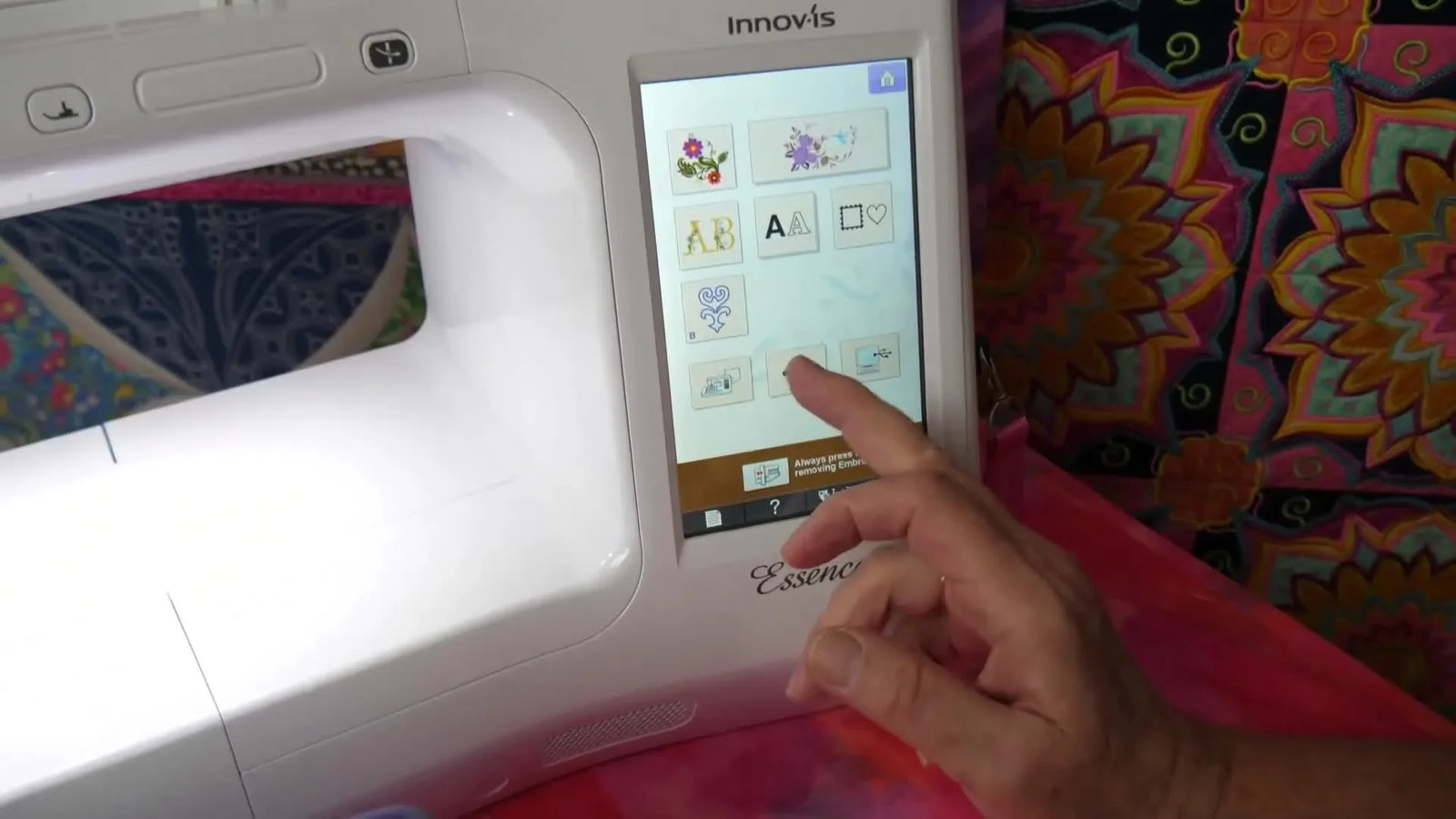

2. Interface: On the LCD screen (shown here on a Brother Innov-is Essence VM5200), touch the USB retrieval icon (usually looks like a little stick or a tree branch structure).






Success Metric: You should see a thumbnail image of the coaster. Click it to see the details. The video confirms the size: 128.0 mm × 128.0 mm.

Troubleshooting: "I don't see my file!" If the screen is blank, go back to this decision logic:

1. Did you copy the ZIP? Machine can't read it.
2. Did you copy the .DST? Brother machine typically hides non-PES files.
3. Is your USB stick too big? Try a stick smaller than 16GB.
4. Is the stick formatted? The stick must be FAT32 format (standard for PC/Mac).

7. Beyond the Transfer: The "Next" Bottleneck

Congratulations. You have solved the software friction. You can now get a design from the internet to your machine in under two minutes.

But as you start stitching more, you will notice a new pain point: Physical Setup (Hooping).

Moving files is fast, but wrestling with fabric, stabilizer, and screw-tightened hoops is slow. It causes wrist strain (repetitive stress) and the dreaded "hoop burn" (shiny marks left on the fabric).

This is where seasoned embroiderers upgrade their physical tools just like you upgraded your digital workflow.

Scenario A: The "Hoop Burn" Struggle

If you are stitching on delicate items or tricky fabrics like velvet, traditional plastic hoops can crush the pile. Professionals solve this with a magnetic embroidery hoop.

• Why: Instead of jamming an inner ring into an outer ring, magnets snap the fabric flat.
• Result: Zero "hooping marks" and vastly faster prep time. If you own a Brother machine, searching for magnetic embroidery hoops for brother will show you compatible options that fit your specific attachment arm.

Scenario B: The "Crooked Logo" Frustration

If you are trying to place a design in the exact same spot on 10 different shirts, relying on eyesight is a recipe for failure.

• Tool: A specific alignment system. Many professionals use a hooping station for embroidery.
• Upgrade: Integrated systems like a hoop master embroidery hooping station ensure that every Left Chest Logo lands in the exact same spot, reducing the anxiety of "ruining the shirt."

Scenario C: The "Multi-Tasker"

If you are using high-end machines like the Luminaire, you need tools that match that tier of productivity. A dedicated brother luminaire magnetic hoop or, if you use a different brand, a babylock magnetic embroidery hoop, allows you to float materials without unhooping the stabilizer, making continuous production seamless.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone. It bites.
2. Medical Devices: Keep them at least 6 inches away from pacemakers.
3. Electronics: Do not rest the magnets on your iPad or credit cards!

8. When to Upgrade Your Machine?

Finally, a word on commercial reality. This USB workflow works perfectly for single-needle machines. But if you find yourself changing thread colors 15 times per design, or if you have an order for 50 polo shirts, no amount of file management will save you.

This is the commercial threshold. When you cross it, consider moving to a Multi-Needle Machine (like the SEWTECH high-efficiency series). Multi-needles don't just stitch faster; they hold the colors ready for you, turning "active labor" into "passive monitoring."

Operation Checklist: The Final Flight Check

Before you press the green "Start" button, run this 10-second mental scan:

1. File Verification: Does the design on the screen look correct (orientation/size)?
2. Stabilizer Match: Are you using the right stabilizer for the fabric? (e.g., Cutaway for knits, Tearaway for towels).
3. Needle Freshness: When was the last time you changed your needle? (Rule of thumb: Every 8 hours of stitching).
4. Consumables: Do you have extra bobbin thread wound? Do you have your magnetic embroidery hoop or standard hoop firmly locked in?
5. Path Clear: Is the area behind the machine clear so the hoop doesn't hit the wall?

Mastering the iPad-to-USB transfer is your first step toward embroidery independence. It separates the "frustrated hobbyist" from the "confident creator." Master this flow, and the only limit is your imagination.

FAQ

• Q: Why does a Brother embroidery machine not show a design file on the USB screen after transferring from an Apple iPad?
  A: In most cases the Brother embroidery machine is hiding the file because the transfer used a ZIP folder or a non-.PES format instead of an unzipped .PES file.
  • Open the iPad Files app and tap the ZIP file once to create the blue unzipped folder, then work only inside that folder.
  • Select the correct Brother format file ending in .PES (not .DST or .EXP), then Copy → Paste it onto the USB drive location.
  • Use a smaller, simple USB stick (the blog’s safe sweet spot is 2GB–8GB; very large drives may not read reliably).
  • Success check: The Brother USB retrieval screen shows a thumbnail/filename for the design instead of a blank list.
  • If it still fails: Reformat or swap to a FAT32-formatted USB stick and repeat the copy using a single .PES file (not the whole folder).
• Q: What is the correct order to connect a Lightning-to-USB Camera Adapter or USB-C to USB Adapter when transferring embroidery designs from an iPad to a Brother embroidery machine?
  A: Plug the USB stick into the iPad adapter first, then plug the adapter into the iPad to avoid flaky connections.
  • Identify the iPad port type (Lightning vs USB-C) and match the correct adapter before starting.
  • Insert the USB stick fully into the adapter, then connect the adapter firmly into the iPad.
  • Keep the iPad flat on a table and support the adapter so the weight does not lever against the iPad port.
  • Success check: The USB drive appears under “Locations” in the iPad Files app (often as “NO NAME” or a custom drive name).
  • If it still fails: Unplug and reseat the connections, and check the USB port for lint/debris that can cause a poor contact.
• Q: How do I unzip an embroidery design ZIP file on an Apple iPad so a Brother embroidery machine can read the .PES file?
  A: Tap the ZIP file once in the iPad Downloads area to create the unzipped blue folder, then copy only the .PES file from inside.
  • In Safari, open the Downloads list, then locate the ZIP file you downloaded.
  • Tap the ZIP file one time and wait for the blue folder to appear next to it.
  • Open the blue folder, navigate to the correct hoop-size folder (for example 5x5), and select the file ending in .PES.
  • Success check: A separate blue folder appears and you can see individual format files (.PES/.DST/.EXP) inside it.
  • If it still fails: Re-download the design and repeat the unzip step; avoid copying the ZIP itself to the USB stick.
• Q: Which embroidery file format should be transferred to a Brother embroidery machine from an iPad: .PES, .DST, or .EXP?
  A: Use .PES for a Brother embroidery machine; the machine may ignore or hide other formats on the USB stick.
  • Open the unzipped design folder and look at the end of each filename (the extension).
  • Choose the .PES file that matches the hoop size folder you intend to stitch (for example, select the 5x5 .PES inside a 5x5 folder).
  • Copy that single .PES file to the USB drive using Files app Copy → Paste.
  • Success check: The .PES file name is visible on the USB drive in the iPad Files app and then appears as a selectable design on the Brother screen.
  • If it still fails: Confirm the file is not “0 KB” and confirm you did not accidentally copy a different format with the same base name.
• Q: How can I prevent damaging an Apple iPad charging port while using a USB stick and adapter to move embroidery files to a Brother embroidery machine?
  A: Do not let the adapter and USB stick dangle from the iPad; support the connection to prevent leverage damage over time.
  • Place the iPad flat on a table during file transfer instead of holding it in the air.
  • Support the adapter with your hand when plugging/unplugging, and pull straight out (do not yank sideways).
  • Keep a dedicated light “transfer kit” (adapter + small USB stick) so you are not constantly swapping heavier drives/cables.
  • Success check: The adapter sits stable with no wobble, and the USB drive stays connected in the Files app without disconnecting.
  • If it still fails: Switch to a shorter/lighter USB stick and inspect the iPad port for looseness; follow Apple service guidance if the port feels unstable.
• Q: What should be checked on the Brother embroidery machine screen before pressing Start after loading a .PES design from a USB stick?
  A: Verify the design preview looks correct and confirm the design size/orientation and hoop clearance before stitching.
  • Check the on-screen design preview for correct orientation and expected dimensions (the blog example confirms size on the details screen).
  • Match stabilizer to fabric type as a safe starting point (for example, cutaway for knits and tearaway for towels) and follow the machine manual if unsure.
  • Replace the needle on a routine schedule (the blog rule of thumb: every ~8 hours of stitching) and confirm you have bobbin thread ready.
  • Success check: The hoop can travel freely without hitting a wall/obstruction behind the machine and the on-screen design details match your hoop choice.
  • If it still fails: Stop and re-check that the hoop size folder you selected on the iPad matches the physical hoop mounted on the Brother machine.
• Q: When should a Brother embroidery machine user upgrade from technique fixes to a magnetic embroidery hoop or to a multi-needle machine for production efficiency?
  A: Use a simple escalation: first fix the workflow and hooping technique, then consider a magnetic embroidery hoop for hoop-burn/wrist strain, and only consider a multi-needle machine when color changes and volume become the true bottleneck.
  • Level 1 (Technique): Reduce file-transfer errors by moving one unzipped .PES at a time and doing the “before unplug” sanity checks.
  • Level 2 (Tool upgrade): Choose a magnetic embroidery hoop when traditional screw hoops cause hoop burn on delicate fabrics or slow you down with repeated hooping.
  • Level 3 (Capacity upgrade): Consider a multi-needle machine when frequent thread color changes and larger orders (for example dozens of garments) make single-needle operation impractical.
  • Success check: Your main delay shifts from “getting the file to the machine” to either “hooping time” (magnetic hoop helps) or “thread-change time” (multi-needle helps).
  • If it still fails: Track one full job from setup to finish; the slowest repeatable step is the correct upgrade target.
