No More Creased Cardstock: Float a Brother SE400 4x4 Hoop Design for Mason Jar Lids That Look Store-Bought

If you have ever tried to hoop a piece of cardstock and watched it emerge with ugly creases—or worse, rip apart at the needle penetration points—you are witnessing a clash of physics. Unlike fabric, paper has zero "recovery." It cannot stretch, and it does not heal. It punishes "normal" hooping habits with permanent scars.

However, Nancy Jacobs’ project—embroidered mason jar lids on cardstock using a Brother SE400—works beautifully because it leans on one non-negotiable principle of machine embroidery: stabilizer gets hooped, paper gets floated.

As a veteran of the industry, I can tell you that understanding this distinction pushes you from "hobbyist guessing" to "operator precision." Once you master the friction mechanics of floating, you can repeat this technique for tags, gift toppers, and small-batch craft products without wasting a single sheet of material.

Gather the exact supplies for a Brother SE400 paper-embroidery jar lid (and skip the stuff that causes tearing)

You do not need a mountain of tools for this project, but you must have the right ones. Paper is unforgiving; your setup must be flawless before the first stitch.

From the video (core supplies):

• Machine: Brother SE400 (or any home embroidery machine).
• Hoop: Standard 4x4 screw-tighten hoop.
• Stabilizer: Lightweight tear-away stabilizer (Medium weight works, but lightweight perforates less).
• Substrate: Cardstock (8.5" x 11" cut into fourths). Note: Standard printer paper is too thin; ensure it is cardstock.
• Thread: 40wt Embroidery thread (black for lines, red for heart).
• Appliqué Material: Small square of felt (red).
• Hard Goods: Mason jar lid (metal disc + ring), regular or wide mouth.
• Marking: Pencil.
• Cutting: Decorative-edge paper scissors (pinking shears) and Spring-action micro scissors.

The "Hidden" Consumables (What beginners often miss):

• fresh Needle: Size 75/11 Universal or Sharp. Do not use a Ballpoint needle (it tears paper). Do not use an old needle (a burred tip will punch ragged holes).
• Painter’s Tape (Blue Tape): The "safety belt" for beginners uncomfortable with holding paper near a moving needle.

A quick note on hoops: if you’re working with a brother 4x4 embroidery hoop, the 4x4 field is actually ideal for these lid inserts. The smaller surface area provides excellent rigidity for the stabilizer, reducing the "bouncing" that causes needle deflection.

The "Hidden" Prep checklist (this is what keeps paper from shifting mid-stitch)

Before you even touch the screen, perform these "Pre-Flight" checks. In a professional shop, we call this mitigating variables.

• Check 1: Sizing strategy. Cut cardstock to 8.5" x 11" quarters. It must sit flat over the catch points of the hoop without buckling against the machine arm.
• Check 2: Bobbin Hygiene. Ensure your bobbin area is free of lint. A sudden tension jerk from lint can cause the bobbin thread to pull top thread down, creating a knot that rips the cardstock.
• Check 3: Needle Integrity. Run your fingernail down the needle tip. If it catches, throw it away. You need a clean puncture, not a tear.
• Check 4: Environment Clear. Confirm no pins, clips, or bulky tape are near the stitch field.

This prep may feel tedious, but it prevents the paper from "walking" sideways during the first 10 stitches.

The "Float, Don’t Hoop" move: how to avoid creased cardstock with a floating embroidery hoop setup

The video’s biggest lesson corrects the most common point of failure for novices:

• Wrong: Hooping cardstock directly → The hoop rings apply radial pressure, crushing the paper fibers and creating a permanent "hoop burn" ring or crease.
• Right: Hoop the stabilizer only → Place cardstock on top.

That’s the heart of the floating embroidery hoop approach: you are letting the stabilizer provide the tension foundation, while the paper lies flat, stress-free, and unscarred.

The Physics of Why this Works:

1. Radial Tension: A hoop pulls outward from the center. Fabric recovers from this stretch; paper buckles or cracks.
2. Friction Anchoring: When you float, the friction between the textured stabilizer and the paper prevents lateral movement.
3. Stitch Locking: Once the first few stitches penetrate, the thread itself acts as a series of tiny anchors, locking the layers together.


Warning: Physical Safety Hazard. When floating materials, you often use your fingers to hold the paper for the first few stitches. Keep your fingers at least 2 inches away from the presser foot. A stitch speed of 400 SPM is faster than your reaction time. Use painter's tape to secure the corners if you are nervous.

Hoop the tear-away stabilizer tight in the 4x4 frame—this tension is your whole foundation

Nancy hoops only the lightweight tear-away stabilizer in the 4x4 hoop. Because the paper offers no structural integrity, the stabilizer must do all the work.

Sensory Check: What "Taut" Feels and Sounds Like

• Tactile: Press your finger in the center. It should feel like a drum skin—tight, with bounce-back, not saggy.
• Visual: There should be zero wrinkles near the inner ring.
• Auditory: Tapping it should produce a dull thud, not a papery rustle.

The "Hoop Burn" Variable: If you are doing a lot of delicate projects, or if you find yourself unable to get consistent tension without wrenching the screw until your wrist hurts, this is a hardware limitation. This is where a magnetic embroidery hoop becomes a significant quality-of-life upgrade. Magnetic frames clamp straight down rather than pulling the material sideways, which eliminates hoop burn on fabrics and makes stabilizer swapping instant. For paper floating, the key benefit is repeatable, instant tension without the manual struggle of the screw.

Start stitching on cardstock the safe way: hold for a few stitches, then let friction do the work

Nancy places the quarter-sheet cardstock centered on top of the hooped stabilizer. She does not use spray adhesive (which can stain paper) or heavy tape.

The Process:

1. Align the paper visually.
2. Lower the presser foot to check clearance.
3. Speed Control: Lower your machine speed to 350-400 SPM (Stitches Per Minute). High speed causes needle heat and vibration, which tears paper.
4. Hold the edges of the cardstock gently flat.

What you should see:

• The needle penetrates cleanly without lifting the paper up.
• After the first 5-10 stitches, the paper is "anchored." You can safely remove your hands.

What is happening mechanically: The first stitches create a "bite" into the stabilizer. The thread tension pulls the paper down against the stabilizer, increasing the friction coefficient. The two layers are now moving as one unit.

Stitch the two writing lines first—your checkpoint is clean, unbroken lines on paper

The machine stitches two horizontal lines in black. These are functional lines for writing the jar's contents.

Quality Checkpoint:

• Lines: Look for continuous thread. If you see "skipped" stitches where the thread didn't catch, your needle might be old, or the cardstock is too thick.
• Holes: Look at the needle holes. Are they clean circles? If they look like ragged explosions, your needle is too large or blunt.

If the lines look "chewed" or perforated like a postage stamp, that is a sign the paper is being stressed. This often happens from too much drag (paper hitting the machine arm) or too high a stitch density.

Place the felt appliqué on the heart outline—cover it fully so the tack-down catches every edge

After the placement line stitches a heart outline, Nancy lays a small red felt square over it.

Two operational habits for success:

1. The "Safety Margin": Cut your felt about 0.5 inches larger than the outline on all sides. You cannot see the outline once you cover it, so the margin for error is your safety net.
2. Fiber Management: Felt grabs thread. Ensure the felt is flat. If it is high-loft (fuzzy), you might need a layer of water-soluble topping, but for standard craft felt, it is usually fine.

She again holds it briefly for the first stitches—keeping fingers well clear of the needle—then moves her hands away.

Let the tack-down stitch do its job—then stop and inspect before you unhoop

The machine stitches the tack-down (usually a running stitch or a light zigzag) around the heart, securing the felt to the cardstock.

Expected outcome:

• Felt is firmly attached.
• No loose corners lifting up.
• The paper behind it remains flat, not curled by the tension of the stitches.

Scaling Up (Business Logic): If you plan to produce these in quantity (e.g., 50 units for a wedding), hooping becomes your bottleneck. In a hobby rhythm, you pause and admire. In a production rhythm, efficiency is key. You build a repeatable sequence: Hoop Stabilizer → Float Cardstock → Stitch Lines → Drop Felt → Tack-down → Unhoop.

This is where thinking about machine embroidery hoops as a production system—not just a plastic accessory—pays off. Consistent hooping tension equals consistent placement, which equals fewer rejects and higher profit margins.

Setup checklist (do this before removing the hoop from the machine)

• Completion Check: Confirm all steps (lines + heart placement + tack-down) are fired. There is no going back once unhooped.
• Drift Check: Did the paper rotate? Ensure lines are horizontal relative to the paper edge.
• Tension Check: Look at the back. Is there a "bird's nest" of thread? If so, the cardstock may be buckled.
• Trim Check: Trim any long jump threads now while the hoop holds the paper taut. It is safer than trimming loose paper later.

Unhoop cleanly: remove the hoop, then tear the stabilizer away without bending the cardstock

Nancy removes the hoop from the machine. Now comes the moment of truth.

The "Anti-Bend" Technique:

1. Remove the stabilizer/paper sandwich from the hoop.
2. Place it face down on a flat table.
3. Hold the cardstock flat against the table with the palm of your hand.
4. Lift and tear the stabilizer away from the paper.

Why? If you pull the paper away from the stabilizer, the paper will curl. If you pull the stabilizer away from the paper, the paper stays flat. Let the consumable material take the stress.

Use the metal jar lid disc as a perfect template—trace first so your circle lands exactly where it should

Nancy separates the metal lid disc from the ring, centers the disc over the embroidery, and traces around it lightly with a pencil.

Precision Strategy: This step solves the "Centering Problem." You do not need to center the embroidery perfectly on the paper initially; you only need to center the cut around the embroidery.

• Align the disc so the heart acts as the visual anchor.
• Ensure the horizontal writing lines are parallel to your perceived horizontal axis.


Cut the cardstock circle with decorative-edge scissors—this is where the project starts looking “gift-ready”

Nancy uses decorative-edge paper crafting scissors (scalloped or pinking style) to cut along the pencil line.

Pro Tip: Cut slightly inside your pencil line.

• Fit: The metal ring has a specific tolerance. If you cut outside the line, the paper might be too wide to sit flat inside the ring, causing it to bubble up.
• Aesthetics: This removes the visible graphite mark, leaving a clean edge.

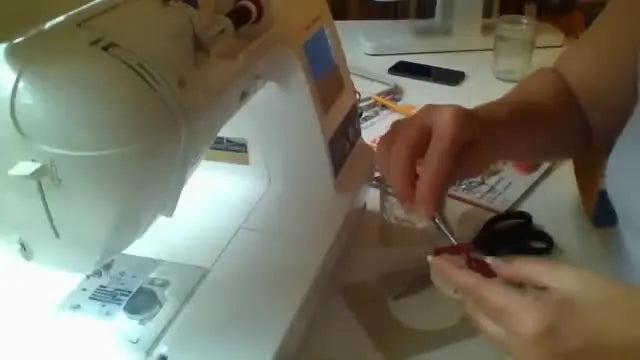

Trim jump stitches and excess felt like a pro: micro snips beat bulky appliqué scissors on small designs

Standard appliqué scissors (duckbill) are often too bulky for this small 4x4 scale.

Nancy uses Spring-Action Micro Snips to:

1. Cut close jump stitches connected to the heart.
2. Trim excess felt outside the stitched heart line for a raw-edge appliqué look.

Tool Selection Logic: When working on paper, you cannot lift and bend the substrate to get scissors underneath thread (like you can with a t-shirt). You need a tool with a fine point that cuts at the very tip. If you are doing fine detail work, hooping for embroidery machine success isn't just about the hoop—it’s also about having finer trimming tools that can navigate tight spaces without distorting the rigid work.

Warning: Tool Hazard. Micro snips are razor-sharp right to the point. When trimming felt on paper, there is a risk of slicing the stitch you just made. Cut with the tips angled slightly up, away from the paper, and cut in tiny 2mm increments.

Assemble the mason jar lid the way Nancy does: metal lid first, embroidered paper cover second, ring last

Assembly order ensures the paper is protected and functional:

1. Place the metal lid (disc) on the jar first (sealing the jar).
2. Place the embroidered paper cover on top of the metal lid.
3. Screw the ring down to secure the sandwich.

This keeps the paper purely decorative. It does not compromise the seal of the jar, and it allows the recipient to unscrew the ring and keep the tag even if they open the jar.

Fix the two most common failures fast: creased paper and impossible appliqué trimming

Even simple paper embroidery can go sideways. Here is a troubleshooting matrix based on the most common failures I see in the studio.

The upgrade path when you’re tired of slow hooping: from hobby pace to batch production

If you only make five of these for Christmas, a standard screw hoop is perfectly adequate. But if you start making 50 for a craft fair, the "Hoop → Screw → Tighten → Tug → Retighten" cycle becomes a bottleneck that hurts your wrists and your hourly rate.

The Upgrade Logic:

• Trigger: Physical fatigue (wrist pain) or frustration with "hoop burn" marks on fabric projects.
• Criteria: Are you doing repetitive batch work? Do you need to swap stabilizer in under 10 seconds?
• Solution: Move to a Magnetic Hoop system.

Many makers eventually explore embroidery hoops magnetic options because they allow you to "slap and stick." You lay the stabilizer, snap the magnets down, and it is drum-tight instantly. It is safer for the paper (no distortion) and faster for the operator.

Warning: Magnetic Field Safety. Commercial-grade magnetic hoops are powerful. Keep them away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives). Watch your fingers—they snap together with significant force (pinch hazard).

A simple decision tree: choose stabilizer and substrate for paper-embroidery results

Use this logic flow to adapt Nancy’s method to other materials without guessing.

START: What is your material?

• Path A: Rigid Paper (Cardstock/Watercolor Paper)
  • Stabilizer: Medium or Light Tear-Away.
  • Needle: 75/11 Universal.
  • Technique: Float Only.
• Path B: Thin Paper (Book Pages/Copy Paper)
  • Stabilizer: Heavy Tear-Away + Iron-on Fusible interfacing on the back of the paper before floating.
  • Needle: 70/10 Sharp.
  • Technique: Float with Painter's Tape (it tears easily).
• Path C: Felt or Fabric
  • Stabilizer: Cut-Away (for durability) or Tear-Away (for stiff felt).
  • Needle: 75/11 Universal or Ballpoint.
  • Technique: Can be hooped generally, but floating avoids "hoop burn."

If you’re building a repeatable craft workflow, organizing your space with hooping stations (or a dedicated prep mat) can also help. It keeps your stabilizers, blanks, and cutting tools in a focused zone, reducing the chance of accidental creases during the prep phase.

Operation checklist (the "don’t ruin it at the finish line" list)

• Tear Carefully: Stabilizer pulls away from paper, not vice versa.
• Trace Inside: Ensure the pencil line is hidden by the cut.
• Trim Threads: Clean up all jump stitches before assembly.
• Seal First: Metal lid goes on the jar before the paper.
• Inspect: Check the back of the paper—if knots are bulky, trim them flat so the cardstock sits flush against the lid.

Follow the physics of the materials, respect the fragility of the paper, and your results will look like they came from a professional print shop, not a struggle. Happy stitching.

FAQ

• Q: On a Brother SE400, why does hooping cardstock in a 4x4 screw-tighten hoop cause creases or “hoop burn” rings?
  A: Do not hoop cardstock directly; hoop only tear-away stabilizer and float the cardstock on top to keep paper fibers from being crushed.
  • Hoop: Tighten lightweight tear-away stabilizer until it is drum-tight in the 4x4 hoop.
  • Place: Center the cardstock on top of the hooped stabilizer (no spray adhesive required).
  • Secure: Hold the cardstock edges for the first 5–10 stitches or tape the corners with blue painter’s tape.
  • Success check: The cardstock stays flat with no ring marks, and the first stitches do not pull or buckle the paper.
  • If it still fails: Re-check stabilizer tension (too loose) and confirm the cardstock is not hitting the machine arm and dragging.
• Q: What needle should be used for embroidery on cardstock with a Brother SE400 to avoid ragged holes and tearing?
  A: Use a fresh 75/11 Universal or Sharp needle (not ballpoint) to make clean punctures instead of tearing the paper.
  • Replace: Install a new 75/11 Universal or Sharp needle before starting (old needles can be burred).
  • Inspect: Run a fingernail over the needle tip; discard it if it catches.
  • Avoid: Do not use a ballpoint needle on paper because it can tear rather than pierce cleanly.
  • Success check: Needle holes look like clean circles, not ragged “explosions.”
  • If it still fails: Reduce stitch density in the design or confirm the cardstock is true cardstock (printer paper is too thin).
• Q: How can Brother SE400 users tell if tear-away stabilizer is hooped tight enough for floating cardstock embroidery?
  A: The stabilizer must be drum-tight because it provides the entire foundation when the cardstock is floated.
  • Press: Push a finger into the center; it should bounce back, not feel saggy.
  • Look: Confirm there are zero wrinkles near the inner ring.
  • Tap: Listen for a dull “thud,” not a papery rustle.
  • Success check: The cardstock does not “walk” sideways during the first 10 stitches.
  • If it still fails: Re-hoop and tighten again; inconsistent tension is a common cause of drift on floated materials.
• Q: When floating cardstock on hooped stabilizer, how can Brother SE400 users avoid finger injuries near the needle?
  A: Keep fingers at least 2 inches away from the presser foot and use blue painter’s tape on corners if holding the paper feels unsafe.
  • Slow down: Set stitch speed to about 350–400 SPM for better control and less vibration.
  • Hold safely: Guide the paper only at the outer edges for the first few stitches, then remove hands once anchored.
  • Tape: Secure corners with painter’s tape instead of hands if nervous.
  • Success check: The cardstock stays flat without your hands near the needle after the first 5–10 stitches.
  • If it still fails: Stop immediately and re-align; do not try to “chase” shifting paper with fingers near the needle.
• Q: On a Brother SE400, what causes “postage stamp” perforation on embroidered cardstock and how can it be fixed fast?
  A: “Postage stamp” perforation usually comes from a dull needle or a design that is too dense for paper.
  • Change: Replace the needle with a fresh 75/11 Universal or Sharp.
  • Adjust: Reduce stitch density in software if the design is overly dense for cardstock.
  • Reinforce: Add a fusible backing to the back of the paper if extra strength is needed.
  • Success check: The stitched area holds together without tearing along a perforation line when handled.
  • If it still fails: Confirm the paper is cardstock (not thin copy paper) and slow the machine to reduce vibration.
• Q: How should Brother SE400 users tear away stabilizer from embroidered cardstock without bending or curling the paper?
  A: Tear the stabilizer away from the cardstock (not cardstock away from stabilizer) while the cardstock is held flat on a table.
  • Remove: Unhoop the stabilizer/paper sandwich from the hoop.
  • Flip: Place it face down on a flat table.
  • Hold: Press the cardstock flat with your palm.
  • Tear: Lift and tear the stabilizer away gently.
  • Success check: The cardstock remains flat with minimal curl after stabilizer removal.
  • If it still fails: Tear more slowly and in smaller sections; avoid pulling the cardstock upward.
• Q: When should embroidery users upgrade from a screw-tighten hoop to a magnetic embroidery hoop for batch work like repeated cardstock lid inserts?
  A: Upgrade when repetitive hooping becomes the bottleneck or causes wrist fatigue; magnetic hoops give fast, repeatable tension and faster stabilizer swaps.
  • Diagnose: Track whether “Hoop → Tighten → Retighten” is slowing production or hurting your wrist.
  • Optimize first: Keep floating cardstock, use painter’s tape as needed, and standardize your sequence (hoop stabilizer → float paper → stitch).
  • Upgrade tool: Use a magnetic hoop when you need consistent, instant clamping for many repeats.
  • Success check: Stabilizer swaps take only seconds and stitch placement stays consistent across a batch.
  • If it still fails: Re-check handling safety—commercial magnets can pinch fingers and must be kept away from pacemakers and magnetic-sensitive items.
