No More Hoop Burn on Sweatshirts: The Pre-Gauge Hooping Trick + A Clean Appliqué “MAMA” Finish on a Brother Single-Needle

If you’ve ever tried to appliqué a thick sweatshirt on a flatbed, single-needle embroidery machine, you already know the sinking feeling in your gut: you’re not “sewing,” you’re babysitting. You are visually wrestling heavy fabric, watching sleeves bunch up near the needle bar, praying the bulk doesn't drag the hoop and ruin a $30 garment.

The good news is that the process is actually a repeatable science. It is not about luck; it is about physics. The workflow John demonstrates is solid, but to make it "bulletproof" for a beginner, we need to respect two engineering realities:

1. Compression & Drag: Thick garments behave like fluids; they want to move.
2. Prep is 90% of the battle: Appliqué is won or lost before you press the "Start" button.

Below is the complete remediation of this workflow, rebuilt into a "Zero-Friction" guide with sensory checkpoints, specific safety margins, and the "why" behind every move.

The Calm-Down Primer: Sweatshirt appliqué on a Brother Innov-is single-needle is fussy—but it’s not “too hard”

A lot of beginners in the comments confessed to being terrified. Let's dismantle that fear. A sweatshirt is bulky, stretchy, and tubular—exactly the opposite of a stable, flat tea towel.

Here’s the mental shift you need: You are building a sandwich. Your goal is to bond the Garment (unstable) to the Stabilizer (stable) and the Appliqué Fabric (reinforcement) so they act as one solid unit.

One frequent question was, “Does the machine know to stop?” The Reality: Your machine is a blind robot. It follows coordinates. The "stops" are programmed color changes in the digital file (e.g., .PES or .DST).

• Stop 1: Placement Line (Human action required: Place fabric).
• Stop 2: Tackdown Stitch (Human action required: Trim fabric).
• Stop 3: Satin Finish.

Sensory Check: When the machine stops and beeps, it isn't an error. It is a "Wait Command" demanding your intervention.

Materials Needed for Sweatshirt Appliqué (and why each one earns its spot)

John’s supply list is the foundation, but to ensure professional results, we need to add the "Hidden Consumables" that pros use to prevent failure.

Core Essentials:

• Grey cotton sweatshirt: Pre-washed to shrink (crucial for accurate sizing).
• Appliqué design file: Must contain: Placement Run, Tackdown Run, Satin Finish.
• Fabric: Thin floral print cotton (Quilting cotton weight is ideal).
• Stabilizer: 2.5 oz to 3.0 oz Cutaway Stabilizer.
  • Why: Tearaway will disintegrate under the heavy satin stitching needed for sweatshirts, leading to gaps. Cutaway provides permanent structural support.
• Needle: size 75/11 Ballpoint (BP).
  • Why: Sharp needles cut the knit fibers of a sweatshirt, causing holes. Ballpoint needles slide between the fibers.
• Fusible Interfacing (e.g., HeatnBond Lite): Fused to the back of the floral appliqué fabric.
• Standard 5x7 plastic hoop.

Hidden Consumables & Tools (The Pro Add-ons):

• Temporary Spray Adhesive (e.g., KK100 or 505): To bond the stabilizer to the garment if not using a magnetic hoop.
• Curved Double-Edge Scissors: Essential for trimming inside the hoop without stabbing specific layers.
• Paper Template: Printed 1:1 scale of your design.


Preparing Your Appliqué Fabric with fusible interfacing so it doesn’t fray itself to death

John calls it out early: if your appliqué fabric is thin, it can fray on its own before you even get to the satin stitch.

The Action: Iron fusible interfacing to the back of your floral cotton. The Physics: Raw fabric edges are weak. When the needle hits them at 600 stitches per minute, they shatter. Interfacing turns your fabric into a paper-like material that cuts cleanly and holds a stitch.

Sensory Anchor: After fusing, the fabric should feel stiff, like cardstock. If it still drapes like a soft tissue, you haven't applied enough heat or the interfacing is too light.

Prep Checklist (Pre-Flight):

• Fabric: Interfacing is fused; edges are crisp.
• Thread: Bobbin thread is full (white); Top thread is the correct color.
• Needle: Fresh 75/11 Ballpoint needle installed. (Do not skip this).
• Stabilizer: Cut a piece of 2.5 oz Cutaway larger than the hoop by at least 1 inch on all sides.
• File: Design loaded; rotation checked (ensure "Top" of design matches "Top" of the hoop).


The paper template alignment-hole trick: perfect “A” centers without guessing

This is a low-tech engineering solution to a high-precision problem. It answers: “How do I know where the center is?”

The Workflow:

1. Print & Cut: Cut your paper template to the exact size of your hoop's inner dimensions.
2. Punch: Use your scissors or an awl to punch a 2mm hole dead center in the "A" or main design element.
3. Mark: Lay the paper template over your actual appliqué fabric.
4. Transfer: Use a Sharpie to dot through the hole onto the fabric.
5. Notch: Fold the fabric and snip a tiny diamond at that dot.
6. Orient: Draw an "UP" arrow on the back of the appliqué fabric.

Expected Outcome: You now have a physical registration point (the tiny hole) that allows you to see the placement stitch through the fabric for perfect alignment.

The Pre-Gauge Hooping Technique to avoid hoop burn on thick sweatshirts (stop tightening after hooping)

The Pain Point: "Hoop Burn"—that shiny, crushed ring on your sweatshirt that never washes out. This happens when you tighten the screw after the fabric is in. The friction crushes the fibers.

The Fix: Pre-Gauging (Friction Fit)

1. Fold: Fold the un-hooped sweatshirt edge over once to simulate the thickness.
2. Pinch: Pinch this fold in the hoop screw area without the inner ring.
3. Adjust: Tighten the screw until the opening matches that thickness visually.
4. Test: The inner ring should push into the outer ring with firm pressure (a "thud"), but you should not need to touch the screw again.

Sensory Anchor: When pushing the inner ring in, it should feel like closing a Tupperware lid—firm resistance, but not a wrestling match.

Commercial Context: If you frequently struggle with finding this tension sweet spot, investigate hooping for embroidery machine techniques involving magnetic frames. Unlike standard hoops that rely on friction (lateral pressure), magnetic hoops use vertical force, which eliminates fiber crushing (hoop burn) almost entirely.

Hooping a tubular sweatshirt with a standard 5x7 plastic hoop (and keeping stabilizer from sliding)

Hooping a tube (sweatshirt body) on a flat hoop is structurally awkward. The stabilizer wants to slide away.

The Tape Hack:

1. Anchor: Tape your cutaway stabilizer to the underside of the outer hoop ring. Use masking tape on all four corners.
2. Slide: Insert the outer hoop inside the sweatshirt body (between the front and back layers).
3. Align: Use your paper template (pinned to the shirt front) to align with the hoop's center marks.
4. Press: Press the inner hoop down. Start at the top (12 o'clock), then push the bottom (6 o'clock).

Setup Checklist (Go / No-Go):

• No Wrinkles: The fabric inside the hoop is taut like a drum skin, but not stretched out of shape.
• Square: The vertical grain of the knit runs perfectly straight up and down (use the hoop grid).
• Clearance: The back layer of the sweatshirt is completely clear of the hoop area.
• Stabilizer: Firmly attached; no gaps visible around the edges.

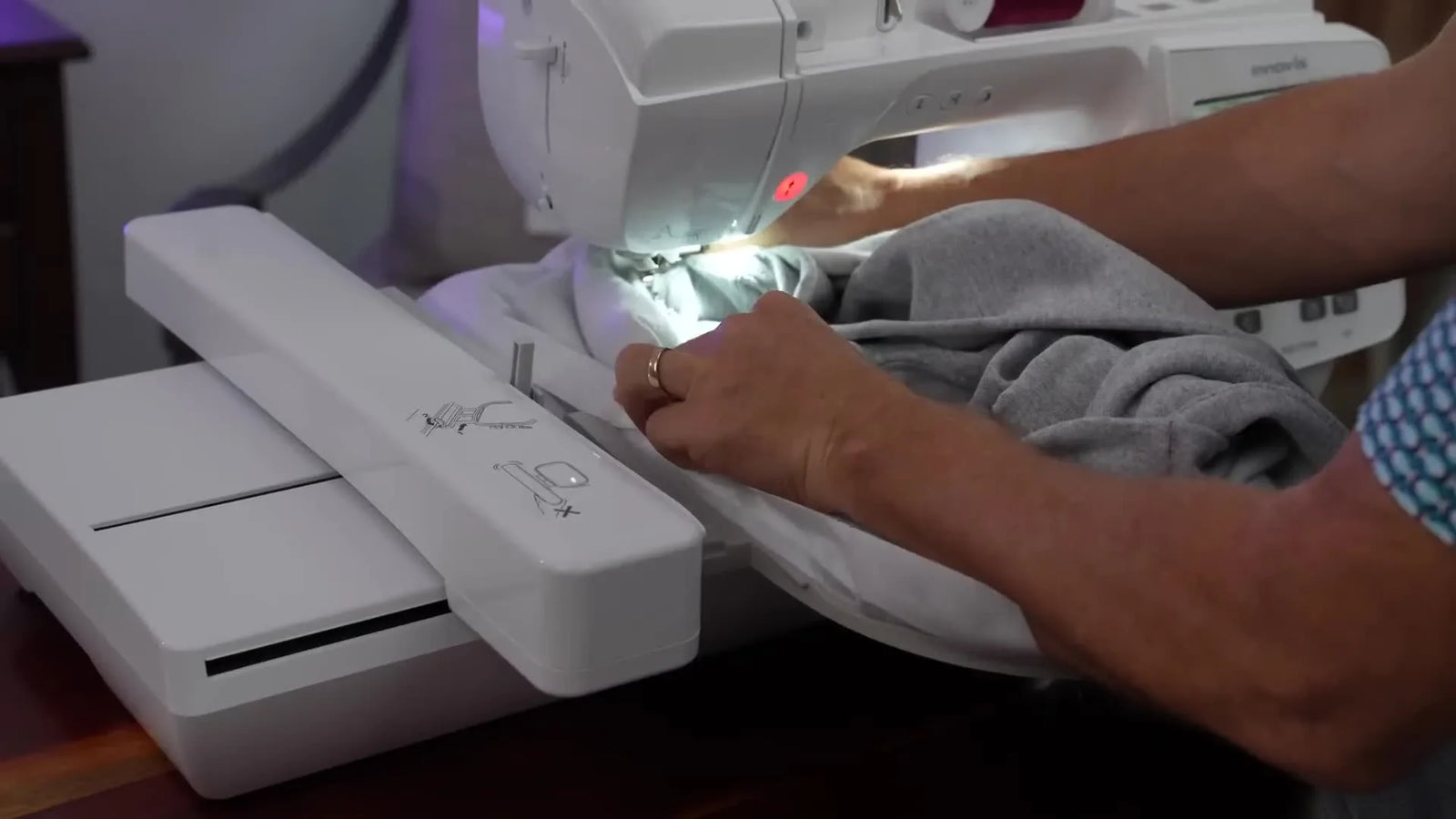

The flatbed “Bowl Method” loading on a Brother Innov-is: how to keep sleeves and bulk out of the needle path

This is the most dangerous part of the process for flatbed users. You must manipulate the sweatshirt so the back layer doesn't get stitched to the front.

The "Bowl" Technique:

1. Slide the hoop onto the machine arm.
2. Tuck the rest of the sweatshirt (collar, sleeves, waist) under and around the hoop, creating a "nest" or "bowl" shape.
3. The Drag Test: Gently move the pantograph arm (the part that moves the hoop) with your hand. Does the heavy sweatshirt drag on the table? If yes, support the weight with your hands or a table extension.

Speed Recommendation: For your first sweatshirt, reduce your machine speed. If your max is 800 stitches per minute (SPM), lower it to 600 SPM. This reduces the violence of the needle penetration and gives you more reaction time.

Warning: Physical Safety
Keep your hands clear of the needle bar! When forming the "bowl," it is tempting to hold the fabric close to the foot. A 600 SPM needle moves faster than your reflex. Keep fingers at least 4 inches away from the active needle area.

Placement stitch → align the appliqué using the tiny holes → tape it down → tackdown stitch

Step-by-Step Execution:

1. Placement Run: Press Start. The machine stitches a single outline. Stop.
2. Align: Place your appliqué fabric over the outline. Use your "tiny hole" trick to match the hole with the center of the stitched outline.
3. Secure: Tape the corners of the appliqué fabric down.
   • Tip: Use painters' tape or specific embroidery tape. Do NOT use duct tape (residue) or clear scotch tape (hard to peel).
4. Tackdown Run: Press Start. The machine stitches the fabric down. Stop.

Tool Upgrade (The "Aha" Moment): If you find yourself constantly re-taping or fighting the fabric shifting, magnetic embroidery hoops are a game-changer here. The strong magnets hold the sandwich flat instantly without the need for aggressive taping, and they allow for much faster adjustments if your alignment is slightly off.

Trimming in the hoop with 6-inch double-edge curved Gingher scissors: how to cut close without cutting stitches

This requires a surgeon's hand. You must trim the excess fabric without removing the garment from the machine arm (if possible) or by very carefully removing the hoop.

The Technique:

• Pull the excess fabric slightly up and away from the stitch.
• Lay the curved scissors flat; the curve prevents digging into the sweatshirt.
• The Safety Margin: Do NOT cut right against the thread. Leave 1mm to 1.5mm of fabric.
  • Why: Knits stretch. If you cut flush to the thread, the fabric might retract under the satin stitch, leaving a raw gap.

Sensory Anchor: You should hear a crisp "snip-glide-snip." If you hear a grinding noise or feel heavy resistance, you are likely cutting into the placement stitches or the stabilizer. Stop immediately.

The “Watch It Like a Hawk” rule: running the final stitches without trapping the sweatshirt

Now comes the Satin Stitch—the heavy, dense cover stitch.

The Danger Zone: As the hoop moves to the far left or right, it pulls the heavy sweatshirt material with it. Gravity can cause the sleeves to flop under the needle.

The Protocol:

1. Stand directly in front of the machine.
2. Keep your hands loosely cupping the excess fabric (the "bowl"), guiding it gently to ensure it glides. Do not push the hoop; just support the weight.
3. Listen: A rhythmic "thump-thump-thump" is good. A sharp "CRACK" or a grinding gear noise means the hoop has hit an obstruction. Hit the stop button instantly.

Commercial Insight: If you are doing this for a business (e.g., team jerseys), this "babysitting" kills your profit margin. This is why professionals often upgrade to machines designed for this, or use a magnetic hoop for brother system which has a lower profile and glides over bulk easier than bulky plastic clamps.

Final cleanup: removing stabilizer, trimming threads, and what “professional” looks like on the back

The Finish:

1. Unhook: Remove the hoop.
2. Stabilizer: Flip the shirt inside out. Cut the cutaway stabilizer around the design.
   • Rule: Leave about 1/2 inch (1 cm) of stabilizer around the design. Do not cut between the letters. The stabilizer describes the "block" of the design, keeping the chest area structured during washing.
3. Threads: Trim jump stitches with snips.

Visual Check: The back should look relatively clean, with the white bobbin thread taking up about 1/3 of the width of the satin column (the "1/3 rule").

Decision Tree: stabilizer + hooping method choices for sweatshirt appliqué

Stop guessing. precise setups yield precise results. Use this logic flow:

• Scenario A: Heavy Sweatshirt (Tubular)
  • Stabilizer: 2.5oz Cutaway (Floated or Taped).
  • Hoop: Standard 5x7 or Magnetic 5x7.
  • Needle: 75/11 Ballpoint.
• Scenario B: T-Shirt (Thin Knit)
  • Stabilizer: No-Show Mesh (Fusible PolyMesh).
  • Hoop: Magnetic (preferred to avoid burn) or Standard with "Pre-Gauge."
  • Needle: 70/10 Ballpoint.
• Scenario C: Woven Hoodie (No Stretch)
  • Stabilizer: Tearaway is acceptable here, but Cutaway is still safer for longevity.
  • Needle: 75/11 Sharp or Universal.


The Upgrade Path: when a hooping station, magnetic hoops, or a multi-needle SEWTECH pays off

You can appliqué on a single-needle machine, but recognize the "Pain Thresholds" where upgrading becomes a financial necessity, not just a luxury.

Level 1: The "Straightness" Upgrade (Hooping Station) If you spend 10 minutes trying to get a shirt straight, you are losing money. hooping stations use a jig system to ensure the hoop lands in the exact same spot on every shirt, reducing hooping time to 60 seconds.

Level 2: The "Wrist & Quality" Upgrade (Magnetic Hoops) If you are fighting screws or seeing hoop marks:

• The Fix: Magnetic hoops snap together. No screws. No friction burn.
• The Value: They hold thick fleece securely without crushing it.
• Safety Warning:

Warning: Magnetic Hazard
Industrial magnetic hoops are extremely powerful. They can pinch fingers severely. Keep 6 inches away from pacemakers. Never leave them "open" where they can snap shut unexpectedly.

Level 3: The "Volume" Upgrade (Multi-Needle Machine) If you have an order for 20 hoodies:

• The Pain: On a flatbed, you must "bowl" every shirt (risk of error) and change thread manually.
• The Solution: A SEWTECH Multi-Needle machine has a "Free Arm." The shirt hangs naturally under the needle (no bowling required). You load 15 colors at once. You press start and walk away.
• Also, for sleeves, you can use a dedicated sleeve hoop, which is nearly impossible to use effectively on a standard flatbed machine.


Operation Checklist: the exact checkpoints that prevent 90% of appliqué disasters

Verify these 3 things before pressing START on the final satin stitch:

• 1. Clearance: Is the back of the shirt clear? Put your hand under the hoop to feel.
• 2. Trim: Is the appliqué fabric trimmed cleanly? No loose threads poking up?
• 3. Bobbin: Do you have enough bobbin thread to finish? (Running out mid-satin stitch is a nightmare to patch).


Quick Troubleshooting: symptom → likely cause → fix

Final reveal: what “clean and sharp” really comes from

The finished sweatshirt in John's video looks crisp not because the machine is magic, but because the variables were controlled.

• Interfacing controlled the fraying.
• Cutaway stabilizer controlled the stretch.
• Pre-gauging controlled the hoop burn.
• The "Bowl" method controlled the gravity drag.

If you are a hobbyist, enjoy the slow craftsmanship of the single-needle process. But if you see yourself doing this daily, remember that tools like magnetic hoops and multi-needle machines exist to turn this "babysitting job" into a streamlined production line.

FAQ

• Q: Why does a Brother Innov-is single-needle embroidery machine stop and beep during sweatshirt appliqué?
  A: This is usually a normal programmed “wait command” for a color change (placement → tackdown → satin), not a machine error.
  • Confirm the design file includes three runs: Placement Line, Tackdown Stitch, Satin Finish.
  • Watch the screen/message and treat the stop as a required hand step: place fabric after placement, trim after tackdown.
  • Resume only after the correct intervention is done (fabric placed or trimmed).
  • Success check: The stop happens at consistent outline points, and stitching continues cleanly after you press Start again.
  • If it still fails… re-load the appliqué file and verify the correct design version (with applique steps) was selected.
• Q: What stabilizer and needle should be used for appliqué on a thick cotton sweatshirt on a Brother Innov-is single-needle embroidery machine?
  A: Use 2.5–3.0 oz cutaway stabilizer and a fresh size 75/11 ballpoint needle to prevent puckering and holes.
  • Cut stabilizer at least 1 inch larger than the hoop on all sides.
  • Install a new 75/11 BP needle (don’t reuse a dull needle on dense satin).
  • Avoid tearaway on sweatshirts because dense satin stitching can break it down.
  • Success check: The hooped area feels stable (not stretchy), and the satin stitch does not “sink in” or gap as the fabric moves.
  • If it still fails… check hooping tightness and confirm the garment is not being stretched out of shape in the hoop.
• Q: How can hoop burn be prevented when hooping a thick sweatshirt in a standard 5x7 plastic embroidery hoop?
  A: Pre-gauge the hoop screw before hooping and do not tighten the screw after the sweatshirt is inside the hoop.
  • Fold the sweatshirt edge once to simulate thickness, then set the screw opening to match that thickness before inserting the inner ring.
  • Press the inner ring in with firm, even pressure instead of “cranking” the screw down after hooping.
  • Stop adjusting once the hoop closes; re-hoop if it feels wrong instead of tightening harder.
  • Success check: Closing the hoop feels like a firm “Tupperware lid” push, and the sweatshirt fibers do not look shiny/crushed around the ring.
  • If it still fails… consider switching to a magnetic hoop system, which reduces friction-based crushing compared to screw hoops.
• Q: How can cutaway stabilizer be kept from sliding when hooping a tubular sweatshirt body with a 5x7 hoop on a flatbed Brother Innov-is?
  A: Tape the cutaway stabilizer to the underside of the outer hoop ring before inserting the hoop into the sweatshirt tube.
  • Tape all four corners of the stabilizer to the outer ring so it cannot drift while positioning.
  • Insert the outer hoop between the front and back layers of the sweatshirt body (keep the back layer clear).
  • Align using hoop center marks and then press the inner hoop in from 12 o’clock to 6 o’clock.
  • Success check: Stabilizer edges stay flush to the hoop ring with no gaps, and the fabric in the hoop is drum-taut but not stretched out of shape.
  • If it still fails… re-check that the back layer is completely outside the hoop area and not tugging the front during hoop closure.
• Q: How can sleeves and bulky fabric be kept out of the needle path when embroidering a sweatshirt on a Brother Innov-is flatbed (the “bowl method”)?
  A: Form the sweatshirt into a supported “bowl” around the hoop and run a drag test before stitching the satin finish.
  • Tuck collar/sleeves/waist under and around the hoop so nothing can flop under the needle area.
  • Manually move the hoop/pantograph arm gently to test for drag; support the garment weight if it drags on the table.
  • Reduce speed to about 600 SPM for the first sweatshirt to increase control.
  • Success check: The hoop travels left/right without the sweatshirt pulling, snagging, or collapsing into the stitching zone.
  • If it still fails… stop immediately and re-load the garment so the bulk is fully supported and the back layer cannot migrate under the needle.
• Q: What is the safest way to trim appliqué fabric in the hoop with 6-inch double-edge curved scissors without cutting stitches?
  A: Trim in the hoop by leaving a 1.0–1.5 mm fabric margin outside the tackdown line instead of cutting flush.
  • Pull excess appliqué fabric slightly up and away from the stitching line before cutting.
  • Lay curved scissors flat so the curve rides along the surface without digging into the sweatshirt.
  • Cut slowly and consistently; do not chase the thread line.
  • Success check: The cut edge is smooth, with a visible tiny margin, and no tackdown stitches are nicked or lifted.
  • If it still fails… stop trimming and inspect for resistance/grinding (you may be cutting stabilizer or stitches); re-position fabric and continue with smaller snips.
• Q: What safety rules should be followed to avoid needle injuries and magnetic pinch hazards during sweatshirt appliqué embroidery?
  A: Keep hands at least 4 inches from the active needle area, and handle industrial magnetic hoops as pinch hazards.
  • Keep fingers away from the needle bar when forming the “bowl”; guide fabric from a safe distance.
  • Stop the machine immediately if you hear a sharp crack or grinding noise (hoop obstruction risk).
  • If using magnetic hoops, keep magnets controlled so they cannot snap shut unexpectedly; keep them away from pacemakers (at least 6 inches).
  • Success check: Hands never enter the needle zone during stitching, and magnets are only brought together deliberately and slowly.
  • If it still fails… pause and re-stage the garment and tools before restarting—rushing is the main cause of injury on bulky items.
• Q: When does sweatshirt appliqué on a Brother Innov-is single-needle embroidery machine justify upgrading from technique tweaks to magnetic hoops or a multi-needle machine?
  A: Upgrade when “babysitting time” (re-hooping, re-taping, constant bowl management, manual thread changes) becomes the limiting cost, not the stitching itself.
  • Level 1 (Technique): Use pre-gauging, tape-stabilizer anchoring, and slower speed to reduce preventable failures.
  • Level 2 (Tool): Use magnetic hoops if hoop burn, screw-fighting, or fabric shifting/taping is the repeat problem.
  • Level 3 (Production): Move to a multi-needle free-arm style machine when volume orders (e.g., 20 hoodies) make constant bowl loading and manual thread changes impractical.
  • Success check: The chosen upgrade reduces repeated intervention steps (less re-taping/re-hooping) and keeps results consistent garment-to-garment.
  • If it still fails… track which step consumes the most time (alignment, hooping, trimming, or bulk management) and upgrade the specific bottleneck rather than guessing.
