No Software, No Excuses: Make a Clean Double-Sided Patch on a Brother Luminaire (Using Built-In Frame Shapes)

If you’ve ever looked at your machine and thought, “I only have a 4x4 hoop—so I can’t really make patches,” I’m going to stop you right there.

In my 20 years of teaching embroidery, this is the most common misconception I see. The truth? You can make a solid, sellable patch on most embroidery machines using nothing more than the built-in frame shapes on your screen. You don't need expensive digitizing software to start; you just need to understand the "Patch Sandwich" logic.

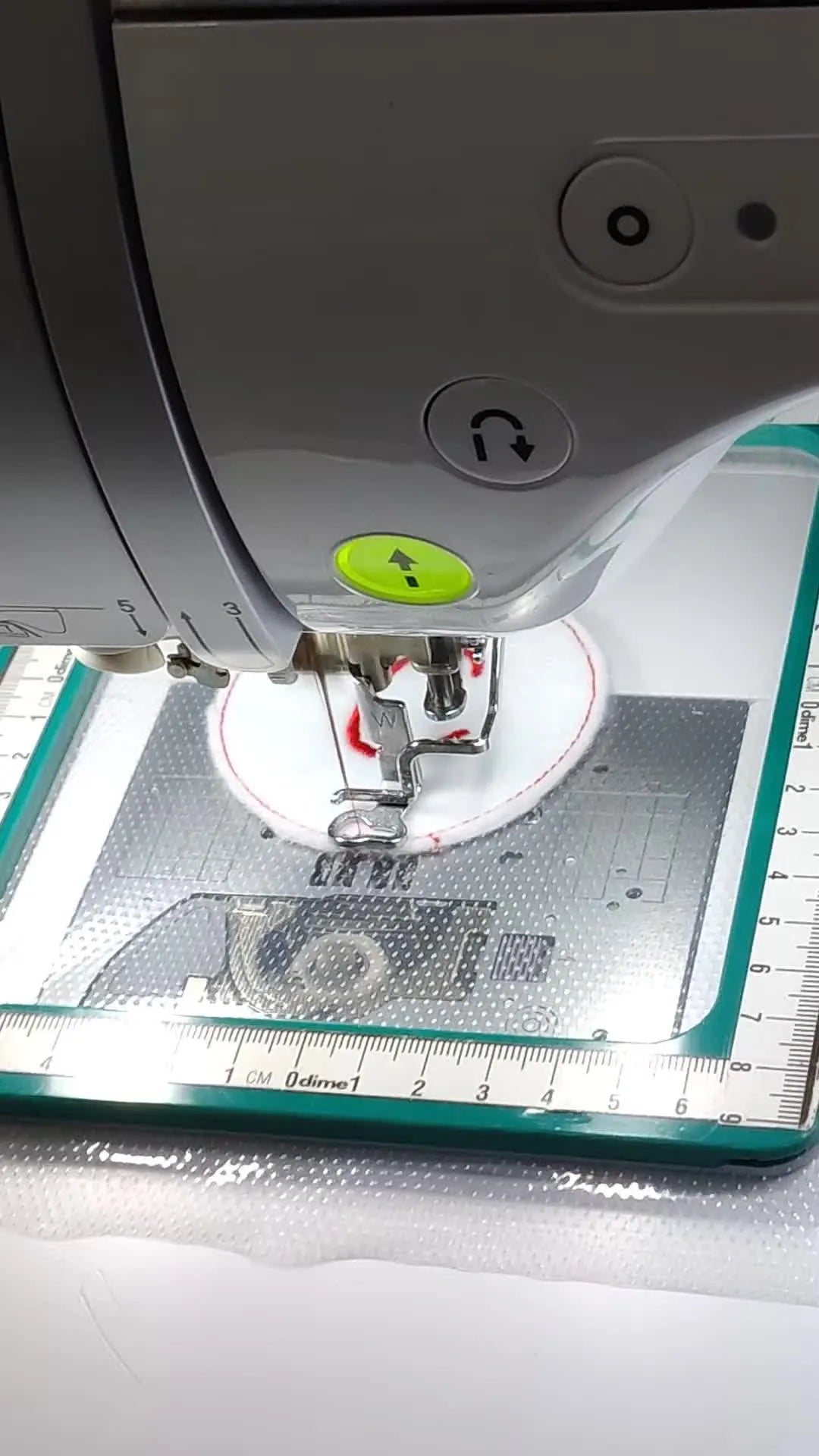

In this real-time breakdown (based on the Brother Luminaire Innov-is XP1 workflow but applicable to almost any machine), we are going to build the patch in layers: placement (lay down), tack down, center design, backing tack down, and a final satin stitch that binds everything together.

And yes—this approach is beginner-friendly. But I’m going to guide you like a shop foreman who has already broken the needles and ruined the fabric, so you don’t have to.

Calm the Panic: A Brother Luminaire Innov-is XP1 Patch Is Just Appliqué With Better Timing

A patch feels “advanced” to beginners because it looks like a distinct, finished product. But let's strip away the fear: Technically, a patch is just appliqué with a finished back and a dense border.

Here is the mental model to keep you from getting lost in the menus. Think of it as building a house:

1. Placement (Lay Down) line: The foundation. Stitches on stabilizer only, so you know exactly where to put your material.
2. Tack Down line: The framing. Stitches through your top fabric to hold it in place.
3. Center design: The decoration. Your letter, logo, or mascot inside the patch.
4. Backing tack down: The ceiling. Secures a second fabric layer underneath so the back looks professional.
5. Satin stitch border: The siding. Covers raw edges and locks the whole "sandwich" together.

If you can follow a recipe, you can do this.

One more reassurance before we start: The video demonstration shows imperfections, like a small white gap between the fabric and the border. That isn't failure—that is data. It shows us exactly where we need to tweak our trimming technique or thread choice.

Build the Patch File on the Brother Luminaire Screen: Layering Built-In Frame Shapes Without Software

We are going to program this entire patch directly on the machine screen using built-in frame shapes (circles, in this case). No computer required.

On the Brother Luminaire Innov-is XP1 (or your specific machine), successful patch making relies on one Golden Rule: Concentricity.

Machine context for this guide:

• Hoop Selection: 4x4 inch (100 mm x 100 mm) – the standard "starter" size.

The Programming Sequence (Execute in this exact order):

1. Placement: Select a Circle with a Running Stitch. This is layer 1.
2. Tack Down: Duplicate that exact circle. Do not touch the size. This is layer 2.
3. Design: Add your center design (e.g., a Letter "C"). Center it perfectly.
4. Backing Anchor: Add another Circle (same size).
5. Border: Add the final Circle but change the stitch type to Satin Stitch.

Chief Education Officer's Critical Note: Every circle layer must be the exact same size and center coordinates. If you resize the satin border circle by even 1mm, but forget to resize the tack down circle, your patch will fail.

If you are working with a brother 4x4 embroidery hoop, this "same size, same center" rule is non-negotiable. In a small field, you don't have the luxury of visual wiggle room. A 1mm misalignment looks huge on a 3-inch patch.

The “Hidden” Prep Pros Do First: Stabilizer, Felt Choices, and Why Your Patch Edge Fails Later

Before you touch the screen, we need to talk about physics. A patch is a high-density object. If your foundation is weak, the satin stitch will curl the patch like a potato chip.

The Material List (The "Shop Standard"):

• Fabric: Stiff Felt. Why? Felt doesn't fray. Woven fabrics (like Twill) unravel when cut, making them harder for beginners. Felt is your "training wheels."
• Stabilizer: Heat-Away Film or Heavy Water Soluble (Badgemaster). Avoid tear-away for patches; it leaves fuzzy hairy edges ("whiskers") that look unprofessional.
• Thread: 40wt Polyester embroidery thread (Red).
• Bobbin: Matching Color (Red). Standard white bobbin thread will show on the edges of a patch.
• Consumables: 75/11 Sharp Needle (ballpoints can struggle to pierce dense felt cleanly), 505 Temporary Spray Adhesive, Appliqué Scissors (Duckbill).

Why felt is forgiving (and why twill is less forgiving)

The creator uses felt because the structure is non-directional. When you stitch a satin border on felt, the needle sinks in. On Cotton Twill, if you trim too close, the fabric threads pop out. If you trim too loose, the satin stitch can't cover the raw edge.

Pro Tip: If you must use Twill for a "uniform" look, apply a fusible backing (like Heat n Bond Lite) to the back of the Twill before you start. This turns the fabric into a semi-rigid material that cuts cleanly like paper.

Prep Checklist (Do not skip these)

• Needle Check: Is your needle fresh? A burred needle will shred your satin border.
• Bobbin Check: Do you have a bobbin wound with thread

FAQ

• Q: How can a Brother Luminaire Innov-is XP1 make a sellable patch in a 4x4 hoop without digitizing software?
  A: Use the Brother Luminaire screen’s built-in frame shapes to build a “Patch Sandwich” in the correct stitch order.
  • Program layers in order: placement (running stitch) → tack down (duplicate same circle) → center design → backing tack down (same circle) → satin stitch border (same circle, satin).
  • Keep every circle the exact same size and perfectly centered before stitching.
  • Use stiff felt + a patch-appropriate stabilizer (Heat-Away film or heavy water soluble) to support the dense border.
  • Success check: the satin border lands evenly over the edge all the way around with no obvious drift or exposed raw edge.
  • If it still fails: recheck that no circle layer was resized or nudged even slightly—small misalignment shows fast in a 4x4 field.
• Q: What does “concentricity” mean when stacking Brother Luminaire Innov-is XP1 built-in circle frames for a patch?
  A: Concentricity means every circle layer shares the exact same center point and size so all stitch lines stack perfectly.
  • Duplicate the original circle for tack down and backing—do not redraw or resize.
  • Center the inside design (letter/logo) to the same patch center before stitching.
  • Change only the stitch type for the final circle (to satin), not the dimensions.
  • Success check: placement line, tack down, backing tack down, and satin border visually track one another with no “shadow” ring offset.
  • If it still fails: delete and rebuild the circles in sequence using duplicate to avoid accidental size changes.
• Q: What stabilizer and felt setup prevents patch edges from curling on a Brother Luminaire Innov-is XP1 patch?
  A: Start with stiff felt plus Heat-Away film or heavy water soluble stabilizer to resist the high density satin border.
  • Choose stiff felt as the top fabric because it does not fray and holds a clean edge for beginners.
  • Avoid tear-away for patches because it often leaves fuzzy “whiskers” on the edge.
  • Use temporary spray adhesive (like 505) to keep layers from shifting during dense stitching.
  • Success check: the finished patch stays flat instead of “potato chipping” after the satin border.
  • If it still fails: switch from lighter support to the heavier water soluble option and confirm the felt is truly stiff (not soft craft felt).
• Q: How do you prevent a white edge showing on a Brother Luminaire Innov-is XP1 patch satin border?
  A: Use matching bobbin thread to the border color so the edge looks solid when the stitch wraps.
  • Wind and install a bobbin that matches the top thread color (example shown: red bobbin for red border).
  • Stitch the satin border as the final step so it binds the entire sandwich cleanly.
  • Trim carefully before the border so the satin has consistent material to cover.
  • Success check: the patch edge reads as one clean border color with no pale/white “halo” peeking through.
  • If it still fails: check trimming consistency—small gaps between fabric and border are usually a trimming/coverage issue, not a total project failure.
• Q: What needle should be used for dense felt patches on a Brother Luminaire Innov-is XP1, and what safety rule matters most?
  A: Use a fresh 75/11 sharp needle, and stop immediately if needle contact or unusual punching sounds start—don’t “power through.”
  • Install a new 75/11 sharp needle before running the satin border (a burred needle can shred the border).
  • Run the patch in the correct sequence so thick layers are secured before the dense satin step.
  • Keep hands away from the needle path when trimming or positioning fabric between steps.
  • Success check: the satin border stitches look smooth (not shredded) and the needle penetrates felt cleanly without repeated snagging.
  • If it still fails: replace the needle again and recheck material thickness and layer buildup before attempting the border.
• Q: Why does cotton twill make Brother Luminaire Innov-is XP1 patches harder than stiff felt, and what is a safe starting workaround?
  A: Cotton twill can unravel and is less forgiving to trimming, so stabilize the twill with fusible backing before stitching.
  • Apply a fusible backing (example mentioned: Heat n Bond Lite) to the back of the twill before hooping.
  • Treat the reinforced twill like a more paper-stable patch face so the edge trims cleaner.
  • Keep the same patch build order (placement → tack down → design → backing tack down → satin).
  • Success check: trimmed edges stay intact under the satin border without threads popping out or fraying.
  • If it still fails: go back to stiff felt as the training material until trimming and border coverage are consistent.
• Q: When a Brother Luminaire Innov-is XP1 patch shows a small gap between fabric and satin border, how should the fix be prioritized (technique vs tools vs machine)?
  A: Fix gaps with technique first, then upgrade holding/efficiency tools only if production demands it.
  • Level 1 (technique): improve trimming accuracy and keep all circle layers perfectly matched in size/center before stitching.
  • Level 1 (materials): use stiff felt and patch-appropriate stabilizer (Heat-Away film or heavy water soluble) so the edge doesn’t pull back.
  • Level 2 (tooling): consider magnetic hoops when fabric shifting and rehooping time become the main bottlenecks (follow the hoop maker’s safety guidance).
  • Level 3 (production): consider a multi-needle setup when patch volume requires faster color changes and throughput.
  • Success check: the border consistently covers the edge with repeatable results from patch to patch.
  • If it still fails: rebuild the file on-screen ensuring concentric circles and test one patch on scrap before running a batch.
