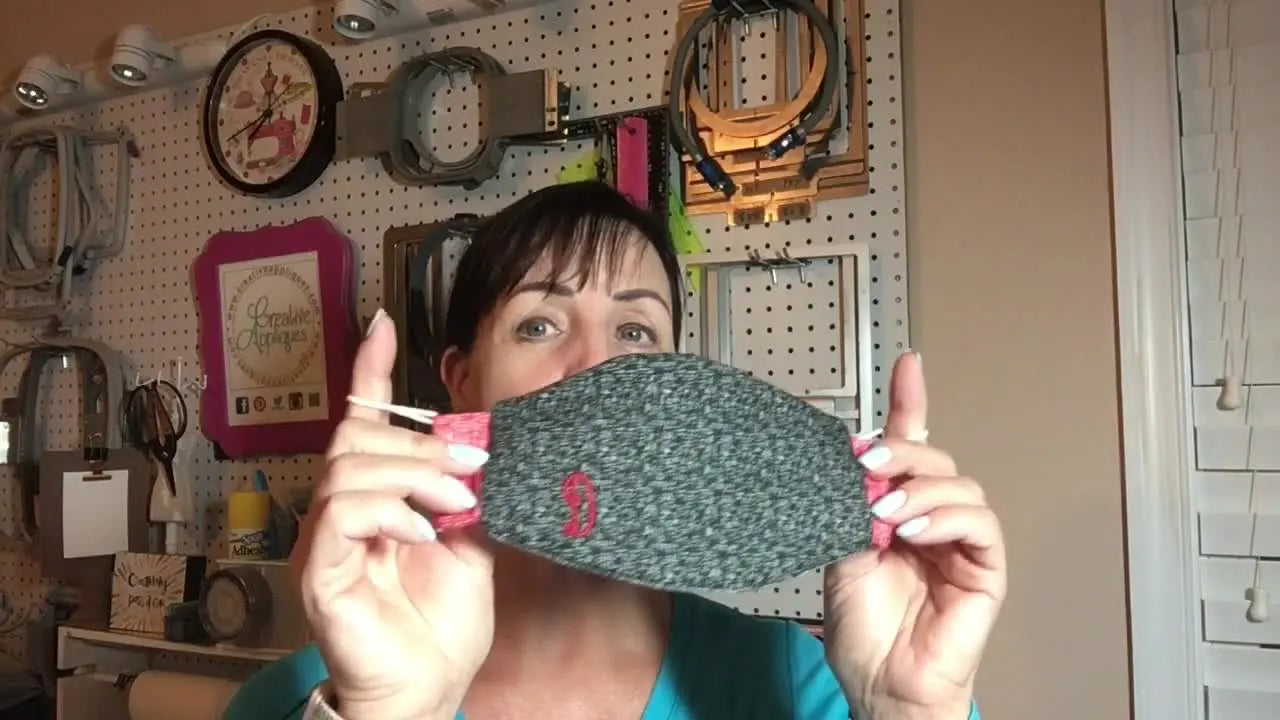

One-Hooping ITH Face Mask with Filter Pocket & Nose Wire: The Layering Order That Prevents Shifts, Snags, and Scrapped Hoops

Mastering the Complex ITH Face Mask: A Production-Ready Guide

When an In-The-Hoop (ITH) project involves this many layers—pleats, pockets, channels, and elastic—and still promises a "one hooping" completion, it is normal to trigger a specific kind of anxiety. You are essentially asking your machine to perform blind engineering. One slip of a fabric layer, one piece of tape lifting into the foot, and the entire project is scrapped.

However, machines like the SEWTECH multi-needle series or even standard single-needle home units are built for precision, provided the operator understands the "physics" of the stack. This mask design is worth the cognitive load: it features a contoured chin fit, side slots for adjustable elastic, a nose-wire channel, and a rear filter pocket.

The difference between a frustration-filled afternoon and a profitable production run lies in layer management. This guide will deconstruct the process, moving from "hoping it works" to "knowing it will work" by using sensory checks and industrial-grade protocols.

The Calm-Down Primer: Why This ITH Mask Looks Complicated (But Is Actually Linear)

The video’s promise is verified: you can indeed build the entire structure in one hooping. The "complexity" is an illusion caused by the number of raw pieces.

Think of this not as sewing, but as Lego assembly. Your hoop is the baseplate. Your job is simply to place the correct brick (fabric piece) at the correct time, while the machine acts as the glue. The machine handles the precision; you handle the logistics.

The Mental Model for Success: Treat this like a controlled assembly line. Do not cut pieces as you go. Prep everything first. Press every fold until it is razor-sharp. If you treat this casually, the layers will shift. If you treat it with military precision—pressing, taping, and observing—it becomes a repeatable, scalable product.

If you are planning to personalize the front (monogram or logo), this design is structurally forgiving because the "Front" (Piece A) is laid down flat before the complex pocket layers are added on top.

The "Hidden" Prep Pros Do First: Physics of the Stack

The video demonstrates using a standard 5x7 hoop with tearaway stabilizer and painter’s tape. While this works for one-offs, understanding why we choose these tools allows you to troubleshoot when things go wrong.

The Stabilizer Physics: We use tearaway here not just because it removes easily, but because we need immediate rigidity. The stabilizer must act as a firm foundation for the placement stitches.

• Sensory Check: When you hoop the tearaway, tap it. It should sound like a tight drum skin ("thump-thump"). If it sounds loose or papery, re-hoop. A loose stabilizer guarantees that your outline stitches won't match your final satin stitches.

The Iron is Your Co-Pilot: In ITH projects, pressing is not cosmetic—it’s structural. The folds you iron into the fabric act as "rails" for the channels.

• Tactile Check: The crease should be sharp enough that you can feel the ridge with your fingernail. If the fold is soft or puffy, the fabric will "creep" under the presser foot, destroying your dimensions.

Tool Up for Proficiency:

• Embroidery Machine: (5x7 hoop min).
• Stabilizer: Medium-weight Tearaway (1.5 - 2 oz).
• Adhesion: Painter’s tape (blue or purple low-tack). Pro Tip: Fold over a small tab at the end of every tape piece for easy removal.
• Cutting: 45mm Rotary cutter (for straight lines) and sharp Pinking Shears (essential for reducing bulk in the final turn).
• Turning: Hemostat forceps (the clicking locking pliers). These are non-negotiable for pulling elastic through narrow channels without losing your grip.

A Note on Production Speed: If you find yourself making these in batches of 10 or 50, the "hoop and tape" method becomes a bottleneck. This is where professional shops upgrade. Terms like magnetic embroidery hoops are your gateways to understanding efficient production; these tools clamp layers faster and prevent the "hoop burn" (creasing) that standard rings often leave on delicate cottons.

Prep Checklist (Do Not Proceed Until All Are Checked)

• Tearaway stabilizer is hooped drum-tight (tapping it produces a resonant sound).
• Iron is hot; all fabric creases are pressed to a "knife-edge" sharpness.
• Seam ripper is sharp (a dull ripper requires force, which leads to slipping and slicing the mask).
• Fresh Needle Installed: Size 75/11 Sharp (Universal) or 90/14 if using thick canvas. Do not use a ballpoint needle on woven cotton.
• Bobbin check: You have enough thread to finish the mask (running out mid-tacking stitch is a disaster).


Press Pieces B–E Like You Mean It: The Geometry of the Pocket

In the tutorial, Piece A is the "Face" and remains flat. Pieces B, C, D, and E form the mechanical parts of the mask.

The Protocol:

1. Align wrong sides together (so the pretty print is on both outsides).
2. Fold in half perfectly.
3. Steam Press. Do not drag the iron; lift and press to avoid warping the grain.

Why this matters: This crease is your alignment reference. Later, the instructions will say "fold faces center." If your fold is crooked, your pocket opening will be crooked, and the filter will not fit. You are creating the "finished edge" right now with heat.

The Time-Saver Side Slot Method (Piece F): Industrial Efficiency

This is a specific technique highlighted in the video that separates amateurs from production stitchers.

The "Double Width" Hack: The mask requires two side slots (finished size 4" x 3").

• Amateur way: Cut two small, fidgety 4x3 rectangles.
• Pro way: Cut one large 4" x 6" rectangle.
  1. Fold the top and bottom raw edges to meet in the center (like binding tape). Press.
  2. Fold in half again to enclose raw edges. Press.
  3. Cut precisely down the center line.

The Result: You now have two mathematically identical side slots with exactly the same fold tension. Why: Inconsistency here is the number one reason masks sit crookedly on the face. If the left channel is 1mm wider than the right, the elastic pulls unevenly. Using a rotary cutter and a square ruler here eliminates that variable.

The "Buttonhole Box" on Piece D: The Point of No Return

This step induces fear: You are about to cut a hole in your project while it is still in the machine.

The Sequence:

1. Placement stitch fires.
2. Align Piece D (Right side down).
3. Secure with Tape: Tape the bottom edge. Safety Note: Ensure the tape is flat. A buckled tape loop can catch the foot.
4. Stitch the "Buttonhole Box" (a small rectangle).

The Surgical Cut: You must cut the slit inside this box, going through both fabric and stabilizer.

• Sensory Anchor: You will hear the distinct "crunch" of the stabilizer being cut.
• The Goal: This slit serves two purposes. Professionally, it’s the nose wire insertion point. Mechanically, it is the turning hole for flipping the mask right-side out.

Warning: High Risk Maneuver. When using a seam ripper inside the hoop, keep your stabilizing hand outside the frame. If the ripper slips, it will puncture whatever is behind it (usually your finger). Also, ensure you do not slice the satin stitches bordering the box.

Stitching the Nose Wire Channel: Tape Management Level 100

After cutting the slit, you fold Piece D back down and tape it. The machine will now run a stitch path closer to the fold to create the channel for the wire.

The Risk: The presser foot is moving over a folded edge of fabric and a layer of tape. This is a common failure point where the foot gets stuck, leading to a "bird's nest" of thread underneath.

Mitigation:

1. Placement: Place tape perpendicular to the stitch line, but keep the tape ends away from where the needle will drop.
2. Hoop Integrity: If you notice the fabric "bouncing" or "flagging" (lifting up with the needle), your hoop tension is too low.
3. Tools: If you frequently struggle with fabric flagging on complex layers, research a pocket hoop for embroidery machine. These specialized clamps effectively minimize the gap between the needle plate and the fabric, though standard hoops work if tightening is done correctly.


The Mask Base (Piece A) & Personalization Strategy

The machine stitches the placement line on the stabilizer. You place Piece A Right Side Up (pretty side facing you).

The Pivot Point for Profit: Since Piece A is currently the top layer and is flat, THIS is the moment to embroider a logo, name, or design.

• Workflow: Stop the machine. Load your custom design. Center it. Stitch. Then resume the mask sequence.
• Caution: Ensure your design is rotated correctly! The "Top" of the mask is usually the edge with the nose contours. Check your PDF guide twice. A tangled bobbin here ruins the base layer.

Alignment Tip: If you are doing 50 corporate logo masks, manual placement is slow and prone to error. Professional shops utilize a hoop master embroidery hooping station to ensure every piece of fabric lands on the needle plate in the exact same coordinate, eliminating the "eyeball it and hope" method.

The Side Slots (Piece F): Orientation is Everything

This step determines if the mask is functional or trash.

The Rule:

1. Place slots on Left/Right edges.
2. Folded Edge Faces CENTER. (Repeat this mantra: Fold to Center).
3. Raw Edge Faces OUT.

The "Why": If you face the fold outward, when you turn the mask inside out, you will have a raw, fraying edge visible, and the channel will be sealed shut.

• Visual Check: Ensure the slot pieces sit strictly between the corner guidelines. If they drift too high or low, they will get caught in the top/bottom seams, sealing the channel permanently.


Nose and Chin Pieces (D & E): The Sandwich Begins

Now we place Piece D (Top/Nose) and Piece E (Bottom/Chin).

• Rule: Folds toward center. Raw edges outward.
• Tape Strategy: You are now building significant height (thickness). Tape the corners aggressively. You do not want these flaps folding over when the foot travels across the hoop.

Buttonhole Orientation: The instructor notes that the buttonhole (on Piece D) can be oriented to face the skin or face away from the skin.

• Expert Opinion: Orient it so it ends up on the inside (facing the face). This hides the surgical cut and the nose wire insertion point, resulting in a cleaner potential retail product.


The Back Pocket (Pieces B & C): Managing Bulk

This is the final layering step.

1. Piece B aligns with the bottom edge.
2. Piece C aligns with the top edge.
3. Overlap: They will overlap in the middle. This overlap creates the opening for the filter.

Sensory & Sound Check: At this point, you have roughly 6-8 layers of cotton plus stabilizer.

• Listen to your machine. If you hear a rhythmic "thud-thud-thud," your needle is struggling to penetrate.
• Immediate Action: Reduce embroidery speed. If you are running at 800 SPM (Stitches Per Minute), drop to 600 SPM. Speed creates heat; heat melts glue (from tape) and snaps thread. Slow and steady wins the race on thick stacks.


The Final Perimeter Stitch: The "Hold Your Breath" Moment

The machine will now stitch the final outline that locks all layers together.

Pre-Flight Check:

• Scan the hoop. Is any tape lifting?
• Are the Side Slots still flat?
• Is your finger near the start button? (Be ready to stop instantly if a corner lifts).

The Sound of Success: You want a consistent, machine-gun rhythm. A hesitation or a change in pitch usually indicates the foot has hit a ridge of fabric. If this happens, stop, trim the obstruction, or use a stiletto tool (or chopstick) to hold the fabric down—keeping your hands safely away from the needle.

Unhoop, Tear, Trim, Turn: The Reveal

1. Remove from hoop.
2. Tear Stabilizer: Support the stitches with your thumb while tearing to prevent distorting the shape.
3. Trim: This is critical. Use pinking shears to trim the seam allowance to about 1/4".
   • Why Pinking Shears? They create a zigzag edge that reduces bulk when turned and prevents fraying inside the mask. If using straight scissors, clip notches into the curved areas (nose/chin) so the fabric relaxes when turned.
4. Turn: Reach through the buttonhole slit. Grab the farthest corner. Pull gently.
   • Tool Tip: Use a chopstick or point turner to push the corners out to perfectly sharp points.






Setup Choices That Prevent Scrapped Hoops

The difference between a hobbyist and a pro is often the setup.

Needle Selection:

• Standard: 75/11 Sharp.
• Thick Stacks: If you are snapping thread or hearing the "thud," upgrade to a Topstitch 90/14. It has a larger eye and a sharper point/groove, reducing friction against the thread.

Thread Tension:

• Symptom: Bobbin thread showing on top (white dots on your dark fabric).
• Cause: The thick assembly is creating drag on the top thread.
• Fix: Slightly lower your top tension. Test this on a scrap sandwich first.

The Business of Speed: If you start selling these, the "rethreading for every color change" on a single-needle machine becomes your profit killer. This is the natural trigger point to consider a multi-needle system (like SEWTECH). The ability to have your placement color, tack-down color, and logo colors all loaded simultaneously changes the workflow from "labor" to "management."

Setup Checklist (The "Save Your Sanity" List)

• Correct Needle: Sharp 75/11 initially; have a 90/14 on standby.
• Bobbin: Full and correctly seated. (Visual check: threads pulling smoothly).
• Speed: Set machine to "Fine" or "Detailed" mode (approx 600 SPM).
• Orientation: Design rotated 90 or 180 degrees as per PDF instructions relative to your hoop driver.

Stabilizer Decision Tree: Choosing Your Foundation

One size does not fit all. Use this logic flow to determine your consumable setup:

1) Is the mask fabric standard Quilting Cotton?

• YES: Use Medium Weight Tearaway (2 layers if thin). > Go to Step 4.
• NO: (It is Knitt/Jersey/Stretchy). > Go to Step 2.

2) Dealing with Stretch (Knits/Spandex blends):

• Action: You must inhibit the stretch. Use Cutaway Stabilizer or fuse a lightweight interfacing (like Shape-Flex) to the back of the fabric before starting. Tearaway alone will cause the mask to warp into an oval.

3) Are you adding a dense logo (10,000+ stitches) to the front?

• YES: Switch to Cutaway Stabilizer. Dense stitches on tearaway will punch a hole right through it, causing the design to fall out or misalign.

4) Hooping Method:

• If you struggle with "Hoop Burn" (shiny rings left on fabric) or hand fatigue from tightening screws, professional stitchers search for how to use magnetic embroidery hoop tutorials. These hoops use magnetic force to clamp rather than friction, protecting the fabric grain and saving your wrists.

Troubleshooting the "Scary Stuff": Diagnostics Table

Warning: Magnetic Hoop Safety. If you upgrade to magnetic hoops for speed, respect the physics. These magnets are industrial strength. Keep them away from pacemakers. Do not let them snap together without a barrier in between—they can pinch skin severely. Store them separated.

The Upgrade Path: From "Crafting" to "Manufacturing"

This project is a perfect microcosm of embroidery business scaling. Replacing one mask is fun; replacing 50 exposes the inefficiencies in your workflow.

The "Hooping Efficiency" Ladder:

1. Problem: Hand pain and hoop burn marks on fabric.
   • Solution: brother 5x7 magnetic hoop. If you use a Brother machine, finding a compatible magnetic hoop for brother specifically can reduce hooping time by 40%. The magnetic seal handles the varied thickness of mask layers better than inner/outer rings.
2. Problem: Misaligned logos on the front of the mask.
   • Solution: Dedicated hooping stations. These assure that the logo is in the exact same spot on mask #1 as it is on mask #100.
3. Problem: Output is too slow; constant thread changes.
   • Solution: Multi-Needle Machines (SEWTECH). When you can set up 6 or 10 needles, you press start and walk away while the machine handles the complex color changes of the logo and the construction steps without intervention.

Operation Checklist (The Final Quality Control)

• Turning Slit: Cleanly cut, no nicked stitches.
• Channels: Open and clear (insert a chopstick to test before threading elastic).
• Side Slots: Folds facing toward the nose/center.
• Perimeter: No raw edges peeking out from the final satin stitch.
• Structure: Nose wire inserts smoothly; filter pocket opens without tearing.
• Aesthetics: Mask pressed flat, pleats defined, no visible stabilizer remnants.

FAQ

• Q: How can a home single-needle embroidery machine operator hoop tearaway stabilizer drum-tight for a complex ITH face mask so placement stitches stay aligned?
  A: Hoop medium-weight tearaway so it behaves like a rigid base, not a soft sheet.
  • Re-hoop with the stabilizer centered and fully tensioned before tightening the hoop.
  • Tap the hooped stabilizer before stitching and re-tighten if it sounds loose.
  • Avoid proceeding if the stabilizer surface feels “papery” or slack under your fingertip.
  • Success check: Tapping produces a clear “thump-thump” (like a drum skin) and the stabilizer does not ripple when you press it.
  • If it still fails… add a second layer of tearaway (especially if the first layer is thin) and re-check hoop tension.
• Q: What is the safest way to cut the SEWTECH ITH face mask “buttonhole box” slit inside the hoop without injuring fingers or cutting stitches?
  A: Cut only inside the stitched rectangle and keep the stabilizing hand outside the hoop frame.
  • Stop the machine completely and move the hoop to a comfortable access position.
  • Insert a sharp seam ripper inside the box and cut the slit through fabric and stabilizer without touching the border stitches.
  • Keep the non-cutting hand outside the frame so a slip does not puncture a finger.
  • Success check: A clean slit opens inside the rectangle and the border stitches remain intact; you can hear/feel the stabilizer “crunch” as it cuts.
  • If it still fails… replace the seam ripper (dull rippers require force and cause slips) and extend the slit only slightly, staying inside the box.
• Q: How do I prevent bird’s nesting when stitching the nose wire channel on a domestic embroidery machine for a layered ITH face mask with painter’s tape?
  A: Manage tape placement and stop fabric “flagging” before running the channel stitches.
  • Place painter’s tape perpendicular to the stitch line, but keep tape ends away from needle drop points.
  • Re-hoop if the fabric bounces/lifts with the needle; low hoop tension increases flagging on thick stacks.
  • Reduce speed if the presser foot starts riding up on a taped fold.
  • Success check: The machine keeps a steady rhythm and the fabric stays flat (no lifting) as the channel line stitches close to the fold.
  • If it still fails… remove and reapply tape flatter (no buckled loops) and run at a slower speed setting before attempting the channel again.
• Q: Why does an ITH face mask look twisted after turning on a home embroidery machine, especially when using side slot channels (Piece F)?
  A: Twisting is usually caused by uneven or misaligned side slots, not by the final perimeter stitch.
  • Cut side slots using the “double width” method (one larger rectangle, folded and cut in half) to make both sides identical.
  • Place side slots strictly between corner guidelines with the folded edge facing center and raw edge facing out.
  • Tape the slots parallel to the guidelines so they do not drift during stitching.
  • Success check: After turning, both channels sit at the same height and the elastic pulls evenly without skewing the mask.
  • If it still fails… inspect whether one side slot is 1–2 mm wider or placed higher; correct the cutting and placement on the next run rather than forcing the finished mask.
• Q: What needle and speed settings are a safe starting point for thick ITH face mask stacks to reduce thread shredding and “thud-thud” punching sounds?
  A: Start with a Sharp 75/11 and slow down; switch to a Topstitch 90/14 if the stack is heavy and friction is high.
  • Install a fresh Sharp 75/11 for woven cotton; move to 90/14 Topstitch when thread shreds/breaks on thick layers.
  • Reduce machine speed from high settings to about 600 SPM, and to 500 SPM if shredding continues.
  • Verify the bobbin has enough thread to finish (running out mid-tack is a common scrap cause).
  • Success check: The machine sound becomes consistent (no heavy “thud-thud”) and stitches form without repeated top thread breaks.
  • If it still fails… test a small “scrap sandwich” and slightly lower top tension when bobbin thread starts popping to the top as white dots.
• Q: When should an embroidery business upgrade from standard hoops and painter’s tape to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine for producing ITH face masks?
  A: Upgrade when setup time, hoop burn, hand fatigue, or thread-change downtime becomes the true bottleneck—not when one mask is hard.
  • Level 1 (technique): Batch-prep all pieces, press knife-edge creases, tape flat, and run slower (about 600 SPM) on thick stacks.
  • Level 2 (tooling): Move to magnetic hoops when hoop burn marks, inconsistent clamping on varied thickness, or screw-tightening fatigue slows production.
  • Level 3 (capacity): Move to a multi-needle system when frequent rethreading for placement/tack/logo colors is cutting profit and throughput.
  • Success check: Cycle time per mask becomes predictable and repeatable (less re-hooping, fewer scraps, fewer stops for thread changes).
  • If it still fails… add a hooping station for repeat logo placement accuracy before changing machines, especially for runs of 50–100.
• Q: What magnetic embroidery hoop safety rules should embroidery operators follow when using industrial-strength magnetic hoops for faster hooping?
  A: Treat magnetic hoops like industrial clamps: prevent snap-together pinch injuries and keep them away from pacemakers.
  • Keep magnets separated when storing; do not let frames snap together without a barrier in between.
  • Handle magnets with a controlled, two-hand grip to avoid sudden closure on fingers.
  • Keep magnetic hoops away from pacemakers and follow medical guidance for magnetic exposure.
  • Success check: The magnetic frames meet gently under control, with no sudden “slam,” and fingers never enter the pinch zone.
  • If it still fails… slow down the handling process and change the work surface/setup so the frames can be aligned without fighting magnetic pull.
