Patch Sleeves Without the Sewing-Machine Wrestling Match: The Barudan + -2mm Wilcom Trick That Flies Through Uniform Orders

Uniform sleeves are where “easy patch sewing” goes to die—tight space, awkward angles, and that constant fear you’ll miss the edge and have to rip stitches out.

The good news: the method Gina demonstrates on a Barudan multi-needle machine is exactly how a busy uniform shop should be attaching pre-made patches—fast, repeatable, and clean. The secret isn’t magic thread or a special presser foot. It’s a two-run file: a visible placement guide, then a tack-down run that sits -2.00 mm inside the patch edge so the needle bites firmly into the marrow border.

If you’re staring at a stack of sleeves and thinking, “There’s no way I’m doing this on a standard sewing machine,” you’re in the right place. We are going to break this down with the precision of a flight manual, ensuring you have the cognitive safety measurements to execute this perfectly on your first try.

The Real Reason a Barudan Multi-Needle Embroidery Machine Beats a Sewing Machine for Sleeve Patches

When you try to sew patches on sleeves with a regular sewing machine, you’re fighting the physics of the garment. Sleeves are tubular, bulky, and generally uncooperative; they are constantly trying to twist away from the needle plate.

On a Barudan (or any pro-sumer multi-needle machine), the dynamic changes. The sleeve is suspended and held taut by a hoop while the machine follows a digitized path with mathematical precision. Gina’s workflow is built for speed: the final tack-down is only 246 stitches. In production terms, this takes mere seconds. However, speed is useless without stability.

If you’re running production, this is where specialized barudan embroidery machine hoops become more than an accessory—they act as the chassis for your manufacturing process. They ensure that sleeve #1 and sleeve #24 are held with identical tension, removing human error from the equation.

Warning: Mechanical Safety Area
Keep hair, hoodie strings, lanyards, and loose sleeves away from the moving needle area and pantograph arm. A sleeve patch job feels “small,” but at 800-1000 stitches per minute (SPM), the machine generates torque sufficient to snag fabric or injure fingers instantly.

The “Hidden” Prep Pros Do Before They Ever Hit Start (Patch, Sleeve, Thread, and Adhesive)

This method is deceptively simple, but it is effectively zero-tolerance if you skip the preparation. Your goal is to remove three specific variables: shifting fabric, inconsistent patch sizing, and messy adhesive application.

The "Hidden" Consumables (Don't start without these)

• Needles: Ensure you are using a sharp point (Size 75/11 or 80/12) to penetrate the dense marrow border of the patch without deflecting.
• Bobbin: Check that you have at least 50% thread remaining. Running out of bobbin thread during a 20-second patch sew is a productivity killer.
• Precision Tweezers: For positioning the patch without putting your fingers in the "danger zone."

What you need (from the video workflow)

• Pre-made patches (Standard sizes, e.g., Fire Department logo or US flag).
• Uniform sleeves (Pre-washed if high shrinkage is expected).
• Wilcom Embroidery Studio (or equivalent digitizing software).
• Barudan multi-needle embroidery machine.
• Magnetic hoop (Preferred for tubular items to avoid hoop burn).
• KK100 or 505 spray adhesive.
• Navy blue thread (High contrast against the patch, low contrast against the uniform).
• White thread (Matches the patch border for the invisible tack-down).

Prep Checklist: The "Pre-Flight" Confirmation

• Patch Audit: Confirm the physical patch matches the digital file. Patches often vary by +/- 1mm from batch to batch.
• Thread Contrast: Verify the guide thread is visible to your eyes under the machine light. Gina uses navy on navy, but if your shop lighting is dim, use a lighter blue for the guide.
• Adhesive Protocol: Locate a deep trash can for spraying. Never spray near the machine’s intake fans.
• Hooping Environment: If you’re using a magnetic hooping station, verify it is set to the correct sleeve witdh to prevent over-stretching the fabric before it even enters the hoop.


Wilcom Embroidery Studio: Scan the Patch at 1:1 So Your Guide Run Actually Matches Reality

Digitizing by guessing dimensions is a recipe for failure. Gina starts by scanning the physical patch directly into Wilcom and stresses the 1:1 ratio. This is critical: scanners often default to 96 DPI or scaling to fit the page. You must ensure the software reads the scan at actual size.

What Gina does in Wilcom (The "Digital Twin" Process)

1. Input: Scan the patch into the software at a strict 1:1 ratio.
2. Trace: Use the Ellipse tool (or complex turning tool for shapes) to draw a single running stitch that traces the absolute outer edge of the patch scan.
3. Define: This outer running stitch is your "Placement Guide." It effectively tells you exactly where the patch lives in physical space.

If you’re doing this for a shop, save this master file as a template (e.g., “3-inch-Round-Patch-Template”). This stops you from reinventing the wheel for every uniform order.

The -2.00 mm Offset That Makes or Breaks Patch Attachment (And Why It Works)

Once the placement guide is accurate, how do you ensure the needle hits the patch border safely? Gina uses the Simple Offsets tool in Wilcom. This is the "secret sauce" of the operation.

The Exact Engineering Specs

• Tool: Simple Offsets.
• Offset Value: -2.00 mm (Negative value moves the line inward).
• Stitch Type: Running stitch (or a light zigzag if you need more grip, though a running stitch is specialized for speed).

Why -2.00 mm? Most patch marrow borders (the thick threaded edge) are 3mm to 4mm wide. A -2mm offset places the needle directly into the center or inner-third of that border. This ensures:

1. Grip: The needle penetrates the dense border, not the loose fabric in the center.
2. Safety: It stays far enough from the edge so the needle doesn't slip off and hit the metal throat plate.

From a practical standpoint, this is why the method is so fast: you’re not trying to “eyeball” a sewing line on a moving sleeve. You let the barudan magnetic embroidery frame hold the garment while the digitized geometry handles the precision.

Hooping a Uniform Sleeve on a Magnetic Hoop Without Distorting the Fabric

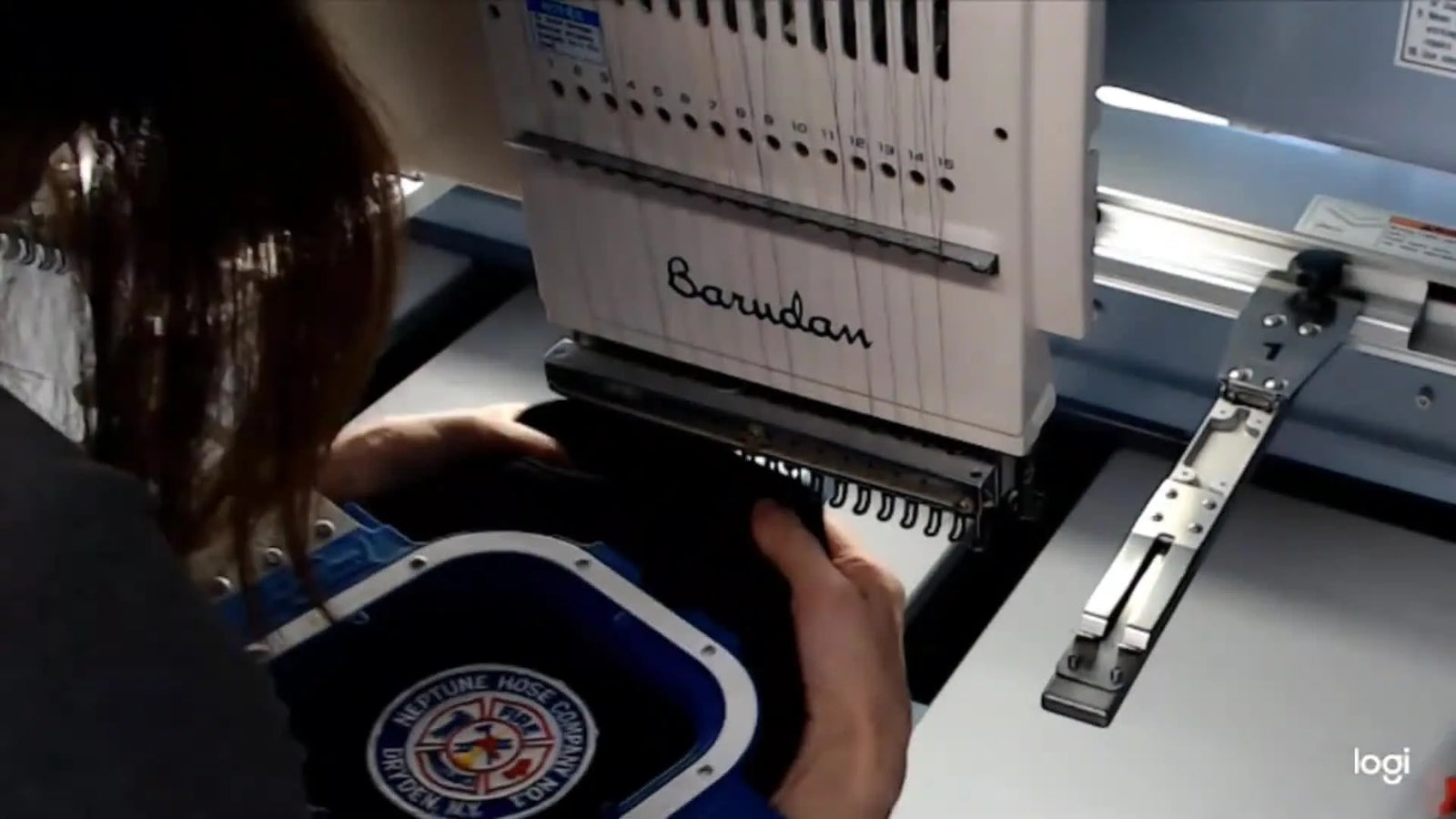

Gina loads the sleeve into a magnetic hoop and mounts it on the Barudan pantograph. Here is the expert reality: Sleeves are cylindrical. When you force a cylinder flat, it wants to distort.

Physics You Can Feel (The Sensory Check)

• The "Drum" Fallacy: Novices try to make the sleeve tight like a drum (high tension). Do not do this.
• The "Relaxed" State: You want the sleeve held flat and stable, but not stretched. If you pull it too tight, the fabric grains will open. When you un-hoop later, the fabric snaps back, and your perfectly round patch will warp into an oval.

Magnetic frames help significantly because they clamp vertically rather than forcing an inner ring into an outer ring. This vertical clamping pressure is why barudan magnetic hoops are the preferred industry standard for sleeves—they secure the material without crushing the grain.

Hooping Setup Checklist

• Orientation: Ensure the shoulder seam is aligned correctly so the patch sits straight.
• Obstruction Check: Reach inside the sleeve. Is the back layer of the sleeve caught? Ensure the "tunnel" is clear for the machine arm.
• Mounting: Listen for the solid click or thud when the hoop locks onto the pantograph arms. Wiggle it gently to confirm it is seated.


Stitch the Navy Guide Run First—This Is Your “Target” for Perfect Placement

Gina runs the first color stop (Navy Blue) to stitch the outline shape onto the blank sleeve fabric. This guide run is your insurance policy. It turns patch placement from a guessing game into a "paint-by-numbers" task.

Why Navy on Navy?

Using a thread that blends with the uniform (but is visible up close) means that if your patch is 0.5mm off-center, the guide line won't glare at the customer. It disappears under the patch edge.

Checkpoints (What you should see)

• Visual: A clean running-stitch outline.
• Tactile: Run your finger over the stitched area. Is the fabric puckering? If yes, your hoop tension is too loose. Stop. Re-hoop. Do not proceed to adhesive. A bad foundation leads to a ruined garment.


The Clean Adhesive Trick: Spray KK100 Inside a Trash Can (Your Machine Will Thank You)

Gina’s adhesive control tip is a hallmark of a professional shop. Spray adhesive is airborne glue. If it gets on your machine's rotary hook or needle bars, it causes friction and thread breaks.

The Protocol

1. Take the patch to your designated "dirty zone" (a trash can or a cardboard box).
2. Hold the patch inside the container.
3. Spray a light mist of KK100 or 505.
4. Wait 5 seconds. Let the solvent evaporate so the glue is tacky, not wet. Wet glue can soak through the sleeve fabric.


The Alignment Move Most People Skip: Take the Hoop Off the Barudan to Place the Patch

This is the step that prevents 90% of “I missed the edge” disasters. Gina removes the hoop from the machine because she “cannot see it good enough” to line it up perfectly while it’s attached to the pantograph. She is 100% correct.

Patch Placement Workflow

1. Dismount: Remove the hoop entirely from the machine arms.
2. Support: Place the hoop on a flat table.
3. Align: With the guide run clearly visible under good lighting, press the patch down. Match the edges precisely.
4. Secure: Use firm thumb pressure to bond the adhesive.

This workflow is smoother with magnetic frames because they are generally lighter and easier to handle, which is why experts usually recommend a magnetic embroidery hoop setup for high-volume patch jobs.

Warning: Magnet Handling Safety
Magnetic hoops use rare-earth magnets (Neodymium) which are incredibly powerful.
1. Pinch Hazard: Keep fingers clear of the mating surfaces; they snap together with crushing force.
2. Medical Danger: Keep these magnets at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices.

The “Seconds” Finish: Run the White Tack-Down on the -2 mm Path and Lock the Patch In

Once the patch is secure, Gina re-attaches the hoop to the Barudan. Now, the machine executes the second color stop.

What Happens in the "Black Box"

• Thread Change: The machine switches to White thread (matching the patch border).
• Pathing: The needle follows the -2.00 mm offset we created earlier.
• Penetration: The needle drives through the patch border and the sleeve fabric.
• Speed Recommendation: For beginners, dial your speed down to 600 SPM. This gives you reaction time if the patch corner starts to lift.

Operation Checklist (Before hitting Start)

• Seating: Is the patch fully adhered? Check the corners.
• Thread Color: Is the machine set to Stop #2 (White)?
• Clearance: Is the sleeve still hanging freely? Ensure the weight of the patch hasn't caused the sleeve to bunch up under the hoop.
• Observation: Watch the first 10 stitches. The needle should land cleanly inside the border. If it hits the center or misses the edge, hit Emergency Stop immediately.


“Can I Do This Without Embroidery Software?”—Here’s the Straight Answer (and the Practical Workaround)

One commenter asked if there’s a way to set this up without embroidery software. The honest technical answer is no. The integrity of this method relies specifically on the coordinate relationship between the Guide Run (0 mm) and the Tack-Down (-2.00 mm).

The "Shop Reality" Check

If you lack digitizing capability, you have two distinct paths:

1. Outsource: Pay a digitizer $10-$15 to create "Patch Template Files" for your standard patch sizes (e.g., 3-inch circle, 3x5 flag).
2. Invest: Purchase entry-level editing software. You don't need the $4,000 suite; you just need software capable of "Outline" and "Simple Offset."

If uniform contracts are a core part of your revenue, the efficiency gains from using correct software paired with magnetic hoops for embroidery machines (to reduce operator fatigue) will pay for the software investment within the first few large orders.

Odd Shapes, Florian Crosses, and “How Do You Scan This?”—Make the Method Work for Any Patch Outline

Does this work for shields, Maltese crosses, or irregular laser-cut shapes? Yes. The geometry doesn't matter; the process is identical.

The Scanning Technique

• Direct Scan: In Wilcom, select FILE > SCAN GRAPHIC. Lay the patch on your flatbed scanner.
• Contrast Background: If the patch is dark, put a white piece of paper behind it on the scanner. This helps the software auto-trace the edge more accurately.
• Calibration: Always verify dimensions after scanning. Use a digital caliper to measure the physical patch height, and confirm the digital image matches exactly.


Barudan “Frame-Out” and Returning to the Last Stitch: What You Can Do Safely During Patch Placement

A Barudan Pro3 user asked about using the "Frame-Out" feature (where the hoop moves forward for access) instead of removing the hoop.

While convenient, "Frame-Out" introduces risk. If the motors slip or the machine re-homes slightly differently, your calibration is lost. In Gina’s workflow, the safest route for repeatability is to remove the hoop.

However, if you are building a high-speed production station, integrating a dedicated hooping station for embroidery machine into your workflow creates a standardized environment. You remove the hoop, place it on the station, apply the patch, and re-mount. This is often faster and safer than leaning over the machine to place a patch while the pantograph is engaged.

Troubleshooting Sleeve Patch Attachment: Symptoms → Likely Cause → Fix You Can Do Today

Diagnose your issues using this "Low Cost to High Cost" logic.

Decision Tree: Choose Stabilizer and Hooping Strategy for Uniform Sleeves

Use this logic flow to determine your consumable setup.

1. Is the sleeve High-Stretch (Performance/Athletic Wear)?
   • Yes: Use Cutaway Stabilizer + Light temporary spray. Do not stretch the fabric during hooping.
   • No (Standard Poly/Cotton): Tearaway Stabilizer is usually sufficient, as the patch adds structural integrity.
2. Is the Patch Stiff/Thick?
   • Yes: Slow machine speed down. Use a sharper needle (75/11 Sharp).
   • No (Soft Badge): Standard operation.
3. Volume of Production?
   • < 10 Items: Standard hoops are fine. Take your time.
   • > 50 Items: Switch to Magnetic Hoops to prevent wrist strain and increase throughput.


The Upgrade Path That Actually Pays Off in a Uniform Shop (Without Turning This Into a Sales Pitch)

When you’re attaching patches occasionally, almost any method works. But when the volume increases, manual friction breaks your profit margin. Here is the operational logic for when to upgrade your tools:

1. The "Hoop Burn" Bottleneck
   • Trigger: You are spending more time steaming lines out of sleeves than sewing patches.
   • Standard: If rework exceeds 5% of your time.
   • Solution Level 1: Use "Hoop Magic" spray.
   • Solution Level 2 (Tool): Upgrade to MaggieFrame or SEWTECH Magnetic Hoops. They eliminate ring burn by using flat magnetic force.
2. The "Capacity" Bottleneck
   • Trigger: You are turning away orders of 50+ shirts because "it takes too long."
   • Standard: If your single-needle machine is running 6+ hours a day.
   • Solution Level 3 (Scale): This is the threshold for a Multi-Needle setup (like SEWTECH commercial models). The ability to preset 15 colors and hoop the next garment while the first is sewing doubles your output immediately.


Final Results: Fire Department Patch and US Flag Patch—Same File Logic, Same Fast Finish

Gina repeats the exact process on the opposite shoulder with the American flag patch. Guide run, remove hoop, align, press, re-mount, tack-down. The result is identical quality despite the different shape.

Make this your mantra: Do not rush the placement. The machine will sew the tack-down in 20 seconds regardless of how fast you move. Invest your time in the setup—stitch the guide, check the hoop, and press the patch firmly. Once you trust the -2.00 mm math, sleeve patches stop being a dreaded chore and become the most profitable 5 minutes of your production day.

FAQ

• Q: What needle size should a Barudan multi-needle embroidery machine use to attach pre-made sleeve patches without needle deflection?
  A: Use a sharp 75/11 or 80/12 needle as the default so the needle penetrates the patch marrow border cleanly without wandering.
  • Install: Fit a fresh sharp-point needle before starting the job.
  • Match: Choose 75/11 for most sleeves; move to 80/12 if the border is especially dense.
  • Inspect: Verify the needle is not bent and is fully seated in the needle clamp.
  • Success check: The needle punches the border smoothly with no clicking, no audible “pop,” and no visible stitch line wandering off the border.
  • If it still fails: Slow the machine down (a safe starting point is 600 SPM) and re-check patch adhesion and border thickness.
• Q: How much bobbin thread should be left on a Barudan multi-needle embroidery machine before running a 20-second sleeve patch tack-down?
  A: Start with at least 50% bobbin thread remaining to avoid a mid-run stop that wastes time and risks misalignment.
  • Check: Pull the bobbin case and visually confirm bobbin fill before hooping.
  • Replace: Swap to a fresh bobbin if the remaining thread looks under half.
  • Stage: Keep pre-wound bobbins at the patch station so the change is instant.
  • Success check: The tack-down finishes in one continuous run with no sudden loss of underside thread tension.
  • If it still fails: Inspect the bobbin path for adhesive contamination and clean the area per the machine manual.
• Q: How do I confirm a uniform sleeve is hooped correctly in a magnetic hoop before a Barudan multi-needle embroidery machine stitches the placement guide?
  A: Hoop the sleeve flat and stable—but not “drum tight”—because stretching the sleeve is what causes distortion after unhooping.
  • Align: Set the sleeve orientation (including seam alignment) so the patch will sit straight.
  • Clear: Reach inside the sleeve to confirm the back layer is not caught and the “tunnel” is open.
  • Mount: Lock the hoop onto the pantograph and gently wiggle-check seating after the solid click/thud.
  • Success check: After stitching the guide run, the outline looks clean and the fabric does not pucker when you run a finger over it.
  • If it still fails: Re-hoop immediately and do not proceed to adhesive until the guide run is smooth.
• Q: Why does a Wilcom Embroidery Studio sleeve patch template require a -2.00 mm Simple Offsets tack-down path instead of sewing directly on the patch edge?
  A: Use a -2.00 mm inward offset so the needle lands inside the patch marrow border for grip and edge safety, instead of slipping off the border.
  • Scan: Bring the physical patch into Wilcom at a strict 1:1 ratio to build an accurate placement guide.
  • Create: Digitize an outer running-stitch placement guide on the true patch edge.
  • Offset: Apply Simple Offsets at -2.00 mm and keep the tack-down as a running stitch for speed (a light zigzag may help in some cases).
  • Success check: During the first 10 stitches of the tack-down, the needle penetrates the border consistently—not the patch center and not off the edge.
  • If it still fails: Re-audit patch size variation (patches may vary by about ±1 mm) and confirm the scan/import did not scale.
• Q: How do I prevent KK100 or 505 spray adhesive overspray from contaminating a Barudan multi-needle embroidery machine during sleeve patch attachment?
  A: Spray adhesive only in a controlled “dirty zone” (like inside a trash can) and wait about 5 seconds before bonding the patch so glue is tacky, not wet.
  • Move: Take the patch away from the machine before spraying; never spray near intake fans.
  • Spray: Mist lightly inside a trash can or cardboard box to contain airborne glue.
  • Wait: Pause 5 seconds before placing the patch to let solvent flash off.
  • Success check: The patch grips immediately with no wet bleed-through and the machine runs without new friction-related thread breaks.
  • If it still fails: Reduce spray amount and clean sticky residue with alcohol on the hoop/garment area (keeping solvents away from sensitive machine parts unless the manual allows).
• Q: What is the safest way to align a pre-made patch to a stitched placement guide on a Barudan multi-needle embroidery machine sleeve hoop?
  A: Remove the hoop from the machine and place it on a flat table for patch alignment, because visibility and accuracy are dramatically better than aligning on the pantograph.
  • Dismount: Take the hoop fully off the machine arms after the guide run.
  • Support: Set the hooped sleeve on a flat surface under good lighting.
  • Press: Align patch edges to the stitched guide, then press firmly to bond the adhesive.
  • Success check: The patch edge tracks the guide evenly all the way around with no corners lifting before re-mounting.
  • If it still fails: Re-stitch the guide run with a more visible thread color for your lighting so the outline is unmistakable.
• Q: What safety rules should operators follow around the needle area and pantograph arm on a Barudan multi-needle embroidery machine when sewing sleeve patches at 800–1000 SPM?
  A: Treat sleeve patch runs as high-speed industrial motion—keep hair, hoodie strings, lanyards, and fingers away from the needle and pantograph because snags happen instantly.
  • Secure: Tie back hair and remove dangling items before starting.
  • Position: Use tweezers for positioning instead of putting fingers near the needle zone.
  • Observe: Watch the first stitches from a safe distance and be ready to hit Emergency Stop if placement is off.
  • Success check: No loose items enter the moving area, and the sleeve fabric hangs freely without being pulled toward the needle.
  • If it still fails: Reduce speed (a safe starting point is 600 SPM for beginners) and reorganize the work area so nothing can dangle into the path.
• Q: What safety precautions are required when handling neodymium magnetic embroidery hoops for sleeve patch work on a Barudan multi-needle embroidery machine?
  A: Handle magnetic hoops as pinch-hazard tools and keep them away from implanted medical devices because the magnets can snap together with crushing force.
  • Grip: Keep fingers clear of mating surfaces when seating the top and bottom parts.
  • Control: Set the hoop down flat before separating or joining to prevent sudden jumps.
  • Separate: Keep magnets at least 6 inches away from pacemakers, insulin pumps, and other implanted devices.
  • Success check: The hoop seats without finger pinches and stays stable when lifted and re-mounted.
  • If it still fails: Slow down the handling step and consider staging the hoop on a dedicated flat station so the magnets cannot twist or slam together.
