If you have ever felt the sinking sensation of watching a design that looked perfect on your screen turn into a puckered, misaligned mess on your machine, you are not alone. It is a rite of passage for every embroiderer. The harsh truth is that most stitch-out disasters do not happen because the machine "acted up"—they happen because the foundational logic in Design Settings conflicted with the physical reality of your fabric and hoop.

As someone who has spent twenty years on the production floor, I view software not just as a design tool, but as a set of instructions for a blind robot (your machine). If you tell the robot the fabric is thick when it is thin, or the hoop is square when it is rectangular, the robot will fail.

This guide rebuilds the setup process shown in the video but adds the "Experience Layer"—the sensory checks, safety guardrails, and production secrets that turn a gamble into a guarantee.

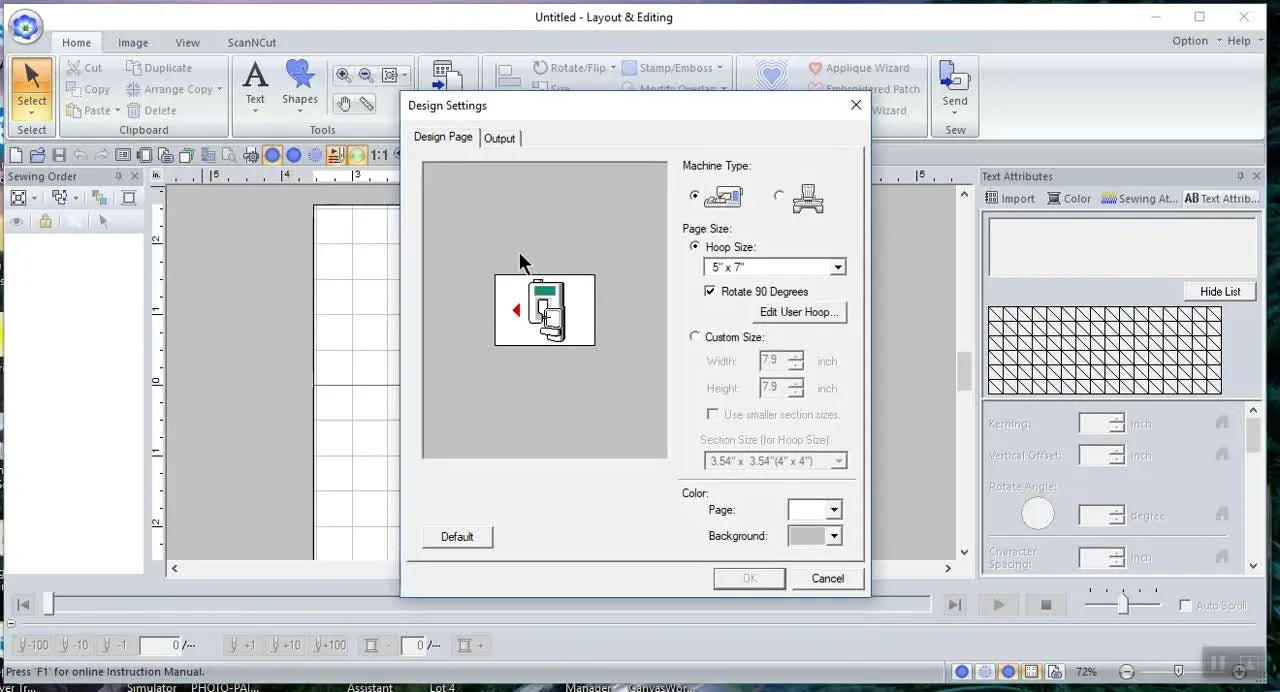

1. Accessing Design Settings: Build a "Cockpit" for Efficiency

Time is your most valuable asset. Hunting through menus breaks your flow states. In the video, we see three ways to access Design Settings: via the Wizard, the Menu Bar, or a shortcut.

The Pro Move: Do what the video demonstrates in the final step—add Design Settings to your Quick Access Toolbar. Why? Because in a production environment, you will check this menu every single time you change garments.

• Visual Check: Look for the small "flower page" icon.
• Action: Right-click it and select "Add to Quick Access Toolbar."
• Result: You now have a one-click cockpit to verify your flight plan before takeoff.


2. Machine Type & Hoop Selection: The Anchor of Your Reality

Inside Design Settings, the first fork in the road is the machine type: Single Needle or Multi Needle. This is not a cosmetic choice; it dictates the physics of your workspace.

The Single vs. Multi-Needle Paradigm

When you toggle these icons, PE-Design 11 changes the available hoop list.

• Single Needle: constrained by the attachment arm on one side.
• Multi Needle: allows for larger fields and different attachment mechanisms.

The "Phantom Hoop" Trap: Beginners often select a hoop in the software that is slightly larger than what they own, thinking, "I'll just shrink it later." Don't do this. If you select a brother 5x7 hoop in the software but attach a 4x4 hoop to the machine, the needle will strike the frame.

• Auditory Check: A needle striking a hoop makes a sickening "CRACK" sound. That is the sound of your timing gear slipping or a needle bar bending.
• Rule: Match the software hoop to the physical hoop sitting on your desk right now.

The Multi-Position Hoop (The Asterisk *)

The video highlights hoops marked with an asterisk (*). These are multi-position hoops.

• How it works: The hoop is larger than the machine's sewing field. You stitch Section A, then physically move the hoop to attachment points for Section B.
• The friction point: While great for hobbyists extending their range, they require perfect re-alignment. If you find yourself doing this for 50+ shirts, the labor cost eats your profit. This is usually the threshold where a business owner calculates the ROI of upgrading to a SEWTECH Multi-needle Machine to get a true large-format field without the manual labor.


3. The "Rotate" Mystery: Why Is It Greyed Out?

A common frustration (and a major point in the comments) is the "Rotate" angle setting being greyed out.

The Logic: Your machine's carriage has physical travel limits.

• Standard Hoops (e.g., brother 4x4 embroidery hoop): Often square or fixed-orientation. Rotating the hoop (not the design) is physically impossible on the machine arm, so the software disables it.
• Cap Frames: These have a strict "up" and "down."

Troubleshooting: If you cannot rotate the design (not the hoop), check yourbounding box. If rotating the design by 90 degrees pushes even one stitch outside the printable area, PE-Design 11 will block the action.

Warning: Never force a design into a hoop by shrinking it more than 10-15% without re-digitizing (re-calculating stitches). If you shrink a logo blindly to fit a 4x4, the density will skyrocket, leading to a "bulletproof vest" patch that breaks needles.

4. Multi-Position Hoop Strategy: Visualizing the Split

If you are using a multi-position hoop, pay close attention to the section lines shown in the video.

Sensory & Safety Check:

• Visual: Do not place high-density elements (like small lettering) exactly on the split line.
• The Risk: If your mechanical alignment is off by even 1mm during the hoop shift, a letter on the split line will look "sliced" or disjointed.
• Mitigation: Always design so the split happens in white space (air), not through thread.

If precise alignment is becoming a daily battle, many users invest in a hooping station. These tools mechanically lock your hoop and garment in place, ensuring that "Section A" and "Section B" align perfectly with the grain of the fabric.

5. Custom Hoops: Mapping the Unknown

The User Hoop Settings allows you to define custom boundaries. This is essential if you are using third-party tools.

The Magnetic Hoop Revolution: The video creates a custom 3.9" box. In the real world, this often corresponds to non-standard frames or magnetic embroidery hoops for brother.

• The Pain Point: Standard hoops require "stuffing" the inner ring into the outer ring. This causes "Hoop Burn" (friction marks that ruin delicate velvet or performance wear).
• The Solution: Magnetic hoops clamp flat. They hold tight without the friction burn.
• Setup: Measure the internal sewingable area of your magnetic hoop exactly and enter it here. Do not guess.

Warning: Magnetic Safety. Industrial magnetic hoops use neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can crush fingers if they snap together.
* Medical: Keep away from pacemakers.
* Tech: Keep away from credit cards and phone screens.

6. Visualizing Reality: Page & Background Colors

Do not digitize on a white background if your fabric is white. You will miss gaps in your underlay.

• The Habit: Set the Page Color to match your target garment (e.g., Navy Blue).
• The Benefit: You will instantly see if your white lettering has sufficient density or if the navy fabric is showing through. This is the cheapest "quality control" tool you have.


7. Output Sewing Area: The Center Point Debate

The video discusses two output options: Design Page Area vs. Use Existing Design Area.

• Design Page Area: Locks the center of the hoop as the absolute zero.
• Use Existing Design Area (Recommended): Centers the needle on the design itself.

Why the Expert Chooses "Existing Design Area": Imagine you hoop a shirt, but it's slightly crooked or 1 inch too low.

• If you chose "Design Page," your machine expects the center to be the physical center of the hoop. You have less room to jog the needle to potential fix the placement.
• If you chose "Existing Design," you can jog the needle to where you want the center to be on the fabric, set the origin, and sew. It gives you agility.


8. Jump Stitch Trimming: The "Clean Output" Setting

Setting Jump Stitch Trimming to 0.04 inch (approx 1mm) tells the machine: "If the jump is longer than this, cut the thread."

The Trade-off:

• Too Low: Machine cuts constantly, slowing down production and increasing wear on the cutter blade.
• Too High: You spend 20 minutes manually trimming jump stitches with scissors.
• Sweet Spot: 0.04" to 0.10" is standard for most detailed logos.


9. Fabric Selector: The "Hidden Engineer" in PE-Design

This is the most critical segment for stitch quality. The video demonstrates changing from Terry Cloth to Sheer, causing the stitch count to drop from 2157 to 1847.

Why this matters (The Physics):

• Terry Cloth: Needs high density and heavy underlay to prevent the stitches from sinking into the loops (the "lost in the grass" effect).
• Sheer: Needs low density. If you put 2000 stitches into a thin sheer, it will bunch up and create a bullet-hole effect.

The Stabilizer Math: The software suggests stabilizers, but you must verify with your hands.

• Tactile Check: For Terry Cloth, use a water-soluble topper. It should feel like thin plastic wrap. This floats the thread above the pile.
• Structural Check: For Sheer, use a mesh Cutaway or a strong Tearaway depending on the design coverage.


10. Calibration: Verify 1:1 Scale

Never trust your monitor blindly. A 4-inch design might look like 6 inches on a high-res screen.

• The Test: Hold a physical ruler to the screen as shown in FIG-10.
• The Result: When you zoom to 100%, you see the design exactly as it will appear on the shirt. This is crucial for judging if text is too small (under 4mm is risky for legibility).


11. Units: Pick a Lane

Inches or Millimeters?

• Engineering Truth: Embroidery machines natively "think" in millimeters (0.1mm steps).
• US Workshop Reality: Most customers order "a 4-inch logo."
• Advice: Set your rulers to Inches for layout, but keep your density/stitch length mental models in Millimeters (e.g., standard density is 0.4mm). Consistency prevents conversion errors.


12. Grid & Guidelines: Your Digital Hooping Station

The Grid (FIG-12) and Guidelines (FIG-13) are your digital alignment tools.

How to use them for production:

1. Set a Guideline for the baseline of your text.
2. Visual Check: Does the bottom of the "y" drop below the line? Does the "o" sit slightly below to correct for optical illusion?
3. Real World Mapping: If you use a physical hooping station for embroidery to ensure your shirt is straight, these digital guidelines ensure the text is straight relative to the hoop. The two systems must work together.

Snap to Grid (FIG-14):

• Love/Hate Relationship: It is great for geometric patterns but terrible for fine-tuning text kerning.
• Pro Tip: Toggle it OFF (using the shortcut) when nudging letters for perfect spacing.




13. Ribbon Customization: Optimization

Moving the "Thread Trimming" view to your main ribbon (FIG-15) is a micro-optimization that saves thousands of clicks over a year. Customize your workspace to match your workflow.

5 Minutes to Success: The Pre-Flight Checklists

Do not hit "Write to Card" or "Send to Machine" until you have cleared these gates.

Phase 1: The Design Setting Gate

• Machine Mode: Is Single/Multi selected correctly?
• Hoop Validated: Does the screen hoop match the physical hoop on your desk?
• Fabric Profile: Did you select the correct fabric type (e.g., Pique vs. Denim)?
• Attributes: Did you allow the software to adjust density based on that fabric?
• Output center: Is it set to "Existing Design Area" (for flexibility) or "Design Page" (for fixed placement)?

Phase 2: The Physical Setup Gate

• Stabilizer Choice: Does it match the fabric elasticity? (See Decision Tree below).
• Hoop Tension: Is the fabric "drum tight" (for woven) or "neutral/flat" (for knits)?
• Needle Check: Is the needle new? (A dull needle causes 50% of thread breaks).
• Bobbin Check: Is the bobbin full? Do you see the "1/3rd white thread" tension proof on the back of a test run?
• Loading: If using a snap hoop for brother, is the magnetic hold secure across all thick seams?

Phase 3: The Hidden Consumables (Do you have these?)

• Temporary Spray Adhesive (KK100 or similar): Essential for floating items on magnetic hoops.
• Water Soluble Topper: Mandatory for towels/fleeces.
• 75/11 Ballpoint Needles: The default for knits/polos.

Decision Tree: Fabric -> Stabilizer -> Hooping Logic

Use this logic flow to prevent the most common "Design Settings" failures.

1. Is the fabric Stretchy (Polo, T-shirt, Performance Knit)?

• YES:
  • Software: Select "Knit" profile (reduces pull compensation slightly).
  • Stabilizer: Cutaway (Must hold structure forever).
  • Hooping: Do not stretch the fabric. Use a hoop master embroidery hooping station or similar aid to hoop neutrally.
• NO: Go to step 2.

2. Is the fabric High Pile (Towel, Fleece, Velvet)?

• YES:
  • Software: Select "Terry Cloth" (Increases underlay, reduces density).
  • Stabilizer: Tearaway (Back) + Water Soluble (Top).
  • Hooping: Avoid crushing the pile. magnetic hoops for brother are superior here as they avoid the "ring burn" of traditional hoops.
• NO: Go to step 3.

3. Is the fabric Woven/Stable (Denim, Canvas, Twill)?

• YES:
  • Software: Standard settings.
  • Stabilizer: Tearaway is usually sufficient.
  • Hooping: Tight like a drum skin.

Troubleshooting: When Good Settings Go Bad

The Production Reality Check

PE-Design 11 is powerful, but it is just the brain. Your machine is the muscle. When your volume increases, you will find that "settings" aren't the bottleneck—physics is.

• If you are fighting hoop burn on delicate items, searching for "terms like magnetic embroidery hoop" is your first step toward professional finishing.
• If you are spending hours re-hooping for multi-position designs, consider the economics of a SEWTECH Multi-Needle Machine. The ability to use a single large frame (e.g., 8x12 or larger) replaces the need to split designs entirely, turning a 50-minute struggle into a 20-minute run.

Master the settings first. Then, equip your shop to handle the speed you have unlocked.

FAQ

• Q: In Brother PE-Design 11 Design Settings, how do I prevent a needle strike by matching the software hoop to the physical embroidery hoop (Brother 4x4 vs Brother 5x7)?
  A: Select the exact hoop you will mount on the machine right now—do not “pick bigger and shrink later.”
  • Open Design Settings and choose the correct Machine Type (Single Needle or Multi Needle) first, then select the matching hoop size.
  • Confirm the physical hoop on the table matches the on-screen hoop dimensions before sending the file.
  • Avoid “phantom hoop” sizing; a mismatch can drive the needle into the frame.
  • Success check: No “CRACK/crunch” sound during sewing, and the needle path stays inside the hoop boundary.
  • If it still fails: Re-check machine mode (Single vs Multi) because PE-Design 11 changes the available hoop list based on that selection.
• Q: In Brother PE-Design 11, why is the Design Settings “Rotate” angle greyed out when using a standard hoop or cap frame?
  A: The rotate option may be disabled because the hoop/frame orientation is physically fixed or rotation would push stitches outside the sewable area.
  • Switch to a different hoop type only if the actual frame you own supports that orientation on the machine.
  • Check the design bounding box and try rotating only if every stitch remains inside the hoop’s sewable boundary.
  • Do not force-fit by shrinking more than about 10–15% without re-digitizing, because density can spike and cause needle breaks.
  • Success check: PE-Design 11 allows the rotation and the rotated design stays fully inside the hoop outline.
  • If it still fails: Choose a larger hoop (that you physically have) or redesign the layout so the rotated design fits without heavy shrinking.
• Q: In Brother PE-Design 11, what is a safe way to set up a custom hoop size for a magnetic embroidery hoop without guessing the sewing field?
  A: Measure the magnetic hoop’s true internal sewable area and enter that exact boundary in User Hoop Settings.
  • Measure the internal sewingable width/height (not the outside frame size) with a ruler or caliper.
  • Enter the measured values as a custom hoop so the software boundary matches the real stitchable area.
  • Re-verify the boundary before exporting the file, especially for non-standard third-party frames.
  • Success check: The design preview stays comfortably inside the custom hoop boundary with no edge warnings or near-frame stitches.
  • If it still fails: Re-measure the internal opening and confirm the design is not being auto-scaled or rotated into the margin.
• Q: What magnetic hoop safety rules should embroidery operators follow when using industrial neodymium magnetic hoops?
  A: Treat neodymium magnetic hoops as pinch hazards and keep them away from sensitive medical devices and magnetic-strip items.
  • Keep fingers clear when bringing the magnetic ring halves together to avoid crush injuries.
  • Keep magnetic hoops away from pacemakers and follow the medical device manufacturer’s guidance.
  • Store magnetic hoops away from credit cards and phone screens to reduce risk of damage.
  • Success check: The hoop closes in a controlled way with no “snap together” finger-pinching events during handling.
  • If it still fails: Slow down the closing motion, use a controlled grip point, and consider a handling routine that separates the rings safely on the worktable.
• Q: What pre-flight checks should be completed before sending a Brother PE-Design 11 file to an embroidery machine to reduce thread breaks and placement surprises?
  A: Run a quick three-part check: Design Settings, physical setup, and hidden consumables before “Write to Card” or “Send to Machine.”
  • Verify Design Settings: correct Single/Multi mode, correct hoop, correct fabric profile, and the intended output centering method.
  • Inspect consumables: use a new needle when quality drops, confirm the bobbin is adequately filled, and keep trimming tools ready.
  • Prepare essentials: use temporary spray adhesive when floating items (often needed with magnetic hoops), and add water-soluble topper for towels/fleece.
  • Success check: A short test run shows stable stitching and the backside shows the expected tension proof (often seen as about 1/3 bobbin thread showing).
  • If it still fails: Re-check fabric type selection in PE-Design 11, because density/underlay changes can drive puckering and breakage.
• Q: How do I fix embroidery puckering when using Brother PE-Design 11 Fabric Selector and stabilizer choices on sheer fabric or stretchy knits?
  A: Reduce density pressure on the fabric by selecting the correct fabric profile and upgrading stabilizer support when needed.
  • Switch PE-Design 11 Fabric Selector from heavier profiles (like Terry Cloth) to a lighter profile (like Sheer) when working on thin fabrics.
  • Match stabilizer to fabric behavior: use cutaway for stretchy knits, and use a mesh cutaway or a strong tearaway for sheers depending on coverage.
  • Hoop correctly: keep knits neutral/flat (do not stretch), and keep wovens drum-tight.
  • Success check: After stitching, the fabric lies flat with no ripples radiating around the design.
  • If it still fails: Reduce design density by re-digitizing for the fabric (do not rely on heavy shrinking), and re-test with a stronger stabilizer combination.
• Q: How do I decide between Level 1 settings fixes, Level 2 magnetic hoops, and Level 3 upgrading to a SEWTECH multi-needle embroidery machine for multi-position hoop misalignment and hoop burn?
  A: Start with settings and process control, then upgrade tooling if the same physics problems repeat at production volume.
  • Level 1 (Technique): Place split lines in open space (not through small lettering), and use a hooping station or sticky stabilizer to control alignment during multi-position shifts.
  • Level 2 (Tooling): Use magnetic hoops to reduce hoop burn on delicate or high-pile fabrics and to clamp fabric more evenly with less friction.
  • Level 3 (Capacity): If multi-position hooping and re-alignment becomes a daily time sink on 50+ items, a true large-format field on a multi-needle machine can remove the manual split-and-shift workflow.
  • Success check: Repeats show consistent registration (no “sliced” letters on split lines) and fewer rejects from ring marks.
  • If it still fails: Document where the shift/marking happens (after hoop move, at seams, on high pile) and address that specific constraint with either alignment aids or a larger sewing field.
