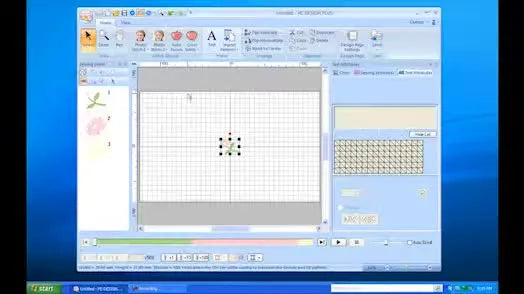

PE-DESIGN PLUS Editing That Actually Stitches Well: Resize, Mirror, Group, and Export Without the Usual Beginner Traps

From Screen to Stitch: Master PE-DESIGN PLUS & Conquer Physical Reality

If you’ve ever thought, “It looked perfect in software—why did it stitch out weird?” you’re not alone. In my 20 years on the production floor, I've learned that embroidery is 30% digital design and 70% physical engineering. PE-DESIGN PLUS is beginner-friendly, but the habits you build inside the software decide whether your file stitches cleanly or creates a thread nest (bird's nest) on your machine.

This guide bridges the gap. We will follow the standard Brother PE-DESIGN PLUS workflow—importing, resizing, mirroring—and then add the "production-grade" safety checks that most tutorials leave out.

1. Safety First: "Design Page Settings" Are Your Physical Boundary

Before you touch any editing tool, you must lock in your hoop size in Design Page Settings. The example shows selecting 100 × 100 mm.

Why this matters (The "Crash" Prevention): If you design in a vacuum without defining the hoop, you risk creating a file that exceeds your machine's physical limits. When you load that file, the machine will scream at you (error beep), or worse, it might auto-shrink the design, ruining your density calculations.

The Golden Rule of Space: Expert digitizers leave a "safety buffer." If your hoop is 100x100mm, treat your max design area as 90x90mm. This 10mm buffer accounts for the presser foot width and prevents the needle from hitting the plastic hoop frame—a disaster that breaks needles and throws off timing.

Warning: Never treat the on-screen hoop boundary as "close enough." If you export a design that is even 1mm outside the stitching area, your machine may reject the file. Always confirm the hoop size before importing.

Prep Checklist: The "Pilot's Check"

• Hoop Match: Does your software hoop (e.g., 100×100mm) match the physical hoop you clicked onto the machine?
• Buffer Zone: Is there at least 10mm of white space between your design edge and the grid boundary?
• Keyboard Position: Is your hand ready on the CTRL key? (You will need this for quality resizing).
• USB Ready: Is your drive empty or organized? (Don't dig for it later).

2. Import Clean: Pull from the Library Without the Mess

The video’s import path is straightforward:

1. Click Import Patterns.
2. Select From Design Library.
3. Browse categories (flower/motif).
4. Highlight selection and Click Import.
5. Click the Red X to close the library immediately.


Once imported, look for the eight black selection boxes (handles) around the design. This confirms the object is active.

Cognitive Tip: Closing the library window isn't just about neatness; it prevents "layer confusion." When multiple dialog boxes are open, it's easy to misclick and drag the wrong element. Keep your digital workspace as clean as your cutting table.

3. Orientation: Flip Vertically vs. Horizontally

With the design selected, use the orientation tools:

• Flip Vertically: Turns it upside down.
• Flip Horizontally: Creates a mirror image.


The Physical Reality of Symmetry: Software makes perfect symmetry easy. Fabric does not. When you stitch a left-chest logo and a right-chest logo, getting them perfectly aligned on the shirt is the hardest part.

If you struggle with alignment—where the left side looks higher than the right—the issue usually isn't the file; it's the hooping. Traditional screw-tighten hoops can drag fabric as you lock them, ruining your symmetry. This is a common trigger point where professionals upgrade to a magnetic embroidery hoop. Because these hoops clamp straight down without the "twist and drag" motion of standard hoops, they preserve the perfect symmetry you created in the software.

4. Resizing with CTRL: The Difference Between "Clean" and "Bulletproof"

This is the most critical technical skill in this guide.

The Wrong Way: Dragging the corner handle. This stretches the design like pizza dough. The stitch count stays the same, so the stitches get pulled apart (gaps) or squished together (lumps). The Right Way (Recalculation):

1. Hover over a corner handle until you see the double-arrow.
2. HOLD the CTRL key (do not let go).
3. Drag to resize.
4. Wait for the icon indicating stitch count is recalculating.


The Numbers: In the example, the design moves from 26.60 mm to 79.20 mm.

• Visual Check: Look at the stitch count number in the bottom left. Did it go up? Good.
• Safety limit: Even with recalculation, try not to resize designs by more than 20% up or down. Too small, and details vanish. Too big, and fill stitches become loose loops (snag hazards).

If you are researching how to resize embroidery designs correctly, remember this: CTRL preserves density. Density prevents needle breaks.

5. The Anchor Point: "Move to Center"

After any resize or flip:

• Right-Click and select Move to Center.


Why Center? Your machine starts from the center. Most hooping stations align to the center. If your design is off-center in the software, you are forcing yourself to do mental math at the machine. Don't do math. Click Center.

6. Symmetrical Layouts: Duplicate & Mirror

To create a balanced pair (like a laurel wreath or corner borders):

1. Select the design.
2. Click Duplicate.
3. Drag the copy aside.
4. Click Flip Horizontally.


Troubleshooting "The Gap": Beginners often place symmetrical items too far apart. Remember, when you put a shirt on, the fabric stretches around the body. Designs placed "to the edge" of the hoop might end up in the armpit. Keep your designs tighter to the center than you think necessary.

7. Precision Navigation: Zoom, Pan, and Arrow Keys

To fix the spacing between your mirrored designs:

• Select the Magnifier tool (+).
• Click directly on the gap between designs.
• Use Arrow Keys on your keyboard to nudge them. Do not use the mouse here; it's too jerky.
• Use the Pan (Hand) tool to check the perimeter.






Sensory Check: Zoom in until you can see individual stitch points. Are the designs overlapping? If two dense satin stitches overlap, you will experience a "bird's nest" or a broken needle. Nudge them apart until there is clear air between them.

Setup Checklist (Before Finalizing)

• Recalculation: Did you hold CTRL when resizing? (Check stitch count).
• Gap Check: Did you zoom into the closest points to ensure no dangerous overlap?
• Centering: Is the whole arrangement centered in the grid?
• Hoop Check: Is the entire design completely inside the red/dotted boundary line?

8. Grouping: Treating Many as One

Once your layout is perfect:

1. Drag a box around all elements.
2. Use the Group command (or Right Click -> Group).
3. The eight black handles now surround the entire set.






Production Efficiency: Grouping prevents "floating accidents" where you accidentally nudge one flower out of alignment. If you are doing volume production—say, 50 tote bags—locked groups ensure Bag #50 looks exactly like Bag #1.

Speaking of volume, if your software workflow is now fast (grouping/duplicating), your bottleneck will move to the physical hooping. This is where physical tools like a brother magnetic hoop become essential. By eliminating the screw-tightening step, you can load a new bag in seconds rather than minutes, matching your physical speed to your digital speed.

9. Exporting: The Final Handoff

1. Go to the Home tab.
2. Click Send To.
3. Select USB Media or Direct to Machine.

Note: The buttons will be greyed out if your USB isn't plugged in.

If you use a smaller machine, strict file management is key. For users of the brother 4x4 embroidery hoop, storage space on the machine is limited. Delete old files from your USB to prevent loading the wrong version (e.g., loading the "Test_01" file instead of "Final_Resize").

10. The Missing Manual: Physical Troubleshooting & Reality

Software perfection means nothing if the fabric moves. Here is how to diagnose physical problems before they ruin the job.

Decision Tree: Fabric vs. Stabilizer

Use this logic to support your digital design.

The "Pain" of Hooping

If you find yourself avoiding embroidery because hooping hurts your wrists or you can't get thick items (like towels) into the frame, this is a hardware problem, not a skill problem.

• Symptom: "Popping out." The inner ring launches out of the hoop when you try to close it on a sweatshirt.
• Solution: A magnetic hoop for brother pe800 (or your specific model) uses magnets instead of friction. It snaps over thick seams without forcing them, saving your hands and the hoop mechanism.
• Bigger Jobs: If you often resize designs to the limit, consider a brother 5x7 magnetic hoop if your machine supports it. The extra space makes managing bulky fabric significantly easier.

Warning: Magnetic hoops contain powerful Neodymium magnets.
1. Pinch Hazard: Keep fingers clear of the mating surfaces; they snap shut instantly.
2. Medical Safety: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place magnetic hoops directly on top of your laptop or credit cards.

Operation Checklist (The Final 30 Seconds)

• Bobbin Check: Is there enough bobbin thread for the whole design? (Don't guess).
• Path Clear: Is the area behind the machine clear? (So the hoop doesn't hit a wall).
• Needle Freshness: If you feel a "pop-pop" sound instead of a smooth "thump," change the needle. A sharp needle solves 80% of thread breaks.
• Send & Verify: Did you send the "Grouped" and "Centred" file?

Embroidery is a dance between precision software and messy reality. Master the CTRL-Resize habit in PE-DESIGN PLUS, respect the physics of your fabric, and don't be afraid to upgrade your hoops when your skills outgrow your stock tools. Create with confidence!

FAQ

• Q: In Brother PE-DESIGN PLUS, why must "Design Page Settings" hoop size match the physical 100×100 mm hoop before importing a design?
  A: Set the correct hoop size first to prevent out-of-bounds files, machine rejection, surprise auto-shrinking, and needle-to-hoop collisions.
  • Open Design Page Settings and select the exact hoop you will mount on the machine (e.g., 100×100 mm).
  • Keep a 10 mm safety buffer: treat a 100×100 mm hoop like a 90×90 mm max design area.
  • Confirm the entire design sits fully inside the boundary before exporting.
  • Success check: you can see clear white space around the design edge, and the machine does not beep/reject the file when loading.
  • If it still fails: re-check that the hoop clicked onto the machine is the same size you chose in software and that nothing extends even 1 mm outside the stitch area.
• Q: In Brother PE-DESIGN PLUS, how does CTRL-resize prevent gaps, lumps, and thread nests compared with dragging a corner handle normally?
  A: Hold CTRL while resizing so PE-DESIGN PLUS recalculates stitch count and density instead of stretching stitches.
  • Select the design and hover on a corner handle until the double-arrow appears.
  • Hold CTRL, then drag to resize and wait for the recalculation indicator.
  • Avoid resizing more than 20% up or down as a safe limit; beyond that, details may vanish or fills may turn into loose loops.
  • Success check: the stitch count number increases or decreases appropriately after resizing (not staying “stuck”).
  • If it still fails: undo, repeat the resize while holding CTRL the entire time, and consider re-digitizing if the design must change size drastically.
• Q: In Brother PE-DESIGN PLUS, why should "Move to Center" be used after flipping or resizing a design for embroidery alignment?
  A: Centering the design in software reduces hooping math and helps the machine’s center-based start align with your physical hooping method.
  • After any resize or flip, right-click the design and choose Move to Center.
  • Re-check that the full layout stays inside the hoop boundary with the safety buffer.
  • Group the layout after placement to prevent accidental nudges.
  • Success check: the arrangement is visually centered on the grid and you are not compensating by “guessing” offsets at the machine.
  • If it still fails: verify the hoop size setting matches the actual hoop mounted, then re-center and re-export the correct version.
• Q: In Brother PE-DESIGN PLUS, how can overlapping mirrored satin areas cause bird’s nest (thread nesting) or broken needles, and how can spacing be checked?
  A: Prevent overlaps by zooming to stitch-point level and nudging with arrow keys until there is clear air between dense areas.
  • Use the Magnifier (+) to zoom directly into the closest gap between mirrored elements.
  • Nudge with arrow keys (not the mouse) for controlled spacing changes.
  • Pan around the perimeter to confirm nothing overlaps or crowds the hoop boundary.
  • Success check: at high zoom you can see a clean separation between the densest stitch points, with no intersecting satin columns.
  • If it still fails: increase the gap slightly, re-check after grouping, and consider simplifying the layout if two heavy areas must sit extremely close.
• Q: For embroidery on T-shirts, knits, and polos, which stabilizer choice best prevents design distortion, and when does hooping method become the real problem?
  A: Use cut-away (mesh or heavy) for unstable knits, and treat repeated misalignment/distortion as a hooping-control issue, not a software issue.
  • Choose stabilizer by fabric behavior: if it stretches like a rubber band, use cut-away as the base support.
  • If hooping drags fabric during tightening, switch to a hooping method that clamps straight down (magnetic-style frames can help).
  • Float properly when needed, especially on unstable or slippery fabrics.
  • Success check: the stitched logo stays square/undistorted after unhooping and the fabric around the design does not look pulled.
  • If it still fails: reassess fabric category (unstable vs slippery) and upgrade the stabilizer approach (e.g., add fusible support for slippery items).
• Q: What is the safest way to handle powerful neodymium magnetic embroidery hoops to avoid pinch injuries, pacemaker risk, and electronics damage?
  A: Treat magnetic hoops like strong shop magnets: keep fingers clear when closing, keep distance from medical implants, and never store them on electronics or cards.
  • Keep fingers away from mating surfaces; magnets can snap shut instantly and pinch hard.
  • Keep magnetic hoops at least 6 inches away from pacemakers (medical guidance overrides all).
  • Store away from laptops, hard drives, and credit cards; do not place the hoop on top of them.
  • Success check: the hoop closes without finger contact in the clamp zone, and the workspace stays clear of sensitive devices.
  • If it still fails: change your handling routine—set one side down first, align carefully, and close in a controlled motion with a clear grip zone.
• Q: When hooping hurts wrists or thick items keep “popping out” of a standard screw-tighten hoop, what is the practical upgrade path from technique fixes to higher capacity production?
  A: Start with technique checks, then upgrade hooping hardware if the symptom is mechanical, and only then consider a faster production machine if hooping is no longer the bottleneck.
  • Level 1 (Technique): Confirm hoop size is correct, keep a 10 mm buffer, center the design, and verify stabilizer matches fabric behavior.
  • Level 2 (Tool): If the inner ring “launches” or thick seams won’t clamp without force, switch to a magnetic-style hoop/frame that snaps over bulk without twist-and-drag.
  • Level 3 (Capacity): If software prep is fast (duplicate/group/center) but production stalls on loading/hooping volume, consider moving up to a higher-throughput multi-needle workflow.
  • Success check: hooping becomes repeatable without pain, the fabric stays aligned, and cycle-to-cycle loading time drops noticeably.
  • If it still fails: re-check fabric/stabilizer pairing and confirm the chosen hooping tool fits the machine’s physical requirements per the machine manual.
