The Ultimate Guide to Digitizing Names on Appliqué: From "Homemade" to "Pro Shop" Results

By the Chief Embroidery Education Officer

Let’s be honest: The most nerve-wracking moment in embroidery isn’t stitching the elaborate appliqué truck—it’s adding the child’s name at the end. You have invested 45 minutes of machine time and $5 in materials. If the lettering is too thin, the spacing is "mushy," or the machine eats the shirt because of bad density, you’ve lost profit and patience.

This guide takes a specific workflow—adding a name (e.g., "David") to a truck appliqué—and upgrades it with 20 years of shop-floor physics. We aren’t just typing letters; we are engineering a file that stitches cleanly on soft, stretchy knits without ruining the garment.

Here is how to bridge the gap between "good enough" and "retail quality."

PES vs DST File Formats: Keep One “Master” You Can Edit, and One “Production” You Can Run

The video emphasizes a habit that separates amateurs from pros: Saving two distinct versions of every job.

Think of embroidery files like photography:

• PES (The "Master"): This is your digital negative. It retains color data, object properties, and software settings. When a customer calls a month later asking for "David" to be changed to "Daniel," this is the file you open.
• DST (The "Production" File): This is the print. It is "dumb" data—just XY coordinates for the needle. It doesn’t know that the third stop is "Deep Forest Green"; it just knows "Stop 3."

Why this matters for your sanity: If you only save the DST, and you reload it later to resize it, the stitches won’t recalculate properly. The density will change, and the quality will degrade. Always keep your PES Native file safe.

The “Hidden” Prep Before You Merge Letters: Fonts, Folder Hygiene, and a 10-Font Rule That Saves Your Sanity

Analysis paralysis is a profit killer. The creator in the workflow admits to having thousands of fonts but relying on a "Golden Ten." This is a crucial production strategy.

The Psychology of Choice: If you send a client 50 font options, you invite 50 revisions. If you offer 5 distinct, high-quality, stitch-tested styles (Block, Script, Serif, Comic, Vintage), you guide them toward a successful outcome.

File Hygiene Tip: When you buy a font bundle, it often comes with 15 machine formats (EXP, HUS, VIP, etc.). Do not dump them all into your library. Delete everything except your machine’s native format (e.g., PES) and the industry standard standard (DST). A clean folder prevents you from accidentally loading a corrupted file type during a rush.

Prep Checklist (Do this BEFORE opening the software)

• Verify Spelling: Read the order, then read it backwards. Refund requests are born in typos.
• Select the "Workhorse" Font: Choose a font with bold satin columns if stitching on fluffy knits (like 3T shirts). Avoid thin, spindly scripts for plush fabrics.
• Clean Your Workspace: Ensure you only have the relevant formats in your project folder to prevent "wrong file" loading errors.
• The "Master" Plan: Commit mentally now—you will save the .BE or .PES working file first, then export the .DST for the machine.

Merge (Don’t Open): Bringing Letter Files Into an Existing Appliqué Workspace Without Wiping Your Layout

Here is the most common panic moment for beginners: You have the truck appliqué on screen. You go to File > Open, select the letter "D," and poof—the truck is gone.

The Fix: You must use File > Merge (or "Merge Stitch File" depending on your software).

• Open: Replaces the current canvas (starts fresh).
• Merge: Drops the new object on top of the current canvas.

In the example, the creator merges a 1-inch font. Experience Note: For toddler sizes (2T-5T), 1 inch is the "Goldilocks" size—large enough to be readable from 5 feet away, but small enough to fit within a standard 5x7 hoop without overwhelming the graphic.

Place the First Letter, Then Switch Views with Ctrl+I So You Can Work Faster (and Stop Re-Merging)

Efficiency is about reducing clicks. The creator merges the capital "D," places it roughly under the truck, and uses Ctrl+I (a common shortcut in programs like Embrilliance) to toggle the Object View.

Why this helps: Instead of visually hunting for a letter on a cluttered screen, the Object View creates a list (like layers in Photoshop). You can see exactly what sequence the machine will stitch. Merging the rest of the name (lowercase letters) in one batch, rather than one by one, keeps your object list clean.

Kerning Like a Pro: Fix the “Letters Too Close” Problem Before It Becomes a Stitching Problem

Software is mathematically perfect; human vision is not. Default spacing (kerning) often jams letters like 'v' and 'i' or 'r' and 's' too close together.

The Physical Consequence: If letters touch on screen, they will likely overlap on fabric. When satin stitches overlap heavily:

1. Needle Deflection: The needle hits the previous thread column and bends, causing a burr or snap.
2. "Bulletproof" Embroidery: The text becomes a stiff, hard lump that is uncomfortable for a child to wear.

The Fix: Manually drag the letters apart. You want a "visual gap" of air between them.

• Sensory Check: If you squint at the screen, the white space between letters should feel equal, even if the measured distance isn't.

Understanding proper spacing is just as vital as steady hooping for embroidery machine accuracy; if your fabric is hooped perfectly but your letters are jammed, the result is still a bird's nest.

Stretch the Name Block (Gently): Make the Text Symmetrical With the Appliqué Without “Resizing the Font to Death”

Once the letters are spaced, the creator stretches the entire name block slightly to match the width of the truck.

The Safe Zone: You can safely stretch a digitized font by 10-15% in most modern software without degrading quality. The software will recalculate the heavy satin stitches.

The Danger Zone: Do not take a 1-inch font and stretch it to 3 inches. The stitch count might increase, but the angles of the satin stitches will flatten out, looking less like embroidery and more like a mistake. If you need it that much bigger, restart with a larger font size.

Warning: Physical Limit Check
Before stitching stretched text, check your "Minimum Stitch Length." If you compress text too much, stitches become tiny (under 0.3mm) and can cause thread trimmers to jam. If you stretch too wide, stitches become long and loose (snag hazard). Keep satin stitches between 1mm and 7mm for safety.

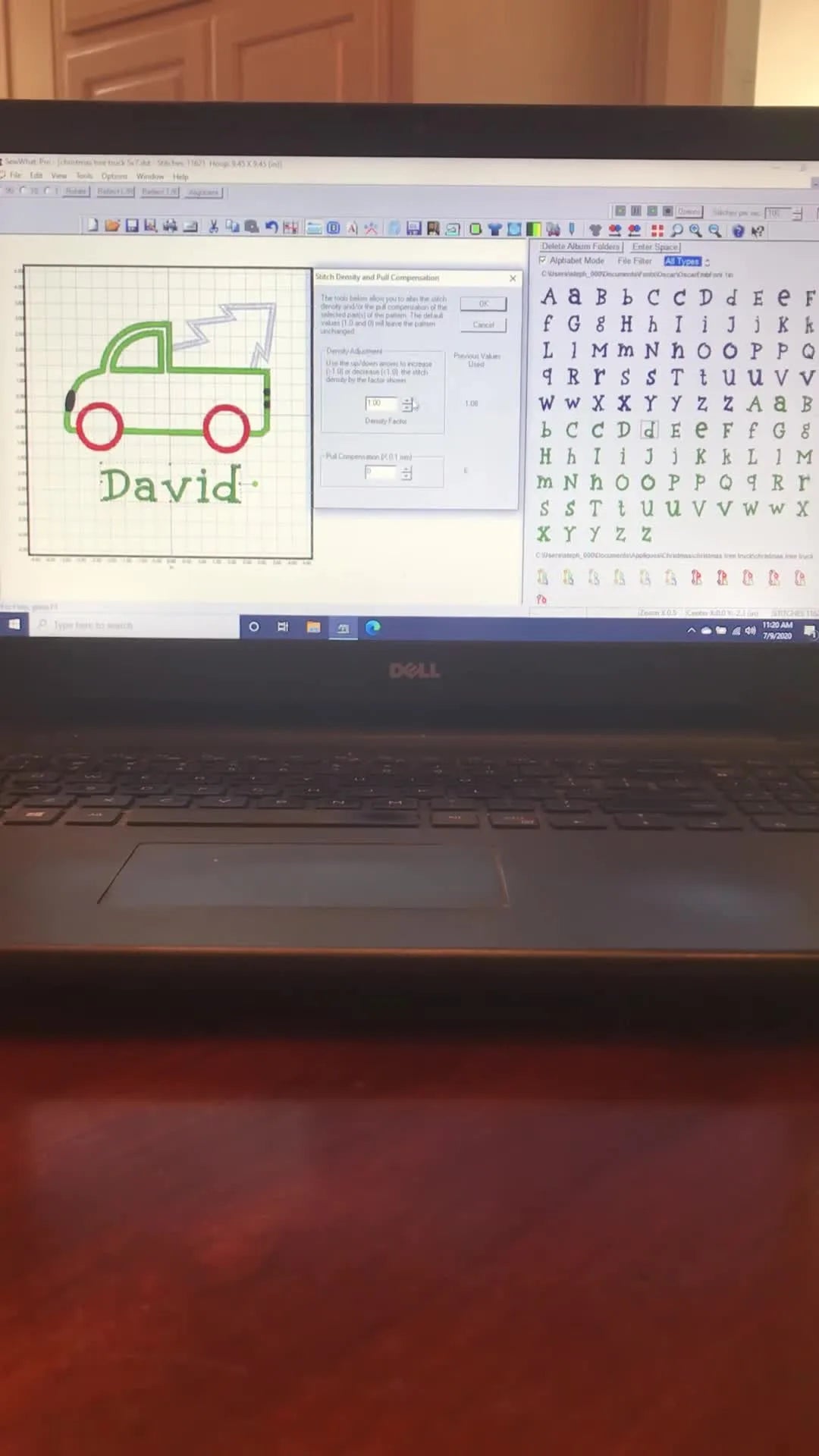

The Two Numbers That Make Names Look “Retail”: Density 1.008 and Pull Compensation 0.6 mm

This is the technical core of the article. The creator modifies the font attributes:

1. Density: 1.008 (Increasing the stitch count).
2. Pull Compensation: 0.6 mm (Thickening the column width).

The "Why" (Embroidery Physics): When a needle penetrates fabric, it pulls the fibers together. A nice wide "I" on screen will stitch out skinny and gapped on a t-shirt because the fabric creates a "tunnel."

• Pull Comp adds extra width to the file to counteract this shrinking. 0.6mm is an aggressive but safe choice for knits.
• Density ensures the fabric color doesn't peek through the thread.

Sensory Benchmark: When you run your fingernail over the finished text, it should feel like a solid, raised bar—smooth and continuous. If it feels like a "ladder" or you see the shirt color between threads, your density is too low or your pull comp is missing.

Color Management That Doesn’t Bite You Later: Match the Name to the Design, Then Join Same-Color Letters

The creator changes the name to Green to match the Christmas tree and uses "Join Threads of Same Color."

The Commercial Reality: If you are stitching on a single-needle home machine, failing to "Join" means the machine will stop and trim after the "D," then after the "a," then after the "v." That is 5 unnecessary trims and stops.

• On a Multi-Needle: It’s less critical but still sloppy file-making.
• The Goal: The machine should sew the entire name in one continuous "flow," moving from letter to letter with a jump stitch (which you trim later) rather than a full lock-and-trim cycle.




Setup Checklist (The "Pre-Save" Audit)

• Kerning: Are 'v' and 'i' touching? Separate them.
• Center Alignment: Is the name centered relative to the visual mass of the truck, not just the bounding box?
• Pull Comp: Applied? (Essential for knits/towels).
• Color Sort: Did you "Join" the colors so the name stitches in one pass?
• Underlay: (Hidden Hero) Ensure your text has a "Center Run" or "Zig Zag" underlay selected to stabilize the fabric before the satin top-stitch hits.

The “Everything Changed Color” Glitch: Undo, Re-Select, and Fix the Sewing Order Before You Join Again

It happens to everyone. You hit "Join," and suddenly your Red Truck becomes a Green Blob because the software grouped everything.

Panic Protocol:

1. Do NOT save.
2. Ctrl+Z (Undo) immediately.
3. Check Selection: You likely had the truck selected along with the name. Click off the design, then click only the name.
4. Re-Join.

This is why we save the PES master file. If you save a glitched DST, those colors are merged forever.

Sizing for Real Garments: When 115% Makes Sense for a 5T Shirt

One size does not fit all. The creator notes that for a 5T shirt, they scale the design to 115%.

Pro Tip: Create a mental library of sizes.

• 4-inch wide design: Infant (0-12M)
• 5-inch wide design: Toddler (2T-4T)
• 6-inch+ wide design: Youth (XS-S)

Scaling a file 15% is usually safe. Scaling 50% requires re-digitizing.

Save Like a Shop Owner: A “Completed Projects” Folder and a Two-File Export That Prevents Rework

Organization is boring until it saves your business at 2 AM. The workflow suggests a "Completed Projects" folder.

• Filename: [Client Name]_[Design]_[Size].PES (e.g., Smith_Truck_5T.PES).

The Transfer:

• Send only the DST to the USB drive/Machine.
• Keep the PES on the computer.




The “Why” Behind This Workflow: Pull Compensation, Color Blocks, and What Changes When You Go From Hobby to Production

To move from "crafting" to "production," you must understand the interaction between File, Fabric, and Tool.

1. Pull Compensation is your insurance. On a soft cotton shirt, the fabric wants to retreat from the needle. Pull comp forces the thread to "overreach," ensuring clean edges.
2. Color Blocks = Speed. Every color change on a single-needle machine takes ~2 minutes of human time (thread out, new thread in, re-thread). Creating efficient color blocks cuts this time in half.
3. Hooping is the variable. You can have a perfect file, but if your hooping station for embroidery technique is sloppy, the text will slant. Use the file's crosshairs to align with your hoop's grid marks.

Decision Tree: Fabric Type → Stabilizer Strategy → Hooping Choice

Use this logic flow to prevent puckering names:

1. Is the fabric a Stretchy Knit (T-shirt, Onesie)?

• YES: You Must use Cut-Away Stabilizer. Tear-away will result in the name distorting after the first wash.
  • Hoop: Do not stretch the fabric. If you struggle with "Hoop Burn" (shiny rings), switch to a magnetic embroidery hoop to hold the fabric gently but firmly.
• NO: Go to step 2.

2. Is the fabric a Stable Woven (Denim, Canvas)?

• YES: Tear-Away stabilizer is fine.
  • Hoop: Standard manual hoops work well here.
• NO: Go to step 3.

3. Is the fabric High-Pile (Towel, Minky, Fleece)?

• YES: Use a "Knockdown Stitch" first, or place Water Soluble Topping (Solvy) on top to keep the text from sinking.
  • Hoop: Thick fabrics are notoriously hard to force into standard rings. A magnetic embroidery hoop is almost mandatory here to prevent wrist strain and "popping" hoops.

Turning This Into a Faster, More Profitable Workflow: Where Tool Upgrades Actually Pay Off

Software optimization (joining colors) saves minutes. Hardware optimization saves hours.

If you find yourself dreading the setup process, diagnose the bottleneck:

• Pain Point: "My wrists hurt from tightening screws," or "I keep leaving hoop marks on shirts."
  • The Fix: Magnetic hoops. For home users, finding the right magnetic embroidery hoops for brother or similar machines eliminates the "screw and tug" battle. It creates a flat, even tension surface instantly.
• Pain Point: "I spend more time changing thread than stitching."
  • The Fix: If you are consistently stitching 4+ color designs (like this truck), a single-needle machine is costing you money. A SEWTECH multi-needle machine allows you to set the Green, Red, Black, and Blue once, and let the machine run the entire truck + name automatically.
• Pain Point: "My alignment is always crooked."
  • The Fix: Look into a hoopmaster hooping station or similar fixture. Consistency comes from removing the "human wobble" from the hooping process.

Warning: Magnet Safety
Magnetic hoops use powerful Neodymium magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical Danger: Keep at least 6 inches away from Pacemakers and ICDs.
3. Electronics: Keep away from credit cards and phone screens.

Operation Checklist (Your "Pre-Flight" Check)

Before you press the Green Button:

• Bobbin Check: Do you have enough bobbin thread? Listen for the "click" when inserting the bobbin case.
• Needle Check: Is the needle fresh? (A burred needle will shred the satin text). Size 75/11 Ballpoint is best for knits.
• Stabilizer: Is the Cut-Away mesh secured behind the hoop?
• Topping: If using a fluffy fabric, is the water-soluble topping ready?
• Position: Trace the design area (using the machine's Trace/Trial key) to ensure the name doesn't hit the hoop frame.

A Final Reality Check: What This Video Gets Exactly Right

This workflow works because it respects the limitations of the material. It doesn't trust the default settings. It accepts that "Merging" is safer than "Opening," that "Joining" colors saves time, and that saving a PES master file is the only way to safeguard your future edits.

Whether you are using a standard hoop or have upgraded to a brother pe800 magnetic hoop for speed, the logic remains the same: Control the file, control the fabric, and you control the result.

FAQ

• Q: In Embrilliance (or similar embroidery digitizing software), why does the appliqué truck disappear when importing name letters, and what menu command prevents replacing the design?
  A: Use File > Merge (not File > Open) so the letters are added on top without wiping the appliqué layout.
  • Click File > Merge (or “Merge Stitch File”) for each letter set you want to add.
  • Place the first letter, then switch to Object View (often Ctrl+I) to manage the stitch sequence without re-importing.
  • Save a PES (master) before exporting a DST (production) so a mistake is reversible.
  • Success check: The truck objects stay visible on the workspace while the new letters appear as additional objects/layers.
  • If it still fails: Confirm the software command truly says Merge (some programs label it differently) and avoid “Open” for letter files.
• Q: When resizing a name like “David” for a toddler shirt in embroidery software, what is the safe stretching range before the lettering quality degrades?
  A: Keep font stretching gentle—about 10–15% is usually safe; major size jumps should start from a larger font instead of stretching.
  • Stretch the entire name block slightly to match the appliqué width instead of dragging individual letters wildly.
  • Avoid turning a 1-inch font into something like 3 inches; that often flattens satin angles and looks “wrong.”
  • Check “Minimum Stitch Length” after resizing to prevent tiny stitches (trimmer issues) or overly long stitches (snag risk).
  • Success check: Satin columns still look like clean embroidery (not flattened or gappy), and the name reads clearly at normal viewing distance.
  • If it still fails: Restart with a larger base font size and re-apply your spacing and attributes.
• Q: In Embrilliance-style lettering settings for knit T-shirts, what do Density 1.008 and Pull Compensation 0.6 mm fix when embroidered names look thin or the shirt color shows through?
  A: Increase Density to 1.008 and set Pull Compensation to 0.6 mm to fight knit “pull-in” so satin letters stitch fuller and cover better.
  • Apply pull compensation to thicken the satin column so the knit does not “tunnel” and steal width.
  • Increase density so the fabric color does not peek between stitches.
  • Ensure a text underlay (like Center Run or Zig Zag) is enabled to support the satin layer.
  • Success check: Run a fingernail across the stitched name—letters should feel like a solid, smooth raised bar, not a “ladder” with gaps.
  • If it still fails: Re-check stabilizer choice for knits (cut-away is required) and confirm the fabric was not stretched while hooping.
• Q: In embroidery lettering kerning, how do you prevent satin letters like “v” and “i” from overlapping and turning into a stiff “bulletproof” lump on a T-shirt?
  A: Manually adjust kerning so letters have a visible “air gap” on screen, because touching on-screen often becomes overlap on fabric.
  • Drag problem pairs apart (common offenders include v/i and r/s) until spacing looks visually even.
  • Squint-test the word to judge white space by eye rather than trusting default math spacing.
  • Re-check alignment after spacing so the name is centered by visual mass, not only by the bounding box.
  • Success check: Letters stitch as separate, clean satin columns with no hard ridges where columns crash into each other.
  • If it still fails: Reduce density slightly only if the design is becoming overly stiff, and confirm underlay is not excessive for the fabric.
• Q: In embroidery software, why does “Join Threads of Same Color” sometimes turn a multi-color appliqué truck into one wrong color, and how do you fix the selection mistake safely?
  A: Don’t save—Undo (Ctrl+Z) immediately, then select only the name objects and re-run “Join Threads of Same Color.”
  • Stop and do not save after the color glitch.
  • Hit Ctrl+Z to revert the unintended grouping.
  • Click off the design, then select only the lettering before joining threads again.
  • Success check: Only the name stitches as one continuous color block, while the truck keeps its original color stops.
  • If it still fails: Use Object View to verify exactly which objects are highlighted before applying “Join.”
• Q: For personalizing names on garments, what stabilizer and hooping approach prevents distortion on stretchy knit T-shirts versus high-pile towels or minky?
  A: Match fabric to stabilization: knits need cut-away, wovens can use tear-away, and high-pile needs topping/knockdown plus firm, even hooping.
  • Use cut-away stabilizer for T-shirts/onesies; avoid stretching the knit while hooping.
  • Use tear-away stabilizer for stable wovens like denim/canvas when appropriate.
  • Add water-soluble topping (or a knockdown stitch first) on towels/minky/fleece to prevent letters from sinking.
  • Success check: After stitching, the name stays flat without ripples, and letters remain readable instead of sinking into pile or warping after release.
  • If it still fails: Upgrade hooping method for consistent tension—magnetic hoops can help reduce hoop marks and uneven clamp pressure on difficult fabrics.
• Q: What are the key safety rules for using magnetic embroidery hoops with strong Neodymium magnets during garment hooping?
  A: Treat magnetic hoops like pinch tools—keep fingers clear, keep magnets away from medical implants, and keep magnets away from sensitive electronics.
  • Keep hands out of the “snap zone” to avoid pinch injuries when magnets clamp shut.
  • Keep magnetic hoops at least 6 inches away from pacemakers and ICDs.
  • Keep magnets away from credit cards and phone screens to reduce damage risk.
  • Success check: The hoop closes with controlled placement (no sudden finger pinch) and the fabric is held flat and even without over-stretching.
  • If it still fails: Slow down the closing motion and reposition using two-handed control so magnets land squarely instead of slamming.
• Q: If name personalization on appliqué is slow because of constant trims, thread changes, hoop marks, or crooked placement, what is the staged fix from technique to tooling to production equipment?
  A: Diagnose the bottleneck and step up in layers: optimize the file first, then improve hooping hardware, then upgrade to multi-needle production when thread changes dominate time.
  • Level 1 (Technique): Join same-color letters, verify kerning, and save PES master + DST production to avoid rework.
  • Level 2 (Tooling): Use magnetic hoops to reduce screw-tightening fatigue and minimize hoop burn on shirts, especially on thick/high-pile fabrics.
  • Level 3 (Capacity): If designs have 4+ colors and thread changing is the main delay, a multi-needle machine reduces manual stops by keeping colors loaded.
  • Success check: The machine runs the full name as one color pass with fewer stops, and setup time drops without increasing rejects.
  • If it still fails: Track where time is actually lost (hooping vs edits vs thread changes) and address the biggest time sink first rather than changing everything at once.
