Pickleball King Stitch-Out on a Baby Lock Single-Needle: Floating Fabric Cleanly in a 4x4 Hoop (Without Puckers or Panic)

If you’ve ever stared at a small 4x4 hoop and thought, “There’s no way this many color stops will behave without puckering,” take a breath—you’re not alone. The “Pickleball King” stitch-out is absolutely doable on a Baby Lock or Brother single-needle machine, but it pushes the limits of standard hooping physics. The video’s biggest win is a technique that circumvents the hoop-burn battle entirely: floating.

This post completely rebuilds the sew-along into a shop-floor-standard workflow. We will cover exactly what to prep, the sensory checks for each color stop, and how to eliminate the two most common heartbreaks on dense designs: fabric shifting during the outline and white bobbin thread gleaming through black fills.

Read the Machine Screen Like a Pro: 3.88" x 3.90", 14,830 Stitches, 10 Stops—What That Really Means in a 4x4 Hoop

Before you press start, you must interpret the "risk data" on your screen. In the video, the design loads at 3.88" x 3.90", 14,830 stitches, 26 minutes, and 10 color changes.

To an expert eye, these numbers dictate your setup:

• Size (3.88" x 3.90"): This is a near-max 4x4 design with only millimeters of clearance. This means hoop stability is non-negotiable—any slippage will cause the needle to hit the frame.
• Density (14,830 stitches): This is considered "high density" for a 4x4 area. If your stabilization is weak, the physics of 14,000 needlbe penetrations will pull the fabric inward (the "hourglass effect").
• Speed Recommendation: Do not run this at max speed (e.g., 800-1000 stitches per minute). For this density on a single-needle machine, find the Beginner Sweet Spot: 500-600 SPM. This reduces friction and thread breakage risks.

If you’re coming from a standard brother 4x4 embroidery hoop workflow, realize that near-edge designs demand "drum-tight" stabilization far more than simple center monograms.

Thread Planning That Prevents Regret: Use the Paper Template, Then Decide Where You Want “Pop”

The presenter prints a paper template and lays out thread colors before stitching. In a professional shop, we call this the "staging phase."

Hidden Consumable Check: Ensure you are using 40wt embroidery thread (standard polyester or rayon). Using thicker sewing thread (50wt or 30wt cotton) on a 14,000-stitch design will cause jams.

In this design, the stitch order dictates the logic:

• Architecture: The two side pickleballs provide the structure.
• Contrast: Black elements follow.
• Negative Space: White "hole" details appear as their own step(s).
• Detailing: The crown finishes in red, followed by tiny decorative dots.

A smart planning move from the video: You have full creative license at the text stops. If you want the word “KING” to snap against the background, swap colors based on contrast, not just the PDF chart.

The Floating Method That Actually Holds: Hooping Heavy Pellon Stitch-n-Tear, Then Securing Fabric With the First Tack-Down

This is the heart of the tutorial and the solution to "hoop burn."

Instead of forcing thick fabric into the rings, the presenter hoops only heavy Pellon Stitch-n-Tear (ensure it implies a weight of at least 1.5oz to 3oz), then lays the fabric on top and holds it flat by hand while the machine stitches the first securing outline.

The Physics of Floating: When you float, the stabilizer acts as a rigid foundation. The hoop holds the stabilizer; the stabilizer holds the stitches; the stitches hold the fabric.

• Sensory Check: When you hoop the stabilizer alone, tap it. It should sound like a drum. If it sags or sounds dull, re-hoop it. Loose stabilizer = puckered final product.

If you’ve struggled with hooping for embroidery machine limitations—especially with small fabric scraps, slippery performance wear, or item shapes that defy logic—floating is the cleanest path to a professional result.

Warning: Safety Protocol. Keep fingers, tweezers, and scissors well outside the "Red Zone" (the immediate needle area) while the tack-down is stitching. Single-needle machines move the pantograph rapidly during jumps. A finger in the path of a moving hoop is a painful shop injury.

Prep Checklist (Do this PRE-FLIGHT)

• Stabilizer: Heavy Stitch-n-Tear is hooped "drum tight" (no sags).
• Fabric: Pressed flat using spray starch (optional but recommended) and cut with 1–2 inches of margin beyond the design.
• Needle: Insert a fresh 75/11 Embroidery Needle. (Dull needles push fabric down rather than piercing it, causing registration issues).
• Consumables: Temporary adhesive spray (like varying degrees of KK100 or 505) is lightly applied to the stabilizer to prevent fabric drift before the tack-down.
• Space: The hoop arm area is clear of walls or obstructions.

The “Don’t Let It Drift” Moment: Floating Fabric Placement and the Green Tack-Down Outline

Once the stabilizer is hooped and sprayed with a light mist of adhesive, layer the fabric. Smooth it from the center out to remove air bubbles.

In the video, the first actual stitching uses bright green and acts as a basting box / tack-down outline.

Sensory Monitoring:

• Visual: Watch the fabric edge. It should not ripple or create a "wave" in front of the presser foot.
• Auditory: Listen for rhythmic stitching. A "thump-thump" sound indicates the needle might be struggling to penetrate multiple layers—check if your needle is gummed up with adhesive.

If you’re using a floating embroidery hoop approach, your primary job is simple: monitor the fabric flatness strictly until the first color stop is 100% complete.

Color Stop Flow You Can Trust: Green Ball, Yellow Ball, Then White Hole Details (and the Optional 3D Trick)

After the tack-down, the machine fills the green pickleball, then prompts a change to yellow.

The Pull Compensation Reality

Dense fills pulled in different directions can distort the fabric. This is why your initial "drum tight" hooping was critical. If you see white gaps between the outline and the fill, your stabilizer was too loose.

The White Hole Details

The machine jumps laterally to stitch the white circles.

• Action: Keep your trimming scissors ready. Single-needle machines often leave long jump threads. Trim these during the color change to prevent the foot from catching them later.

The Optional 3D Look (Texture Hack)

If you’re stitching on a white towel, the presenter suggests you can skip the white hole stitching.

• Why strict pros do this: Letting the towel's loop (terry cloth) poke through the negative space creates true texture without adding stitch density. It’s a "less is more" production trick.


Crisp Lettering Without Guesswork: Black “KING” and “Pickleball,” Underlay First, Satin on Top

Text is the first place embroidery fails. Ragged edges or sinking stitches ruin the look. The video notes a critical quality feature: underlay.

The "Why" behind Underlay: Underlay is the "scaffolding" stitched before the satin column. It lifts the top thread up so the letters look bold and 3D.

During these stops:

• "KING" stitches in black.
• "Pickleball" stitches in a specific shade (often a darker charcoal or black).

Pro Tip for Texture: If stitching on a textured fabric (like a pique polo or towel), place a layer of Water Soluble Topping (Solvy) over the fabric before the text starts. This prevents the letters from sinking into the fabric pile.

Setup Checklist (Before Text Starts)

• Top Thread: Re-threaded cleanly (ensure the thread is seated deep in the tension disks—floss it in!).
• Bobbin: Check bobbin levels. Running out of bobbin thread halfway through a letter "K" is a nightmare to repair.
• Topping: Water-soluble stabilizer placed on top if using textured fabric.

The Black-on-White Reality Check: Prevent White Bobbin Showing Through the Black Pickleball Fill

After the text, the design stitches the solid black central pickleball.

The presenter identifies a classic "physics" problem: Black thread on top + White bobbin on bottom + High Tension = White specks showing on top (also called "poking").

Troubleshooting "Bobbin Show-Through"

• The Issue: The top tension is pulling the white bobbin thread up to the visible surface.
• The Quick Fix: Use a Pre-wound Black Bobbin. Even if the tension isn't perfect, black-on-black hides the error.
• The Expert Fix: Slightly lower your top tension (e.g., from 4.0 to 3.0) for this specific color stop to let the top thread relax and cover the bobbin thread completely.

This is a critical commercial checkpoint. If you’re selling this item, visible white loops on black text are considered a "B-grade" defect.

The Crown Finish: Red Crown, Then Tiny Silver Dots (Yes, They’re Subtle in 4x4)

The final steps involve precision:

• The crown stitches in red.
• The tiny jewels stitch in silver/gold.

Note on Definition: In a 4x4 hoop, these dots are tiny. If your machine hasn't been trimmed lately, jump stitches here can look messy. Take the time to trim jumps meticulously between these small moves.

Clean Removal Without Distortion: Tear Away Stabilizer, Pick the Bits, Then Press From the Back on a Fluffy Towel

The project isn't done when the machine stops. Post-processing determines the final drape.

The Finishing Sequence:

1. Remove: Take the hoop off the machine.
2. Un-float: Remove the basting stitches first.
3. Tear: Tear the stabilizer. Action: Place your thumb on the stitches to support them, and tear the stabilizer away from the design. Do not rip wildly, or you will distort the text.
4. Clean: Use tweezers for the tight spots inside the letters.
5. Press: Face down on a fluffy towel. Steam from the back.


Operation Checklist (The Final 5 Minutes)

• Support: Stabilizer torn gently while supporting the embroidery.
• Trim: All jump threads (front and back) trimmed to 1-2mm.
• Clean: Solvy/Topping removed (if used) with a damp q-tip or steam.
• Press: Final press done face-down to preserve the 3D lift of the satin stitches.

When Floating Feels Sketchy: How to Make This Technique More Secure (and Faster) With Magnetic Hoops

Holding fabric by hand near a moving needle works for a quick hobby project, but it introduces variables: unequal tension, finger danger, and human error.

The "Production Mindset" Shift: If you start receiving orders for 10 or 20 of these patches, the "float and hold" method becomes a bottleneck. Your hands get tired, and alignment drifts.

The Solution Ladder:

1. Level 1 (Skill): Use clearer spray adhesive and improved hand placement.
2. Level 2 (Tool): Upgrade to magnetic embroidery hoops. These use powerful magnets to clamp the stabilizer and fabric instantly. There is no inner ring to force into an outer ring, eliminating "hoop burn" entirely and allowing you to float fabric with mechanical security, not just hand pressure.
3. Level 3 (System): If you are running a Baby Lock single-needle, search specifically for magnetic hoops for babylock embroidery machines. These are calibrated to clear the pantograph arm of your specific unit while providing the grip needed for dense 14,000-stitch designs.

Warning: Magnetic Safety. These are not fridge magnets. They use industrial neodymium magnets. They can pinch skin severely. Do not use if you have a pacemaker. Keep away from credit cards and computerized machine screens.

From a shop-owner perspective, the ROI isn't just speed—it's safety and the reduction of "seconds" (ruined garments).

Stabilizer Decision Tree for This Design: Cotton vs Towel, Floating vs Hooping

Use this logic flow to determine your setup.

Start: What is your substrate (fabric)?

1. Standard Woven Cotton / Quilting Cotton
   • Goal: Quick gift, low stress.
   • Method: Float over Heavy Tear-away (Video Method).
   • Condition: Must use adhesive spray.
2. Stretchy Knit / Performance Polo
   • Goal: Wearable durability.
   • Method: Cutaway Stabilizer (Mesh) is mandatory. Tear-away will result in the design separating from the shirt after one wash.
   • Hooping: Float using magnetic hoops to avoid stretching the knit while hooping.
3. Textured Towel
   • Goal: Plush look.
   • Method: Tear-away + Water Soluble Topping on top.
   • Trick: Skip the white "hole" fill stitches.
4. High Volume (Team Orders)
   • Goal: Speed and consistency.
   • Method: Use babylock magnetic embroidery hoops to reduce hooping time by 50% and eliminate adjustments between shirts.

Quick Troubleshooting Table: Symptoms, Causes, Fixes

The Real "Upgrade" Result: Cleaner Stitch-Outs Now—and a Faster Production Path Later

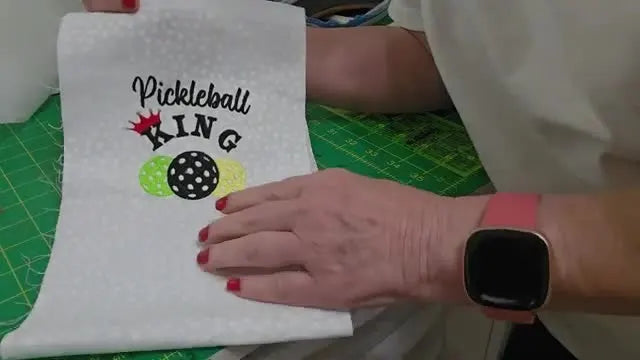

The video ends with the desired result: a clean stitch-out with near-zero puckering.

If you are a hobbyist making one gift, the heavy Stitch-n-Tear float method is your best friend. It is low cost and effective.

However, if you find yourself doing this weekly—or if the frustration of re-hooping slippery fabric is killing your joy—recognize that tools exist to bridge the gap between "struggle" and "production." Whether it's upgrading to a magnetic hoops for babylock embroidery machines setup or eventually moving to a multi-needle machine, the goal is always the same: Let the tool do the hard work, so you can focus on the creativity.

FAQ

• Q: How do I set a safe stitch speed on a Baby Lock or Brother single-needle embroidery machine for a near-max 4x4 design (3.88" x 3.90", 14,830 stitches)?
  A: Use 500–600 stitches per minute as a safe starting point for this high-density 4x4 stitch-out.
  • Slow the machine down before starting, especially if the design is near the hoop edge.
  • Monitor the first minute of stitching for thread shredding or “machine strain” sounds.
  • Success check: stitching sounds steady and even (no harsh “popping” or repeated thread snaps).
  • If it still fails, re-check stabilization and needle condition, then slow down further as needed (machine manual rules).
• Q: What is the correct “drum-tight” test when hooping heavy Pellon Stitch-n-Tear for floating fabric on a Baby Lock or Brother 4x4 hoop?
  A: Hoop only the heavy tear-away stabilizer and re-hoop until it feels and sounds tight like a drum.
  • Tap the hooped stabilizer and listen for a crisp “drum” sound (not dull or saggy).
  • Re-hoop immediately if the stabilizer dips or ripples when you press the center.
  • Success check: stabilizer stays flat with no slack when the hoop is moved or lightly flexed.
  • If it still fails, switch to a heavier tear-away sheet and avoid stretching the stabilizer while tightening.
• Q: How do I prevent fabric ripples or waves during the green tack-down outline when floating fabric on a Baby Lock or Brother single-needle embroidery machine?
  A: Stop drift before it starts: use a light adhesive mist on the hooped stabilizer and smooth the fabric flat from the center outward.
  • Apply temporary adhesive spray lightly to the stabilizer, then place fabric with 1–2 inches of margin.
  • Hold hands well away from the needle path and focus on keeping the fabric flat until tack-down finishes.
  • Success check: the fabric edge does not form a “wave” in front of the presser foot during the outline.
  • If it still fails, stop immediately and restart after adding a bit more adhesive or upgrading to a magnetic hoop for full-area clamping.
• Q: How do I stop white bobbin thread from showing through solid black fill stitching on a Baby Lock or Brother single-needle embroidery machine?
  A: The quickest fix is using a pre-wound black bobbin; the expert fix is slightly lowering top tension for that black-fill step.
  • Install a pre-wound black bobbin before the black central fill starts.
  • Adjust top tension slightly lower for that color stop (a common example shown is moving from 4.0 to 3.0), then return to normal afterward.
  • Success check: the black fill looks solid with minimal or no white specks (“poking”) on the surface.
  • If it still fails, re-thread the top thread cleanly (floss into tension disks) and confirm bobbin seating per the machine manual.
• Q: What needle and thread setup prevents jams and registration problems on a dense 14,000-stitch 4x4 design stitched on a Baby Lock or Brother single-needle embroidery machine?
  A: Use standard 40wt embroidery thread and a fresh 75/11 embroidery needle before starting the stitch-out.
  • Replace the needle at the start (dull needles can push fabric instead of piercing cleanly).
  • Confirm the top thread is true embroidery thread (40wt) and is threaded with proper seating in the tension disks.
  • Success check: clean penetrations with smooth stitching and no repeated fraying/shredding in the first color stop.
  • If it still fails, check for adhesive buildup on the needle and reduce speed to limit friction heat.
• Q: What is the safety protocol for hand-floating fabric near the needle during tack-down stitching on a Baby Lock or Brother single-needle embroidery machine?
  A: Keep fingers, tweezers, and scissors completely out of the needle “red zone” while the tack-down is stitching.
  • Position hands only on fabric areas far from the moving needle path and hoop travel.
  • Never trim or grab jump threads while the machine is actively stitching; do it during a stop/color change.
  • Success check: hands never cross into the hoop’s moving area, and fabric stays flat without “chasing” it near the needle.
  • If it still feels unsafe, switch to a method that mechanically secures fabric (for example, magnetic hoop clamping) instead of hand-holding.
• Q: What magnetic hoop safety rules apply when using industrial magnetic embroidery hoops to replace floating-and-holding on embroidery machines?
  A: Treat magnetic hoops as industrial neodymium tools: pinch hazard, pacemaker risk, and keep away from sensitive items.
  • Keep fingertips away from magnet mating points to avoid severe pinches when magnets snap together.
  • Do not use magnetic hoops if the operator has a pacemaker; keep magnets away from credit cards and electronic screens.
  • Success check: fabric is clamped securely without shifting, and hoop handling is controlled without sudden snap-together impacts.
  • If it still fails, slow down handling, separate magnets deliberately, and consider additional operator training before production use.
