Mastering 3D Puffy Foam: The "Floating" Method for Dimensional Embroidery

If you’ve ever watched a raised satin stitch tutorial and thought, "Why does mine look like a deflated tire while theirs looks like a 3D carving?" you are not alone. Puffy Foam is visually magical, but mechanically unforgiving.

When a standard embroidery needle hits foam at 800 stitches per minute, three things usually go wrong for beginners: the needle gums up, the foam shreds instead of cutting cleanly, or the hoop leaves permanent "burn marks" on your expensive sweatshirt.

This guide rebuilds the classic dimensional embroidery workflow into a Zero-Friction System. We are moving away from "hoping it works" to a physics-based approach that guarantees clean edges and high relief on sweatshirts, denim, and caps.

The Calm-Down Moment: Puffy Foam Embroidery Isn’t Hard—It’s Just Unforgiving About Setup

Dimensional embroidery is a "contact sport." You are forcing a solid object (foam) between thread and fabric. The machine will punish sloppy preparation. However, the method we are analyzing—often taught by industry veterans like Joyce Drexler—relies on a specific technique called "Floating" to bypass the most common failure point: the hoop itself.

The Mindset Shift: Stop trying to hoop the garment. Thick sweatshirts do not want to be clamped; they resist, stretch, and eventually pop out. Instead, you will hoop the stabilizer, creating a "drum skin" foundation, and then stick the garment to that.

Why this matters:

• Physics: By not clamping the fabric, you eliminate "Hoop Burn" (those crushed fibers that never quite fluff back up).
• Stability: The stabilizer handles the tension, while the garment just goes along for the ride.


Puffy Foam Thickness (2mm, 3mm, Stacked to 5mm): Pick Height Like a Pro, Not Like a Gambler

Designers often guess which foam to use. Let’s replace guessing with data. The needle doesn't just sew the foam; it must perforate it like a stamp sheet.

The Foam Hierarchy

• 2mm (The Standard): Best for beginners. It perforates cleanly with standard 40wt thread and a 75/11 Sharp Needle. Use this for lettering on caps or denim.
• 3mm (The Drama): Provides higher relief but requires a lower stitching speed (drop to 500-600 SPM) to prevent thread breakage.
• 5mm (The "Stack"): Created by bonding a 2mm and 3mm sheet with temporary spray adhesive. Expert Note: This creates massive drag. You must increase your Presser Foot Height (if your machine allows) or reduce foot pressure to prevent the foot from dragging the foam out of alignment.

Pro-Tip on Density: Standard satin density (usually 0.4mm spacing) is too loose for foam. You need a density of roughly 0.2mm to 0.25mm. If you can see the foam color through the thread, your density is too low, or your tension is too loose.

If you are building a workflow around hooping for embroidery machine, treat foam choice as a structural engineering decision. The thicker the foam, the slower you must sew.

The “Glue-and-Stick” Hooping Method with Sticky Stabilizer: Fast, Clean, and Kind to Sweatshirts

This is the core execution step. It solves the "I can't close my hoop" struggle instantly.

The "Floating" Protocol

1. Hoop the Receiver: Hoop a sheet of Sticky-Backed Stabilizer (paper side up).
2. Sensory Check: Tighten the hoop screw. Tap the stabilizer. It should sound like a drum—thump, thump. If it sounds loose or papery, re-hoop.
3. Expose the Adhesive: Score the paper with a pin (don’t cut the stabilizer) and peel it away.
4. Float the Fabric: Smooth your garment onto the sticky surface.
5. foam Placement: Spray your Puffy Foam lightly with temporary adhesive and place it exactly over the target area.

Why this works: The sticky stabilizer anchors the fabric fibers across the entire surface area, rather than just pinching the edges. This prevents the "push-pull" distortion that warps 3D designs.

If you have been searching for floating embroidery hoop techniques to save your garments from ring marks, this is the gold standard method.

The Evolution: When to Upgrade

While sticky stabilizer is excellent for one-offs, peeling residue off the hoop is time-consuming. Commercial shops solve this with Magnetic Hoops. Because magnets clamp straight down without friction, they can hold thick garments firmly without the "sticky" mess, allowing for faster production runs.

Warning: Mechanical Safety. Keep fingers strictly clear of the needle bar when placing foam. Do not hold the foam down with your hand while the machine stitches. If the foam is lifting, use a chopstick or pencil to hold it, never your finger. Needle strikes can shatter bone.

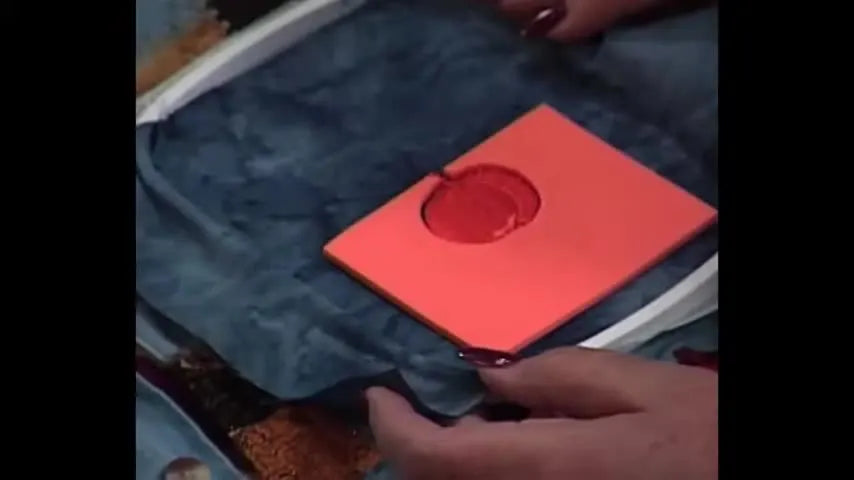

The Satisfying Part: Removing Puffy Foam by Perforation (No Scissors Needed)

This is your quality control moment. Once the stitching is done, the excess foam should separate from the design effortlessly.

The "Pull" Test:

• Correct: You pull the excess foam, and it separates with a clean "zip" sound, leaving a sharp edge.
• Incorrect: The foam stretches like taffy or requires scissors to cut.
  • Diagnosis: Your stitch density was too low, your needle was too dull (use a fresh Sharp, not Ballpoint), or your thread tension was too loose to cut the foam.


The Raised Branch Trick on Denim: Trace, Satin Stitch, Tear Away—Then Clean the “Fuzzies”

Joyce’s method for denim shirts involves creating raised elements (like branches) using a tracing guide rather than direct marking.

The Workflow:

1. Trace: Draw your pattern on Lightweight Tear-Away or Water-Soluble stabilizer.
2. Stack: Place Foam -> Trace Layer -> Hoop/Fabric.
3. Stitch: Satin stitch directly through the paper and foam.
4. Remove: Tear away the paper, then pull away the foam.

Managing "Pokies" (Micro-Tufts): Even with perfect density, tiny bits of foam (pokies) may poke through.

• The Heat Trick: Use a heat gun (on low) or a craft iron near the embroidery. Puffy Foam shrinks when heated. The heat will cause the micro-tufts to shrink back inside the thread tunnel, vanishing from sight. Test this on a scrap first to ensure you don't melt your thread.


1/8-Inch Puffy Foam Strips + Beading/Cording Foot: The Border That Makes Shirts Look Store-Bought

This is a high-value technique for framing designs or creating "varsity" style letters without wasting huge sheets of foam.

The Problem with Strips

Narrow strips of foam (1/8 inch) tend to wiggle under the vibration of the machine.

The Hardware Solution

Joyce suggests changing your presser foot.

• Standard Foot: Flat bottom. It will smash the round strip flat before the needle hits, potentially pushing it sideways.
• Cording/Beading Foot: Has a groove underneath. The foam strip rides inside this groove like a train on a track, keeping it perfectly centered under the needle.

If you are researching equipment and see sticky hoop for embroidery machine discussions, understand that while the hoop stabilizes the fabric, using the correct presser foot stabilizes the material (foam). Both are required for professional results.

Selective “Last-Color” Foam Placement: How Joyce Gets Some Areas Higher Than Others

You don't need 3D effects everywhere. In fact, full-design foam usually looks bulky and stiff.

The "Zoning" Strategy:

1. Flat First: Stitch all your background fills, stems, and flat details normally.
2. Machine Stop: Program a stop command (or color change) right before the high-relief satin object (e.g., the zebra or bow).
3. Place Foam: Lay the foam down only for that final layer.
4. Finish: Stitch the high-relief object and tear away.

Commercial Reality Check: If you find yourself constantly stopping the machine to hover over placements, your efficiency tanks. This is where multi-needle machines (like the SEWTECH series) excel. They allow you to program "Stops" at precise intervals without the manual re-threading fatigue of single-needle home machines.

3D Appliqué with Soft ’n Sheer + Wood Burning Tool: Clean Edges Without Picking Stabilizer Forever

For specialized appliqué where you want the backing to disappear completely without tearing stitches.

The Hot Cut Method: Instead of scissors, use a Fine-Tip Wood Burning Tool.

1. Use a permanent stabilizer like Soft ’n Sheer (poly-mesh).
2. Stitch your satin border.
3. Gently glide the hot tip against the edge of the stabilizer. The heat melts the nylon stabilizer instantly, separating it from the stitch line with microscopic precision.

Warning: Fume & Heat Hazard.
* Ventilation: Melting synthetic stabilizer releases chemical fumes. Always work near a window or fan.
* Heat: The tool is 900°F+. It will melt your table, your carpet, or your skin instantly. Always use a metal stand.
* Control: Do not touch the thread! The tool will melt polyester thread just as easily as the stabilizer.

Layering the Puffy Pansy Box: Temporary Spray for Placement, Permanent Glue for Final Assembly

For complex 3D projects (like assembling freestanding embroidered flowers), Joyce distinguishes between "auditioning" and "committing."

• Audition (Temporary): Use temporary spray adhesive to move petals and leaves around until the layout looks organic.
• Commit (Permanent): Once the layout is locked, lift one corner and apply a dot of permanent fabric glue (e.g., E6000 or specialized fabric glue) to lock it in.


The "Hidden" Prep Most People Skip: Materials, Machine Feel, and a Stabilizer Decision Tree

Before we stitch, we verify. In aviation, pilots have pre-flight checks. In embroidery, we have the "Prep Checklist."

Prep Checklist (Do NOT Skip)

• Needle: Installed a new Sharp 75/11? (Ballpoints are forbidden for foam).
• Bobbin: Is the bobbin thread white and distinct? (Tension must be balanced; using a pre-wound bobbin is recommended for consistency).
• Density Check: Did you adjust the design density to approx 0.2mm spacing?
• Foot Height: Did you raise the presser foot slightly for thick foam (if machine allows)?
• Emergency Brake: Do you know where the "Stop" button is if the foam catches?

Stabilizer Decision Tree

Choose your stabilizer based on the physics of the fabric.

Scenario A: Stretchy Knits (Sweatshirts/Tees) with Foam

• Foundation: Cutaway Stabilizer (Must use Cutaway for knits to prevent distortion).
• Hooping: Hoop the Cutaway -> Spray Adhesive -> Float the Garment.

Scenario B: Stable Wovens (Denim/Canvas) with Foam

• Foundation: Sticky Tear-Away or standard Tear-Away with Spray.
• Hooping: Hoop the Stabilizer -> Float the Fabric.

Scenario C: Freestanding / Appliqué Edges

• Foundation: Soft ’n Sheer (Poly-mesh) or Water-Soluble (Badgemaster).
• Finishing: Heat cut (for poly-mesh) or Wash away (for soluble).

If you are setting up a permanent workspace, a hooping station for machine embroidery can ensure your designs are centered on the stabilizer every single time, reducing the "crooked logo" anxiety.

Heirloom Lace Diamond with French Lace + Wing Needle (Size 100): The Pin-and-Fold Miter That Never Fails

A brief detour into precision mechanics: Heirloom details require specialized hardware.

The Wing Needle (Size 100/16): This needle has wide "wings" on the side. It doesn't just pierce the fabric; it punches a hole in it. When used with an Entredeux stitch, it forces the fabric threads apart to create that vintage "open work" look.

The Mitering Logic:

1. Pin: Pin lace at corners and side points (outside and inside).
2. Fold: Remove inside pin, fold lace back 45 degrees.
3. Warning: Never sew over pins. Electronic machines have tight tolerances; hitting a pin can throw off your timing gear, costing $100+ in repairs.


Troubleshooting Puffy Foam + Sticky Stabilizer: Structured Diagnosis

If things go wrong, do not change ten settings at once. Follow this flow.

The Upgrade Path That Actually Saves Time: Magnetic Hoops, Better Consumables, and When Multi-Needle Makes Sense

Once you master the technique of Puffy Foam, the only barrier left is efficiency. If you are turning this into a side hustle or business, your bottlenecks will be Hooping Time and Color Changes.

Level 1: The Mechanical Grip (Magnetic Hoops)

Sticky stabilizer is great, but residue builds up on needles and frames.

• The Upgrade: Magnetic Embroidery Hoops (like the MaggieFrame).
• The Logic: They clamp thick sweatshirts instantly using powerful magnets. No sticky residue, no hoop burn, and automatic adjustment to different fabric thicknesses.
• Trigger: If you spend more time scrubbing glue off your hoop than sewing, you need magnetic hoop solutions.

Warning: Magnet Safety. high-end magnetic hoops use Neodymium magnets. They snap together with crushing force.
* Pinch Hazard: Handle with awareness.
* Medical: Keep away from pacemakers.
* Tech: Keep away from credit cards and phone screens.

Level 2: The Production Engine (Multi-Needle Machines)

Home machines require you to baby-sit every color stop.

• The Upgrade: SEWTECH Multi-Needle Machines.
• The Logic: You program the Foam Stop. The machine sews Color 1, stops automatically for foam placement, you place it, hit start, and it finishes Color 2.
• Trigger: If you are producing 10+ shirts for a team, a single-needle machine is a bottleneck. Commercial machines are built to handle the drag and resistance of Puffy Foam without timing issues.

Operation Checklist (The Post-Flight)

• Perforation: Did the foam tear away cleanly? (If not, note to increase density next time).
• Cleanup: Are all "Fuzzies" heat-shrunk?
• Inspection: Check the back of the embroidery for birdnesting.
• Maintenance: If you used sticky stabilizer, clean the needle with alcohol to remove adhesive gum before the next run.
• Burn Tool: If used, is it unplugged and resting on its metal stand?

Setup Checklist (The Pre-Flight Routine - 60 Seconds)

Do not press "Start" until you tick these boxes.

• Stabilizer Sound: Tapped the hooped stabilizer? (Must sound like a drum).
• Adhesion: Garment is smoothed flat with zero wrinkles/bubbles.
• Clearance: Puffy Foam is placed only where the satin stitches will cover it.
• Speed Limit: Machine speed reduced to 600 SPM or lower.
• Foot Check: Correct presser foot installed (Grooved for strips, raised for thick foam).

By respecting the physics of the foam and using the "Floating" method, you turn a frustrating gamble into a repeatable science. Happy stitching.

FAQ

• Q: For puffy foam embroidery on sweatshirts, which needle should a Brother single-needle embroidery machine use to prevent foam shredding and gummy needle buildup?
  A: Use a fresh Sharp 75/11 needle (not a Ballpoint) as the default for puffy foam.
  • Install: Replace the needle before the run; foam dulls needles fast.
  • Match: Keep 40wt thread and avoid Ballpoint needles that push fibers instead of perforating foam.
  • Success check: The foam perforates cleanly and the excess tears away with a crisp “zip,” not a stretchy pull.
  • If it still fails… Slow the machine down and re-check stitch density (too tight can also shred).
• Q: When using the “floating” method, how do I know the hooped sticky-backed stabilizer is tight enough before placing a hoodie for 3D puffy foam embroidery?
  A: Hoop the stabilizer until it passes the “drum test” before floating the garment.
  • Hoop: Place sticky-backed stabilizer in the hoop (paper side up) and tighten the screw firmly.
  • Tap: Tap the hooped stabilizer with your finger before peeling paper.
  • Success check: It should sound and feel like a drum (“thump, thump”), not loose or papery.
  • If it still fails… Re-hoop from scratch; do not try to “save” a slack hooping job.
• Q: On a Tajima-style multi-needle embroidery machine, what stitch density and tension clues indicate puffy foam will not “cut” cleanly during satin stitch?
  A: If foam color shows through or the foam won’t perforate-tear cleanly, increase density and/or correct loose tension.
  • Set: Use a foam-friendly satin density around 0.2–0.25 mm spacing (typical 0.4 mm is often too loose for foam).
  • Inspect: Watch for foam color peeking between stitches (density too low and/or tension too loose).
  • Success check: Excess foam pulls away without scissors and leaves a sharp edge.
  • If it still fails… Swap to a new Sharp needle; a dull needle commonly causes poor perforation.
• Q: On a Janome embroidery machine, what is the safest way to hold puffy foam in place during stitching without risking a needle strike injury?
  A: Never hold puffy foam with fingers near the needle area; use a tool and keep hands clear.
  • Place: Position foam before stitching and keep fingers away from the needle bar zone.
  • Control: If foam lifts, hold it down with a chopstick or pencil—not your hand.
  • Success check: Foam stays flat through the satin area with no hand contact near the needle path.
  • If it still fails… Stop the machine and re-secure foam with light temporary spray adhesive rather than “hand guiding.”
• Q: For 3mm puffy foam on caps or denim, what speed should a SWF-style commercial embroidery machine run to reduce thread breaks and “thumping” sounds?
  A: Slow the machine to about 500–600 SPM when running thicker foam like 3mm.
  • Reduce: Drop speed before the foam segment starts (do not wait for the problem to begin).
  • Listen: Treat a “thumping” sound as a penetration struggle signal.
  • Success check: Stitching sounds smooth (no heavy thumps) and the run completes without repeated thread breaks.
  • If it still fails… Consider raising presser foot height/reducing foot pressure if the machine allows, especially for stacked foam.
• Q: For puffy foam embroidery on a sweatshirt, what should I do when the fabric shifts or gaps while using sticky stabilizer and spray adhesive?
  A: Re-establish full-surface adhesion first; if shifting persists, switch to a magnetic embroidery hoop/frame for stronger mechanical grip.
  • Re-stick: Smooth the garment onto the exposed sticky stabilizer with zero bubbles/wrinkles.
  • Re-spray: Apply temporary spray adhesive as needed to prevent push-pull distortion.
  • Success check: The garment stays flat and the design edges do not open into gaps during stitching.
  • If it still fails… Upgrade to a magnetic hoop/frame to clamp thick garments without the sticky mess and reduce repositioning time.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops on SEWTECH multi-needle embroidery machines for thick sweatshirts?
  A: Treat neodymium magnetic hoops as a pinch/crush hazard and keep them away from sensitive medical devices and electronics.
  • Handle: Keep fingers out of the closing path; magnets can snap together with crushing force.
  • Separate: Open/close deliberately—do not “let go” and allow magnets to slam.
  • Success check: The hoop closes without finger pinches, and the garment is clamped evenly with no hoop burn.
  • If it still fails… Stop and reposition; forcing a misaligned magnetic hoop can cause sudden snaps and inconsistent holding.
