Quilt a Patchwork Wall Hanging on a SmartStitch Multi-Needle: Embrilliance Layout + Magnetic/Aluminum Frame Re-Hooping That Actually Lines Up

Quilting a small wall hanging on an embroidery machine feels like a superpower. You are bypassing hours of manual feeding on a sewing machine. But that feeling of invincibility lasts exactly until you hear the sickening metallic crunch of a needle bar hitting a frame clamp, or you unhoop your fabric only to realize your beautiful quilting pattern has drifted half an inch to the left.

If you are working with a production-style machine like a SEWTECH or SmartStitch multi-needle and have Embrilliance Stitch Artist Level 3, the workflow in this project is solid. The strategy is simple: build a repeating quilting layout in software, stitch one section cleanly, and then use a "slide and clamp" re-hooping technique with a chalk line reference to trick the eye into seeing a continuous pattern.

I am going to rebuild the exact process shown in the video (software → machine → hooping → trace → stitch → chalk line → re-hoop). However, I will overlay this with the veteran-level safety checks and sensory feedback loops that keep your quilt sandwich flat, your mechanics safe, and your production schedule predictable.

Embrilliance Stitch Artist Level 3: Merge a 5-inch Quilting Swirl DST and Build a Repeat That Fills 14" × 10.25" Without Frame Strikes

The video starts in Embrilliance Stitch Artist Level 3 on a Mac, using a quilting swirl design downloaded in multiple sizes. The key move here is selecting the 5-inch DST version and then "nesting" repeats by rotating them slightly. This technique reduces the negative space (gaps) between swirls while ensuring the design stays strictly inside the hoop boundary.

One sentence in the video matters more than it sounds: the creator "mimicked" the embroidery frame in software to get a real sense of scale. This is how you avoid the classic novice mistake: a design that looks fine on a 2D screen but causes the needle bar to smash into the frame wall in the 3D world.

What the video does in software (clean, repeatable sequence)

1. Merge the stitch file: Use Merge Stitch File and import the 5-inch quilting swirl (DST).
2. Move the first swirl: Place it toward the top-left of the virtual hoop area.
3. Duplicate and Nest: Copy/paste to create a second swirl.
4. Rotate to fit: Highlight the swirls and rotate them (often 15–30 degrees) so the design contours away from the frame boundary and the repeats nest closer together.
5. Add a third swirl: Copy/paste again, then adjust spacing and rotation as a group.
6. Confirm overall size: The finished layout measures approximately 14 inches by 10.25 inches.
7. Save and transfer: Save the layout to your USB drive or send it via network.


The “why” behind the rotation trick (so you don’t fight gaps later)

Quilting swirls are visually forgiving, but the human eye is brutal about repeating negative space. If you stack designs like bricks, any alignment error becomes obvious. When you rotate individual units slightly, you break up the visual grid. This means small alignment errors after re-hooping (which will happen) don't scream at you.

If you plan to do this often, treat your file like a master template. Keep one "Master Layout," then duplicate and adjust it per project. This prevents you from rebuilding the geometry every time.

Warning: Do not trust the software's safety lines blindly. In the software, the yellow boundary line is a pixel width. In reality, your presser foot is 15mm wide, and your needle bar has depth. Always leave a visual buffer of at least 5mm between your digital design and the digital hoop edge.

Pro tip from the comments: Many viewers ask for the specific frame link because this style of large rectangular clamp frame makes re-hooping significantly less painful than traditional screw-tightened hoops. If you are shopping, prioritize a frame that opens and clamps quickly and holds thick layers evenly. These are often referred to as "magnetic sash frames" or "clamp frames."

SmartStitch Embroidery Machine Setup: Load the Layout, Switch to Needle 1, and Treat “Trace” Like Your Pre-Flight Checklist

Once the layout is on the SmartStitch interface, the creator selects Needle 1 and runs a trace to confirm clearance. This is not just a button press; it is a ritual. It is the only thing standing between you and a broken reciprocating lever.

What to do at the machine (exact actions shown)

• Load the saved layout onto the machine via USB.
• Confirm the repeating swirl pattern is visible on the touchscreen and oriented correctly (top is top).
• Change to Needle 1. Even though the design is one color, designating the needle ensures the machine head moves to the correct starting position.
• Lower the speed: For the first trace, set your machine speed to low.
• Run Trace/Border Check and watch the perimeter travel.


What you’re checking during trace (The "Hawk Eye" Technique)

The creator points at the gap between the needle area and the frame edge while tracing. That is the correct instinct.

In practice, you need to verify three specific physical clearances:

1. Top clearance: Does the bulky head of the machine (the needle bar case) come within 1/2 inch of the top frame bar?
2. Side clearance: Does the presser foot hover over the clamp, or is it safely inside the sewing field?
3. "Real-world" clearance: Thick quilt sandwiches sit higher than a single layer of cotton. This height reduces your effective clearance.

If you see the presser foot skimming the clamp, stop. Go back to the screen, move the design, or resize it by 98%. Do not "hope" it will clear.

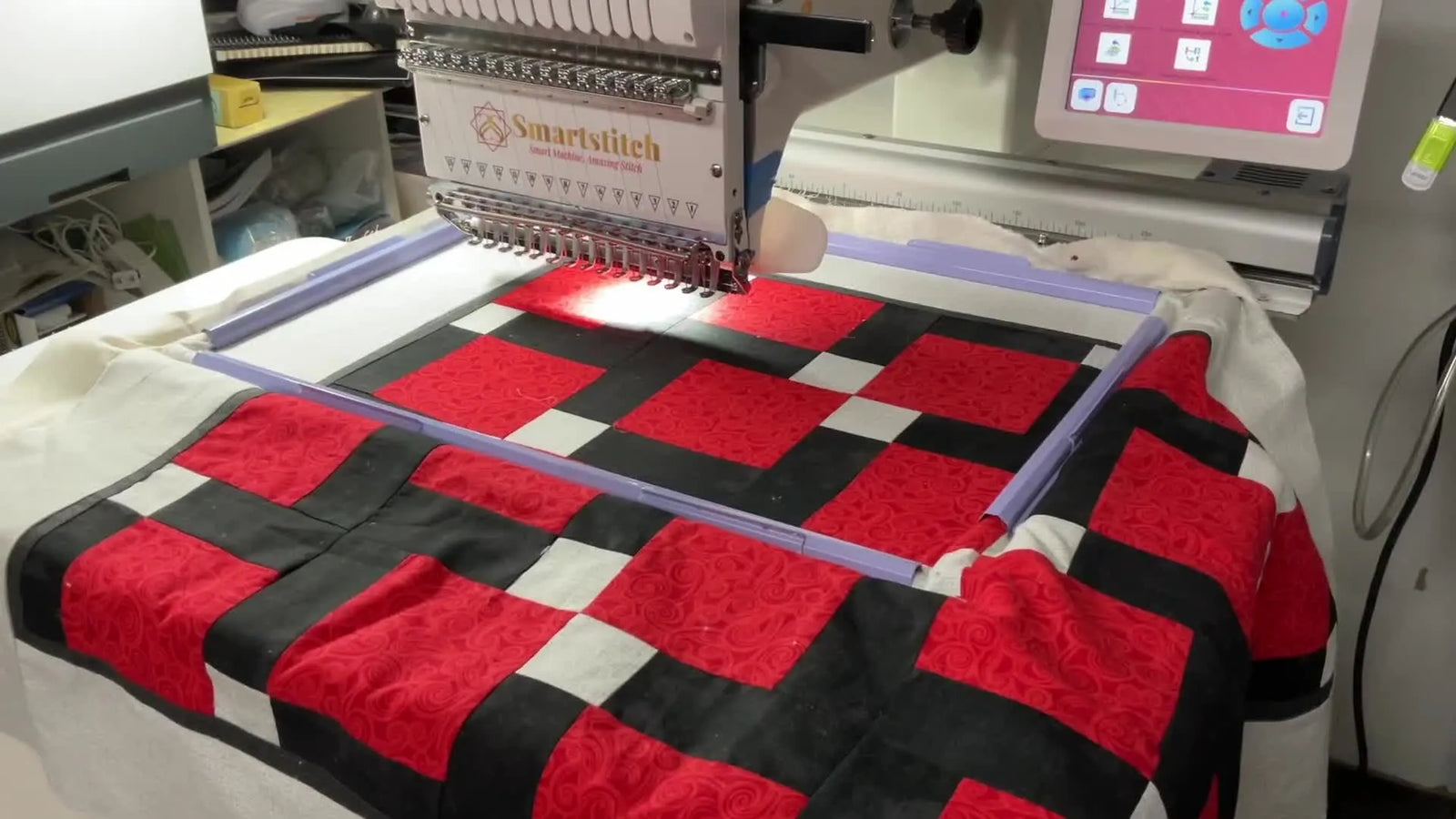

Hooping a Quilt Sandwich in a Large Rectangular Magnetic/Aluminum Frame: Keep It Flat, Not “Drum Tight”

This project uses a quilt sandwich—backing fabric + batting + patchwork top—secured in a large rectangular frame. The creator clamps it flat and taut, then stitches with black thread.

Here is the veterans' reality: "Drum tight" is the enemy of quilting. If you stretch a quilt sandwich like a drum, the batting compresses, and the backing stretches. When you unhoop, the fabric relaxes, and your beautiful flat quilt creates a permanent pucker or "bowl" shape.

You want "Taut but Relaxed." It should feel like a freshly ironed shirt—flat and smooth, but with no active stretch applied.

The physics that keeps your quilt from shifting

A quilt sandwich behaves like three tectonic plates. The top layer wants to slide over the slippery batting. To prevent this without crushing the loft, you need even pressure.

A magnetic or clamp-style frame distributes holding force along the entire long edge, whereas a traditional round hoop focuses pressure on the ring, often causing "hoop burn" (crushed fibers) on delicate patchwork.

If you are doing this regularly, investing in a magnetic frame for embroidery machine stops being a luxury and becomes a necessity for consistency. It allows you to "float" the thick layers without forcing them into a groove.

Warning: Magnet Safety. Powerful magnetic frames can snap together with enough force to pinch skin severely or shatter the magnets. Keep fingers strictly on the handles. If you have a pacemaker, consult your doctor before using high-strength industrial magnets, as the field strength can interfere with medical devices.

Prep Checklist (Do this before clamping)

• Needle Check: Install a fresh size 90/14 or 75/11 Titanium needle. Quilting dulls needles fast; a dull needle pushes batting through the back (bearding).
• Sandwich Audit: Ensure your backing is at least 3-4 inches larger than the hoop on all sides.
• Tactile Scan: Run your hand over the batting. Lumps here will become skipped stitches later.
• Clean the Frame: Wipe the contact surfaces of your frame with alcohol. Lint buildup acts like a lubricant, causing the quilt to slip inward.
• Hidden Consumable: Have a can of temporary spray adhesive (like Odif 505) or basting safety pins ready if you are working with slippery fabrics like satin or minky.

The Trace Button Saves Needles: How to Confirm SmartStitch Frame Clearance Before You Commit to Stitching

The video’s trace segment is short, but it is the most important safety habit in the whole workflow.

Expected outcome (What "Good" looks like)

• The machine traces the perimeter.
• Visual Check: You see daylight between the presser foot and the frame wall at every corner.
• Auditory Check: You hear smooth motor movement, no straining or grinding sounds which might indicate the pantograph is hitting a limit.

Watch out: why “it cleared once” isn’t always enough

Generally, thick quilting projects can shift or "flag" (bounce up and down) when the machine starts stitching at speed. That means a design that barely clears during a static trace can hit the frame when the fabric bounces.

My rule of thumb: If your trace clearance is less than finger-width (about 1cm), move the design. It is not worth the risk of a $300 repair for a design that is 2mm wider.

Stitch the First Quilting Section on SmartStitch: Black Thread, Continuous Swirls, and What to Listen For

After tracing and adjusting, the creator chooses black thread and begins stitching.

What the video shows during stitching

• The machine runs the continuous swirl pattern over the patchwork.
• The first section completes, and the creator prepares to align the next area.

Operational Parameters for Beginners (The "Sweet Spot")

• Speed: Start at 600 - 700 SPM (Stitches Per Minute). While these machines can go faster, quilting involves long satin or running stitches over thick seams. Lowering the speed reduces needle deflection.
• Tension: Reduce your top tension slightly. Quilting thread should sit nicely on top. If it looks tight or is pulling the bobbin thread up, loosen the top tension knob by half a turn.

Sensory checks that prevent “mystery” thread breaks

• Sound: Listen for a rhythmic thump-thump. A sudden, sharp tick sound usually means the needle point has hit a thick seam allowance or is slightly deflecting. If you hear this, slow down immediately.
• Vibration: If the quilt frame is vibrating violently, your clamping pressure may be uneven, or the machine speed is hitting a resonant frequency. Adjust speed up or down by 50 SPM to smooth it out.
• Feel: Gently touch the thread feeding into the tensioner. It should flow smoothly. If it feels like it is jerking, check for a tangle at the cone.

Operation Checklist (After the first section finishes)

• Loop Check: Inspect the back of the hoop. Are there "bird nests"? (loops of thread).
• Flatness Check: Confirm the quilt sandwich stayed flat. If you see a "wave" of fabric pushing ahead of the foot, your hoop tension was too loose.
• Planning: Decide your next direction (moving down or moving right) before you unclamp.
• Design Continuity: Do not clear the design from the screen. You will stitch the exact same file again.

The Chalk-Line Re-Hooping Method: Slide the Quilt Sandwich, Clamp Again, and Accept “Not Dead On” as a Win

To continue quilting beyond one hooping, the creator marks a white chalk line where the previous design ended, then uses that line as a visual anchor when shifting the quilt in the frame.

The exact alignment method shown

1. Mark: Draw a white chalk line on the quilt top precisely where the previous stitching ended.
2. Unclamp: Release the magnetic/mechanical clamps.
3. Slide: Shift the quilt material physically until your chalk line sits exactly at the starting edge of the sewing field (or flush with the frame edge, depending on your reference point).
4. Re-clamp: Lock the frame down.
5. Target: Use the machine's laser pointer (or needle drop position) to verify the new start point aligns with the chalk line.




Expected outcome (and the honest truth)

The creator says it plainly: the chalk line was not quite dead on, but it worked.

This is the professional standard for "Edge-to-Edge" (E2E) quilting. Perfection in quilting is less important than flow. Small gaps are invisible once the quilt is washed and crinkled.

If you struggle with alignment using traditional screw hoops, switching to a repositionable embroidery hoop workflow (like using magnetic sash frames) is transformative because it separates the "holding" action from the "alignment" action.

Fix the Two Problems Everyone Hits First: Frame Collisions and Alignment Gaps (Symptoms → Causes → Repairs)

The video calls out two real-world issues. Let's break them down into a diagnostic table.

Problem 1: Frame Collision Risks

• Symptom: During the layout phase, the design touches the digital hoop boundary. During the physical trace, the foot gets scary close to the magnets.
• Cause: The layout is maxing out the printable area, or the start center is not perfectly centered.
• Fix:
  1. Software: Rotate individual elements 5-10 degrees to pull edges inward.
  2. Physical: Shift the hoop center on the machine screen (if safe) to move the design away from the danger zone.

Problem 2: Gaps After Re-Hooping

• Symptom: The second section stitches nicely, but there is a ¼ inch gap between it and the first section.
• Cause: The fabric shifted during clamping, or the visual estimation of the "chalk line" was off.
• Fix:
  1. The "Overlap" Technique: In your software, design your segments to overlap by 2-3mm. It is better to have stitches cross slightly than to have a gap.
  2. Sensory Anchor: Use a ruler physically on the hoop to measure the distance, rather than just eyeballing the chalk line.

The Stabilizer Decision Tree for Quilt Sandwich Quilting: Backing + Batting + Top Isn’t Always Enough

The video uses the "Backing + Batting + Top" sandwich, essentially using the batting as the stabilizer. For cotton patchwork, this is standard. However, different materials require different physics.

Decision Tree: What goes under the hoop?

• Scenario A: Standard Cotton Patchwork + Cotton Batting
  • Recommendation: No extra stabilizer. The batting provides enough structure.
• Scenario B: T-Shirt/Jersey Quilt (Stretchy) + Polynomial Batting
  • Recommendation: Fusible No-Show Mesh (Cut-away). Fuse it to the back of the T-shirt quilt top. Without it, the needle will push the stretchy fabric, creating distortion and puckers.
• Scenario C: High-Loft Batting (Puffy)
  • Recommendation: Add a layer of Water Soluble Topping (Solvy). This prevents the presser foot from getting caught in the puffy loops of the batting or fabric.
• Scenario D: Slippery Backing (Satin/Minky)
  • Recommendation: Spray Adhesive (Web Bond). Baste the layers together aggressively. Slippery fabrics slide under magnetic clamps if not bonded to the batting.

The Upgrade Path That Actually Saves Time: When a Magnetic Frame and Multi-Needle Workflow Beats Single-Needle Quilting

A commenter mentions quilting on a single-needle machine and wanting to try it on a 1201 industrial model. This highlights a massive pain point: Transition Friction.

If you are doing one pillow a year, a single-needle machine is fine. But if you are quilting a King Size bedspread, you might re-hoop that fabric 40+ times.

• The Bottleneck: It is not the stitching speed; it is the hooping time. wrestling with screws and inner rings 40 times will injure your wrists.
• The Solution (Level 1): magnetic embroidery hoops. These allow you to clamp the fabric in 10 seconds without "unscrewing" anything. You just lift the magnets, slide the fabric, and drop the magnets.
• The Solution (Level 2): magnetic embroidery frames (Sash style). These are massive, rectangular frames designed specifically for continuous quilting. They provide the "slide and go" workflow shown in the video.
• The Solution (Level 3): If you are running a business, a SEWTECH multi-needle machine drastically reduces the risk because the large open bed handles the bulk of a rolled-up quilt far better than the cramped throat space of a sewing machine.

One often-overlooked tool for success is a dedicated machine embroidery hooping station. Having a flat, marked surface to lay your heavy quilt on while you clamp it ensures your angles remain 90 degrees, reducing the "drift" that happens halfway through a project.

Setup Checklist for Production (Speed & Ergonomics)

• Marking Tool: White chalk (for dark fabrics) or Air-Erase pen (for light fabrics).
• Table: Ensure you have a heavy table to support the weight of the quilt dragging off the machine.
• Staging: Roll the excess quilt tightly and clip it with large binder clips so it doesn't drag on the floor.

The Frame Question Everyone Asks: What “SmartStitch Embroidery Frame” Features Matter More Than the Link

One comment asks for the link to the quilt frame. I understand the confusion—frame compatibility is a minefield.

Instead of hunting for a specific SKU, evaluate any smartstitch embroidery frame using these criteria:

1. Grip Strength: Can it hold 3 layers (Top/Batting/Backing) without popping open? (Magnetic frames excel here).
2. Profile Height: Is the frame flat enough to slide under your needle bar?
3. Field Size: Does it maximize your machine's reach (e.g., 12x8 inches or larger) so you minimize re-hooping?

If you own a specific model, like the smartstitch s1501, verify the bracket width. Not all industrial frames fit all machines.

Ultimately, mastering hooping for embroidery machine projects like this is about confidence. The video teaches you the workflow—Trace, Stitch, Mark, Slide. We provide the tools—Magnetic Hoops and Multi-Needle Machines—to make that workflow profitable and painless.

If you follow the video’s sequence but layer on these safety checks—visualizing clearance, listening to the needle, and choosing the right stabilizer—you will get a wall hanging that looks uniform and clean. The first time you re-hoop, it will feel scary. By the third time, it will just feel like production.

FAQ

• Q: How do I prevent a SmartStitch or SEWTECH multi-needle embroidery machine needle bar from hitting a large rectangular clamp/magnetic frame during Trace/Border Check?
  A: Always treat Trace/Border Check as a clearance test and keep a real buffer between the stitched area and the physical frame.
  • Run Trace at low speed and watch every corner, not just the start point.
  • Leave at least a 5 mm visual buffer inside the digital hoop edge because the presser foot and needle bar have real width/depth.
  • Stop immediately if the presser foot skims the clamp; move the design on-screen or reduce the design slightly (for example, to 98%).
  • Success check: You can see consistent “daylight” between the presser foot and frame wall at all corners during trace, with smooth motor sound (no strain/grind).
  • If it still fails: Re-check quilt thickness/height (a thick quilt sandwich reduces clearance) and re-position the design farther from the boundary before stitching.
• Q: What needle should I install on a SmartStitch or SEWTECH multi-needle embroidery machine for quilting a backing + batting + patchwork top quilt sandwich?
  A: Start with a fresh 90/14 or 75/11 Titanium needle, because quilting dulls needles quickly and dull needles cause batting issues.
  • Install a new needle before the first section (do not “push through” a big project on an old needle).
  • Inspect the first stitches for clean penetration through seams and batting.
  • Success check: Stitching sounds smooth (no sharp ticking on seams) and the back does not show batting being pushed through (bearding).
  • If it still fails: Slow the machine down and replace the needle again—quilting over seam allowances can dull a needle faster than expected.
• Q: How tight should a quilt sandwich be clamped in a large rectangular magnetic/aluminum embroidery frame on a SmartStitch or SEWTECH multi-needle machine?
  A: Clamp the quilt sandwich “taut but relaxed,” not drum-tight, to avoid distortion and puckers after unhooping.
  • Smooth the layers flat like a freshly ironed shirt; avoid stretching the backing or compressing batting aggressively.
  • Clamp with even pressure along the long edges; re-seat if one side feels tighter than the other.
  • Success check: After stitching, the quilt stays flat in the hoop with no “wave” pushing ahead of the presser foot, and it does not spring into a bowl shape when released.
  • If it still fails: Clean frame contact surfaces (lint can make fabric slip) and consider adding temporary spray adhesive or basting for slippery layers.
• Q: How do I stop bird nests (loops on the back) when quilting a wall hanging on a SmartStitch multi-needle embroidery machine?
  A: Pause after the first section and inspect the back immediately; bird nests are usually a setup/feeding issue you can catch early.
  • Check the back of the hoop right after the first stitching section finishes (before re-hooping).
  • Reduce top tension slightly if the stitch looks overly tight or is pulling bobbin thread upward.
  • Feel the thread feeding into the tensioner; confirm it flows smoothly without jerking from a cone tangle.
  • Success check: The back shows controlled, even stitching (not a wad of loops), and thread feeds smoothly by feel.
  • If it still fails: Re-thread the top path completely and re-test at a lower speed before committing to the next section.
• Q: How do I reduce 1/4-inch alignment gaps when re-hooping edge-to-edge quilting using a chalk-line method on a SmartStitch or SEWTECH embroidery machine?
  A: Use a physical measurement reference (not only eyeballing chalk) and plan for tiny overlaps so small drift is hidden.
  • Mark a clear chalk line exactly where the previous stitching ended before unclamping.
  • Slide the quilt so the chalk line lands at the same repeat reference point each time, then re-clamp without shifting.
  • Measure with a ruler on the hoop/frame to confirm the same offset instead of relying on visual estimation.
  • Success check: The next stitched section visually “flows” with no obvious empty channel; minor mismatch is acceptable for E2E quilting.
  • If it still fails: Adjust the layout approach by planning a small overlap between sections (stitches crossing slightly is usually better than a visible gap).
• Q: When should I add stabilizer or topping for quilting a quilt sandwich on a SmartStitch or SEWTECH multi-needle embroidery machine instead of using batting alone?
  A: Add stabilizer/topping when the fabric behavior changes (stretch, loft, or slipperiness) because batting alone is not always enough.
  • Use no extra stabilizer for standard cotton patchwork with cotton batting (batting often provides enough structure).
  • Fuse a no-show mesh cut-away to stretchy T-shirt/jersey quilt tops to prevent distortion and puckers.
  • Add water-soluble topping when high-loft batting is causing the presser foot to catch or sink into texture.
  • Success check: The stitched swirls stay the intended shape without rippling, and the surface stitches don’t disappear into loft.
  • If it still fails: Baste more aggressively (spray adhesive or pins) for slippery backings like satin/minky to prevent layer creep under clamps.
• Q: What magnetic frame safety rules should I follow when using a large rectangular magnetic/clamp embroidery frame for quilting on a SmartStitch or SEWTECH machine?
  A: Handle magnetic frames only by the handles and keep fingers out of the closing path because magnets can snap together with severe pinch force.
  • Keep fingers strictly on the handles when bringing magnets/clamps together.
  • Control the closing motion; do not let magnets “jump” shut over thick quilt layers.
  • Keep the work area clear so the frame does not snap onto tools or the machine bed unexpectedly.
  • Success check: The frame closes in a controlled way with no sudden snap and the quilt remains evenly held without shifting.
  • If it still fails: Pause and re-seat the frame—forcing a misaligned magnetic closure increases pinch risk and can destabilize the quilt during stitching.
