Redline Mini Rotary Hook Replacement & Timing: The Calm, Precise 202° Fix That Stops Needle Strikes

If your Redline Mini suddenly starts skipping stitches, shredding thread, or making that sickening tick-tick-tick sound of metal striking metal, your brain naturally goes to the worst-case scenario.

Take a breath. Replacing a rotary hook and resetting the timing is not "rocket science"—it is a procedure of geometry and patience. A full rotary hook replacement and timing reset is absolutely doable in your own shop—if you respect the machine’s specific reference angles (100° and 202°) and you don’t rush the critical gap clearance.

This guide rebuilds the exact workflow shown in the video but layers on the "Master Technician" insights—the sensory checks, the safety protocols, and the business logic—that keep you from having to do the job twice.

The “Don’t Panic” Primer: What a Redline Mini Rotary Hook Problem Usually Looks Like

On a Redline Mini, the rotary hook and the needle operate in a dangerously close dance. They miss each other by fractions of a millimeter thousands of times per minute. When timing drifts—usually due to a thread jam, a "bird's nest," or a hard needle strike—that dance turns into a collision.

The Symptoms of Drifting Timing:

• Audio Comp: You hear a metallic click or ping as the needle descends (the needle is grazing the hook).
• Visual Check: You see missed stitches, especially on wide satins or when the machine changes direction (X/Y movement).
• Tactile Failure: Use your finger to check the thread; if it's frayed or "fuzzy," the hook point is likely burred or hitting the needle scar.

The video’s solution is methodical: remove access parts, loosen the hook at a "safe" shaft position (100°), install the new unit, and then time it precisely at 202° so the hook tip sits directly behind the scarf of the needle.

If you are running a redline embroidery machine in a production environment, learning this is not optional. It is the difference between a 30-minute fix and a 3-day wait for a technician.

The “Hidden” Prep on a Redline Mini: What I Check Before Touching a Screw

The video starts correctly: power off the machine and move the pantograph back slowly. That “slowly” is critical—moving the pantograph fast when the machine is off can send voltage back through the stepper motors (back-EMF), which is bad for the boards.

But before you unscrew anything, you need to perform a "Pre-Flight Inspection." Technicians don't just dive in; they check the environment.

1. The "Fresh Needle" Rule

Never time a machine with an old needle. A slightly bent needle (even invisible to the naked eye) will cause you to set the timing wrong. When you put a straight needle in later, the machine will fail.

• Action: Install a brand new 75/11 Organ or Groz-Beckert needle. This is your "True North" reference.

2. The "Hidden Consumables"

You will need more than just tools. Grab a flashlight (or your phone light) and a piece of white paper to put behind the needle area—this increases contrast so you can actually see the gap.

Warning: Mechanical Safety Protocol. Rotary hook work is a "Finger Trap" zone. Ensure the machine is completely powered off. When hand-rotating the main shaft, move slowly. If you feel resistance, STOP. Forcing the shaft against a jam can strip plastic gears or snap internal belts.

Prep Checklist (Do this BEFORE touching a screw)

• Machine is Powered OFF and unplugged (ideal safety).
• Pantograph moved strictly slowly to the rear.
• Brand NEW needle installed (essential for accuracy).
• Bobbin case removed from the hook assembly.
• Tools verified: Standard Phillips screwdriver + 5mm Allen wrench.
• Lighting status: Flashlight or focused lamp ready.


Open the Work Area Cleanly: Removing the Needle Plate and Lower Shaft Cover

We need surgical access. The video dictates a specific disassembly order to avoid cracking expensive plastic casings.

1. Needle Plate First: Unscrew and remove the metal needle plate.
2. Shaft Cover Second: Remove the four screws on top of the lower shaft cover.
3. The "Gentle Separation": To remove the white plastic cover, gently pry the sides apart just enough to clear the internal mechanism, then slide it up and off.

Sensory Check: Plastic gets brittle with age and heat. If you hear a crackling sound, stop and reposition your grip. You want to feel the plastic "give," not "snap."

Once the cover is off, the video instructs you to remove the metal bracket sitting on the lower shaft. Place these screws in a magnetic dish—losing one into the machine chassis is a nightmare you want to avoid.

The 100° Rule on the Degree Dial: Loosen Redline Mini Rotary Hook Screws the Safe Way

Novices strip screws because they try to loosen them at awkward angles. The Redline Mini has a "Degree Dial" on the side for a reason.

The Procedure:

1. Insert your 5mm Allen wrench into the main shaft port.
2. Rotate the shaft until the dial reads exactly 100 degrees.
3. Why 100°? At this angle, the screws on the rotary hook collar are accessible, and the mechanism is in a "neutral" tension state.

The Loosening Sequence:

• Loosen the first visible screw.
• Rotate the gear clockwise (by hand) to reveal the second screw. Loosen it.
• Rotate again to find the third. Loosen it.

If you are comparing different redline embroidery machines, you will find this "degree discipline" is universal. It prevents you from fighting the machine's compression.

Remove the Rotary Position Bracket Like a Technician: One Screw Out, One Screw Loose

The Rotary Position Bracket (often called the "Finger" or "Retaining Finger") is the small metal piece that keeps the bobbin basket from spinning 360 degrees with the hook.

The "Lazy" Pro Trick:

• Remove the screw on the right completely.
• Loosen the screw on the left—but do not take it out.
• why? By leaving one screw loosely attached, you preserve the general alignment height. It acts as a pivot point.

Slide the bracket forward to clear the hook, then pull the old rotary hook off the shaft.

Inspection Moment: Look at the shaft. Is it scored or scratched? Wipe it clean with a lint-free cloth before sliding the new hook on.

Install the New Rotary Hook on the Redline Mini: Seat It, Then Keep It Loose

Sliding the new hook on requires finesse, not force.

1. Clearance Check: Rotate the hand wheel slightly to ensure the needle bar is UP and out of the way.
2. Slide & Seat: Slide the new hook onto the shaft.
3. The Peg Alignment: This is critical. Ensure the peg of the Rotary Position Bracket inserts into the notch (gap) at the top of the hook's basket. If this isn't seated, the machine will jam instantly upon startup.

Crucial Step: Insert the right-side bracket screw and tighten it slightly—just enough to hold the weight, but loose enough that the hook can spin freely on the shaft. We are about to set the timing, and we need the hook to move independently of the shaft for a moment.

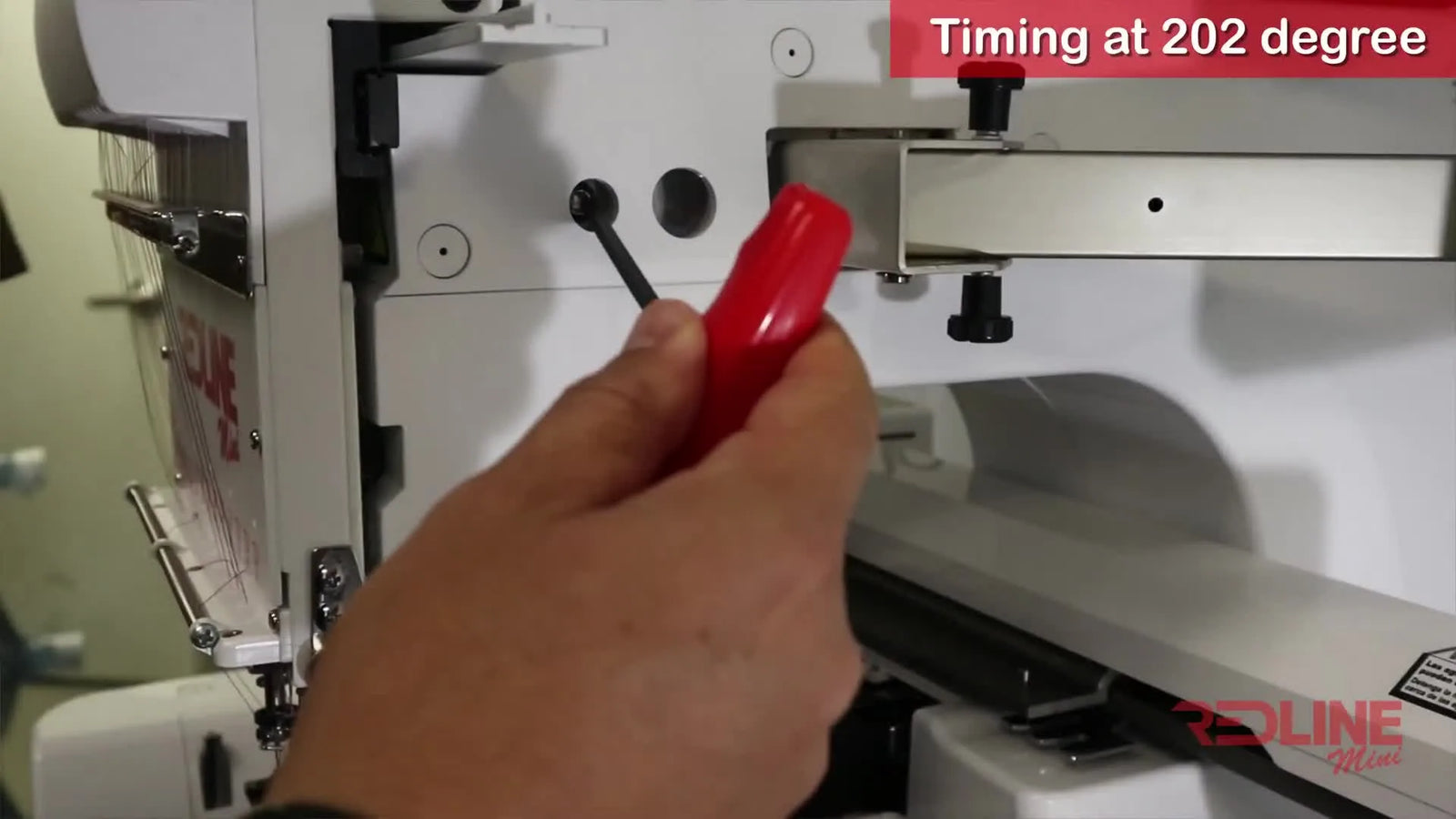

The 202° Timing Moment: Put the Hook Tip Directly Behind the Needle

This is the "Brain Surgery" portion of the operation. Everything depends on this step.

The Goal: We need to synchronize the rotation of the hook so that its sharp point arrives exactly behind the needle at the precise millisecond the needle has risen enough to form a thread loop.

The Workflow:

1. Manually Hold the Hook: Keep the rotary hook stationary with your fingers.
2. Set the Shaft: Use your other hand (or a helper) to turn the main shaft counter-clockwise to exactly 202 degrees on the dial.
3. Visual Alignment: At 202°, manipulate the rotary hook so the point of the hook is hidden directly behind the needle.

The "Center Line" Rule: The video gives a vital reference: The needle should be in front of the tip of the rotary hook. Not to the left, not to the right. The hook point should be bisecting the needle shaft if you were looking through them like X-ray vision.

Whether you are maintaining a single head or a redline 1501c embroidery machine, this 202° parameter is your holy grail. If you miss it by even 2 degrees, you will get "looped" stitches or breaks.

The 1 mm Gap That Saves Hooks and Needles: Tightening in the Right Order

Now that the rotational timing (202°) is set, we must set the horizontal clearance (The Gap).

The video recommends a gap of ~1 mm.

• Expert Note: In high-precision industrial tuning, we often aim for 0.1mm to 0.3mm (roughly the thickness of a business card). However, for a user performing a field repair without specialized feeler gauges, 1 mm is a "Safe Zone." It ensures you won't hit the needle.

The Adjustment Strategy:

1. Light Lock: Tighten one hook screw gently to hold the 202° position.
2. The Physical Check: Gently push the needle slightly back with your fingernail. It should barely deflect before touching the hook point.
   • Too Tight: If the needle scrapes the hook point as it comes down, you will break needles.
   • Too Loose (>1.5mm): The hook will miss the thread loop, causing skipped stitches.
3. The Final Torque: Once satisfied with the gap (aim for "close but not touching"), tighten all three screws FIRMLY.

Sensory Cue: You want to feel a solid "stop" when tightening these screws. Vibration is the enemy; loose screws equals lost timing.

Setup Checklist (The "Do Not Close Yet" Check)

• Main dial reads 202° when hook point is behind needle.
• Center Alignment: Hook point is hidden directly behind the needle scarf.
• Gap Check: Clearance is approx 0.5mm - 1mm (No touching!).
• Torque Check: All 3 rotary hook screws are wrench-tight.
• Rotation Test: Rotate hand wheel 360°—Listen for any clicks.

The Bracket “Almost Touching” Trap: Secure the Position Bracket Without Friction

We are almost done, but don't rush the bracket.

• The Adjustment: Ensure the black metal "finger" (bracket) is sitting in the hook basket's notch.
• The "Paper Test": There must be a tiny gap between the metal finger and the basket wall. It should be close enough to stop rotation, but not touching.
  • Test: If you rotate the hand wheel and hear a dry scraping sound, the bracket is rubbing. This generates heat and will melt your thread. Back it off slightly.

If you are inspecting a used redline embroidery machine, this specific area is often where you find wear—a sign of poor maintenance by previous owners.

Reassembly on the Redline Mini: The Back-to-Front Cover Motion

1. Bracket Back: Reinstall the metal shaft bracket.
2. Plastic Snap: Slide the white cover on using a back-to-front motion. Ensure the seams click together without forcing.
3. Needle Plate: Screw it down tight. If this is loose, it will bounce and break needles.




Operation Checklist (Your First Test Run)

• Manual Rotation: Turn the main shaft by hand for 2 full rotations. Silence is golden.
• Slow Speed Test: Run the machine at 400 SPM (Stitches Per Minute) on a scrap cloth.
• Sound Check: Listen for the rhythmic thump-thump of proper stitching. Any sharp click means stop immediately.
• Tension Check: Inspect the back of the fabric. Is the bobbin tension balanced (1/3 rule)?

When It Still Skips or Clicks: Redline Mini Timing Troubleshooting Logic

If you finished the steps but the machine isn't stitching right, use this decision logic to diagnose the issue quickly.

The "Why It Failed" Insight: Moving From Repair to Production

The video shows you how to fix it. As a Chief Education Officer, I need to tell you why this happened so you can stop it from happening again.

Timing usually fails because of Stress. When the machine fights through dense fabric, thick seams, or poor stabilization, the needle deflects, hits the hook, and knocks the timing out.

Level 1 Upgrade: Consumables

Your first line of defense is using the right Stabilizer (Backing) and Thread. Cheap backing allows fabric to shift; shifting fabric bends needles; bent needles break hooks. Investing in high-quality SEWTECH Stabilizers creates a rigid foundation that protects your machine's geometry.

Level 2 Upgrade: The Tool Change (Magnetic Hoops)

If you find yourself constantly fighting to hoop thick garments (like hoodies or jackets), traditional hoops are often the culprit. They require immense wrist pressure and often "pop" loose, causing the exact kind of needle deflection that ruins timing.

Magnetic Hoops are the professional solution.

• Scientific Advantage: They use vertical magnetic force rather than lateral friction. This holds the fabric firmly without distorting the fibers or requiring brute force.
• Many professionals search for terms like magnetic embroidery hoop specifically to solve the problem of "hoop burn" and operator fatigue.
• Decision Criteria: If you hoop more than 20 items a day, the time saved by magnetic hoops (approx. 15 seconds per garment) pays for the upgrade in weeks.

Warning: Magnet Safety. SEWTECH Magnetic Hoops use industrial-grade magnets. They are incredibly strong. Keep them away from pacemakers, and never place your fingers between the magnets when closing. They snap together with enough force to pinch severely.

Level 3 Upgrade: The Capacity Shift

Finally, if you are running a single Redline Mini and spending more time changing thread colors than stitching, you have hit a "Capacity Wall."

• The Symptom: You are turning down orders or working until 2 AM.
• The Solution: Moving to a Multi-Needle Machine.
• A machine with 15 needles (like the Redline 1501c or comparable SEWTECH models) holds all your colors at once. This eliminates manual thread changes.
• When looking for a commercial embroidery machine for sale, calculate your ROI based on labor saved. If a multi-needle machine saves you 2 hours a day, it effectively pays its own lease.

Final Reality Check

If your machine runs smoothly by hand, stitches a test square without noise, and holds tension—congratulations. You have successfully navigated one of the most intimidating repairs in embroidery.

Respect the 100° preparation, trust the 202° reference, and keep that 1 mm safety gap. You didn't just fix a machine; you regained control of your production line.

FAQ

• Q: What must be checked before replacing and timing a Redline Mini rotary hook to avoid setting timing wrong?
  A: Start with a brand-new needle and a clean, fully powered-off machine, or the Redline Mini timing reference will be inaccurate.
  • Install a brand new 75/11 Organ or Groz-Beckert needle before any timing work.
  • Power off and ideally unplug the Redline Mini; move the pantograph slowly to the rear (do not “slam” it back).
  • Remove the bobbin case and set up a flashlight plus white paper behind the needle area for contrast.
  • Success check: The needle is known-straight (new), the hook area is unobstructed, and you can clearly see the needle/hook gap.
  • If it still fails: Stop and inspect for jam resistance when hand-rotating—do not force the main shaft.
• Q: At what degree should Redline Mini rotary hook screws be loosened, and why does the Redline Mini degree dial matter?
  A: Loosen the Redline Mini rotary hook collar screws at 100° because the screws are accessible and the mechanism is in a safe neutral position.
  • Insert a 5mm Allen wrench and rotate the main shaft until the degree dial reads exactly 100°.
  • Loosen the first visible hook screw, rotate the gear clockwise by hand to reveal the next two screws, and loosen each in turn.
  • Success check: All three hook screws loosen without stripping, and the hook can be repositioned without fighting tension.
  • If it still fails: Reconfirm the dial is truly at 100° and reposition the wrench for a straight, non-angled bite on each screw.
• Q: How should a Redline Mini rotary hook be aligned at 202° to set correct hook timing behind the needle?
  A: Set Redline Mini hook timing at 202° by holding the hook still and aligning the hook point directly behind the needle scarf on the needle center line.
  • Hold the rotary hook stationary with fingers while turning the main shaft counter-clockwise to exactly 202° on the dial.
  • Manipulate the hook so the hook tip is hidden directly behind the needle, with the needle in front of the hook tip (centered—not left or right).
  • Lightly snug one hook screw to “lock” position before final tightening.
  • Success check: Hand-rotate 360° with no click, and the hook point tracks cleanly behind the needle at the 202° reference.
  • If it still fails: Reset again at 202°—even a small miss can cause skips or looping.
• Q: What Redline Mini rotary hook-to-needle gap prevents needle strikes but still stops skipped stitches?
  A: Use a safe starting gap of about 0.5–1 mm on a Redline Mini so the hook does not hit the needle but can still catch the loop.
  • After setting 202° timing, gently tighten one screw, then check clearance by lightly pushing the needle back with a fingernail.
  • Widen the gap if the needle scrapes/clicks; narrow the gap if the hook misses loops and skips stitches.
  • Tighten all three rotary hook screws firmly once the “close but not touching” gap is confirmed.
  • Success check: Manual rotation is silent (no metallic click) and test stitching does not skip on direction changes.
  • If it still fails: Recheck screw torque—loose screws can let timing drift immediately.
• Q: Why does a Redline Mini make loud clicking sounds or break needles immediately after rotary hook replacement and timing?
  A: Loud clicking and broken needles on a Redline Mini usually mean the gap is too tight and the needle is striking the rotary hook.
  • Power off and hand-rotate slowly to locate the contact point; stop at the first sign of resistance.
  • Loosen the hook screws slightly and nudge the hook to increase clearance toward the ~1 mm safe zone.
  • Retighten firmly and rotate the hand wheel 360° to confirm silence before any powered run.
  • Success check: Two full hand rotations complete with no sharp click/ping and no “hard spot” in rotation.
  • If it still fails: Verify the hook is still timed at 202° after the gap adjustment.
• Q: What causes Redline Mini thread shredding or fuzzy thread after timing work, and what is the fastest fix?
  A: Thread shredding on a Redline Mini is often caused by a burr on the rotary hook point or damage on the needle.
  • Replace the needle again (do not troubleshoot fraying with a questionable needle).
  • Feel the hook point carefully with a fingernail to detect roughness.
  • If roughness is found, polish gently with crocus cloth or replace the rotary hook.
  • Success check: The thread path runs smoothly and the stitched thread is not “fuzzy” or frayed after a short test run.
  • If it still fails: Recheck the position bracket clearance—scraping friction can heat and damage thread.
• Q: How should the Redline Mini rotary position bracket (retaining finger) be set so it stops bobbin basket rotation without scraping?
  A: Set the Redline Mini rotary position bracket so it sits in the basket notch with a tiny non-rubbing gap—close enough to stop rotation, but not touching.
  • Ensure the bracket peg is seated into the hook basket notch before tightening.
  • Use the “paper test” idea: back off slightly if a dry scraping sound is heard during hand rotation.
  • Tighten the bracket screws only after confirming no friction throughout a full rotation.
  • Success check: Hand rotation sounds smooth (no dry scrape), and thread does not show heat/friction damage.
  • If it still fails: Re-seat the bracket alignment—mis-seating can cause immediate jams on startup.
• Q: When Redline Mini timing keeps failing on thick garments, what is the best upgrade path: stabilizer/thread, magnetic embroidery hoops, or a multi-needle machine?
  A: Use a three-level approach: first reduce stress with stabilizer/thread, then reduce hooping distortion with magnetic hoops, and finally upgrade capacity with a multi-needle machine if production is the bottleneck.
  • Level 1 (Technique/consumables): Improve stabilizer and thread quality to reduce fabric shifting and needle deflection.
  • Level 2 (Tool upgrade): Switch to magnetic embroidery hoops if thick items are hard to hoop or hoops pop loose, because poor hooping can drive needle deflection that knocks timing out.
  • Level 3 (Capacity upgrade): Move to a multi-needle machine if time is lost to manual color changes and orders are being delayed.
  • Success check: Fewer bird’s nests/jams, fewer needle deflections, and stable stitching without repeated timing drift.
  • If it still fails: Review the job setup (fabric thickness, hoop hold, stabilization) before blaming the hook—stress is the usual root cause.
  • Safety note: Keep strong magnetic hoops away from pacemakers and never place fingers between magnets when closing.
