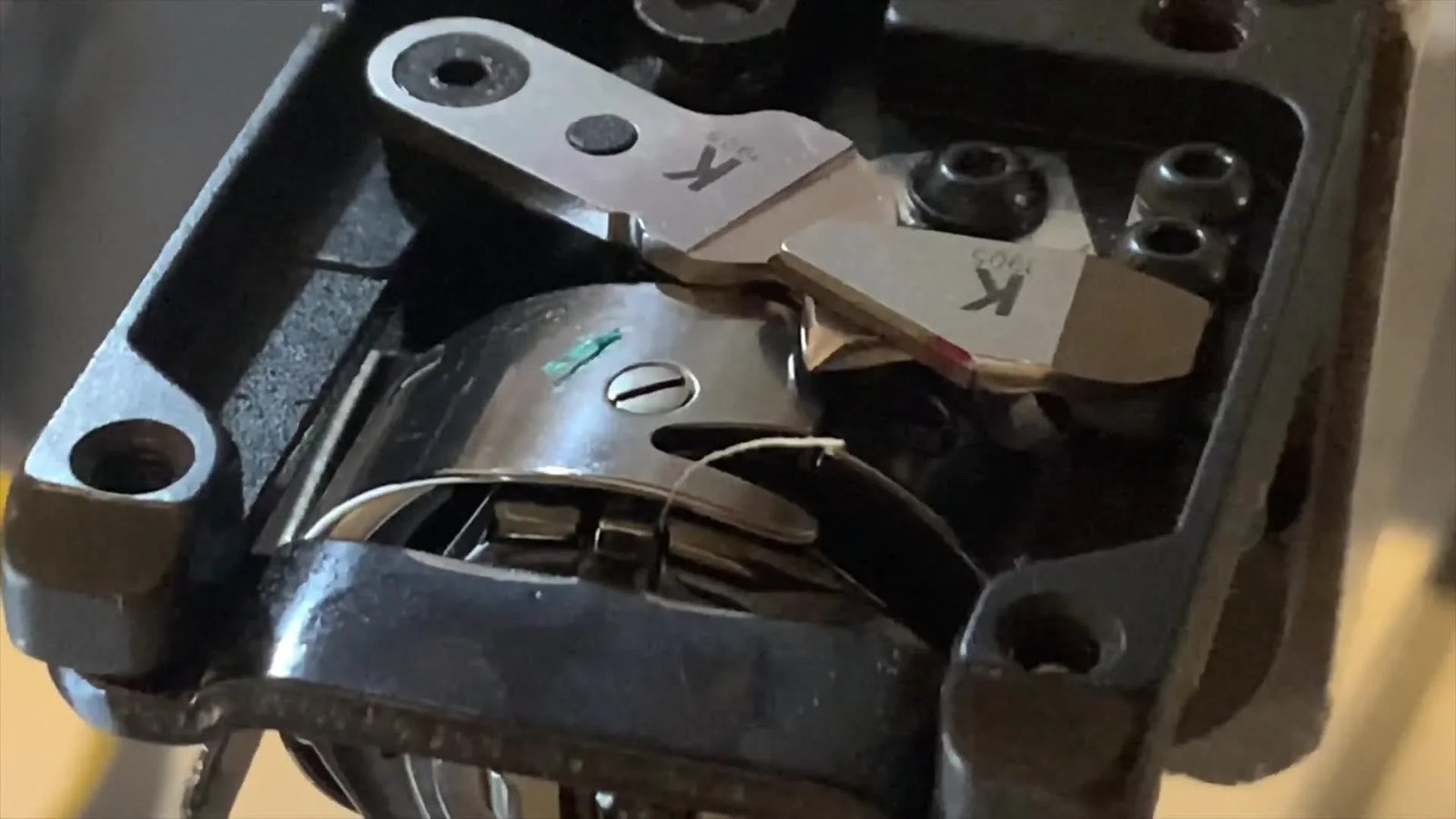

Redline Trimmer Not Cutting? Dial In the Movable & Fixed Knife Friction (and Stop Error 26 From Coming Back)

If the trimming sound on your machine changes from a crisp snip to a dull thud—or worse, if the machine throws an error code in the middle of a rush order—it triggers a very specific kind of panic. I have stood on factory floors where production ground to a halt because a $20 trimmer component wasn't cooperating.

Usually, the fix isn't replacing the motor. It is almost always one of three physical realities: friction, alignment, or obstruction.

This guide is your field manual. We will bypass the guesswork and use the exact diagnostic procedures used by senior technicians to restore the trimmer mechanism found on redline embroidery machines and similar commercial platforms.

The Physics of the Cut: It’s Just Scissors

Before we touch a screwdriver, let’s demystify the fear. The trimmer assembly located beneath your needle plate is not a computer; it is a mechanical pair of scissors.

It consists of two players:

1. The Movable Knife: Driven by a step motor, this swings out to grab the thread.
2. The Fixed Knife: Stationary, mounted to the chassis.

The "secret" to a perfect cut is Shear Tension. Just like fabric scissors, the blades must press against each other with a specific amount of force. Too loose? The thread folds over (resulting in uncut threads). Too tight? The motor stalls (resulting in Error codes).

The Golden Rule of Mating: In the video and in practice, you will see identification letters stamped on the blades. These are matched pairs. As they work, they microscopically wear into each other.

• Pro Tip: Never replace just one knife. If you change them, change both. Mismatched blades are the #1 cause of "ghost" trimming issues that come and go.

Warning: Mechanical Hazard
Before placing your hands, tools, or fabric near the trimmer channel or needle bar test area, Power the Machine OFF. The step motor generates significant torque and can snap shut without warning, creating a severe pinch/cut hazard for fingers.

Pre-Flight Check: The "Hidden" Prep Steps

Do not skip this. 90% of "broken" trimmers are just dirty. Before adjusting screws, we must establish a clean baseline.

1. Clear the Deck

Remove the needle plate and the rotary hook cover. You need a direct line of sight to the knife assembly.

2. The Debris Hunt

Use a soft brush or low-pressure canned air to remove lint.

• Look for: "Birdsnests" (clumps of thread) packed behind the movable knife. A single piece of thread caught in the linkage can prevent the knife from returning to its "Home" position, triggering sensors.

3. Verify Integrity

Check the blade edges. Run a fingernail gently along the top edge. If you feel a burr or a chip, no amount of adjustment will fix it—you need new knives.

Phase 1 Checklist: Preparation

• Power Status: Machine is completely powered down.
• Access: Needle plate and hook cover removed; screws stored safely (hint: use a magnetic bowl).
• Cleanliness: Knife area is free of lint, oil sludge, and thread fragments.
• Consumables Ready: You have non-staining clear sewing oil and a permanent marker handy.
• Validation: Existing knives show no visible chips; if replacing, confirmation that new knife letters match.


The "Scissors Reality Check": Friction vs. sharpness

Novices blame dull blades; experts blame bad contact.

If your kitchen scissors are loose at the hinge, they won't cut paper even if they are razor sharp. The same applies here. The blades must "kiss" each other along the entire cutting stroke.

For owners of embroidery machines commercial equipment, relying on "it feels tight" isn't enough. We need verifiable data. We will use two proven tests to "see" the friction: The Manual Cut Test and the Marker Ink Test.

Test 1: The Manual Cut (The Tactile Diagnostic)

This creates a "Brain-Hand Connection." You will feel exactly what the motor feels.

The Procedure

1. Locate the Actuator: Find the step motor underneath the machine head. Look for the silver metal knob or linkage wheel on the bottom of the motor shaft.
2. Load the Test Subject: Take a single strand of 40wt polyester embroidery thread. Lay it across the path of the knives.
3. The Actuation: Slowly turn the metal knob clockwise. This manually drives the movable knife.
4. The Engagement: Watch the movable knife slide under the fixed knife.

Sensory Anchors: What to Feel and Hear

• The Feel: You should feel a distinct, smooth "ramp up" of resistance. It should feel like cutting index paper with scissors—firm, but smooth. It should not feel gritty (dirt) or like hitting a wall (too tight).
• The Sound: Listen for a clean snick sound.
• The Result: The thread should shear cleanly. No frayed ends.

Diagnosis

• Pass: Cuts cleanly with moderate resistance. (If auto-trim fails, the issue is software/timing).
• Fail: Thread bends or folds over. (Issue is mechanical mechanism).

This test separates mechanical failures from electrical ones. If manual cutting works, stop wrenching on the machine! You likely have a parameter issue, which is common in complex panels like those on a Dahao A15.

Phase 2 Checklist: Setup & Testing

• Thread Position: Thread is draped relaxed across the knife path (not pulled tight).
• Motion: Step motor knob turns smoothly clockwise without binding/grinding.
• Tactile Feedback: You feel the "kissing" friction as blades engage.
• Outcome: Thread is severed cleanly (no "chewing").


Test 2: The Marker Ink Test (Visual Verification)

Your eyes cannot see a 0.1mm gap. Ink can. This test reveals the "Contact Patch" of your blades.

The Procedure

1. Paint it: Take a Sharpie (permanent marker) and color the top surface of the Movable Knife tip. Let it dry for 10 seconds.
2. Cycle it: Perform the manual cut cycle (turn knob clockwise) once.
3. Inspect it: Look at the ink.

The Perfect Result: The ink should be erased evenly across the engagement surface.

• Uneven erasable? The fixed knife is tilted.
• No erasable? The knives aren't touching (gap is too wide).


Warning: Magnetic Field Safety
Tools and accessories like magnetic embroidery hoops contain powerful Neodymium magnets.
* Health: Keep at least 6 inches away from pacemakers or ICDs.
* Injury: Never allow two magnetic brackets to snap together uncontrollably; they can pinch skin severely.
* Electronics: Keep magnets away from the machine's main PCB board and screen to prevent data corruption.

Adjustment: Leveling the Fixed Knife

If the Marker Test failed, we adjust the Fixed Knife. Do not bend the movable knife.

The Micro-Adjustment Technique

There are typically three hex/allen screws securing the fixed knife block. These control the angle (pitch and yaw) of the blade.

1. Loosen slightly: Back off the screws just enough so the blade can move under pressure, but isn't floppy.
2. Apply pressure: Only adjust one variable at a time.
3. The "Admin" Turn: When tightening, turn screws in small increments—think "clock minutes" (e.g., turn 5 minutes clockwise).
4. Retest: Re-apply ink and cycle.

Goal: You want the widest possible strip of ink removed. A thin line of removed ink means the blade is barely touching, which will wear out quickly.

The dreaded "ErrNo = 26: Trimming Not in Place"

This error strikes fear into operators, but it simply means: "I tried to trim, but the knife didn't make it back home."

Why the Knife Gets Stuck

1. Birdsnesting: A wad of thread is physically blocking the return path.
2. Friction Overload: You tightened the fixed knife too much, and the step motor isn't strong enough to push the knife back.
3. Sensor Failure: The knife is home, but the sensor is blind.

The Sensor Check

Look for the optical sensor near the step motor.

• Red LED ON: The system sees the knife at "Home." Safety interlock is satisfied.
• Red LED OFF: The system thinks the knife is extended (unsafe).

Troubleshooting Step: If the knife is physically retracted but the light is OFF, check for dust blocking the sensor or a loose cable.

The "Wobble" Check: Lower Shaft Collar

Occasionally, blades crash into each other violently. This often happens because the Movable Knife has vertical play (up/down slop).

The Shimmy Test

1. Extend the movable knife halfway.
2. Grab the blade tip and gently wiggle it up and down.
3. Standard: It should feel rock solid. ZERO vertical play.

If it clicks or moves up and down, you must reseat the Lower Shaft Collar. Loosen the collar clamp, press the assembly up firmly (to remove the gap), and retighten. This ensures the blade stays on its cutting plane.

Electrical Gremlins: The Connector

If the knob turns manually, the blades are sharp, but the motor sits dead operating via the panel:

Check the Wiring Harness. Trace the cable from the step motor to the Quick Connector. Unplug it, blow on it (to remove dust), and snap it back together. Listen for the click. Vibration from 1000 SPM operation often rattles these loose over months of production.

Maintenance: The "One Drop" Rule

Over-oiling is as bad as under-oiling. Excess oil turns lint into concrete.

The Weekly Ritual:

1. Clean the area.
2. Apply exactly one drop of clear sewing machine oil to the friction point of the movable knife.
3. Cycle it manually to distribute.


Phase 3 Checklist: Operational verification

• Manual Cut: Passed. Crisp shear sound.
• Visual Wear: Passed. Ink removed evenly.
• Stability: Zero vertical play in movable knife.
• Sensor: Red LED behaves correctly (On at home / Off when moving).
• Hygiene: One drop of oil applied; area free of lint.

Troubleshooting Decision Tree

Use this logic flow to solve 95% of issues without calling a tech.

Symptom: Thread doesn't cut.

• Action: Perform Manual Cut Test.
  • Result: Cuts? $\to$ Check Software settings (Trim timing/Picker).
  • Result: Doesn't cut? $\to$ Perform Marker Test.
    • Result: Ink uneven? $\to$ Level Fixed Knife.
    • Result: Ink untouched? $\to$ Tighten Fixed Knife/Shim.

Symptom: ErrNo 26 / "Knife not Home"

• Action: Check Sensor LED.
  • Result: LED is ON? $\to$ Reboot machine (Software glitch).
  • Result: LED is OFF? $\to$ Physically push knife home.
    • Check: Is debris blocking it? Is the blade too tight?

Symptom: Short tail / Thread pulls out of needle.

• Action: Check the "Picker" or "Wiper" adjustment, not the knives.

Beyond the Repair: Optimizing Production

Once your trimmer is dialed in, you might notice other bottlenecks. If you are fixing trimmers often, ask: Why is the machine struggling?

Often, poor stabilization or loose hooping causes flag-wagging (fabric bouncing), which leads to birdsnests, which then jam the trimmer. It is a cycle.

Tools to Break the Cycle:

1. Stabilization: Match your backing to your fabric. Stretchy fabric requires Cutaway, not Tearaway.
2. Hooping: Traditional screw-hoops are the enemy of consistency. They loosen over time and fatigue your wrists.
   • Upgrade Path: Many professionals searching for terms like how to use magnetic embroidery hoop are looking to eliminate "hoop burn" and fabric slippage.
   • The Solution: magnetic hooping station systems provide even, rapid tension. Better tension = fewer thread breaks = less strain on your trimmer.

If your volume has outgrown your single-head capacity and repairs are eating into profit, consider if you need a workhorse upgrade. Reliable platforms like the redline 15 needle embroidery machine (or the high-efficiency SEWTECH equivalents) are built to handle the heat of daily production runs.

Final Technician's Note

Embroidery is a game of millimeters. Don't rush these adjustments. A machine with a perfectly tuned trimmer is quiet, efficient, and profitable. Take the time to get the tactile feel of that "perfect cut," and your fingers will be able to diagnose problems long before they stop your production line.
