Resize in Hatch Without Ruining Your Stitch-Out: 3 Reliable Methods, the Lock Icon That Saves You, and When to Re-Digitize

Resizing looks harmless on screen—until you stitch it. That’s when you hear the crunch of a needle hitting a dense knot, see outline stitches drifting away from the fill like a detached shadow, or discover "hoop burn" marks that won't wash out.

I’ve watched beginners lose hours—and expensive garments—to this exact problem. As an educator, I treat resizing not just as a software click, but as a structural engineering change. When you change the size, you change the physics of how thread pulls on fabric.

This guide rebuilds the workflow from the Hatch Embroidery Getting Started video, but applies "shop-floor reality." We will cover how to keep your stitch density safe, when to stop resizing before you break a needle, and how to use the right tools (from software to magnetic hoops) to guarantee a clean finish.

The Calm-Down Check: Hatch Resizing Isn’t the Enemy—Uncontrolled Resizing Is

If your design stitches out poorly after resizing, it’s rarely the software’s fault. It’s usually physics. When a design shrinks, stitches crowd together. When it grows, gaps appear.

The "Safe Zone" Rule:

• EMB Files (Native): You can safely resize ±20% to 30% because Hatch recalculates the stitch count.
• Machine Files (PES, DST, JEF): Limit resizing to ±10%. These files are just coordinates; resizing them often distorts density, leading to bulletproof stiff patches or thread breaks.

If you stay within these zones, the methods below work 90% of the time. If you go beyond them, you aren't just resizing; you need to be re-digitizing.

The “Hidden” Prep in Hatch: Select, Group, and Make the Software Obey You

Before you touch a size handle, you must lock the design integrity. If you don't, you might resize the bird's body but leave its beak behind.

The "Safety Lock" Protocol

• Select All: The instructor uses Ctrl+A.
• Visual Check: Look for the Magenta Glow. In Hatch, selected stitches turn potential pink/magenta. If you don't see pink, you aren't controlling the file.
• Group: Click Group immediately. This bonds every object together like a single sticker.


Prep Checklist: The "Pre-Flight" Routine

• Hidden Consumables: Have your tape measure and a fresh needle (Size 75/11 represents a good middle ground) ready before you finalize size.
• Selection Check: Press Ctrl+A and verify the entire design turns magenta.
• Group Check: Click Group. Try clicking off the design, then clicking one part of it. The whole design should highlight.
• Hoop Check: Know your actual stitch field. A 4x4 hoop often only stitches 3.93" x 3.93" (100mm).
• File Type Check: Are you resizing an .EMB (Safe) or a .PES/.DST (Risky)?

Warning: Never resize a raw machine file (DST/PES) by more than 10% without test stitching first. The density may become too high (breaking needles) or too low (exposing fabric).

The Fast Nudge: Using Hatch +10% / -10% Resize Buttons Without Getting Tricked

The first method is the quick toolbar nudge. This is best for minor adjustments to fit a placement line.

How it works

With the design selected, click +10% or -10%.

• Crucial Nuance: This is compound math. If you click +10% twice, you aren't at +20%. You are at 10% of the new size.
  • Start: 100mm
  • Click 1: 110mm
  • Click 2: 121mm (not 120mm)

When to use this (The "Lazy" Method)

Use this when you are working with Machine Files (PES/JEF). Because these files struggle with density recalculation, taking small, 10% steps allows you to mentally check: "Is this getting too risky?"

Pro Tip: The Density Test

If you shrink a design via this method, use your mouse to zoom in on satin columns (like text). If they look like solid blocks of color with no visible texture, your density is too high. You will hear a heavy thud-thud-thud sound when stitching—that's your machine struggling.

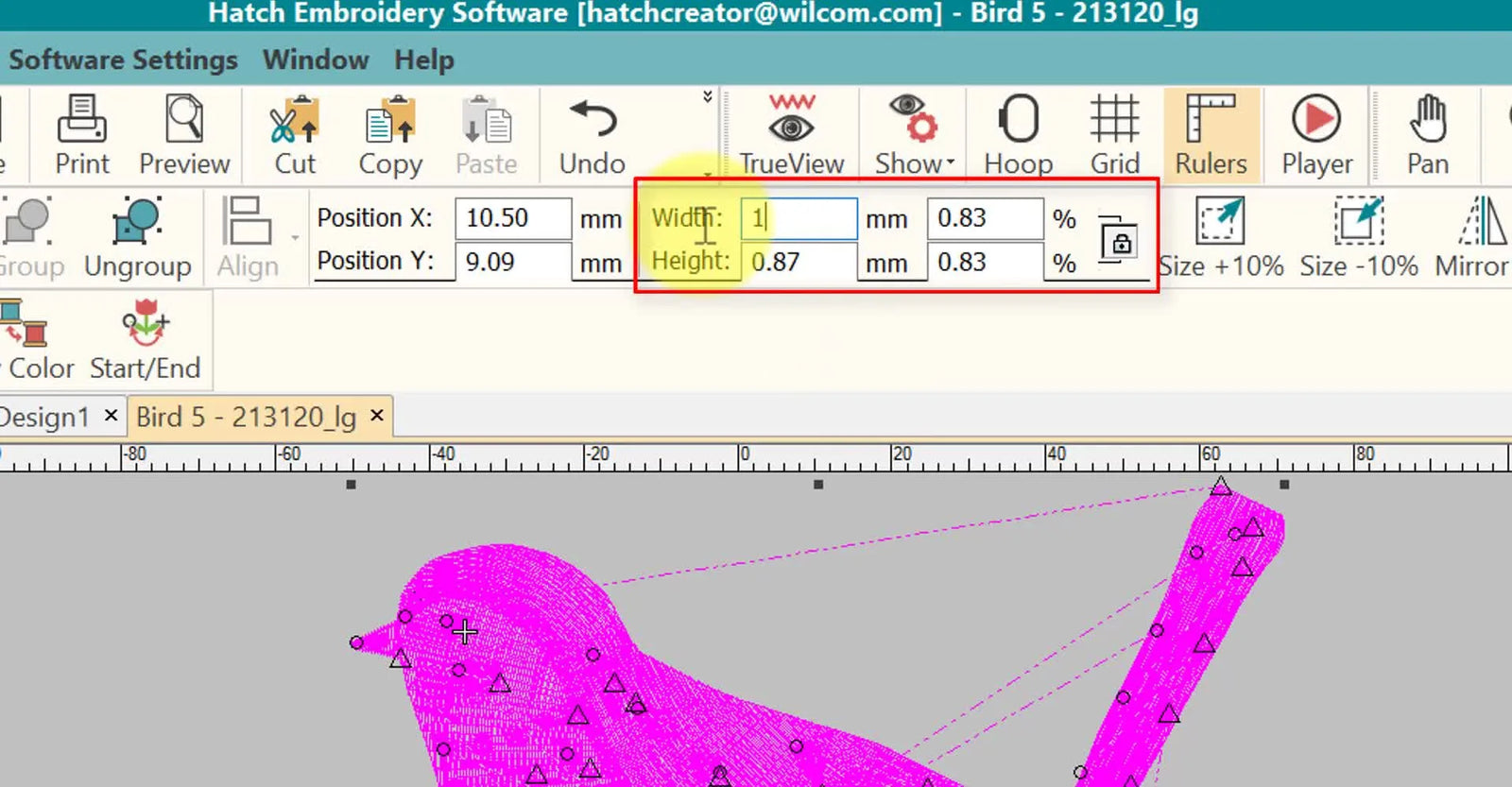

The Production-Safe Method: Numeric Resizing in Hatch Width/Height with the Padlock On

In professional embroidery, "about 4 inches" gets you fired. "98mm wide" gets you paid. Numeric resizing is for when the design must fit a specific pocket or hoop limit.

The Video Workflow

• Original Size: 121.01 mm.
• Target Size: 150 mm.
• Action: Type 150 into Width, hit Enter.


The Aspect Ratio Padlock: Your Best Friend

The Padlock Icon determines if your logo stays a circle or becomes an oval.

• Locked (Depressed): Width and Height move in sync. Always keep this locked unless you are intentionally distorting a design for artistic effect.


Percentage vs. MM

You can also type 80% to shrink a design. This is useful when resizing a chest logo (placket location) to a hat logo (center front), typically an 80-60% reduction.

Setup Checklist: Precision Control

• Select & Group: Confirmed magenta glow.
• Check the Lock: Ensure the padlock icon is closed/depressed.
• Enter Dimensions: Type value + press Enter.
• Verify Stitch Count: Look at the bottom bar. Did the stitch count change?
  • If YES: Hatch recalculated density (Good).
  • If NO: You just stretched the existing stitches (Bad/Risky).

The "A4" Myth

Beginners often ask to resize to "A4 Paper Size." Paper size is irrelevant; Stitch Field is king.

• A4 is ~210mm wide.
• Standard large hoops are often 200mm or 260mm.
• Rule: Always resize to 10mm smaller than your hoop's maximum limit to leave room for the presser foot placement.

The “Looks Right” Method: On-Screen Resizing with Selection Handles (and True View)

This is the "eyeball" method, useful for artistic placement rather than uniform/logo work.

The Workflow

• Grab a black corner handle (not a side handle).
• Drag diagonally.
• True View (Shortcut 'T'): This toggles between "stick figure" view and "3D" view.


Why True View is a Diagnostic Tool

Don't just use True View to admire colors. Use it to check Column Width.

• Too Thin: If satin columns look like thin lines, they will stitch out as thread nests or cause thread trimmer errors.
• Too Thick: If a satin column gets wider than 7mm-10mm (depending on machine), it becomes a loose loop that can snag on zippers or washing machines.


The Tooltip Monitor

As you drag, a small yellow box appears: Width: 67.94 mm (97%). Eye on the ball: Watch the percentage. If you drag past 120% or below 80%, stop and consider if you need to change stitch types (e.g., Satin to Tatami fill).

Shift vs Ctrl in Hatch Resizing: Two Keys That Decide Whether You Get Symmetry or Distortion

These modifier keys change the geometry of how you resize.

Shift: Concentric Resizing

Holding Shift while dragging from a corner resizes from the center out.

• Use Case: You have centered a design on a shirt placket line. You want it bigger, but you want it to stay centered. Hold Shift.

Ctrl: The Distortion Danger

Holding Ctrl breaks the aspect ratio. It allows you to stretch the bird tall and skinny.

• Use Case: Rarely used in logos. Sometimes used to fill a specific weird geometric shape in artistic quilting.


Troubleshooting "Drifting Outlines"

If your black outline doesn't match the color fill after resizing, you likely:

1. Didn't Group the design first.
2. Accidentally held Ctrl and distorted one layer but not the other.
3. Resized a machine file (PES) too aggressively, and the "Push/Pull Compensation" settings didn't update.

Clone + Save As: The Version-Control Habit That Saves Your Week

Professional digitizers never overwrite the master file.

The Workflow

• Clone: Right-click and drag to create a duplicate on screen.
• Save As: File > Save As > Bird_Design_150mm.EMB.


Why Versioning Matters

If you stitch the 150mm version and it puckers the fabric, you need to go back. If you saved over the original, you've lost your baseline. Save files like Design_Size_FabricType.

• Example: Logo_Chest_Pique.EMB vs Logo_Hat_Cotton.EMB.

The Part the Video Doesn’t Say Out Loud: When Resizing Becomes a Re-Digitizing Job

A commenter mentioned resizing a bird from 26cm to 45cm. This resulted in a disaster. Why? Physics.

• A 2mm satin stitch at 26cm becomes a 3.5mm stitch at 45cm (Standard).
• BUT: Gaps between stitches also grow. Underlay (the foundation stitching) stops supporting the top thread effectively.

The Golden Rule of Scale: If you resize >20%, you must open Object Properties and adjust:

1. Pull Compensation: Increase it for larger designs (fabric pulls more).
2. Underlay: Change from "Center Run" to "Zig Zag" or "Double Zig Zag" for stability.
3. Stitch Type: Convert wide Satins to Tatami/Fill stitches to prevent snagging.

A Practical Decision Tree: Pick Your Stabilizer and Hooping Strategy After You Pick Your Final Size

Resizing changes the physical forces on the fabric. A larger design creates more "pull," distorting the fabric (puckering) if your stabilization isn't aggressive enough.

Decision Tree: Fabric & Size → Tool Choice

1. Is the resized design stitch-heavy (>10,000 stitches or large fills)?
   • YES: Use Cut-Away Stabilizer (2.5oz or 3.0oz). Tear-away will likely fail and tear during stitching, causing registration errors.
   • NO: Tear-away is acceptable for stable woven fabrics.
2. Is your fabric prone to "Hoop Burn" (permanent ring marks)?
   • YES (Velvet, Performance Wear, Dark Pique): Avoid standard screw-tightened hoops. Upgrading to magnetic embroidery hoops allows you to hold the fabric firmly without crushing the fibers, eliminating hoop burn.
   • NO (Denim, Canvas): Standard hoops are fine.
3. Are you stitching this design on 50+ shirts (Production Run)?
   • YES: Manual hooping is slow and causes carpal tunnel fatigue. Using a hooping station for machine embroidery ensures the resized logo lands in the exactly same spot on every shirt, cutting your prep time by 50%.
   • NO: Visual placement is fine for one-offs.

Warning: Magnetic Hoops contain neodymium magnets. They are incredibly strong (pinch hazard for fingers) and can interfere with pacemakers. Keep them at least 12 inches away from medical devices.

Hoop Limits Are Real: Resizing for Brother 4x4 and “A4” Without Guesswork

Many users hit a wall when resizing for smaller machines. You create a design that is exactly 4 inches, but the machine refuses to stitch it.

The "Safety Margin" Reality: A brother 4x4 embroidery hoop usually has a strict limit of 100mm x 100mm. If your design is 100.1mm, it won't load.

• Fix: Resize to 98mm or 99mm max.
• The Upgrade Trigger: If you spend more than 20 minutes per design fighting the size limits or splitting designs, your labor cost is higher than the tool cost. This is the moment to consider a larger field, such as upgrading to a machine that accepts a brother 5x7 hoop or larger.

The “Why” Behind Distortion and Outline Drift: Physics, Not Bad Luck

When you resize a circle, the software sees math. The machine sees tension. Thread has elasticity. As it stitches, it pulls the fabric in.

• Small Design: Low pull. Outline matches fill.
• Resized Large Design: High pull. The fabric shrinks inward while filling. When the outline stitches last, it lands where the fabric used to be. The result? A white gap between color and outline.

The Fix: When resizing UP, slightly increase your Pull Compensation in Hatch (e.g., from 0.20mm to 0.35mm). This tells the machine to "overstitch" slightly to compensate for the shrinkage.

The Upgrade Path That Actually Makes Sense: When Better Hooping and Better Machines Pay You Back

Resizing is a critical skill, but it exposes the limits of entry-level equipment.

• The "Burn" Limit: If you are resizing designs for delicate corporate apparel and getting hoop marks, magnetic embroidery hoops for brother are the industry standard solution. They pay for themselves by saving just two or three ruined shirts.
• The "Speed" Limit: If you are resizing logos for team uniforms and dread the single-needle color changes and 4x4 restrictions, look at multi-needle solutions like SEWTECH machines. They offer large robust hoops and faster processing, turning a weekend of work into an afternoon.

Operation Checklist: The Safe Resizing Routine I’d Use Before Exporting a Stitch File

Before you put a USB drive into your machine, run this final check.

• Group Check: Is the design grouped to prevent object drift?
• Size Check: Is the design at least 2mm smaller than your hoop's max field?
• Density Audio Check: (If resizing down) Did you check for "bulletproof" density in True View?
• Stabilizer Match: Did you switch to Cut-Away if the design Size/Density increased?
• Hoop Check:
  • Standard: Is the screw tight (drum skin feel)?
  • Magnetic: Are the magnets fully engaged without pinching fabric folds?
• Needle: Is your needle fresh? (Burred needles ruin resized dense designs).

Warning: Embroidery machines move fast and use sharp components. Always keep fingers clear of the needle bar and moving pantograph. Never attempt to adjust a hoop while the machine is running (red light on).

By treating resizing as a combination of software precision and physical preparation, you stop hoping for a good result and start engineering one.

FAQ

• Q: How much can Hatch Embroidery safely resize an EMB file vs a PES/DST/JEF machine stitch file without breaking needles or ruining density?
  A: Keep EMB resizing within about ±20–30%, and keep PES/DST/JEF resizing within about ±10% to avoid density disasters.
  • Confirm file type before resizing: EMB = recalculates stitches; PES/DST/JEF = mostly stretches coordinates.
  • Resize in small steps for machine files: use +10% / -10% nudges instead of big jumps.
  • Success check: after resizing, the stitch count changes for EMB edits (good sign of recalculation); if stitch count does not change, treat the result as higher risk.
  • If it still fails: stop resizing further and adjust Object Properties (underlay/pull compensation/stitch type) or re-digitize for the new size.
• Q: How do you prevent outline drift and misregistration after resizing in Hatch Embroidery (outline no longer matches fill)?
  A: Group everything first and avoid accidental distortion; outline drift after resizing is usually a control/physics issue, not “bad luck.”
  • Press Ctrl+A and verify the entire design turns magenta, then click Group before any resizing.
  • Keep the aspect ratio padlock locked when resizing by Width/Height so the design stays proportional.
  • Increase Pull Compensation slightly when resizing up (example shown: 0.20 mm to 0.35 mm) to help outlines land where the fabric pulls in.
  • Success check: in True View, the outline visually hugs the fill with no “white gap” around edges after a test stitch.
  • If it still fails: verify Ctrl was not held (distortion) and avoid resizing machine files beyond the safe zone.
• Q: How do you use Hatch Embroidery numeric Width/Height resizing without accidentally stretching stitches instead of recalculating density?
  A: Use numeric sizing with the padlock on, then immediately verify the stitch count behavior to confirm Hatch recalculated properly.
  • Select all (Ctrl+A), confirm magenta glow, then Group so all objects resize together.
  • Lock the padlock icon, type the exact target Width (mm) and press Enter.
  • Check the bottom bar stitch count: a change suggests recalculation; no change means the design may be “stretched” and riskier.
  • Success check: zoom in on satin areas in True View and confirm columns still show texture—not a solid “brick.”
  • If it still fails: reduce the resize amount and edit Object Properties (underlay/stitch type) for the new scale.
• Q: Why does Hatch Embroidery +10% / -10% resizing give unexpected final sizes, and how do you avoid overshooting hoop limits?
  A: The +10% / -10% buttons compound (110% of the new size each click), so measure the result rather than assuming simple math.
  • Calculate or watch size after each click: 100 mm → 110 mm → 121 mm (not 120 mm).
  • Stop and verify width/height numerically before exporting, especially when working near a hoop limit.
  • Leave a safety margin under the hoop’s max stitch field (the blog recommends about 2–10 mm smaller, depending on context).
  • Success check: the final design dimension is below the machine’s maximum field and loads without a “too large” refusal.
  • If it still fails: switch to numeric resizing for exact control instead of repeated +10% clicks.
• Q: How do you resize a design for a Brother 4x4 embroidery hoop when the machine refuses to load a “4 inch” design?
  A: Size to the real stitch field limit (often 100 mm x 100 mm) and keep the design slightly under it (98–99 mm) to avoid load errors.
  • Measure in millimeters, not “4 inches,” and confirm the actual stitch field the machine enforces.
  • Resize the design to 98–99 mm if the limit is 100 mm, rather than aiming for exactly 100.0 mm.
  • Keep extra margin so the presser foot placement and boundary checks do not reject the file.
  • Success check: the file imports and the machine preview shows no “exceeds hoop” warning.
  • If it still fails: split the design or move to a larger hoop/machine field instead of forcing exact-edge sizing.
• Q: What stabilizer should you choose after resizing a stitch-heavy Hatch Embroidery design to prevent puckering and registration errors?
  A: If the resized design is stitch-heavy (example threshold given: over ~10,000 stitches or large fills), switch to cut-away stabilizer; tear-away often fails under higher pull.
  • Decide after final size: larger designs create more pull and need stronger support.
  • Use cut-away (examples given: 2.5 oz or 3.0 oz) for dense fills or high stitch counts.
  • Use tear-away only when fabric is stable and the design is not pull-heavy.
  • Success check: the fabric stays flat after stitching, and outlines remain aligned without shifting during the run.
  • If it still fails: increase stabilization strategy (stronger cut-away) and review pull compensation/underlay for the resized scale.
• Q: How do you prevent hoop burn on velvet, performance wear, or dark pique when hooping a resized embroidery design, and what magnetic hoop safety rules matter?
  A: Use magnetic hoops to hold fabric firmly without crushing fibers, and handle neodymium magnets carefully to avoid finger pinch injuries and medical-device interference.
  • Avoid over-tightened screw hoops on hoop-burn-prone fabrics (velvet/performance wear/dark pique) when resizing increases pull.
  • Seat the fabric smoothly, then fully engage magnetic segments without trapping folds.
  • Keep magnetic hoops at least 12 inches away from pacemakers and similar medical devices.
  • Success check: after stitching, there are no permanent ring marks and the fabric surface pile is not flattened.
  • If it still fails: reduce hoop pressure, re-evaluate stabilizer choice, and confirm the hoop is not pinching a wrinkle that “prints” into the fabric.
• Q: What is a production-safe decision path when resized embroidery designs cause hoop burn, slow manual hooping, or frequent size-limit fights on small hoops?
  A: Fix the workflow in levels: optimize resizing and stabilization first, then upgrade hooping tools, then consider a larger-field multi-needle machine if labor/time losses stay high.
  • Level 1 (technique): stay in safe resize zones, group before resizing, lock aspect ratio, and match stabilizer to the new size/pull.
  • Level 2 (tooling): use magnetic hoops for hoop-burn fabrics, and use a hooping station to repeat placement and cut prep time in production.
  • Level 3 (capacity): if frequent 4x4 limit conflicts or color-change slowdowns dominate the job, move to a machine/hoop system with a larger stitch field and faster throughput.
  • Success check: the resized logo lands consistently, garments are not being ruined, and hooping time drops noticeably on repeat runs.
  • If it still fails: track where time is lost (hoop burn rework vs placement vs resizing/splitting) and upgrade the single biggest bottleneck first.
