Ricoma EM1010 Sweatshirt Embroidery That Actually Sells: A Calm, Repeatable Workflow (and the Hooping Traps to Avoid)

Don’t Panic—The Ricoma EM1010 Sweatshirt Run Is Predictable When You Control the Hoop and the Layers

If you’ve ever stared at a thick sweatshirt in a hoop and thought, “One wrong move and I’m about to stitch the front to the back,” you’re not being dramatic—you’re being experienced. Fabric bulk is the enemy of precision.

In this guide, we analyze a real-world production run on a Ricoma EM1010. This isn't just about pressing "Start"; it's about the invisible prep work—file management, stabilizer physics, and tactile hooping techniques—that turns a blank garment into premium Etsy merchandise.

A sweatshirt feels “easy” until it’s on the machine. Then the fleece bulk, the knit stretch, and the friction against the needle plate try to sabotage you.

The workflow below is designed to eliminate variables. It requires clear habits:

1. Digital Locking: Constraints must be set before the file leaves the computer.
2. Physical Tension: Hooping is a tension system, not a storage container.

If you are operating a ricoma embroidery machine em-1010, the machine is a workhorse, but it is blind. It relies entirely on you to feed it a stabilized, taut surface and to verify clearance before the needle drops.

Chroma Inspire DST Export: Save It Right Once, So You Don’t Fight It at the Machine

Most registration errors (where the outline doesn't match the fill) start in the software, not the machine. Patrice, the operator for this project, begins in Chroma Inspire (Ricoma’s digitizing environment) to lock down the design coordinates.

The goal here is Zero-Touch Transfer. You do not want to be resizing or rotating designs on the machine's small touchscreen, as this often degrades stitch density.

The Protocol:

• Hoop Visualization: Confirm the design is centered within the digital boundary of the hoop you intend to use physically.
• Format Selection: Use Save As and select DST.
• Naming Convention: Use short, recognizable names (e.g., “m2l” for "Made to Love"). Ricoma machines read DST files natively. This format contains the X/Y coordinates for every needle drop.

Why DST? Unlike consumer formats (like PES), DST is an industrial command language. It tells the machine exactly where to go without "interpreting" the data.

The “Hidden” Prep Before You Even Touch the Hoop (What Pros Check Automatically)

Amateurs rush to the hoop. Pros win the battle at the prep table. Before you touch the fabric, you need your "Mise-en-place."

Hidden Consumables You Will Need:

• Ballpoint Needles (75/11): Sharp needles can cut knit fibers; ballpoints slide between them.
• Temporary Adhesive Spray (e.g., KK100): Crucial for "floating" or securing backing.
• Lint Roller: Sweatshirts shed. Lint destroys rotary hooks.

Prep Checklist (Pre-Hooping):

• File Integrity: Is the file saved as DST in the correct hoop size on your USB?
• Needle Check: Are you using a Ballpoint 75/11 needle? (Run a finger over the tip to check for burrs).
• Stabilizer Selection: Have you pre-cut a Cutaway sheet that extends 2 inches past the hoop on all sides?
• Marking: Have you marked your center point on the sweatshire with a water-soluble pen or chalk?

Cutaway Stabilizer + Temporary Adhesive: The Sweatshirt Combo That Stops Design Drift

For sweatshirts, there is no debate: usage requires Cutaway Stabilizer.

The Physics of Why: A sweatshirt is a knit structure. It wants to stretch in every direction. If you use Tearaway stabilizer, the needle penetrations will perforate the paper, destroying the structural integrity during the stitch process. The fabric will distort, and your outline will not line up. Cutaway holds the localized tension of the fabric forever.

The Application Technique: Patrice uses a light mist of temporary adhesive to bond the stabilizer to the garment before hooping.

• Action: Mist the adhesive from 10-12 inches away.
• Tactile Check: The stabilizer should feel tacky, not wet.


Expert Note on Adhesives: Temporary adhesive acts as a "third hand," preventing the backing from sliding as you push the inner hoop ring in. However, overspray is dangerous. It builds up on the needle bar and in the bobbin case.

• Rule: Never spray near the machine.
• Maintenance: If you use spray daily, clean your needle bars with alcohol weekly.

Standard Tubular Hoop on a Sweatshirt: Get the Snap, Then Earn the Tension

This is the most physically demanding part of the process. You are fighting the bulk of the fleece. If you are seeing "hoop burn" (shiny crushed rings on the fabric) or struggling to get the screw tight, pay attention here.

The Hooping Sequence:

1. Placement: Inner ring goes inside the garment (under the stabilizer).
2. Alignment: Outer frame aligns on top.
3. The Engage: Press firmly until the outer ring bottoms out.
4. The Sound: Listen for the "Snap" or "Thud". If it feels mushy, the fabric is bunched.
5. The Tighten: Only after seated, tighten the thumbscrew (using a screwdriver for leverage).




Sensory Anchor - The "Drum Skin" Test: Once hooped, run your fingers over the stitch area. It should feel taut like a drum skin. If you press down and the fabric ripples or stays depressed, precision is impossible. You must re-hoop.

When hooping becomes your bottleneck (and your wrists start complaining)

If you are producing 50+ sweatshirts, the standard "screw-and-push" tubular hoop becomes a liability. It causes operator fatigue (wrist strain) and often marks the fabric (hoop burn).

This is the specific production scenario where magnetic embroidery hoops become a necessary upgrade rather than a luxury. Magnetic frames snap together automatically using magnetic force, eliminating the need to manually tighten screws or force rings together. They hold thick fleece securely without crushing the fibers, allowing for faster throughput and zero "hoop burn."

Warning: Physical Safety
When using standard hoops, ensure your fingers are clear of the pinch zone between rings. One slip while pushing down can result in painful blood blisters. Always push from the top frame edges, never with fingers underneath the rim.

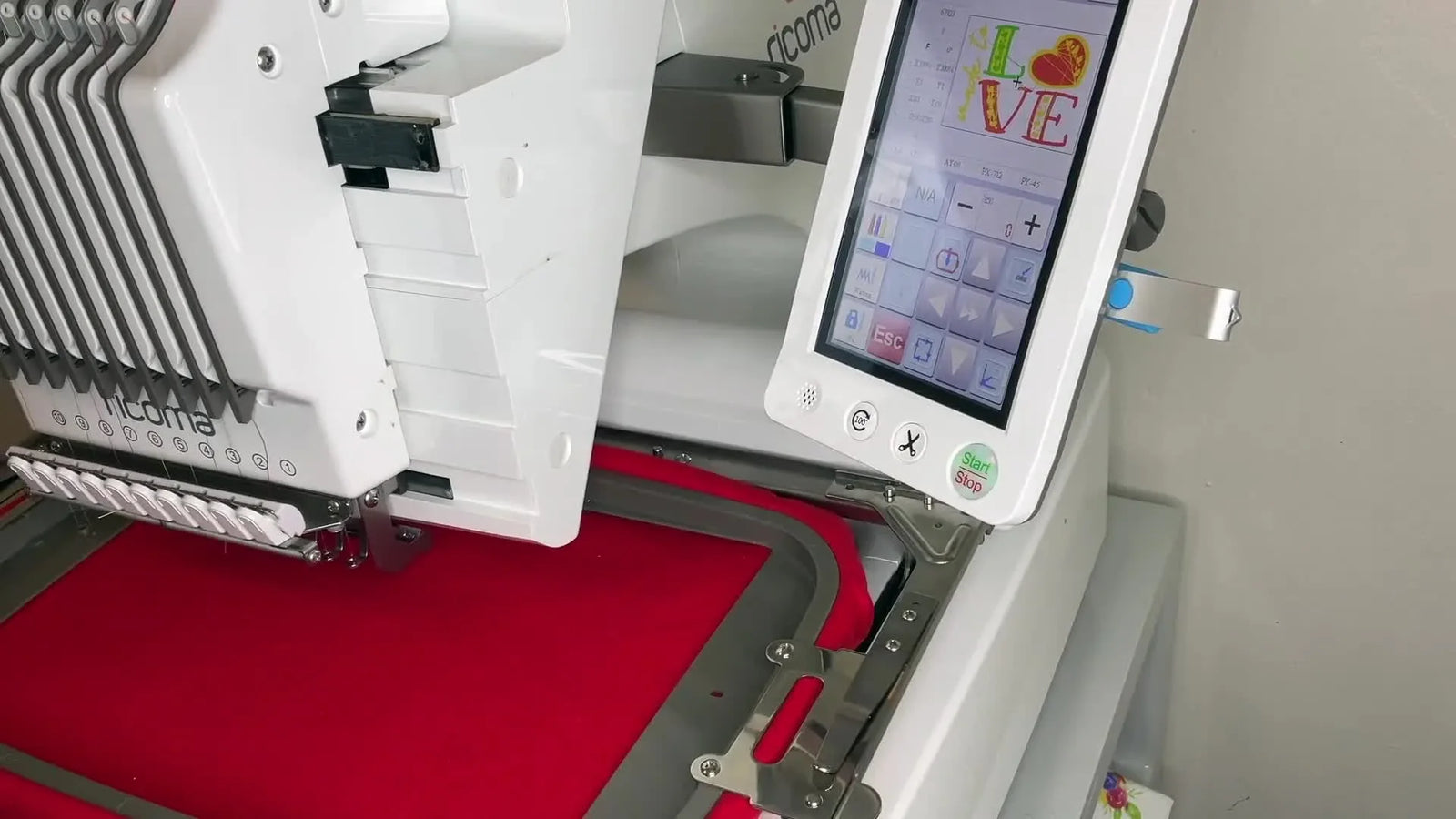

Loading the Ricoma EM1010 Hoop: The Underside Check That Prevents “I Accidentally Sewed the Back”

You have hooped the front. The danger is now the back. The back of a sweatshirt is heavy and loves to curl underneath the hoop arm. If this happens, you will sew the garment shut.

The "Paranoia" Check: Patrice slides the hoop brackets on until they click. Then she performs the most critical safety step in embroidery: Running the hand under the hoop.

Setup Checklist (At the Machine):

• Lock Confirmation: Push/pull the hoop gently. Is it locked into the pantograph?
• The "Tunnel" Check: Reach under the hoop. Is the excess sweatshirt material hanging freely?
• Fabric Clearance: Are sleeves/hood strings tucked away or taped/clipped back?
• Screen Match: Does the machine screen show the design centered in the correct hoop size?

Needle Sequence + Trace on the Ricoma Touchscreen: Catch Hoop Strikes Before They Happen

The Ricoma EM1010 is a multi-needle machine, meaning you must program which needle bar corresponds to which color in your design.

Programming the Sequence: Patrice sets her sequence:

1. Needle 7 (Pink) – Text
2. Needle X (White) – Detail
3. Needle 7 (Pink) – Final outline

The Trace (Collision Detection): Never skip the trace. This moves the pantograph to the design’s outer limits.

• Visual Check: Watch the presser foot. Does it come dangerously close (within 5mm) of the plastic hoop wall?
• Action: If it looks tight, stop. Nudge the design placement on the screen or re-hoop. A "Hoop Strike" at 800 stitches per minute will break the needle, likely break the reciprocating plastic bar, and potentially knock the machine out of timing.


Stitching the “Made to Love” Sweatshirt: Stay Close Enough to Hear Trouble Early

With safety checks done, Patrice initiates the run.

Speed Recommendation: While the machine can go faster, for thick sweatshirts, I recommend setting your speed to 600 - 750 SPM (Stitches Per Minute). High speeds on fleece generate heat and friction, increasing thread breakage risk.

The Sound of Success: An embroidery machine talks to you.

• Good Sound: A rhythmic, dull thump-thump-thump.
• Bad Sound: A sharp clack, a slapping noise, or a grinding sound.
• Action: If the sound changes, hit STOP immediately.

Patrice encounters a bobbin run-out. This is standard production.

• Pro Tip: Keep pre-wound bobbins next to the machine. A bobbin change should take less than 15 seconds.

Production Efficiency Note: If you find yourself constantly checking alignment for batch orders, manual hooping is slow. Integration of a hooping station for embroidery machine allows you to pre-hoop the next garment while the machine is running. This creates a continuous production cycle.

Operation Checklist (Running):

• The First 100 Stitches: Watch the start. Is the thread burying? (Tension too high). Is it looping? (Tension too low).
• Auditory Monitoring: Listen for the "bird’s nest" sound (fabric being sucked into the throat plate).
• Bobbin Alert: Watch the bobbin screen indicator (if equipped) or listen for the airy sound of a top thread with no anchor.
• Mid-Run Bulk Check: Halfway through, ensure the sweatshirt arms haven't vibrated back under the needle.

Clean Finishing: Trim Smart, Then Add Sulky Tender Touch So Customers Don’t Feel the Backing

The difference between "Homemade" and "Retail Ready" is the inside finish. Cutaway stabilizer feels stiff and scratchy against the skin.

Step 1: The Rough Trim Remove the garment. Use curved embroidery scissors or duckbill scissors.

• Technique: Lift the stabilizer up, press the shear down against the backing.
• Safety: Keep the sweatshirt fabric folded away from your cutting hand. One nick creates a hole that ruins the product.


Step 2: The Comfort Layer Patrice applies Sulky Tender Touch (a fusible tricot interlining).

• Why: It seals the back of the embroidery, preventing the "itchy" feel and locking the bobbin threads so they don't unravel in the wash.
• Orientation: This mesh has a "rough" side (glue) and a "smooth" side. The rough side faces the embroidery.


Heat Press at 320°F for ~10 Seconds: Fuse the Backing Without Guesswork

Fusing isn't just about heat; it's about Time, Temperature, and Pressure.

The Formula:

• Temp: 320°F (160°C).
• Time: 10-15 Seconds.
• Pressure: Medium.


If you use a hand iron, ensure steam is OFF. Steam blocks the adhesive from fusing. The goal is a permanent bond that survives the washing machine.

The Comment Section Reality Check: “Is the File for Sale?” and Other Etsy Workflow Questions You Should Plan For

When you produce high-quality work, the market usually asks three things:

1. "Can I buy the digitizing file?"
2. "What thread colors are those?"
3. "Can you make it on a Hoodie?"

The "Spec Sheet" Habit: To answer these quickly (and repeat the job later), keep a logbook. Record:

• File Name.
• Stabilizer used (e.g., 2.5oz Cutaway).
• Needle/Thread sequence.
• Hoop size used.

This data turns a hobby into a scalable business.

The Hoodie Warning: If you transition from sweatshirts to hoodies, watch out for the pocket and the hood. They add massive bulk. You must tape them down heavily to prevent them from snagging the presser foot.

A Stabilizer Decision Tree for Sweatshirts (and When to Upgrade Your Hooping Method)

Stop guessing. Use this logic path for every heavy garment project.

Decision Tree: Garment Support & Hooping Strategy

1. Is the item a Knit (stretchy) or Woven (stiff)?

• Knit (Sweatshirt/Tee): MUST use Cutaway Stabilizer.
• Woven (Denim/Canvas): Can use Tearaway (though Cutaway is still more durable).

2. Is the embroidery density High (full fill) or Low (outline only)?

• High Density: Use 2 layers of Cutaway or a heavy 3oz Cutaway.
• Low Density: Single layer of standard Cutaway is sufficient.

3. Are you experiencing "Hoop Burn" or struggle to close the hoop?

• Yes: Your hoop mechanism is the bottleneck. Switch to embroidery magnetic hoops. These hold simply by magnetic force, removing the friction that crushes fabric fibers.
• No: Proceed with standard tubular hoops, but ensure you loosen the screw almost entirely before hooping.

4. Is this a volume production run (10+ items)?

• Yes: Use a hoop master embroidery hooping station or equivalent fixture. Manual placement on 10+ items usually results in "creeping" errors where logos slowly drift off-center.
• No: Measure and mark individually with chalk/rulers.

The Upgrade Path I’d Recommend for Etsy Sweatshirt Merch (Without Buying Everything at Once)

Patrice’s results prove that the machine is capable, but human labor is the variable. As your business grows from "fun" to "profit," your constraints will shift.

Level 1: Skill Optimization (The $0 Upgrade)

• Master the "Drum Skin" hooping tension.
• Standardize your DST export settings.
• Use the correct needle (Ballpoint) and consumable (Cutaway).

Level 2: Tooling Upgrade (The Efficiency Upgrade)

• Pain Point: Wrists hurting, fabric marked by hoops, re-hooping takes 5 minutes per shirt.
• Solution: Invest in a magnetic hooping station and magnetic frames.
• Result: Hooping time drops to 30 seconds; hoop burn is eliminated.

Level 3: Capacity Upgrade (The Scale Upgrade)

• Pain Point: You are turning down orders because you can't stitch fast enough on a single head.
• Solution: Move to a multi-head system or add a reliable, high-speed single head like the specific Sewtech / hooping for embroidery machine compatible commercial models designed for 24/7 running.

Warning: Magnet Safety
If upgrading to magnetic hoops, handle them with extreme care. Commercial magnets are incredibly powerful.
* Pinch Hazard: They can crush fingers if snapped together carelessly.
* Electronics: Keep them away from machine screens, pacemakers, and credit cards.
* Storage: Always store them with the provided spacers in between.

The difference between a frantic hobbyist and a calm professional is repeatable process. Control the variable of "Bulk" with proper hooping, and the Ricoma EM1010 will handle the rest.

FAQ

• Q: What is the correct DST export workflow in Chroma Inspire for a Ricoma EM1010 embroidery machine to prevent registration errors on sweatshirts?
  A: Export the design as a DST in the correct hoop size and avoid resizing/rotating on the Ricoma EM1010 touchscreen.
  • Confirm the design is centered inside the same digital hoop boundary you will use physically.
  • Use “Save As” → choose DST, and keep the filename short and simple for USB reading.
  • Transfer by USB and run the design without on-machine scaling whenever possible.
  • Success check: Outline and fill land in the same position without “shadowing” or offset.
  • If it still fails: Re-check you selected the correct hoop size in software and re-hoop for firm, even tension.
• Q: Which stabilizer and adhesive method should be used for embroidery on a knit sweatshirt to stop design drift on a Ricoma EM1010?
  A: Use cutaway stabilizer (not tearaway) and apply a light mist of temporary adhesive before hooping to prevent backing slip.
  • Pre-cut cutaway so it extends about 2 inches beyond the hoop on all sides.
  • Mist temporary adhesive from about 10–12 inches away until tacky (not wet), then bond stabilizer to the garment before hooping.
  • Never spray near the machine to avoid adhesive buildup in the needle bar/bobbin area.
  • Success check: The backing stays bonded during hooping and the design does not shift as stitching starts.
  • If it still fails: Add more cutaway support (often an extra layer for dense designs) and re-hoop to improve fabric control.
• Q: How can a standard tubular hoop be installed on a thick sweatshirt without hoop burn, slipping, or uneven tension during a Ricoma EM1010 production run?
  A: Seat the hoop fully first, then tighten—treat hooping like a tension system, not just “holding fabric.”
  • Place the inner ring inside the garment under the stabilizer, align the outer ring on top, and press until it bottoms out.
  • Listen/feel for a firm “snap/thud” before tightening the thumbscrew (use a screwdriver for leverage if needed).
  • Re-hoop immediately if the fabric is bunched or the hoop engagement feels “mushy.”
  • Success check: The stitch area passes the “drum skin” test—taut and springy, not rippling or staying depressed.
  • If it still fails: Reduce pressure to avoid crushing fibers and consider switching to a magnetic hoop for thick fleece to prevent hoop burn.
• Q: What is the safest way to load a hooped sweatshirt onto a Ricoma EM1010 to avoid accidentally sewing the front to the back?
  A: Always do an underside “tunnel check” by running a hand under the hoop before starting the design.
  • Lock the hoop brackets into the pantograph until they click, then gently push/pull to confirm it is seated.
  • Reach under the hoop and make sure the back of the sweatshirt is hanging free and not curled underneath the hoop area.
  • Tuck or clip sleeves, hood bulk, and strings away from the needle path before pressing Start.
  • Success check: A clear open “tunnel” exists under the hoop with no extra layers trapped in the stitch zone.
  • If it still fails: Stop immediately, remove the hoop, and re-load with the garment bulk controlled before restarting.
• Q: How does the Ricoma EM1010 trace function prevent hoop strikes, and what clearance should be checked before stitching thick sweatshirts?
  A: Run trace every time and stop if the presser foot comes too close to the hoop wall—tight clearance is a hoop-strike risk.
  • Use the touchscreen trace to move the design to its outer limits before stitching.
  • Watch the presser foot travel and confirm it does not approach the plastic hoop boundary too closely (the blog’s warning threshold is within about 5 mm).
  • If it looks tight, nudge design placement on-screen or re-hoop rather than “hoping it clears.”
  • Success check: Full trace completes with safe clearance and no near-contact points around the hoop perimeter.
  • If it still fails: Switch to a hoop size that gives more margin or reposition the design to reduce edge travel.
• Q: What stitch speed and early-warning signs should be monitored on a Ricoma EM1010 when embroidering thick sweatshirts to prevent thread breaks and bird’s nests?
  A: Use a moderate speed (about 600–750 SPM) and stop the moment the machine sound changes or the first stitches look wrong.
  • Set speed to 600–750 SPM for thick fleece to reduce heat/friction-related thread issues.
  • Watch the first ~100 stitches for thread burying (often too high tension) or looping (often too low tension).
  • Listen for sharp clacks, slaps, grinding, or the “bird’s nest” sound indicating fabric being pulled into the throat plate.
  • Success check: The machine runs with a steady dull thump and the stitch formation looks clean at startup.
  • If it still fails: Hit STOP, check for nesting under the hoop area, and verify the garment bulk has not vibrated back under the needle.
• Q: What safety precautions should be followed when upgrading to magnetic embroidery hoops for sweatshirt production to prevent pinch injuries and equipment issues?
  A: Treat magnetic hoops as industrial-strength magnets—control the snap, protect fingers, and keep magnets away from sensitive electronics.
  • Keep fingers out of the closing path and let the frame meet slowly and deliberately to avoid pinch/crush injuries.
  • Store magnetic frames with spacers between components to prevent uncontrolled snapping.
  • Keep magnets away from machine screens, credit cards, and pacemakers.
  • Success check: The frame closes under control with no finger pinch events and the garment is clamped evenly without crushing marks.
  • If it still fails: Switch back to standard hoops for that operation until a safer handling routine and staging area are in place.
