Ricoma TC-1501 + Sewtalent Magnetic Hoops: The Fast, No-Slip Right-Chest Hooping Workflow (and the Mistakes That Waste Shirts)

The "Zero-Slip" Protocol: Mastering Magnetic Hooping on Commercial Machines (Ricoma TC-1501 Edition)

If you have ever stood in front of a commercial embroidery head with a stack of shirts and thought, "I am losing money just hooping," you are not being dramatic—you are being honest.

In the embroidery world, the machine is rarely the bottleneck; the human is.

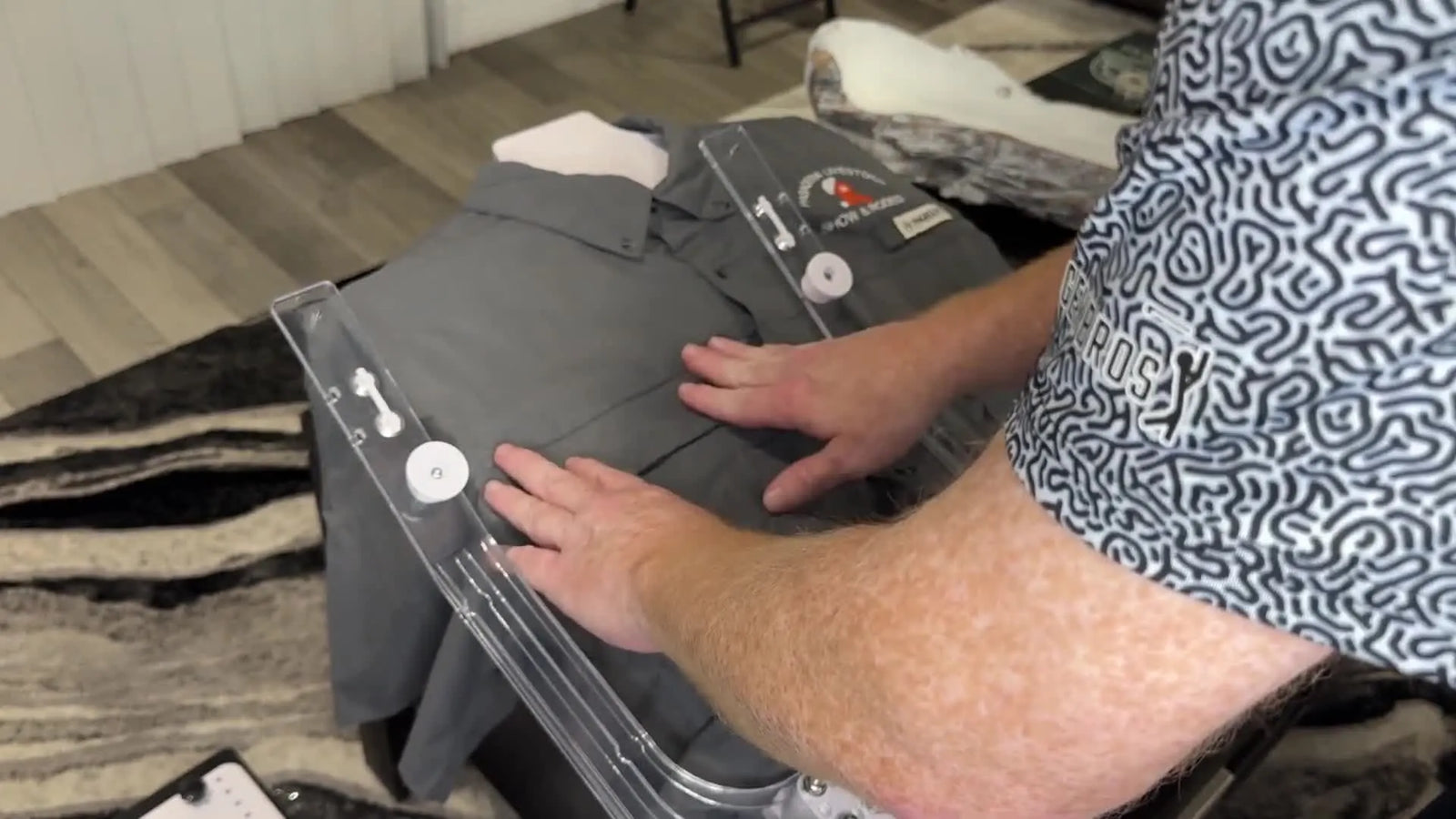

In the industry video we are analyzing today, the operator runs a Sewtalent (MaggieFrame-style) magnetic hoop kit on a Ricoma TC-1501 to demonstrate a repeatable Right-Chest setup. The promise is seductive: faster hooping, zero hoop burn, and a grip that doesn’t quit.

But as someone who has trained hundreds of operators, I know that purchasing a tool is not the same as mastering a system.

Below, I have rebuilt this workflow into a Standard Operating Procedure (SOP). I have added the sensory cues (what to feel), the safety data (speed limits), and the "old hand" checks that prevent the three nightmares of embroidery: ruined garments, broken needles, and physical injury.

The Psychology of the Bottleneck: Why You Hate Hooping

Standard tubular hoops rely on friction. You force an inner ring into an outer ring, hoping the fabric tension is high enough to be taut but low enough to avoid distortion. It is a game of "Goldilocks" guessing that fatigues your wrists and your patience.

The Magnetic Shift: A magnetic system changes the physics. It replaces Friction with Clamping Force.

• Old Way: "Did I tighten the screw enough?"
• New Way: "Did I align the fabric flat?"

When the reviewer in the video reports "no slippage," he is validating that the magnets provide sufficient vertical clamping force to resist the needle's drag. This allows you to stop fighting the hoop and start focusing on the placement.

The Investment Logic: "Cost Per Correct Shirt"

The video compares a competitor’s $900 system to the Sewtalent station kit at $279. While the savings are obvious, let's look at the operational value.

When upgrading your shop, separate your budget into two buckets:

1. The Constant (Station): The alignment tool. This is your "ruler." It ensures every logo lands in the exact same spot (e.g., 7.5 inches down from the shoulder seam).
2. The Variable (Hoops): The holding device. These attach to the machine.

Decision Standard: If you are doing orders of 50+ shirts, a station is no longer optional—it is a sanity tool. A station without the correct fixture is useless; ensure you buy the kit that matches your hoop size.

Phase 1: Assembly & Hardware Hygiene

The Video: The reviewer installs the metal brackets onto the magnetic frame using a small screwdriver. The Reality: This is where accurate embroidery begins. If these brackets are off by 1mm, your design will be crooked, no matter how straight you hooped the shirt.

The "Dry Run" Protocol

Before you ever touch a garment, perform this hardware check:

1. Hand-Tighten First: Install screws until finger-tight.
2. The Quarter-Turn Rule: Use the screwdriver to turn them another 90 degrees. Do not over-torque; you can strip the aluminum threads.
3. The Click Test: Mount the empty hoop onto your machine arms.
   • Sensory Check (Audio): You should hear a distinct click or metallic thud as the brackets seat.
   • Sensory Check (Tactile): Wiggle the hoop gently. If there is "play" or wobble, your screws are loose, or the bracket width is incorrect.

Warning: Magnetic hoops contain powerful Neodymium magnets. They can pinch skin severely and may interfere with pacemakers. Keep them at least 12 inches away from sensitive electronics and medical devices.

Phase 2: The "Hidden" Prep & Consumables

Magnetic hoops feel like magic, but they punish poor preparation. The video shows the station setup, but it skips the "mise-en-place" (everything in its place) that professional shops use.

The Hidden Consumables List

Beginners often fail because they lack these $5 items:

• Lint Roller: Essential for cleaning the magnetic surface. Stray thread or fuzz can reduce clamping power by creating a micro-gap.
• Temporary Spray Adhesive (Optional): For slippery performance wear, a light mist helps the backing stick to the fabric before hooping.
• Ruler/Tape: To verify the station setup.

Prep Checklist

• Hoop Size Match: Confirm the 5.1" x 5.1" fixture is locked into the station.
• Surface Check: Wipe down the magnet faces.
• Stabilizer Prep: Cut your backing 1 inch larger than the hoop on all sides.
• Clear the Deck: Remove scissors and metal tools from the station area (magnets will grab them!).


Phase 3: The Station Setup (Grid is God)

In the video, the station is pre-set for a Right-Chest logo. In your shop, you cannot rely on "eyeballing it."

How to Calibrate for Consistency:

1. Lock the Fixture: Use the pins to secure the hoop fixture to the pegboard.
2. Establish Zero: Align the station’s grid lines with the center of the hoop.
3. Trust the Grid: When loading the shirt, align the Placket (buttons) with a vertical grid line and the Shoulder Seam with a horizontal reference point.

If you are training a new employee, teach them this mantra: The grid is the boss. If the shirt looks straight but disagrees with the grid, the shirt is wrong.

Terms like magnetic hooping station are your gateways to understanding efficient production; they transform placement from an "art" into a "science."

Phase 4: The Hooping Action (The Sensory Sweet Spot)

This step determines the quality of your embroidery. The video demonstrates a specific order of operations that you must follow to avoid "hoop burn" or shifting.

1. Stabilizer Grounding: Place the stabilizer on the bottom fixture first.
2. Garment Drape: Slide the shirt over.
3. The "Ironing" Motion: Smooth the fabric with your palms.

Critical Sensory Instruction:

• Do: Smooth the fabric firmly, like you are trying to push air bubbles out of a phone screen protector.
• Do Not: Stretch the fabric like a drum skin. If you stretch knits (polos) while hooping, they will snap back when you un-hoop, causing the embroidery to pucker. The fabric should be relaxed but flat.


Phase 5: The Snap-Down (Controlled Force)

The reviewer aligns the top frame using the metal tabs and lets the magnets snap shut.

The Technique: Don't "toss" the top frame. Hold it by the handle/tabs, align the guides, and lower it vertically.

• Sensory Check: You want a solid, simultaneous clack as both sides engage. If one side grabs first, it might drag the fabric.

This vertical clamping action is why professionals often search for magnetic embroidery hoops—they eliminate the diagonal drag caused by pushing an inner ring into an outer ring.

Phase 6: Machine Mounting (Ricoma TC-1501 Specifics)

The video highlights the 14-inch arm spread of the Ricoma. This is a standard industrial spacing, but verify your machine's specs.

Mounting Protocol:

1. Slide the hoop brackets onto the pantograph arms.
2. Ensure the retention clips (if present on your machine) engage.
   • Sensory Check: Give the hoop a firm tug forward. It should not move at all.

If you are building a kit around a ricoma embroidery machine, remember that rigidity is key. Any vibration at the hoop translates to jagged satin stitches.

Phase 7: The "Fabric Trap" Safety Check (Crucial!)

In the video, the reviewer reaches under the hoop before hitting start. This is the single most valuable second in the entire workflow.

The "Under-Sweep" Maneuver

Run your hand between the needle plate and the garment. You are feeling for:

1. The Back: Did the back of the shirt bunch up under the hoop?
2. The Sleeves: Is a sleeve falling into the stitching field?

Warning: Mechanical Hazard. Never perform this check while the machine is running. Ensure the machine is stopped. A needle striking a trapped sleeve can shatter the needle, sending metal shards towards your eyes. Always wear eye protection.

Phase 8: The Stitch Run (Data & Limits)

The machine runs white lettering on a grey shirt. The result is crisp. But how fast should you run?

Speed Guidelines (SPM - Stitches Per Minute):

• Video Demo: Likely running high speed.
• Beginner Safe Zone: 600 - 750 SPM.
• Pro Zone: 800 - 1000 SPM.

Why slow down? Magnetic hoops hold firmly, but inertia is real. Starting at 700 SPM gives you a safety buffer to observe thread tension. If the design registers perfectly, bump it up.

If you are evaluating a new embroidery hooping system, these speed tests are the ultimate proof of holding power.

Decision Matrix: Stabilizer Selection

The video uses Cut-Away stabilizer. For beginners, this is the safest choice. Here is a logic tree to help you choose the right backing, ensuring your magnetic frames for embroidery machine deliver perfect results.

Troubleshooting: The "Symptom-Fix" Protocol

If things go wrong, do not guess. Follow this diagnostic path.

1. Symptom: "Hoop Burn" (Shiny ring on fabric)

• Cause: Traditional hoops crushing velvet or delicate fibers.
• Fix: This is the primary trigger to upgrade to magnetic hoops.
• Immediate mitigation: Steam the fabric gently; do not iron.

2. Symptom: Design Outline Drift (Registration issues)

• Cause: Fabric slipping or Hoop bouncing.
• Fix: Check if your backing is large enough (hooped securely by magnets). Check if pantograph screws are tight.

3. Symptom: Needle Breakage on a Sleeve

• Cause: Sleeve fell into the path.
• Fix: Use magnetic clips or tape to secure excess fabric.
• Upgrade: For high volume, a dedicated sleeve hoop station fixture prevents this geometry struggle entirely.

The Commercial Upgrade Path: When to Scale?

You are reading this because you want to move from "craft" to "production."

Level 1: The Frustrated Hobbyist

• Pain Point: Hand/Wrist pain, uneven placement.
• Solution: Magnetic Hoops for Home Machines.
• Result: Comfort and consistency.

Level 2: The Garage Business (Current Context)

• Pain Point: Hooping takes longer than sewing.
• Solution: Sewtalent Station + Magnetic Hoops.
• Result: Hooping time drops from 2 mins to 15 seconds per shirt.

Level 3: The Scaling Manufacturer

• Pain Point: One head isn't enough; backlog is growing.
• Solution: SEWTECH Multi-Needle Machines.
• Result: You move from linear work (one shirt at a time) to parallel production.

Using terms like sewtalent magnetic hoops in your shop isn't just about brand loyalty—it is about choosing a standardized platform that grows with you. A hooping station for embroidery is the bridge between "I think it's straight" and "I know it's straight."

Final Pre-Flight Checklists

Setup Checklist

• Station Locked: Fixture pins secure.
• Surface Clean: Magnets free of lint/debris.
• Alignment: Grid references established (Shoulder/Placket).

Operation Checklist (The "Save Your Shirt" Gate)

• The Under-Sweep: No trapped material underneath.
• Clearance: Arms clear of obstacles.
• Bobbin Check: Is there enough thread for the job?
• Speed: Set to 700 SPM for the first test.

Follow this protocol, and you will stop worrying about the hooping and start focusing on the profit. Happy stitching.

FAQ

• Q: How do I keep a Sewtalent (MaggieFrame-style) magnetic hoop from wobbling after mounting it on a Ricoma TC-1501 pantograph arm?
  A: Re-seat the hoop brackets and correct screw torque before stitching—wobble is almost always bracket seating or loose hardware.
  • Hand-tighten all bracket screws first, then apply the quarter-turn rule (about 90°) with a screwdriver—do not over-torque.
  • Mount the empty hoop on the Ricoma TC-1501 arms and verify retention clips (if present) are engaged.
  • Tug the hoop forward firmly to confirm it cannot move at all.
  • Success check: Hear a clear “click/thud” when seating, and feel zero “play” when wiggling the mounted hoop.
  • If it still fails: Re-check bracket width/fit on the arms and re-do the empty-hoop “dry run” before loading garments.
• Q: What “hidden consumables” should be staged before magnetic hooping shirts with a Sewtalent station kit on a Ricoma TC-1501?
  A: Stage a lint roller, optional temporary spray adhesive, and a ruler/tape—missing these small items commonly causes slippage and placement drift.
  • Clean magnet faces with a lint roller to prevent micro-gaps from fuzz/thread.
  • Use a light mist of temporary spray adhesive only when fabric is slippery (often performance wear) to hold backing in place before clamping.
  • Verify station setup with a ruler/tape rather than eyeballing.
  • Success check: Magnet faces feel smooth/clean, and the fabric/backing lay flat with no “floating” edges before snap-down.
  • If it still fails: Re-clean the magnet surfaces and confirm stabilizer is cut at least 1 inch larger than the hoop on all sides.
• Q: What is the correct step order to hoop a right-chest shirt using a magnetic hooping station (Sewtalent kit workflow) to avoid hoop burn and shifting?
  A: Follow the exact sequence—backing first, garment drape second, smooth flat third, then lower the top frame vertically.
  • Place stabilizer onto the bottom fixture first (do not trap it late).
  • Slide/drape the shirt over the fixture, then smooth using an “ironing” motion with your palms (flatten, don’t stretch).
  • Lower the top magnetic frame straight down using the handle/tabs—do not toss it or let one side grab first.
  • Success check: Fabric is relaxed-but-flat (not drum-tight) and the snap-down feels like a solid, simultaneous “clack.”
  • If it still fails: Re-hoop and focus on vertical lowering—one-side-first clamping can drag fabric and cause registration drift.
• Q: How do I use a hooping station grid to align a right-chest logo consistently instead of eyeballing placement?
  A: Lock the correct fixture, establish a true “zero,” then align garment reference points to the grid every time.
  • Lock the hoop fixture to the station with the pins so it cannot shift during loading.
  • Align the station grid lines to the hoop center to establish your consistent reference.
  • Align the shirt placket (buttons) to a vertical grid line and use the shoulder seam as the horizontal reference point.
  • Success check: The garment reference lines match the station grid even if the shirt “looks” slightly off by eye.
  • If it still fails: Re-calibrate the station (fixture pins/grid-to-center) before changing hooping technique.
• Q: What is the “under-sweep” safety check on a Ricoma TC-1501 before pressing start with a magnetic hoop, and why is it mandatory?
  A: Stop the machine and sweep a hand under the hoop area to confirm no sleeves/back fabric are trapped—this prevents needle strikes and shattered needles.
  • Stop the Ricoma TC-1501 completely before reaching near the needle plate area.
  • Run your hand between the needle plate and garment to feel for bunched backing fabric or a sleeve falling into the stitch field.
  • Secure excess fabric if needed before starting (clips/tape are common shop practice).
  • Success check: You can feel a clear, empty stitching field with no folded fabric edges under the hoop.
  • If it still fails: Reposition the garment and re-do the under-sweep; never “hope it clears” once the machine starts.
• Q: What magnetic hoop safety precautions should operators follow when using strong Neodymium magnets on commercial embroidery hoops?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive devices—control the snap-down and protect hands.
  • Keep fingers clear of closing edges and lower the top frame in a controlled vertical motion to avoid sudden pinches.
  • Keep magnetic hoops at least 12 inches away from sensitive electronics and medical devices (including pacemakers).
  • Clear metal tools (scissors, drivers) away from the station area so magnets do not grab them unexpectedly.
  • Success check: The top frame closes without finger contact near the clamp line, and no tools “jump” toward the hoop.
  • If it still fails: Slow the workflow down and re-train the hand positions—most pinch incidents happen when rushing the snap-down.
• Q: What is a safe starting stitch speed (SPM) when testing magnetic hoops on a Ricoma TC-1501, and how do I scale up without losing registration?
  A: Start at 600–750 SPM, then increase only after a clean test run confirms stability—speed amplifies inertia even with strong clamping.
  • Set the first test to about 700 SPM to observe thread handling and fabric stability.
  • Run a short test segment and watch for outline drift or any bounce/vibration at the hoop.
  • Increase toward 800–1000 SPM only after the first run registers perfectly.
  • Success check: Satin edges stay crisp and aligned with no visible registration shift as the run completes.
  • If it still fails: Check backing size/hold and pantograph rigidity (loose hardware can mimic “slip” at higher speeds).
• Q: When should a shop upgrade from technique tweaks to magnetic hoops or even SEWTECH multi-needle machines for shirt logo production?
  A: Use the pain point as the trigger: optimize technique first, move to magnetic hoops when hooping time/hoop burn dominate, and move to multi-needle when backlog proves one head is the limit.
  • Level 1 (Technique): Standardize station grid alignment and controlled snap-down; clean magnet faces and size stabilizer correctly.
  • Level 2 (Tool): Add a hooping station + magnetic hoops when hooping is slower than sewing or hoop burn/placement inconsistency is recurring.
  • Level 3 (Capacity): Consider SEWTECH multi-needle machines when order volume creates a sustained backlog and one head cannot keep up.
  • Success check: Hooping becomes repeatable (seconds per shirt) and placement becomes consistent across operators.
  • If it still fails: Track “cost per correct shirt” (reworks/time) and use that data to justify the next upgrade step.
