Roman Numerals on a Hoodie Without the Headache: Centering a 5.5" Magnetic Hoop on a Janome MB-4S

The Hoodie Panic Is Real: A Master Class in Roman Numeral Chest Placement

Hoodies are the definitive "stress test" for any embroidery shop. They are bulky, stretchy, and unforgiving. You have likely experienced the specific anxiety of a chest placement that looked perfect on the hoop table, but ends up riding too high or awkwardly wide when the customer actually wears it.

In this "Industry White Paper" style tutorial, we are dissecting the workflow of stitching a Roman numeral anniversary date on a black Gildan Heavy Blend hoodie. We will use a multi-needle machine setup (Janome MB-4S) and a 5.5" magnetic hoop.

However, we are going to go deeper than the video source. Drawing on two years of production floor data, I will add the "Safety Intervals" and "Sensory Checks" that protect your machine, your garment, and your profit margin.

The "Why" Behind The Panic (And The 6.5" Solution)

Why do rookies ruin hoodies? Because they trust the ruler more than the anatomy. A hoodie on a table is a 2D object; a hoodie on a body is 3D.

The video creator demonstrates two non-negotiable habits that you must adopt:

1. Paper Templating: Never guess digitized size on screen.
2. Anatomical Anchoring: Measuring ~6.5 inches down from the neckline/hood seam on a Size Medium.

Expert Calibration: The "6.5-inch standard" is an excellent starting point for Size M-L. However, if you are stitching a Size 2XL, scale that measurement to 7.5-8 inches. The goal is to land the design on the pectoral plane, not the clavicle (too high) or the stomach (too low).

The Toolkit: Why Tools Determine Precision

You cannot fight physics with willpower. You need tools that neutralize the bulk of the fabric.

The Essential Setup:

• Machine: Multi-needle platform (e.g., janome mb-4s or SEWTECH Equivalent).
• Hooping: 5.5" Magnetic Frame (The "Cheat Code" for bulk).
• Consumables:
  • Stabilizer: Cutaway (2.5oz or 3.0oz). Crucial: Do not use Tearaway on heavy hoodies unless you want gap lines in your satin stitches.
  • Needle: 75/11 Ballpoint. (Sharp needles cut knit fibers; ballpoints push them aside).
  • Hidden Consumable: Placement Stickers or a Water-Soluble Pen for marking crosshairs.


Pre-Flight: The Hidden Prep Work (Stabilizer Physics & Templates)

Before you even look at the machine, we have to talk about physics. A hoodie is a knit structure—it wants to move. Your job is to freeze it.

The Stabilizer Decision Matrix

The source video uses tearaway. As a lead educator, I must intervene here with a Best Practice Correction. While tearaway can work on stable fleeces, it is a high-risk gamble for Roman numerals, which are essentially long, thin satin columns. If the fabric shifts 1mm, your "II" becomes a "V".

Decision Tree: Stabilizer Selection

1. Is the fabric stretchy (Jersey/Fleece)?
   • YES -> Use Cutaway. (Provides permanent structural support).
2. Is the design dense (Satin stitches)?
   • YES -> Use Cutaway. (Prevents tunneling/puckering).
3. Is the design extremely light (Running stitch only)?
   • YES -> Tearaway may be acceptable, but Cutaway is safer.

The Paper Template Protocol

Printing the design is not a suggestion; it is a requirement.

• Action: Print your design at 100% scale.
• Sensory Check: Place the paper on the hoodie. Step back 5 feet. Does it look small? Roman numerals often look "shorter" than block text.
• Optimization: The video notes the design is 4.5" wide inside a 5.5" hoop. This leaves a 0.5" safety buffer on each side. Never fill a hoop to the absolute edge; friction against the frame causes distortion.

Prep Checklist (Pass/Fail)

• Needle Check: Is the 75/11 Ballpoint installed? (Rub needle tip on pantyhose; if it snags, replace it).
• Bobbin Check: Is the bobbin at least 50% full? (Do not start a center-chest run with a low bobbin).
• Stabilizer: Cutaway sheet cut 2 inches larger than the hoop on all sides.
• Marking: Crosshairs marked on the fabric with chalk or water-soluble pen (don't rely solely on the paper template).


Measuring: The "Anchor Point" Technique

The video measures 6.5 inches from the hood seam.

Sensory Anchor: When measuring, do not pull the hoodie tight. Pat it flat. If you pull it tight to measure 6.5", it will shrink back to 5.5" when you let go.

The Center-Front Trap: Hoodie pockets are notoriously crooked. Never measure from the pocket. Always measure from the neck seams or fold the hoodie in half lengthwise (armpit to armpit) to press a crease for the true Center Front.

Hooping: Why Magnetic Frames Are Commercial Standards

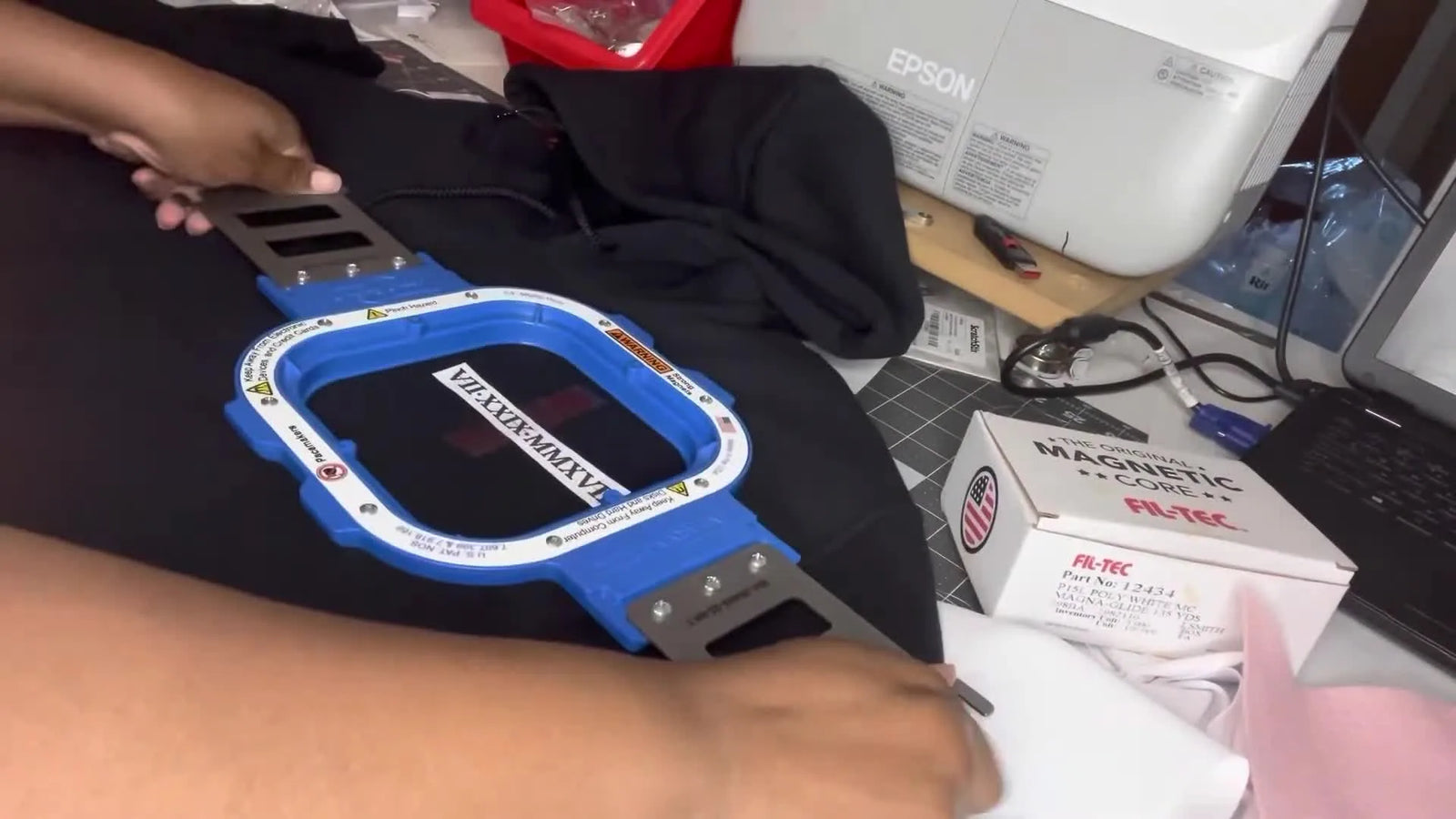

In the video, the creator drops the top frame and lets the magnets snap shut. This is not just about ease; it is about Texture Preservation.

The Problem with Standard Hoops: To hoop a thick hoodie in a standard screw hoop, you have to torque the screw and force the inner ring in. This creates "Hoop Burn"—a shiny, crushed ring of fabric fibers that may never wash out.

The Magnetic Solution: A magnetic embroidery hoop clamps vertically. It holds the fabric like a sandwich rather than stretching it like a drum skin.

• Sensory Goal: The fabric should feel taut but not stretched. Tapping it should sound like a dull thud, not a high-pitched ping.

Warning: Magnetic Safety
Magnetic hoops use industrial neodymium magnets. They snap with roughly 10-20 lbs of force instantly.
Pinch Hazard: Keep fingers on the handles*, never on the rim.
* Electronics: Keep pacemakers and credit cards at least 12 inches away.

Upgrade Trigger: When to Buy Magnetics?

If you struggle with hooping for embroidery machine technique on thick garments (sweatshirts, heavy jackets), and you find yourself re-hooping 3-4 times to get it straight, the wasted labor cost exceeds the cost of the hoop within 50 shirts. This is the moment to upgrade to a magnetic system optimized for your machine (like the SEWTECH magnetic line).

Mounting: Fighting Gravity

The video shows mounting the hoop to the machine. Expert nuance: A Large hoodie weighs heavily. If the sleeves hang off the table, they pull the hoop down, slightly bending the embroidery arm. This causes "Registration Errors" (outlines not matching fill).

• Action: Use a table extension or simply pile the rest of the hoodie up on the table surface to support the weight.


The Trace: The Most Dangerous Button in Embroidery

The creator runs a "Trace" (or Outline Check). This moves the hoop around the design perimeter.

Why this is critical: On a 5.5" hoop with a 4.5" design, you have very little room for error. If the presser foot bar hits the magnetic frame, you risk:

1. Breaking the needle.
2. Knocking the machine out of timing ($200+ repair).
3. Shattering the magnet casing.

Warning: Mechanical Safety
Never walk away during a Trace. Keep your finger near the Emergency Stop button. If the foot looks like it will touch the frame, STOP immediately.

If you are using mighty hoops for janome mb4 or similar third-party frames, ensure your machine's "Hoop Selection" setting matches the actual field size to prevent software-driven collisions.

Stitching: Speed limits and Sound Checks

The video stitches white thread on black fabric. High contrast shows every flaw.

Speed Recommendations:

• Expert: 800-1000 SPM (Stitches Per Minute).
• Beginner Sweet Spot: 600 SPM.
• Why? Slower speeds reduce needle deflection on thick seams.

Sensory Anchors (Auditory):

• Good Sound: A rhythmic, dull thump-thump-thump.
• Bad Sound: A sharp slap or click (Thread is too loose or needle is hitting the needle plate).
• Bad Sound: A struggling grind (Needle is dull or passing through too many layers).


Software Recovery: The "BX" Font Issue

The creator faced a common hurdle: The Etsy file had no BX installer (for keyboard typing), so they had to manually merge letters.

Workflow Enhancement: If you must merge letters manually:

1. Import all characters (I, V, X).
2. Use the "Align Bottom" tool in your software.
3. Kerning Check: Roman numerals require tight spacing. Measure the distance between the "I"s. It should be consistent.


Troubleshooting: The "Why is it Ugly?" Table

Troubleshooting should always move from Physical (Cheap) to Digital (Expensive).

The Commercial Logic: Scaling Up

The method shown is perfect for 1-5 hoodies. But what happens when you get an order for 50?

• The Bottleneck: Hooping time. Screwing and unscrewing a standard hoop takes ~2 minutes. Snapping a magnetic hoop takes 10 seconds.
• The Fatigue: Wrist strain from tightening screws is real.

The Upgrade Path:

1. Level 1 (Consistency): magnetic hoops for janome embroidery machines. Reduces hoop burn and strain.
2. Level 2 (Speed): A magnetic hooping station. This holds the hoop and garment at chest level, ensuring the logo lands in the exact same spot on every shirt, regardless of size.
3. Level 3 (Capacity): If you are running these jobs daily, a single-head machine is too slow. Upgrading to a specialized multi-needle system allows you to hoop the next garment while the first one stitches.

Operation Checklist (The "Green Light" Protocol)

• Clearance: Sleeves and hood strings are taped back or held away from the needle bar.
• Support: Fabric weight is supported on the table (not dragging).
• Trace: Completed successfully with 5mm clearance from frame.
• Speed: Set to 600 SPM for the first layer (underlay).
• Observation: Watch the first 100 stitches. If loops appear, stop immediately.


The Final Quality Check

When the machine stops, you aren't done.

• The Trim: Cut jump stitches flush to the fabric.
• The Tear/Cut: Peel away the stabilizer. If using Cutaway, trim it in a rounded circle (no sharp corners) about 0.5" from the stitching. Sharp corners show through the shirt.
• The Steam: Hover a steam iron (do not press hard) over the marks to remove the hoop impression.


When evaluating mighty hoop 5.5 sizes or comparable SEWTECH magnetic frames, ensure you check your machine's arm width compatibility. The efficiency gained is only valuable if the frame fits your specific machine geometry perfectly.

Ultimately, mastery is a mix of good habits and appropriate tools. Start with the paper template. Measure from the seam. And when your volume justifies it, invest in a hooping station for machine embroidery and magnetic frames to turn a frustrating chore into a profitable assembly line.

FAQ

• Q: How do I place a Roman numeral chest design on a Gildan Heavy Blend hoodie so it does not stitch too high when worn?
  A: Use anatomical anchoring first, then confirm with a paper template before hooping.
  • Measure down from the neckline/hood seam about 6.5" on Size M–L (a safe starting point), and scale to about 7.5–8" for 2XL so the design lands on the pectoral area.
  • Pat the hoodie flat while measuring; do not pull the knit tight because it rebounds smaller after release.
  • Print the design at 100% and tape/hold it in place, then step back about 5 feet to judge real-world placement.
  • Success check: The paper template looks centered on the chest “plane” (not sitting on the clavicle and not dropping toward the stomach).
  • If it still fails: Re-establish true center front by folding the hoodie lengthwise and creasing; do not reference the pocket for alignment.
• Q: Which stabilizer should be used for dense Roman numeral satin stitches on a fleece hoodie to prevent gaps and shifting?
  A: Choose cutaway stabilizer for stretchy fleece and satin-heavy Roman numerals; tearaway is a higher-risk option.
  • Use a 2.5oz or 3.0oz cutaway as the primary support for knit/fleece structures.
  • Cut the stabilizer at least 2" larger than the hoop on all sides to prevent edge pull during stitching.
  • Add temporary spray adhesive if needed to bond the hoodie to the stabilizer and reduce micro-shifts.
  • Success check: Satin columns stay tight with no “gap lines” and the parallel numerals (like “II”) do not drift apart.
  • If it still fails: Re-check hooping tension (taut-not-stretched) and slow the machine speed for the first layer.
• Q: What pre-flight checks should be done on a Janome MB-4S before embroidering a center-chest hoodie design to avoid mid-run problems?
  A: Do a quick needle/bobbin/stabilizer/marking pass before mounting the hoop.
  • Install a 75/11 ballpoint needle; replace the needle if it snags when rubbed on pantyhose.
  • Load a bobbin that is at least 50% full before starting a center-chest run.
  • Mark clear crosshairs on the hoodie using chalk, a water-soluble pen, or placement stickers instead of relying only on the paper printout.
  • Success check: The needle penetrates fleece cleanly (no excessive punch noise) and the marked crosshairs align to the hoop reference marks without re-hooping.
  • If it still fails: Re-thread the top path carefully and confirm the garment is supported on the table so weight is not tugging the hoop.
• Q: How tight should a 5.5" magnetic embroidery hoop be on a thick hoodie to avoid hoop burn and distortion?
  A: Clamp the hoodie “taut but not stretched” so the knit is held flat without being drum-tight.
  • Drop the magnetic top frame straight down; avoid tugging the hoodie edges after clamping.
  • Aim for even tension across the field instead of pulling the fabric tight at one side.
  • Avoid standard screw-hoop over-torquing on bulky hoodies because it can crush fibers and leave shiny hoop marks.
  • Success check: Tapping the hooped area sounds like a dull thud (not a high-pitched ping) and the surface looks smooth with no stretched ribs.
  • If it still fails: Re-hoop with less pull and confirm the stabilizer is cutaway, not tearaway, for dense satin columns.
• Q: What safety steps prevent finger pinches when using neodymium magnetic embroidery hoops on hoodie projects?
  A: Treat the magnets like a clamp that snaps hard and fast, and keep hands on the handles only.
  • Hold the hoop by the handles during closing; never place fingers on the rim where the magnets meet.
  • Keep pacemakers and magnetic-sensitive items (like credit cards) at least 12 inches away from the hoop area.
  • Set the hoop down on a stable surface before snapping shut to control alignment and avoid sudden jumps.
  • Success check: The top frame seats evenly without slamming onto fingertips and the hoop closes with a clean, controlled snap.
  • If it still fails: Slow down the hooping motion and reposition the garment bulk so the top frame can drop straight down without rocking.
• Q: Why is the Trace/Outline check on a Janome MB-4S risky with a 5.5" magnetic hoop, and how do I prevent a presser-foot collision?
  A: Always run Trace under full supervision and stop immediately if clearance looks tight.
  • Confirm the design size leaves buffer inside the hoop; a 4.5" wide design in a 5.5" hoop is tight and requires attention.
  • Keep a finger near the emergency stop during Trace; do not walk away.
  • Verify the machine hoop selection/field setting matches the actual hoop being used to avoid software-driven overtravel.
  • Success check: The Trace path completes with roughly 5mm clearance from the frame and the presser foot never approaches the rim.
  • If it still fails: Re-center the design, reduce design size slightly, or switch to a larger hoop field that your machine supports per the machine manual.
• Q: How do I fix white loops showing on top when stitching white thread on a black hoodie on a Janome MB-4S?
  A: Re-thread the top path first, then adjust top tension in small steps if needed.
  • Floss the thread through the tension disks by raising the presser foot and re-threading completely to ensure the thread seats correctly.
  • Test-stitch a small section; only if loops persist, tighten the top tension knob by about 0.5 turns.
  • Keep speed conservative (a safe starting point is 600 SPM for beginners) to reduce needle deflection on bulky seams.
  • Success check: The top surface shows clean satin with no white loops, and the stitch sound is a steady dull thump-thump (not a sharp slap/click).
  • If it still fails: Check for bobbin/tension imbalance and confirm the hoodie is supported on the table so gravity is not pulling and changing tension behavior.
• Q: When does repeated re-hooping on thick hoodies justify upgrading to magnetic hoops or a multi-needle production setup?
  A: Upgrade when hooping time and rework become the bottleneck, then scale tools in levels.
  • Level 1: Improve technique first (paper templates, seam-based measuring, true center-front creasing, garment weight support).
  • Level 2: Move to magnetic hoops when thick garments require 3–4 re-hoops to get straight; the labor waste often overtakes the hoop cost within about 50 garments.
  • Level 3: If hoodie orders are frequent and daily, consider a multi-needle setup so one garment can stitch while the next is hooped.
  • Success check: Hooping becomes repeatable in one attempt and placement matches the template consistently across sizes.
  • If it still fails: Add a hooping station to hold the hoop/garment at a consistent working height and re-check clearance with Trace on every new hoop/size combination.
