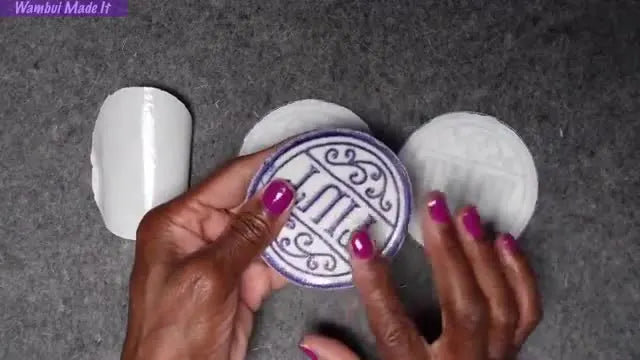

Round Tuit Patches on a Brother PE800: The Clean, Repeatable Workflow (Plus a Pro-Level Presentation Card)

It feels like a small project: a clever "Round Tuit" patch. But if you are new to machine embroidery, this specific project is actually a masterclass in stabilizer tension and precision layering.

The video provides a great visual walkthrough, but in a professional shop, we need more than visuals—we need predictability. Below, I have rebuilt the process into an industry-standard Standard Operating Procedure (SOP). I’ve added the sensory checks (what it should sound and feel like), the safety margins for beginners, and the specific decision-making logic that prevents you from ruining your materials.

The “Don’t Panic” Primer: Why a Brother PE800 Patch Run Feels Tricky (and How to Make It Predictable)

Patches are deceptive. They look simple, but they rely entirely on friction and stabilizer integrity. If your stabilizer is loose, your circle becomes an oval. If your felt shifts, your border misses the edge.

In this workflow, we rely on the Floating Method. instead of jamming thick felt into the hoop, we hoop only the stabilizer and "float" the felt on top.

Why this scares beginners: You feel like the fabric isn't secure. Why pros do it: It prevents "hoop burn" (permanent ring marks on felt) and saves massive amounts of time.

Your success here depends on one thing: The Drum Skin Effect. The stabilizer must be tight enough to sound like a drum when flicked, but not so tight that it warps the hoop.

Materials Needed for a Round Tuit Patch (Brother PE800 + Felt + HeatnBond Ultrahold)

To get a result that doesn't look "homemade," you need a few items that might not be in the basic kit.

The Video Setup:

• Machine: Brother PE800 (Single-needle).
• Hoop: Standard 5x7 hoop.
• Stabilizer: Heavy-duty water-soluble film (like Sew ’N Heat). Note: Ensure it is heavy weight (approx 35-80 microns).
• Fabric: Stiff craft felt (White).
• Adhesive: HeatnBond Ultrahold.
• Finishing: Mini iron, Tagging gun, Cardstock.

The "Hidden" Consumables (The Pro Kit):

• 75/11 or 80/12 Embroidery Needle: Felt is dense; a fresh needle prevents thumping sounds and skipped stitches.
• Curved Scissors (Double-Curved preferred): Essential for trimming fabric inside the hoop without gouging the stabilizer.
• Temporary Spray Adhesive (Optional but Recommended): A light mist on the back of the felt prevents the "micro-shifting" that happens right before the tack-down stitch.

If you find yourself constantly re-tightening your standard hoop or struggling to get the stabilizer flat, this is usually where we suggest looking into machine embroidery hoops that use magnetic force—they self-level the stabilizer, removing the human error from this step.

The “Hidden” Prep Before You Hoop Sew ’N Heat Stabilizer (So the Film Stays Drum-Tight)

Clear water-soluble film is slippery. If it slips during stitching, your perfect circle will distort.

The Sensory Check (The "Tap" Test):

1. Lay the film over the bottom hoop.
2. Insert the top hoop. Tighten the screw slightly.
3. Pull the edges gently to remove wrinkles.
4. Tighten the screw fully.
5. The Test: Flick the center of the stabilizer with your finger.
   • Bad: A dull flopping sound.
   • Good: A sharp, high-pitched "ping" or "thump." It should feel taut, like the skin of a drum.

Prep Checklist (Do not proceed until all pass):

• Stabilizer passes the "Tap Test" (taut and smooth).
• Inner hoop is pushed down evenly (not higher on one side).
• You have cleared the machine arm of any obstructions (coffee cups, scissors).
• Bobbin is full. (Running out of bobbin thread on a satin border is a nightmare).


The Placement Stitch Circle on Clear Stabilizer: Your “Target Ring” for Perfect Felt Alignment

Your machine will run a simple running stitch directly onto the clear film. This is your map.

Expert Parameter Adjustment:

• Speed: If you are a beginner, lower your machine speed to 350-400 SPM (Stitches Per Minute) for this step. High speed on bare film can sometimes cause tearing if the needle is old.

Success Metric: You should see a clearly defined circle. If the film is puckering (gathering) around the thread, your hoop tension was too loose. Stop and re-hoop now—it will not fix itself later.

Warning: Keep your hands clear! When the machine moves to position for the placement stitch, the hoop travels fast. Do not rest your hand on the table near the moving arm.

Floating White Felt Over the Brother PE800 Hoop: The Fast Method That Avoids Hoop Marks

This is the "Floating" technique. You place the felt over the placement circle.

How to avoid the "Shift": The biggest risk here is the felt moving the instant the needle hits it.

1. Cut Generously: Your felt square should be at least 1 inch larger than the placement circle on all sides.
2. The "Tape" Trick: If you don't have spray adhesive, use two small pieces of painter's tape on the very edges of the felt to secure it to the plastic rim of the hoop (not the sewing field).

When searching for tutorials on this, you will often hear about the floating embroidery hoop method. This simply means the material sits on top, unsupported by the hoop rings, relying on the stabilizer below for structure.

Tack-Down + Decorative Border + “TUIT” Text: Let the Design Build Without Fighting the Machine

This is the moment of truth. The machine will run a "Tack-down" stitch to lock the felt to the stabilizer.

The "Hover" Technique: As the machine starts the tack-down circle, use the eraser end of a pencil (never your finger) to gently hold the felt down near where the foot is sewing. This prevents the foot from pushing a "wave" of felt in front of it.

Listen to your Machine:

• Quality Sound: A consistent, rhythmic humming.
• Warning Sound: A loud "thud-thud-thud." This means the needle is struggling to penetrate the felt/stabilizer combo. Change your needle to a sharp 75/11 immediately.

For production runs, wrestling with the screw on a standard brother 5x7 hoop between every single patch causes significant wrist strain. This is a primary reason shops upgrade their distinct hooping systems.

Setup Checklist (The "point of no return"):

• Felt fully covers the placement line.
• Presser foot is down.
• Thread path is clear (no tangles at the spool pin).
• Speed is set to a manageable level (600 SPM is a good sweet spot for satin borders).


Unhooping and Trimming a Satin Border Patch: The “Close, Not Brave” Cutting Rule

Once the embroidery finishes, you must trim the stabilizer and felt away from the edge.

The "Close, Not Brave" Rule: You want to trim close to the satin stitching, but never so close that you risk snipping the thread.

• The Gap: Aim to leave about 1mm to 2mm of felt/stabilizer edge.
• The Tool: You must use curved embroidery scissors (like rapid duckbill or double-curved). Straight scissors force you to angle your hand awkwardly, increasing the risk of cutting the patch.

Trimming Sequence:

1. Remove hoop from machine.
2. Remove stabilizer from hoop.
3. Trim all "jump threads" on the face of the patch first.
4. Rough cut the excess stabilizer/felt.
5. Fine trim around the satin border.


Warning (Safety): Never force the scissors. If the felt is thick, take small snips. Many injuries happen when trying to "power through" thick layers, resulting in slipped scissors stabbing the hand holding the patch.

HeatnBond Ultrahold on the Back of the Patch: Press, Cool, Trim, Then Peel

HeatnBond turns your patch into an iron-on sticker.

Temperature Setting: Set your mini-iron to Medium (Wool setting). Do not use steam. Steam prevents the adhesive from bonding correctly.

The Process:

1. Place the patch face down on a hard pressing mat.
2. Place HeatnBond (paper side up) on the back.
3. Press for 2-4 seconds just to tack it.
4. Critical Step: Let it COOL completely before trimming. If you trim while hot, the adhesive gums up your scissors.


Stabilizer + Fabric Decision Tree: Choosing the “Least Drama” Patch Stack-Up

Beginners often guess at stabilizers. Pros use a logic tree. For patches, use this guide to ensure flat, professional results.

Decision Tree: Patch Foundation Logic

• Scenario A: The Patch Material is Stable (Felt, Twill, Canvas)
  • Stabilizer: Water-Soluble (Heavy) OR Tear-Away (Medium).
  • Method: Float the material.
  • Why: These fabrics don't stretch; floating is faster.
• Scenario B: The Patch Material is Stretchy (T-shirt knit, Jersey)
  • Stabilizer: Cut-Away (Mesh or Medium Weight).
  • Method: Hoop the fabric bonded to the stabilizer.
  • Why: Floating stretch fabric leads to distortion. The circle will become an oval.
• Scenario C: High Volume Production (50+ patches)
  • Refinement: Switch to a magnetic hoop for brother pe800.
  • Why: Drastically reduces preparation time per patch and eliminates screw-tightening fatigue.


Cricut Maker Presentation Card + Tape Runner: Packaging That Makes a Patch Feel Like a Gift

Perception is reality. A patch in a ziplock bag looks like a spare part. A patch on a card looks like a product.

The creator uses cardstock cut with a Cricut Maker. Pro Tip: If you don't have a Cricut, simple square business cards work perfectly. Use a "Tape Runner" (double-sided adhesive dispenser) to attach printed explanations or poems to the cardstock backing. It’s clean, dry, and instant.

Tagging Gun Fastener Through the Patch Edge: A Clean Retail-Style Attachment

Using a retail tagging gun adds that "store-bought" snap.

Placement Matters: Pierce the tagging barb through the satin border or the very edge of the felt. Do not poke it through the center embroidery or the "TUIT" text, as it will leave a visible hole in the design.

The Upgrade Path: When to Switch to Magnetic Embroidery Hoops (and When to Go Multi-Needle)

At some point, you will hit a wall. You are either spending too much time hooping, or too much time changing thread colors. Here is the diagnostic logic to decide when to upgrade your tools.

1. The "Hooping Bottleneck" (Wrist Paint & Slow Prep)

• Trigger: You spend more time tightening screws and fighting wrinkles than actually sewing. You have inconsistent tension (some patches look loose).
• Solution: Level 1 Upgrade -> magnetic embroidery hoops.
• Why: These frames use magnets to automatically clamp the stabilizer flat. There is no screw tightening. It is faster, perfectly consistent, and eliminates the "hoop burn" ring on delicate fabrics.

2. The "Color Change Bottleneck" (Babysitting the Machine)

• Trigger: You can't leave the machine because you have to change the thread every 2 minutes. You are turning down orders because you can't make them fast enough.
• Solution: Level 2 Upgrade -> Multi-Needle Machine (like SEWTECH models).
• Why: You set up 6-10 colors at once. You press start and walk away. This is the bridge from "hobby" to "business."

Using a brother pe800 magnetic hoop is often the first, most affordable step to making your single-needle machine feel like a pro tool.

Warning (Magnetic Safety): Magnetic hoops are industrial tools. They snap together with immense force. Keep fingers specifically clear of the clamping zone. Do not use these hoops if you have a pacemaker, and keep them away from credit cards and hard drives.

Operation Checklist: The “One-Minute Audit” Before You Call It Finished

Don't gift it or sell it until it passes the QC (Quality Control) check.

Final QC Checklist:

• Shape: Is the patch a perfect circle, or is it egg-shaped? (Distortion = loose stabilizer).
• Edges: Are there any "whiskers" of felt sticking out beyond the satin border? (Trimming issues).
• Face: Are all jump threads trimmed flush?
• Back: Is the HeatnBond smooth and fully adhered?
• Packaging: Is the patch securely fastened to the card, centered, and straight?

Mastering this workflow on a single patch gives you the skills to tackle intricate logos and uniforms later. Trust the friction, trust the sound of the drum-tight stabilizer, and you'll get it right every time.

FAQ

• Q: How do I hoop heavy water-soluble film stabilizer for a Brother PE800 patch so the film stays drum-tight and does not distort the circle?
  A: Hoop only the stabilizer and tighten until the film passes a drum-skin “tap test” before stitching anything—this prevents oval circles and puckering.
  • Lay the film over the bottom hoop, insert the top hoop, and tighten the screw slightly first.
  • Pull the film edges gently to remove wrinkles, then tighten the screw fully and evenly.
  • Flick the film center to confirm it is taut and smooth before running the placement stitch.
  • Success check: a sharp, high-pitched “ping/thump” sound and a flat, wrinkle-free film surface.
  • If it still fails… stop after the placement stitch if you see gathering/puckering around thread, then re-hoop tighter (it will not fix itself later).
• Q: What machine embroidery needle size should be used on dense craft felt for a Brother PE800 Round Tuit patch to avoid thumping sounds and skipped stitches?
  A: Use a fresh 75/11 or 80/12 embroidery needle, and change immediately if the machine starts “thud-thud-thud” on felt.
  • Install a new 75/11 or 80/12 needle before the tack-down and satin border steps.
  • Listen during the tack-down circle and decorative border for any loud, heavy penetration sounds.
  • Reduce variables by not pushing speed too high until the needle proves it can penetrate cleanly.
  • Success check: consistent, rhythmic humming instead of loud thudding, with no skipped stitches in the border.
  • If it still fails… swap to a fresh sharp 75/11 right away and restart that step rather than forcing the needle through.
• Q: How do I set Brother PE800 embroidery speed for a placement stitch on clear water-soluble film stabilizer to reduce tearing risk?
  A: Slow the Brother PE800 to about 350–400 SPM for the placement stitch on bare film, especially if the needle is not brand new.
  • Set speed down before running the placement circle on clear stabilizer.
  • Run the placement stitch and watch for any film puckering or stress around needle penetrations.
  • Stop immediately if the film looks like it is gathering—re-hoop instead of continuing.
  • Success check: a clean, clearly defined circle with no puckering/gathering around the thread.
  • If it still fails… re-hoop for tighter tension and consider changing to a fresh needle if the film shows signs of tearing or snagging.
• Q: How do I keep floating felt from shifting during the tack-down stitch on a Brother PE800 patch made with the floating method?
  A: Oversize the felt and lightly secure it so it cannot micro-shift right as the tack-down starts.
  • Cut the felt at least 1 inch larger than the placement circle on all sides.
  • Lightly mist temporary spray adhesive on the felt back, or tape the felt edges to the hoop rim (not the sewing field).
  • Use the eraser end of a pencil to gently hold felt near the sewing area as tack-down begins (not fingers).
  • Success check: the tack-down circle lands centered and the felt edge stays fully covering the placement line with no creep.
  • If it still fails… re-do the placement and securing step, because a small shift at tack-down will compound through the border and text.
• Q: How close should curved embroidery scissors trim a Brother PE800 satin border patch so the stitches are not cut?
  A: Trim “close, not brave”—leave about 1–2 mm outside the satin border to protect the thread.
  • Unhoop, remove the stabilizer, and trim face jump threads first.
  • Rough cut excess felt/stabilizer, then fine trim slowly around the border using curved scissors (double-curved preferred).
  • Take small snips instead of forcing thick felt layers.
  • Success check: no felt “whiskers” sticking past the satin edge, and no border threads nicked or unraveling.
  • If it still fails… switch to curved scissors (straight scissors increase the chance of cutting the border) and re-trim in smaller increments.
• Q: What is the safe way to prevent hand injuries when stitching or trimming a Brother PE800 felt patch (needle movement and scissors risks)?
  A: Keep hands out of the hoop travel path during stitching, and never “power through” thick felt when trimming—use tools and small controlled cuts.
  • Keep hands clear when the machine moves into position for the placement stitch because the hoop can travel fast.
  • Use a pencil eraser to steady felt during tack-down instead of fingers near the needle.
  • Take small snips when trimming; do not force scissors through resistance.
  • Success check: hands stay outside the moving arm/needle zone, and trimming feels controlled with no sudden slips.
  • If it still fails… pause the job, reposition the work on a stable surface, and continue only when the cutting angle is comfortable and controlled.
• Q: When should a Brother PE800 patch maker upgrade from a standard 5x7 screw hoop to a magnetic embroidery hoop, and when is it time to move to a multi-needle machine like SEWTECH?
  A: Upgrade in layers: fix technique first, move to magnetic hoop when hooping is the bottleneck, and move to a multi-needle machine when thread changes become the bottleneck.
  • Level 1 (technique): tighten stabilizer to drum-skin tension, float felt correctly, and manage speed for placement stitches.
  • Level 2 (tool): choose a magnetic hoop when screw-tightening causes wrist strain or hoop tension inconsistency is causing distorted patches.
  • Level 3 (capacity): choose a multi-needle machine when frequent color changes force constant babysitting and limit order volume.
  • Success check: prep time drops, circles stay round (no egg-shape), and production feels repeatable without constant re-hooping or thread changes.
  • If it still fails… identify which step consumes the most time or creates the most rejects (hooping vs. color changes) and upgrade only that bottleneck next.
