SewArt Variable Width Satin Stitch: Digitize a Clean Cursive “S” (and Avoid the Ugly Crossover Mess)

If you’ve ever stared at SewArt’s Variable Width Satin Stitch Editor and thought, “I know what I want this letter to look like… why won’t the stitches behave?”, you’re in the right place. A cursive satin column is unforgiving: one rushed click can twist the stitch angle, fatten a curve, or turn a crossover into a lumpy knot that creates a "bulletproof" stiff spot on your fabric.

Designing embroidery is an engineering discipline disguised as art. It requires understanding how thread tension, physical push/pull compensation, and machine mechanics interact. This post rebuilds the exact workflow shown in the video—digitizing a simple cursive “S” by manually plotting points—but we are going to add the "Experience Layer." These are the real-world guardrails, sensory checks, and physical parameters that keep your test sew-out from wasting thread, felt, and your patience.

The Calm-Down Primer: What SewArt Variable Width Satin Stitch *Can* (and Can’t) Do for Cursive Fonts

The video is intentionally “basic,” and that’s a good thing: the Variable Width Satin Stitch tool is powerful, but it’s not a magic button that works on every font. The instructor is upfront that each font needs its own “seed” (starting approach) and its own strategy for how lines jump over each other.

Here’s the mindset that saves beginners months of frustration:

• You are not “drawing stitches.” You are defining a satin column—a tunnel for the thread. You tell SewArt where the left and right banks of the river are, point by point.
• Your clicks control geometry. Every pair of clicks defines the Stitch Angle (the direction the thread lays) and the Width. If the angle flips suddenly (e.g., from 45° to 90° in one step), the light reflects differently, making the embroidery look "fractured."
• Thickness is the enemy. Crossovers (where the letter overlaps itself) are where most ugly results come from—because layering satin on satin builds height fast. If it gets too thick, you'll hear a rhythmic thump-thump-thump from your machine; that is the sound of a needle struggling to penetrate.

If you’re planning to test designs repeatedly, set up a consistent sampling routine. A stable hooping workflow matters as much as the digitizing. If your fabric separates from your stabilizer, no amount of software tweaking will fix it. A dedicated machine embroidery hooping station can make your test pieces repeatable, ensuring that when you see a flaw, you know it's the file, not your hands.

The “Hidden” Prep Pros Do First: Image Choice, Fabric Test Plan, and a No-Regrets Setup

The video starts by opening a simple “S” image and moving into the stitch editor on a grid. Before you click your first point, do these quiet prep steps that prevent the most common beginner spiral: “My file looked fine on screen, but the sew-out is a disaster.”

Prep checklist (do this before you open the editor)

• Select High Contrast: Pick a simple, clean image (the video uses a thick black cursive “S”). Fuzzy JPEGs lead to fuzzy stitch paths.
• The "Floss" Test: Check your thread tension. When pulling thread through the needle, it should feel like pulling dental floss through tight teeth—smooth resistance, not loose and not locking up.
• Consumable Check: Have you changed your needle? A dull needle pushes fabric into the bobbin case. Use a fresh 75/11 needle for standard weight fabrics.
• Commit to the "Sweet Spot" Speed: For test sew-outs, do not run your machine at max speed. Set it to 600 SPM (Stitches Per Minute). This is the beginner safety zone where you can stop the machine before a nest becomes a disaster.

Warning: Mechanical Safety. Keep fingers clear of the needle area during test sew-outs. Never attempt to trim jump threads while the machine is moving. A machine running at 600 SPM moves the needle 10 times per second—needle strikes happen faster than human reaction time.

A quick stabilizer decision tree (fabric → backing choice)

Stabilizer is the foundation of your house. If the foundation moves, the house creates gaps. Use this decision tree:

1. Is the fabric stretchy (T-shirt, Knit, Jersey)?
   • YES: You must use Cut-Away stabilizer. No exceptions.
   • Why: Knits stretch. Tear-away will disintegrate after 500 stitches, leaving the fabric to distort.
2. Is the fabric stable (Felt, Denim, Canvas)?
   • YES: Use Tear-Away (a firm medium weight, 2.0oz or higher).
3. Is the fabric "fluffy" (Towel, Velvet, Fleece)?
   • YES: Use a Water Soluble Topper (Avalon film) on top to keep stitches from sinking, AND the appropriate backing (Cut-away for fleece, Tear-away for towels).

When you test, keep hooping consistent. If you’re doing lots of samples or small production runs, hooping stations reduce “human variation” so you can judge the digitizing—not your hooping technique.

Getting Into the SewArt Variable Width Satin Stitch Editor Without Missing Buttons

In the video, the Variable Width Satin Stitch Editor opens and the letter appears on a grid. Several commenters struggled with not seeing the same options or not finding the “V satin” tool. This is usually a User Interface (UI) scaling issue.

Here’s the practical takeaway from the creator’s reply: the “V satin” option is available on the stitch screen (not the image processing screen).

Watch out (from the comments, cleaned up): If your screen doesn’t show the “second line” of options, it’s usually a window/layout issue—your editor panel may be too small, off-screen, or not the same mode as the video.

Try these non-destructive checks:

• Maximize the Window: Drag corners until toolbars stop collapsing.
• Mode Check: Confirm you are in the Stitch Mode (looks like a grid), not Image Mode.
• Resolution: If you are on a high-res laptop screen, check your Windows scaling settings (sometimes 150% scaling hides buttons).

If you’re running a mixed workflow (SewArt + other software), keep your file versions organized. A clean naming habit (e.g., Letter_S_v1_600spm.pes) saves you when you need to re-test after edits.

The Start Rectangle Trick: Seeding the Satin Column So the “S” Doesn’t Twist

This is the first core move in the video, and it’s the part most beginners skip.

At about 1:00, the instructor explains how to start the satin stitch by clicking inside the “S” and essentially building a small rectangle:

1. Click the inside of the stroke to place the first point (Point A).
2. Move across the width directly opposite and click again (Point B).
3. Move up slightly (1-2mm) and click a third point (Point C).

Expert Reality Check (The Physics): Why do this? Satin columns need a "header." If you start with a triangle or a single point, the machine has to bury the knot in zero space, often creating a "bird's nest" of thread underneath. By starting with a rectangle, you give the machine a stable 2mm area to lock the tie-in stitches before the complex curves begin.

Expected outcome: you should see the early nodes (pink/purple dots in the video) and connecting lines that establish a solid, square footing for the column.

The “Snake” Rhythm That Makes Cursive Satin Look Expensive: Zig-Zag Plotting Through Curves

From about 1:22 onward, the instructor uses a consistent motion: click one side of the stroke, cross to the other side, advance slightly, repeat. On screen it builds a ladder/snake-like mesh.

This is the heart of variable-width satin digitizing. You must develop a rhythm. Think of it like lacing a shoe:

• Left Click...
• Right Click...
• Advance...

Sensory Guide:

• Stitch Angle: The line connecting your left and right click is the exact angle the thread will lay. If your lines look like a fan, the thread will fan. Keep them parallel where the line is straight.
• Width: How far apart are the points?
• Smoothness: In tight curves (like the bottom loop of the "S"), you need Higher Resolution. Click closer together (every 1mm). On straights, you can click further apart (every 3-4mm).

Expected outcome: the mesh should “hug” the letter stroke. If the mesh is jagged, the embroidery will be jagged.

If you’re sampling designs for a customer (monograms, team names, small logos), this is where time disappears. That’s why many shops eventually move from hobby pacing to production pacing—either with a multi-needle machine like SEWTECH for throughput, or with a faster framing workflow using hoop master embroidery hooping station-style alignment systems to batch the work.

The Right-Click Save: Fixing a Bad Point Before It Ruins the Whole Satin Column

At about 2:30, the instructor demonstrates the undo behavior:

• If you click a point you don’t want (off the line), Right Click undoes the last point.

This is more important than it sounds. In satin columns, one wrong point acts like a kink in a hose. It disrupts the flow for inches afterward.

• Visual Check: Look for "Bow Ties." If your ladder rungs cross over each other (creating an X shape), the machine will try to stitch backward. This breaks needles. Right Click immediately to fix this.

Checkpoint habit: after every 6–10 points, stop. Look at your ladder. Is it parallel? Are the rungs evenly spaced? If not, fix it now. It is 10x harder to fix after the object is closed.

The Crossover “Jump” Move: How to Avoid a Bulky Intersection on a Letter “S”

At the intersection where the “S” crosses itself (around 2:51–3:20), the instructor does something that keeps the stitch-out cleaner:

• Instead of plotting points through the intersection, she clicks across the gap to the continuation of the stroke—creating a long bridging line.

In plain shop language: We are forcing a "Jump Stitch." We are telling the machine: "Stop stitching here, lift the needle, move over the already-stitched part, and resume stitching on the other side."

The Engineering Reason: If you stitch satin on top of satin, you quadruple the thread density.

1. Height Issue: It creates a hard lump.
2. Deflection: The needle hits the slanted thread underneath and slides off, bending the needle.
3. Breakage: The friction snaps the thread.

By jumping the gap, the result is flat, professional, and soft to the touch.

If you’re planning to stitch this kind of cursive repeatedly, your hooping consistency becomes a quality control tool. hoopmaster-style alignment reduces re-hooping time and helps you compare samples fairly without user error masking the digitizing quality.

The Emulator Reality Check: Preview Underlay + Satin (and Don’t Panic When SewArt Freezes)

In the video (around 3:42–4:15), the instructor clicks Run satin stitch emulator. The emulator shows a “cartoon” simulation: underlay first, then the satin coverage.

What is Underlay? You will see yellow lines stitch first. This is the "foundation." It tacks the fabric to the stabilizer so it doesn't shift when the heavy satin (white stitches) come next. Never digitize without underlay.

The "Freeze" Factor: SewArt is calculating thousands of trigonometric points here.

• The software may freeze or lag.
• Do not Clicking wildly. Hands off the mouse.
• If it says "Not Responding," count to 20. It usually recovers.

Expected outcome: You visualize the sequence. Yellow Center Run -> White Satin Zig-Zag.

“Store Satin Stitches and Close Editor”: The One Click That Turns Your Mesh Into Real Stitch Data

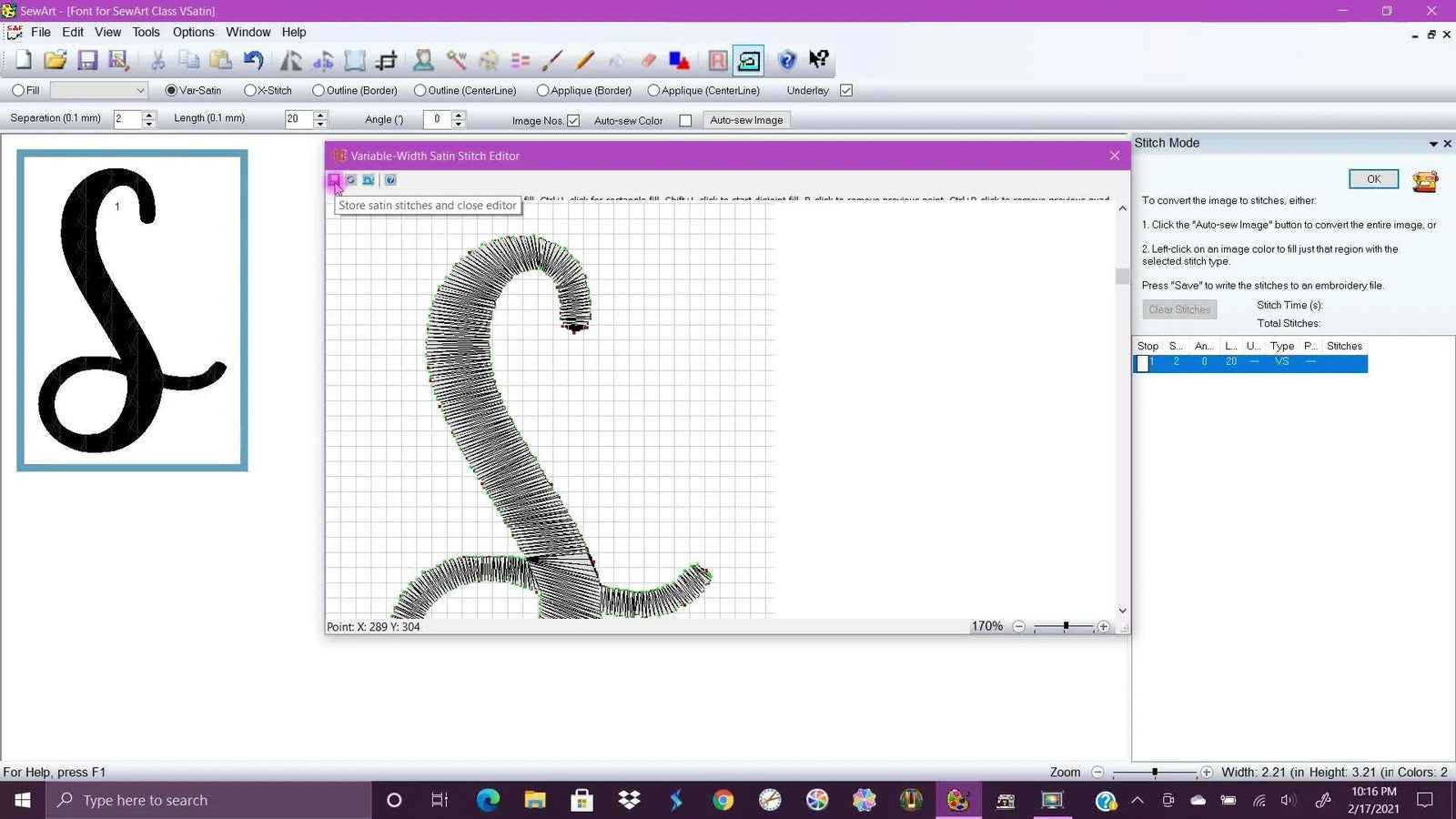

After the emulator finishes, the instructor selects Store satin stitches and close editor (around 4:16–4:47).

This is the moment your manual plotting becomes actual embroidery data (.dst or .pes) in the main SewArt window.

Color Management Reality: Once stored, SewArt assigns a thread color. If you are exporting to a machine, remember: The machine does not know what color thread you bought. The screen might say "Blue," but if you thread "Red," it stitches "Red." Treat the screen colors as logical stops (e.g., "Stop 1 is Underlay, Stop 2 is Satin"), not artistic mandates.

Watch out (from the comments): Some users report color mismatches when opening the file in other software (like SewWhat-Pro). This is normal. Different manufacturers (Brother vs. Janome) use different color palettes. Trust the stitch structure, ignore the screen colors.

What the Finished Felt Sample Tells You: How to Judge Satin Quality Like a Shop Owner

The video ends by showing photos of the final physical embroidery: a white cursive “S” on pink felt.

Use these Sensory Inspection Points to grade your work:

1. The Scratch Test (Visual/Tactile): Run your fingernail over the satin edge. Is it smooth like a ribbon? Or does your nail catch on jagged "sawtooth" edges? If it catches, your zig-zag points were too far apart or uneven.
2. The "Drum" Test (Listen): Tap the fabric. It should sound tight, like a drum. If it sounds loose or flabby, your stabilizer choice was wrong, or your hooping was loose.
3. The Loop Check (Visual): Look closely at the tight curves. Do you see the background fabric peeking through perfectly parallel threads? If the threads are splaying open, your density (stitch spacing) was too low. Standard satin density is 0.40mm.

If you’re testing on felt and still seeing distortion (puckering around the letter), it’s often not “bad digitizing”—it's "Hoop Burn" or fabric slippage. Many embroiderers upgrade to magnetic embroidery hoops because they hold thick fabric (like felt) firmly without the "tug-of-war" required by traditional screw hoops.

Setup Checklist: The Fastest Way to Get Repeatable Results Before You Hit “Stitch”

Before you run your first real sew-out, lock down the variables you can control. This prevents "phantom" problems.

Setup checklist (right before exporting / stitching)

• Gap Check: Zoom in to 400%. confirm the satin mesh fully covers the letter stroke with no white gaps.
• Jump Confirmation: Verify the crossover uses a deliberate jump (not dense point stacking).
• Consumables: Ensure you have temporary spray adhesive (like 505 spray) if you are floating fabric, or a fresh piece of stabilizer.
• Underlay: Confirm underlay is enabled (Center Run or Edge Run depending on size).
• Needle: Is the needle straight? Roll it on a flat table. If the tip wobbles, throw it away.

If you’re stitching on a home machine like a brother embroidery machine, consistency is everything—small hooping differences show up as big satin wobble on cursive letters because single-needle machines have less automated tension control than commercial ones.

Operation Checklist: Stitching the Test Sample Without Wasting an Hour

Digitizing is only half the job. The sew-out is where truth shows up.

Operation checklist (during the test sew-out)

• Velocity: Set machine speed to 600 SPM.
• Watch the Underlay: Watch the first yellow stitches. If the fabric ripples now, stop. It will only get worse. Re-hoop tighter.
• Listen: Listen for the click-click-click of smooth stitching. If it changes to thud-thud, stop immediately. You typically have a knot forming in the bobbin.
• The Trim: After stitching, trim jump threads cleanly with curved embroidery scissors (squeeze curved tips upward) to avoid snipping the knot.
• Documentation: Write the density settings on the back of the stabilizer with a sharpie for future reference.

If you’re doing lots of samples or small-batch personalization, a repeatable framing workflow becomes a profit lever. A hooping station for brother embroidery machine can cut setup time dramatically compared with “eyeballing” placement every time.

The Upgrade Path That Actually Makes Sense: When Better Hooping (or a Multi-Needle) Beats More Tweaking

There’s a point where you can keep tweaking points forever, but your real bottleneck is production friction: re-hooping, inconsistent tension, and slow changeovers.

Here’s a practical way to decide when to stop learning and start upgrading:

• Scenario A: The "Hoop Burn" Struggle.
  • Symptom: You spend 5 minutes fighting to close the hoop on a thick hoodie, or delicate velvet gets crushed marks.
  • The Fix: Upgrade to Magnetic Hoops. They snap on without friction, preventing fabric damage and reducing wrist strain. An embroidery hooping system aids this alignment.
• Scenario B: Note to Self "I hate changing threads."
  • Symptom: You are stitching a 4-color logo. You spend more time re-threading your single-needle machine than it spends stitching.
  • The Fix: This is the trigger for a Multi-Needle Machine (like SEWTECH). You thread 10+ colors once, and the machine runs the whole job automatically.
• Scenario C: The "Shifting" Logo.
  • Symptom: Your digitizing is perfect, but the logo is always crooked on the shirt.
  • The Fix: This is a placement issue. A Hooping Station guarantees the logo is in the exact same spot on Shirt #1 and Shirt #50.

Warning: Magnet Safety. Magnetic frames are industrial tools containing Neodymium magnets. They snap together with substantial force (pinch hazard). Keep them away from pacemakers, medical implants, cell phones, and credit cards.

A note on “toolbars missing” and screen clarity (comment-driven reality)

A couple of viewers mentioned they couldn’t see the screen clearly or didn’t have the same toolbar options. If you’re learning from any screen-recorded digitizing tutorial, don’t underestimate how much UI layout affects your success. Make your software window large, slow the video down, and focus on the sequence:

1. Open Image
2. Enter Stitch Editor
3. Plot Rectangle Seed
4. Zig-Zag Plot the Curve (Rhythm!)
5. Jump the Crossover
6. Run Emulator
7. Store Stitches

That sequence is the backbone—and once you can repeat it calmly, you can start refining for different fonts.

Troubleshooting SewArt Variable Width Satin Stitch: Symptoms → Likely Cause → Fix

If you want to master this, commit to plotting one letter a day. Start with "S," move to "O," then tackle the straighter letters like "L." Your fingers will learn the rhythm before your brain does. Happy stitching!

FAQ

• Q: In SewArt Variable Width Satin Stitch Editor, why is the “V satin” tool missing or the second toolbar row not visible on a high-resolution Windows laptop?
  A: This is usually a UI layout/scaling issue—make the stitch editor fully visible and confirm SewArt is in Stitch Mode (grid), not Image Mode.
  • Maximize the SewArt window and drag the editor edges until no toolbars collapse.
  • Switch to the Stitch Mode screen (the one that shows the grid) before looking for “V satin.”
  • Check Windows display scaling (higher scaling can hide buttons) and temporarily reduce it if toolbars are cut off.
  • Success check: the “V satin” option appears on the stitch screen with the full toolbar visible.
  • If it still fails: confirm the panel is not off-screen (multi-monitor setups) and restart SewArt before re-opening the editor.
• Q: In SewArt Variable Width Satin Stitch cursive letters, how do you prevent a bird’s nest at the start of a satin column when digitizing a cursive “S”?
  A: Seed the satin with a small rectangle “header” first so tie-in stitches have space before the curves begin.
  • Click inside the stroke for Point A, click directly across the width for Point B, then move up 1–2 mm and click Point C to form a stable starter block.
  • Continue the left-right “snake” rhythm only after that rectangle is established.
  • Success check: the first nodes/connecting lines form a clean, square footing instead of a sharp triangle at the start.
  • If it still fails: slow the test sew-out to 600 SPM and re-check hooping stability—start-up nests get worse when fabric slips.
• Q: In SewArt Variable Width Satin Stitch, how do you fix “bow ties” (X-shaped crossings) in the satin mesh that can cause backward stitching and needle breaks?
  A: Undo the bad point immediately—one wrong point can kink the entire satin column path.
  • Right-click to undo the last point as soon as ladder rungs cross into an X shape.
  • Pause every 6–10 points and visually verify the rungs stay parallel and evenly spaced.
  • Re-plot tight curves with closer clicks (higher resolution) so the mesh doesn’t jag or flip angles abruptly.
  • Success check: the ladder rungs do not cross, and the stitch angle lines look consistent through straights and curves.
  • If it still fails: delete back to the last “clean” section and re-plot; fixing after closing the object is much harder.
• Q: When stitching a SewArt satin cursive “S,” what does a rhythmic “thump-thump” sound usually mean at the crossover, and how do you prevent the bulky intersection?
  A: The crossover is too dense (satin on satin); force a deliberate jump across the intersection instead of stitching through it.
  • Return to the editor and avoid stacking satin points through the overlap area.
  • Click across the gap to create a long bridging line so the machine moves over the already-stitched section and resumes on the other side.
  • Run the satin stitch emulator to preview underlay + satin sequence before exporting.
  • Success check: the stitched crossover feels flatter and softer, and the machine sound stays smooth “click-click” instead of heavy “thud/thump.”
  • If it still fails: stop the sew-out immediately and check for a forming bobbin knot before continuing.
• Q: What stabilizer should be used for SewArt satin lettering on knit T-shirts vs felt/denim vs towels, and what is the fastest way to choose correctly?
  A: Match stabilizer to fabric behavior—knits require cut-away, stable fabrics can use tear-away, and fluffy fabrics need a topper plus the right backing.
  • Use Cut-Away for stretchy knit/jersey T-shirts (a must).
  • Use firm medium Tear-Away (about 2.0 oz or higher) for stable felt, denim, or canvas.
  • Add water-soluble topper on fluffy towel/velvet/fleece to prevent stitches sinking, plus the appropriate backing (cut-away for fleece, tear-away for towels).
  • Success check: during underlay, the fabric stays smooth (no rippling), and after satin, edges look ribbon-smooth without puckering.
  • If it still fails: re-hoop tighter (drum-tight) before changing digitizing—foundation movement mimics “bad file” problems.
• Q: During a SewArt test sew-out of satin lettering, what are the safest operating rules at 600 SPM to avoid needle injuries and runaway thread nests?
  A: Treat the needle zone as hands-off while the machine moves, and use 600 SPM so problems can be stopped early.
  • Set speed to 600 SPM for tests and keep fingers away from the needle area at all times.
  • Never trim jump threads while the machine is running; stop the machine fully first.
  • Watch the underlay: if rippling starts on the first foundation stitches, stop and re-hoop before continuing.
  • Success check: underlay stitches run without fabric waviness, and stitching sound stays consistent without sudden “thud” changes.
  • If it still fails: stop immediately and inspect for bobbin nesting/knot formation before restarting.
• Q: If repeated SewArt satin samples keep failing due to hoop burn, shifting placement, and slow re-threading on a single-needle machine, what is a practical upgrade path (hooping technique → magnetic hoop → multi-needle)?
  A: Diagnose the real bottleneck first—improve technique, then upgrade the framing tool, then upgrade the machine only when throughput is the limiter.
  • Level 1 (Technique): standardize hooping and testing (same stabilizer, same speed at 600 SPM, consistent hoop tension “drum-tight”) so results reflect the file, not handling.
  • Level 2 (Tool): move to magnetic hoops when thick/delicate fabrics are hard to clamp or show hoop burn; magnetic clamping reduces tug-of-war and speeds framing.
  • Level 3 (Production): move to a multi-needle machine when thread changes dominate time on multi-color jobs (you spend more time re-threading than stitching).
  • Success check: test sew-outs become repeatable—placement stays consistent across samples, and fabric shows fewer clamp marks or slippage.
  • If it still fails: add a dedicated hooping/alignment station to remove placement variation before assuming the digitizing is the problem.
