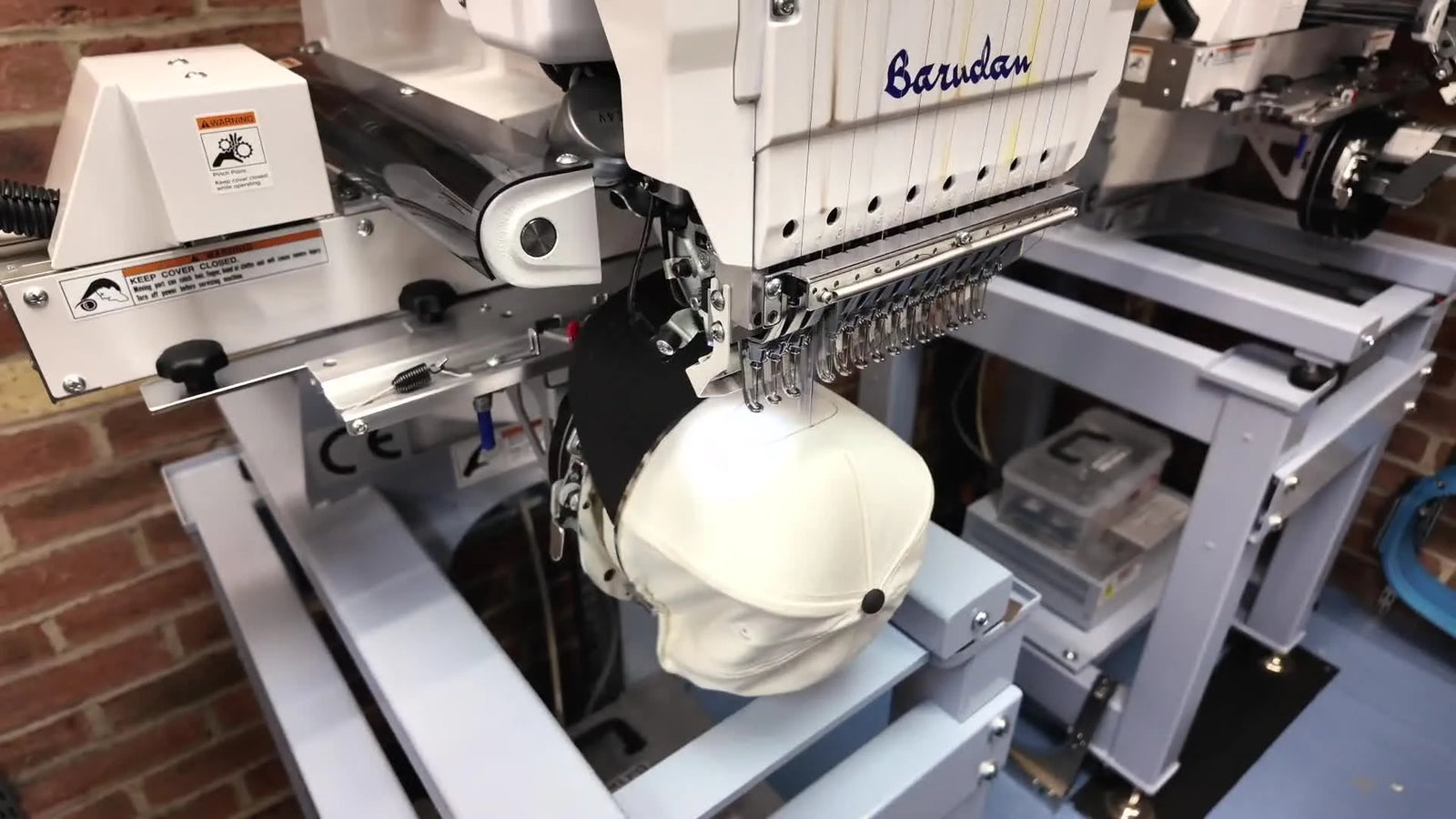

Sewing Woven Patches on Trucker Hats with a Barudan Cap Driver: The Clean Two-Stage Method (and the Alignment Traps That Waste Hats)

You’ve just taken an order for caps with woven patches. It sounds perfect: a premium look, high perceived value, and no need to digitize tiny, unreadable text. But then you start sewing.

The first hat looks great at the top, but the border stitch completely misses the patch at the bottom. You adjust. The next one is crooked. Suddenly, "easy money" turns into a pile of ruined inventory and a spike in your blood pressure.

As an embroiderer with two decades on the floor, I can tell you: Caps are physics problems disguised as fashion. You are trying to sew a flat, rigid object (the patch) onto a curved, flexible surface (the cap) that is moving at 700 stitches per minute.

This guide isn’t just a recap of a video; it is a breakdown of the tactile, sensory cues and specific data points you need to master this process. We will optimize your workflow, establish safety margins, and discuss when it’s time to stop fighting the machine and upgrade your toolkit with solutions like SEWTECH multi-needle systems or specialized accessories.

First, breathe: a missed border stitch on a cap isn’t “you’re bad”—it’s the curve and the stop-start workflow

If you’ve ever watched a border stitch land perfectly on the top and sides… then drift off the patch at the bottom, you know that sinking feeling in your stomach. The video demonstrates exactly this: the machine sews the registration line, the patch is placed, but the final satin stitch fails to grab the bottom edge.

This doesn't automatically mean your machine requires a technician. On caps, you are fighting a "Triangle of Instability":

1. Convex Curvature: The distance from the needle plate to the hat surface changes as the cap rotates. The bottom (near the bill) often sits lower/tighter than the forehead.
2. The "Trampoline Effect": Structured caps have air gaps. When the needle penetrates, the fabric pushes down before the needle enters.
3. Visual Parallax: On a standard single head embroidery machine, the presser foot often blocks your view, forcing you to guess alignment "by eye."

The Empirical Reality: A standard satin border is usually 3.5mm to 4.0mm wide. If your placement is off by just 1.5mm—the thickness of a penny—you have missed 40% of your capture area. The method below is designed to buy you back that margin of error.

The prep nobody wants to do (until they waste hats): patch, cap, and file checks before you ever hit Start

The video utilizes a structured trucker hat (white front, black mesh) and a woven patch with a heat-seal (adhesive) backing. This is a "high stakes" combo because the stiff trucker front fights the frame.

Before you load a file, you must gather your "Hidden Consumables." You need distinct Embroidery Thread (polyester is best for cap friction), fresh 75/11 sharp needles (ballpoints can deflect on adhesive), and temporary spray adhesive or double-sided tape if your patch lacks a sticky back.

Hidden Prep Checklist (Do this **before** Setup)

• The "Snap" Test: Flex the cap bill. Is the front panel structured (does it pop back)? If yes, you need less stabilizer but more grip.
• Adhesive Inspection: Peel a corner of the patch backing. It should feel tacky. If it’s dry, you must use a light mist of temporary spray adhesive.
• The Border Plan: Ensure your digitizing intends a satin border width of at least 3.5mm. Anything under 3.0mm on a cap is gambling.
• Sacrificial Lamb: Have one hat dedicated to testing. You will likely ruin the first one to dial in the X/Y position.
• Needle Check: Run your finger down the needle tip. If you feel any burr (like a snagged fingernail), change it immediately. Adhesive dulls needles fast.


Wilcom setup that actually matters on caps: trace stitch + stop + border, plus pull compensation aimed at curvature

In the video, the host jumps into Wilcom to build the file. Let's decode the "Why" behind the "How." You aren't just drawing lines; you are engineering a trap for the patch.

The Workflow:

1. Trace Stitch (Run Stitch): Length 2.5mm - 3.0mm.
2. Machine Stop (Command): Force the machine to pause and move the frame out (if your machine supports "Frame Out").
3. Finish Border (Satin Column): Density 0.40mm - 0.45mm.

The "Secret Sauce": Pull Compensation The host mentions adjusting pull compensation "inward." On a convex cap, the stitch tends to pull away from the center.

• Data Point for Newbies: Set your Pull Compensation to 0.3mm - 0.4mm. This makes the satin column slightly fatter than the patch, accounting for the hat sucking the thread inward.

A practical way to visualize it:

• The trace stitch is your "Map."
• The patch placement is your "Anchor."
• The border stitch is the "Lock."

If you are running commercial equipment like barudan embroidery machines, the precise motor drivers help, but software settings are your first line of defense against physics.

Loading the design on the Barudan control panel: keep it boring, keep it repeatable

Your goal in setup is not creativity—it’s extreme boredom. Boring means repeatable. Repeatable means profitable.

• Tension Check: Pull your top thread. It should feel like pulling dental floss through tight teeth (approx 110g-130g). Too loose, and the loops will snag the patch corners.
• Cap Seating: When you mount the hat on the driver, push it all the way on until you feel/hear a dull thud or resistance. If the sweatband isn't flat, the hat will twist during sewing.

If you’re running multiple hats, consistency is king. Many shops pair their cap drivers with offline hooping stations to ensure every cap is clamped at the exact same tension index. Even if you aren't using a station for the cap itself, the mindset of "assembly line precision" is vital.

The trace stitch is your registration line—treat it like a measurement, not a suggestion

The video shows a running stitch sewing directly onto the blank cap front. This is your "Moment of Truth."

Operational Speed Limit:

• Expert: 1000 SPM (Stitches Per Minute).
• Beginner Sweet Spot: 600 - 700 SPM.
• Why? Slower speeds reduce the "flagging" (bouncing) of the cap front, giving you a truer trace line.


The Discipline of the Stop:

• Visual Check: Look at the trace line. Is it a perfect shape? If the oval looks like an egg, your hat is hooped crookedly. STOP. Do not place the patch. Re-hoop the hat. It is cheaper to lose 2 minutes re-hooping than to lose a $5 patch and a $10 hat.
• Hands Off: Do not lean on the cap driver while the machine is paused.

Warning: Mechanical Safety
Keep fingers, tweezers, and scissors at least 4 inches away from the needle area when testing movement. Cap frames have powerful torque. If you need to adhere the patch, ensure the machine is in a "Emergency Stop" or "Lockout" state so it cannot accidentally fire.

Patch placement on a curved cap: the “press-and-commit” technique that prevents bottom-edge misses

In the video, the operator peels the protective film and manually aligns the patch. This is the hardest part because you are working blindly on a curve.

The "Tri-Zone" Placement Technique: Don't just slap it on. Use this sensory approach:

1. Peel & Hover: Reveal the adhesive. Hover the patch over the trace.
2. Zone 1 - Top Anchor: Align the top center of the patch with the trace stitch. Press firmly. You should feel the cap front resist.
3. Zone 2 - The Sides: Smooth your thumbs down the sides, ensuring the patch edge kisses the trace line.
4. Zone 3 - The Bottom (Danger Zone): This is where misalignment happens. Push the patch up slightly towards the crown as you press the bottom. Hats curve downward; gravity pulls the patch down. You must counter-act this.

The Tooling Gap: This manual alignment is tricky. For flat goods (like chest logos), professionals use a magnetic hooping station to hold garments rigid, ensuring perfect 90-degree alignment. While you can't use a flat magnetic station on a curved cap, understanding why they work (constraint and stability) helps you understand that you must manually provide that stability on a cap.

Sewing the final satin border: what “perfectly tucked” really means (and what it doesn’t)

You press "Start." The machine moves to the border run.

Listen to the Machine:

• Good Sound: A rhythmic chhk-chhk-chhk.
• Bad Sound: A loud THUMP-THUMP. This means the needle is struggling to penetrate the adhesive + patch + buckram.
  • Fix: Increase speed slightly (momentum helps penetration) or apply a drop of silicone lubricant to the needle.


A clean result looks like the second attempt in the video: the satin stitch consumes the edge of the patch. You should see zero raw edge of the patch, and zero gap between patch and thread.

If you are using commercial barudan hoops or standard frames, ensure the hoop screws are tightened with a screwdriver, not just fingers, to prevent vibration brightness.

Why the first attempt missed at the bottom: curvature + pull compensation + handling movement

The video’s host saw the top look perfect, but the bottom failed. Why?

The Physics of Failure:

1. The Bill Interference: The brim of the hat is rigid. As the machine sews near the bottom, the brim pushes against the machine arm, causing the cap material to "tent" or lift up.
2. Visual Deception: When you placed the patch, you were looking from above. From your angle, it looked centered. But due to the curve, the bottom was actually lower than the trace line.

The Fix: Always place the patch slightly higher (0.5mm) than you think it needs to be. The sewing action pushes material away (down). Placing it high counteracts the push.

A fabric-and-stabilizer decision tree for hats (so the cap front doesn’t fight you mid-run)

The video skips over stabilizer, but in production, stabilizer (backing) is your foundation. Generally, use Tearaway for structured caps. For unstructured "dad hats," use Cutaway.

Decision Tree: Optimized Patch Stability

1. Is the Hat Front Structured (Hard foam/Mesh)?
   • YES: Use 2 layers of firm Tearaway. (Prevention: Stops needle deflection).
   • NO (Soft Cotton/Dad Hat): Use 1 layer of Cutaway (essential for stability) + 1 layer Tearaway. Even if it's a patch, the soft fabric will ripple without cutaway.
2. Is the Patch Thick/Stiff?
   • YES: Increase foot height. If the presser foot hits the patch too hard, it will dislodge it. Adjust your machine's presser foot height cam to hover barely above the patch surface.
3. Are you seeing bottom drift?
   • YES: Check your Cap Driver Cable. If the cable is loose, the Y-axis (front to back) will slip.

Using the correct SEWTECH stabilizer and properly tensioned hoops is 50% of the battle.

Pros and cons the video nails (plus the shop-owner translation: when patches are the right business call)

Cons (The Reality Check)

• High Risk: If you sew a border on a $20 patch and miss, you lose the patch and the hat.
• Start/Stop Labor: An operator must stand there, watch the trace, stop, place, and watch the border. You cannot walk away.

This is where standardization saves you. Tools like the specific fixtures in a hoopmaster system teach us that jigs and fixtures reduce error. On caps, use masking tape on the machine arm to mark exactly where the bill should sit.

Pros (The Payoff)

• Detail: Woven patches capture 5-point text that embroidery cannot.
• Texture: The 3D contrast between the matte patch and shiny satin border is a premium look clients pay extra for.


Production-minded setup: how to stop wasting time when you scale from 1 hat to 50

The video shows a single hat. If you have an order of 50, the "Trace -> Stop -> Place" method is slow.

How to Scale:

1. Pre-Marking: Use a template to mark placement on all hats with a disappearing ink pen before putting them on the machine.
2. Adhesive Assist: Use a strong textile glue or heat press the patches lightly onto the caps before hooping (if the cap press allows).
3. Upgrade Capacity: If you are drowning in cap orders, a single-needle machine will bottleneck you. Commercial SEWTECH Multi-Needle Machines allow you to set up thread breaks, handle faster speeds, and often come with more robust cap driver systems that reduce vibration.

The Tooling Pivot: For your flat goods (hoodies, polos) that usually accompany hat orders, stop struggling with manual hoops. A Magnetic Hoop system is the ultimate productivity hack. It eliminates "hoop burn" (the ring mark) and reduces wrist strain. While you are sweating over the complex hat job, let magnetic hoops make the t-shirt part of the order effortless.

Setup Checklist (Right after loading the file)

• Pull Comp Active: File has 0.3mm+ pull comp on the satin border.
• Speed Limit Set: Speed reduced to 600-700 SPM for accuracy.
• Bobbin Check: Bobbin is full. Running out in the middle of a satin border is a nightmare to fix.
• Needle Clearance: Needle positioned correctly over the sewing field (do a trace/contour run).

Operation Checklist (During the run)

• Trace Integrity: Did the trace stitch maintain shape? (No = Re-hoop).
• Adhesive Tack: Did the patch stick firmly? (No = Apply spray/tape).
• Bill Clearance: Is the hat bill clearing the back of the machine arm?
• Auditory Check: Listen for the smooth chhk-chhk. A loud bang means needle deflection.

Warning: Magnet Use in Shop
If you decide to upgrade to magnetic embroidery hoops for your flat goods to save time: Handle with respect. These are industrial neodymium magnets. They can pinch skin severely and must be kept away from pacemakers. Store them with separators to prevent them from snapping together dangerously.

Embroidery is a game of millimeters. By respecting the physics of the curve, using the right stabilizers, and upgrading your tools when the volume demands it, you turn a frustrating task into a profitable skill. Don't be afraid to waste a hat to learn the lesson—just make sure you only have to learn it once.

FAQ

• Q: What consumables should be checked before sewing a woven patch with adhesive backing onto a structured trucker cap on a Barudan single-head embroidery machine?
  A: Most cap patch failures start with dull needles, weak adhesive, or the wrong thread—confirm those before pressing Start.
  • Replace with a fresh 75/11 sharp needle (adhesive dulls needles fast; ballpoints may deflect on adhesive).
  • Use polyester embroidery thread for cap friction and ensure the patch backing feels tacky; if dry, add a light mist of temporary spray adhesive or use double-sided tape.
  • Reserve one “test hat” to dial in X/Y position before running the real batch.
  • Success check: The patch stays put when pressed firmly and the needle penetrates without loud thumping.
  • If it still fails: Re-check needle tip for burrs and reduce variables by testing at 600–700 SPM first.
• Q: How can Barudan cap border satin stitches stop missing the bottom edge of a woven patch during the trace stitch + stop + border workflow?
  A: Place the patch slightly higher and lock in margin with a wider border and pull compensation—bottom misses are usually cap curvature plus handling drift.
  • Set satin border width to at least 3.5–4.0 mm and avoid borders under 3.0 mm on caps.
  • Apply inward pull compensation around 0.3–0.4 mm on the satin border to “buy back” capture area on a convex cap.
  • Use the “press-and-commit” placement: anchor top center first, smooth sides, then press the bottom while nudging the patch slightly up toward the crown.
  • Success check: After sewing, the satin stitch fully consumes the patch edge with zero raw edge showing and zero gap.
  • If it still fails: Re-hoop the cap if the trace stitch shape is distorted (egg-shaped oval = crooked seating).
• Q: What is the correct Wilcom-style sequence and safe starting settings for sewing a woven patch onto a cap using a trace stitch, machine stop, and satin border?
  A: Use a run-stitch map, force a stop for placement, then lock the edge with a satin column using the stated stitch ranges.
  • Program a trace (run) stitch at 2.5–3.0 mm stitch length.
  • Insert a machine stop command (and frame-out if the machine supports it) so placement happens consistently.
  • Finish with a satin column at density 0.40–0.45 mm and add 0.3–0.4 mm pull compensation inward as a practical starting point.
  • Success check: The trace stitch matches the intended shape cleanly before patch placement, and the satin border lands evenly around the patch.
  • If it still fails: Slow the run to 600–700 SPM to reduce cap front bounce and improve trace accuracy.
• Q: What speed and “trace stitch success criteria” should be used on a Barudan cap driver before placing a patch on a hat?
  A: Treat the trace stitch as a measurement—if the trace shape is wrong, stop and re-seat the cap before wasting a patch.
  • Run at 600–700 SPM as a beginner accuracy range to reduce flagging (bouncing) on the cap front.
  • Inspect the trace line immediately: if an oval looks like an egg, the cap is clamped crooked—re-hoop instead of placing the patch.
  • Keep hands off the cap driver while paused to avoid shifting the cap position.
  • Success check: The trace line keeps its true shape with no visible skew before the patch touches the cap.
  • If it still fails: Confirm the cap is pushed fully onto the driver until a dull “thud”/resistance and the sweatband sits flat.
• Q: How should stabilizer backing be chosen to stop cap-front movement when sewing thick woven patches onto structured hats versus unstructured dad hats?
  A: Match backing to hat structure first, then adjust for patch stiffness—this prevents rippling and needle deflection mid-run.
  • Use 2 layers of firm tearaway for structured cap fronts.
  • Use 1 layer cutaway + 1 layer tearaway for unstructured/dad hats (soft fabric often needs cutaway support).
  • Increase presser foot height when the patch is thick/stiff so the foot does not strike and dislodge the patch.
  • Success check: The cap front stays stable (no ripples) and the patch does not shift when the border begins.
  • If it still fails: Check the cap driver cable—if loose, Y-axis slip can show up as bottom drift.
• Q: What mechanical safety steps should be followed when testing movement and placing a patch on a cap frame (cap driver) during an embroidery machine stop?
  A: Prevent accidental needle strikes by creating distance and locking out motion before hands go near the needle area.
  • Keep fingers, tweezers, and scissors at least 4 inches away from the needle area during movement tests.
  • Put the machine into an Emergency Stop or Lockout state before adhering or repositioning the patch.
  • Avoid leaning on the cap driver while paused; cap frames have strong torque and small bumps shift alignment.
  • Success check: The frame cannot move unexpectedly while hands are near the cap, and placement can be done without rushing.
  • If it still fails: Stop the job and verify the machine is truly in a non-fire, non-move state before continuing.
• Q: When should a shop switch from manual cap patch placement techniques to upgrades like magnetic embroidery hoops for flat goods or a SEWTECH multi-needle embroidery machine for cap volume?
  A: Start with technique fixes, then upgrade tools when repeatability and labor time become the real bottleneck.
  • Level 1 (technique): Standardize the process—use trace + stop + border, slow to 600–700 SPM for accuracy, and re-hoop anytime the trace shape is distorted.
  • Level 2 (tooling): Use magnetic embroidery hoops for accompanying flat goods (shirts/hoodies) to reduce hoop burn and wrist strain while the cap job demands attention.
  • Level 3 (capacity): Move to a SEWTECH multi-needle embroidery machine when cap orders (e.g., 50 pieces) make start/stop labor and single-needle throughput too slow.
  • Success check: Misplacement scrap rate drops and the operator no longer must “babysit” every piece to stay profitable.
  • If it still fails: Add pre-marking templates and adhesive/heat-assist pre-tacking to reduce placement variability before investing further.
