SewWhat-Pro Text Editing Without Wrecking Your Stitch File: Delete One Letter, Re-Center the Name, and Clean Up Stray Stitches

The 2025 Master Guide to Stitch Editing: From Software Fixes to Flawless Production

Author: Chief Embroidery Education Officer Reading Time: 8 Minutes Level: Beginner to Intermediate

If you’ve ever opened a stitch file, spotted one wrong letter, and felt that cold spike of panic—good. That "fear" means you have the eye of a craftsman. But in the world of embroidery, panic leads to bad decisions.

Today, we are going to perform "digital surgery." Using SewWhat-Pro (SWP), I will guide you through a precision workflow to remove a single unwanted character, fix the resulting gap, and clean up stray pixels without ruining the structural integrity of your design.

But remember: Software is only half the battle. A perfectly edited file will still pucker if your physical setup—hooping and stabilization—is weak. We will cover both the digital fix and the physical production "safety nets" you need.

Don’t Panic: The "Safe Zones" of Editing

When a customer name is misspelled or a pre-digitized quote needs a tweak, most beginners start clicking and deleting randomly. This destroys the Push/Pull compensation built into the file.

Here is the "Chief Officer" ruleset for safe editing:

1. Block Deletion is Safest: Deleting a whole letter is reliable only when that letter exists as its own thread block (e.g., the gold “S” in our example).
2. Group Movement is Mandatory: Never drag loose stitches. You must select the entire letter group (underlay + satin top stitching) before moving.
3. The "Safety Net" Rule: Before you click a single tool, go to File > Save As and rename your file (e.g., Project_Name_EDITED_v1). Never work on your master original.

Current software like SewWhat-Pro is powerful for editing, but it is not digitizing. If you try to create complex "puff foam" effects from scratch here, you will fail. Use this tool for what it excels at: surgical removal and re-assembly.

Phase 1: The Hidden Prep (Diagnostics)

Before you touch the "Split Pattern" tool, we must perform a diagnostic check.

1. The Visual Zoom Check Zoom in until you can see individual needle penetration points. You are looking for "connection threads" that might tie the unwanted letter to its neighbor.

2. The Color Block ID In the thread list, identify the specific color block of the error. In our video example, the unwanted "S" is Gold.

3. The Production Reality Ask yourself now: How many of these am I making? If you are editing this file for a run of 50 shirts, your efficiency bottleneck won't be the software—it will be hooping. Profitable shops often pair clean file prep with a hooping station for machine embroidery to ensure that once the digital file is fixed, the physical placement on every shirt is identical.

Pre-Flight Checklist (Do NOT skip):

• File Safety: Performed "Save As" to protect the original?
• Isolation: Is the unwanted element (e.g., Gold "S") its own color block?
• Visibility: Zoomed in to 200%+?
• Tools Ready: Located Alt+S (Split Pattern) and Ctrl+J (Join Threads).

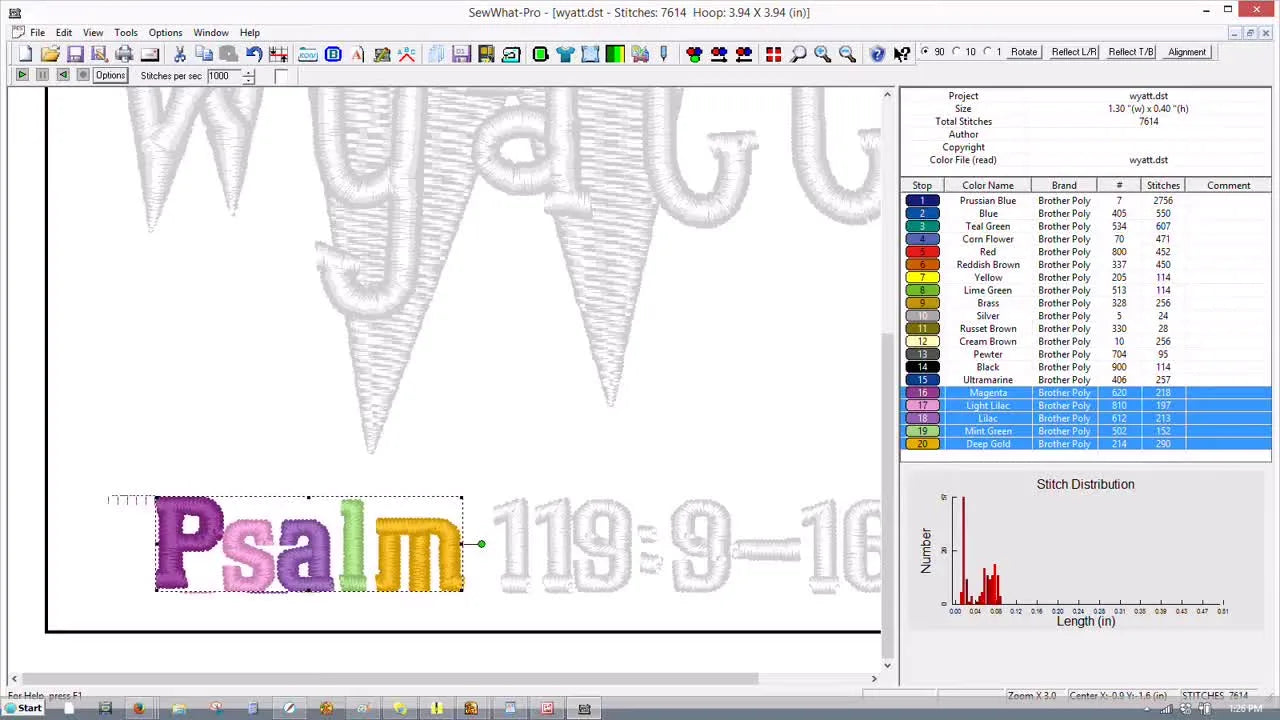

Phase 2: Surgical Removal (The "Gold S" Scenario)

In our example, the "S" is a separate gold thread block. This is the ideal scenario.

The Procedure:

1. Engage Split Pattern: Go to Edit → Split Pattern (Shortcut: Alt + S).
2. Verify Selection Mode: Ensure Select Points is active.
3. Target the Organ: In the thread palette, locate the Gold block.
4. The Incision: Right-click that color block and choose Delete Thread.

Sensory Check:

• Visual: The "S" should vanish instantly.
• Sanity: The rest of the design must remain frozen. If other creates shift or vanish, hit Ctrl+Z (Undo) immediately.

The Consequence: You now have a "ghost gap." The spacing between the remaining letters is wrong. This is where amateurs stop, and professionals continue.

Warning: Never use "freehand erase" to remove a large letter. You will inevitably slice through underlay stitches of neighboring letters, causing the thread to unravel during the wash cycle.

Phase 3: Closing the Gap (The "Cut Pattern" Technique)

Dragging stitches randomly causes distortion. We need to isolate the remaining letters into a movable "raft."

In SWP, if letters are grouped together, you cannot move just one. You must cut them apart.

The Procedure:

1. Keep Split Pattern open.
2. Lasso the Target: Click points around the letters you need to move (e.g., "a", "l", "m") to draw a polygon.
3. Execute the Cut: Go to Cut Pattern.
4. Crucial Choice: Select Cut and Save All.
5. Close.

Why "Cut and Save All"? Beginners often click "Remove Interior," thinking it cleans things up. Wrong. That deletes the stitches. "Cut and Save All" separates the selected area into a new, independent layer that you can move.

Phase 4: Precision Re-Alignment (The Nudge)

Now that your letters are floating free, we need to dock them correctly.

The "Crosshair" Technique:

1. Hold Control and Left-Click the color blocks of the letters you want to move.
2. Sensory Anchor: Watch your cursor. You are waiting for it to turn into a Crosshair symbol. If you don't see the crosshair, you are not in move mode.
3. The Macro Move: Drag with the mouse to get close.
4. The Micro Move: Use Ctrl + Arrow Keys for pixel-perfect nudging.

Chief Officer's Tip on Spacing (Kerning): Don't use a ruler. Use your eyes. Optical spacing is more important than mathematical spacing. Squint at the screen; if the gap feels equal to the others, it is correct.

Setup Checklist (Before Operation):

• Selection: Did you Catch-All layers (underlay + top stitch)?
• Cursor: Is the Crosshair visible?
• Visuals: Did you zoom out to 100% to check the overall balance?

The "5x7 Hoop" Reality Check

A common question arises: "Will this edited name fit my 5x7 hoop?"

The Hard Truth: Software lets you do things physics won't allow. An 8-letter vertical name might "fit" on screen but hit the plastic edge of your hoop in reality.

The Hardware Fix: If you are fighting for every millimeter of space in a 5x7 field, standard hoops are bulky. Many intermediate embroiderers upgrade to a brother magnetic hoop 5x7. These hoops often have lower profiles and hold the fabric flatter, giving you a slightly larger "safe margin" against distortion compared to the "tug-of-war" needed with traditional hoops.

Phase 5: Pixel-Level Polish (The Eraser)

You fixed the spacing, but now there is a stray "dot" or a hyphen that looks too thick.

The Procedure:

1. Re-Engage: Edit → Split Pattern (Alt + S).
2. Tool Select: Choose the Eraser.
3. Isolate: Click on the specific stitch block (e.g., Pewter) containing the error.
4. The Fix:
   • Stray Node: Click once to delete.
   • Thick Satin: Click and drag carefully along the edge of the satin column to "shave" it down.








Phase 6: Final Assembly (Join Threads)

Your file is visually perfect, but digitally fragmented. We need to glue it back together to prevent the machine from trimming between every single letter (which creates a "bird's nest" of thread underneath).

The Procedure:

1. Save As (Again): save your work as _Final_v1.
2. Consolidate: Go to Edit → Join Threads (Ctrl + J).

This command tells the software: "If two adjacent objects are the same color, make them one long continuous run." This reduces machine wear and speeds up production.

Troubleshooting: The "Why is this happening?" Guide

The Physical Hierarchy: From Fabric to Hoop

You have fixed the software file. Now, do not ruin it at the machine. The number one reason text looks "wobbly" is not the file—it is the Fabric-Stabilizer-Hoop combination.

Use this decision tree for your next step:

Step 1: Analyze Fabric Structure

• Stretchy (Knits/Sportswear)? You MUST use Cutaway stabilizer. No exceptions. Tearaway will allow the stitches to distort into an oval shape.
• Stable (Denim/Canvas)? Tearaway is usually safe.

Step 2: Analyze Surface Texture

• Fluffy (Sherpa/Towels)? You need a Water Soluble Topper (Solvy) to prevent the text from sinking and disappearing.

Step 3: Choose Your Weapon (Hooping Strategy)

If you are doing production runs (e.g., 20+ names), standard hoops will hurt your wrists and leave circular "hoop burn" marks that require steaming to remove.

• The Ergonomic Upgrade: Professional shops utilize terms like hooping for embroidery machine optimization to describe switching to rapid-fire stations.
• The Mark-Free Solution: To avoid "hoop burn" on sensitive fabrics (like velvet or performance wear), magnetic embroidery hoops are the industry standard. They clamp automatically without friction abrasion.
• The Volume Solution: If you are setting up a small business, a magnetic hooping station allows you to hoop the next garment while the machine is running the current one, effectively doubling your output.

Warning: Magnetic Safety
Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical Risk: Keep away from pacemakers and insulin pumps.
3. Electronics: Keep away from credit cards and phone screens.

The Final "Go/No-Go" Checklist

Before you press the green button on your machine:

1. [ ] Scale Check: Is the design size <90% of your hoop's internal usable area?
2. [ ] Pathing: Run the "Stitch Simulator" in SWP one last time. Does the path logic make sense?
3. [ ] Consolidation: Did you use Join Threads to prevent 50 unnecessary trims?
4. [ ] Physicals: smooth stabilizer, correct needle (75/11 Ballpoint for knits, Sharp for wovens), and the hoop is tensioned "drum tight" (tactile check: tap it, it should sound like a bongo).

By following this workflow, you move from "guessing" to "engineering." Your edits are clean, your files are safe, and your production floor is optimized. Happy stitching.

FAQ

• Q: How do I safely delete one wrong letter in SewWhat-Pro (SWP) without damaging underlay and push/pull compensation?
  A: Delete the entire letter only when the letter is its own thread block, and avoid freehand erase on large areas.
  • Save As: Create a new file name before any edits to protect the master original.
  • Identify: Use the thread list to confirm the unwanted letter is isolated as its own color block.
  • Split: Open Edit → Split Pattern (Alt+S), then right-click the target color block and choose Delete Thread.
  • Success check: The unwanted letter disappears instantly while all other letters stay perfectly in place (no shifting).
  • If it still fails: Undo (Ctrl+Z) and zoom in to look for connection stitches tying the letter to neighbors before attempting deletion again.
• Q: Why does deleting a letter in SewWhat-Pro (SWP) leave a big gap in the name, and how do I close the spacing correctly?
  A: Close the gap by cutting the remaining letters into a movable group and nudging them—do not drag loose stitches.
  • Split: Keep Split Pattern (Alt+S) open to work at stitch level.
  • Lasso: Select the neighbor letters that must move by drawing a polygon around them.
  • Cut: Use Cut Pattern and choose Cut and Save All to separate the selected area into its own layer.
  • Nudge: Move close with the mouse, then use Ctrl + Arrow keys for micro spacing adjustments.
  • Success check: At 100% zoom, the spacing “looks” optically even compared to the other letter gaps.
  • If it still fails: Re-cut the selection larger so the full letter groups (underlay + top stitch) move together.
• Q: In SewWhat-Pro (SWP), why can’t I select or move only one letter in a stitched name, and what is the correct fix?
  A: The letter is grouped inside a complex block, so the correct fix is Cut Pattern with Cut and Save All to surgically separate it.
  • Split: Open Edit → Split Pattern (Alt+S).
  • Select: Lasso only the letter(s) that must become independent.
  • Separate: Run Cut Pattern → Cut and Save All (avoid “Remove Interior” because it deletes stitches).
  • Move: Hold Control and left-click the letter color blocks until the cursor shows the crosshair, then reposition.
  • Success check: The chosen letter group moves as a complete unit (not leaving underlay behind).
  • If it still fails: Zoom in 200%+ and expand the lasso to include all stitch layers that belong to that letter.
• Q: How do I remove stray “dots” or thin traveling-stitch artifacts near text in SewWhat-Pro (SWP) without ruining the satin column?
  A: Use Split Pattern with the Eraser to delete only the specific node or shave only the edge—small, controlled edits.
  • Split: Open Edit → Split Pattern (Alt+S) and choose the Eraser tool.
  • Isolate: Click the exact stitch block (color) that contains the dot/artifact.
  • Delete: Click once to remove a single stray node, or click-and-drag lightly along the satin edge to shave thickness.
  • Success check: The dot disappears and the satin column edge stays smooth (no bites taken out of the middle).
  • If it still fails: Undo and repeat with a lighter touch, staying on the outer edge of the satin rather than across the column.
• Q: After stitch editing in SewWhat-Pro (SWP), how do I prevent excessive trims and “bird’s nest” thread buildup under letters?
  A: Use Join Threads so adjacent objects of the same color become one continuous run instead of many stop-and-trims.
  • Save As: Save a new version (e.g., _Final_v1) before consolidation.
  • Join: Run Edit → Join Threads (Ctrl+J).
  • Verify: Re-run the stitch simulator to confirm the path now flows with fewer interruptions.
  • Success check: The design shows longer continuous stitching sequences with fewer trim points between same-color letters.
  • If it still fails: Re-check that the neighboring objects truly share the same color and are close enough to be joined logically.
• Q: What stabilizer and topper should be used to keep edited text from looking wobbly on knits, denim, or towels during machine embroidery?
  A: Match the stabilizer to the fabric structure and add topper on fluffy surfaces—file edits cannot fix a weak fabric/stabilizer setup.
  • Choose: Use cutaway stabilizer for stretchy knits/sportswear (tearaway can let text oval/distort).
  • Choose: Use tearaway stabilizer for stable woven fabrics like denim/canvas when appropriate.
  • Add: Use a water-soluble topper on fluffy fabrics (sherpa/towels) to prevent letters from sinking.
  • Success check: The stitched text edges look clean and consistent, without “wobble” or disappearing into the pile.
  • If it still fails: Re-check hooping tension and confirm the hoop is “drum tight” using the tap test (it should sound like a bongo).
• Q: What are the key safety rules for using magnetic embroidery hoops to avoid pinched fingers, medical device risk, and electronics damage?
  A: Treat magnetic hoops like industrial tools: keep fingers out of the snap zone and keep magnets away from medical devices and sensitive electronics.
  • Protect: Keep fingers clear when the hoop halves snap together (pinch hazard).
  • Separate: Keep magnetic hoops away from pacemakers and insulin pumps.
  • Isolate: Keep magnetic hoops away from credit cards and phone screens.
  • Success check: The hoop clamps securely without fingers entering the closing path, and no personal electronics are stored nearby during use.
  • If it still fails: Stop and change handling technique—place fabric first, align carefully, then let the magnets close in a controlled motion rather than letting them slam.
