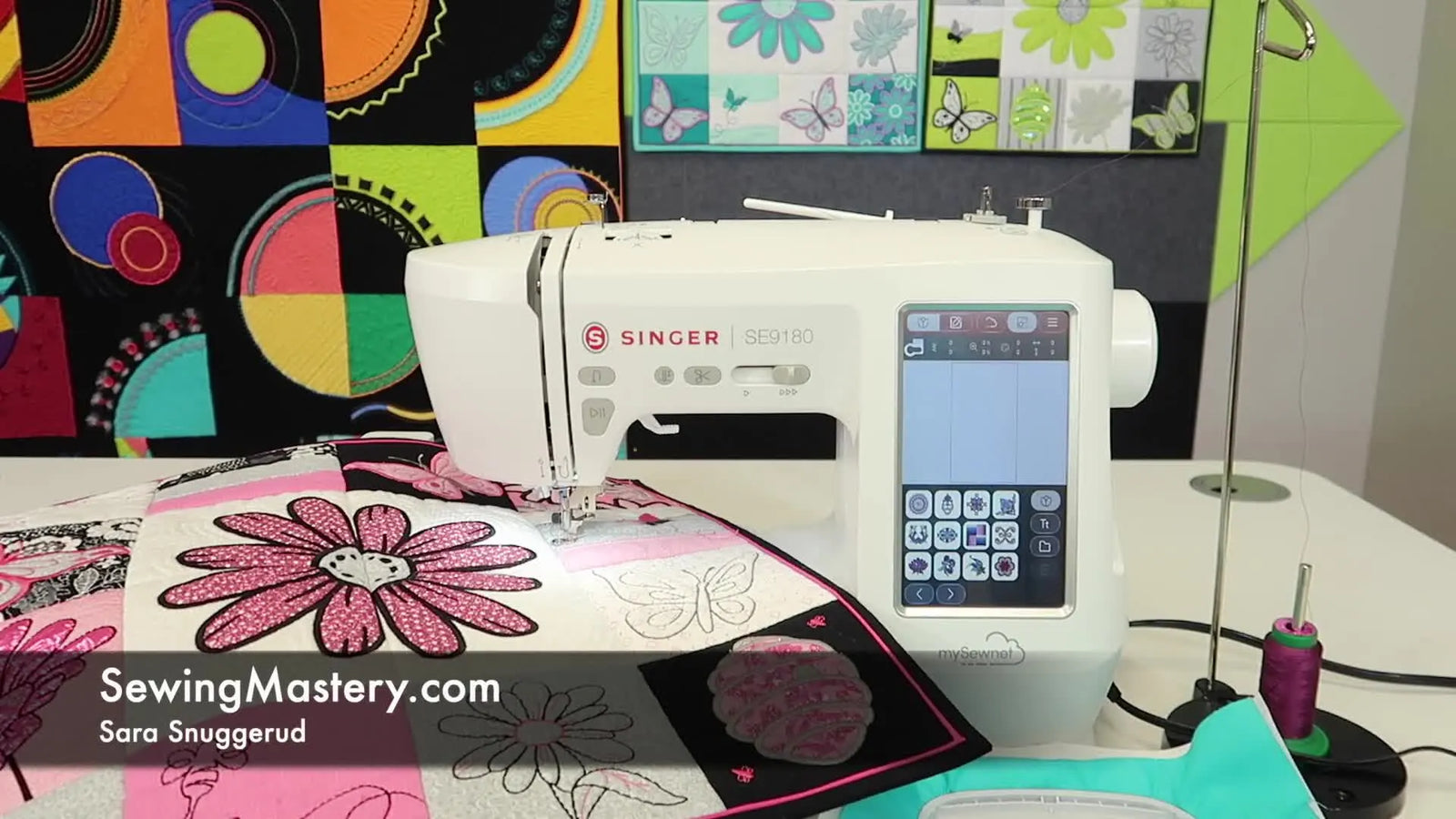

Singer SE9180 Built-In Designs: Pick Smarter, Combine Cleanly, and Stop Wasting Hoop Time

If you just unboxed a Singer SE9180, the screen can feel deceptively simple—until you realize you’re staring at 150+ built-in designs and 10 alphabets and you’re not sure what’s “safe” to stitch first.

I’ve spent the last two decades watching beginners burn hours (and expensive consumable stabilizer) by picking designs based on "thumbnail vibes," only to be blindsided by high stitch counts, excessive color changes, or a layout that doesn’t clear the hoop frame. The result? Broken needles, birds-nested thread, and a machine that gets shoved back into the closet.

Let’s change that narrative.

This guide rebuilds the exact on-screen workflow from the video—how to select, combine, and edit built-in designs on the Singer SE9180—but effectively adds the "Shop Floor" habits that keep your results predictable. We will move beyond just "tapping buttons" to understanding the physics of the stitch.

Calm First: The Singer SE9180 Touchscreen Isn’t “Complicated”—It’s Just Unfamiliar

The panic usually shows up in two specific cognitive friction points:

1) Visual Uncertainty: You can’t tell what a design will really look like (density/pull) from a 1-inch thumbnail grid. 2) Layering Confusion: You add a second design and suddenly everything is stacked, grayed out, and won’t move.

Both are normal. The SE9180 is doing exactly what it is programmed to do. You just need a repeatable rhythm to manage the data:

• Browse → open one design → read the data (stitches/size) → clear → repeat.
• Combine → edit → ungroup → select the active layer → position.

Once that rhythm becomes muscle memory, you stop fighting the screen and start planning designs like a master digitizer.

The “Hidden” Prep Pros Do Before Touching the Singer SE9180 Design Library

Before you tap a single thumbnail, set yourself up so your test stitch-outs actually teach you something.

Here’s the truth from the shop floor: 90% of "bad designs" are actually "bad physics." If the Fabric + Stabilizer + Hooping Tension triad isn't balanced, the most beautiful design in the world will pucker.

A quick note for anyone shopping across various singer embroidery machines: while the SE9180 is accessible, it still obeys the laws of physics. It cannot fix a loose hoop or the wrong backing.

Hidden Consumables You Need Now

Beginners often miss these essentials until it's too late. Stock these immediate "quality of life" upgrades:

• Temporary Adhesive Spray (e.g., KK100 or 505): Crucial for holding fabric to stabilizer without hoops slipping.
• Curved Embroidery Scissors: For snipping jump threads close to the fabric without snipping the knot.
• Size 75/11 and 90/14 Embroidery Needles: Universal needles are not the same.
• 40wt Polyester Thread: The industry standard. Cotton thread often creates too much lint.

Prep Checklist (Do this OR Fail)

• Fabric Selection: Choose a stable woven cotton (like quilting cotton or denim). Avoid stretchy knits for your first 10 projects.
• Stabilizer Pairing: Use a Medium Weight Cut-Away (2.5oz). Why? Tear-away is easier to remove, but Cut-away provides permanent structural support, acting as the "foundation" for your stitches.
• Needle Check: Install a fresh Embroidery Needle (75/11).
  • Sensory Check: Run your fingernail down the needle shaft. If you feel a "click" at the tip, it has a burr. Trash it immediately.
• Thread Path: Thread your top thread and bobbin.
  • Sensory Check: Pull the top thread through the needle. It should feel like pulling dental floss through a tight gap—resistance, but smooth. If it pulls freely with zero drag, you missed the tension disks.
• Bobbin Check: Ensure the bobbin is wound evenly.
  • Visual Check: When stitching, the white bobbin thread should show about 1/3 width on the back of the design. If you see white on top, your top tension is too tight or bobbin is too loose.

Warning: Mechanical Safety
Needles and small embroidery scissors are deceptively dangerous when you’re leaning close to the hoop area for inspection. Always stop the machine (or engage lockout mode if available) before changing needles. Keep fingers clear of the "Needle Danger Zone" (the presser foot area) when you test-run or re-thread. A machine moving at 600 stitches per minute does not stop for fingers.

Toggle Like a Local: Switching Between Designs and Alphabets on the SE9180 Sidebar

On the right-hand vertical menu bar, the video demonstrates the two icons you’ll use constantly:

• The Flower Icon takes you to the built-in Designs.
• The “A” Icon takes you to the built-in Alphabets.

The key cognitive detail from the video: there are 12 designs per page. This matters because browsing is slow. Do not try to judge quality from the grid.

Pro Habit: Ignore the aesthetic of the thumbnail initially. Open the design to check its architecture (density and flow) before falling in love with the image.

Read the Top Bar Before You Stitch: Stitch Count + Color Blocks Predict Time and Risk

In the video, Sara taps a heart wreath design and points to the top header bar. The SE9180 displays two vital metrics:

1. Total Stitch Count
2. Number of Colors / Color Blocks

This is your risk assessment dashboard.

• Stitch Count = Time & Heat: A 10,000-stitch design at a beginner speed (approx. 400 SPM) will take 25 minutes. High stitch counts on a single spot can bore a hole in delicate fabric.
• Color Blocks = Human Error Potential: Each color change is a physical stop. You have to cut thread, re-thread, and restart. A 15-color design has 15 opportunities for you to mis-thread the machine.

Beginner Sweet Spot: Start with designs under 5,000 stitches and fewer than 4 color changes. This keeps your "time-to-dopamine" loop short and reduces frustration.

The Hoop Rectangle Reality Check: Matching the On-Screen Area to the Physical 170×100 Hoop

At the hoop-size moment in the video, Sara clarifies a critical visualization concept:

• The rectangle on the screen represents the physical hoop area (170x100mm).

This is your "Safe Zone." However, screen reality differs from physical reality.

The "Thumb Rule" for Hooping: When positioning designs, never place a dense design closer than a thumb's width from the plastic edge of the hoop. The fabric tension near the hoop edges is tighter and harder for the needle to penetrate than the center ("trampoline effect"), which often causes needle deflection or breakage.

If you are researching various embroidery machine hoops, remember that the "max embroidery area" is often slightly smaller than the physical inside edge of the hoop to prevent the presser foot from striking the frame.

The Fast Reset: Using the Trash Can Icon to Clear the Singer SE9180 Canvas

When you want to preview another design, the video shows the simplest reset:

• Tap the Trash Can icon at the bottom right to clear the current design.

Cognitive Tip: Clearing is not quilting. Don't hoard designs on the screen. Treat the canvas like a single-serving plate. Beginners who keep piling designs "just to compare" end up with a "Fruit Salad" of layers—confused regarding which layer is active and which is background.

Combine Two Built-In Designs on the Singer SE9180 Without the Overlap Headache

The SE9180 supports combining multiple designs. In the video, Sara adds a second design (a mandala) while the first is still on screen.

The Panic Moment: The second design loads directly on top of the first. This is standard behavior for almost all computerized embroidery machines. It centers everything by default.

The Clean Workflow:

1. Load Design #1.
2. Load Design #2 (Expect the overlap).
3. Enter Edit Mode.
4. Ungroup (Crucial Step).
5. Select and Move.


The Make-It-Move Moment: Pencil (Edit) + Ungroup on the Singer SE9180

In the video, the fix for “I can’t move the right thing” is straightforward but non-intuitive until explained:

1. Tap the Pencil icon (Edit mode) at the top right.
2. Tap Ungroup (the overlapping circles icon).

The "Active Layer" Visual Cue:

• Gray/Faded: This layer is inactive. You cannot move, resize, or rotate it.
• Colorful/Bright: This is the Active Layer. The machine is listening to commands for this object only.

If you drag your finger and nothing moves, stop pressing harder. You are likely touching a "Gray" object. Tap it once to wake it up (turn it Colorful), then move it.

Setup Checklist (Design Management)

• Edit Mode: Confirm you see the Pencil icon highlighted.
• Grouping: If you see multiple objects, hit Ungroup immediately.
• Visual Check: Is the object you want to move Colorful?
• Safety Margin: Is your design at least 1cm away from the hoop wall boundary?
• Reset: If the screen looks messy, use the Trash Can and start fresh. It’s faster than fixing a mess.


Stitch Order Is Not Random: The SE9180 Embroiders in the Order You Add Designs

The order you import designs is the order the machine executes them.

• Design A (Imported first) = Stitched first.
• Design B (Imported second) = Stitched second (on top of A).

The "Bottom-Up" logic: Always import background elements first. If you import a text monologue then a background crest, the machine will stitch the text, and then stitch the heavy crest over the text, burying it.

Browse the Built-In Categories: Physics Over Aesthetics

The video scrolls through florals, swirls, and sewing motifs.

Expert Filtering:

• Redwork / Line Art: Low stitch count, very forgiving. Start Here.
• Filled Tatami Designs: High stitch count, high tension. Requires tight hooping and Cut-Away stabilizer.
• Satin Borders: Prone to puckering if stabilizer is too light.

If you are setting up a workspace for repeat success, consider looking into a dedicated machine embroidery hooping station. While the SE9180 doesn't come with one, establishing a consistent flat surface for hooping is more important than the software settings.

The "Sampler Book" Trick: Validation Data

Sara’s recommendation to create a sample book is the single best habit for long-term growth.

Your Action Plan:

1. Stitch a design on a scrap of denim with 2.5oz Cut-Away.
2. Write the settings on the fabric with a permanent marker (Stabilizer used, Top Tension setting, Needle type).
3. Place in a sheet protector.

Why? Thumbnails lie. A physical sample tells you the truth about how light reflects off the thread direction and how much the fabric shrinks (pull compensation).

Fabric → Stabilizer Decision Tree (The "Don't Ruin It" Logic)

Stabilizer is not optional backing; it is the suspension system of your car.

Decision Tree: Choose Stabilizer for SE9180

1) Is the fabric STRETCHY (T-shirt, Knit, Spandex)?

• YES: STOP. You MUST use Cut-Away stabilizer (2.5oz or 3.0oz). Also use ballpoint needles to avoid cutting fabric fibers.
• NO: Go to step 2.

2) Is the fabric unstable/sheer (Silk, Rayon)?

• YES: Use Cut-Away or No-Show Mesh. Tearing away stabilizer will distort the delicate fibers.
• NO: Go to step 3.

3) Is the fabric sturdy woven (Denim, Canvas, heavy Cotton)?

• YES: You can safely use Tear-Away. It provides temporary support and rips out cleanly.

4) Is the fabric "fluffy" (Towel, Fleece, Velvet)?

• YES: ADD a Water Soluble Topper (like Solvy) on top of the fabric. This prevents stitches from sinking into the pile and disappearing.

Hooping Physics: The "Hoop Burn" Problem & The Magnetic Solution

The video focuses on the screen, but 80% of errors happen at the hoop.

The "Drum Skin" Standard: When fabric is hooped, tap it. It should sound like a dull drum (thump-thump). It should be taut, but not stretched like a rubber band.

• Too Loose: Fabric flags (bounces), causing bird nesting.
• Too Tight: Fabric is pre-stretched; when released from the hoop, it shrinks back, puckering your design.

The Friction Point: Standard plastic hoops require hand strength to tighten the screw and can leave "hoop burn" (shiny crushed rings) on velvet or delicate fabrics. This is a major pain point for users doing production runs.

This is why experienced embroiderers eventually investigate magnetic embroidery hoops. These frames use powerful magnets to clamp fabric instantly without the friction of an inner ring. This solves two problems:

1. Zero Hoop Burn: The fabric is clamped flat, not forced into a ring.
2. Ergonomics: No more twisting screws—ideal for high-volume jobs or users with wrist pain.

If you find yourself battling the standard hoop, an aftermarket magnetic embroidery frame compatible with the Singer mount is a viable tool upgrade.

Warning: Magnetic Hoop Safety
Pin-Point Hazard: These are not refrigerator magnets. They are industrial neodymium magnets. They snap together with enough force to pinch skin severely.
Medical Device Safety: Keep magnetic hoops at least 6 inches away from Pacemakers (ICDs) and insulin pumps.
Electronics: Keep away from credit cards and hard drives.

Comment Q&A: “Can You Upload Your Own Designs?”

Yes. The machine reads standard formats (check manual for .DST or .EXP preference) via USB.

The "Safe Upload" Protocol:

1. Format your USB drive to FAT32 (small capacity drives, <32GB, work best).
2. Do not put folders inside folders. Keep designs on the root level.
3. Always verify the design size on your computer first. If a design is 171mm wide, the machine will reject it for the 170mm hoop.

Troubleshooting: The "Quick Fix" Matrix

Before you blame the machine, check the physics.

The Upgrade Conversation: From Hobby to Production

Once you master the SE9180 screen, your bottleneck will shift from "confusion" to "capacity."

If you begin doing team orders (e.g., 20 shirts) or repeating the same logo, the single-needle process becomes tedious. Each color change requires your manual intervention.

When to Upgrade?

• Hooping Fatigue: If alignment is killing your speed, look into a hoopmaster hooping station setup or magnetic frames to standardize placement.
• Thread Change Fatigue: If you are spending more time re-threading colors than stitching, this is the trigger point for a Multi-Needle machine. A specialized machine (like a SEWTECH multi-needle) allows you to load 10-15 colors at once, press start, and walk away.

Many studios mistakenly think they need "more talent" when they actually just need better tooling. Starts with good scissors, moves to magnetic hoops, and eventually graduates to multi-needle automation.

Operation Checklist (Pre-Flight for Every Design)

1. Design Selected and verified for stitch count (<50,000 preferable).
2. Objects Ungrouped and positioned away from edges.
3. Hoop Check: Fabric is "drum tight."
4. Throat Plate Clear: No spare scissors or fabric bunched under the hoop.
5. Presser Foot Down: Green light is on.
6. Speed Set: Reduced to 500 SPM for critical work.


Mastering the Singer SE9180 is about respecting the sequence: Data → Physics → Action. Build your sampler book, trust your stabilizer choice, and let the machine do the work.

FAQ

• Q: What “hidden consumables” should a Singer SE9180 beginner buy before stitching the first built-in design?
  A: Use a small starter kit that prevents most early thread, trimming, and hooping failures.
  • Add temporary adhesive spray (e.g., KK100 or 505) to bond fabric to stabilizer without shifting.
  • Use curved embroidery scissors for clean jump-thread trimming close to the fabric.
  • Install the correct embroidery needles (75/11 for most stable fabrics; 90/14 when needed) and use 40wt polyester thread.
  • Success check: test-stitching feels smoother, with fewer skipped trims and less fabric shifting in the hoop.
  • If it still fails… switch to a stable woven cotton + medium weight cut-away (2.5oz) for your first trials and re-check threading.
• Q: How can Singer SE9180 users tell if top tension and bobbin setup are correct before wasting stabilizer?
  A: Rethread and verify with one quick “front/back” thread-balance check.
  • Rethread the TOP thread with the presser foot UP so the tension disks open, then lower the presser foot before stitching.
  • Check the bobbin is wound evenly and the thread is seated in the bobbin case tension spring groove.
  • Success check: on the BACK of the design, white bobbin thread shows about 1/3 of the stitch width; white thread should not show on the TOP.
  • If it still fails… if white shows on top, reduce top tension or re-seat the bobbin thread path; if looping/bird nesting happens underneath, rethread the top path again.
• Q: What is the correct Singer SE9180 hooping tension standard to prevent hoop burn and bird nesting?
  A: Hoop to “drum-skin” tight—taut, not stretched—so fabric does not bounce during stitching.
  • Tap the hooped fabric and aim for a dull “thump-thump,” not a floppy bounce and not a stretched “rubber band” feel.
  • Keep dense designs positioned at least a thumb’s width (about 1 cm) away from the hoop wall to reduce deflection and breaks.
  • Success check: fabric stays flat with minimal bouncing (“flagging”) as the needle runs; the finished design releases with less puckering.
  • If it still fails… move the design further inward and pair the fabric with medium weight cut-away (2.5oz) for more support.
• Q: Why does a Singer SE9180 combined built-in design load on top of another design, and how can Singer SE9180 users move the correct object?
  A: Overlap is normal—enter Edit mode, ungroup, then select the active (colorful) layer before moving.
  • Tap the Pencil icon to enter Edit mode.
  • Tap Ungroup (overlapping circles) immediately when multiple objects are present.
  • Tap the object until it turns colorful/bright (active), then drag to position.
  • Success check: the target object becomes colorful and moves smoothly; inactive objects remain gray/faded and do not move.
  • If it still fails… use the Trash Can to clear the canvas and re-load designs in a clean order.
• Q: How can Singer SE9180 users choose a “safe first design” using stitch count and color blocks on the Singer SE9180 screen?
  A: Start with low stitch count and few color changes to reduce time, heat, and rethreading mistakes.
  • Read the top header bar for Total Stitch Count and Number of Colors/Color Blocks before stitching.
  • Choose under 5,000 stitches and fewer than 4 color changes for early practice.
  • Success check: the stitch-out finishes quickly with fewer stops, and fabric shows less distortion or heat stress.
  • If it still fails… switch to redwork/line-art style designs and stitch on stable woven cotton with cut-away backing.
• Q: What should Singer SE9180 users do when bird nesting (loops under the fabric) happens on the Singer SE9180?
  A: Treat bird nesting as a top-threading/tension-disk problem first—rethread correctly before changing settings.
  • Stop stitching, cut thread safely, and remove the hoop only if needed to clear the jam.
  • Rethread the TOP thread with the presser foot UP, then ensure presser foot is DOWN before starting.
  • Recheck the thread path pull: it should feel like smooth resistance, not free-sliding.
  • Success check: loops under the fabric disappear and stitches lock cleanly without forming a thread “ball.”
  • If it still fails… verify the bobbin is seated correctly and wound evenly, then test on stable fabric + cut-away.
• Q: What are the key safety rules for changing needles and inspecting stitches near the Singer SE9180 hoop area?
  A: Always stop the Singer SE9180 before hands go near the presser foot/needle zone.
  • Stop the machine (or use lockout mode if available) before changing needles, trimming near the needle, or checking the stitch-out.
  • Keep fingers out of the presser-foot area during test runs and re-threading checks.
  • Success check: needle changes and trims happen with the machine fully stopped, with no accidental starts or finger contact in the needle path.
  • If it still fails… slow down the workflow: stop, confirm needle area is still, then proceed—never “reach in” while the machine can run.
• Q: When Singer SE9180 users feel production bottlenecks, what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle machine?
  A: Use a three-level escalation: stabilize fundamentals first, upgrade hooping for speed/comfort next, then upgrade capacity when thread changes dominate.
  • Level 1 (technique): reduce design risk (lower stitch count/colors), use correct stabilizer (often cut-away), and hoop to drum-skin tight.
  • Level 2 (tooling): if standard plastic hoops cause hoop burn or screw-tightening fatigue, consider magnetic hoops to clamp fabric without crushing and to speed hooping.
  • Level 3 (capacity): if repeated multi-color jobs are slowed mainly by manual re-threading, a multi-needle machine becomes the efficiency solution.
  • Success check: the main bottleneck (hooping time, alignment pain, or thread-change time) is measurably reduced on the next batch.
  • If it still fails… identify the dominant time-waster (hooping vs. color changes) and upgrade only that constraint instead of changing everything at once.
