Smartstitch Shoes Device Setup That Won’t Crash Your Needles: Install, Align (6th Hole), Clamp, and Stitch Sneakers Cleanly

Sneaker embroidery is the ultimate "high risk, high reward" discipline. It looks simple on Instagram—until the machine head swings, the pantograph jerks, and you hear the sickening crunch of a needle bar hitting a rubber sole.

If you’re reading this because you just unboxed the Smartstitch Shoes Device and you’re paralyzed by the fear of collisions, crooked placement, or ruining a $100 pair of Nikes: breathe. You are not overthinking it. You are respecting the physics of a 3D object on a 2D plane.

As someone who has trained hundreds of operators, I can tell you that successful shoe embroidery isn't about luck. It's about rigid mechanical setup and conservative parameter management.

This guide rebuilds the workflow from the standard tutorial, but I’ve injected the "20-year veteran" safety checks, sensory cues, and safe-zone parameters that keeps your machine running and your profit margin intact.

The Shoe Clamp Reality Check: What the Smartstitch Shoes Device Can (and Can’t) Forgive

The Smartstitch Shoes Device is a rigid clamp system designed to immobilize a shoe upper while the machine stitches across a curved surface. Unlike a standard hoop that relies on friction, this device relies on mechanical leverage.

Two mindsets will save you from a repair bill:

1. Treat the clamp like a vice, not a hoop. You are building a repeatable fixture.
2. Assume the shoe is fighting you. Rubber soles and canvas uppers have "memory"—they want to spring back to their original shape. Your job is to defeat that spring force.

If you are transitioning from flat garments and searching for standard smartstitch embroidery hoops, you need to recalibrate your hands. Instead of the satisfying "drum-tight" resonance of a hooped shirt, you are looking for immobility.

The “Hidden” Prep Pros Do First: Parts Check, Thread Plan, and Stabilizer Strategy for Canvas Sneakers

The video starts with a flat lay of accessories. Do not skip this. In a commercial shop, we call this "Mise-en-place." If you realize you are missing a screw halfway through assembly, you will rush the fix, and that is when errors happen.

What the video shows you to prep

Lay out the clamp arms, mounting bar/cross-bar, fixing screws, and the Allen wrench set.

What I add after 20 years: The "Safety Net" Prep

Shoes fail for three invisible reasons: wrong backing, weak needles, or poor physical clearance.

1. The Stabilizer (Hidden Consumable): Canvas high-tops look sturdy, but the weave is loose. Without support, stitches will sink or distort.

• The Rule: Use Cutaway Stabilizer (2.5oz - 3.0oz).
• Why: Tearaway is too weak for the "push-pull" stress on a curved shoe. You need the structural integrity of cutaway to prevent the design from warping the shoe shape.

2. The Needle Choice:

• The Upgrade: Swap to a Titanium 75/11 Sharp needle.
• Why: Canvas glue and rubber soles create friction. Standard nickel needles heat up and bend; titanium stays cooler and penetrates cleaner.

3. The Supply "Go-Bag": Have these ready before you start:

• Water-soluble marking pen (for drawing centers).
• Masking tape/Painter's tape (to tape down shoelaces—never let laces dangle!).
• Spray Adhesive (optional but recommended to bond backing to the shoe interior).

Prep Checklist (Do not touch the machine until all boxes are checked)

• Hardware: Confirm presence of clamp arms, mounting bar, screws, and Allen wrenches.
• Tooling: Identify the 3mm Allen wrench (this is your primary torque tool).
• Safety: Remove or tape down shoelaces completely. A loose lace can catch the presser foot and shatter the needle bar.
• Needle: Install a fresh 75/11 Sharp (Titanium preferred).
• Consumables: Cut a piece of Cutaway stabilizer sized for the shoe throat.


Build the Shoes Device Like a Fixture: Loosen, Align the Slots, and Lock the Width

The assembly requires mechanical sympathy. You are not just putting parts together; you are calibrating a tool.

1) Loosen/remove the locking screws on the clamp arms

Manually back out the screws. If they feel gritty or stiff, check the threads for debris.

2) Align the clamp arm slot with the mounting bar holes

Slide the clamp arms onto the mounting bar.

• Sensory Check: The movement should be smooth. If it binds, don't force it—check if the bar is bent or if there is a burr on the metal.


3) Install the screws and tighten to set the clamp width

Insert the screws and tighten them.

• The "Hand-Tight" Rule: Tighten until resistance is felt, then give it a quarter-turn more. Do not over-torque to the point of stripping threads, but it must be tight enough that the arms cannot wiggle.

Expected Outcome: The assembled device acts as one solid unit. Shake it gently near your ear—if you hear a rattle, something is loose.

Warning: Pinch Point Hazard. The sliding mechanism of the clamp arms can snap shut if handled clumsily. Keep fingers clear of the inner rails. When installing on the machine, power down to prevent accidental pantograph movement.

The One Tap That Prevents a Collision: Select “Shoes Frame” on the Smartstitch Interface *Before* Installing

This is the single most critical step in the entire process.

On your display screen, navigate to Frame Selection and choose “Shoes Frame” (or "Shoes Device").

Why this is non-negotiable: Default embroidery modes assume a flat X/Y plane with wide limits. "Shoes Frame" mode tells the machine's brain: "I am working on a cylinder with restricted clearance." It automatically adjusts the centering logic and software limits to prevent the pantograph from driving the metal clamp into the needle bar.

If you are looking for a specific smartstitch embroidery frame setting and don't see it, consult your firmware manual immediately. Do not proceed until the machine confirms it is in Shoe Mode.

Warning: Collision Risk. If you mount the shoe clamp while the machine is still in "Cap" or "Flat" mode, the machine may attempt to center itself in a position that physically impinges on the clamp. This can cause catastrophic damage to the reciprocity shaft or head. Set the mode first.

Mounting on the Pantograph Rail Without Guesswork: Slide It On, Then Start From the 6th Hole

Precision here dictates alignment later.

1) Slide the assembled device onto the pantograph rail

Fit the chassis onto the drive rail. It should slide on with a satisfying, snug resistance.

2) Find the centering reference: The 6th Hole

Count holes from the edge of the pantograph rail.

• The Target: The 6th hole (timestamp 01:30 in reference video).
• Why: This specific position aligns the physical center of the clamp with the software center of the "Shoes Frame" mode.


3) Tighten the mounting screws with a 3mm Allen wrench

Insert the screws into the mounting bracket.

• Sensory Check (Torque): Use the long end of the Allen wrench for leverage. You want these very tight. The vibration of embroidery is relentless and will loosen weak screws.


Setup Checklist (The "Pre-Flight" Inspection)

• Software: "Shoes Frame" is active on the screen.
• Hardware: Device is mounted starting at the 6th hole.
• Torque: Mounting screws are tightened with the 3mm wrench (no hand-tightening allowed here).
• Clearance Test: Manually rotate the handwheel to lower the needle. Carefully move the pantograph (via screen arrows) to the four corners of your design to visually verify the foot does not hit the clamp.

Clamping a High-Top Canvas Sneaker So It Stays Put: Open the Red Handles, Seat the Throat, Lock the Jaws

This is where the art meets the engineering.

1) Open the toggle clamps

Pull the red handles back.

2) Insert the shoe between the metal guides

Slide the shoe throat over the tongue guide.

• Expert Tip: Ensure the tongue of the shoe is pulled under the clamping area or taped down so it doesn't bunch up under the design.

3) Lock the clamps by pushing the handles forward

Engage the red handles.

• Sensory Check (The Drum Test): Once clamped, tap the embroidery area with your fingernail. It should sound like a dull thud on a drum. It should not feel spongy or move under your finger pressure.

The Physics of Failure: If the shoe isn't seated deeply enough, the "flagging" (bouncing of fabric) will cause skipped stitches. If it's too deep, the heel might hit the machine body. Find the "Goldilocks" zone where the embroidery field is flat and taut.

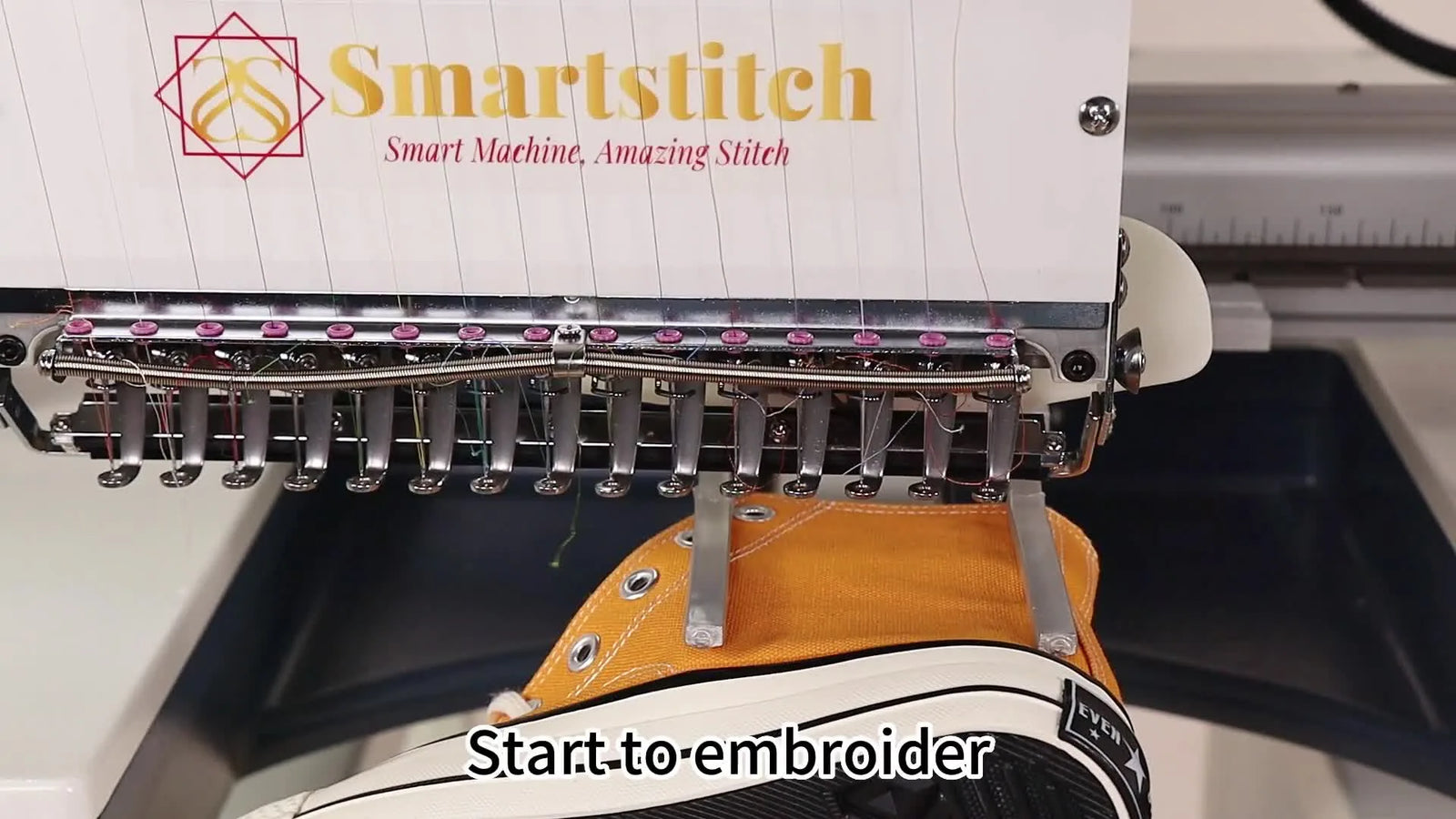

Run the Design Like a Production Operator: Start Slow, Watch the Curve, Then Let It Stitch

Do not hit "Start" and walk away. Shoes require supervision.

The "Safe Launch" Protocol

1. Speed Limiter: Drop your machine speed to 400-500 SPM (Stitches Per Minute) for the first layer (underlay). Stick to the "Beginner Sweet Spot."
   • Why: At high speeds, centrifugal force and vibration are magnified. 400 SPM gives you reaction time.
2. Visual Watch: Keep your finger near the "Stop" button. Watch the presser foot height.
   • Risk: If the foot is too low, it will drag on the rubber toe cap. If too high, thread loops will form.

Listen to your machine. A happy machine makes a rhythmic hum-thump-hum.

• If you hear a sharp click-click-click, the needle is deflecting (hitting something hard). STOP IMMEDIATELY.
• If you hear a grinding noise, the pantograph is fighting the shoe weight.

Operation Checklist (Live Fire)

• Speed: Set to 400-500 SPM max for start.
• Visual: Presser foot clears the highest point of the shoe (usually seam ridges).
• Auditory: No clicking or grinding sounds.
• Tension: White bobbin thread is checking (1/3 visible underneath) but not pulling top thread to bottom.

Why the 6th-Hole Alignment and “Shoes Frame” Mode Work Together (So You Don’t Chase Centering Forever)

The "6th Hole" isn't a random suggestion; it is the calibration zero-point.

1. Software Center: The "Shoes Frame" mode tells the computer where (0,0) is.
2. Hardware Center: The 6th hole places the mechanical center of the clamp at physical (0,0).

If you mount at the 5th or 7th hole, your design will be off-center, or worse, the machine will limit-switch out before finishing the design.

Note for various models: Whether you operate a smartstitch 1501 or smartstitch s1501, this mechanical alignment principle remains constant, though menu interface graphics may vary slightly.

Troubleshooting Sneaker Embroidery on a Smartstitch Shoe Clamp: Symptoms, Likely Causes, Fixes

When things go wrong, use this hierarchy. Always fix the physical issue before changing software settings.

Decision Tree: Picking Stabilizer/Backing for Shoe Embroidery

Do not guess. Use this logic flow to determine your consumable stack.

Q: What is the Shoe Material?

• A: Canvas / Denim / Heavy Cloth
  • Action: Use 2.5oz Cutaway.
  • Why: Best stability for medium-density logos.
• B: Thin Mesh / "Flyknit" Style
  • Action: Use 3.0oz Cutaway + Water Soluble Topping.
  • Why: Mesh eats stitches. Topping keeps stitches on top (3D effect), Cutaway prevents holes.
• C: Leather / Faux Leather
  • Action: Use Medium Tearaway.
  • Why: Cutaway leaves a bulk outline inside leather that you can't trim. Tearaway removes cleanly. Limit stitch density.

The Upgrade Path That Actually Makes Sense: When to Add Magnetic Hoops, Better Backing, or a Multi-Needle Workflow

Once you master the shoe clamp, you will hit a new ceiling: Efficiency.

If you find yourself frustrated by the time it takes to hoop standard garments, or if you are getting "hoop burn" (shiny rings) on stiff fabrics, this is where commercial tools solve the problem.

1. For Speed & Quality on Garments:
   Operators looking for a mighty hoop for smartstitch embroidery machine or equivalent smartstitch mighty hoop clones are usually trying to solve the problem of hoop burn and wrist fatigue.
   • The Solution: Magnetic Hoops. They clamp instantly without adjusting screws, gripping thick jackets and thin polos equally well. They are the single best investment for workflow speed on non-shoe items.
2. For Repetitive Accuracy:
   If you are doing team orders, a dedicated embroidery hooping station ensures every logo is in the exact same spot, reducing the "guesswork" time.
3. For Scaling Up:
   If you are turning away orders because your single-needle machine is too slow, or color changes take too long, consider upgrading to a SEWTECH Multi-Needle Machine. The jump from 1 needle to 15 needles isn't just about colors; it's about production velocity.

Warning: Magnetic Field Safety. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely. Danger: Keep away from pacemakers, insulin pumps, and magnetic storage media.

Final Result Standards: What “Good” Sneaker Embroidery Should Look Like Before You Hand It to a Customer

The video ends with a pristine floral design. Yours should look the same.

The "QC" (Quality Control) Pass:

1. Outline Registration: The border lines sit exactly on top of the fill, not drifted to the side.
2. Density: No fabric showing through the stitches, but the shoe isn't puckering (too dense).
3. Cleanliness: No long jump threads. Backing inside is trimmed close to the stitches (leaving about 1/4 inch margin) with no jagged edges to irritate the wearer's foot.

If your first attempt isn't perfect, check your stabilizer first, then your clamping pressure. Embroidery is a science of variables; control the variables, and you will control the result.

FAQ

• Q: What stabilizer should be used for Smartstitch Shoes Device embroidery on canvas high-top sneakers to prevent design distortion?
  A: Use 2.5–3.0oz cutaway stabilizer as the default for canvas sneakers because it resists push-pull stress on curved uppers.
  • Cut a cutaway piece sized to the shoe throat before clamping the shoe.
  • Optionally bond the stabilizer to the shoe interior with spray adhesive to reduce shifting.
  • Success check: Stitches sit on top without the design looking warped or the shoe upper being pulled out of shape.
  • If it still fails, add an extra layer of backing and re-check clamp tightness before changing any machine settings.
• Q: What needle should be installed for Smartstitch shoe clamp embroidery on canvas sneakers to reduce needle breakage and thread shredding?
  A: Start with a fresh 75/11 Sharp needle (titanium preferred) for cleaner penetration through canvas/glue friction zones.
  • Replace the needle immediately if thread starts fraying or you suspect a burr at the eye.
  • Reduce friction variables first (fresh needle) before chasing tension changes.
  • Success check: The machine runs without sharp “click-click” impacts and thread does not fuzz or shred near the needle.
  • If it still fails, stop and check for seam/glue strike points or clearance issues near the rubber toe area.
• Q: Which Smartstitch touchscreen setting must be selected before mounting the Smartstitch Shoes Device to prevent a needle bar collision?
  A: Select “Shoes Frame” (Shoes Device) in Frame Selection before installing the clamp, or the machine may center into the clamp and collide.
  • Power down while installing to avoid accidental pantograph movement.
  • Confirm the display shows the shoe frame mode before sliding the device onto the rail.
  • Success check: When jogging to design corners, the presser foot and needle path visibly clear the clamp hardware.
  • If it still fails, stop and consult the firmware/manual for frame mode availability—do not proceed in Cap or Flat mode.
• Q: Where should the Smartstitch Shoes Device be mounted on the pantograph rail, and why does the Smartstitch “6th hole” alignment matter for centering?
  A: Mount the Smartstitch Shoes Device starting at the 6th hole to match the hardware center to the “Shoes Frame” software center.
  • Slide the assembled device onto the pantograph rail, then count to the 6th hole from the edge.
  • Tighten the mounting screws firmly using the 3mm Allen wrench (not finger-tight).
  • Success check: The design centers correctly without hitting travel limits during a corner jog test.
  • If it still fails, remount at the 6th hole again and re-verify the screen is still set to “Shoes Frame.”
• Q: What are the safest starting speed and run-up checks for Smartstitch sneaker embroidery to avoid collisions and missed stitches?
  A: Start the first layer at 400–500 SPM and babysit the run until clearance and stitch formation are proven.
  • Lower speed for underlay, keep a finger near Stop, and watch presser foot height over seams/toe cap.
  • Listen for sharp clicking (needle deflection) or grinding (pantograph fighting weight) and stop immediately if heard.
  • Success check: The machine sounds like a steady rhythmic hum-thump-hum and the foot clears the highest shoe ridges.
  • If it still fails, re-check clamp seating depth and run a manual corner jog clearance test before increasing speed.
• Q: How can Smartstitch shoe clamp “flagging” and skipped stitches be fixed when embroidering a high-top canvas sneaker?
  A: Re-clamp for immobility and add backing before changing density or tension—flagging usually means the shoe is bouncing.
  • Open the toggle clamps, reseat the shoe throat deeper/straighter, and lock both red handles evenly.
  • Add an extra layer of stabilizer if the canvas is still flexing under the needle.
  • Success check: Tap the embroidery zone and feel a firm “dull thud” with no spongy movement under finger pressure.
  • If it still fails, verify the tongue/laces are taped down and not bunching or lifting the embroidery area during stitching.
• Q: What safety hazards should beginners watch for when installing and using the Smartstitch Shoes Device clamp system?
  A: Treat the Smartstitch Shoes Device like a vice with pinch points, and prevent any unexpected pantograph movement during installation.
  • Power down during mounting and keep fingers clear of the clamp arm sliding rails.
  • Tape down or remove shoelaces completely—loose laces can catch the presser foot and break needles or damage components.
  • Success check: No rattles when the assembled device is gently shaken, and no loose items (laces/tongue) can reach the stitching area.
  • If it still fails, stop and redo a full pre-flight: mode set to Shoes Frame, screws tight, and clearance verified by handwheel + corner jog.
• Q: If Smartstitch shoe embroidery is working but garment hooping is slow or causing hoop burn, what upgrade path makes the most sense for efficiency?
  A: Optimize technique first, then consider magnetic hoops for faster garment hooping, and only then consider a multi-needle workflow if production volume demands it.
  • Level 1 (Technique): Reduce hoop burn risk by improving hooping consistency and setup discipline on garments.
  • Level 2 (Tooling): Use magnetic hoops to clamp quickly and reduce wrist fatigue and hoop marks on many garment types.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine if single-needle speed and manual color changes are limiting order throughput.
  • Success check: Cycle time drops (less time hooping/color changing) without an increase in placement errors or fabric marking.
  • If it still fails, add a hooping station for repeatable placement before investing in higher-capacity equipment.
