Split Big Designs for Small Hoops in Floriani Total Control U—Without Ruining Satins or Losing Alignment

Multi-hooping is one of those skills that feels “mystical” until you do it twice—then it becomes a repeatable workflow. If you’ve ever tried to stitch a larger design in a smaller hoop and ended up with a visible seam, a shifted second hoop, or satins that suddenly look like they’re fighting the fabric, you’re not alone.

The fear is valid: you take a perfectly good piece of fabric, slice the design in half invisibly, and pray that physics cooperates when you re-hoop. This post rebuilds Cathy Quinn’s Floriani workflow into a clean, do-this-next process: resize the design, correct stitch types that don’t scale well, split it to your real hoop size (she uses 180×130mm), and then align the two stitch-outs using placement lines.

This isn’t just about software; it’s about tolerance management. We will walk through the digital setup, but we will also cover the physical reality—how to hold the fabric so it doesn't "breathe" and ruin your alignment.

Don’t Panic: “Split Design” in Floriani Total Control U Is Safe—If You Respect Stitch Physics

When people hear “split a design,” they often imagine cutting a photograph in half with scissors and hoping to tape it back together later. Floriani’s Split Design wizard is more disciplined than that: it acts like an engineer, creating two specific stitch files and adding placement/alignment stitches (your digital registration marks) so you can land the second half exactly where it belongs.

The real danger isn’t the split—it’s what happens before the split. A design is a physical instruction set for a needle, and when you manipulate size, you manipulate physics:

• The Density Trap: Enlarging a design can make satin columns too wide. A satin stitch longer than 7mm-9mm is prone to snagging and creates loose loops that ruin the finish.
• The Hoop Drift: Re-hooping introduces human error. If your stabilization is weak or your hoop tension varies between the first and second hooping, the fabric will distort.

If you are attempting multi hooping machine embroidery for the first time, your goal is not speed—it is repeatability. You need the same hoop tension (tight as a drum skin), the same stabilizer behavior (no shifting), and a strict alignment routine.

Warning: Safety First. Keep fingers, hair, and loose sleeves away from the needle area during test runs—especially when you are inching forward stitch-by-stitch for alignment. A “one stitch at a time” approach is precise, but it requires your hands to be dangerously close to moving parts. verify your emergency stop button is accessible.

The “Hidden” Prep Pros Do Before Resizing Any Embroidery Design (Sequence View + Stitch Audit)

Cathy starts by pulling a design from her library (the Postage Stamp Flag). Most beginners immediately grab the corner handle and drag to resize. Stop.

She immediately switches to Sequence View. This is non-negotiable. In the standard view, you are looking at a picture; in Sequence View, you are looking at the machine’s instructions. You need to control every object individually.

Before you touch size, get your workspace ready so you can actually see what you’re doing:

1. Open the design.
2. Activate Sequence View: Locate the tab (usually on the right or via the View menu) that lists color blocks and segments.
3. Global Selection: Select all items (Ctrl+A), even if the design imported as a simplified group.
4. The Mental Audit: Ask yourself, "Where are the satins?" Plan to inspect these specifically after resizing.

A quick reality check from the shop floor: Resizing is not just “making the art bigger.” It is “making the movement longer.” On stable fabrics like canvas, heavyweight denim, or stiff cotton, you can tolerate wider stitches. On knits, performance wear, or flimsy cottons, wide satins will pull the fabric together, creating gaps (puckering) that no amount of ironing will fix.

Prep Checklist (Do this PRE-FLIGHT)

• Visual Audit: Open the design and switch to Sequence View.
• Tool Check: Confirm you can locate the Transform icon and the Properties panel.
• Physical Hoop Match: Decide what hoop you physically own and plan to stitch in (you will need that exact dimension for the split).
• Satin Scout: Mentally flag borders, lettering, or stripes. These are the "danger zones" for width issues.
• Consumables Check: Ensure you have water-soluble marking pens (blue) or air-erase pens (purple) to mark your physical fabric for alignment later.


Resize to 8.00 Inches in Floriani Transform—Then Immediately Hunt for “Too-Wide Satin” Landmines

Cathy resizes the design to 8.00 inches tall using the Transform tool. Crucially, she ensures Maintain Aspect Ratio is checked before clicking Apply.

That is the easy part. Any software can do that.

The professional variance—the reason her designs don't fall apart—is what happens next. She does not trust the auto-resize. She hunts for "Landmines."

Here represents the exact workflow she demonstrates for a safe resize:

1. In Sequence View, select All Items.
2. Open the Transform tab.
3. Lock Aspect Ratio: Ensure the checkmark is present so the design doesn't skew.
4. Input Design Height = 8.00 inches.
5. Click Apply.
6. Zoom Extents: Use "Fit to Screen" to see the full damage/result.


Why this matters (the shop-floor explanation)

When a satin column becomes too wide, the needle has to span a massive gap with a single thread. This creates distinct mechanical problems:

• Snagging: The loop is loose enough to catch on buttons, zippers, or jewelry.
• Gaping: You see the fabric peeking through the threads.
• Tunneling: On knits, the fabric bunches up under the long stitch, creating a tunnel effect.

Cathy references a practical "Golden Rule": Satins should generally not exceed 7mm on knits. She notes stable fabrics might tolerate 8mm or 9mm, but 7mm is the safe "sweet spot" for most commercial work.

If you are resizing for a customer logo on a polo shirt, this is where quality is won or lost—long before the machine ever powers on.

The 7mm Reality Check: Use the Ruler Tool, Then Convert Satins to Pattern Fill (Pattern 2)

After resizing, the design is likely still grouped. You cannot fix individual mechanics while grouped.

Cathy’s sequence is surgical:

1. Ungroup: Click the icon in the top toolbar. Now every stripe and star is an island.
2. Measure: She spots the red stripes—they look wide.
3. The Ruler Tool: She selects the Ruler (left toolbar), clicks on one side of the stripe, and drags to the other.

If the number reads anything near or above 7mm (and certainly if it hits 9mm+), you have a problem.

The Fix: She converts these specific satin segments into a Pattern Fill.

• Select the segment (Red Stripes).
• In Properties, switch the stitch type from Satin to Pattern Fill.
• Select Pattern 2 (a standard, clean fill).
• Click Apply.


What to do (Step-by-Step)

1. Isolate: Click the specific satin segment (e.g., the stripe).
2. Verify: Click the Ruler tool. Click-drag-release across the width. Note the measurement.
3. Batch Select: If one stripe is bad, they likely all are. Hold Control and click all similar red stripes to multi-select.
4. Convert: Go to Properties (bottom right). Change "Satin" to "Pattern Fill."
5. Refine: Choose Pattern 2 (or a texture you prefer).
6. Execute: Click Apply.

This is one of the cleanest “save the stitch-out” moves in Floriani. It maintains the color coverage but changes the physics from a long, vulnerable bridge to a sturdy, flat road.

If you are building a professional workflow around hooping stations, this software step is the partner to that hardware. Tools like hooping stations ensure the fabric is straight, but they cannot fix a stitch that is physically too wide. You must fix the file before you mount the hoop.

Keep the Satin Look on Borders: Random Split + 7.0mm Min/Max to Prevent Long Gaps

Sometimes, you need the look of a satin stitch (the shine, the raised edge) but the column is just too wide. Converting to a fill would ruin the aesthetic, especially on borders.

Cathy’s gold border is the perfect example. It frames the flag. Making it a flat fill would look cheap.

Her solution is the Random Split feature. This keeps the zigzag "look" but injects needle penetrations in the middle of the column, breaking the long thread into smaller, safer segments.

The Settings:

• Split Type: Random Split
• Minimum Stitch Length: 7.0 mm
• Maximum Stitch Length: 7.0 mm
• Apply


Expected Outcome (Sensory Check)

Visually, on the screen and on the finished garment, the border will still catch the light like a satin stitch. However, if you run your finger over it, you might feel a slightly rougher texture than a pure smooth satin because of the mid-point needle penetrations.

Mechanically, this prevents the "snag hazard." This makes the design durable enough for wash-and-wear cycles.

If you use a hoop master embroidery hooping station in your shop, you know that placement is only half the battle. You pair that precision hardware with this distinct software setting to ensure the border doesn't pull away from the fabric edges during the wash.

Pick the Exact Hoop First: Floriani Hoop Selection (PES Multi-Needle + 180×130mm) Controls the Split

Cathy is blunt here for a reason: The software creates the split lines based on the hoop definition you select now. If you choose the wrong hoop here, your alignment lines will be in the wrong place for your physical machine.

Her Choices:

1. Click the Hoop icon.
2. Format: She selects PES (Brother/Baby Lock format).
3. Machine Type: She selects Multi-Needle (this exposes different hoop lists than single-needle).
4. Size: She selects 180 × 130 mm (approx 5x7").


What if your hoop isn't listed?

This is common if you have bought aftermarket upgrades, such as generic frames or specialized magnetic setups.

• The Fix: Click New in the hoop menu.
• Data Entry: Enter the sewing field dimensions (not the outer plastic dimensions).
• Save: Name it clearly (e.g., "Generic 8x8").

This is critical if you have upgraded your workflow with magnetic hoops for embroidery machines. These hoops often have different internal dimensions than standard plastic hoops. If the software thinks you have 130mm of space but your magnetic frame only allows 125mm due to the magnet width, you will hit the frame (the "Kill Zone") and possibly break a needle. Measure your actual sewing field first.

Setup Checklist (Before you run Split Design)

• Size Confirmation: Design is resized to final target (8.00").
• Stitch Safety: No satins exceed 7mm-8mm; they are converted to Fills or Random Splits.
• File Format: You selected the correct machine language (PES, DST, EXP, etc.).
• Hoop Match: The on-screen hoop (180x130mm) matches the physical hoop on your table.
• Custom Hoops: If using non-standard frames, verify the custom hoop dimensions allow for needle clearance.


Run the Floriani Split Design Wizard: Alignment Stitches (Center) + 10mm Overlap for a Forgiving Join

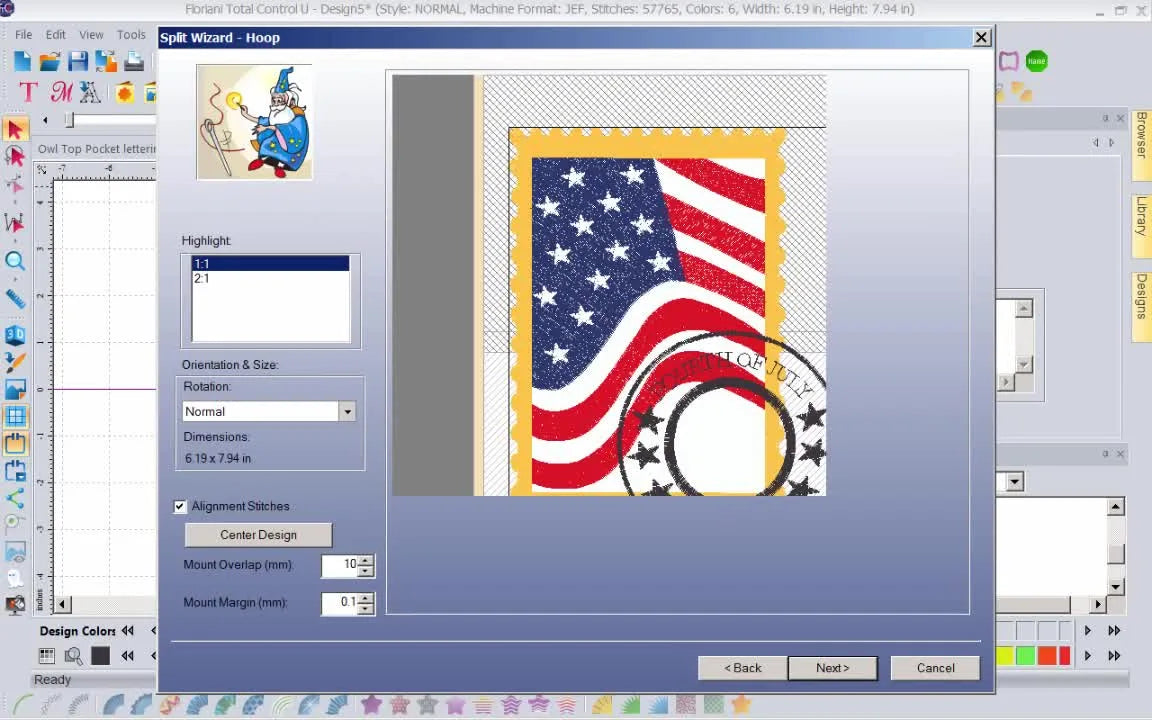

Now, the "Magic" button. Cathy clicks the Split Design wizard icon.

The wizard shows a preview: Hooping 1 of 2 and Hooping 2 of 2. She doesn't just click "Next." She adjusts the Safety Margin.

Her Settings:

• Alignment Stitches: [CHECKED] (These are the lines that stitch on the stabilizer).
• Alignment Placement: Center Design.
• Overlap: 10 mm.


Why 10mm Overlap?

In a perfect world, 0mm overlap would work. In the real world, fabric stretches, stabilizers shift, and frames wiggle.

• The Buffer: Overlap creates a zone where the two halves blend. It prevents a "hairline crack" or gap between the top and bottom of the flag.
• The Physics: 10mm gives you enough room to slighty miss perfect alignment and still have solid coverage.

If you are stitching on tricky fabric (like pique knit or fleece), this is where material science matters. Standard hoops can leave "hoop burn" (crushed fibers) or allow slippage. A practical upgrade path many users follow when fighting slippage is switching to magnetic embroidery hoops. Because they clamp the fabric flat rather than forcing it into a ring, the fabric distortion is lower, making the 10mm overlap much more effective. If your second hoop is often off by 1-2mm despite your best efforts, look at your clamping method first.

Save Split Files Like a Pro: One Folder, Two Files (Flag_01 / Flag_02) and Zero Confusion Later

After the wizard finishes, Cathy does something boring but vital: She creates a New Folder named “Flag Stamp Split.”

She saves the project into that folder. Floriani will automatically generate multiple export files (e.g., Flag_01.pes and Flag_02.pes).

Why this matters: If you leave these files loose on your desktop, you will eventually load "Flag_01" and then accidentally load an old version of Part 2. By isolating them in a folder, you create a "Job Ticket." You know exactly which two files belong together.

Placement Lines Are Your Lifeline: Stitch Part 1’s Line Last, Then Stitch Part 2’s Line First

Cathy explains the logic that makes this whole method work. It is a relay race:

1. Part 1 Finish: The very last thing Part 1 stitches is a running stitch placement line (usually crosshairs or a box shape) at the bottom of the hoop.
2. Part 2 Start: The very first thing Part 2 stitches is that exact same line.

So, your goal when re-hooping is to make the machine's needle land exactly on top of the line Part 1 left behind.

The Alignment Routine (The "Click" Moment)

1. Stitch Part 1: Let it finish. Do not remove the fabric from the stabilizer yet! (Read that again).
2. Mark: If using a multi-hooping template, mark your fabric. Then un-hoop.
3. Re-Hoop: Hoop the fabric for the bottom half (Part 2). Ensure the stabilizer is fresh and tight.
4. Load Part 2: Load the file Flag_02.
5. Jog the Machine: Use your machine’s arrow keys (or camera function if you have a high-end Brother/Baby Lock) to move the needle until it is hovering exactly over the start of the placement line stitched in Part 1.
   • Sensory Check: Lower the needle (using the handwheel) until the tip almost touches the fabric. It should align perfectly with the end of the previous line.
6. The Truth Test: Stitch the first color of Part 2 (the placement line). Watch it like a hawk.
   • Audio/Visual: You want to see the new thread covering the old thread. If you see a "double vision" line (two parallel lines), STOP. You are misaligned.

Note on Machine Behavior: Cathy mentions using a foot pedal to stitch one stitch at a time. Be aware: not all modern embroidery machines allow foot pedal control while in "Embroidery Mode." Check your manual. If yours doesn't, use the "Step Forward/Backward" buttons on your screen to move stitch-by-stitch.

Decision Tree: Fabric → Stabilizer Strategy (Preventing the Drift)

Multi-hooping fails if the fabric warps between hoop 1 and hoop 2. Use this logic to choose your backing.

• Scenario A: Heavy/Stable Fabric (Denim, Canvas)
  • Stabilizer: Medium Tearaway or Cutaway.
  • Needle: 75/11 Sharp.
  • Hooping: Standard hoop tightened securely.
• Scenario B: Stretchy/Unstable Fabric (T-shirts, Performance Knits)
  • Stabilizer: Fusible No-Show Mesh (Cutaway) is mandatory. It locks the fabric fibers so they can't distort during the re-hooping process.
  • Needle: 75/11 Ballpoint.
  • Hooping: Do not over-stretch. If the fabric looks like a trampoline, it's too tight. It should be neutral.
• Scenario C: Delicate/Velvet (Prone to Hoop Burn)
  • Stabilizer: Floating method with adhesive stabilizer, OR use a magnetic frame.
  • Upgrade: Many professionals switch to embroidery hoops magnetic here. The magnetic clamp reduces the "crush" marks that standard hoops leave, which is critical when you have to hoop the same garment twice in different spots.

Warning: Magnet Safety. Magnetic frames are incredibly powerful. Keep them away from pacemakers, insulin pumps, and other implanted medical devices. Watch for Pinch Hazards—when the top magnet snaps to the bottom, it can pinch skin severely. Do not slide your fingers between the frame layers.

Fix the Three Most Common Multi-Hooping Failures (Troubleshooting)

Even with the best prep, things happen. rare machine errors. Here is how to diagnose the layout.

The Upgrade Path: When Should You Invest in Better Tools?

Once you master the software split, the bottleneck moves to the physical world. Your wrists hurt from hooping, or you are tired of changing threads 15 times for one design.

Here is a grounded guide on when to upgrade, based on production pain points:

1. Pain: Wrist Strain & Crooked Hooping.
   • Solution: A Hooping Station. If you are searching for a hooping station for machine embroidery, look for one that holds the hoop rigid while you press the inner ring. This guarantees the fabric is square every time.
2. Pain: Hoop Burn & Re-Hooping Speed.
   • Solution: Magnetic Hoops. If you tackle bulky items (towels, jackets) or delicates, the standard "screw and push" hoop is the enemy. Magnetic frames simply "snap" onto the fabric. This speed is crucial for multi-hooping because you are hooping twice per shirt.
3. Pain: Constant Thread Changes.
   • Solution: Multi-Needle Machines. Cathy demonstrates on a multi-needle for a reason. In our ecosystem, SEWTECH Multi-Needle Machines are the productivity step up. When you split a design, you might have 10 color stops in Part 1 and 10 in Part 2. On a single needle, that is 20 manual thread changes. On a multi-needle, it is usually zero.

Operation Checklist (The Final "Go" Check)

• Part 1 Complete: The final placement line stitched clearly.
• Re-Hoop Quality: Fabric is taut (not stretched), stabilizer is intact.
• Needle Hover: You have manually jogged the needle to hover exactly over the Part 1 end point.
• Slow Start: You start Part 2 at minimum speed ensuring the first stitches overlap the previous lineup marks.
• Consumable Check: You have enough bobbin thread to finish Part 2 (changing a bobbin mid-alignment is a nightmare).

Mastering this workflow turns "The Fear of the Split" into just another Tuesday in the shop. Respect the physics, measure your satins, and let the placement lines do the heavy lifting.

FAQ

• Q: In Floriani Total Control U multi-hooping, how do I resize an embroidery design to 8.00 inches without causing snaggy satin stitches?
  A: Resize with Transform first, then immediately audit and fix any satin columns that became too wide.
  • Switch to Sequence View and select all objects (Ctrl+A) before resizing.
  • Use Transform with “Maintain Aspect Ratio” checked, set height to 8.00 inches, and click Apply.
  • Measure suspect satins with the Ruler tool; convert any wide satin areas to Pattern Fill (Pattern 2) where a satin look is not required.
  • Success check: Satin areas do not show long loose loops, and measured widths stay in the safe range (often ~7–9 mm depending on fabric stability).
  • If it still fails: Use Random Split on satin borders that must stay satin-looking, instead of converting them to fills.
• Q: In Floriani Total Control U, how do I measure satin stitch width with the Ruler tool and decide when to convert Satin to Pattern Fill (Pattern 2)?
  A: Measure each risky satin column after resizing, and convert the ones near/over the danger width to Pattern Fill to prevent long, snag-prone bridges.
  • Ungroup the design so individual objects can be edited.
  • Click the Ruler tool, click-drag across the satin column width, and read the mm value.
  • Multi-select similar problem objects (Ctrl+click) and change Stitch Type from Satin to Pattern Fill, choose Pattern 2, then Apply.
  • Success check: The converted areas stitch as a flatter, more stable fill with no “loose bridge” look and no obvious fabric show-through gaps.
  • If it still fails: Re-check that the design is ungrouped and you are editing the correct objects (not a grouped layer).
• Q: In Floriani Total Control U, how do I keep a satin border look on a resized design using Random Split with 7.0 mm min/max?
  A: Use Random Split on the satin border to break long stitches while keeping the satin-style shine.
  • Select only the satin border object that must remain satin-looking.
  • Set Split Type to Random Split and set Minimum Stitch Length = 7.0 mm and Maximum Stitch Length = 7.0 mm, then Apply.
  • Stitch a test sample if possible before committing to a garment.
  • Success check: The border still reflects light like satin, but does not form long, snaggy spans; texture may feel slightly rougher due to added penetrations.
  • If it still fails: Convert the border to a fill only as a last resort, or reduce the finished size so the satin width is not forced wider.
• Q: In Floriani Total Control U Split Design, how do I choose the correct hoop size (PES Multi-Needle 180×130 mm) so the alignment stitches land correctly on the real hoop?
  A: Select the exact hoop definition that matches the physical sewing field before running Split Design, or create a custom hoop that matches your real stitchable area.
  • Click the Hoop icon, choose the correct format (for example PES) and select Multi-Needle if applicable to access the correct hoop list.
  • Select 180 × 130 mm only if the physical hoop’s sewing field truly matches that size.
  • If the hoop is not listed, create a New custom hoop and enter the sewing field dimensions (not the outer frame size).
  • Success check: The on-screen boundary matches where the needle can actually sew, and the machine does not approach the frame during a slow trace/run.
  • If it still fails: Re-measure the internal clearance of the hoop/frame; incorrect hoop definition can cause frame strikes and needle breaks.
• Q: In Floriani Split Design wizard, what settings should I use for alignment stitches and overlap (Center Design + 10 mm overlap) to avoid a visible seam in multi-hooping?
  A: Enable alignment stitches, place them at Center Design, and use 10 mm overlap to create a forgiving blend zone between hoopings.
  • Turn Alignment Stitches on so the machine stitches registration lines you can physically match.
  • Set Alignment Placement to Center Design.
  • Set Overlap to 10 mm to reduce “hairline gaps” from small re-hooping errors.
  • Success check: When Part 2 stitches the placement line, the new line sits directly on top of Part 1’s line (no parallel “double vision” lines).
  • If it still fails: Stop immediately and re-hoop—misalignment is almost always a hooping/stabilization consistency issue, not a “run faster” issue.
• Q: During multi-hooping alignment, how do I stitch placement lines correctly (Part 1 line last, Part 2 line first) and verify the needle position before committing to Part 2?
  A: Treat the placement line like a registration target: Part 1 stitches it last, Part 2 stitches it first, and the needle must land exactly on the previous line.
  • Do not remove the fabric from the stabilizer immediately after Part 1; keep the reference intact as long as possible.
  • Re-hoop carefully for Part 2 with tight, consistent hooping and fresh/tight stabilizer.
  • Jog the machine with arrow keys (or machine functions) and lower the needle slowly (handwheel) to hover precisely over the end/start of the Part 1 placement line.
  • Success check: The first stitches of Part 2’s placement line cover the Part 1 line cleanly with no offset.
  • If it still fails: Use stitch-by-stitch controls (Step Forward/Backward) and restart alignment—do not “let it run” hoping it will correct itself.
• Q: What are the key safety rules for stitch-by-stitch multi-hooping alignment near the needle area, and what safety risks come with magnetic embroidery frames?
  A: Slow alignment is normal, but keep hands and loose items away from moving parts, and treat magnetic frames as pinch- and medical-device hazards.
  • Keep fingers, hair, and loose sleeves away from the needle area, especially during inching/stitch-by-stitch checks.
  • Verify the emergency stop is reachable before test runs and alignment starts.
  • Keep magnetic frames away from pacemakers, insulin pumps, and other implanted medical devices, and control the snap-down to avoid severe pinching.
  • Success check: Alignment adjustments are made using safe controls (jog/step functions) without hands entering the needle strike zone.
  • If it still fails: Pause the job and reposition using machine controls—never try to “guide” fabric by hand while the needle is moving.
• Q: For multi-hooping embroidery, how do I choose stabilizer for denim vs knits vs delicate velvet to prevent hoop drift, hoop burn, and visible seams?
  A: Match stabilizer to fabric behavior so the fabric cannot “breathe” between hoop 1 and hoop 2.
  • Use medium tearaway or cutaway for heavy stable fabrics (like denim/canvas) and maintain firm, consistent hoop tension.
  • Use fusible no-show mesh (cutaway) for stretchy knits so the fibers are locked and do not distort during re-hooping; avoid over-stretching in the hoop.
  • Use a floating method with adhesive stabilizer or a magnetic frame for delicate/velvet to reduce hoop burn and reduce distortion from clamping.
  • Success check: Fabric lies neutral (not trampoline-tight), and Part 2 placement line lands without drift-induced offset.
  • If it still fails: Upgrade the clamping method (often magnetic frames help) and re-check that hooping tension and stabilizer behavior are consistent between both hoopings.
