Split-Hooping a Junji Ito “Hanging Balloons” Panel on a Baby Lock Enterprise: The Clean Overlap Trick That Saves the Join

When a design is bigger than your hoop, the panic is real. You’ve spent hours drawing and digitizing, and now you face the "Point of No Return." The fear of ruining a garment halfway through is what keeps many embroiderers stuck on small, safe projects.

But here is the secret: split-hooping isn't magic; it is simply engineering. It is Lego logic. once you understand how the blocks overlap, the gamble disappears.

In this guide, I am rebuilding the full workflow from the Junji Ito “Hanging Balloons” split design process stitched on a Baby Lock Enterprise (10-needle). The original project is a large manga panel-style embroidery where the machine’s vertical embroidery limit is 7 inches, so the design must be split and stitched in two hoopings. We will move beyond the basic steps and look at the feel, the sounds, and the safety margins required to pull this off professionally.

The 7-Inch Wall on the Baby Lock Enterprise: How to Stay Calm and Still Stitch a Huge Manga Panel

The core problem is simple physics: the design height is more than 7 inches, but the Baby Lock Enterprise can only physically travel 7 inches in vertical height. This is not a software suggestion; it is a mechanical hard stop. If you ignore it, you hit the frame.

The "save" is splitting the artwork into two files and treating them as a relay race:

1. Build a registration element (a shared visual anchor, like the rope).
2. Hoop the second section so it physically captures the tail end of the first stitch-out.
3. Use machine intelligence (camera) to jog the needle to the exact microscopic join point.

If you are running a babylock multi needle embroidery machine, mastering this technique turns "impossible" jobs into profitable "two-pass" jobs. It is the bridge between being a hobbyist and a production studio.

The Hidden Prep Before You Split-Hoop in Wilcom Embroidery Studio (This Is Where Most Joins Go Wrong)

Before you touch a hoop, you must stabilize your variables. Split-hooping punishes sloppiness. Any fabric shift, stabilizer collapse, or scaling mismatch shows up as a gap or a bulge right at the join line.

What the video uses (and why it matters)

• Black fabric panel (cut-and-sew piece).
• White Cut-Away Stabilizer: Expert Note: Never use tear-away for a dense split design. The perforation created by the needle will cause the fabric to separate during re-hooping. Cut-away provides the permanent structure needed to hold the join together.
• Taylor’s Chalk: For crisp, removable marks on dark fabric.
• Paper Template: To judge size and placement physically.
• Baby Lock Enterprise: Utilizing the built-in camera alignment.
• Wilcom Embroidery Studio: For precise splitting.
• Procreate on iPad: For fixing source art issues.

Expert reality check (Sensory calibration)

Split-hooping is about controlling Drag and Drift.

• Drag: Heavy designs pull the fabric.
• Drift: Fabric relaxes when you un-hoop it.

Experienced operators treat the first hooping like pouring a concrete foundation. If the foundation cracks (or shifts), the house (the second hooping) will collapse.

Warning: Safety First. Keep fingers, scissors, and loose sleeves at least 6 inches away from the needle area when the machine is running or when you use the "Jog" feature on-screen. A multi-needle head moves at speeds up to 1000 stitches per minute (SPM). A small slip isn't just a ruined shirt; it's a trip to the emergency room.

Prep Checklist (Do this BEFORE you digitize)

• Verification: Measure your design height. Is it truly over 7 inches? (If it's 7.1", can you shrink it without losing detail? If not, proceed to split).
• Stabilizer Check: Are you using a heavy-weight Cut-Away (2.5oz or 3.0oz)? Do not use tear-away.
• Consumables: Do you have temporary adhesive spray (like 505) to bond the stabilizer to the fabric? This prevents "shifting" between layers.
• Template: Print a paper version of your design at 100% scale (1:1).
• Marking: Ensure your chalk contrasts with the fabric (White chalk on black fabric).
• Overlap Strategy: Identify a vertical line (like the rope) to use as your "Anchor."


Procreate + Reference Art: Fix the Missing Details Before You Commit to Stitch Data

The creator starts by dragging the reference manga image into Procreate to draw missing details—specifically adding an ear that was blocked by a tree in the original panel.

The Golden Rule: If the proper noun (the art) is bad, the verb (the stitching) will be bad. Do not rely on your digitizing software to invent details that aren't there. Draw them first. This ensures that your stitch direction and flow are based on anatomy, not guesswork.

Wilcom Digitizing: Split the File, Then Copy the Rope to Build a Registration Point You Can Actually Trust

In Wilcom (or your preferred software), the workflow is precise:

1. Import the image.
2. Digitize the First Half (Balloon head + Half of the rope).
3. Digitize the Second Half.
4. Crucial alignment technique: Copy the end of the rope from file #1 and paste it into the start of file #2.

That copied rope segment is your "Truth Line." When you load file #2, you will see exactly where the first file ended.

Expert Parameter: Ensure your overlap is at least 10mm (1cm). A 1mm overlap is too risky for beginners; give yourself room to breathe.

The video highlights sequencing: Neck → Rope → Face → Hair. If you move into using a magnetic embroidery frame later to speed up production, this principle remains: the frame holds the perimeter, but the digitizing order manages the internal push/pull of the fabric.

Paper Template + Taylor’s Chalk: The Low-Tech Placement Method That Beats Guessing Every Time

Before hooping, trace or print the design onto paper. Lay it on your garment. Mark the Center with a crosshair using Taylor’s chalk.

Why this feels boring but is essential: Digital screens lie about scale. A design that looks "huge" on a monitor might look "tiny" on a hoodie. The paper template is your tactile reality check. The crosshair you draw now is the only GPS coordinate you will have when the fabric is under the needle.

First Hooping on a Standard Tubular Hoop: Get It Tight, Get It Level, Don’t Overthink It

The first hooping is standard procedure, but with higher stakes.

1. Align the chalk crosshair with the hoop's plastic grid.
2. Press the inner ring into the outer ring.
3. Tactile Check: Tap the fabric. It should sound like a dull drum (thump-thump). If it ripples, it’s too loose. If you have to scream to tighten the screw, it’s too tight and you risk "hoop burn" (permanent crushing of fibers).

The Friction Point: Standard hoops require physical force to lock in thick fabrics. If you are doing this repeatedly for a brand drop, your wrists will fatigue, and fatigue leads to crooked hoops. This is exactly where magnetic hoops for babylock embroidery machines become a practical upgrade. They use magnetic force rather than mechanical friction to clamp, ensuring the fabric isn't dragged or distorted during the hooping process—a critical advantage when you have to hoop the same garment twice.

Setup Checklist (The "Pre-Flight" Check)

• File Check: Is "File 1 (Top Half)" loaded?
• Thread Check: Is the bobbin full? (Running out of bobbin thread during a split join is a nightmare).
• Physical Check: Is the hoop locked in? Shake it gently. It shouldn't rattle.
• Clearance: Is the fabric draped so it won't get caught on the pantograph arm?
• Speed Limit: Set your machine to 600-700 SPM. Do not run at max speed for split designs; accuracy matters more than speed here.


Running the First Half on the Baby Lock Enterprise: Stitch the Face Fill, Then Stop and Inspect Like a Pro

The machine stitches the first half. Once finished, do not pop the hoop off immediately. Inspect it while it is still attached (if possible) or immediately upon removal.

What you are looking for:

• Puckering: Is the fabric gathering around the stitches? (Sign of poor stabilization).
• Outline Registration: Did the black outline miss the white fill?
• The "Anchor": Look at the rope where the split will happen. Is it clean?

If the foundation is bad, stop. Do not waste time on the second half. Fix the variable (stabilizer or tension) and restart.

The “Clear the Runway” Move: Mark the Extension and Trim Stabilizer So the Second Hoop Can Sit Flat

Before re-hooping for part two:

1. Mark the fabric extension with chalk based on your template.
2. Trim the stabilizer from the first run.

The Nuance: You need to remove the bulk so the second hoop can clamp flat. However, do not cut the stabilizer flush to the stitches. Leave about 1/2 inch to 1 inch of stabilizer extending from the bottom of the first design. This acts as a bridge to ensure the fabric doesn't collapse right at the join.

The Hardest Part: Re-Hooping the Second Half So the Rope Overlaps (That Overlap Is Your Insurance Policy)

This is the moment of truth. You must re-hoop the fabric lower down. The Goal: The bottom of the first embroidery (the rope end) must sit inside the top sewing field of the new hoop.

Think of it like laying roof shingles. You need an overlap to prevent leaks. Here, you need an overlap to prevent visual gaps.

If you struggle with this step—if the fabric keeps slipping as you try to tighten the screw—this is a "Trigger Event" for upgrading your tools. Users often find that magnetic embroidery hoops make this significantly easier because the magnets snap into place instantly, freezing the fabric position without the "twist and tighten" struggle that shifts your alignment.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Do not place fingers between the brackets. Medical Alert: Keep strong magnets away from pacemakers and ICDs (maintain at least a 6-inch distance). Store magnets away from credit cards and phones.

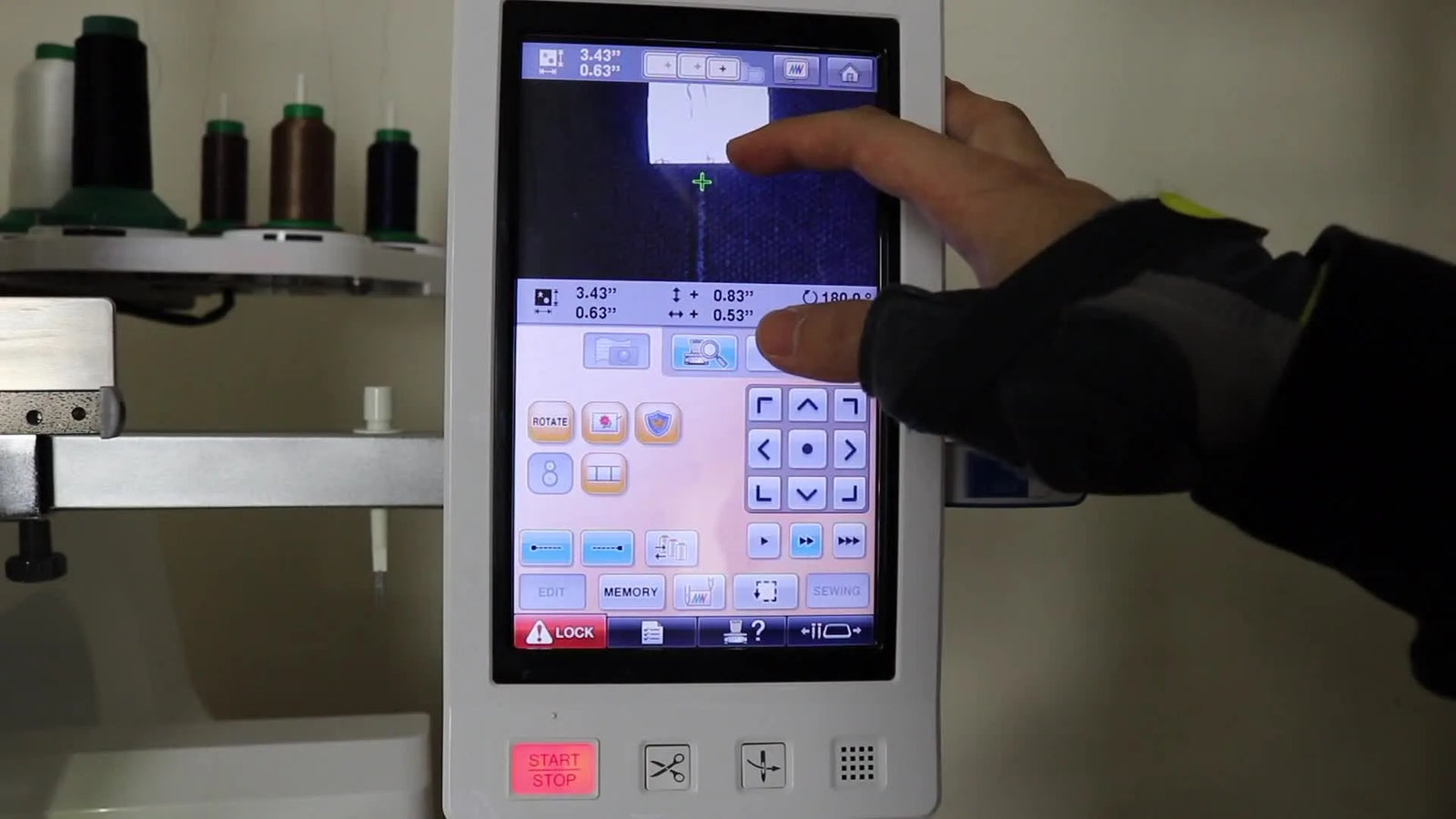

Camera-Assisted Registration on the Baby Lock Enterprise: Jog the Needle to the Rope End Until It “Clicks” Visually

Mount the hoop. Do not press start.

1. Engage the Camera / Sensor function on the Baby Lock.
2. Bring up the design file on screen.
3. Locate the "Start point" of the second file (the top of the rope).
4. Jog (Move) the needle until the crosshair on the screen matches the actual end of the stitched rope on the fabric.

Sensory Cue: You are looking for a seamless flow. It should look like one continuous line. If there is a gap on the screen, there will be a gap on the shirt.

If your shop does this volume, adding an embroidery hooping station to your workflow can help standardize where the fabric lands before it gets to the machine, reducing the amount of digital jogging you need to do.

The Join Check: Why a Slight Imperfection Happens (and How to Make It Invisible Next Time)

In the video, the creator admits the join looks "a little bit imperfect." Why?

• Scaling: They shrank the design, making the rope thinner.
• Alignment: A fraction of a millimeter drift.

Expert Fix for Next Time: When digitizing, apply "Pull Compensation" to the join area. Make the rope slightly wider (0.5mm) at the connection point. It is scientifically proven that embroidery shrinks (pulls in). If you digitize the join at exact width, gaps are inevitable. By digitizing it slightly wider, you create a "fudge factor" that allows the stitches to mesh together cleanly.

However, the creator's metric is valid: "From a distance, could hardly tell." Do not judge your embroidery with your nose touching the fabric. Judge it from 3 feet away.

Decision Tree: When to Split-Hoop vs. Redesign vs. Upgrade Your Hooping Workflow

Before committing 3 hours to a project, use this logic flow:

Start Here:

1. Does the design exceed the 7-inch vertical limit?
   • No: Stitch in one pass.
   • Yes: Proceed to Step 2.
2. Is there a natural place to hide the cut? (Rope, tree trunk, solid background).
   • Yes: Split-Hooping is viable.
   • No (e.g., cut is across a face): Redesign the art or scale it down. Do not split a face.
3. Is this a one-off or a production run?
   • One-off: Use standard hoops, paper templates, and patience.
   • Production Run (10+ items): You have a bottleneck.
     • Problem: Alignment takes too long. Sol: hooping station for embroidery.
     • Problem: Hooping leaves marks/burns. Sol: babylock magnetic embroidery hoops.
     • Problem: Design is too big for efficiency. Sol: Outsource or upgrade to a machine with a larger field (e.g., 14" clearance).

Troubleshooting the Split-Hooping Problems Everyone Hits (Structured Diagnostics)

What the video "skipped" (The In-Between Moves)

Videos often speed through the boring parts. You must not.

• The Wait: Let the fabric "rest" for a minute after hooping before stitching.
• The thread Trim: Manually trim the tail of the first stitch of the second file so it doesn't get sewn under the join.

The Upgrade Path: When Better Hooping Tools Turn Split Designs Into a Repeatable Business Skill

Split-hooping proves you can do big things with limited tools. But if your goal is profit, your enemy is time.

If you find yourself dreading the re-hooping process, or if you are discarding garments due to "hoop burn" or misalignment:

1. Level 1 Options: Better stabilizer, fresh needles, slowing down the machine.
2. Level 2 Options (Tooling): Upgrading to magnetic hoops eliminates the physical wrestling match and ensures the fabric stays flat without crushing fibers.
3. Level 3 Options (Scale): If you are splitting 50 shirts a day, you are losing money on labor. This is when heavy-duty multi-needle machines (like SEWTECH suggested configurations) become necessary to increase field size and speed.

Operation Checklist (The "Don't Ruin It Now" List)

• Physical: Is the excess fabric completely clear of the moving arm?
• Digital: Did you use the camera to verify the needle drop point?
• Visual: Does the screen show the rope lines connecting?
• Auditory: Listen to the first 100 stitches. Any snapping or grinding?
• Final: Trim all jump stitches gently around the join.


Final Result: Two Hoopings, One Continuous Junji Ito Hanging Balloons Embroidery

The finished piece demonstrates that constraints breed creativity. By using a split file, a re-hooping strategy, and camera-assisted alignment, a 7-inch limit was bypassed to create a full-back design.

You didn't just stitch a design; you executed a complex engineering sequence.

• Planned the overlap.
• Stabilized the structure.
• Aligned with technology.

Once you master this, the size of your hoop is no longer the limit of your imagination.

FAQ

• Q: How can Baby Lock Enterprise operators stitch a design taller than the 7-inch vertical travel limit without hitting the frame?
  A: Split the artwork into two files and plan a controlled overlap so the Baby Lock Enterprise never has to travel beyond 7 inches.
  • Measure the true design height first; if the design is only slightly over 7 inches, try scaling down before splitting.
  • Build a shared registration element (often a vertical “anchor” like a rope) that appears in both files.
  • Digitize an overlap of at least 10 mm (1 cm) so the second hooping can “capture” the end of the first stitch-out.
  • Success check: The anchor element (rope) looks clean and continuous at the planned join area after alignment.
  • If it still fails: Redesign the split location to a less noticeable area (solid background or vertical object), not across a face.
• Q: What stabilizer should be used for split-hooping dense designs on a Baby Lock Enterprise to prevent gaps at the join?
  A: Use heavy-weight cut-away stabilizer (often 2.5 oz or 3.0 oz) and avoid tear-away for dense split designs.
  • Switch to cut-away before troubleshooting anything else; tear-away perforations can allow separation during re-hooping.
  • Bond stabilizer to fabric with temporary adhesive spray (e.g., 505) to reduce layer shifting.
  • Leave 1/2 inch to 1 inch of stabilizer extending past the bottom of the first stitch-out when trimming, so the join area stays supported.
  • Success check: After the first half, the fabric stays flat with minimal puckering and the anchor line remains crisp.
  • If it still fails: Stop before running the second half and re-check hooping tension and fabric drift after un-hooping.
• Q: How can Baby Lock Enterprise operators judge correct hoop tightness for split-hooping without causing hoop burn?
  A: Hoop the fabric level and drum-firm (not tortured-tight) so the fabric holds position without permanent crushing.
  • Align the chalk crosshair to the hoop grid before tightening anything.
  • Tap the hooped fabric to confirm a dull “drum” feel; adjust if the fabric ripples.
  • Avoid over-tightening the screw (forcing it can crush fibers and cause hoop burn, especially on repeat hoopings).
  • Success check: The fabric surface stays flat with a consistent thump-thump sound, and the weave is not visibly crushed at the hoop ring.
  • If it still fails: Consider switching to magnetic hoops for repeat hoopings because they clamp without the twist-and-tighten shifting that can distort alignment.
• Q: What is the safest way to re-hoop the second pass on a Baby Lock Enterprise so the stitched rope overlap lands inside the new sewing field?
  A: Re-hoop lower and intentionally “shingle” the second hooping over the first by keeping the rope end inside the new stitch area.
  • Mark the extension area using a 1:1 paper template and Taylor’s chalk before moving the fabric.
  • Trim stabilizer bulk from the first run so the second hoop can sit flat, but do not trim flush to the stitches (leave a small stabilizer bridge).
  • Re-hoop so the bottom of the first embroidery (rope end) sits inside the top of the new field for a true overlap.
  • Success check: Before stitching file #2, the physical rope end clearly sits within the hoop’s active sewing zone (not just barely touching the edge).
  • If it still fails: Slow down and re-hoop again rather than “saving it” with extra jogging—alignment errors usually start at the hoop.
• Q: How should Baby Lock Enterprise camera-assisted registration be used to align the second split file to the stitched rope end?
  A: Use the Baby Lock Enterprise camera/sensor and jog the needle until the on-screen crosshair matches the real stitched rope endpoint exactly.
  • Mount the hoop and do not press Start until alignment is verified.
  • Load the second file and locate the start point at the top of the rope in the design.
  • Jog the needle position until the screen crosshair visually lands on the stitched rope end on the fabric.
  • Success check: The rope appears like one continuous line on-screen and on the fabric—no visible “jump” between parts.
  • If it still fails: Re-check that the overlap segment was copied consistently between files and confirm the fabric did not drift during re-hooping.
• Q: How can Baby Lock Enterprise split-hooping operators prevent a visible gap at the join line between two hoopings?
  A: Treat a visible join gap as fabric/stabilizer movement first, then add controlled compensation at the join on the next run.
  • Upgrade stabilization: Use heavier cut-away and add temporary spray adhesive to prevent shifting.
  • Increase the safety margin: Keep at least a 10 mm (1 cm) overlap so tiny drift does not create a hole.
  • Adjust digitizing for next time: Apply pull compensation at the join by making the rope slightly wider (about 0.5 mm) at the connection point.
  • Success check: From about 3 feet away, the join is visually continuous and not obvious (don’t judge with your nose on the fabric).
  • If it still fails: Stop running production and redo the split location to a better “hide zone” (rope/tree/solid background).
• Q: What safety rules should Baby Lock Enterprise operators follow when jogging the needle and running split-hooping at 600–700 SPM, and what extra safety applies to magnetic hoops?
  A: Keep hands and loose items well away from motion (minimum 6 inches) during jogging and stitching, and treat magnetic hoops as pinch hazards.
  • Keep fingers, scissors, and sleeves at least 6 inches away from the needle area during run and while using Jog.
  • Run split designs slower (about 600–700 SPM) for accuracy, and listen closely to the first stitches at the join.
  • Handle magnetic hoops carefully: Never place fingers between magnetic brackets; magnets can pinch hard.
  • Success check: The first 100 stitches sound smooth (no snapping/grinding), and hands never need to enter the needle zone while the head is active.
  • If it still fails: Pause the machine, clear the area, and re-check fabric drape so nothing can snag the pantograph arm; for magnets, keep them away from pacemakers/ICDs and sensitive items per standard safety guidance.
