Square-in-a-Square ITH Quilt Blocks on a Brother Luminaire XP1: The Sew-and-Flip Workflow That Stays Accurate (and Keeps Your Machine Clean)

Title: Mastering ITH Piecing: A Precision Guide to the Square-in-a-Square Block on the Brother Luminaire

If you have ever attempted In-the-Hoop (ITH) piecing and found yourself staring at a crooked block, wondering, “Why does my fabric drift when the machine is supposed to be perfect?”—you are not alone. Machine embroidery is an exact science, but fabric is a fluid variable.

As someone who has spent two decades diagnosing embroidery failures, I can tell you that a perfect Square-in-a-Square block isn't about luck; it is about controlled tension and process discipline. This project is the ultimate teacher because it demands two things: accurate placement lines (digital precision) and careful handling (human touch).

In this white paper-style guide, we will reconstruct the workflow for the Brother Luminaire Innov-is XP1 using a 5x7 hoop. We will combine a quilting background (“Wavy 2”) with a structural piecing design. More importantly, we will apply industrial-standard "best practices" to ensure your seams remain crisp, your machine stays clean, and your frustration levels remain at zero.

The Mechanics of ITH: Understanding the Digital "Jig"

Before we thread the needle, you must understand the physics of what we are doing. In traditional quilting, you use a fluctuating ¼-inch seam allowance. In ITH quilting, the machine creates a digital jig.

The machine stitches:

1. A Placement Line: This is your target.
2. A Tack-down Line: This is your anchor.

Your role is to align the fabric so the "hinge" (the seam) sits exactly on that target. If you miss the target by 1mm on the first strip, the error compounds mathematically. By the fourth strip, your block will be skewed. This guide focuses on eliminating that drift.

The workflow presented here uses a "Late-Stage Quilting" strategy: we load both designs but skip the quilting initially, perform the piecing, and return to quilt at the end. This prevents Surface Tension Distortion—a common rookie error where pre-quilted fabric pulls the subsequent piecing layers out of alignment.

Phase 1: The "Hidden" Prep & Safety Protocols

The success of an embroidery project is determined 90% in the preparation phase and 10% in the actual stitching.

The "Hidden Consumables" List

Most user manuals miss the items that actually save the day. Ensure you have these beside your machine:

• Curved Embroidery Snips: Essential for trimming batting close without snipping the base thread.
• Fresh Needle (Size 75/11 or 90/14): A dull needle pushes fabric into the bobbin case rather than piercing it cleanly.
• Micro-Vacuum Attachment or Lint Roller: ITH piecing creates significant "fuzz."
• Non-Permanent Adhesive: Odif 505 (spray) or a high-quality glue stick.


The Adhesive Protocol: Protecting Your Investment

The video demonstration uses spray adhesive. However, as an educator, I must enforce a strict safety boundary here.

Warning: Never, under any circumstances, spray adhesive while the hoop is attached to the machine. Overspray settles on the needle bar and gears, eventually turning into a cement-like sludge that requires a technician to remove. Always remove the hoop to spray, or use a shield.

Physics of Hooping: The "Neutral Tension" Zone

For ITH piecing, we are using Muslin (calico) as a base. It acts as the "foundation paper."

• The Goal: Drum-tight but not distorted.
• The Sensory Check: Tap the hooped muslin. It should sound like a dull thud. If you pull the grid lines on the muslin and they curve, you have over-tightened (Hoop Burn). If the fabric ripples when you touch it, it is too loose.

If you struggle with consistent tension, this is often where tools like a hooping station for machine embroidery become valuable, as they hold the outer ring static while you apply even pressure to the inner ring, ensuring the muslin grain remains perfectly straight.

Prep Checklist (Pre-Flight Verification)

• Hoop Check: Muslin hooped in strictly 5x7 hoop with grain straight.
• Consumable Check: Batting scrap cut to 5" x 5"; Fabrics pre-cut oversized.
• Thread Check: White thread in bobbin (60wt or 90wt); Matching thread on top.
• Sensor Check: Ensure the bobbin area is free of lint from previous projects.
• Adhesive Plan: Designated spraying box away from the machine OR glue stick ready.


Phase 2: Design Setup & Intelligent Sequencing

On the Brother Luminaire XP1 screen, we are manipulating the boot order of the file to favor physics over software logic.

1. Load "Wavy 2": (Quilting layer). Size 4x4.
2. Add "Square in a Square": (Piecing layer).
3. The Mental Flag: We are skipping the first steps of the quilting file.


The "Sweet Spot" Speed Setting

While your machine might run at 1050 SPM (Stitches Per Minute), precision piecing requires control.

• Recommended Speed: 600 - 700 SPM.
• Why: At high speeds, the momentum can cause the fabric to flag (bounce) right before the needle penetrates, leading to micro-misalignments in your corners. Slow down to gain accuracy.

Phase 3: The Execution (Step-by-Step with Sensory Anchors)

Step 1: Batting Placement (The Foundation)

The machine stitches a box. You spray the batting scrap and place it.

• Action: Run the tack-down stitch.
• The Trim: Use curved snips. You want to trim extremely close.
• Sensory Anchor (Tactile): Rest the curve of the scissors against the batting. You should feel the metal blade gliding slightly above the muslin base. You want to shear the batting fibers, not cut the muslin threads.


Step 2: Center Square Appliqué

Stitch placement -> Tack down center fabric -> Trim.

• Visual Check: Look at the trim from a low angle. Are there "whiskers" of fabric sticking up? Trim them down. If they remain, they will create a shadow or lump under the light green strips later.


Step 3: The Sew-and-Flip (The Critical Hinge)

This is where 80% of failures occur.

1. Action: Place the green strip Right Sides Together (RST).
2. Alignment: Align the raw edge exactly with the stitched placement line.
3. Stitch: The machine stitches the seam.
4. Flip & Press: Fold the fabric over and finger press.




The "Fingernail" Press Technique: Do not just pat the fabric. Use a plastic pressing tool or your fingernail to crease the fold firmly.

• Sensory Anchor (Sound): You should hear a faint "scratching" sound as you define the crease. If the fabric feels puffy or spongy at the fold, the seam is not flat enough. This will cause the next piece to be short.

Step 4: Repetition & The "Drift" Check

Repeat for all four sides. After every flip, pause.

• Visual Check: Does the green fabric extend at least ¼ inch past the next placement line? If it is short, stop. You cannot stretch it to fit; you must rip the seam and re-place it.


Warning: When handling the hoop for trimming or pressing, keep your fingers well away from the start button. Serious injuries occur when embroiderers lean on the "Go" button while their other hand is smoothing fabric near the needle.

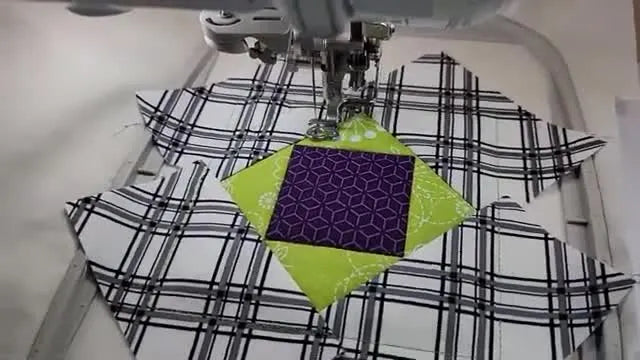

Step 5: Diagonal Plaid Corners (Working on Bias)

You are now placing fabric on the diagonal.

• Risk: Bias edges stretch easily.
• Technique: When placing the plaid fabric, lay it down gently. Do not pull or tug to make it reach the line. Let it "float" into place.






Step 6: The Quilting Comeback

Now, navigate back to the beginning of the stitch sequence to the "Wavy 2" design. Stitch the quilting over your perfectly flat, pieced block.

• Why this works: The block is now one solid unit. The quilting stitches (Step 5 in the video logic) will sink into the batting, creating texture without dragging the individual pieces out of square.


Step 7: Squaring Up

Remove hoop -> Remove stabilizer -> Press.

• The Cut: Use a 4.5" x 4.5" square ruler.
• Visual Anchor: Ensure the embroidery design is centered. The actual seam allowance is the empty space outside the piecing.




Decision Tree: Fabric Genius

Not all materials behave like the quilting cotton in this video. Use this logic to adapt.

1. Are you using Standard Quilting Cotton?
   • YES: Use Standard Muslin Base + 505 Spray.
   • NO: Proceed to question 2.
2. Is the fabric stretchy (Knits/Jersey)?
   • YES: STOP. You must use a Cutaway Stabilizer base (Muslin will not work). You must use fusible interfacing (like SF101) on the back of your knit pieces to stop them from stretching during the "Flip."
3. Is the fabric bulky (Fleece/Velvet)?
   • YES: Skip the batting scrap (the fabric is the batting). Trim seams at an angle to reduce bulk buildup. Speed machine down to 400 SPM.

Troubleshooting: The "Why Did That Happen?" Guide

When things go wrong, do not blame the machine immediately. Follow this Low-Cost to High-Cost diagnosis path.

The Commercial "Upgrade Path": Solving the Workflow Bottleneck

If you are making one block, the standard 5x7 hoop is perfectly adequate. However, if you are planning a full Queen-size quilt (requiring 80+ blocks), the standard hoop mechanism becomes your primary pain point.

The Problem: Wrist Fatigue and Hooping Drift

The repetitive motion of unscrewing, re-hooping muslin, and tightening screws 80 times is not just tedious—it causes "Hoop Drift." As your hands get tired, you tighten the screw less, and the muslin starts to slip.

The Solution: Magnetic Systems

For production efficiency, this is where professionals switch to a magnetic embroidery hoop.

• Level 1 (Speed): A brother 5x7 magnetic hoop allows you to clamp the muslin instantly without fiddling with screws. The magnets hold consistent tension automatically, removing human fatigue from the equation.
• Level 2 (Workflow): For Luminaire owners, specific magnetic hoops for brother luminaire allow for easier re-adjustments. If a piece requires trimming, popping the top magnet off to access the fabric is significantly faster than unscrewing a traditional outer ring.
• Level 3 (Scaling Up): If you are moving into mass production, combining these hoops with hooping stations ensures that every single one of your 80 blocks starts with the exact same grain alignment, something nearly impossible to do by eye alone after 4 hours of work.

Warning (Safety): Magnetic hoops use powerful Neodymium magnets. They represent a severe pinch hazard. Do not use if you have a pacemaker without consulting a doctor. Keep fingers clear of the snapping zone.

Even if you are looking for a smaller brother 4x4 embroidery hoop equivalent for smaller blocks, the principle remains: efficient clamping equals consistent tension, which equals perfect squares.

Operation Checklist (Post-Flight)

• Clean: Wipe the bobbin case area (remove lint from batting).
• Inspect: Check the needle tip (run it over a fingernail; if it catches, bin it).
• Square: Verify your final block is exactly 4.5" x 4.5".
• Log: Record which density/stabilizer combo worked for this fabric in your notebook.

Mastering the Square-in-a-Square is a rite of passage. It transforms you from someone who "hopes for the best" to someone who "engineers the result." Precision is not an accident; it is a habit.

FAQ

• Q: What is the safest way to use spray adhesive (Odif 505) for Brother Luminaire Innov-is XP1 ITH piecing without contaminating the machine?
  A: Never spray adhesive with the hoop attached to the Brother Luminaire Innov-is XP1—remove the hoop first or use a shield to prevent overspray buildup.
  • Move the hoop to a separate spray box/area away from the machine before spraying.
  • Apply light, even adhesive to the batting or fabric, then return to the machine to stitch the tack-down.
  • Clean lint and residue around the bobbin area after ITH work to prevent sticky buildup.
  • Success check: The needle shaft stays clean (no gummy feel), and stitches form without skipping.
  • If it still fails: Switch to a glue stick (non-permanent) and wipe the needle with alcohol if skipping starts.
• Q: How tight should muslin be hooped in a Brother 5x7 embroidery hoop for Brother Luminaire Innov-is XP1 ITH piecing to prevent fabric drift?
  A: Hoop the muslin “drum-tight but not distorted” so the fabric is stable without stretching the grain.
  • Tap the hooped muslin to gauge tension before stitching any placement lines.
  • Re-hoop if muslin grid lines curve (over-tight/hoop burn) or if the surface ripples when touched (too loose).
  • Keep the muslin grain straight while tightening to avoid built-in skew.
  • Success check: The tap test sounds like a dull thud, and the muslin surface stays flat when lightly brushed.
  • If it still fails: Use a hooping station to hold the outer ring steady so even pressure can be applied consistently.
• Q: What sewing speed should Brother Luminaire Innov-is XP1 use for ITH Square-in-a-Square piecing in a 5x7 hoop to avoid corner misalignment?
  A: Slow the Brother Luminaire Innov-is XP1 down to about 600–700 SPM for precision piecing instead of running at maximum speed.
  • Reduce speed before the sew-and-flip seams, where small shifts compound quickly.
  • Pause between sides to verify each flipped piece covers the next placement line.
  • Keep handling gentle to avoid “flagging” (fabric bounce) right before needle penetration.
  • Success check: Corners land consistently and the strips stay at least 1/4" past the next placement line after flipping.
  • If it still fails: Stop and re-stitch the first drifting seam—small early errors compound by the fourth side.
• Q: Why do gaps appear between strips during Brother Luminaire Innov-is XP1 ITH sew-and-flip Square-in-a-Square piecing, and how do I fix them?
  A: Gaps usually mean the fold was not pressed flat enough—rip the seam and re-stitch with a firmer finger-press before continuing.
  • Place the strip Right Sides Together and align the raw edge exactly to the stitched placement line.
  • Flip and crease the fold firmly using a fingernail or pressing tool (don’t just pat it down).
  • Verify coverage before stitching the next side—do not “stretch to fit.”
  • Success check: The flipped fabric lies crisp and flat (not puffy/spongy) and fully clears the next placement line.
  • If it still fails: Use a seam roller or a mini-iron technique in the hoop to flatten the hinge consistently.
• Q: What causes a Brother 5x7 hoop to pop or fabric to slip during Brother Luminaire Innov-is XP1 ITH piecing, and what is the fastest correction?
  A: Hoop popping and slipping usually come from loose hoop tension—re-hoop with fresh muslin and tighten the hoop screw beyond finger-tight (gently).
  • Remove the hoop and re-seat the muslin with grain straight before restarting the design.
  • Tighten the screw with a screwdriver carefully for consistent clamp pressure.
  • Avoid continuing once drift starts—misalignment will compound across the block.
  • Success check: The muslin stays flat with no shifting when you smooth fabric, and placement lines remain aligned after multiple trims/presses.
  • If it still fails: Consider a magnetic hoop system to remove screw-tightening variability and fatigue over repeated hoopings.
• Q: What is the main needle-hand safety rule when trimming or pressing inside a Brother Luminaire Innov-is XP1 hoop during ITH piecing?
  A: Keep hands away from the start button and needle area whenever handling the hooped fabric—accidental starts cause serious injuries.
  • Stop the machine before trimming, pressing, or repositioning fabric in the hoop.
  • Keep one hand controlling the hoop and the other away from the needle path and controls.
  • Clear rulers/snips completely before pressing start to avoid broken needles.
  • Success check: Hands never cross under the needle area while the machine is capable of starting.
  • If it still fails: Build a habit of removing the hoop from the machine for longer trimming/pressing steps.
• Q: What is the safe workflow upgrade path for repetitive Brother Luminaire Innov-is XP1 ITH blocks when hooping fatigue causes drift: technique, magnetic hoop, or production machine?
  A: Use a tiered approach—optimize technique first, then upgrade to magnetic hoops for consistent clamping, and only then consider higher-capacity equipment if volume demands it.
  • Level 1 (Technique): Slow to 600–700 SPM, re-check coverage after every flip, and re-hoop muslin at the first sign of slip.
  • Level 2 (Tool): Use a Brother-compatible magnetic hoop to clamp muslin quickly and consistently without screw fatigue (faster access for trimming, too).
  • Level 3 (Scaling): Add a hooping station to standardize grain alignment across many blocks when repetition is high.
  • Success check: Blocks remain square and consistent from the first hooping to the last without increasing drift as hands get tired.
  • If it still fails: Reduce handling steps (less in-hoop pressing/trim time) and re-evaluate stabilizer/fabric choices for the project.
• Q: What magnetic hoop safety warning applies when using Brother-compatible magnetic hoops for Brother Luminaire Innov-is XP1 ITH work?
  A: Magnetic hoops use powerful neodymium magnets—treat them as a pinch hazard and do not use them with a pacemaker without medical guidance.
  • Keep fingers out of the snapping zone when seating the top frame.
  • Clamp slowly and deliberately; do not let the magnets “slam” shut.
  • Store magnets safely so they cannot attract tools or pinch unexpectedly.
  • Success check: The hoop closes with controlled placement and no finger contact near the magnet edges.
  • If it still fails: Return to a standard screw hoop until safe handling habits are established.
