Stitch, Snap, Sell: A 6x10 ITH Vinyl Tissue Holder Cover That Actually Comes Out Clean

Here is the comprehensive, expert-level guide, calibrated for beginners yet built on industrial principles.

Mastering the ITH Vinyl Tissue Holder: A Zero-Friction Guide

If you’ve ever watched a “quick in-the-hoop (ITH) project” turn into a crooked, wrinkled, snap-misaligned mess, you are not alone. Vinyl is an unforgiving medium: it doesn't press like cotton, it highlights every wobble in your tension, and once you punch a hole for a snap, there is no “undo” button.

However, this tissue holder cover remains the perfect entry point for vinyl embroidery. Why? Because the construction is technically only two steps on the machine. The success of this project doesn't depend on complex digitization—it depends entirely on how you prep, how you float, and how you finish.

As a veteran of the commercial embroidery floor, I approach this not just as a craft, but as a mini-engineering challenge. Let’s break it down with professional precision so you get a sellable result on your very first try.

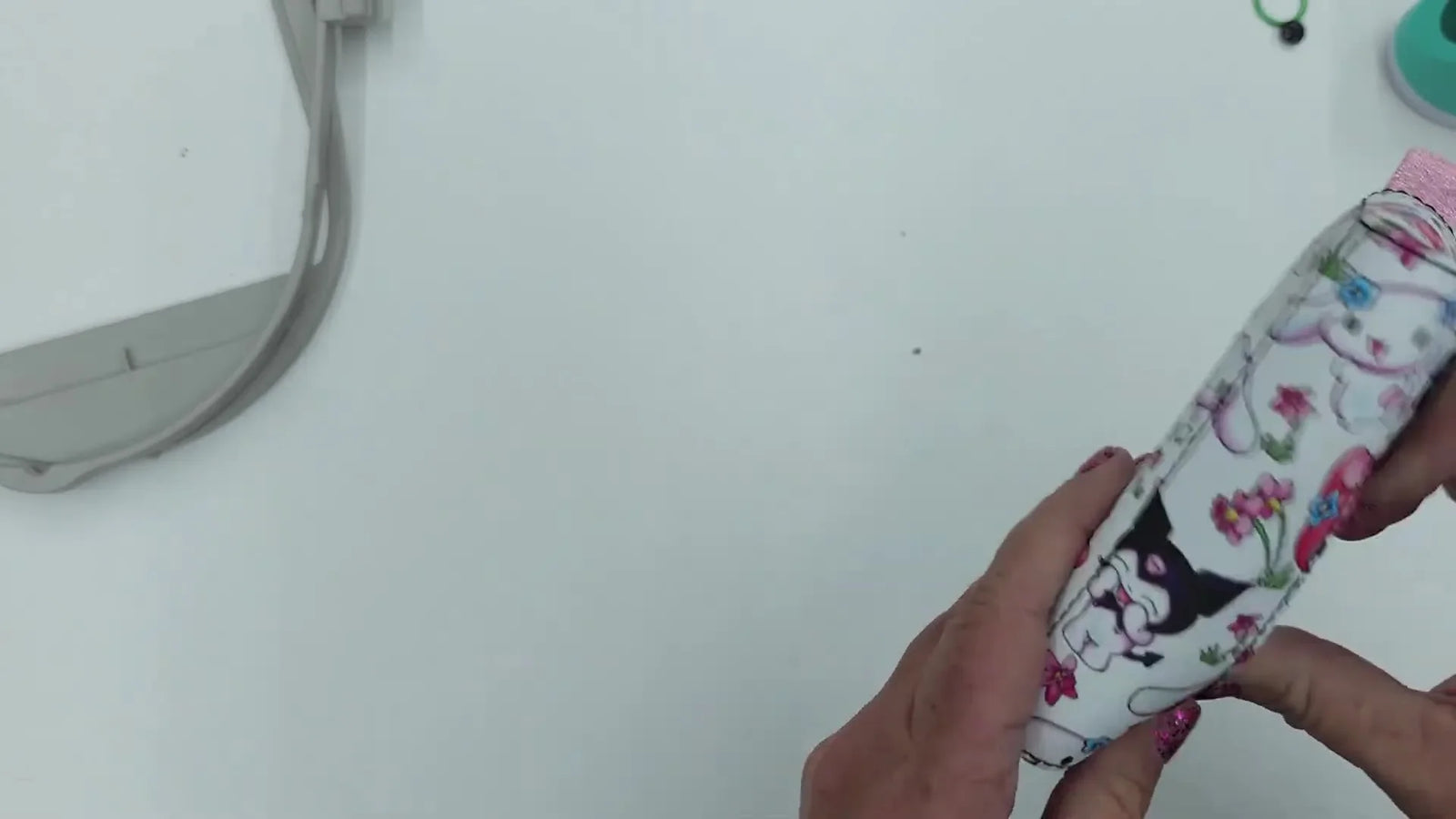

The Finished Project: Why This is Your Ideal "First Win" with Vinyl

This project creates a structured cover for pocket tissue packs. It is a "scrap buster" (perfect for those odd 8-inch off-cuts of vinyl) and a high-margin gift item.

The engineering logic is simple:

1. Skeleton: A placement stitch runs on bare stabilizer to define the boundaries.
2. Skin: You float (place on top) the backing and the top vinyl.
3. Assembly: The machine runs a final beam stitch to lock the layers, creating the finished "seams."

Crucial Constraints: This specific design was engineered for a 6x10 hoop. Do not attempt to resize this significantly down for a 5x7 hoop using auto-software; the fold tolerances will disappear, and your tissue pack simply won't fit.

The Supply Table: Operational Readiness

In professional embroidery, downtime is caused by looking for scissors, not by sewing. Prepare your station fully before the machine is turned on.

The "Hidden" Consumables List

Beyond the basics, you need specific tools to handle vinyl without tears or frustration:

• Needles: Size 75/11 Sharp or specific Needles for Vinyl. Standard ballpoints struggle to pierce vinyl cleanly.
• Tape: Paper tape (surgical tape) or painter's tape. Scotch tape leaves residue that gummies up needles.
• Scissors: Double-Curved Applique Scissors (Duckbill) are highly recommended for trimming close without snipping the stitches.

The Standard Supply List

• Standard plastic 6x10 embroidery hoop (or a Magnetic Hoop for easier handling).
• Tear-Away Stabilizer: Medium weight (1.5 - 2.0 oz).
• Main Vinyl: Cut to 7" x 9".
• Lining/Backing: Oly-Fun, thin felt, or non-fraying fabric.
• Hardware: Plastic snaps (Size 20 is standard), Awl, Snap Pliers.
• Tab Material: Fold-over elastic (FOE) or grosgrain ribbon.

Note for Machine Owners: When selecting your equipment, ensure your machine can accommodate an embroidery machine 6x10 hoop. Attempting to split this design into multiple 5x7 hoopings is an advanced technique not recommended for this specific project.

Phase 1: Preparation & The "Drum Skin" Standard

Before a single stitch is formed, we must ensure stability. Vinyl is heavy; if your stabilizer is loose, the needle drag will distort the shape (registration errors).

Stabilizer Protocol

Square your tear-away stabilizer in the hoop. Tighten the screw. Now, tap it with your finger.

• Sensory Check (Auditory): It should sound like a drum skin—a tight thump.
• Sensory Check (Tactile): Press the center. It should not deflect more than a few millimeters.

Machine Settings (The "Sweet Spot")

Standard machines often default to 800+ SPM (Stitches Per Minute). Slow down.

• Speed: Set to 500-600 SPM. Vinyl creates friction; high speed creates heat, which can melt the adhesive on the tape or the vinyl itself, causing thread breaks.

Prep Checklist (Pre-Flight Safety Check)

• Bobbin: Is it at least 50% full? (Running out mid-seam on vinyl leaves a visible hole).
• Needle: Is it a fresh, sharp needle? (Burrs on old needles will shred vinyl).
• Clearance: Is the area behind the machine clear? (The 6x10 hoop moves far back; don't let it hit the wall).
• Tools: Are the tape and scissors strictly within arm's reach?


Phase 2: The Blueprint Stitch

Load your design. The first step uses your stabilizer as a drafting board.

Action:

Run Color Stop 1 directly onto the bare tear-away stabilizer.

Outcome:

You will see a stitched outline of the tissue holder. This is your Absolute Truth. If your vinyl does not cover this line by at least 1/2 inch on all sides, you will fail later.

Pro-Tip: If you are new to the floating embroidery hoop technique, use a ruler to measure this outline now. This confirms your pre-cut vinyl is actually large enough before you commit the material.

Phase 3: The Tab (The High-Risk Moment)

This is the most common point of failure. The tab connects the holder to a keyring.

The Problem:

Intuition tells you to place the loop pointing out. This is wrong. This project is stitched inside-out relative to the finish.

Action:

1. Cut 3 inches of ribbon/elastic. Fold it to make a loop.
2. Place the raw cut edges against the edge of the stitched outline (where the seam will be).
3. Point the loop inward, toward the center of the stabilizer.
4. Tape it down heavily. Tape the ends and the loop. You do not want the machine foot to catch the loop and flip it over.

Warning: Keep your fingers clear of the needle zone while taping. Never try to adjust tape while the machine is ready to sew. A standard embroidery machine has enough torque to puncture a finger easily.

Phase 4: Floating the Backing (The "Under" Layer)

We now build the sandwich.

Action:

1. Remove the hoop from the machine, but do not un-hoop the stabilizer.
2. Flip the hoop over.
3. Center your lining material (Oly-Fun or felt) over the stitched outline on the back.
4. Tape all four corners securely. If the backing droops, it will get caught in the bobbin case.


Phase 5: Floating the Top Vinyl (The "Over" Layer)

Flip the hoop right-side up.

Action:

Place your main vinyl piece right-side up, completely covering the placement stitch and the tab. Tape the corners.

The "Hoop Burn" Reality

This method of "floating" materials on top of the hoop is popular because hoarding thick vinyl in a standard plastic hoop often results in "hoop burn"—permanent creases or white stress lines on the fabric.

If you find yourself battling to close the hoop or seeing these marks, this is a clear signal to upgrade your tooling. Many professionals switch to generic or branded magnetic embroidery hoops for this exact reason. Magnets bold the material firmly without the crushing force of a thumbscrew mechanism, keeping the vinyl pristine.

Phase 6: The Construction Stitch

Return the hoop to the machine. Ensure the floating backing underneath hasn't folded over.

Action:

Run the final construction steps. This will stitch through all three layers: Top Vinyl, Stabilizer, and Backing.

• Sensory Check (Sound): Listen for a rhythmic thump-thump. If you hear a sharp slap or grinding noise, hit STOP immediately—your needle may be struggling to penetrate the layers.

Optional Markers:

The design may stitch small circles to show you where to place snaps. This is helpful, but optional if you prefer to measure manually later.

Phase 7: Removal and "The Pop"

Remove the hoop. Tear the project away from the stabilizer.

• Technique: Support the stitches with your thumb while tearing the paper away. Don't just yank the vinyl, or you might stretch the warm needle holes.


Phase 8: Trimming (Precision Finish)

Bad trimming screams "amateur." Good trimming looks like "die-cut."

Action:

Trim approximately 1/8" to 1/4" away from the stitch line.

• The Tab Hazard: Locate the tab before you cut. It is buried between layers. Verify its location visually and by feel. Do not cut through it!
• Tool: Use long, smooth cuts with your scissors. Jagged "chew marks" on vinyl edges cannot be fixed.


Phase 9: Hardware Installation (The Snap Logic)

Snaps have two parts: the Stud (Male/Outie) and the Socket (Female/Innie).

The Logic Check:

1. Use your Awl ("The Pokey Tool") to pierce the marked holes.
2. Fold the project into its finished shape.
3. Visually confirm which side needs the Cap and which needs the Stud/Socket.
4. Rule of Thumb: The smooth "Cap" usually goes on the outside of the flap for aesthetics.






Setup Checklist (Snap Installation)

• Holes: Cleanly punched? (Ragged vinyl can interfere with snap closure).
• Alignment: Fold the flap down. Do the holes line up perfectly?
• Parts: Do you have 2 Caps, 1 Socket, and 1 Stud ready?
• Tool: Is your snap press adjusted correctly? (Too tight cracks the snap; too loose means it falls off).


Phase 10: The Stress Test

Snap it closed. Insert a tissue pack. Shake it.

Success Metrics:

1. Closure: Snaps should click firmly but open without stretching the vinyl to the breaking point.
2. Fit: The tissue pack should slide in with slight resistance (friction fit) but not buckle the case.
3. Finish: No white stress marks on the vinyl from the machine or hoop.




Operation Checklist (Final QC)

• No "bird's nests" (tangles) of thread on the back / inside lining.
• The tab loop is securely caught in the seam (pull on it firmly).
• Edges are smooth to the touch (no sharp plastic spikes).
• The stabilizer is completely removed from the inside pocket.


Advanced Theory: Why We Do It This Way

The Physics of "Floating"

We float vinyl because it creates Zero Hoop Tension on the fabric itself. When you hoop vinyl tightly, you stretch it. When you stitch on stretched vinyl, it retracts when un-hooped, causing puckering. Floating ensures the material is in a relaxed state during stitching.

The Role of Magnetic Staging

If you begin to produce these in volume (batches of 10, 20, or 50), taping becomes the bottleneck. This is where embroidery hoops magnetic shine. By using magnets to hold the floating stabilizer and vinyl, you reduce setup time by 30-40% per unit and eliminate the need for sticky tape that gums up needles.

Troubleshooting: The "Why Did This Happen?" Guide

Decision Tree: Choosing the Right Inner Lining

The backing material determines the feel and functionality of the product.

• IF you want a sleek, thin profile and lowest cost...
  • THEN use Oly-Fun or spun-bond polypropylene. (Best for bulk gifts).
• IF you want a premium, wipeable interior...
  • THEN use a layer of thin vinyl or waterproof canvas. (Best for sale items).
• IF you want a soft, protective feel...
  • THEN use stiffened felt. (Ideal if storing items like sunglasses instead of tissues).
• IF you are using stretchy knit scraps...
  • THEN STOP. Do not use knits for lining unless you interface them first (SF101). They will stretch and distort the snaps.

Scaling Up: From Hobby to Production

If you sell 50 of these, you will quickly realize that a single-needle machine and screw-tightened hoops are your limiting factors.

Level 1: Workflow Upgrade

Invest in a hooping station for embroidery machine setup. These devices hold your hoop and stabilizer rigid while you align materials. Even a basic hoop master embroidery hooping station style workflow ensures that every single tissue holder is centred exactly the same way, reducing rejects.

Level 2: Tooling Upgrade

For repetitive floating techniques, magnetic hoops for embroidery machines are the industry standard for speed. They convert the "loosen screw, alignment, tighten screw, pull taut" cycle into a simple "Click-and-Go" motion.

Warning: Magnet Safety. Industrial magnetic hoops contain powerful Neodymium magnets. They can pinch fingers severely and must be kept at least 6 inches away from pacemakers. Do not place them on top of laptops or tablets.

Level 3: Equipment Upgrade

When you are turning away orders because you can't stitch fast enough, look at multi-needle machines (like the SEWTECH line). These allow you to set up multiple thread colors without stopping to change spools, and they offer higher sewing speeds with better tension control on thick materials like vinyl.

By checking your prep, respecting the materials, and using the right tools, you turn a frustrating craft into a reliable manufacturing process. Happy stitching.

FAQ

• Q: Which needle type and needle size should be used for an ITH vinyl tissue holder on a home single-needle embroidery machine?
  A: Use a fresh size 75/11 Sharp needle (or a needle made for vinyl) to pierce vinyl cleanly without shredding or over-perforating.
  • Install: Change to a new 75/11 Sharp before starting; avoid worn needles that can have burrs.
  • Avoid: Do not use a 90/14 needle for this project because the holes can become too large and “tear-out” can happen.
  • Pair: Use paper/surgical tape or painter’s tape; avoid tapes that leave sticky residue on the needle.
  • Success check: The needle penetrates with a steady rhythm and the vinyl holes look clean—not torn or “cut-out.”
  • If it still fails… Switch to a Titanium or Non-Stick needle and reduce friction by applying a tiny amount of silicone-based thread/needle aid (follow the product directions).
• Q: How tight should tear-away stabilizer be hooped for an ITH vinyl tissue holder in a 6x10 embroidery hoop?
  A: Hoop medium tear-away stabilizer to a “drum skin” tightness so the placement outline stays true and the vinyl does not stitch crooked.
  • Tighten: Square the stabilizer in the hoop and tighten the screw firmly.
  • Tap: Perform the drum test before stitching anything.
  • Support: Add a non-slip shelf-liner strip between hoop rings if stabilizer tends to slip.
  • Success check: Tapping the hooped stabilizer makes a tight “thump,” and pressing the center deflects only a few millimeters.
  • If it still fails… Re-hoop with fresh stabilizer and re-check that the hoop screw is fully tightened before running Color Stop 1.
• Q: What is the safe stitch speed (SPM) for embroidering vinyl on an ITH tissue holder to reduce thread breaks and heat buildup?
  A: Slow the embroidery machine down to about 500–600 SPM as a safe starting point to reduce friction heat and thread breaks on vinyl.
  • Set: Reduce speed before stitching the construction steps through multiple layers.
  • Watch: If tape adhesive starts getting gummy or thread begins snapping, slow down further.
  • Prep: Confirm the bobbin is at least 50% full to avoid a mid-seam stop that leaves visible holes in vinyl.
  • Success check: Stitching sounds steady without harsh slapping/grinding and completes without repeated thread breaks.
  • If it still fails… Check needle condition and tape choice first; adhesive buildup is a common cause of shredding.
• Q: How should the keyring tab loop be oriented and taped for an ITH vinyl tissue holder so the embroidery foot does not flip it?
  A: Place the tab with the loop pointing inward (toward the design center) and tape it down heavily so it cannot lift or flip during stitching.
  • Cut: Make a 3-inch piece of ribbon/elastic and fold into a loop.
  • Place: Put raw ends on the edge of the stitched outline where the seam will run, with the loop inside the outline.
  • Tape: Secure both raw ends and the loop firmly; do not rely on light taping.
  • Success check: Before stitching, the loop stays flat when the hoop is moved and cannot be nudged into the needle path.
  • If it still fails… Stop immediately if the foot catches the loop; re-tape and ensure the loop is not protruding beyond the stitch boundary.
• Q: How do you float the backing layer under the hoop for an ITH vinyl tissue holder without causing bobbin-case snags?
  A: Flip the hooped stabilizer over, center the lining on the back, and tape all four corners so nothing droops into the bobbin area.
  • Remove: Take the hoop off the machine without un-hooping the stabilizer.
  • Flip: Turn the hoop over and align the backing over the stitched outline.
  • Tape: Secure all corners tightly; eliminate any sagging fabric.
  • Success check: With the hoop back on the machine, the underside layer stays flat and never brushes the bobbin area during movement.
  • If it still fails… Re-tape with stronger paper/painter’s tape and trim/resize the backing so excess material cannot fold inward.
• Q: What causes thread shredding or a needle that “sticks” when stitching vinyl in an ITH embroidery project, and what is the fastest fix?
  A: The most common cause is adhesive buildup from tape or vinyl friction; switch to a Titanium/Non-Stick needle and reduce needle drag.
  • Clean: Remove adhesive sources (avoid residue-leaving tape; replace gummy tape).
  • Change: Install a Titanium or Non-Stick needle if shredding persists.
  • Lube: Apply a small amount of silicone-based aid to the needle (use sparingly and follow product directions).
  • Success check: Thread stops fraying, and the stitchout runs without repeated breaks through the final construction seam.
  • If it still fails… Slow the machine speed and confirm the needle is the correct size (75/11) and is brand new.
• Q: What safety rules prevent finger injuries when taping vinyl and tab loops for an ITH embroidery design on a home embroidery machine?
  A: Keep hands completely out of the needle zone during setup and never adjust tape when the machine is ready to sew—needle torque can puncture fingers.
  • Stop: Power down or ensure the machine is fully stopped before placing/tightening tape near the stitch area.
  • Position: Tape from the outside edge inward, keeping fingertips away from where the needle will travel.
  • Plan: Place scissors and tape within arm’s reach before starting to avoid reaching across the hoop mid-process.
  • Success check: All taping is completed with the needle stationary and fingers never crossing under the needle path.
  • If it still fails… Rebuild the habit: pause, move hoop away from the needle area, tape, then re-mount the hoop.
• Q: When should an ITH vinyl workflow upgrade from standard screw hoops to magnetic embroidery hoops or to a multi-needle embroidery machine for production?
  A: Upgrade when hoop burn, slow taping/floating time, or order volume becomes the bottleneck—optimize technique first, then tooling, then equipment.
  • Level 1 (Technique): Float vinyl instead of hooping to prevent hoop burn; keep stabilizer drum-tight and slow speed to 500–600 SPM.
  • Level 2 (Tooling): Use magnetic hoops when frequent taping becomes the time sink or hoop burn keeps ruining vinyl.
  • Level 3 (Capacity): Move to a multi-needle machine when thread changes and single-needle throughput limit order fulfillment.
  • Success check: Setup time drops and vinyl surfaces stay crease-free with consistent stitch placement across batches.
  • If it still fails… Re-check trimming and snap alignment steps—production speed only helps after the process is repeatable.
