Household Embroidery Masterclass: Stitching on Cardstock Without Tears

Paper embroidery is a paradox. It looks deceptively simple, yet it is one of the most unforgiving disciplines in machine embroidery. Unlike fabric, paper has zero "memory"—once the needle punctures it, that hole is permanent. If your density is too high, you aren’t embroidering; you are creating a stamp that will punch your design right out of the card.

If you are feeling nervous, that is a healthy reaction. It means you respect the material. However, with the right combination of speed control (SPM), stabilizer strategy, and "floating" techniques, you can turn cardstock into premium, boutique-quality stationery.

This guide moves beyond basic theory. We will cover the tactile "feel" of correct tension, the auditory cues of a happy machine, and the specific tool upgrades that turn a frustrating hobby into a scalable workflow.

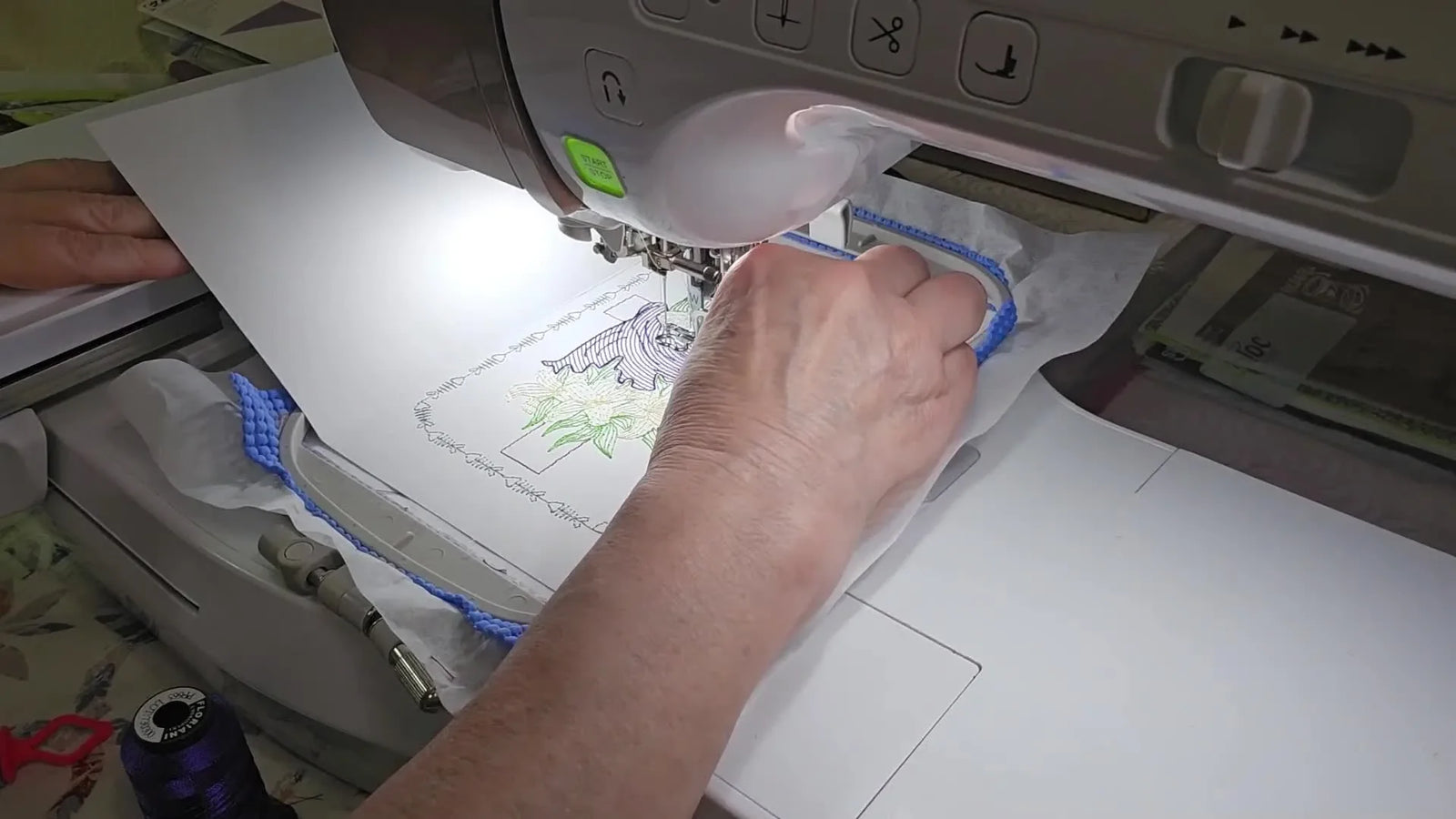

Stitch on Cardstock with a Brother Embroidery Machine—without hoop burn, tears, or warped corners

The cardinal rule of paper embroidery is simple: Never hoop the cardstock.

Cardstock is rigid. If you force it into a standard inner-and-outer ring hoop, you will crush the fibers, creating a permanent "hoop burn" ring that ruins the aesthetic. Furthermore, the pressure can warp the paper, leading to registration errors where outlines don't line up with the fill.

Instead, we use the "Floating" Method. This involves hooping only the stabilizer and securing the cardstock on top.

In this tutorial, we are using a Brother embroidery machine with a standard 5x7 hoop. The design is a "Sketch Stitch" pattern (low density) featuring lilies and a cross.

The Strategy:

1. Hoop: Tear-away stabilizer (Medium Weight, ~1.5 - 1.8 oz).
2. Mount: The floating embroidery hoop technique (securing paper to stabilizer via tape).
3. Design: 7 color stops, sketch-style (low stitch count).


The “Hidden” prep that makes paper embroidery behave: cardstock, stabilizer weight, and tape strategy

Before you touch the LCD screen, you must stabilize the physics of your materials. Paper is static; it does not stretch. However, as you add hundreds of stitches, the paper wants to curl up towards the needle.

Your Consumable Toolkit (The Hidden Essentials):

• Cardstock: Heavyweight (80lb - 110lb cover stock is the sweet spot). Too thin, and it shreds.
• Tape: Painters Tape or Embroidery-Specific Tape. Avoid standard clear office tape, which leaves gummy residue on your needle and ruins the thread path.
• Needle: Schmetz 65/9 or 60/8 Sharp. (Do not use ballpoint; it tears paper. Do not use 75/11; the holes are too big).

Sensory Check - The "Drum" Test: When you hoop your tear-away stabilizer, tap it with your finger. It should sound like a tight drum skin (thump-thump). If it sounds loose or papery, re-hoop. Loose stabilizer leads to "flagging" (bouncing), which destroys cardstock precision.

Prep Checklist (Do not skip)

• Fresh Needle Install: Insert a brand new 65/9 Sharp needle. (Old needles have burrs that shred paper).
• Stabilizer Tension: Tear-away is hooped drum-tight with no wrinkles.
• Cardstock Size: Cut at least 1 inch larger than your hoop area on all sides for safe maneuvering.
• Tape Prep: Pre-cut 4 strips of gentle embroidery/painters tape (approx. 1 inch long).
• Bobbin Check: Ensure you have enough bobbin thread to finish the entire design. Changing bobbins mid-card can shift the paper alignment.


The placement-box ritual: stitch the guide first, then commit the cardstock

Precision on paper must be absolute. You cannot "massage" the material into place later. We start by stitching a Placement Guide directly onto the stabilizer.

Operational Steps:

1. Load the Hoop: Place the hoop (stabilizer only) into the machine.
2. Run Step 1: Select the first color stop (the placement box).
3. Listen: The machine should run smoothly.
4. Visual Confirmation: You should see a stitched rectangle (or corner marks) on the stabilizer.
5. Park the Machine: once the guide is stitched, the machine stops. Carefully slide the hoop out (or move the carriage if your machine allows) without removing the design from the screen.

Why this matters: This stitched box is your physical anchor. It ensures your text or cross is perfectly centered, crucial if you plan to trim the card to a specific envelope size later.

Tape it like a production pro: secure cardstock corners so it won’t drift mid-stitch

Now, we marry the cardstock to the stabilizer. This is the moment where most beginners fail by taping too close to the embroidery area.

The Action Plan:

1. Align: Place your cardstock over the stitched box. Use the needle perforation holes of the placement stitch as your visual guide.
2. Tape: Apply tape to the four corners only.
3. Rub: Press the tape down firmly with your thumbnail. You need a chemical bond here.

The "Physics" of Drift: Unlike fabric, cardstock offers zero friction grip against the stabilizer. It acts like a skate on ice. If it shifts 1mm, your outline will miss your fill, creating a "double vision" effect.

Commercial Insight - Scaling Up: If you are doing one card for Grandma, tape is fine. But if you are producing 50 invitations for a wedding, the tape method becomes a bottleneck. Peeling tape fatigues your wrist and leaves residue. This is where professional production workflow searches for terms like magnetic embroidery hoops. These tools clamp the material instantly using strong magnets, eliminating the need for tape, reducing "hoop burn" risk to zero, and drastically speeding up the reloading process for batch runs.

Keep the design paper-friendly: sketch stitch density and seven color stops that won’t perforate the sheet

Not all designs can be stitched on paper. You must choose Low Density or Sketch Stitch designs.

The Data on Density:

• Standard Satin Stitch: Often has 0.4mm spacing. This creates a "dotted line" perforation that will cut your paper out.
• Sketch Stitch: Has wider spacing (1.0mm - 2.0mm) and longer run lengths. This distributes the stress.

Speed Limit - The "Safe Zone": Lower your machine speed.

• Standard: 800-1000 stitches per minute (SPM).
• Paper Target: 400 - 600 SPM.
• Why? High speed creates needle friction heat, which can actually scorch paper coating or snap thread due to the rigidity of the material.

Warning - Safety: Always keep your hands clear of the moving hoop, especially when ensuring the tape is stuck down. Do not attempt to smooth the paper while the machine is stitching. If a needle hits your finger or a loose piece of tape, it can shatter, sending metal shrapnel towards your eyes.

Setup Checklist (Pre-Flight)

• Speed Control: Machine speed reduced to ~600 SPM.
• Path Clearance: Ensure cardstock corners (even taped ones) won't hit the machine throat/arm.
• Design Assessment: Verified design is "light" (no heavy tatami fills).
• Tape Check: Verified no tape is in the path of the needle. Gummed needles cause thread breaks instantly.


The 65/9 needle rule: stop making big holes in cardstock

In the video, the creator emphasizes the needle swap. This is not a suggestion; it is a requirement.

The Mechanic's View:

• 75/11 Needle: Shaft diameter is ~0.75mm. On fabric, the hole closes up. On paper, it leaves a crater.
• 65/9 Needle: Shaft diameter is ~0.65mm. It creates a "pinprick" that the thread fills completely.

When switching to the purple thread for the design, visually inspect the needle tip. If you hit the hoop or a thick knot previously, change the needle again. A blunt needle "punches" paper rather than piercing it, causing the back of the card to look exploded.

Stitch the cross and robe details without shifting the sheet (and why outlines show mistakes fast)

The design stitches in layers: border, cross, robe, details.

The "Walk" Phenomenon: As the needle penetrates, it pushes the paper slightly. By the time you get to the final outline, the paper may have pushed 1mm away from center. This is called "push/pull compensation," but paper only pushes—it doesn't pull back.

Mitigation - The "Hover" Check: Watch the presser foot height. If the foot is pressing too hard on the cardstock, it will drag it. If your machine allows (like on Brother SE1900 or similar), raise the Presser Foot Height slightly (to approx 1.5mm or "thick fabric" setting) so it glides over the paper rather than dragging on it.

Tool Upgrade Path: For users frustrated by the "drift" or the physical pain of constantly taping corners, a hooping station for embroidery aids in consistent placement. However, for the actual holding of the material during stitch-out, the superior upgrade is the magnetic frame system, which grips the entire perimeter evenly without the distortion of tape.

When the threader gets “out of whack”: manual threading after a spool snag

Thread breaks happen. On paper, they are scary because re-threading might move the hoop.

Troubleshooting Protocol:

1. Symptom: You hear a sharp "snap" or the machine stops with a "Check Upper Thread" alarm.
2. Diagnosis: Check the spool cap first. Is the thread caught on a nick in the plastic spool? (Common on older spools).
3. The Fix:
   • Do NOT yank the thread out backwards near the spool. This damages the tension discs.
   • Cut the thread at the spool.
   • Pull the remaining tail out through the needle.
   • Rethread manually. If the automatic threader is misaligned, don't fight it. Use your eyes and hands.


Light yellow lilies on white cardstock: the color choice that reads clean on camera and in real life

Aethestics matter. The video chooses Light Yellow rather than White thread on White cardstock.

Visual Contrast Rule: Thread has sheen; paper is matte. However, white-on-white often looks like a mistake or invisible texture.

• Pro Tip: Use a cream, pale gold, or light silver instead of pure white. It catches the light and defines the petals.

Jump Stitch Management: Notice the design separates the lilies? On paper, long jump stitches between objects must be trimmed.

• Action: When the machine moves from one lily to another, if it leaves a long tail, pause the machine and trim it immediately. Do not wait until the end. If the foot catches that loop on the next pass, it will rip the paper.


Removing tear-away stabilizer from paper: when you should cut instead of tear

The stitch-out is done. Now comes the most dangerous part: Un-hooping.

The Risk: If you rip the stabilizer off like a band-aid, you will delaminate the back of your cardstock or pull the delicate stitches through the paper.

The Solution:

1. Remove the tape gently. Peel away from the center to avoid buckling the card.
2. Flip the project over.
3. Do not tear. Use curved embroidery scissors to CUT the stabilizer close to the design.
4. Only tear if the stabilizer is perforated cleanly and releases with zero resistance. If you feel resistance, stop and cut.


The clean 5x7 trim: rotary cutter + quilter’s ruler + the 0.25-inch alignment margin

To achieve that professional Hallmark look, we trim after embroidery.

The Toolkit:

• Rotary Cutter (Fresh blade).
• Quilter’s Ruler (Clear acrylic with grid lines).
• Self-Healing Mat.

The Margin Logic: The video uses a 0.25-inch margin from the design edge.

1. Find Center: Measure from your embroidered center point out to 2.5 inches (for a 5-inch width).
2. Lock: Press the ruler down hard. Paper slips easily under rulers.
3. Cut: Commit to one firm, smooth motion. Sawing back and forth creates ragged edges.


Decision tree: pick the right stabilizer approach for paper, thin fabric, and “I just want it fast” workflows

Embroidery is not specific to one material. Use this logic flow to determine your setup.

START: What is your substrate?

• 1. Rigid Material (Cardstock/Paper)
  • Action: Hoop Stabilizer Only (Tear-away).
  • Method: Float + Tape Corners.
  • Needle: 65/9 Sharp.
• 2. Batch Production (50+ items or Shirts)
  • Pain Point: Wrist fatigue / Hoop Burn / Slow Reloading.
  • Action: Upgrade to magnetic frame for embroidery machine.
  • Benefit: 5x faster reloading; zero hoop burn.
• 3. Delicate Fabrics (Silk/Satin)
  • Pain Point: Slippage and bruising.
  • Action: embroidery magnetic hoop + Cut-away Stabilizer.
  • Why: Magnets hold fabric gently but firmly without the violent "snap" of traditional plastic hoops.
• 4. Single Needle Home Machine (Brother SE series, etc.)
  • Opportunity: A magnetic hoop for brother specifically designed for these machines can bridge the gap between hobbyist frustration and semi-pro ease of use.

Warning - Magnetic Safety: Powerful magnetic hoops (like the MaggieFrame or SewLatte types) use industrial Neodymium magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear.
* Medical Risk: Keep at least 6 inches away from pacemakers and insulin pumps.

The “results reveal” that matters: a card that fits the envelope and looks intentional

The final test is functional. Does it fit in the envelope?

If your trimming was precise (5" x 7"), it should slide in with a satisfying fit. This project confirms that with the right "recipe"—Float, Tape, Slow Speed, Sharp Needle—you can master paper embroidery.

The Business Case for Upgrades: If you enjoyed making one card, you might want to make sets to sell on Etsy. At that point, time becomes money.

• Standard Hoop: 2 minutes to hoop/tape per card.
• Magnetic Hoop: 15 seconds to clamp per card.

If you are serious about efficiency, exploring the ecosystem of magnetic frames is the logical next step in your embroidery journey.

Operation Checklist (The Final Quality Control)

Before you gift or sell this card, perform this 5-point inspection:

• Acoustic Check: Shake the card gently. Do you hear "confetti"? (Means loose punched-out paper dots inside—bad density).
• Backside Integrity: Is the back clean? Use a sticker or a second piece of glued cardstock to cover the ugly bobbin side if necessary.
• Perforation Stress: Hold it up to the light. Are the needle holes elongated or tearing? (If yes, use a smaller needle next time).
• Trim Consistancy: Are the margins even on left and right?
• Thread Tails: Ensure all jump stitches are trimmed flush so they don't snag on the envelope.

FAQ

• Q: How do I stitch on cardstock with a Brother embroidery machine without leaving hoop burn rings on the paper?
  A: Do not hoop the cardstock—hoop only medium-weight tear-away stabilizer and float the cardstock on top.
  • Hoop: Tighten the tear-away stabilizer drum-tight in the 5x7 hoop.
  • Stitch: Run the placement box on stabilizer first, then align the cardstock to that stitch line.
  • Secure: Tape only the four cardstock corners so the needle area stays clear.
  • Success check: No visible hoop ring on the cardstock and corners stay flat (no warped “pressed” circle).
  • If it still fails: Reduce tape tension and re-check stabilizer tightness; loose stabilizer causes flagging and distortion.
• Q: What is the “drum test” for hooping tear-away stabilizer for cardstock embroidery on a Brother embroidery machine?
  A: The stabilizer must sound and feel like a tight drum to prevent flagging that ruins paper precision.
  • Tap: Flick the hooped tear-away stabilizer with a finger before loading the hoop.
  • Re-hoop: Tighten again if the sound is dull, papery, or the stabilizer surface ripples.
  • Smooth: Eliminate wrinkles before stitching the placement box.
  • Success check: A clear “thump-thump” sound and a flat, tight stabilizer surface with no bounce during stitching.
  • If it still fails: Use a fresh piece of medium-weight tear-away; weak or overstretched stabilizer can’t hold tension.
• Q: What needle should be used for machine embroidery on cardstock, and why is a Schmetz 65/9 Sharp recommended over a 75/11 needle?
  A: Use a new Schmetz 65/9 (or 60/8) Sharp needle to avoid big holes and tearing in cardstock.
  • Install: Put in a brand-new 65/9 Sharp before starting (old needles can have burrs that shred paper).
  • Avoid: Do not use ballpoint needles, and avoid 75/11 because the holes are too large for paper.
  • Inspect: Change the needle again if it hit anything or if the tip looks questionable.
  • Success check: Needle holes look like pinpricks and the back of the cardstock does not look “exploded” or cratered.
  • If it still fails: Slow the machine speed and verify the design is low density (sketch-style), not heavy fills.
• Q: What machine speed (SPM) is safest for stitching embroidery designs on cardstock to prevent scorching or thread breaks?
  A: Lower the embroidery speed to about 400–600 SPM for cardstock work.
  • Set: Reduce speed from typical 800–1000 SPM down into the 400–600 SPM range.
  • Confirm: Make sure taped corners will not strike the machine arm/throat during movement.
  • Choose: Use low-density “sketch stitch” designs instead of dense satin or heavy tatami fills.
  • Success check: Stitching sounds smooth and controlled, with no heat-related discoloration and fewer sudden thread snaps.
  • If it still fails: Stop and check for tape in the needle path; gummed needles can trigger immediate thread breaks.
• Q: How do I stop cardstock from drifting 1 mm during embroidery when floating and taping on a Brother embroidery machine?
  A: Anchor placement with a stitched guide first and reduce anything that drags the cardstock during stitching.
  • Stitch: Run the placement box on stabilizer first, then align cardstock precisely to that stitched outline.
  • Tape: Secure only the four corners, away from the embroidery field, and press tape down firmly.
  • Adjust: If available on the Brother machine, raise presser foot height slightly (about 1.5 mm / “thick fabric” setting) so the foot glides rather than drags.
  • Success check: Final outlines land cleanly on top of earlier layers with no “double vision” offset.
  • If it still fails: Re-check stabilizer tightness (flagging causes walk) and confirm no tape edge is lifting and catching the foot.
• Q: What should I do when a Brother embroidery machine stops with a “Check Upper Thread” alarm during cardstock embroidery after a spool snag?
  A: Re-thread safely without yanking backward, and switch to manual threading if the automatic threader is misaligned.
  • Check: Inspect the spool cap and spool edge for a nick where thread can catch.
  • Cut: Cut the thread at the spool; do not pull thread backward through the tension path.
  • Pull: Draw the remaining thread tail out through the needle, then rethread the machine.
  • Success check: The machine resumes stitching without repeated “Check Upper Thread” alarms and the thread feeds smoothly off the spool.
  • If it still fails: Stop and rethread again carefully; persistent snags usually mean the thread is still catching at the spool area.
• Q: What are the safety risks when using magnetic embroidery hoops/frames for faster batch production, especially around pacemakers and fingers?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical devices.
  • Keep clear: Do not place fingers between magnets; the magnets can snap together with strong force.
  • Maintain distance: Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Clamp carefully: Align the frame first, then lower magnets in a controlled way—do not “drop” them.
  • Success check: The hoop/frame closes without pinching, and the material is held evenly with no sudden jumps or hand repositioning near the clamp area.
  • If it still fails: Use the tape-corner floating method for cardstock until safe handling becomes comfortable and consistent.
