Stop Babysitting Your Brother PR1055X: Lock 600 SPM on Needles 3, 4 & 10 for Clean 1/4" Lettering

When small lettering turns into a fuzzy, illegible blob, it’s rarely because you “forgot how to embroider.” It is usually a physics problem: the machine is executing your command—running fast—while the delicate thread and fine needle required for micro-text need milliseconds of "settling time" to form clean, sharp corners.

Jeanette’s workflow on the Brother PR1055X is one of those production-level habits that instantly reduces operator stress: cap the speed ONLY on the specific needles assigned to tiny text, and let the rest of the design run at full production speed. No pausing. No hovering over the screen. No last-second speed knob panic.

Different speeds on the Brother PR1055X aren’t “extra”—they’re how you keep tiny lettering readable

The example in the video is a classic commercial challenge: a 3" x 3" corporate logo on polo shirts, featuring very small lettering around 1/4" (0.25") or less. The large filled areas (statues, shapes) can run fast, but the micro-text is where quality falls apart if you treat the whole design as one block.

Jeanette’s logic is based on the "Sweet Spot" principle:

• Filled areas / Standard Stitching: Larger needles and standard thread can handle the inertia of high speeds (1000 spm).
• Small fonts / Fine Detail: Fine needles and thin thread require lower tension and slower movement to place stitches accurately without "blowing out" the corners.

That’s why she sets the machine so needles 3, 4, and 10 (loaded specifically for the small lettering) runs at 600 spm, while the rest run at the machine’s maximum.

If you’re running a brother pr1055x for customer logos, this split-speed approach is the cleanest way to protect your stitch quality without sacrificing your daily throughput.

The thread-and-needle pairing behind clean 0.25" text (40wt + 75/11 vs 60wt + 65/9)

Jeanette calls out a critical detail that differentiates a hobbyist from a pro: speed control only works if the physical hardware matches the software plan.

In her sample, she uses a specific "Fine Detail Recipe":

• Standard Zones: 40 weight thread paired with a 75/11 needle.
• Micro Text Zones: 60 weight thread (thinner) paired with a 65/9 needle (smaller puncture hole).

Why this matters (The Physics): Tiny letters have tight turns and short stitches (often under 2mm). If you use a standard 75/11 needle, the hole it punches is often larger than the stitch itself, causing the thread to sink in or look "chewed up." By switching to a 65/9 and 60wt thread, you reduce the physical footprint of the stitch.

Jeanette mentions she is comfortable running the main design at high speed, but she strictly locks the small fonts to the 600–700 spm range. In this setup, she anchors it at 600 spm—the "Safety Zone" for 60wt thread.

The “hidden prep” before you touch the settings menu on the Brother PR1055X screen

Before you start tapping through digital menus, do what experienced operators do: execute a "Pre-Flight Check" to ensure the machine is in a predictable state.

Prep Checklist: The Physical Foundation

(Perform this before loading the design)

• Identify the Zones: Confirm which color stops contain the small text and map them to specific needles (e.g., Needles 3, 4, and 10).
• Check Consumables: Ensure you have 60wt thread loaded on those specific color stations.
• Needle Audit: Physically verify that 65/9 needles are installed on bars 3, 4, and 10. Rub your finger gently up the needle shaft to ensure no burrs.
• Bobbin Check: Look for the "1/3 rule"—the white bobbin thread should be visible in the middle third of the satin column on the underside.
• Speed Plan: Decide your "Anchor" speed (600 spm is recommended for beginners; 700 spm for advanced users).

Warning: Safety First. Before swapping any physical needles, ALWAYS stop the machine and ensure your hands are clear of the start button. Needles are sharp, and an accidental start during maintenance can cause severe injury to fingers or damage to the needle bar driver.

Clean the sewing field first: deleting the previous design prevents “ghost settings” headaches

Jeanette starts by clearing out previous data. This is not busywork—it prevents "Ghost Settings" (settings retained from a previous job) from interfering with your new parameters.

Action Steps:

1. Navigate to the design home screen.
2. Delete the current pattern to clear the buffer.
3. Success Metric: The screen is blank, and you are ready to load the new file from scratch.

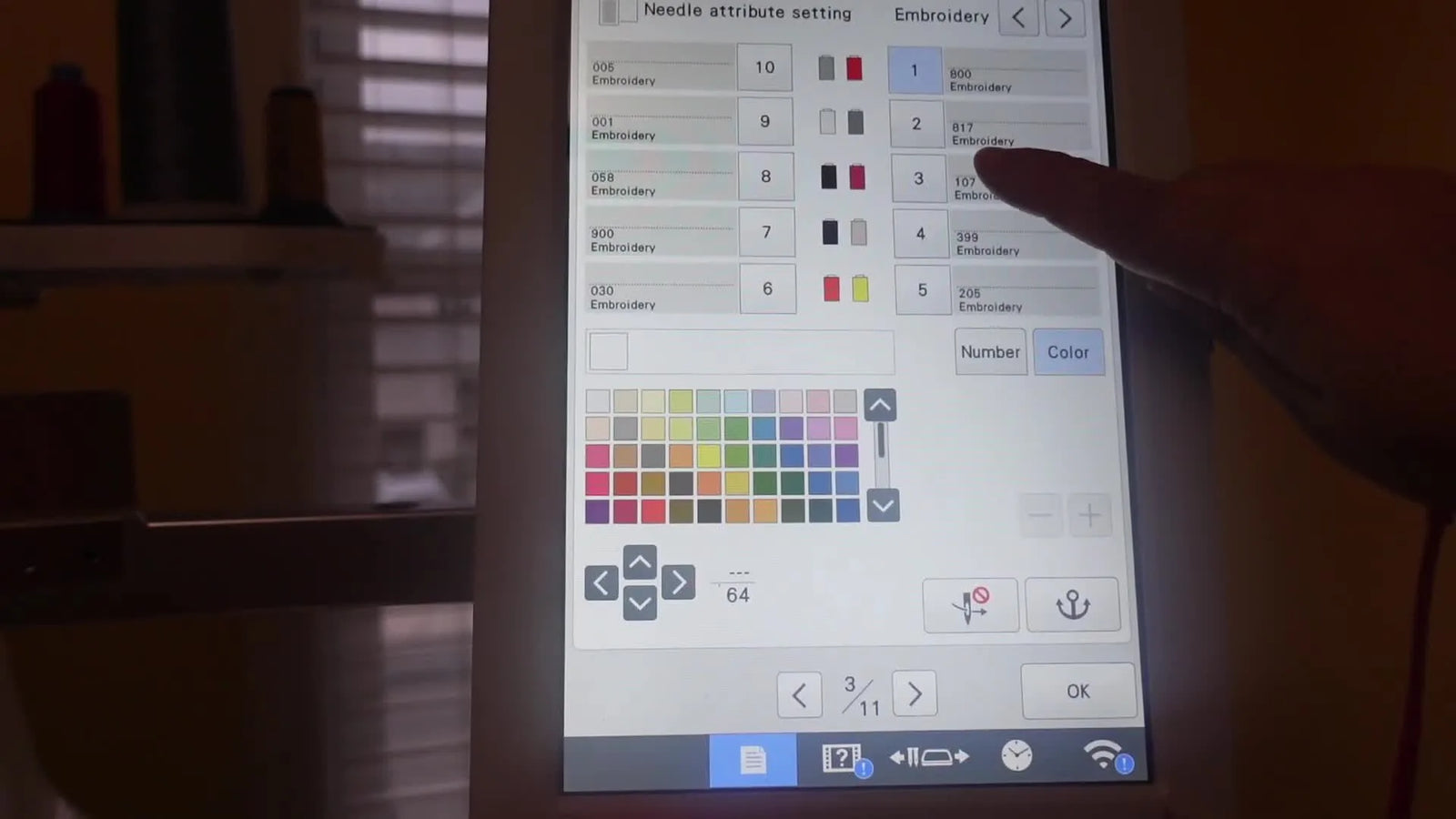

Find the Needle Attribute Settings on Brother PR1055X (Paper icon → Page 3)

This features is the part many owners know exists but ignore—until a difficult customer logo forces the issue. This is your command center for needle behavior.

Jeanette’s exact navigation path:

1. Tap the Page/Settings icon (looks like a piece of paper) at the bottom of the screen.
2. Arrow through the tabs until you reach Page 3.
3. Visual Confirmation: You should see a grid representing needles 1–10, color blocks, and an Anchor Icon (looks like a ship's anchor).

If you are investing in a brother 10 needle embroidery machine pr1055x for production, Page 3 is one of the most valuable "set it once per job" screens in the entire operating system.

Anchor 600 SPM on needles 3, 4, and 10: the exact taps Jeanette uses

Here is the core technique: Select -> Anchor -> Decelerate. You are telling the machine, "When you get to this specific needle, ignore the master speed knob and obey this limit."

Step-by-step (Example: Needle 3)

1. Select: Tap Needle 3 in the list to highlight it.
2. Lock: Tap the Anchor icon.
3. Adjust: Use the minus (-) button to lower the speed limit from 1000 spm down to 600 spm.

Success Metric: You will see a small anchor symbol appear next to Needle 3, and the numeric value will read 600.

Repeat for Needle 4 and Needle 10

1. Select Needle 4 → Tap Anchor → Reduce to 600 spm.
2. Select Needle 10 → Tap Anchor → Reduce to 600 spm.
3. Finalize: Tap OK to save the configuration.

Success Metric: Needles 3, 4, and 10 all display the anchor icon and 600 spm. Needles 1, 2, 5, 6, 7, 8, and 9 show no anchor.

Setup Checklist (Digital Verification)

• Needle 3: Anchor Icon Visible? [YES] | Speed: 600? [YES]
• Needle 4: Anchor Icon Visible? [YES] | Speed: 600? [YES]
• Needle 10: Anchor Icon Visible? [YES] | Speed: 600? [YES]
• Non-Text Needles: Ensure no anchor icon is present (unless intended).
• Save: confirm you have tapped OK.


Don’t skip the physical needle swap: 65/9 on bars 3, 4 & 10 is what makes 60wt behave

Jeanette is very direct here: anchoring speed is useless if you leave the wrong needle installed. This is the most common cause of "silent failure" in embroidery shops.

The Physical Action:

• Remove: Take out the standard 75/11 needles from bars 3, 4, and 10.
• Install: Insert 65/9 needles. Ensure the flat side of the shank faces the correct direction (usually back) and push it all the way up until it hits the "stop."
• Tighten: Secure the screw firmly.

If you don't swap the needle, the large hole from the 75/11 needle will allow the fine 60wt thread to "swim," resulting in sloppy loops despite the slow speed.

Warning: Magnetic Safety. If you use Magnetic Hoops to speed up your hooping process, be aware of their extreme clamping force. Keep fingers away from the clamping edge to avoid pinching. Keep magnets at least 6 inches away from pacemakers and other sensitive medical electronics.

Speaking of efficiency, if hooping finished polos is slowing you down or causing "hoop burn" (marks on the fabric), switching to a magnetic hoops for brother pr1055x workflow can reduce hooping time and wrist strain—a crucial upgrade when you are repeating the same placement all day.

Verify on the run screen: 1000 SPM overall, but anchored needles stay locked at 600

After confirming the anchored needles, return to the main embroidery screen to run the "final sanity check."

Visual Confirmation:

• The master speed can be set to Max (1000 spm).
• Needles without anchors will allow the machine to run at full speed.
• Needles 3, 4, and 10 will visibly show the locked 600 spm override in the info panel.

This is the goal: You run the job fast overall, but the machine automatically decelerates to the "Safe Zone" only when it engages the small-lettering needles.

Why this works (and how to avoid the two most common “messy small font” traps)

Jeanette’s troubleshooting logic is sound: messy fonts are often a result of Speed vs. Stability. At 1000 spm, the pantograph (the arm moving the hoop) is jerking the fabric violently. Small letters don't have enough "fill" to stabilize themselves.

The Fix is a System, not a setting:

1. 60wt thread: Fits inside small shapes.
2. 65/9 needle: Punches a smaller hole.
3. 600 spm: Reduces inertia, allowing precise placement.

Avoid these Traps:

• Trap #1 (The Hardware Gap): You anchored the speed but forgot the needle change. Result: Punctured fabric, sloppy text.
• Trap #2 (The Efficiency Killer): You changed the needle but didn't anchor the specific needle, so you slowed the whole machine down manually. Result: You lose money on lost production time.


Real-world questions from the comments: hats, single-needle machines, and whether you must remove anchors

“Do I have to remove the anchors after I’m done?”

Yes. Treat anchored needles like temporary project settings. If your next job puts a large fill on Needle 3, and you forget to remove the anchor, you will be confused why your machine is running slowly.

“I don’t have a multi-needle—can I still use the idea?”

The physics remain the same. If you are using a single-needle machine, you must manually stop the machine, switch to 60wt thread/65 needle, and lower the max speed slider when you reach the text portion. It is more labor-intensive, but the quality gain is identical.

“Will my design fit on a trucker hat?”

Jeanette suggests printing the design template and physically placing it on the cap. However, hats are tricky because the "sewable area" is strictly defined by the mechanical cap driver, not just the hoop size.

If hats are part of your business, ensuring you have the correct brother pr1055x hat hoop setup (driver and frame) is vital. A flat magnetic frame can work for unstructured "dad caps" if floated properly, but structured trucker hats usually require the dedicated cylindrical cap driver system to maintain registration.

Decision tree: choose stabilizer and hooping method for polos, hats, and napkins

Speed management is powerful, but it cannot fix a poorly stabilized garment. Use this decision tree to prevent foundation failure.

Decision Tree: Fabric → Stabilizer → Grip

Scenario A: Polo Shirt (Pique Knit)

• Challenge: Stretchy, textured fabric.
• Stabilizer: Cut-Away (2.5oz or mesh). Do not use Tear-Away, as stitches will distort over time.
• Hooping: Must be "taut like a drum skin" but not stretched.
• Solution: Magnetic hoops are excellent here to prevent "hoop burn" (shiny rings) on the pique fabric.

Scenario B: Trucker Hat (Structured)

• Challenge: Thick buckram front, curved surface.
• Stabilizer: Tear-Away (cap grade).
• Hooping: Requires Cap Driver system or specialized clamping frames.

Scenario C: Napkins (Linen/Cotton)

• Challenge: Slippery, potential for corners to pull in.
• Stabilizer: Water Soluble (if back is visible) or Tear-Away.
• Hooping: Use spray adhesive to prevent shifting.

When hooping becomes the bottleneck, many professionals upgrade from standard plastic rings to brother pr1055x hoops utilizing magnetic force. This allows for faster clamping without the variable tension of a screw.

The production upgrade path: where speed anchoring saves time—and where hooping still steals it back

Anchoring needle speeds is a "Level 1" efficiency upgrade—it removes the need to babysit the machine speed controls.

However, once your machine is running efficiently, your bottleneck moves to the prep table. If you are spending 5 minutes hooping a shirt that takes 4 minutes to sew, hooping is your problem.

If you are doing volume (team uniforms, corporate gifts), a dedicated hooping station for embroidery machine creates a repeatable template for consistent logo placement. Furthermore, if your operators struggle with hand fatigue, upgrading to magnetic systems improves the hooping for embroidery machine process significantly, turning a physical struggle into a simple "Click-and-Go" workflow.

Operation Checklist (End-of-Job Sanity Check)

• Speed Verification: Did the machine run at Max (1000 spm) for large fills?
• Auto-Deceleration: Did needles 3, 4, and 10 slow to a rhythmic 600 spm automatically?
• Quality Check: Is the 0.25" text crisp? (Use a magnifying glass—stitches should sit on the fabric, not buried in it).
• Reset: Action Required: Go back to Page 3 and remove the anchors if the next job differs.

By combining Speed Anchoring (Software) with Correct Needles (Hardware) and Efficient Hooping (Workflow), you move from "hoping it works" to "knowing it will work."

FAQ

• Q: How do I set different stitch speeds per needle on the Brother PR1055X for 0.25" (1/4") small lettering?
  A: Use the Brother PR1055X Needle Attribute Settings (Page icon → Page 3) to “anchor” only the needles assigned to micro-text at 600 SPM.
  • Identify: Map the small-text color blocks to specific needles (for example, Needles 3, 4, and 10).
  • Navigate: Tap the Page/Settings (paper) icon → go to Page 3 until the needle grid and anchor icon appear.
  • Anchor: Tap Needle 3 → tap the Anchor icon → press minus (-) down to 600 SPM; repeat for Needle 4 and Needle 10 → tap OK.
  • Success check: An anchor symbol appears next to the selected needles and the speed reads “600,” while non-text needles show no anchor.
  • If it still fails… Verify the run screen shows max speed for the job, but the anchored needles remain locked at 600 during stitching.
• Q: Why does small text look fuzzy or “chewed up” on a Brother PR1055X when running 1000 SPM?
  A: This is common—tiny lettering often blurs at high speed because fine thread and tight turns need more stability, so cap micro-text needles around 600–700 SPM and match the needle/thread.
  • Switch: Use 60wt thread for the micro-text needles instead of standard 40wt.
  • Swap: Install a 65/9 needle on the micro-text needle bars (instead of 75/11).
  • Anchor: Lock only the text needles to 600 SPM so the rest of the design can still run fast.
  • Success check: Corners in letters look sharp and stitches sit on the fabric rather than sinking or looping.
  • If it still fails… Check for the “hardware gap” (anchored speed but wrong needle still installed).
• Q: What is the correct needle and thread combination for clean 0.25" text on the Brother PR1055X (40wt + 75/11 vs 60wt + 65/9)?
  A: For micro-text, a safe proven combo is 60wt thread with a 65/9 needle, while standard zones can stay on 40wt with a 75/11 needle.
  • Load: Put 60wt thread only on the needles dedicated to the small lettering.
  • Install: Verify 65/9 needles are physically installed on those same needle bars (push fully up to the stop; flat side oriented correctly).
  • Reserve: Keep 40wt + 75/11 on the fill/standard stitching needles.
  • Success check: The small letters remain readable and do not look oversized, buried, or shredded.
  • If it still fails… Re-check needle condition (burrs) and confirm the speed for the micro-text needles is anchored in the “safe zone” (Jeanette uses 600 SPM).
• Q: What pre-flight checks prevent “ghost settings” and unpredictable results on the Brother PR1055X before loading a new design?
  A: Clear the previous pattern first, then verify needles, thread, bobbin appearance, and the planned anchored speed before loading the file.
  • Delete: Go to the design home screen and delete the current pattern until the screen is blank.
  • Audit: Physically confirm the correct needle sizes are on the intended bars and gently feel for burrs on the needle shaft.
  • Check: Use the “1/3 rule” on the underside—bobbin thread should appear in the middle third of the satin column.
  • Success check: The design loads with fresh settings (no leftover needle behavior), and stitch formation matches the bobbin visibility guideline.
  • If it still fails… Re-open Needle Attribute Settings (Page 3) to confirm only the intended needles show anchor icons.
• Q: How do I know the Brother PR1055X anchored-needle setup is working during a run when the master speed is set to 1000 SPM?
  A: The job can run at max speed overall, but anchored needles must visibly stay locked at 600 SPM when those needles engage.
  • Set: Return to the main embroidery/run screen and set the master speed to Max (1000 SPM).
  • Observe: Watch the info panel as the machine changes to the anchored needles (for example, 3, 4, and 10).
  • Confirm: Ensure non-anchored needles run fast while anchored needles show the 600 SPM override.
  • Success check: The machine audibly/visually decelerates only on the micro-text needles, then speeds back up on standard needles without manual intervention.
  • If it still fails… Make sure you tapped OK to save the anchor settings and that anchors were applied to the correct needles.
• Q: What are the two most common causes of messy small fonts on the Brother PR1055X even after changing settings?
  A: Messy micro-text usually comes from one of two traps: anchoring speed without swapping needles, or swapping needles but slowing the whole machine instead of anchoring only the text needles.
  • Avoid Trap #1: Don’t anchor speed and leave a 75/11 needle installed on the micro-text bars—swap to 65/9.
  • Avoid Trap #2: Don’t manually slow the entire job—anchor only the specific needles assigned to the small lettering.
  • Verify: Keep the micro-text in the 600–700 SPM range (Jeanette anchors 600 SPM for 60wt).
  • Success check: Micro-text stays crisp while large fills still stitch at production speed.
  • If it still fails… Review stabilizer/hooping fundamentals because speed control cannot fix unstable fabric.
• Q: What safety steps should be followed when swapping needles on a Brother PR1055X and when using magnetic embroidery hoops?
  A: Stop the machine completely before any needle work, and treat magnetic hoops as high-clamp-force tools that can pinch fingers and affect medical devices.
  • Stop: Ensure the machine is fully stopped and hands are clear of the start button before changing needles.
  • Handle: Replace needles carefully (needles are sharp) and tighten the needle screw firmly after seating the needle to the stop.
  • Protect: Keep fingers away from the clamping edge of magnetic hoops to avoid pinching.
  • Success check: Needle changes are completed with the machine inactive, and magnetic frames close without finger contact in the clamp zone.
  • If it still fails… Pause and follow the machine manual’s safety guidance; do not troubleshoot with hands near moving parts, and keep magnets at least 6 inches away from pacemakers and sensitive medical electronics.
