Stop “Bulletproof” Stitch-Outs in Premier+ 2 Ultra: Make the Background Leave a Clean Hole for Your Insert Design

The "Bulletproof" Patch Problem: How to Fix Stacked Stitches in Premier+ 2 Ultra

When you’re 45 minutes into a stitch-out and you realize your background pattern has stitched right through the face of your main character, your stomach drops. I’ve watched this exact moment happen in embroidery shops for 20 years. It’s not just about wasted thread; it’s about that sickening "thump-thump-thump" sound your machine makes as the needle struggles to penetrate four layers of density.

That sound is the sound of needle deflection, and it is the enemy of professional embroidery.

Peggy from Ez PZ Machine Embroidery demonstrates a crucial workflow in Premier+ 2 Ultra that prevents this classic problem: background stitches sewing in full, then foreground stitches sewing on top, creating a stiff, "bulletproof" mess that ghosts through to the surface.

Here is the master class on how to fix it—and the physical safeguards to ensure your machine survives the process.

The Trap in the "Create" Module: When Layers Don't Respect Each Other

In the Premier+ 2 Ultra Create module, it is tempting to build a full composition in one go: create a heart base, fill it with a Greek key pattern, and drop a terrier design on top.

The trap is a hidden software behavior: inside the Create module, the stitch simulation often generates the background as if the foreground doesn’t exist.

The Physical Consequence: If you export this directly, your machine will stitch the entire background pattern first. Then, it will attempt to stitch the dense dog design directly on top of it.

• Result: You get effective densities of 0.8mm or tighter (standard is ~0.4mm).
• Sensory Check: The patch will feel hard, like cardboard. The fabric around the edges will pucker (known as the "halo effect") because the thread displacement is pushing the fabric outward.


The "Hidden" Prep: Diagnostic Contrast

Peggy uses a smart trick: she changes the background color to red and the dog to white. This isn't for the final design—it is for diagnostics.

Why Contrast Matters: If your background is light grey and your foreground is white, you might miss the overlap on screen. By using high-contrast colors, any "show-through" becomes a screaming red flag.

PREP CHECKLIST: The "Pre-Flight" Inspection

Before you even open the simulator, check these variables:

• [ ] Module Check: Confirm you are working in Premier+ 2 Ultra Create Module.
• [ ] High-Contrast Test: Temporarily set background threads to a dark color and foreground to a light color to reveal stacking issues.
• [ ] Intentionality Check: Ask yourself, "Do I want texturing (overlap) or an inlay (void)?"
• [ ] Consumable Check: Do you have a fresh 75/11 Sharp needle? (Ballpoint needles often deflect on dense overlaps).
• [ ] Hidden Consumable: Have temporary adhesive spray (like KK100) ready if using cut-away stabilizer to prevent shifting during dense stitching.

The Tell-Tale Proof: The Design Player Warning

Peggy runs the Design Player (the simulator). In the flawed version, you witness the sequence:

1. The heart outline stitches.
2. The Greek key pattern fills the entire shape.
3. The dog stitches on top.

The "Ghosting" Effect: Because the dog is stitched over the textured Greek key, the white thread cannot fully cover the ridges of the background. You will see the background texture "ghosting" through the dog's face, making the embroidery look messy and homemade.

If you are using standard machine embroidery hoops, this density buildup creates immense pressure on the fabric. By the time the machine gets to the top layer, the fabric has often shifted due to the "push-pull" physics of the bottom layer, leading to misalignment.

The Fix: The "Export & Combine" Protocol

The solution is to stop treating the design as one object in "Create" and start treating it as an assembly in "Embroidery."

The Professional Workflow:

1. Isolate: In the Create module, design the background. Export it as a standalone file (e.g., Background_Heart.vp3).
2. Isolate: Design the foreground (the dog). Export it as a separate file (e.g., Dog_Insert.vp3).
3. Combine: Open the standard Premier+ Embroidery Module (NOT Create). Import both files here.

Why This Works: The Embroidery Module has a different calculation engine. When you stack files here, it is programmed to recognize that Object B is on top of Object A, and it can execute a command often called "Remove Overlap" or simply respect the layering by creating a void.

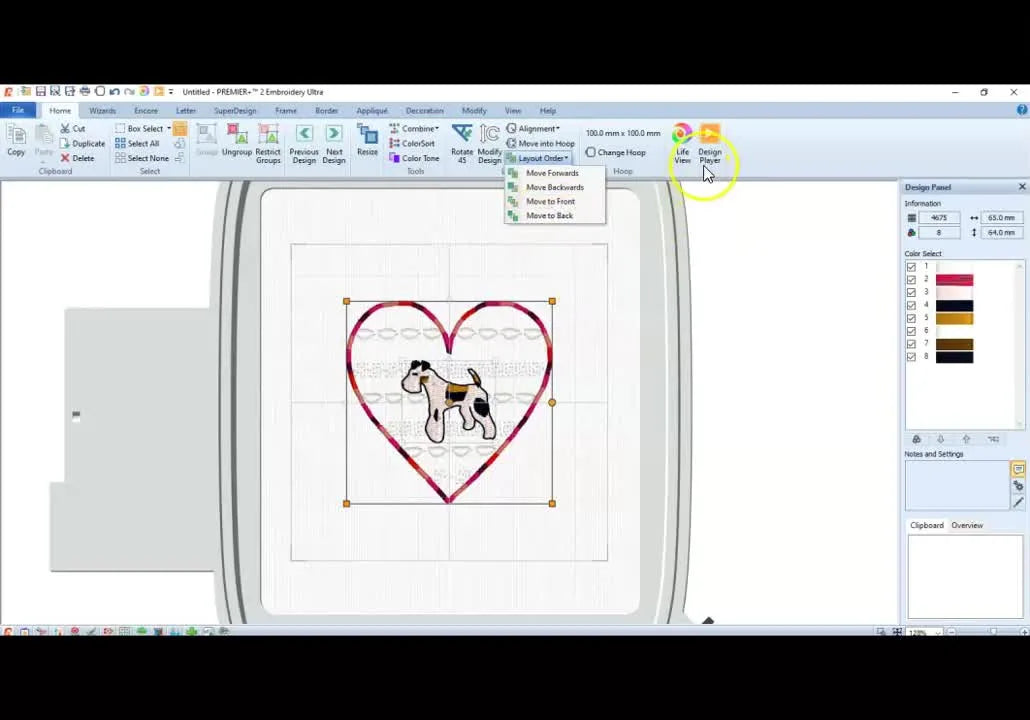

The Assembly: Control the Layout Order

Once inside the Embroidery Module, Peggy emphasizes Layout Order.

• Rule: The object at the top of the list (usually) stitches first. The object at the bottom stitches last and overlaps the others.
• Action: Ensure the Background is first in the sequence, and the Dog is second.


SETUP CHECKLIST: The Physical Setup

Before the needle moves, clear the runway:

• [ ] Module Verification: Confirm you are definitively in the Premier+ Embroidery Module.
• [ ] Slot Check: Are both files imported locally?
• [ ] Order Verification: Check the "Draw Order" or "Layout Order" tab.
• [ ] Bobbin Check: Open the bobbin case. Clean out lint. A full, clean bobbin is mandatory for layer work to ensure consistent tension (usually 18g-22g pull test).
• [ ] Hooping Tension: Tap the hooped fabric. It should sound like a tight drum ("thrummm"). If it sounds loose ("thud"), re-hoop.

The "Aha!" Moment: Visualizing the Void

Peggy runs the simulator on the combined file. This is the moment of truth.

You can now see the background stitch out, but it stops and leaves a silhouette where the dog will be. It creates a "hole" or a void.

The Benefit:

• Zero Show-Through: The dog stitches onto the stabilizer/fabric, not onto red thread.
• Flatness: The patch remains flexible, not stiff.
• Needle Safety: The needle is penetrating 2 layers (Fabric + Stabilizer) instead of 4 (Fabric + Stabilizer + Thread + Thread).






The Real-World Failure Case: Why "Bulletproof" is Bad Business

Peggy shows a physical stitch-out of the "wrong" method. The red lines are clearly visible through the white dog.

In a commercial context, this is a reject. If you are scaling up—perhaps moving from a single-needle to a SEWTECH multi-needle embroidery machine for production—efficiency is key. A file that stitches a solid background under a foreground wastes 5,000+ stitches. Multiplied by 50 shirts, you are throwing away hours of machine runtime and dollars in thread.

Troubleshooting: Diagnostic Guide

If you run your test and still see issues, use this chart to identify the root cause. Note that we check physical issues before blaming software.

Warning: Physical Safety
Over-dense designs can cause needles to snap explosively. Always wear protective eyewear when testing a new, dense design. If you hear a sharp "click" or "snap" sound, hit the Emergency Stop immediately. This sound often indicates the needle tip has broken off and is embedded in the fabric.

Decision Tree: Stabilizer & Hooping Strategy

Software fixes the file, but your rig MUST hold the specific fabric stable.

Start Here: What is your fabric?

1. Is the fabric unstable/stretchy (T-shirt, Pique, Performance)?
   • YES: You MUST use Cut-Away Stabilizer (2.5oz or 3.0oz).
     • Pro Tip: Don't float it. Hoop the stabilizer and the garment together if possible, or use magnetic embroidery hoops to grip both layers firmly without stretching the sensitive knit.
   • NO: Go to step 2.
2. Is the design high-stitch-count (>15,000 stitches or dense layers)?
   • YES: Use Cut-Away or a fused Poly-Mesh. Tear-away will disintegrate efficiently, leading to registration errors (gaps) halfway through the design.
   • NO: Tear-Away is acceptable for stable woven fabrics (denim, twill).
3. Are you experiencing "Hoop Burn"?
   • YES: This is a mechanical issue. Standard plastic hoops rely on friction and friction ridges. Consider upgrading tooling.

The Production Upgrade Path: When to Buy What

Fixing the file is Step 1. If you are still fighting your equipment, it might be time to look at your "Tool Chain."

Level 1: The Hooping Bottleneck If you spend more time hooping than stitching, or if you can't get the design straight, you are losing money.

• Solution: hooping stations. These guarantee placement repeatability.

Level 2: The "Crush" Problem If you are working with velvet, corduroy, or thick jackets, standard hoops struggle to close or leave permanent marks.

• Solution: magnetic embroidery hoops. These use vertical magnetic force rather than friction, holding thick items securely without crushing fibers. Many commercial shops search for how to use magnetic embroidery hoop videos specifically to solve the "thick jacket" problem.

Warning: Magnet Safety
Commercial Grade Magnetic Hoops are extremely powerful. They can pinch fingers severely. Never place them near pacemakers, heavy machinery sensors, or magnetic media (credit cards). Keep a firm grip until the magnet is fully seated.

Level 3: The Scaling Problem Peggy mentions doing charity work for dog rescues. When "a few bibs" turns into "500 patches," a single-needle machine becomes a prison.

• Solution: SEWTECH Multi-Needle Machines. The ability to queue colors and stitch at 1000 SPM (Stitches Per Minute) without manual thread changes is the only way to make production profitable.

Operation Checklist: The 60-Second "Go" Routine

Execute this immediately before pressing the Start button.

• [ ] Simulation Verification: Run Design Player one last time. verify the "void" exists.
• [ ] Speed Limit: For the first run of a layered design, reduce machine speed to 600-700 SPM (The "Sweet Spot"). High speed + High density = heat friction/thread breaks.
• [ ] Travel Check: Look for long jump stitches that might cross the open void.
• [ ] Watch the First Layer: Ensure the background stitches cleanly. If the stabilizer is "drumming" (bouncing), pause and add a layer of masking tape to the corners of the hoop for extra stability.

The Takeaway

Peggy’s method is the difference between a "hobbyist" file and a "production" file. By exporting separately and combining in the Embroidery Module, you force the software to do the math for you.

Use the software to clear the path, use the right stabilizer to hold the ground, and if you are fighting your hoops, consider how a hoop master embroidery hooping station or magnetic system could smooth out your physical workflow. Your machine—and your frustration levels—will thank you.

FAQ

• Q: How do I stop Premier+ 2 Ultra Create Module from stitching a full background under a foreground design and causing stacked stitches?
  A: Export the background and foreground as separate files from Create, then combine them in the Premier+ Embroidery Module so the layering engine can create a void.
  • Export: Save the background as its own file (example: Background_Heart.vp3).
  • Export: Save the foreground as its own file (example: Dog_Insert.vp3).
  • Combine: Open Premier+ Embroidery Module (not Create) and import both files there.
  • Success check: In Design Player, the background fill stops and leaves a clear silhouette/“hole” where the foreground will stitch.
  • If it still fails: Re-check that the files were combined in Embroidery Module and look for a Remove Overlap/void result in the simulator.
• Q: How do I use Premier+ 2 Ultra Design Player to diagnose “ghosting” and show-through on layered embroidery designs?
  A: Use high-contrast diagnostic colors before simulating so overlap becomes obvious on screen.
  • Change: Set the background thread to a dark/bright color (example: red) and the foreground to a light color (example: white).
  • Simulate: Run Design Player and watch whether the background stitches fully under the foreground area.
  • Success check: The simulator clearly shows either a void under the foreground (good) or red/background texture stitching under it (bad).
  • If it still fails: Rebuild using the export-and-combine protocol so the software respects layer order.
• Q: What is the correct Layout Order in Premier+ 2 Ultra Embroidery Module to prevent foreground stitching from being ruined by background texture?
  A: Set the sequence so the background stitches first and the foreground stitches after, then confirm the order in the Layout/Draw Order list.
  • Open: Go to the Layout Order/Draw Order (or similar) panel in Embroidery Module.
  • Arrange: Place the Background first in the stitching sequence and the Foreground second.
  • Simulate: Run Design Player again after any order change.
  • Success check: The stitch sequence shows background first, then the foreground cleanly on top with no unnecessary under-stitching in the foreground area.
  • If it still fails: Look for long jump stitches crossing open areas and correct travel paths before exporting.
• Q: What needle and consumables should be prepared before stitching dense layered patch designs to reduce needle deflection in Premier+ 2 Ultra projects?
  A: Start with a fresh 75/11 Sharp needle and stabilize shifting with temporary adhesive spray when using cut-away, because dense overlaps commonly deflect needles.
  • Replace: Install a new 75/11 Sharp needle (ballpoint needles often deflect on dense overlaps).
  • Prepare: Use temporary adhesive spray (example: KK100) to keep layers from shifting during dense stitching.
  • Reduce: Slow the first test run to about 600–700 SPM to lower heat/friction and thread breaks.
  • Success check: The machine runs without the heavy “thump-thump-thump” deflection sound and the stitch-out stays aligned.
  • If it still fails: Treat it as excessive density/stacking—fix overlap in software and consider a stronger needle option (often titanium) for repeated dense work.
• Q: How can I tell if embroidery hooping tension is correct before running a high-density layered design on an embroidery machine?
  A: Hoop until the fabric is drum-tight and verify it by sound before stitching, because loose hooping increases push-pull shifting and misalignment.
  • Tap: Tap the hooped fabric and listen for a tight drum “thrummm,” not a loose “thud.”
  • Re-hoop: Re-seat the fabric and stabilizer if the sound is dull or the surface feels slack.
  • Inspect: Confirm the design area is flat and not already puckering before the first stitch.
  • Success check: The hooped area stays firm during the first layer and does not “bounce” or drift as stitching begins.
  • If it still fails: Pause and add masking tape to the hoop corners for extra stability if the stabilizer is drumming/bouncing.
• Q: What bobbin-area check should be done before stitching layered designs to avoid tension inconsistency and stitch problems?
  A: Clean lint from the bobbin area and start with a full, clean bobbin so tension stays consistent through long, dense sequences.
  • Open: Remove the bobbin case and clean out lint buildup.
  • Replace: Install a full bobbin before starting a layered/high-stitch-count run.
  • Verify: Keep tension consistent (a common reference is an 18g–22g pull test, but follow the machine manual).
  • Success check: Stitches remain even and consistent from the first layer through the final layer without sudden looseness or tightness.
  • If it still fails: Re-check density/overlap issues first, then revisit needle condition and stabilizer choice.
• Q: What safety steps should be followed when testing over-dense embroidery designs that may snap needles on an embroidery machine?
  A: Treat any over-dense test as a needle-break risk—wear protective eyewear and stop immediately if a sharp click/snap occurs.
  • Wear: Put on protective eyewear for first runs of dense/layered designs.
  • Listen: Stop if a sharp “click” or “snap” happens, because it can indicate a broken needle tip embedded in the fabric.
  • Act: Hit the Emergency Stop immediately if deflection noise escalates or penetration sounds harsh.
  • Success check: The machine penetrates smoothly without sudden impact sounds, and the needle remains intact after the test section.
  • If it still fails: Reduce density by ensuring a void/overlap removal in software and slow the machine speed for the next test run.
• Q: When should a shop switch from standard embroidery hoops to magnetic embroidery hoops for hoop burn or thick garments during long, dense stitch-outs?
  A: Upgrade to magnetic embroidery hoops when standard hoops cause hoop burn/crushed fibers or struggle to clamp thick items, because magnetic force holds without friction ridges.
  • Diagnose: Confirm hoop burn is coming from clamping pressure during long stitch time, not just minor wrinkles.
  • Try Level 1: Steam fabric to reduce minor hoop burn when appropriate.
  • Upgrade: Use magnetic embroidery hoops to reduce crushing and improve grip on thick jackets, velvet, or corduroy.
  • Success check: Fabric shows less marking after stitching and the garment stays registered without needing extreme tightening.
  • If it still fails: Review stabilizer choice (cut-away for unstable fabrics and high stitch counts) and consider process upgrades like hooping stations for repeatable placement.
