The Ultimate Guide to Layering in Hatch Embroidery 3: Stopping the "Bulletproof" Patch

If you have ever stood by your embroidery machine, listening to the rhythmic hum suddenly turn into a labored thump-thump-thump, you know the fear. That sound usually means your needle is fighting through a "bulletproof" patch of thread—a density disaster caused by improper layering.

It is the moment a hobbyist holds their breath, but a professional knows exactly what went wrong.

Layering is essential for dimension. It distinguishes a flat, cheap-looking design from a premium, 3D-effect logo. However, stacking fills (like a face base + eye whites + pupils) without architectural logic creates a "plywood effect." The fabric stiffens, the needle deflects, and you risk needle breaks, thread shreds, or the dreaded "birdnest" in your bobbin case.

This guide, based on Hatch Embroidery 3 workflows, is your operational white paper. We will move beyond "hope and pray" stitching to engineering precision—controlling angles, cutting holes, and managing density so your machine purrs instead of pounds.

The Physics of Density: Why Stacking Fills Fails

In the physical world, thread has mass and volume. When you stack three layers of standard Tatami fill on top of one another, you aren't just adding color; you are creating a solid barrier.

The Consequences of Unchecked Density:

• Needle Deflection: The needle hits a wall of thread and bends, striking the needle plate (Risk: Broken needle, burred plate).
• Fabric Displacement (Push/Pull): As density builds, the fabric is pushed outward. By the time the final outline stitches, it may be 2mm away from where it should be.
• Hoop Burn & Puckering: To combat the shifting, novices over-tighten the hoop.

The Golden Rule: Never stack more than two full-density fill layers. If a third layer is required, the bottom layer must yield (cut a hole) or the stitch type must change (Satin vs. Tatami).

Phase 1: The "Hidden" Prep Checklist

Before you even touch the "Reshape" tool in Hatch, you must secure your physical variable. Digitizing cannot fix a bad physical setup.

Prep Checklist: The Physical & Digital Foundation

• Consumables Check: Ensure you have temporary spray adhesive (for stabilizer bonding) and a fresh needle (Size 75/11 is the sweet spot for general wovens; 75/11 Ballpoint for knits).
• Stabilizer Selection: Do not guess. If the fabric stretches (T-shirt, Polo), you must use Cutaway stabilizer. Tearaway will eventually disintegrate under dense layering, ruining the alignment.
• Object Analysis: Identify which objects are "Base Fills" (background) and which are "Top Detail."
• Visualization Mode: Toggle T in Hatch to switch between "True View" (3D simulation) and "Stitches" (raw data). You need to see the raw stitch angles.

Warning: Mechanical Safety. Inspect your needle plate before starting dense projects. If previously broken needles have left burrs or scratches on the hole rim, these will shred thread instantly when stitching high-density layers. Sand it smooth or replace it.

Phase 2: Mastering Stitch Angles (The 0° vs. 90° Rule)

The most common rookie mistake is leaving all layers at the default angle (usually 45° or 135°).

The Concept: Imagine stacking two wooden planks. If you lay them parallel, they are weak and thick. If you cross them (plywood), they are stable and flat. Embroidery works the same way. If Layer A and Layer B both run at 45°, the needle enters the "valleys" of the previous layer, wedging it open and distorting the fabric.

The Hatch Workflow for Angle Control

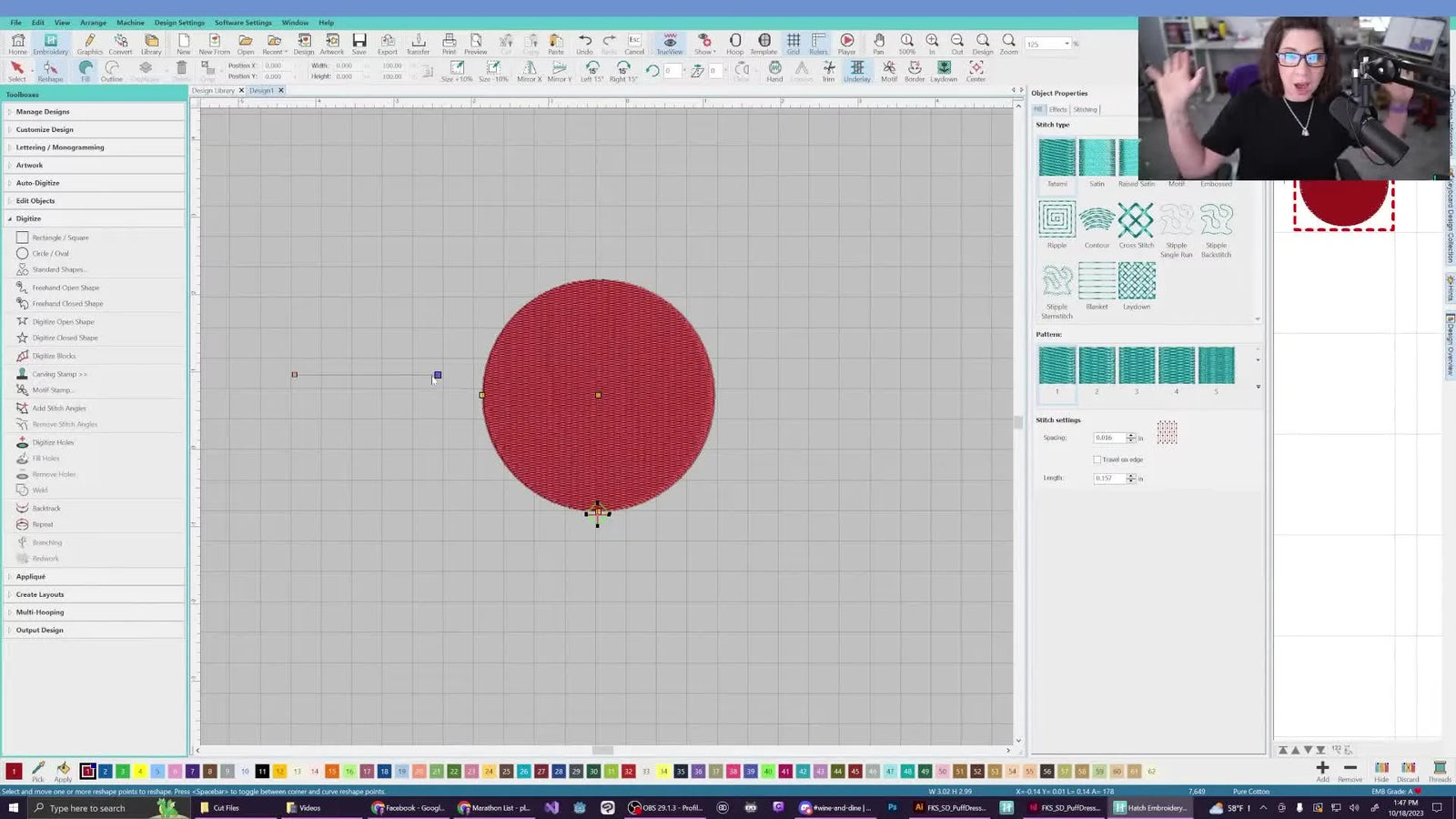

In the provided example, we are adjusting a red Tatami base circle.

1. Select the Object: Methodology is key. Click the object, then press H (Reshape).
2. Locate the Angle Handle: Look for the line with orange squares.
3. The Adjustment: Click and drag the handle until the angle reads 0° (Horizontal).
4. Align Start/Stop Points: This is the veteran move. If you rotate the angle but leave the entry/exit points (green/red diamonds) on the sides, Hatch may create an ugly "split line" or seam down the center of your fill to accommodate the pathing.
5. The Fix: Drag the Green (Start) and Red (Stop) diamonds to align with the stitch angle (e.g., both at the bottom or top).

Sensory Check: Look at the screen. The texture should look like a smooth, uninterrupted carpet. If you see a jagged line cutting through the fill, your Start/Stop points are fighting your angle.

Specifically when using standard hoops, this friction causes movement. This is often why professionals upgrade to machine embroidery hoops systems that clamp rather than pinch, providing the stability needed for complex angle layering.

Phase 3: The Order of Operations (Place First, Finagle Later)

Software creates background calculations every time you move an object. If you adjust angles while still resizing and moving separate layers, Hatch tries to "optimize" the stitch generation, often leading to weird artifacts.

The Correct Workflow:

1. Placement: Use the Circle/Oval tool. Place your eye whites. Get the size and position 100% correct.
2. Duplication: Right-click > Duplicate for symmetry.
3. Color Assignment: Set your colors.
4. Angle Optimization: Only now do you enter Reshape (H) mode to fix the angles.

This discipline prevents "Ghost Edits" where the software resets your manual work because you moved the object 1mm to the left.

Phase 4: Opposing Angles (The Structural Fix)

Now that the base is at 0°, the top layer (the eye whites) must oppose it to prevent the "nesting" effect described earlier.

The Action:

• Select the eye white object.
• Press H (Reshape).
• Set the angle to 90° (Vertical).

Why this works: The top stitches are now "bridging" across the bottom stitches rather than sinking into them. This creates a smoother surface and reduces the "push" on the fabric.

The Business Case for Tools: If you are stitching on unstable garments like hoodies or performance knits, even perfect angles can fail if the hooping is poor. Traditional hoops often leave "hoop burn" or fail to hold thick seams evenly. This is the specific trigger point where upgrading to magnetic embroidery hoops becomes an ROI decision. Magnetic hoops hold even tension across thick/thin areas (like pockets/zippers) without forcing you to over-stretch the fabric, allowing your angle planning to actually work.

Phase 5: Changing Stitch Types (Satin vs. Tatami)

Not everything needs to be a fill. A Fill (Tatami) is a series of running stitches that cover an area. A Satin stitch is a zigzag that covers the distance in one jump.

The Switch:

• The Pupil: It is small detail.
• The Problem: Putting a 3rd Tatami layer for the pupil over the white (Tatami) and red (Tatami) creates the "bulletproof" zone (3 layers deep).
• The Solution: Change the pupil to Satin.

The Logic: Satin stitches sit on top of the fabric texture rather than weaving into it. They add height without adding penetrative density.

Underlay Management:

• Base Layer: Needs strong underlay (Tatami or Edge Run) to stabilize the fabric.
• Top Layer (Pupil): Does NOT need Edge Run. Use a simple Zigzag or Center Run underlay. You want just enough structure to hold the shape, not enough to build a brick.


Phase 6: The "Holy Grail" of Density – Cutting Holes

The most professional way to handle layering is to ensure the bottom layer does not exist where the top layer sits.

The Workflow (Digitize Holes):

1. Select the Base Object (The Red Face).
2. Tool: Digitize > Digitize Holes.
3. Plotting: Click around the area where the eye will go. Crucial: Do not click exactly on the eye's edge. Plot your hole slightly inside the eye's boundary (about 1mm - 2mm overlap).
4. Close the Shape: Press Enter once to close your plotting shape.
5. Execute: Press Enter A SECOND TIME to actually cut the hole. (Many beginners miss this second Enter).

The Result: You now have a Red Face with a hole in it. The White Eye stitches over the hole, gripping the 1mm overlap of the Red. Total thickness? 1 layer (plus overlap). Bulletproof effect? Gone.

When NOT to Cut Holes

A common error is cutting holes for tiny details (small text, small dots).

• Rule of Thumb: If the top object is smaller than 5mm x 5mm, do not cut a hole. The machine needs the base fabric stability more than it needs density reduction.
• Risk: Small holes distort easily. You might end up with a white gap between the pupil and the face if the registration is slightly off.


Phase 7: Pull Compensation (The Insurance Policy)

Pull Compensation widens the design to account for the thread pulling the fabric in.

The Setting:

• Object Properties > Stitching Tab.
• Pull Compensation: 0.01 in (approx 0.25mm).

Why Less is More: beginners often crank this up to 0.4mm or more to fix gaps. This distorts the design shapes (circles become ovals). The correct fix for gaps is better overlap (from Phase 6) and better stabilization, not massive compensation.

Visual Check: On your screen, the design should look slightly "chubby" or bold. When stitched, the tension tightens it to the correct width.

Optimization Strategy: The Fabric-Stabilizer Decision Matrix

Your digitizing settings must match your physical canvas. Use this decision tree before exporting your file.

Decision Tree: Fabric → Stabilizer → Layering Strategy

1. Is the fabric unstable/stretchy? (T-Shirt, Jersey, Pique)
   • Stabilizer: Cutaway (2.5oz or 3.0oz). No exceptions.
   • Layering: MUST use "Opposing Angles" (0°/90°).
   • Hooping: High risk of hoop burn. Recommended: magnetic hooping station to ensure backing and fabric are perfectly smooth without over-stretching.
2. Is the fabric textured/lofty? (Fleece, Towel)
   • Stabilizer: Cutaway + Water Soluble Topper (Solvy) to keep stitches from unsure.
   • Layering: Use Satin for top details to prevent them from sinking.
   • Holes: Be careful. Large holes in fleece can cause the white eye to sink into the fluff. Ensure generous overlap (2mm+).
3. Is the fabric rigid? (Denim, Canvas, Twill)
   • Stabilizer: Tearaway is acceptable (2 layers).
   • Layering: Can tolerate higher density, but holes are still best practice for comfort.


The Production Mindset: Scaling Beyond the Hobby

The techniques above (Standardized Angles, Strategic Holes, Correct Underlay) differentiate a design that takes 20 minutes and breaks a needle from one that takes 12 minutes and looks perfect.

If you are moving into production—stitching 10, 20, or 50 items—efficiency isn't just about digitizing; it's about workflow.

• Digitizing Efficiency: Save your standard eye/face combos as "Library Objects" in Hatch so you don't rebuild them every time.
• Mechanical Efficiency: If you spend more time hooping than sewing, look into hooping stations. They allow you to hoop the next garment while the machine is running the current one, standardizing placement (e.g., exactly 3 inches down from the collar) every single time.


Troubleshooting Guide: Reading the Symptoms

Embroidery talks to you. Here is how to interpret the language of failure.

Operation Checklist: The "Before You Export" Quality Gate

Do not send the file to the machine until you have verified these points.

Operation Checklist

• Visual Texture: In True View, does the base fill look smooth (no split lines)?
• Angle Check: Is the base at 0° and the overlay at 90° (or significantly different)?
• Density Check: Have you cut holes behind large overlay objects?
• Hole Verification: Did you press Enter twice? (Toggle "True View" off to see if the hole is actually cut).
• Stitch Type: Are small details (<5mm) set to Satin, not Tatami?
• Machine Prep: Is the bobbin full? (Running out of bobbin thread on a dense overlay is a nightmare to fix).

Typically, intermittent quality issues—where one shirt looks good and the next looks bad—are hooping issues, not digitizing issues. Using consistent tools like embroidery hoops magnetic frames removes the "human strength" variable from the equation, ensuring the fabric tension matches what you programmed in Hatch.

The Upgrade Path: When is it Time?

You can practice perfect digitizing for years, but eventually, you may hit a hardware ceiling.

Level 1: The Hobbyist

• Focus: Learning Hatch, mastering stabilizers, using a single-needle machine.
• Pain Point: Re-threading colors, slow hooping.

Level 2: The Prosumer (Efficiency Upgrade)

• Solution: Magnetic Hoops.
• Why: Solves "Hoop Burn," speeds up loading thick garments, prevents hand strain.
• Safety: > Warning: Magnet Safety. Magnetic hoops use high-power neodymium magnets. They can pinch fingers severely and interfere with pacemakers. Handle with separate sliding motions, never let them "snap" together uncontrolled.

Level 3: The Business Owner (Scale Upgrade)

• Solution: SEWTECH Multi-Needle Machines.
• Why: You need to run 15 colors without stopping. You need higher speeds (1000+ SPM) that maintain precision. You need a free-arm design that allows caps and bags to be embroidered without wrestling the fabric.

By mastering the logic of layering in Hatch 3 first, you ensure that when you do upgrade your machinery, you aren't just making bad designs faster—you are ready to produce retail-quality embroidery at scale.

FAQ

• Q: In Hatch Embroidery 3, how can Hatch Embroidery 3 Tatami fill layering be stopped from creating a “bulletproof patch” thump-thump-thump sound on an embroidery machine needle?
  A: Reduce stacked density immediately by changing the top detail to Satin or by cutting a hole in the base fill so the layers do not overlap full-density.
  • Change: Convert the 3rd layer (small top detail like a pupil) from Tatami to Satin, and keep the top underlay light (Center Run or simple Zigzag).
  • Cut: Use Digitize > Digitize Holes on the base object and plot the hole slightly inside the top object boundary (about 1–2 mm), then press Enter to close and Enter again to execute.
  • Stop: Pause stitching if the needle is pounding; continuing can cause deflection and breaks.
  • Success check: The machine sound returns to a smooth “purr” and the stitched area feels firm but not rock-hard.
  • If it still fails: Re-check that no more than two full-density fills are stacked in the same area and inspect the needle for bending.
• Q: In Hatch Embroidery 3 Reshape (H) mode, how can a split line seam in a Tatami fill be fixed after changing the stitch angle?
  A: Align the Start (green) and Stop (red) points with the new stitch angle so Hatch does not force a seam through the fill.
  • Select: Click the fill object and press H to enter Reshape.
  • Adjust: Set the stitch angle (for example, base at 0°) using the angle handle.
  • Move: Drag the green/red diamonds so entry/exit are aligned with the stitch direction (both near the top or both near the bottom, not on the sides).
  • Success check: The fill texture preview looks like a smooth, uninterrupted carpet with no jagged line cutting through it.
  • If it still fails: Toggle between True View and Stitches view to confirm the pathing, then re-position Start/Stop again before making other edits.
• Q: In Hatch Embroidery 3 layering, what stitch angle settings prevent Tatami-on-Tatami nesting and fabric push/pull when stacking a base fill and a top detail fill?
  A: Use opposing angles (a safe starting point is 0° for the base and 90° for the top layer) instead of leaving both layers at the default angle.
  • Set: Put the base fill angle at 0° (horizontal).
  • Set: Put the overlay fill angle at 90° (vertical).
  • Confirm: Keep Start/Stop points aligned with each layer’s stitch angle after rotating.
  • Success check: The top layer stitches “bridge” across the bottom layer instead of sinking into the valleys, and outlines land closer to where they were digitized.
  • If it still fails: Improve stabilization (especially on knits) and consider reducing density or using holes for large overlays.
• Q: For dense layering jobs in Hatch Embroidery 3, what physical prep checklist prevents shifting, puckering, and alignment problems before digitizing changes are made?
  A: Lock down the physical setup first—fresh needle, correct stabilizer choice, and proper bonding—because digitizing cannot compensate for unstable hooping and backing.
  • Replace: Install a fresh 75/11 needle for general wovens (or 75/11 ballpoint for knits).
  • Choose: Use Cutaway stabilizer when the fabric stretches (T-shirts, polos); avoid relying on Tearaway for dense layered designs.
  • Bond: Use temporary spray adhesive to keep stabilizer and fabric acting as one unit.
  • Success check: The fabric/backing stack feels flat and unified (no sliding), and the design stays registered between layers.
  • If it still fails: Re-evaluate whether the fabric is stretchier than expected and switch to Cutaway if there is any doubt.
• Q: When stitching high-density layered designs, what mechanical safety checks prevent thread shredding and needle breaks around the needle plate (throat plate)?
  A: Stop and inspect the needle and needle plate for burrs or damage before continuing dense stitching.
  • Stop: Pause immediately if needle breaks or the needle starts “pounding” through thick layers.
  • Inspect: Check the needle plate hole rim for burrs/scratches (often caused by previous needle strikes).
  • Correct: Smooth the burr carefully or replace the needle plate if damage is significant.
  • Success check: Thread stops shredding instantly and stitching runs without sudden tension spikes or snapping.
  • If it still fails: Reduce density (avoid 3+ stacked fills) and verify the needle is straight and correctly installed.
• Q: In Hatch Embroidery 3 Digitize Holes, why does the hole sometimes not actually cut, and what is the exact execution step to make the hole apply?
  A: The hole often fails because the second Enter keystroke was missed—Hatch requires Enter to close the shape and Enter again to execute the cut.
  • Plot: Digitize > Digitize Holes, then click around the target area slightly inside the top object edge (about 1–2 mm).
  • Close: Press Enter once to close the plotted hole shape.
  • Execute: Press Enter a second time to apply/cut the hole.
  • Success check: With True View toggled off, the base object visibly shows an opening where the overlay will stitch.
  • If it still fails: Re-plot the hole with a cleaner closed shape and confirm the correct object (the base fill) was selected before digitizing the hole.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops to prevent finger injuries and medical device interference during hooping?
  A: Treat magnetic hoops as high-power tools—slide magnets apart/into place slowly and never let them snap together, and keep them away from pacemakers.
  • Handle: Separate and attach the magnetic ring using controlled sliding motions, not pulling straight apart.
  • Protect: Keep fingers out of pinch points before the magnets meet.
  • Avoid: Do not use around pacemakers or sensitive medical devices; follow the machine and hoop manuals.
  • Success check: The hoop closes without a sudden snap and the fabric is held evenly without over-stretching.
  • If it still fails: Switch to a safer handling position, slow down the closing motion, and consider a hooping station for more control.
