The Calm-Down Truth: Understanding the "Tug-of-War"

Before you touch a single screw, understand the physics: Embroidery is a tug-of-war between the top thread and the bobbin thread.

• Bobbin showing on top? The top thread is pulling too hard (winning), or the bobbin is too weak (losing).
• Top thread looping on bottom? The top thread is too weak (losing), or the bobbin is too tight (winning).

Most beginners make the mistake of tightening the top tension immediately. Stop. The veteran rule is: Always calibrate the bobbin first. It is your foundation. If your foundation is shifting, you cannot build a stable house.

The Industry "Sweet Spot" Data:

• Bobbin Tension: 22g – 40g (grams-force).
  • Beginner target: Aim for 25g. It's tighter/safer than loose settings.
• Top Tension: Generally 1.8x to 2x the bobbin tension.
  • Target: 45g – 80g (depending on thread thickness).
  • Commercial Note: High-speed industrial machines may run higher (up to 100g), but start lower to prevent thread breaks.


Phase 1: The "Hidden Prep" (Don't Measure a Mistake)

Before you measure anything, you must validate the tool itself. A digital gauge reading is useless if the setup is wrong.

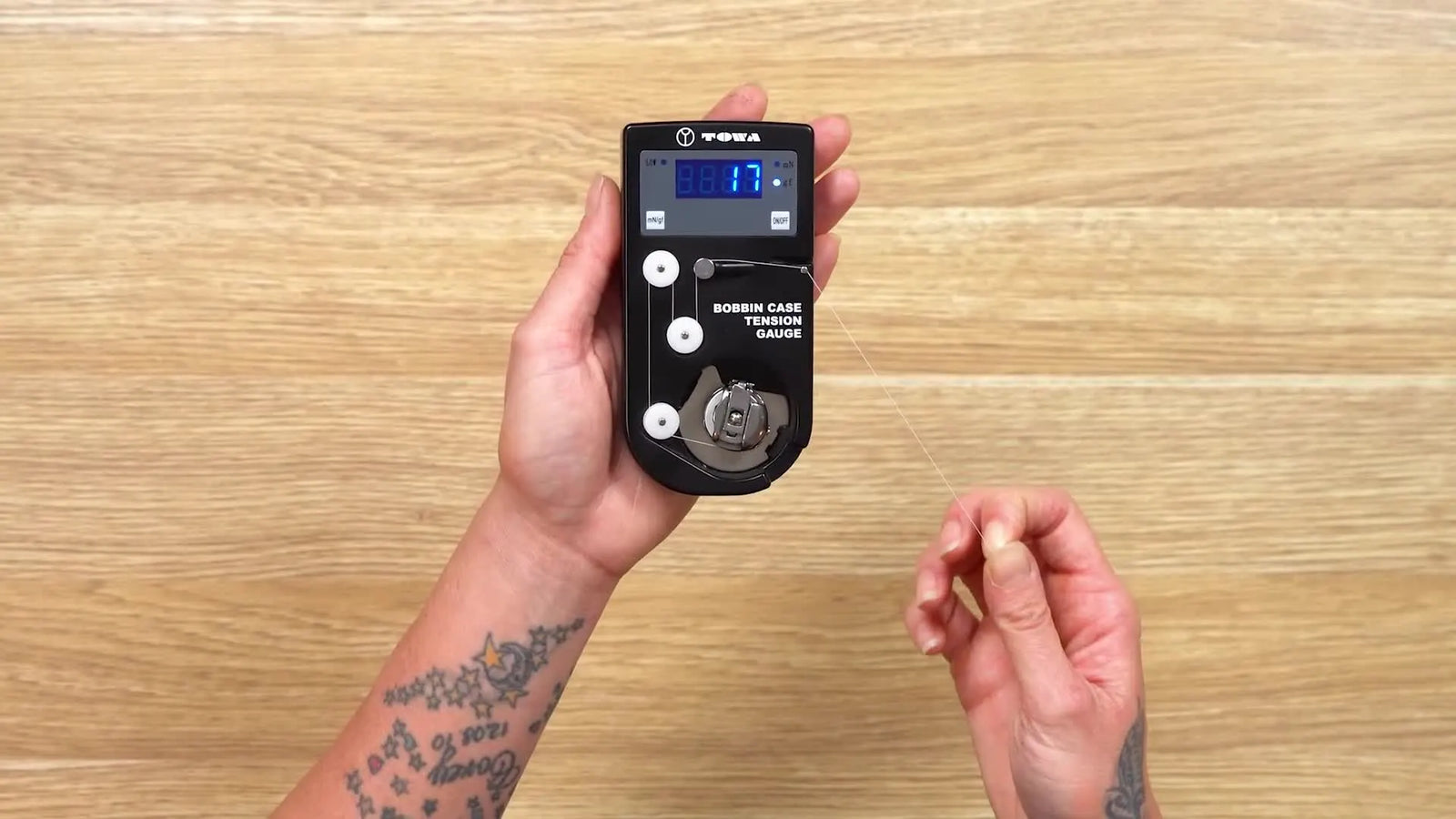

1. The L-Style Adapter Check

Most commercial machines (including brother multi needle embroidery machines) use L-style bobbins. The TOWA gauge usually comes with this adapter pre-loaded.

• Visual Check: Ensure the plastic insert is clicked fully into the gauge well.
• Removal: If you ever need to remove it (for M-style bobbins), use a small screwdriver to gently push the latch.

2. Unit Selection (gf vs. mN)

Power on the gauge by holding the ON/OFF button.

• Look: Check the display units.
• Action: If it reads mN (milli-Newtons), press the unit button until it switches to gf (grams-force). We speak the language of grams here.

Warning: Sharp Edge Hazard. The TOWA gauge has a built-in thread trimmer near the measurement pulley. Keep your fingers clear. Do not slide the thread blindly against the casing, or you will slice it—and your reading will drop to zero instantly, confusing you.

3. The "Clean Pull" Technique

The video demonstrates pulling the thread slowly and steadily downward.

• Sensory Anchor: Imagine you are pulling dental floss. You want a consistent, smooth drag.
• Avoid: Jerky, fast yanks. These create "phantom spikes" in the data.

Prep Checklist (Verify before starting):

• Gauge unit is set to gf.
• L-style adapter is secure.
• Bobbin case is clean (blow out lint from under the tension spring).
• You have a standard flathead screwdriver for adjustments.


Phase 2: Bobbin Calibration (The Foundation)

A surprising number of "tension problems" are actually loading errors.

Step 1: Loading Logic

Insert the bobbin into the metal case.

• Visual Check: The thread tail must come off in a clockwise direction.
• Action: Pull the thread into the slit, then under the tension leaf spring.
• Sensory Check: Pull the thread. It should flow smoothly. If it snags or "ratchets," re-load.




Step 2: The Critical "Click"

This is where 50% of users fail. You must lock the bobbin case into the TOWA adapter correctly.

• Alignment: Locate the bobbin case lever. Align it to the left side of the locator post inside the gauge well.
• Action: Press down firmly.
• Audible Check: Listen for a sharp "CLICK."
• Why this matters: If it doesn't click, the case spins freely, and you are measuring nothing.




Step 3: Threading the Pulleys (The S-Curve)

Route the thread around the two white pulleys in the S-shape/figure-8 path shown in the video.

• Caution: As you exit the second pulley, guide the thread strictly downward. Avoid the trimmer blade mentioned in the warning above.




Step 4: The Quarter-Turn Adjustment

Now, pull the thread and watch the screen.

• The Goal: 25gf – 40gf. (In the video, the "happy" reading is ~35gf).
• The Adjustment:
  1. Turn the gauge on its side.
  2. Locate the larger flathead screw on the bobbin case side.
  3. Action: Turn Clockwise to tighten (increase number), Counter-clockwise to loosen.
  4. The Rule: Move in quarter-turns (imagine a clock face: 12 to 3).
• Sensory Anchor: You should feel slight resistance on the screw. If it spins loosely, your screw might be stripped.




Expert Insight: Don't chase a static number like "35.0". Thread has texture. A hovering range between 32-38 is perfect. Stability is more important than exact precision.

Phase 3: Top Tension (The Variable)

Once your bobbin is locked at ~35gf, we can tune the top.

The Measuring Path (Crucial!)

You cannot just pull thread from the spool. You need to measure the friction after it passes through the tension disks but before the needle.

1. Action: Unthread the needle eye.
2. Constraint: Keep the thread BEHIND the small metal thread guide on the needle bar. This guide adds necessary friction.
3. Route: Bring the thread down into the TOWA gauge (S-curve) just like you did with the bobbin.
4. Pull: Pull firmly downward.

If you are calibrating a specific workhorse like the brother pr680w, this method ensures you are measuring the actual drag the machine exerts during stitching.

The Brother PR "Red Line" Explained

In the video, Holly adjusts the grey tension knob. She mentions the red line indicator.

• Myth: The red line is the "correct" setting.
• Truth: The red line is a baseline. It is "factory neutral."
• Action: Start with the red line just visible. Measure. Then adjust.




The Ratio: 2x Is The Target

• Bobbin: ~35gf
• Top Target: ~70gf (Range: 60-80gf)

In the video, the reading lands around 74gf (Fig-16). This is a healthy ratio.

• Too Low (<50gf): You risk loops on top.
• Too High (>100gf): You risk puckering fabric, snapping thread, or breaking needles.


Setup Checklist (The "Go/No-Go" Flight Check):

• Bobbin confirmed between 25-40gf.
• Bobbin case re-installed into machine (listen for the "click" into the rotary hook).
• Top thread measured from the needle bar (behind the guide).
• Top tension reads approx 2x the bobbin tension.
• You adjusted the correct knob for the correct needle (don't laugh, it happens).

Decision Tree: Is it Tension or Stabilizer?

Often, users blame tension when the real culprit is "flagging" (fabric bouncing up and down). Before touching tension screws, check your consumables.

Stabilizer Selection Logic:

1. Is the fabric stretchy (Knits, Polos, Performance)?
   • YES: MUST use Cutaway. (Tearaway will fail, causing gaps). Add a water-soluble topper to prevent sinking.
   • NO: Proceed to #2.
2. Is the fabric unstable/thin (Rayon, Silk)?
   • YES: Use No-Show Mesh (Poly-Mesh) or lightweight Cutaway.
   • NO: Proceed to #3.
3. Is it stable Woven (Canvas, Denim, Caps)?
   • YES: Tearaway is acceptable.

Troubleshooting: The "Shop Floor" Matrix

When things go wrong, follow this Low-Cost to High-Cost troubleshooting path.

The "Scaling Up" Guide: Tools That Solve Human Error

Once you master tension, your next bottleneck will be physical workflow. Mastering the mechanics allows you to identify when you need a tool upgrade rather than a skill upgrade.

1. The "Hoop Burn" Bottleneck

If you are struggling with "hooping marks" on delicate items or wrist fatigue from manual screwing, this is the trigger to upgrade to Magnetic Hoops.

• The Value: They clamp fabric instantly without friction burns.
• The Fit: Essential for bulk orders on commercial machines like the brother pr1055x.
• Efficiency: Reduces "dead time" between runs by 30-40%.

Warning: Magnet Safety
Magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin or break bones. Handle with palms open.
* Electronics: Keep at least 6 inches away from pace-makers and credit cards.

2. The Production Bottleneck

If you find yourself running a single-needle machine for 6 hours a day, you aren't embroidering—you are babysitting.

• The Trigger: Are you declining orders because you can't deliver fast enough?
• The Solution: Multi-needle machines (like the SEWTECH ecosystem or 15 needle embroidery machine platforms).
• The Standard: These machines allow you to set tension once across 15 colors and run uninterrupted. If you currently run a mixed fleet (e.g., a bai embroidery machine next to a Tajima), standardizing your tension with the TOWA gauge across all heads is the only way to ensure the same logo looks identical regardless of which machine stitched it.

Final Operation Checklist

Print this out and tape it to your machine stand.

1. Prep: Clean bobbin case. Set Gauge to gf.
2. Bobbin: Load CW. Click into gauge. Target: 35gf.
3. Top: Thread machine. Pull from needle bar (behind guide). Target: ~70gf.
4. Test: Run the "H" or "I" test pattern (satin columns).
5. Look: Flip fabric. Center 1/3 should be bobbin thread (white), outer 1/3s should be top color.
6. Upgrade: If hooping takes longer than stitching, investigate magnetic frames.

Even on a high-end tajima embroidery machine or a 10 needle embroidery machine, this physics remains the same. Control the tension, and you control the profit.
