Stop Fighting Auto-Digitize: Clean Manual Artwork Digitizing in Hatch Embroidery 2 (Without Bulky, “Bulletproof” Stitches)

If you’ve ever stared at an auto-digitized file and thought, “Why does this look like cardboard when it stitches?”—you’re ready for manual digitizing. Auto-digitizing is a gamble; manual digitizing is engineering.

In this Hatch Embroidery 2 lesson, Linda Goodall demonstrates a practical workflow: import artwork, lock it, then build the design with three core tools. But as someone who has supervised thousands of hours of machine run-time, I’m going to rebuild this process with "shop-floor" reality. We aren't just drawing lines; we are programming a machine to push a needle through fabric at 800 times per minute without breaking thread.

The Calm-Down Moment: Hatch Embroidery 2 Manual Digitizing Isn’t Magic—It’s Click Logic

Manual digitizing often triggers "blank canvas paralysis." It feels intimidating because beginners think they need to be artists. You don't. You just need to be a logical architect.

Hatch operates on a strict yet simple input logic, similar to connecting dots in a child’s drawing book, but with defined rules:

• Left Click: Creates a hard corner / straight point. (Think: Angles, sharp turns).
• Right Click: Creates a curve. (Think: Flowing lines, circles).

If you’re coming from another program, the learning curve is real—but predictable. Once you build the muscle memory of "Left for sharp, Right for smooth," you stop "drawing stitches" and start building clean objects.

Clarification: The software shown is specifically Hatch Embroidery Digitizer.

The “Hidden” Prep: Insert Artwork (Not Insert Design) and Lock It Before You Touch a Digitizing Tool

This is the single most common reason beginners fail. If your foundation moves, your house falls down.

The "Must-Do" Workflow

1. Create a new blank document.
2. Use Insert Artwork (do not use “Insert Design”—that is for editing existing stitch files).
3. CRITICAL STEP: Immediately lock the artwork by pressing K.

Why this matters: When you zoom in to place a node, and then pan across the screen, it is incredibly easy to accidentally drag the background image by 1mm. That doesn't sound like much, but in embroidery, a 1mm gap creates a "white reveal" where the fabric shows through between outlines and fills.

Use this sentence as your muscle memory: “Artwork goes in, then K.”

Prep Checklist (Do not skip)

• Correct Import: Confirmed clicked Insert Artwork, not Insert Design.
• Scale Verification: Measured a known distance on the artwork to ensure it is the size you intend to stitch (Scale it now, not after digitizing).
• Lock Down: Pressed K; tried to drag the image with the mouse to confirm it is frozen.
• Consumable Check: Do you have the right needle (Project recommendation: 75/11 Ballpoint for knits, Sharp for wovens) and fresh bobbin thread?

Open Shape in Hatch Embroidery 2: Build Smooth Antennae Lines and Return Cleanly with Backtrack

Open Shape is your specific tool for "running stitches"—lines that do not enclose a fill.

The Antennae Workflow

1. Choose Digitize Open Shape.
2. Start with a left click at the base.
3. Use right clicks to form the gentle curve of the antenna.
4. Stop at the tip, press Enter.
5. Use the Backtrack tool immediately.

Why Backtrack? In professional digitizing, we hate "jump stitches" (where the machine trims and moves to a new spot). Jump stitches are slow and leave loose ends. Backtrack automatically creates a second layer of stitches going backward along the exact same path. It makes the line bolder and returns the needle to the starting point without a cut.

Pro Tip: The Visual Weight Check

When you backtrack a run stitch, you are doubling the thread mass.

• Sensory Check: Look at the screen. Does the line look like a heavy rope?
• Adjustment: If the antennae look too thick or "clumpy," change the stitch type from specific "Run" settings or simply reduce the number of nodes to smooth the path.
• Sweet Spot: For standard 40wt thread, a stitch length of 2.5mm to 3.0mm usually flows best for detail lines.

Watch out (The "Ctrl+Z" Trap)

If you misplace a point while digitizing, do not press Ctrl+Z. That undoes the whole object setup. In Hatch, while the tool is active, press Backspace to remove just the last node you dropped.

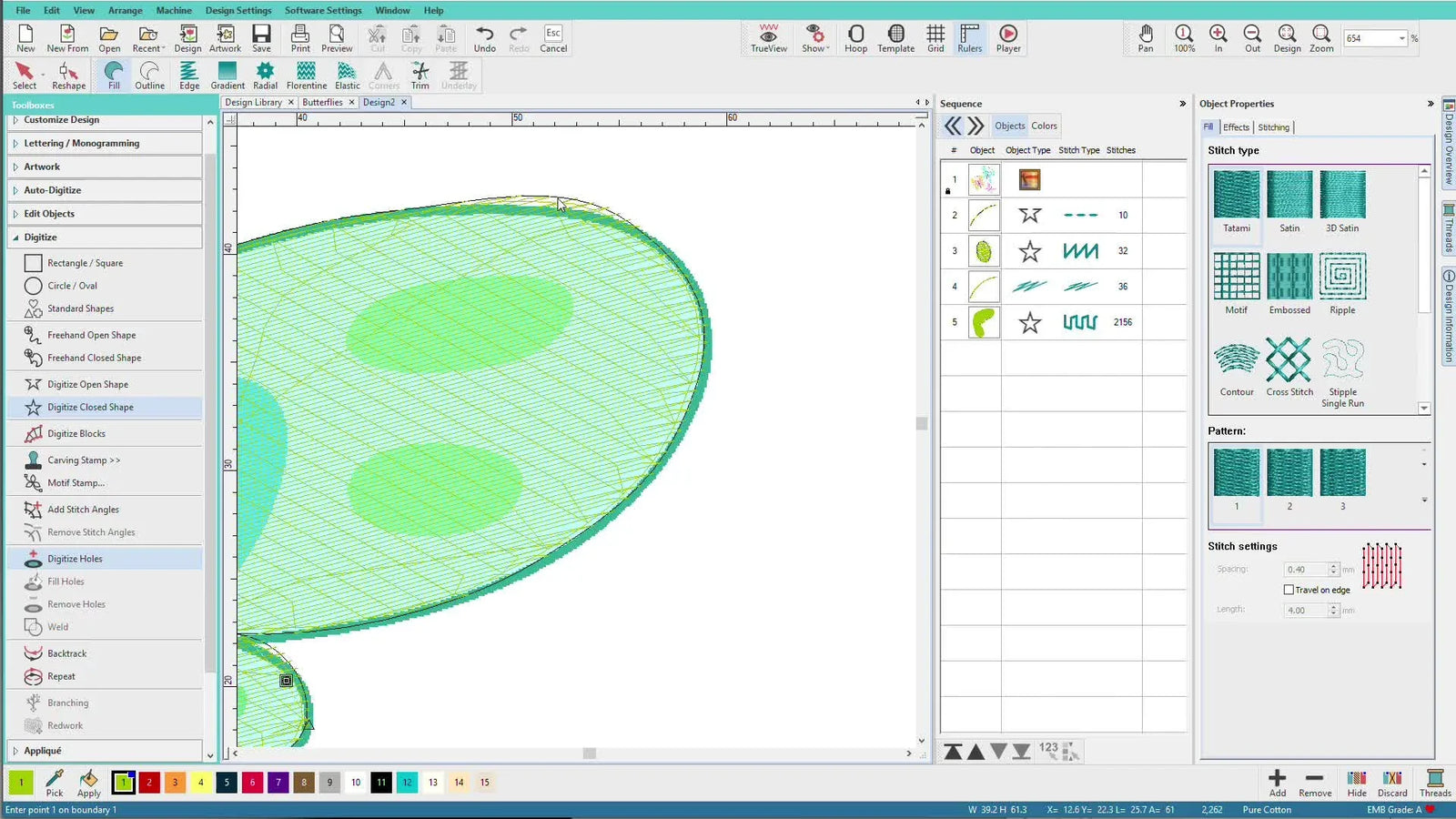

Closed Shape in Hatch Embroidery 2: Trace Wings with Fewer Nodes, Then Reshape Like a Pro (H Key)

Closed Shape is for fills—wings, patches, patches of color.

The "Less is More" Principle

1. Select Digitize Closed Shape.
2. Trace the wing.
3. The Golden Rule: Use the fewest clicks possible. A circle only needs 3-4 points in Hatch to look perfect.

Beginners often click every 2 millimeters. Don't. Every node is a potential "hiccup" in the machine movement. Too many nodes create jagged edges that look "chewed" when stitched on soft fabric.

Reshape Mode (The Editor's Scalpel)

Once the shape is closed (press Enter), the fun begins.

• Press H to enter Reshape.
• Turquoise Circles: Curve nodes.
• Yellow Squares: Corner nodes.
• Spacebar Trick: Click a node and hit Spacebar to toggle it between curve and corner. This is faster than deleting and redrawing.


Why Node Hygiene Matters

• Visual: Smooth curves reflect light better (better sheen).
• Tactile: Fewer needle penetrations mean the embroidery feels softer, not like a bulletproof patch.


Setup Checklist (Before adding effects)

• TrueView Check: Pressed T to toggle TrueView. Does the flow look organic?
• Node Audit: Entered Reshape (H). Are there clusters of nodes? (Delete the extras).
• Node Types: Confirmed sharp points are Yellow Squares and curves are Turquoise Circles.

Warning: Digitizing is sedentary, but it fatigues the eyes and wrist. Production mistakes happens when you are tired. Also, never test-stitch while distracted—fingers near a moving needle moving at 800 stitches per minute is a serious safety hazard.

Radial Fill in Hatch Embroidery 2: Make Large Wings Look Alive (and Control the Center Point)

A standard "Tatami" fill is flat. It looks like a carpet. To make a butterfly wing look iridescent, we use stitch angles.

The Physics of Shine

1. Select the wing.
2. Effects Tab > Radial Fill.
3. Press H. Move the "X" marker (center point).


Expert Insight: It's Not Just Pretty, It's Structural

When you move the center point, you change the direction of the "Pull." Embroidery stitches pull the fabric in the direction the thread runs.

• The Risk: If you place a radial center oddly on a stretchy t-shirt, it might pucker the fabric into a cone shape.
• The Fix: For beginners, keep the radial center relatively central or use a strong stabilizer (like a 2.5oz Cutaway) to counteract the pull.

Remove Overlaps in Hatch Embroidery 2: The Clean Way to Avoid “Bulletproof” Density

Layering is dangerous. If you stack a Fill (wing) + a Fill (dot) + a Satin (outline), you might have 3mm of thread thickness.

The Problem: Needle Deflection

If the density is too high, the needle struggles to penetrate. You will hear a loud "thumping" sound (not good), and you risk snapping the needle or shredding the thread.

The Solution: The Cookie Cutter

1. Digitize the inner spots on top.
2. Select top object.
3. Edit Objects > Remove Overlaps.

This cuts a hole in the layer below, so the spot fits into the wing like a puzzle piece, rather than sitting on top.

Critical Nuance

Do not remove overlaps for tiny details or thin lines. If the object is smaller than 4mm, let it sit on top. Cutting holes for tiny items creates gaps (registration errors) if the fabric shifts even 0.5mm.

Digitize Blocks Tool in Hatch Embroidery 2: Turning Satin Strokes Without Guesswork

This is the tool that separates amateurs from pros. It creates "Turning Satins"—columns of thread that wind and turn like a snake.

Thinking in "Rungs"

Imagine you are building a ladder.

• You place points in pairs (Left side, then Right side).
• Each pair acts as a rung on the ladder, telling the software exactly what angle the thread should take at that specific millimeter.




Workflow (Butterfly Body)

1. Select Digitize Blocks.
2. Click Left (Top Left of body), Click Right (Top Right of body).
3. Move down. Click Left, Click Right.
4. Allow the thread angles to turn gradually.


Practice Strategy

This tool requires "feel." If your angles are too sharp, the stitches will bunch up inside the turn.

• Sensory Check: In TrueView, look at the inside of the curves. If the threads look like they are piling up on top of each other, use Backspace and widen the turn or change the angle of your pair.

The Reality Check: TrueView Is Not a Stitch-Out—Plan One Test Sew Every Time

The screen lies. It shows you a perfect world without gravity, friction, or fabric stretch.

TrueView (Toggle T) is a preview, not a promise. It cannot predict:

• The elasticity of your specific cotton.
• The "Hoop Burn" caused by clamping the frames too tight.
• The tension of your bobbin case.
• Whether your thread combination (e.g., Rayon top, Poly bottom) plays nice.

The Rule: Never put a design on a finished garment until you have run it on a piece of scrap fabric with the exact same stabilizer stack.

If you’re using hooping for embroidery machine setups incorrectly, even the best digitizing won't save you. Loose hooping = distorted designs.

Troubleshooting Hatch Embroidery 2 Manual Digitizing: Symptoms, Causes, Fixes

When things go wrong, don't panic. Use this diagnostic table.

A Simple Decision Tree: Fabric + Design Area → Stabilizer Strategy

Stabilizer is not an accessory; it is the foundation. A design digitized for denim will fail on jersey knit unless stabilized correctly.

1. Is the fabric stretchy? (T-shirt, Hoodie, Knit)

• YES: You MUST use Cutaway stabilizer. Tearaway will eventually loosen, and the stitches will distort.
• NO: (Denim, Canvas, Towel) -> Go to 2.

2. Is the fabric textured/fuzzy? (Towel, Fleece)

• YES: Use a Water Soluble Topper on top to keep stitches from sinking, AND a stabilizer on the bottom.
• NO: Standard Tearaway or Cutaway is likely fine.

3. Is the design dense? (Full chest logo, dense patch)

• YES: Use a heavier weight Cutaway (2.5oz - 3.0oz).
• NO: Medium weight is fine.

Note: When adjusting nodes, the hatch embroidery reshape tool guide is useful, but it cannot fix physics. If you don't stabilize, the fabric will pucker.

The Upgrade Path: When Better Hooping and Better Hardware Turn Good Digitizing into Fast Production

Digitizing is the software side; mechanics is the hardware side. You can have a perfect file, but if you are fighting your equipment, you will hate the process.

The "Pain Point" Triggers:

• Are you getting "Hoop Burn" (shiny rings) on delicate fabrics?
• Do your wrists hurt from wrestling the inner ring into the outer ring?
• Are you re-hooping 5 times just to get the shirt straight?

The Solution Hierarchy:

Level 1: Stability Upgrade (Consumables) Ensure you are using temporary spray adhesive (like 505 Spray) to tack your stabilizer to the fabric. This prevents "slide" during hooping.

Level 2: Tool Upgrade (Magnetic Frames) Terms like magnetic embroidery hoop are your gateways to professional results. Unlike friction hoops that force fabric between plastic rings, magnetic hoops hold fabric flat with powerful magnets.

• Benefit: Zero hoop burn, significantly faster hooping, and easier adjustments for straightness.
• Compatibility: Many users search for magnetic hooping station setups to pair with these hoops, allowing you to prep the next garment while the machine is running—a massive time saver.

Warning: Magnetic hoops (especially for industrial standard machines) are incredibly strong. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and children.

Level 3: Capacity Upgrade (Multi-Needle Machines) If you are moving from hobby to business (e.g., orders of 20+ Polos), a single-needle machine becomes a bottleneck due to constant thread changes. This is where researching a SEWTECH multi-needle machine becomes a smart ROI calculation. The ability to set 12 colors and walk away is how you turn embroidery into profit, not just a hobby. A hooping station for machine embroidery combined with a multi-needle machine is the standard for small business efficiency.

Operation Checklist (Your Production Workflow)

• Artwork: Inserted and Locked (K).
• Structure: Thin lines (Open Shape) -> Large Fills (Closed Shape) -> Details (Blocks).
• Refinement: Used H to clean nodes; Used Remove Overlaps on big fills.
• Inspection: TrueView looks clean; Stitch angles flow correctly.
• Physical Prep: Correct needle installed? Bobbin full?
• Hooping: Fabric is "drum tight" (taut but not stretched) in the hoop.
• Test Drive: Run the design on scrap fabric first.

If you’re new, take it one tool at a time. Master the Right-Click curve today; master the Satin Turn tomorrow. That steady accumulation of skill is how you stop making "cardboard" and start making art.

FAQ

• Q: In Hatch Embroidery Digitizer, why does the artwork keep moving when using Digitize Open Shape and Digitize Closed Shape, and how can Hatch Embroidery Digitizer lock inserted artwork correctly?
  A: Lock the background artwork immediately after importing by pressing K so nodes can be placed without the image shifting.
  • Use Insert Artwork (not “Insert Design”) when starting from an image.
  • Press K right away, then try dragging the image to confirm it is frozen.
  • Verify scale before digitizing so resizing is not needed after objects are built.
  • Success check: Zoom in, pan around, and place nodes—artwork stays perfectly aligned with no 1 mm drift.
  • If it still fails: Re-import using Insert Artwork, then lock again before selecting any digitizing tool.
• Q: In Hatch Embroidery Digitizer, what is the correct way to undo a single misplaced node while actively digitizing an Open Shape or Closed Shape without breaking the whole object?
  A: Use Backspace to remove only the last node—avoid Ctrl+Z while the digitizing tool is active.
  • Press Backspace once per node to step back cleanly.
  • Continue digitizing after removing the incorrect point instead of restarting the object.
  • Keep clicks minimal to reduce the chance of misplacement.
  • Success check: Only the last point disappears and the object remains in the same digitizing mode, ready for the next node.
  • If it still fails: Finish the object with Enter, then use H (Reshape) to correct node positions.
• Q: In Hatch Embroidery Digitizer, how can Hatch Embroidery Digitizer reduce jagged “chewed” edges on a Closed Shape fill when the design looks rough in TrueView?
  A: Clean up node count and node types using H (Reshape)—too many nodes usually causes jagged edges.
  • Press H to enter Reshape and delete clustered extra nodes.
  • Toggle a selected node between curve/corner using the Spacebar (turquoise = curve, yellow = corner).
  • Re-check with T (TrueView) to confirm the curve flow looks smooth.
  • Success check: Edges look continuous in TrueView and curves do not appear “stair-stepped.”
  • If it still fails: Re-digitize the outline with fewer clicks (a circle often only needs 3–4 points).
• Q: In Hatch Embroidery Digitizer, when should Hatch Embroidery Digitizer use Remove Overlaps to prevent “bulletproof” density, and when should Remove Overlaps be avoided to prevent gaps?
  A: Use Edit Objects > Remove Overlaps on larger layered areas, but avoid it on tiny details under about 4 mm to prevent registration gaps.
  • Select the top object (for example, a spot on a wing) and run Remove Overlaps to cut a clean hole below.
  • Keep small details layered on top instead of cutting holes for them.
  • Listen for excessive “thumping” during sewing as a warning sign of too much density.
  • Success check: The layered area stitches flatter with fewer needle strikes, and the machine runs smoother with less punch-through resistance.
  • If it still fails: Re-check for stacked Fill + Fill + Satin in the same area and reduce layering before re-running Remove Overlaps.
• Q: In Hatch Embroidery Digitizer, how can Hatch Embroidery Digitizer prevent white gaps between fill and outline caused by pull, and what hooping standard should be used to reduce distortion?
  A: Increase pull compensation (a common starting point in the lesson is 0.4 mm) and re-check hooping so fabric is taut but not stretched.
  • Re-hoop so the fabric is “drum tight” (taut, not distorted) before blaming the file.
  • Add pull compensation in object settings as needed (use 0.4 mm as a safe starting point from the lesson).
  • Run a test sew on scrap fabric using the same stabilizer stack before stitching a finished garment.
  • Success check: The outline covers the fill edge with no fabric showing through at the border after stitching.
  • If it still fails: Treat it as a mechanical setup issue—review hoop tightness and stabilizer choice for the fabric type.
• Q: In machine embroidery production, what is the correct stabilizer decision for stretchy knit shirts versus towels/fleece to prevent puckering and sinking stitches during a test sew?
  A: Match stabilizer to fabric behavior: Cutaway for knits, and water-soluble topper + bottom stabilizer for fuzzy textiles like towels or fleece.
  • Choose Cutaway stabilizer for T-shirts, hoodies, and other knits; avoid relying on tearaway for stretch fabrics.
  • Add a water-soluble topper on towels/fleece to stop stitches from sinking into the pile.
  • Increase stabilizer weight for dense, full designs (heavier cutaway is often needed for dense areas).
  • Success check: After the test sew, the fabric lies flat (no puckering) and surface detail stays on top (not swallowed by texture).
  • If it still fails: Reduce density by managing overlaps in large layered zones and re-test with a stronger stabilizer stack.
• Q: For magnetic embroidery hoops and multi-needle production, what is the safest “pain point → fix” upgrade path when hoop burn, slow re-hooping, or wrist strain keeps happening?
  A: Start with consumable stability, then move to magnetic hoops for speed/zero hoop burn, and consider a multi-needle machine only when thread-change downtime becomes the bottleneck.
  • Improve stability first by tacking stabilizer to fabric with temporary spray adhesive to reduce sliding during hooping.
  • Upgrade to magnetic embroidery hoops when hoop burn or repeated re-hooping is the recurring trigger.
  • Move to a multi-needle machine when frequent color changes on orders (for example, batches of polos) are limiting throughput.
  • Success check: Hooping time drops, hoop burn stops showing on delicate fabric, and designs register straighter with fewer re-hoops.
  • If it still fails: Re-run the process with a test sew and verify hooping tension (taut, not stretched) before assuming digitizing is the problem.
• Q: What are the key safety rules when running a high-speed embroidery machine needle near hands, and what magnetic embroidery hoop safety precautions should be followed to prevent injury or device damage?
  A: Treat the needle and magnets as serious hazards: do not test-sew while distracted, keep fingers away from the moving needle, and handle magnetic hoops as pinch risks that must be kept away from pacemakers and sensitive items.
  • Stop and refocus before test sewing; keep hands clear of the needle path at full speed.
  • Handle magnetic hoops slowly and deliberately; keep fingers out of the closing zone to avoid pinching.
  • Keep magnetic hoops away from pacemakers, credit cards, and children.
  • Success check: Hooping and test sewing are done without rushed hand placement, and magnets are controlled without snapping shut.
  • If it still fails: Pause production, remove power if needed, and reset the workspace so hooping and testing can be done without distractions.
