The Ultimate Guide to Customizing Purchased Embroidery Designs: From Digital Frustration to Production Efficiency

Author: Chief Embroidery Education Officer Reading Time: 12 Minutes Skill Level: Beginner to Intermediate Goal: Master the art of splitting and optimizing "locked" designs in Embrilliance Essentials.

If you have ever purchased a beautifully digitized embroidery file, opened it, and immediately felt a wave of confusion because the entire design is grouped into one unchangeable block—take a deep breath. You are not doing anything wrong.

In my 20 years on the shop floor, I have seen seasoned operators and enthusiastic beginners alike hit this wall. You want the leaves green, but the digitizer grouped them with the black outline. You want to stitch a vinyl key fob (like the roller skate lip balm holder in this guide), but the "Place" and "Tack" steps are glued together.

This guide effectively "de-blackboxes" the process. We will walk through a clean, repeatable engineering workflow using Embrilliance Essentials to split "linked" elements, recolor in bulk, and reduce thread changes.

But we won't stops at the software. As an embroidery educator, I know that software is only half the battle. We will also address the physical reality of production—how to handle hooping bottlenecks and when to upgrade your tools to match your new software speed.

The Cognitive Shift: Why "Simple" Customization Feels So Hard

New users often experience "feature shock" when they open a purchased file. Why did the digitizer group the lace with the bumper?

The Reality: Digitizers often group elements to minimize jump stitches or ensure registration (alignment) on lower-end machines. When you click a lace detail and the bumper highlights too, it’s not a glitch; it’s a grouping command.

The Fix: We must move from interpreting the design on a tiny 3-inch machine screen to engineering the design on a computer monitor. Your goal is to separate the elements so you—not the original digitizer—control the machine stops.

Phase 1: The "Clean Room" Preparation

Before you make a single edit, we need to establish a baseline. In embroidery, visual clarity prevents physical errors.

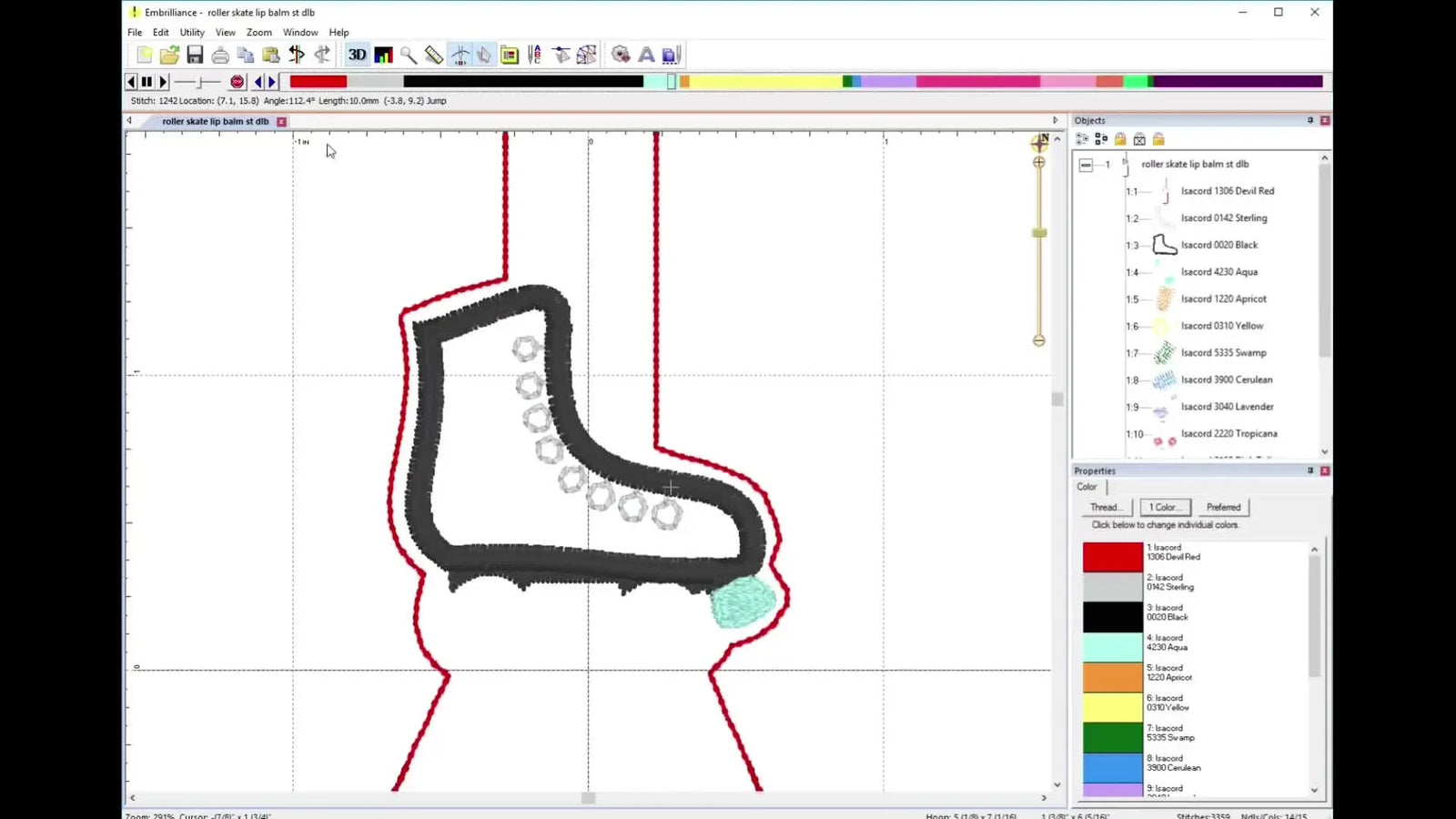

Melissa, the demonstrator for this workflow, begins by setting up the workspace. She navigates to Preferences to select the correct hoop size and uses the Open command to load the purchased file.

Expert Insight: Do not trust your eyes at 100% zoom. Screen pixels can hide stitch-level disasters. You need to zoom in until you can see individual needle penetrations. Melissa recommends working at roughly 400% zoom (you will see values like 391% in the interface).

Pre-Flight Checklist: The "Clean Room" Protocol

Perform these checks before clicking any edit tools. Failure to do so often leads to "ghost stitches" or sizing errors.

• [ ] File Integrity Check: Confirm you are editing a copy of the purchased file, never the original master.
• [ ] Canvas Match: Set your Hoop Size in Preferences to match the actual physical hoop you will use (e.g., 4x4 or 5x7).
• [ ] Step Audit: Look at the Properties window. Note the total Step Count (e.g., 15 steps). Does this match the color chart provided by the digitizer?
• [ ] Visual Calibration: Zoom to 400%. At this level, you can visually distinguish between a satin column and a fill stitch.
• [ ] Objective Defined: Write down your goal (e.g., "Separate the lace from the bumper so I can make the lace Aqua").


Phase 2: Surgical Separation (The "Hidden" Link)

Here is the scenario: You open the Object Pane (the "tree" view of your design). You click the bumper. The lace highlights with it. They are linked.

If you change the color now, both change. To fix this, we need to perform "digital surgery" using the Stitch Simulator. This is safer than ungrouping because it cuts the design based on the actual path the needle travels.

The Stitch Simulator Split Technique

Think of this like editing a film reel. We are going to find the exact frame where the "scene" changes from Bumper to Lace, and we are going to splice it.

Step-by-Step Procedure:

1. Engage Simulator: Open the Stitch Simulator tool.
2. Scrub the Timeline: Drag the slider (cursor) forward. Watch the virtual needle stitch out the bumper.
3. Identify the Jump: The moment you see the stitch line "jump" or transition from the bumper to the lace, stop.
4. Precision Step-Back: Use the Back Arrow button to step back exactly one stitch. Ideally, the needle point should be at the very end of the first object (the bumper).
5. The Cut: Click the STOP sign button.
6. Force Color Change: The software will ask for a color. Select ANY color that is different from the current one (e.g., Dark Jade). This forces the machine to read a "Color Change" command, effectively splitting the object.
7. Verify: Look at your Object Pane. You should now see two separate entries where there used to be one.




Warning: Structural Integrity Risk
Never split a design in the middle of a continuous satin column or a dense fill area.
* Risk: This creates a physical weak point where the thread cuts and ties off, potentially causing the satin stitches to unravel or look "hairy."
* Safe Zone: Only split where there is a logical travel stitch or jump between two distinct shapes.

Expert Theory: Why This Works

Embroidery machines do not see "shapes"; they see coordinates and "Stop" commands. By inserting a color change, you are technically inserting a STOP code into the machine language (G-code equivalent). This forces the machine to pause, trim (if set), and wait for user input, giving you total control.

Phase 3: Batch Recoloring and Efficiency

Now that the objects are separated, you can recolor without collateral damage.

Instead of clicking each lace element one by one—which is tedious and prone to error—we use the Multi-Select method.

The Workflow:

1. Hold down the CTRL key (Command on Mac).
2. Click every "Lace" object in the Object Pane.
3. If you make a mistake, keep CTRL held and click the object again to deselect it.
4. Once all laces are highlighted, click the color swatch > Select "Aqua."




The "Hidden Consumables" of Customization While we focus on software, ensure you have the physical supplies ready for these changes:

• Water Soluble Pen: For marking center points if your new design size shifted.
• Temporary Spray Adhesive (e.g., Odif 505): Crucial for holding vinyl in place if you are customizing floating key fobs.
• Sharp curved scissors: For trimming threads between these new color stops.

Setup Checklist: The Batch Protocol

• [ ] Isolation Check: Verify all objects to be colored are truly unlinked (drag them slightly to check, then Undo).
• [ ] Selection Count: If you expect 4 lace wheels, ensure 4 items are highlighted in the pane.
• [ ] Contrast Check: Choose a color in the software that contrasts high against the background so you don't miss any tiny segments.

Phase 4: The Thread-Change Tax (Optimization)

You have recolored everything. You now have Pink, Aqua, Pink, Aqua, Pink, Aqua. If you send this to a single-needle machine, you will be changing threads 6 times manually. This is what I call the "Thread-Change Tax." It kills profitability.

We need to group the colors.

Method A: Automated Color Sort (The Fast Way)

Go to Utility -> Color Sort.

• Pros: Instant.
• Cons: Can destroy layering logic.
• Critical Step: Always look at the "New View" to ensure the software didn't decide to stitch the background over the foreground details.


Method B: Manual Sequencing (The Safe Way)

Melissa, representing the "Control Freak" mindset (which is a compliment in this industry), prefers dragging and dropping objects in the Object Pane.

• Action: Click the "Aqua" lace. Drag it up to sit next to the other "Aqua" lace.
• Result: The machine stitches all Aqua continuously.




Sensory Check: When running the optimized file, listen to your machine. It should settle into a long, rhythmic humming. If you hear the "clunk-clunk-silence" of trimming and stopping every 30 seconds, your optimization failed.

Operation Checklist: Final File Verification

• [ ] Layering Logic: Visualize the sew-out. Does the face stitch before the eyes? Does the background stitch before the border?
• [ ] Stop Codes: Ensure you didn't accidentally group a "Placement Line" (Step 1) with a "Tack Down Line" (Step 2). For In-the-Hoop (ITH) projects, these must remain separate stops to allow you to place the vinyl.
• [ ] File Format: Save as a "Stitch File" (e.g., .PES, .DST).
• [ ] The "Cold Boot" Test: Close the software. Re-open the file you just saved. Does it look right? This confirms the save didn't corrupt the sort order.


Phase 5: The Physical Bottleneck – When Software Speed Exceeds Hand Speed

You have optimized the file. It now stitches perfectly with minimal stops. Suddenly, you realize your new bottleneck isn't the computer—it's you.

Specifically, it's the time it takes to hoop the fabric, align the stabilizer, and clamp the frame.

If you are producing 50 of these key fobs for a craft fair, traditional thumbscrew hoops can become a nightmare. The repetitive twisting motion leads to wrist fatigue, and "hoop burn" (the ring marks left on vinyl) can ruin the product.

The Professional Trigger for Tool Upgrades

Recognize these symptoms:

1. Hoop Burn: You are rejecting 10% of your vinyl items because of ring marks.
2. Wrist Fatigue: Your hands ache after doing a batch of 20.
3. Slippage: The thick vinyl pops out of the inner ring mid-stitch.

The Solution: This is the precise moment professionals switch to a magnetic embroidery hoop. Unlike friction hoops, these use high-power magnets to sandwich the material.

• For standard mid-sized runs, a brother 5x7 magnetic hoop removes the need for adjustment screws. You simply lay the vinyl, drop the top frame—CLACK—and you are ready.
• For smaller items like these key fobs, a brother 4x4 magnetic hoop offers speed without wasting stabilizer.

For those running production, searching for embroidery hoops magnetic allows you to find compatible frames for almost any machine model, from single-needle to multi-needle.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength neodymium magnets.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap together with enough force to cause blood blisters or bruising.
* Medical Devices: Maintain a 6-inch safety distance from pacemakers or insulin pumps.
* Electronics: Do not place them directly on top of your laptop or embroidery cards.

Decision Tree: Optimizing Your Physical Workflow

Use this logic flow to determine if you need to upgrade your hooping gear.

START: What is your batch size?

• 1 to 5 items (Hobby mode)
  • Action: Stick with standard included hoops. Focus on mastering the software splitting technique described above.
• 10+ items or Commercial Orders
  • Question: Are you struggling with thick materials (Vinyl/Leather) or Hoop Burn?
    • YES: Upgrade to a magnetic embroidery hoops system. The "floating" nature of magnetic hooping prevents the crushing of vinyl grain.
    • NO: Question: Is alignment your issue? (Designs are crooked).
      • YES: Invest in a hooping station (e.g., hoop master embroidery hooping station or embroidery hooping station) to standardize placement.
      • NO: Proceed with current gear, but check your snap hoop for brother or dime snap hoop compatibility if you decide to upgrade later.

Conclusion: Take Back Control

The difference between a hobbyist and a professional isn't the cost of the machine—it's the workflow.

By using the Stitch Simulator to split linked objects, you reclaim control from the digitizer. By batching colors, you reclaim time from the machine. And by recognizing when to upgrade to magnetic framing systems, you protect your body and your materials.

Download your design, open Embrilliance, zoom to 400%, and start engineering your perfect stitch-out.

FAQ

• Q: In Embrilliance Essentials, why does clicking one object in the Object Pane highlight multiple parts of a purchased embroidery design as one block?
  A: This is common—many purchased files are intentionally linked/grouped to protect registration and reduce jumps, so one click can select multiple stitched elements.
  • Open the Object Pane and click the area you want; note what else highlights with it.
  • Use the Stitch Simulator to find where the stitch path transitions from one shape to the next before making edits.
  • Avoid “random ungrouping” habits; plan a controlled split at a true transition point.
  • Success check: After the split method is used, the Object Pane shows two separate entries instead of one linked block.
  • If it still fails: Re-run the Stitch Simulator more slowly and look for the exact jump/travel stitch where the needle leaves the first object.
• Q: What is the safest way to split a “locked” purchased embroidery design in Embrilliance Essentials using the Stitch Simulator STOP sign technique?
  A: Use the Stitch Simulator to insert a forced color change at a real transition point, which creates a clean STOP and separates the linked objects.
  • Engage Stitch Simulator and scrub until the virtual needle finishes the first object and begins the next.
  • Step back exactly one stitch with the Back Arrow so the needle is at the end of the first object.
  • Click the STOP sign and pick any different color to force a color-change command.
  • Success check: The Object Pane shows two independent objects and changing one color no longer changes the other.
  • If it still fails: You may have cut inside a continuous stitch area—Undo and choose a clearer jump/travel point between distinct shapes.
• Q: In Embrilliance Essentials, why should users avoid splitting a purchased embroidery design in the middle of a satin column or dense fill area?
  A: Splitting mid-satin or mid-fill often creates a weak tie-off point that can look hairy or unravel, so only split where a logical jump/travel stitch already exists.
  • Zoom in closely before cutting so stitch direction and density are visible.
  • Split only at a clear boundary where the stitch path naturally leaves one shape and moves to another.
  • Undo immediately if the cut lands inside a continuous satin column.
  • Success check: The split point looks like a natural break in the stitch path (not a chopped satin edge) and the sew-out won’t show a “fuzzy” interruption.
  • If it still fails: Reposition the split to the nearest travel/jump segment and re-test with the simulator preview.
• Q: In Embrilliance Essentials, how can users batch recolor multiple separated lace objects without missing tiny segments in the Object Pane?
  A: Multi-select the correct items in the Object Pane, then recolor in one action so every intended segment changes together.
  • Hold CTRL (Command on Mac) and click each lace object in the Object Pane; click again to deselect mistakes.
  • Confirm the expected number of lace items is highlighted before changing the swatch.
  • Choose a high-contrast software color so small pieces are easy to spot during verification.
  • Success check: Every lace segment changes to the new color, and no unrelated objects change with it.
  • If it still fails: Perform an isolation check by nudging a selected object slightly and Undo—if other parts move, the design is still linked and needs another split.
• Q: In Embrilliance Essentials, how can users reduce the “thread-change tax” after recoloring a purchased embroidery design that alternates colors (Pink/Aqua/Pink/Aqua)?
  A: Group same-color steps together using Color Sort or manual re-sequencing, then verify that layering and ITH stops are still correct.
  • Try Utility → Color Sort for speed, then immediately review the “New View” for incorrect layering.
  • Use manual drag-and-drop in the Object Pane for safer control when details must stitch in a specific order.
  • Keep ITH “Placement Line” and “Tack Down Line” as separate stops; do not accidentally merge them.
  • Success check: During stitching, the machine runs longer continuous sections per color (less “stop-trim-stop”) and the visual layering still makes sense.
  • If it still fails: Undo the sort and switch to manual sequencing, prioritizing correct layering over fewer thread changes.
• Q: When customizing ITH key fobs with vinyl, which “hidden consumables” should be prepared to prevent shifting and cleanup issues during new color stops?
  A: Prep a small set of shop-proven supplies before stitching so the added stops and handling don’t cause misalignment or messy finishing.
  • Mark placement accurately using a water-soluble pen if the resized/reworked design shifts center points.
  • Secure vinyl using temporary spray adhesive (such as Odif 505) when floating materials.
  • Trim cleanly using sharp curved scissors between newly created stops.
  • Success check: Vinyl stays flat through the stops, placement remains aligned after handling, and thread tails are trimmed without snagging the stitches.
  • If it still fails: Re-check that placement and tack-down steps remain separate and confirm the project is hooped for the same hoop size set in Preferences.
• Q: What safety rules should users follow when using magnetic embroidery hoops to reduce hoop burn and wrist fatigue on vinyl batches?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive medical devices and electronics.
  • Keep fingers clear when closing the frame; magnets can snap together hard enough to bruise.
  • Maintain at least a 6-inch safety distance from pacemakers or insulin pumps.
  • Avoid placing magnetic hoops directly on laptops or embroidery media/cards.
  • Success check: The hoop closes with a controlled snap without finger contact, and hooping becomes faster without ring marks on vinyl.
  • If it still fails: Slow down the closing motion and reposition hands to the outer edges before letting the magnets mate.
