Stop Fighting the 100,000-Stitch Wall: Convert Big DST Designs to JEF+ for the Janome MC12000 (Without Losing Your Colors)

Big, detailed bird designs—think Audubon-style masterpieces—are the kind of files that make you fall in love with machine embroidery. They are also the exact kind of files that make you want to throw your laptop out the window when the software simply says “Nope.”

If you are staring at a gorgeous, photorealistic design that clocks in at over 100,000 stitches, and your Janome software is blocking you, take a deep breath. You aren’t doing anything “wrong.” You aren’t breaking your machine. You involve just hitting a very specific, known limitation in certain Janome software workflows (specifically MBX), which often acts like a nervous parent, preventing you from saving files it thinks are "too big" for safety.

This guide rebuilds the exact process shown in the video, but applies a layer of production-floor safety protocols. We will cover downloading the right companion files, organizing them so Embird can read color mapping, converting DST to JEF+, and selecting the correct Janome MC12000 GR hoop.

More importantly, we will cover the physical reality of stitching 100,000 times into a piece of fabric without ruining it. We will discuss the “sweet spot” settings for speed, how to sanity-check colors using your eyes (not just the screen), and when to upgrade your tools to handle this level of density.

Don’t Panic: The Janome MC12000 + 100,000-Stitch Limit Is a Software Wall, Not a Skill Problem

If you own a Janome MC12000, you likely bought it for its generous hoop size. It is a machine built for grandeur. The frustration arrives when your design is ready, but the manufacturer’s software (Janome MBX) refuses to save or re-save it once the stitch count crosses the 100,000 mark.

Here is the technical reality: The machine hardware can handle it. The machine reads stitching coordinates. It doesn't care if there are 10,000 or 150,000, provided you manage the bobbin changes. The limit exists in the software's memory buffer or safety protocols, designed to prevent file corruption on older processors.

The workflow we are using today involves Embird Manager. Unlike the native software, Embird acts as a professional bridge. It will warn you about the size—because 100,000 stitches is a lot of physical stress on fabric—but it will let you proceed if you acknowledge the risk. You aren't cheating; you are unlocking the capacity you paid for.

The “Hidden” Prep That Saves Your Colors: Download the PDF *and* the DST Text File

Before you even open your embroidery software, we need to gather our digital raw materials. This is where 90% of novices fail.

In the example (an Embroidery Library bird design), you are working with a DST file. DST is an industrial format. It is incredibly reliable for coordinates (where the needle goes), but it is "dumb" regarding color. It does not know "Blue" or "Red"; it only knows "Stop command, Needle 1."

To bridge this gap, you need two companion files:

1. Color Change Sheet (PDF): Ideally, print this out in color. This is your "source of truth." You will keep this paper next to your machine to visually verify thread changes.
2. Text File (.txt): This is the magic key. It tells Embird how to map those generic needle numbers to specific colors on your screen.

Sensory Check - The “Alien Vomit” Effect: Without the text file, when you open a DST, the preview often looks like a graphical glitch—random blocks of neon green, black, and hot pink. If you see this, stop. It means the software is guessing. With the text file, the preview snaps into a recognizable image of a bird.

A Note on Thread Matching: Real production advice: Thread "matching" is an art, not a science. Dye lots change. Lighting changes. The video suggests using what you have that looks right, and I agree.

• The Rule of Value: Focus on contrast. If the design calls for Dark Brown, Medium Brown, and Light Beige to create feathers, ensure your threads have distinct light/dark differences. If your browns are too similar, the detail of the 100,000 stitches will vanish into a muddy blob.

**Phase 1: Preparation Checklist (Do this before opening software)**

• Download the DST design and unzip the folder.
• Download the Color Change Sheet (PDF) and print it (or open on a tablet).
• Download the Vendor Text File (.txt) associated with the design.
• Verify Dimensions: Confirm the file size matches your intended hoop (e.g., the 9.57" × 10.79" file).
• Consumables Check: For a design this dense, ensure you have a fresh Topstitch 90/14 needle (larger eye reduces friction) and a full bobbin (plus backups).


File Organization That Actually Works: Put the .TXT in the Exact Same Folder as the .DST

Electronic embroidery files are finicky about relationships. This step is unglamorous but non-negotiable.

In Windows Explorer, the video shows a clear hierarchies. The "magic trick" to making Embird read the colors automatically is proximity:

• Move the downloaded .txt file into the exact same folder as the unzipped .dst file.

Not in a sub-folder. Not on the desktop. They need to be "roommates." When Embird opens the DST, it immediately scans the same folder for a TXT file with the same name. If it finds it, it applies the color palette instantly.

Organizational Habit: Create a standardized path: My Designs > Vendor Name > Category (Birds) > Design Name. Future-you will thank present-you when you try to find this file two years from now.

Fix “Random Block Colors” in Embird Manager: Confirm the DST Preview Changes After the TXT Is Added

Open Embird Manager. Navigate to your folder.

Click on the DST file once to select it. Look at the preview pane.

• Fail State: You see weird blocks of color, unidentifiable shapes, or a palette that looks nothing like a bird.
• Success State: You see a bird. The colors might not be perfect (screen vs. thread), but the beak is yellow, the wings are brown, and the leaves are green.

Checkpoint: If the preview is still wrong, do not proceed to conversion. Go back to Windows Explorer. Did you rename the file? The DST and TXT usually need to share the filename prefix. Fix this before moving on, or you will be stitching blind.

Know What DST Really Contains: Needle Numbers, Not True Color Data

The video clarifies a point that confuses many users transitioning from basic home machines to semi-pro workflows.

A DST file is essentially a roadmap of coordinate points. It tells the machine: "Move X+10, Y+20, Drop Needle." When it wants a color change, it simply sends a "Stop" command (or a color change command for multi-needle machines).

On your machine screen, this often appears as:

• Needle 1
• Needle 2
• Needle 3

This is normal. Do not panic if your Janome reads "Color 1" as a strange default color once loaded. Trust your printed PDF. The machine performs the physics; you perform the color logic. This is why we stage our threads physically in a line before we press start.

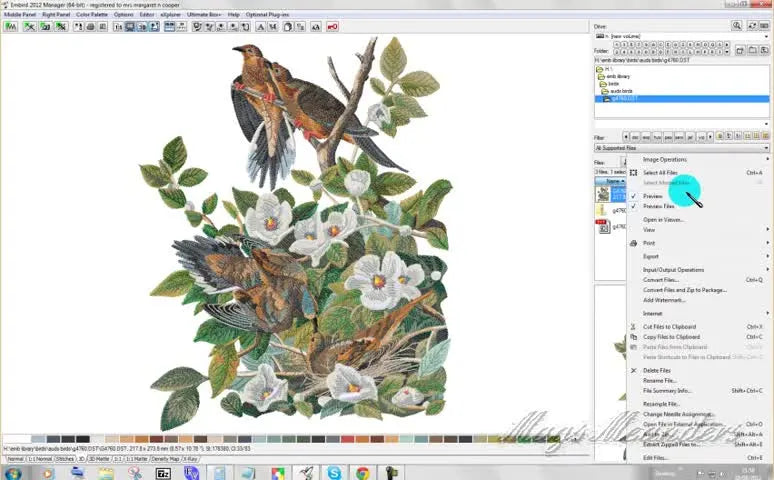

Convert DST to JEF+ in Embird Manager: The Exact Right-Click Workflow That Works

We have verified the file is safe. Now we translate it into the language your Janome MC12000 speaks fluently: JEF+.

The Workflow:

1. In Embird Manager, Select the DST file.
2. Right-click on the file name.
3. Select Convert from the dropdown menu.
4. In the pop-up dialog, check the box for JEF+ (Janome). Uncheck everything else to keep your folder clean.

Why JEF+? Standard JEF files rarely handle hoops of this magnitude or stitch counts this high efficiently. JEF+ is the updated architecture designed for the MC12000 and newer high-end machines. It supports the larger hoop coordinates we are about to select.

Get the Hoop Right or Waste the Whole Afternoon: Select “Janome MC12000 GR Hoop 230×300mm – Vertical”

This is the single most dangerous step for physical safety. If you get the hoop code wrong, the design may center improperly, or worse, the machine arm could move beyond the physical limit of the attached hoop.

In the Embird Conversion Dialog, look for the Hoop button/setting:

• Action: Scroll through the list. It is long.
• Select: Janome MC12000 GR Hoop (230 × 300 mm) – Vertical.
• Verify: Ensure Center in Hoop is checked.

The "Vertical" Nuance: The MC12000 GR hoop is massive. The machine recognizes it in a specific orientation. If you select "Horizontal," the software may rotate your bird 90 degrees. When you stick a vertical bird on a horizontal hoop, you either shrink it (ruining the detail) or clip the wings (ruining the design).

Self-Check: If you own this machine, it is worth memorizing your janome 12000 hoop sizes and keeping a sticky note on your monitor. Knowing your printable area (230x300mm) prevents heartbreak.

Click “Yes” With Confidence: Overriding the 100,000-Stitch Warning in Embird

Here is the moment of truth. You hit "OK" to convert. Embird pops up a warning box: "Design contains more than 100,000 stitches! Continue?"

• Action: Click YES.

This is why we use Embird. It treats you like an adult. It warns you of the density, but allows you to override. Janome MBX software often treats this as a hard stop to protect the user from potential thread jams.

The "Why" Behind the Warning: 100,000 stitches is not just a number; it is a physical event.

• Displacement: That much thread adds mass to the fabric. It pushes fibers apart.
• Time: At a safe speed of 600 SPM (Stitches Per Minute), this design will take nearly 3 hours of run time, exclusive of thread changes.
• Heat: The needle friction generates heat.

By clicking "Yes," you are accepting responsibility to hoop well (which we will discuss shortly).

Verify the Conversion Completed: Look for the New JEF+ File Next to the DST

Once the process finishes (it might take a few seconds—it's a big file), look at your file list.

Success Metric: You should see a new file with the .JEF+ extension sitting right next to your .DST file.

• Tip: Rename this file immediately if you want to be extra safe. Example: AudubonBird_GR_Hoop.jef+. This explicitly tells you "I have checked the hoop on this one."


Open the Design in Embird Editor: Do a Final “Reality Check” Before You Stitch

Do not rush to the USB drive yet. Double-click the new JEF+ file to open it in Embird Editor.

Turn on the Grid view. Look at the edges of the hoop boundary on the screen.

• Edge Check: Is any part of the bird touching the red dashed line? If so, move it.
• Centering: Is the bird actually in the middle? A centered design distributes pull force more evenly than one shoved into a corner.

**Phase 2: Setup Checklist (Software to Machine)**

• Open the JEF+ in Editor and verify alignment on the grid.
• Check that the hoop setting in Editor matches the physical hoop you own (GR 230x300).
• Save the file to your USB stick (ensure the stick is formatted correctly for Janome, usually FAT32, small capacity).
• Eject the USB safely from Windows (don't specific yank it out; data corruption is common with large files).


The Real Reason Big Designs Fail: It’s Usually Hooping + Stabilizing, Not the File

The software battle is won. Now the physics battle begins.

A 100,000-stitch design is like a stress test for your fabric. As the needle pounds thousands of stitches into the center, the fabric wants to maintain tension. If your hooping is weak, the fabric will pull inward, causing "puckering" (wrinkling around the embroidery) or "registration errors" (where the outline doesn't match the fill).

The Sensory Anchor - "The Drum Skin": When you hoop your fabric and stabilizer, tap it with your finger. It should sound like a drum—thump-thump. If it sounds loose or flabby, re-hoop it. Do not hope it will "be okay." It won't be.

The "Hoop Burn" Dilemma: To get that drum-tight tension on a standard hoop, you often have to crank the screw incredibly tight. For delicate fabrics, this causes "hoop burn"—permanent crushes in the fabric fibers. If you struggle with this, or if your hands hurt from tightening, search for janome embroidery machine hoops that offer better gripping mechanisms.

Warning: Mechanical Safety
When stitching large files, the hoop travels extensively. Ensure the machine has 12 inches of clearance on all sides. Keep hands, cables, and extra fabric clear of the pantograph arm. A collision at speed can knock the embroidery arm out of alignment.

A Practical Decision Tree: Stabilizer Choices for High Stitch-Count, Full-Detail Designs

Your stabilizer is the foundation. For 100k stitches, "Tear Away" is usually insufficient—it perforates and collapses under the needle count.

Start Here: What is your fabric?

1. Is it a stable woven (Canvas, Denim, Heavy Cotton)?

• Yes: Use a Medium Weight Cut-Away. You can use a heavy Tear-Away, but Cut-Away provides the best longevity for the design.
• Adhesive: Use temporary spray adhesive (like 505) to bond the fabric to the stabilizer.

2. Is it a knit or stretchy (T-shirt, Hoodie)?

• Yes: MANDATORY Heavy Cut-Away (or two layers of Poly-Mesh).
• Why? Knits stretch. 100k stitches will distort a T-shirt into a bowl shape without heavy support. Do not use Tear-Away.

3. Is the surface textured (Towel, Minky, Fleece)?

• Yes: Use Cut-Away on the bottom + Water Soluble Topper on top.
• Why? The topper prevents the stitches from sinking into the pile and disappearing.

4. Is the fabric delicate/slippery (Silk, Satin, Windbreaker)?

• Yes: This is the danger zone for hoop marks.
• Recommendation: Do not hoop the fabric. Hoop the stabilizer (Cut-Away) tightly, then use spray adhesive or a basting stitch to "float" the fabric on top. This eliminates hoop burn.

Comment-Style Pro Tips (The "I Wish I Knew This Earlier" List)

Pro Tip 1: The "Unique Color" Trick The video mentions 83 color changes but only 33 unique colors. This means you are swapping back to the same Black or Brown spool 5 or 6 times.

• Strategy: Line your thread spools up in order of use on a rack. If a color repeats, move it down the line or have a duplicate spool. This prevents the "Where did I put the dark green?" panic in the middle of a run.

Pro Tip 2: Speed Kills Quality Your Janome might be rated for 1000 SPM (Stitches Per Minute). For a 100k stitch design, slow it down.

• Sweet Spot: Set your machine to 600-700 SPM. The lower speed reduces heat buildup (which breaks thread) and allows the stabilizer to absorb the needle force better. You will finish faster because you won't be re-threading broken needles.

Pro Tip 3: The "Bobbin Watch" A standard bobbin holds roughly 20,000 to 30,000 stitches depending on tension. For a 100,000 stitch design, you will run out of bobbin thread 3 to 5 times. Change the bobbin before it runs out if you are at a convenient color change.

The Upgrade Path: Faster Hooping, Less Fatigue, More Output

If you execute this workflow once a month for a hobby project, the standard Janome hoops are perfectly fine.

However, if you find yourself doing this weekly for customers, or if you are running batches of 10+ shirts, the standard hoops become a bottleneck. The constant unscrewing, pulling, and tightening leads to wrist fatigue and inconsistent tension (one shirt is tight, the next is loose).

This is where professionals upgrade their tooling, not just their software.

Scenario A: "I hate hoop burn and my wrists hurt."

• The Upgrade: magnetic embroidery hoops for janome.
• The Benefit: These use powerful magnets to clamp fabric instantly. No screws. No friction burn. The tension is automatic and consistent every time. They save about 2-3 minutes per hooping.

Scenario B: "I can't get the logo straight on these shirts."

• The Upgrade: A hooping station for embroidery machine.
• The Benefit: This provides a physical jig to align your hoop and garment mathematically, ensuring the placement is identical on every single shirt.

Scenario C: "I need to stitch bigger and faster."

• The Upgrade: If you are constantly fighting the 100k limit and need to produce inventory, you might be outgrowing a single-needle machine. A large hoop embroidery machine (like a multi-needle) allows you to set up all 15 colors at once, eliminating those 83 manual thread changes.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade magnets (Neodymium). They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Device Safety: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.

Operation Checklist (Right Before Pressing Start)

• Load the JEF+ file.
• Hoop your fabric ensuring "drum skin" tightness (or use a magnetic hoop).
• Clearance Check: Ensure the wall/table isn't blocking the arm movement.
• Needle Check: Is the needle brand new? (Yes, change it now).
• Thread Path: Double-check the upper thread is seated in the tension discs.
• Speed: Dial the machine down to ~600 SPM.
• Reference: Place your printed PDF Color Change Sheet where you can see it.

Follow this workflow, and that 100,000-stitch warning becomes just another prompt to click through, not a stop sign. Happy stitching!

FAQ

• Q: Why does Janome MBX refuse to save a large design over 100,000 stitches for Janome MC12000?
  A: This is usually a Janome MBX software safeguard, not a Janome MC12000 hardware limit—use Embird Manager to convert and proceed with the warning.
  • Use Embird Manager to open the DST and run the Convert function to JEF+ instead of re-saving in MBX.
  • Click “Yes” when Embird warns the design exceeds 100,000 stitches (the warning is about density risk, not file “impossibility”).
  • Plan for multiple bobbin changes during the run so the stitch count does not surprise you mid-design.
  • Success check: Embird completes the conversion and a new .JEF+ file appears in the same folder as the .DST.
  • If it still fails: Re-check that the design opens normally in Embird first; if Embird cannot open it cleanly, re-download and unzip the design package again.
• Q: Why does a DST file show random block colors in Embird Manager when preparing a Janome MC12000 design?
  A: DST files do not carry true color information, so Embird will “guess” colors unless the vendor TXT color file is placed correctly.
  • Download both the Color Change PDF and the vendor .TXT file that matches the DST.
  • Move the .TXT file into the exact same folder as the unzipped .DST file (not a subfolder).
  • Confirm the DST and TXT share the same filename prefix if the vendor requires name matching.
  • Success check: The preview changes from neon/random blocks to a recognizable image (for example, the bird looks like a bird).
  • If it still fails: Undo any renaming you did and re-check folder “roommate” placement; Embird typically reads the TXT from the DST’s own folder.
• Q: How do I convert DST to JEF+ in Embird Manager for Janome MC12000 without creating a messy folder full of extra formats?
  A: Convert using Embird Manager right-click Convert and select only JEF+ so the output stays clean and Janome-friendly.
  • Select the DST file in Embird Manager.
  • Right-click the filename and choose Convert.
  • Check JEF+ (Janome) and uncheck other formats before running the conversion.
  • Success check: A new .JEF+ file appears next to the original .DST file after conversion completes.
  • If it still fails: Open the DST in Embird first to confirm the file is readable, then retry conversion with only JEF+ selected.
• Q: Which hoop setting should be selected in Embird for Janome MC12000 GR Hoop 230×300mm to prevent clipping or rotation?
  A: Select “Janome MC12000 GR Hoop (230 × 300 mm) – Vertical” and center the design to avoid rotation, shrinking, or edge clipping.
  • Open the conversion hoop list and choose the GR 230×300mm Vertical option (not Horizontal).
  • Enable “Center in Hoop” before converting or saving the JEF+.
  • Open the JEF+ in Embird Editor and turn on the grid to confirm the design sits safely inside the boundary.
  • Success check: No part of the design touches the hoop boundary line on the grid view, and the design orientation matches the intended layout.
  • If it still fails: Re-convert and verify the hoop selection again—wrong orientation is a common cause of “90-degree” surprises.
• Q: What needle and bobbin preparation is recommended before stitching a 100,000-stitch design on a Janome MC12000?
  A: Start with a fresh Topstitch 90/14 needle and multiple full bobbins because high stitch counts increase friction, heat, and mid-run bobbin runouts.
  • Install a brand-new Topstitch 90/14 needle before the run starts (do not “hope” an old needle survives).
  • Wind and stage backup bobbins; expect multiple bobbin changes during a 100,000-stitch job.
  • Keep the Color Change PDF visible so thread swaps stay correct even if the machine only shows needle numbers.
  • Success check: The machine runs at a steady pace without frequent thread breaks, and bobbin changes happen at planned moments (not after a surprise empty).
  • If it still fails: Slow the machine down and re-check upper thread seating in the tension discs before blaming the file.
• Q: How tight should fabric be hooped for a high stitch-count design on Janome MC12000 to avoid puckering and registration errors?
  A: Hoop to “drum-skin” tightness so the fabric and stabilizer stay stable under prolonged stitching pressure.
  • Hoop fabric and stabilizer together and tap the surface to test tension before starting.
  • Re-hoop immediately if the fabric feels loose—weak hooping commonly causes pull-in, puckering, and outlines not matching fills.
  • For delicate or slippery fabrics, hoop the stabilizer tightly and float the fabric with spray adhesive or a basting stitch to avoid hoop marks.
  • Success check: A finger tap sounds/feels like a firm drum, not soft or “flabby,” and the fabric does not shift when nudged.
  • If it still fails: Upgrade stabilizing (cut-away instead of tear-away) and reduce speed to lower fabric stress during long runs.
• Q: What safety checks are important when running a large 100,000-stitch file with a Janome MC12000 GR hoop, and what magnetic hoop safety rules matter if upgrading?
  A: Give the embroidery arm full clearance and keep hands/fabric out of the travel zone; if using magnetic hoops, treat the magnets as pinch hazards and keep them away from medical devices.
  • Clear at least 12 inches on all sides so the hoop and pantograph arm cannot strike walls, tables, cables, or excess garment fabric.
  • Keep hands away from the moving hoop path—collisions at speed can cause alignment issues and damage.
  • If using magnetic hoops, keep fingers out of the snap zone and keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop completes full-range movement without contacting anything, and magnetic frames clamp without finger pinches.
  • If it still fails: Stop immediately, re-position the machine for more clearance, and re-route cables/fabric before restarting.
