Stop Fighting the Towel: Bottom-Align Perfect Placement on a Brother Luminaire XP1 with the Snowman Marker

If you’ve ever embroidered a tea towel and thought, “Why does my design always end up almost right… but not quite?”, you’re not alone. Towels and hems are unforgiving: the human eye behaves like a laser level, judging the distance from the bottom edge instantly. If that distance varies by even a millimeter, the work looks amateur.

This workflow is built around one simple, non-negotiable idea: stop centering the design and start referencing the bottom edge.

In the following guide, anchored by Michelle’s demonstration on a Brother Luminaire (XP1), we will deconstruct a clean, repeatable method using the Snowman positioning marker. The goal? Placing the bottom of the design exactly 2.5 inches up from the hem.

We will also tackle the "floating" technique—a method that makes experienced embroiderers breathe easier by letting the camera handle the rotation, even if your towel isn't perfectly straight.

The “Don’t Panic” Primer: Why Brother Snowman Marker Placement Feels Scary (and Why It Shouldn’t)

The first time you try anything other than dead-center placement, it triggers a specific type of anxiety: the fear of ruining good fabric. The Snowman system often feels like "magic," and in embroidery, magic is dangerous because it's unpredictable.

We need to demystify this. The Snowman is not magic; it is a coordinate system.

Two mindset shifts will move you from fear to mastery:

1. Placement is a decision, not an accident. You decide the finished look with a ruler before the hoop ever touches the machine.
2. The Sticker is a Multi-Tool. It performs two distinct jobs simultaneously: it tells the machine where (Position) and which way (Rotation).

Once you understand that the machine is simply looking for the sticker to establish "Zero," the fear evaporates. A lot of viewers commented that it “finally clicks” when they stopped using the Snowman for centering and started using it as a movable anchor.

The “Hidden” Prep Pros Do First: Measure the Tea Towel Hem Before You Even Think About Hooping

Amateurs hoop first and measure later. Pros measure first and hoop second.

Michelle’s target is specific: the bottom of the design starts 2.5 inches up from the striped hem. This "2.5-inch rule" is an industry sweet spot—it places the design high enough to clear the heavy hem stitching but low enough to look grounded.

Here is the "No-Ink" marking method used in professional shops:

1. The Vertical Axis: Lay the towel flat. Fold it in half vertically. Finger-press the fold firmly until you feel a crisp ridge. This is your center line.
2. The Horizontal Axis: Measure 2.5 inches up from the hem. Fold the towel horizontally at this mark and finger-press a sharp crease.
3. The Crosshair: When you unfold, you have a visible "crosshair" made of creases.

Why finger pressing? It disappears with steam. Chalk can smudge; pens can bleed. A crease is physical and foolproof.

Hidden Consumables Checklist

Don't start without these essentials often missed by beginners:

• Water Soluble Topper (Solvy): Towels have loops. Without a topper, stitches sink into the pile. Always place this on top.
• Temporary Spray Adhesive (505): Crucial for "floating" to prevent fabric shifting.
• Fresh Needle: Use a 75/11 Ballpoint (for loose weave) or Sharp (for tight weave).

Prep Checklist (do this before you touch the machine)

• Tea towel is pressed flat; the hem line is verified straight (no ripples)
• Vertical center established via finger-press
• Horizontal placement line measured 2.5 inches from hem and finger-pressed
• Physical crosshair is visible for the sticker
• Design Choice: Confirmed before hooping (no "auditioning" on the machine)
• Stabilizer: Tearaway (for light towels) or Cutaway (for heavy use) is ready

Read the Snowman Sticker Like a Technician: The Big Dot Positions, the Small Dot Rotates

The Snowman sticker is your communication device. Michelle explains it in the most useful technical terms:

• The Large Dot = Anchor (X/Y Position)
• The Small Dot = Vector (Rotation/Angle)

If you remember this, you stop hoping the machine "gets it" and start commanding it.

Place the Snowman sticker exactly on the crosshair you created:

1. Align the sticker’s vertical line with your vertical crease.
2. Center the Large Dot exactly where your creases intersect.


Pro tip from the comments: Many owners didn't realize there is a dedicated Snowman icon in the layout screen. They thought scanning happens automatically. You must tell the machine intent (via the icon) before it can execute.

Float the Tea Towel on Hooped Stabilizer Without Losing Your Mind (or Your Placement)

Michelle uses an 8x8 hoop and demonstrates the "floating" method. In this workflow, you hoop only the stabilizer (drum-tight), then lay the towel on top.

The Friction Factor: A viewer rightfully asked why the towel wasn't secured. Another clarified it was on sticky stabilizer. This is critical:

• Floating without friction = Ruined garments.
• Floating with friction (Sticky backing or Spray) = Control.

In the video, Michelle intentionally lays the towel slightly crooked. She is demonstrating confidence in the machine's ability to correct the angle. However, for you as the operator, the goal is always to be as straight as possible.

If you are researching techniques and searching for floating embroidery hoop methods, understand the trade-off: You gain speed and avoid "hooping weirdness" (forcing bulky hems into clamps), but you lose the mechanical lock of the top frame. You must use adhesive.

Warning: Project Kill Zone. Keep fingers, scissors, and loose tools at least 6 inches away from the needle area once the carriage starts moving. During the camera scan, the frame moves rapidly and unexpectedly.

Setup Checklist (right before you attach the hoop)

• Stabilizer is hooped "drum tight" (flick it; it should sound like a drum)
• Adhesive surface is exposed (peel-and-stick) or sprayed lightly
• Towel is pressed firmly onto the stabilizer; edges do not lift
• Snowman sticker is flat and clearly visible
• Hoop Clearance: No bulk of the towel is bunched under the hoop attachment arm
• Topper: Water Soluble Topper is floating on top (if towel is textured)

Resize the Design on Brother Luminaire XP1 the Safe Way: Stitch Recalculation Isn’t Optional Here

On-screen, Michelle loads a Tula Pink hedgehog. It is too small (3.15" x 3.96"). She resizes it to ~6.00 inches.

The "Density Trap": If you simply stretch a design by 50%, the stitches spread out, revealing the fabric underneath. Michelle uses Resizing with Stitch Recalculation.

This tells the software: "Don't just stretch the image. Re-calculate how many stitches are needed to maintain the original density."

If you are working with a brother 8x8 embroidery hoop, you have plenty of room. However, always check your stitch count after resizing. If the count didn't go up significantly when you doubled the size, you haven't recalculated, and the result will be a mess.

The One Setting That Makes Bottom Alignment Work: Switch the Snowman Anchor to Bottom-Center

This is the technical core of this tutorial. Most users skip this.

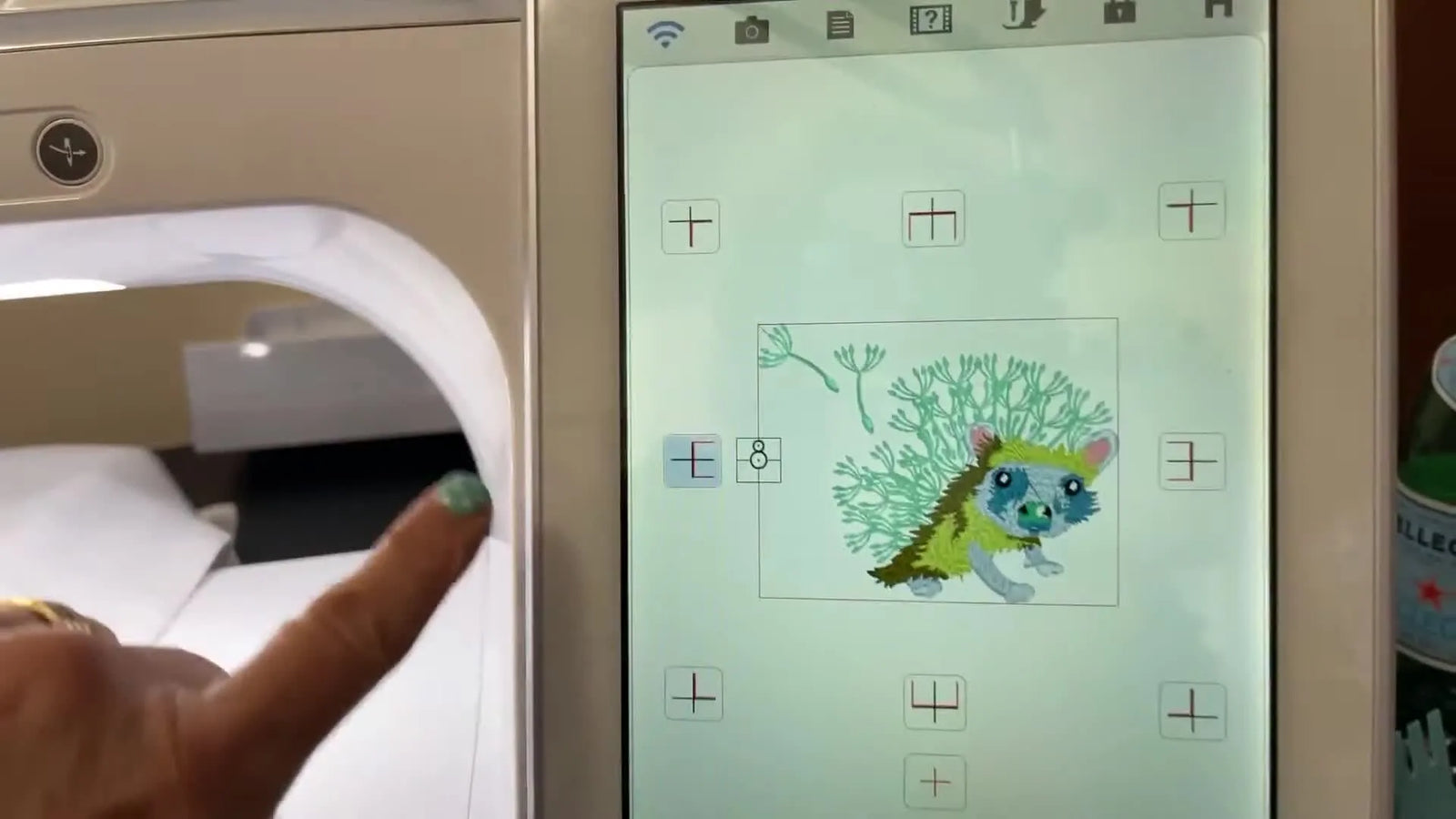

On the layout screen, the default "Anchor Point" is the Center. If you align the sticker to your 2.5" mark using the Center anchor, the middle of the hedgehog will be at 2.5", meaning the feet will be much lower—likely crashing into the hem.

Michelle taps the Snowman icon and selects the Bottom-Center Grid Square.

She is telling the machine CPU: "Align the Snowman Sticker to the precise BOTTOM edge of my design."

The Golden Rule of Alignment: Sticker Placement (Physical) + Anchor Selection (Digital) = Target.

If you are comparing brother embroidery hoops for towel work, remember: the hoop holds the fabric, but the Anchor Point determines where the needle hits.

Let the Brother XP1 Camera Scan Do the Heavy Lifting: Rotation Correction + Thickness Check

Michelle hits SCAN. The camera hunts for the Snowman.

On-screen, a red overlay confirms the lock. The machine is doing three things:

1. Locating (X/Y): Determining position.
2. Rotational Analysis (Angle): Reading the small dot to calculate the skew.
3. Thickness Detection: Calibrating the foot height so it doesn't drag on the towel.

Decision Tree: Choosing the Right Stabilizer Strategy

Don't guess. Follow the fabric.

• Scenario A: Thin, smooth tea towel (Linen/Cotton).
  • Action: Use Tearaway + Spray. Floating is safe.
• Scenario B: Plush, thick hand towel (Terry Cloth).
  • Action: Requires Water Soluble Topper on top. Use significant adhesive to prevent shifting. Floating is risky if the pile is too deep; consider magnetic hooping (see below).
• Scenario C: Stretchy waffle weave.
  • Action: Must use Cutaway stabilizer (or PolyMesh). Tearaway will cause distortion.

Stitch with Confidence: What “Correct” Looks Like During the First Minute of Embroidery

Michelle removes the sticker and starts the machine.

The Psychological Safety Net: The needle might move to a start position that looks wrong. Trust the math. Because you set the anchor to "Bottom-Center," the machine calculates the offset perfectly.

As it stitches, watch the fabric. It should not "push" or create a wave in front of the foot.

Operation Checklist (what to watch during the "Danger Zone")

• Sticker Removed: Do NOT stitch through the Snowman sticker (it will gum up the needle).
• First 500 Stitches: Keep hand near the Stop button.
• Audio Check: Listen for a rhythmic thump-thump. A sharp clack-clack means the needle is hitting the needle plate or the hoop.
• Visual Check: Topper is not tearing away prematurely.
• Thread Tail: Cut the start tail after a few stitches so it doesn't get sewn in.

Verify the Result Like a Shop Owner: Measure from the Hem, Not from Your Memory

The moment of truth. Michelle removes the hoop and measures.

Result: The hedgehog’s feet are exactly 2.5 inches from the bottom edge.

This is the difference between a hobbyist and a professional. A hobbyist says "it looks good." A professional says "it measures correctly." This consistency allows you to sell a set of 4 towels that actually look like a set.

Troubleshooting the #1 Fear: “My Fabric Was Crooked in the Hoop—Am I Ruined?”

Symptom: You floated the towel, and it looks 15 degrees crooked relative to the hoop. Fear: "The design will be crooked." Reality: The Snowman scan detected the angle and rotated the design to match the towel, not the hoop.

Limitations of Correction: While the camera is brilliant, physics still applies.

1. The Box Limit: If you rotate a large rectangular design inside a rectangular hoop, the corners might hit the safety margin. The machine will warn you.
2. The Drift: If you didn't use enough adhesive, the towel might shift during stitching. The camera corrects the start, not the drift.

The “Why” Behind This Method: Physics of Hooping, Rotation, and Why Towels Love Bottom Alignment

Why bottom alignment? Because of Visual Weight. When a towel hangs on an oven handle, the hem is the only horizontal reference line the eye sees. If a design is centered mathematically but the towel folds oddly, it looks wrong. If a design is parallel to the hem, it always looks right.

From a physics standpoint, "floating" works because it eliminates Hoop Burn. Traditional clamping crushes the delicate fibers of linen or terry cloth, leaving a permanent "ring" that even washing won't remove.

The Upgrade Path That Actually Makes Sense: When a Magnetic Hoop Beats a Standard Hoop for Floating Towels

Michelle's video uses a standard hoop with sticky stabilizer. This works, but it has friction points:

1. Residue: Sticky needles, sticky hoops.
2. Cost: Burning through adhesive spray.
3. Speed: Peeling and sticking takes time.

This is the precise scenario where a Magnetic Hoop transitions from a "luxury" to a "production necessity."

If you are constantly fighting hoop burn or sticky residue, consider this your trigger for an upgrade. A magnetic embroidery hoop allows you to clamp the entire towel (and stabilizer) instantly using magnetic force.

The Strategic Advantage:

• Zero Hoop Burn: No inner ring to crush the fibers.
• Speed: Lay stabilizer -> Lay Towel -> Snap Magnet. Done.
• Correction: If it's crooked, you don't peel it up (destroying stickiness); you just lift the magnet and adjust.

For Brother XP1 owners searching for magnetic embroidery hoops for brother, look for hoops that are recognized by your machine size. This upgrade effectively gives you the speed of floating with the security of hooping.

Warning: Magnetic Hazard.
Magnetic hoops use neodymium industrial magnets. They snap together with crushing force.
* Do not place fingers between the magnets.
* Do not use if you have a pacemaker.
* Keep away from computerized machine screens and credit cards.

If You Want to Scale This Into Paid Orders: The Fastest Way to Stay Consistent on 20 Towels

If you get an order for 20 custom towels for a wedding, the "Floating on Sticky Paper" method will become a nightmare of gummed-up needles.

The Production Protocol:

1. Standardize: Every towel is marked at 2.5".
2. Stabilize: Switch to a Magnetic Hoop + Tearaway (dry, no glue).
3. Tooling: If you find yourself doing this daily, this is the trigger point for a Multi-Needle machine.

A multi-needle machine (like the SEWTECH line) allows you to use tubular hoops (or magnetic frames) that slide inside the towel, ensuring perfectly straight alignment without ever folding the fabric.

For those researching brother luminaire magnetic hoop or similar upgrades, remember: You aren't buying a hoop; you are buying minutes saved per unit.

The Takeaway: Always Trust the Snowman—But Only After You Tell It What “Bottom” Means

Michelle’s result proves that machines are only as smart as the data we give them.

Your New Standard Operating Procedure:

1. Finger-press your crosshair (Center + 2.5" up).
2. Stick the Snowman on the crosshair.
3. Select "Bottom-Center" anchor on the screen.

Do this, and your towels will stop looking "almost right" and start looking absolutely professional.

FAQ

• Q: How do I place a design exactly 2.5 inches above the hem on a Brother Luminaire XP1 using the Snowman positioning marker?
  A: Measure and crease the towel first, then place the Snowman sticker on the crease crosshair and set the on-screen anchor to Bottom-Center.
  • Finger-press a vertical center crease, then measure 2.5" up from the hem and finger-press a horizontal crease to form a crosshair.
  • Stick the Snowman so the large dot sits exactly on the crosshair intersection and the sticker’s vertical line follows the vertical crease.
  • On the Brother Luminaire XP1 layout screen, tap the Snowman icon and choose the Bottom-Center anchor point before scanning.
  • Success check: after stitching, measure from the hem to the bottom of the design (not the center) and confirm it is 2.5".
  • If it still fails… re-check that Bottom-Center (not Center) was selected and that the sticker was centered on the crosshair intersection.
• Q: Why does Brother Luminaire XP1 Snowman placement feel “off” when aligning to a towel hem, and what do the large dot and small dot actually do?
  A: The Snowman sticker is a coordinate + rotation reference; the large dot sets position (X/Y) and the small dot sets rotation (angle).
  • Treat the large dot as the physical “zero point” for where the design will anchor on the towel.
  • Keep the sticker flat and clearly visible so the camera can read both dots accurately.
  • Use the small dot to let the camera correct a slightly crooked towel during scan (rotation correction happens from that dot).
  • Success check: the scan shows a clear lock/overlay and the design preview aligns parallel to the towel hem.
  • If it still fails… confirm the Snowman scan is initiated from the dedicated Snowman icon (not assumed automatic).
• Q: How do I float a tea towel on hooped stabilizer on a Brother Luminaire XP1 without the towel shifting during embroidery?
  A: Float only with real friction—use sticky stabilizer or a light spray adhesive, then press the towel down firmly before scanning.
  • Hoop the stabilizer drum-tight first, then expose the adhesive surface (peel-and-stick) or apply temporary spray adhesive.
  • Press the towel onto the stabilizer so edges do not lift, and keep bulk away from the hoop attachment area.
  • Add water-soluble topper on top if the towel has loops/texture to prevent stitches sinking into the pile.
  • Success check: the towel cannot slide when nudged lightly by hand, and the fabric does not ripple/wave as the first stitches land.
  • If it still fails… increase adhesion and/or stop floating and switch to a magnetic hooping method for a more secure clamp on bulky hems.
• Q: What needle and consumables are a safe starting point for embroidering tea towels, especially textured terry cloth, on a Brother Luminaire XP1?
  A: Use water-soluble topper on top, adhesive for control during floating, and start with a fresh needle matched to towel weave.
  • Install a fresh 75/11 Ballpoint needle for looser weaves or a Sharp needle for tighter weaves.
  • Place water-soluble topper on top of the towel to prevent stitch sink on loops.
  • Use temporary spray adhesive (or sticky stabilizer) to prevent shifting if floating.
  • Success check: satin edges look clean (not buried), and the fabric is not being pushed into a wave in front of the foot.
  • If it still fails… change to a different stabilizer strategy (tearaway for light towels, cutaway/PolyMesh for stretchier waffle weave) and re-test.
• Q: How do I resize an embroidery design safely on a Brother Luminaire XP1 so the stitches don’t look thin after enlarging?
  A: Always resize with stitch recalculation so density is maintained, then verify the stitch count increases appropriately.
  • Resize the design on-screen and enable resizing with stitch recalculation (do not just “stretch” the artwork).
  • Re-check stitch count after resizing; a big size increase should also increase stitch count noticeably.
  • Preview the design in the hoop boundary to ensure it still fits with margins after any rotation correction.
  • Success check: filled areas still cover evenly (no fabric showing through due to spread-out stitches).
  • If it still fails… reduce the resize amount or start with a design digitized closer to the target size.
• Q: What should I watch during the first 500 stitches on a Brother Luminaire XP1 to confirm towel embroidery is running correctly and not about to crash?
  A: Remove the Snowman sticker, stay ready on Stop, and verify sound + fabric behavior in the first minute.
  • Remove the Snowman sticker before stitching so adhesive does not gum the needle.
  • Keep hands and tools at least 6 inches away once the carriage starts moving, especially around scan/startup.
  • Listen for a steady rhythmic sound; stop immediately if a sharp clack suggests needle/plate/hoop contact.
  • Success check: the towel stays flat (no creeping), the topper isn’t tearing prematurely, and the stitch-out begins without puckering.
  • If it still fails… re-check hoop clearance (no towel bulk under the attachment arm) and increase stabilization/adhesion.
• Q: When should towel embroidery workflows move from floating on sticky stabilizer to using a magnetic embroidery hoop or upgrading to a SEWTECH multi-needle machine?
  A: Upgrade when sticky residue, hoop burn risk, or time-per-towel becomes the bottleneck; escalate in levels based on the pain.
  • Level 1 (technique): standardize marking (2.5" crease crosshair), use correct topper/stabilizer, and scan with Bottom-Center anchor for repeatable placement.
  • Level 2 (tooling): switch to a magnetic hoop when hoop burn, adhesive mess, or frequent re-positioning is slowing production.
  • Level 3 (capacity): consider a SEWTECH multi-needle machine when running batches (e.g., dozens of towels) and thread changes + handling time become the limiting factor.
  • Success check: time per towel drops and placement consistency is measurable from the hem across a full set.
  • If it still fails… audit where time is actually going (re-hooping, cleaning sticky residue, re-stitching crooked towels) and address that step first.
• Q: What are the safety risks when using magnetic embroidery hoops and fast camera scanning on a Brother Luminaire XP1, and how do I prevent injuries?
  A: Treat both as pinch/crush hazards—keep hands clear during scan motion and never place fingers between magnetic clamps.
  • Keep fingers, scissors, and loose tools well away from the needle area once scanning or stitching begins because the frame can move quickly.
  • Handle magnetic hoops as industrial magnets: snap force can crush skin; lift and place deliberately.
  • Do not use magnetic hoops if you have a pacemaker, and keep magnets away from sensitive electronics and cards.
  • Success check: hands never cross into the hoop/needle zone during scan/stitch, and magnets are seated without pinching.
  • If it still fails… pause the workflow, slow down handling steps, and reposition fabric only when the machine is fully stopped.
