Stop Fighting Thick Bags: Set Up the Hoop Tech Clamping System on a Brother PR600 (Without Crashing Your Foot)

If you have ever tried to hoop a thick leather pocketbook, a structured market tote, or a plush towel that keeps “popping out” of standard rings, you already know the sinking feeling in your stomach. You aren’t fighting the design—you are fighting the physics of the hoop itself.

For owners of multi-needle machines, the Hoop Tech clamping system is often the weapon of choice for these “un-hoopable” items. But owning the tool is only half the battle; mastering the feel of it is what separates a profitable job from a broken needle.

This guide rebuilds the workflow demonstrated in the video—assembly, mounting, safety clearance, and clamping—but injects the shop-floor sensory details (the sounds, the resistance levels, and the safety margins) that keep you from damaging a customer’s expensive bag.

What the Hoop Tech Clamping System Really Solves on Brother PR600 Hooping Jobs (Bags, Towels, and “Un-hoopable” Items)

To understand why we use this tool, we must first understand the limitations of friction. Standard hoops rely on friction to hold fabric taut between an inner and outer ring. When you try to force a thick leather bag into that ring, the hoop pops open.

The Hoop Tech system changes the physics. It isn’t a hoop; it is a mechanical jaw. It consists of a heavy-duty base and interchangeable “windows” that clamp down with high pressure. Instead of stretching the item, you slide the item under the open window and lock it down like an alligator’s mouth.

In the video, the presenter highlights the classic "nightmare" use cases where this system excels:

• Pocketbooks / Structured Bags: Items that are too thick or rigid to bend into a circle.
• Towels: Thick terry cloth that tends to "creep" (shift) during sewing.
• Odd Shapes: Items with seams, zippers, or handles that physically block a standard hoop ring.

The system generally comes in two ecosystem families:

1. Small System: Typically includes a base and windows up to 6x5 inches.
2. Large System: Includes larger bases for 5x8 and 5x11 inch windows.

When you are searching for brother pr600 embroidery machine accessories, you will often find these listed as "specialty frames." Think of the window size as your "sew field," but with a critical difference: Metal does not forgive. Unlike plastic hoops that might just scratch your presser foot, hitting a metal clamp frame will shatter your needle and potentially throw your machine's timing out. Your clearance margins must be precise.

The “Snap-and-Lock” Assembly: Building the Hoop Tech Window Without a Wobble

The assembly process is simple, but if you skip the sensory check here, your design will register off-center later.

1. The Base Insertion: Slide the bottom window bracket into the clamping base.
   • Action: Tighten the retention screw/nut.
   • Sensory Check: Wiggle the bracket. It should feel fused to the base, with zero lateral play.
2. The Top Window Install: Compress the two spring-loaded arms inward.
3. The Snap: Fit the arms into the receiving holes on the base.
   • Sensory Check: Listen for a sharp, distinct "Click".
4. The "Ear" Check: Look closely at the locking mechanism. The little metal "ears" on the spring arms must be fully expanded into the holes. If they are halfway out, the clamp will fly open during the vibration of stitching at 600+ stitches per minute (SPM).




The Prep Checklist (Do this *before* you walk to the machine)

• Base Verification: Confirm you have the correct chassis (Small vs. Large) for the window size you chose.
• Tactile Inspection: Run your finger along the inside edge of the clamp window. Feel for burrs or nicks. A sharp burr here will scratch the leather of a customer's bag as you slide it in.
• Consumable Prep: Do you have your centering tools? (Adhesive reinforcement rings, chalk, or masking tape).
• Design Safety: Measure your digital design size. Rule of thumb: Leave at least 15mm (0.6 inches) of clearance between the design edge and the metal window edge.
• Obstruction Plan: If the bag has heavy metal hardware or long straps, have you prepared tape or clips to secure them out of the way?


Mounting the Clamp Base on a Brother PR600 / Baby Lock EMP Driver Arm (No Drama, No Slop)

The video demonstrates a standard mounting procedure that applies to most multi-needle machines:

1. Strip the Arm: Remove the standard tubular arms (A-Arms or B-Arms) from your machine.
2. Seat the Base: Place the clamp base onto the machine's X-carriage.
   • Action: Align the holes over the locator pins.
   • Sensory Check: The base should drop flat onto the carriage. If it rocks or teeters, it is not seated on the pins.
3. Secure: Re-insert the two large thumbscrews.
4. The Final Torque: Tighten them securely. Do not use pliers (you might strip the threads), but tighten them firmly by hand until they stop turning.


Warning (Pinch Hazard): The embroidery machine’s X-Y carriage moves with significant force. When mounting heavy clamps, keep your fingers clear of the rear driver arm gap. Furthermore, never close the clamp lever without looking at your fingers—the spring tension is strong enough to cause a painful blood blister.

The Collision Check That Saves Needles: Using the Brother PR Trace/Grid Corner Tool Before You Sew

In the demo, the design is 5.6" wide and the clamp window is 6.0" wide. That leaves only 0.2" (5mm) of clearance on each side. For a novice, this is the "Danger Zone."

Here is the exact safety logic you must adopt:

1. The Symptom: The presenter attempts a standard trace. He notices the needle position indicator on the screen looks dangerously close to the metal clamp arm.
2. The Adjustment: He centers the design within the window using the screen controls.
3. The "Grid" Method: He opens the Grid/Corner Positioning Tool (the icon showing a rectangle with needles at the corners).
   • Why this matters: A standard "Trace" just draws a box around the design in the air. The "Corner Check" moves the needle to the absolute furthest point and stops, allowing you to verify physics.




What “True Clearance” Looks Like (The Daylight Rule)

Do not trust your eyes from a distance. Follow this procedure:

1. Use the Corner Tool to move the needle to the Top-Left corner of the design.
2. Manually rotate the handwheel (or lower the needle bar if your machine allows) to bring the needle tip strictly down near the fabric.
3. The Daylight Rule: Look for a visible gap of light between the side of the presser foot and the metal clamp wall.
   • Pass: You see light.
   • Fail: The presser foot touches or overlaps the metal.
4. Repeat for all four corners.

Pro-Tip: If using a clamp, reduce your machine speed. While the brother pr600 embroidery machine can stitch fast, the heavy clamp adds inertia. Reducing speed to 600 SPM improves accuracy and reduces the risk of the motor skipping steps.

Two Centering Methods on a Pocketbook: Precision Sticker vs. Fast Eyeballing (And When Each One Wins)

The video offers two distinct philosophies on alignment. Your choice depends on the "fail cost" of the item.

Method 1: The Adhesive Target (High Precision)

Use this for monograms or logos where "slightly crooked" equals "ruined."

1. Measure: Find the physical center of the bag flap using a ruler.
2. Mark: Place an adhesive reinforcement ring (the white donuts used for binders) or a target sticker exactly on the center dot.
3. Load: Slide the bag into the open clamp.

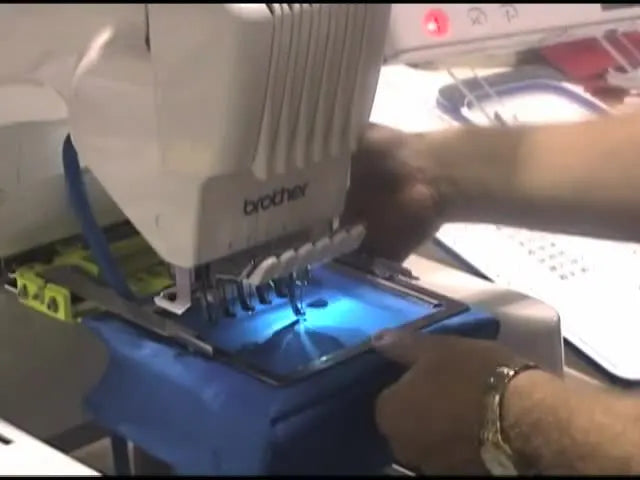

4. Align: Rotate the handwheel to bring the active needle down. Maneuver the bag until the needle tip hovers directly over the hole in the sticker.
5. Clamp: Lock the lever.




Method 2: The Visual "Eyeball" (High Speed)

Use this for forgiving designs or organic shapes.

1. Load: Slide the bag in.
2. Scan: Look at the gap between the bag's edge and the clamp's window edge.
3. Adjust: Shift the bag until the gap looks even on the Left and Right sides.
4. Clamp: Lock the lever.

The Reality: Even if you use Method 2, you must still perform a specific trace check afterward to ensure the design is centered relative to the bag, not just relative to the window.

The Clamp-Down Sequence for Thick Bags: Handle Routing, Final Centering, and the “Alligator Jaws” Lock

The physical act of clamping requires a specific choreography to avoid trapping the wrong parts.

1. Open Wide: Pull the lever up to open the jaws.
2. Route the Strap: Push the bag handle through the back of the clamp loop first.
   • Why? If the handle is left in front, gravity will pull it down into the needle path during stitching.
3. The "Float": Slide the bag body into place. Do not let the heavy mechanics drag the bag; lift the bag slightly to "float" it into position.
4. The Lock: Once centered, press the top clamp lever down firmly.
   • Sensory Check: The lever should snap down with significant resistance. The bag should feel immovable.




The Setup Checklist (Right before you hit "Sew")

• Base Rigidity: Grab the clamp base. Gives it one last firm shake. Is it locked to the machine?
• Strap Safety: essential check—are the handles taped back or routed safely behind the machine head?
• Needle Alignment: Is the active needle aligned with your center mark?
• The "Daylight" Check: Have you physically verified the presser foot clears the metal frame at the widest points of the design?
• Return to Center: Move the pantograph back to the center start position.

Stabilizer Reality Check: “No Backing” Worked in the Video—Here’s When It Won’t

In the video, the presenter sews a dense pocketbook without any stabilizer, noting that the bag itself is rigid enough. This is a partial truth. While that specific bag worked, adopting "no stabilizer" as a universal rule is dangerous.

Stabilizer Principle: If the fabric can stretch, the stitches will distort. If the fabric has texture, the stitches will sink.

Decision Tree: Fabric Behavior → Stabilizer Choice

Use this logic to decide if you need backing:

1. Is the material rigid (e.g., hard leather, stiff canvas)?
   • Yes: You may skip stabilizer (Test first!).
   • No: Go to step 2.
2. Is the material spongy, textured, or pliable (e.g., soft synthetic leather, neoprene)?
   • Yes: You MUST use stabilizer. Slide a sheet of tearaway or cutaway backing under the clamping window but on top of the throat plate.
3. Does the design have high stitch density (e.g., a solid tatami fill)?
   • Yes: Use stabilizer to prevent the leather from perforating and tearing like a stamp.

Hidden Consumable: Keep a can of temporary spray adhesive or double-sided tape handy. A small dab helps keep floating stabilizer sheets from sliding around under the clamp.

Running the Stitch-Out on the Brother PR Screen: Color Selection and Start

After clamping, the workflow moves to the screen. Select your starting color (Color #2 in the video example) and confirm the sewing order.

The "Hover" Technique: As the machine starts, keep your finger hovering over the Stop button. Watch the first 50 stitches closely.

• Listen: Do you hear a rhythmic "thump-thump"? That is the sound of the needle penetrating thick material. It is normal.
• Unknown Sound: Do you hear a harsh "Clack" or "Grind"? Hit Stop immediately. That is the sound of the needle bar hitting the clamp or the loop guard hitting the bag hardware.

Warning (Hardware Safety): Keeping scissors, tweezers, or fingers near the needle bar while a multi-needle machine is running at 600+ SPM is a recipe for disaster. The machine does not feel pain, but you do. Always stop the machine completely before reaching in to trim a thread tail.

The “Why” Behind the Clamp: Hooping Physics, Distortion, and Why Bags Shift Differently

Traditional hooping creates tension by pulling fabric outward. Clamping creates stability by compressing fabric downward.

The shift patterns are different:

• Hoop Shift: Caused by the fabric relaxing or slipping inward from the ring.
• Clamp Shift: Caused by the weight of the item dragging the clamp.

Crucial Advice: If you are embroidering a heavy golf bag or a weighted tote, support the weight. Do not let the full weight of the bag hang off the clamp arm. Place a small table or stand next to the machine to support the bag's body. This relieves stress on the X/Y motors and ensures better registration.

Troubleshooting the Scary Stuff: Symptoms → Causes → Fixes for Clamp Setups

Problems with clamps are usually mechanical or related to clearance.

Window Size Choices for Market Totes (and Why “Bigger” Isn’t Always Better)

A common question from the video comments is: "What size window for a market tote?"

The temptation is to buy the largest window (5x11). However, physics dictates that smaller is tighter.

• A smaller window exerts more concentrated pressure per square inch.
• A larger window has more surface area, potentially allowing "bowing" in the middle of the clamp if the item isn't perfectly flat.

Strategy: Use the smallest window that your design fits into with a 15mm safety margin. If your logo is 3x3 inches, use the 5x3 window, not the 5x11. It will hold the bag tighter.

Upgrade Paths That Actually Make Sense: When to Consider Magnetic Hoops, Multi-Needle Capacity, and Cap Windows

Clamps are a specific problem solver, but they are slow to load. As your business grows, you need to identify when to switch tools to maintain profitability.

The Pain Point Checklist:

1. "My wrists hurt from forcing hoops, and I have 'hoop burn' marks on sensitive fabrics."
   • The Upgrade: This is the trigger to investigate magnetic hoops for babylock embroidery machines or Brother machines. Unlike clamps, magnetic hoops utilize powerful magnets to hold fabric without manual cranking. They are faster for flat items and virtually eliminate hoop burn.
2. "I cannot produce enough bags per hour because changing threads takes too long."
   • The Upgrade: If you are using a single-needle machine, you are hitting a production ceiling. Moving to a SEWTECH compatible multi-needle platform allows you to set up 6-10 colors at once. This isn't just a luxury; it's a labor cost reduction.
3. "I need to embroider the SIDES of hats."
   • The Upgrade: As seen in the video, the clamp system has specific "Cap Side" windows. However, for high volume, a dedicated cap hoop for embroidery machine driver (cylinder arm attachment) is superior because it rotates the hat naturally.
4. "My placements are inconsistent between employees."
   • The Upgrade: Look into a dedicated hooping station for embroidery machine or the hoopmaster hooping station. These fixtures ensure that every shirt or bag is hooped at the exact same vertical position, regardless of who is operating the machine.

Warning (Magnetic Safety): If you choose to upgrade to magnetic hoops, treat them with respect. The magnets used in modern frames are industrial strength. They can pinch skin severely and must be kept away from pacemakers and implanted medical devices.

The Finished Result Standard: What “Good” Looks Like When You Unload the Bag

The video concludes with a clean monogram. But before you ship that bag to the customer, perform this final quality audit.

The Operation Checklist (Your "Don't Waste the Blank" Final Pass)

1. Centering verification: Does the design align visually with the bag's pockets or seams?
2. Compression check: Inspect the area where the clamp jaws sat. Is the fabric crushed? (Steam it gently if necessary).
3. Backside inspection: Check inside the bag. Did the bobbin thread tangle? Did you accidentally sew the lining shut? (This happens more than experts admit!).
4. Stability check: Are the outline stitches perfectly aligned with the fill stitches? If there are gaps, your bag shifted—consider using stabilizer or slower speeds next time.

By adding these sensory checks and safety protocols to the basic instruction, you transform the clamp from a scary accessory into your shop's most versatile asset for high-margin jobs.

FAQ

• Q: How do I assemble a Hoop Tech clamping window so the Hoop Tech frame does not wobble during a Brother PR600 embroidery job?
  A: Lock the base bracket solidly first, then confirm the spring arms “click” fully into place before mounting on the Brother PR600.
  • Tighten the retention screw/nut, then wiggle the bracket to confirm zero lateral play.
  • Compress both spring-loaded arms, seat them into the receiving holes, and listen for a sharp “Click.”
  • Inspect the metal “ears” on the spring arms; verify they are fully expanded into the holes (not halfway out).
  • Success check: the assembled window feels fused (no rattle) and the latch points look fully seated.
  • If it still fails: re-seat the arms and re-check the “ears”—partial engagement can pop open during stitching vibration.
• Q: How do I mount a Hoop Tech clamp base on a Brother PR600 or Baby Lock EMP driver arm without slop or rocking?
  A: Seat the clamp base flat onto the locator pins and hand-tighten the thumbscrews firmly—no rocking is acceptable.
  • Remove the standard tubular arms (A-Arms or B-Arms) before installing the clamp base.
  • Align the clamp base holes over the locator pins and let the base drop flat onto the X-carriage.
  • Re-insert both large thumbscrews and tighten firmly by hand (avoid pliers).
  • Success check: the base drops flat and does not teeter when pressed at the corners.
  • If it still fails: lift and re-seat the base—rocking usually means the base is not fully on the pins.
• Q: How do I prevent a Brother PR600 needle from hitting a metal Hoop Tech clamp frame when the design is close to the window edge?
  A: Use the Brother PR corner/grid positioning tool and verify “daylight” clearance at all four corners before sewing.
  • Open the Grid/Corner Positioning Tool and move the needle to each extreme corner of the design.
  • Manually rotate the handwheel (or lower the needle near the fabric) to check real-world clearance.
  • Re-center the design on-screen if any corner is too close to the clamp wall.
  • Success check: the “Daylight Rule” passes—visible light gap between presser foot and metal clamp wall at every corner.
  • If it still fails: resize the design or switch to a larger clamp window—do not “try it anyway.”
• Q: What is a safe clearance margin between a design edge and the metal Hoop Tech clamp window on a Brother PR600 job?
  A: Keep at least 15 mm (0.6 in) between the design edge and the metal window edge as a safe starting point.
  • Measure the design size in software and compare it to the selected window’s sew field.
  • Reposition the design on the Brother PR600 screen to maximize margin on all sides.
  • Confirm with the corner/grid tool, not just a basic trace.
  • Success check: all four corners pass the daylight clearance check and the design is not “crowding” one side.
  • If it still fails: choose the smallest window that still gives the 15 mm margin, or step up to a larger window if the design is too big.
• Q: How do I stop a pocketbook or tote from sliding out of a Hoop Tech clamp while sewing on a Brother PR600?
  A: Increase effective grip by confirming the clamp locks correctly and adding a non-slip interface if the surface is textured.
  • Verify the spring-arm “ears” are fully locked and the top lever snaps down with strong resistance.
  • Route and secure handles/straps so the item weight does not tug the clamped area during stitching.
  • Add a non-slip layer logic (rubber shelf liner idea or masking tape) on the jaw surface to boost friction.
  • Success check: after clamping, the bag feels immovable when gently tugged and does not creep during the first stitches.
  • If it still fails: support the bag body on a nearby table/stand so the clamp is not carrying the full hanging weight.
• Q: When should I use stabilizer with a Hoop Tech clamp for bags or towels on a Brother PR600, and when can I skip backing?
  A: Skip stabilizer only when the material is truly rigid; use tearaway or cutaway under the clamp for anything pliable, spongy, or high-density.
  • Test the material: if it can stretch or feels spongy/pliable, plan on stabilizer even if it “seems thick.”
  • Slide tearaway or cutaway backing under the clamping window (above the throat plate) when needed.
  • Use a small amount of temporary spray adhesive or double-sided tape to keep “floating” backing from shifting.
  • Success check: stitches sit cleanly (not sinking into texture) and the design stays registered without distortion.
  • If it still fails: slow the machine and re-evaluate backing choice—dense designs often need more support to prevent perforation/tearing.
• Q: What are the key safety checks to avoid pinch injuries and needle collisions when using a Hoop Tech clamp on a Brother PR600 at 600 SPM?
  A: Keep fingers out of pinch zones, verify clearance with the corner tool, and be ready to stop immediately if the machine makes a harsh clack/grind.
  • Keep hands clear of the rear driver arm gap while mounting heavy clamps on the moving X-Y carriage.
  • Never close the clamp lever without looking—spring tension can pinch hard.
  • Start sewing with a “hover” finger on Stop and watch the first ~50 stitches; stop on any harsh clack/grind sound.
  • Success check: only a normal rhythmic “thump-thump” is heard on thick material, with no metal contact and no unexpected vibration.
  • If it still fails: stop, re-run the corner/daylight clearance check, and secure any bag hardware/straps away from the needle path.
• Q: If hooping causes hoop burn or slow loading, how do I choose between technique improvements, magnetic hoops, or upgrading to a SEWTECH multi-needle embroidery machine?
  A: Diagnose the bottleneck first—optimize setup habits, then move to magnetic hoops for faster flat-item hooping, and consider multi-needle capacity when thread changes become the profit killer.
  • Level 1 (Technique): Add centering targets for “high fail-cost” items and always run the corner/daylight clearance check before sewing.
  • Level 2 (Tool): Choose magnetic hoops when manual hooping causes hoop burn/wrist strain and speed matters on flat goods (follow magnetic pinch/pacemaker safety).
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle platform when production is limited by repeated thread changes and inconsistent output between operators.
  • Success check: fewer re-hoops, fewer needle strikes, and consistent placement without slowing down the entire workflow.
  • If it still fails: add a hooping station-style fixture to standardize placement across different operators and reduce alignment variability.
