Stop Fighting Your Cap Frame: A Shop-Pro Method to Hoop Hats Straight (Driver + Jig + Cap Frame)

The Definitive Guide to Cap Embroidery: Mechanics, Physics, and Profit

Cap embroidery can feel unforgiving. Unlike a flat t-shirt, a cap is a 3D object fighting to return to its original shape. One tiny shift during the hooping process, and your logo looks crooked, the text stretches, or the design "walks" off-center. If you’ve ever latched a cap frame, hit the start button on your machine, and watched in horror as the design drifted into the brim, you are not alone.

This isn't usually your machine being "picky." It is a battle of physics.

This guide rebuilds the manual hooping method into a production-grade workflow. We will move beyond basic instructions and into the realm of sensory feedback—what you should feel, hear, and see to guarantee success. We will also discuss when to stop fighting with manual tools and upgrade your shop’s capabilities with specific solutions like SEWTECH multi-needle machines or magnetic framing systems.

1. The Trinity of Hardware: Driver, Frame, and Jig

The video is clear about one thing: cap hooping is a system. It relies on the rigid interplay between three specific components. Understanding the mechanical role of each is the first step to troubleshooting.

• The Cap Driver (The Transmission): This is the cylindrical unit attached to your machine's arm. It typically has wheels or bearings that drive the hoop along the X and Y axes. Check: Ensure the cable or band inside is tight; slop here equals shaky outlines.
• The Cap Frame (The Clamp): The curved metal skeleton that holds the hat. It uses a metal strap (often with teeth or a specific grip texture) to mimic the tension of a drum skin.
• The Cap Jig / Gauge (The Anchor): The heavy, stationary cylinder you mount to a table. Its only job is to provide a rigid foundation so you can apply force without the frame slipping.

If you are currently shopping for equipment, you might see terms like broad hooping stations. In professional embroidery, a station isn't just a table—it is a calibrated locking mechanism that ensures the frame is in the exact same coordinate position, every single time.

2. Reading the Hat: Structure Dictates Strategy

Before you touch a roll of tape or a sheet of backing, you must perform a "structure audit." Most cap failures happen because the operator treats a floppy "dad hat" the same way they treat a stiff trucker hat.

OPF / Structured Hats (The "Easy" Ones)

The video describes these as having buckram with lamination.

• Tactile Check: Pinch the front panel. It should feel stiff, like light cardboard.
• The Physics: The buckram fibers are glued (laminated) to the front fabric. This internal skeleton resists the "push and pull" of the needle, making them essentially self-stabilizing.

Varsity / Unstructured Hats (The "Danger" Zone)

The video warns that these lack lamination.

• Tactile Check: The fabric collapses when you poke it. It feels soft, like a t-shirt.
• The Risk: Without structure, the fabric will "flag" (bounce up and down) with the needle, leading to birdnesting or registration errors. These require aggressive stabilization.

Sports Caps (The Center Anchor)

These are defined by the prominent center seam running down the front.

• Visual Anchor: This seam is your "True North." It is a physical ridge that locks into the indentation on your driver and aligns with the red line on your gauge.






Pro Tip (Beginner Sweet Spot): If you are learning, start with Structured Hats. They are forgiving. Save the Unstructured Varsity hats until you have mastered your strap tension technique.

3. The Mise-en-place: Hidden Consumables and Prep

Experienced operators don't hunt for tools while the hat is on the jig. They set up a "surgical tray" workflow. The video utilizes three core items, but we need to refine the specifications for professional results.

The Toolkit

1. Cut-Away Backing: Do not use Tear-Away for caps. Caps are washed and worn; Tear-Away eventually disintegrates, leaving the embroidery unsupported. Use a 3.0 oz Cut-Away cap backing.
2. Double-Sided Tape: Generic stationery tape isn't strong enough. Use industrial-grade double-sided embroidery tape.
3. Scissors: Sharp snips for clean cuts.
4. Hidden Consumable: 3M Super 77 Spray Adhesive (Optional but recommended). A light mist can help backing stick to the hat interior better than tape alone on difficult fabrics.






Warning: Physical Safety
Scissors and metal cap frames are a dangerous combination. When trimming backing or tape near the metal teeth of a strap, slip-ups happen fast. Always cut on a flat surface, never "in the air" near the tensioned strap. A slip can drive scissor points into your hand or gouge the expensive driver track.

Phase 1 Checklist: Preparation

• Inventory: Confirm Cap Driver, Frame, and Jig are present and undamaged.
• Audit: Identify hat type (Structured vs. Unstructured).
• Consumables: Pre-cut backing to size (approx. 4.5" x 12").
• Adhesion: Pre-cut 4 strips of finger-length double-sided tape.
• Hardware: Inspect the metal strap. Are the teeth bent? Is the buckle latch loose?
• Environment: Clear the table to prevent the frame from snagging on thread cones during rotation.

4. The Lock: The "Slap/Click" Sensory Test

The video shows sliding the frame onto the jig. This is not a passive motion. You must slide the empty cap frame onto the jig until it locks.

• Auditory Cue: Listen for a metallic "CLICK" or a dull "THUD."
• Tactile Cue: Grab the frame and try to wiggle it left and right. It should feel welded to the jig. If it wobbles, your jig adjustment is loose. Tighten the jig's locking screws immediately. If the frame rotates on the jig, your perfectly centered hat will be crooked on the machine.


5. Stabilization: Friction is Your Friend

The video suggests using tape on the sides of the frame. Let's break down the logic. We are not just taping paper to metal; we are creating coefficient friction to stop the hat from sliding under the aggressive vibration of sewing.

1. Tape placement: Apply finger-length strips to the sides (wings) of the metal frame.

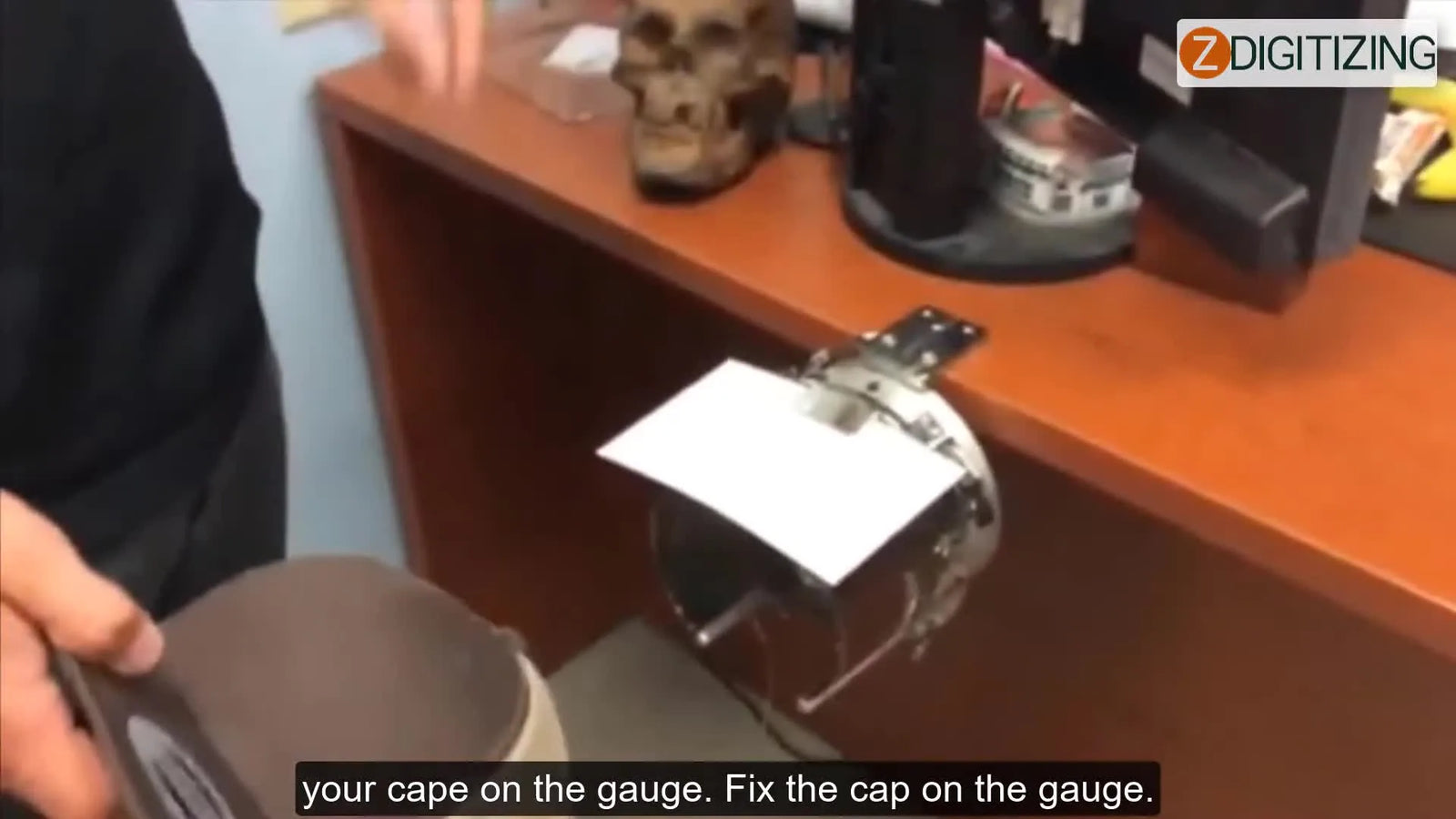

2. Backing placement: Bridge the backing over the gauge.

Why finger-length? If the tape is too long, it might creep into the sewing field, gumming up your needle. If it's too short, the backing will curl up when you slide the hat over.

Note on "Hoop Burn": Traditional metal frames rely on crushing pressure to hold the fabric. This often leaves shiny marks or rings on delicate fabrics. This is a primary trigger for shops to eventually upgrade to Magnetic Hoops. While commonly used for flat goods to avoid burn, the principle of "firm hold without crushing" is why examining your holding method matters.

6. The Alignment: The Red Line Logic

This is the moment of truth. Slide the cap onto the frame.

• The Goal: Align the cap's center seam/line exactly with the Red Indicator Line on the gauge.
• The technique: Use your thumbs to smooth the sweatband under the locating tab at the bottom of the frame.
• Visual Check: Stand directly over the jig. Do not look from an angle. The red line should look like a laser beam cutting the hat in half.


7. The Clamping: How Tight is "Tight Enough"?

The video demonstrates pulling the metal strap over the bill and latching it at the bottom. This is where most beginners fail. They treat the strap gently.

You must be aggressive.

• Tactile Cue (The Pull): As you pull the strap over the bill, you should feel significant resistance. It should require effort.
• Auditory Cue (The Latch): The buckle should snap shut with authority.
• Tactile Cue (The Tapping): Tap the front of the hat with your finger.
  • Structured Hat: Should sound like hollow plastic.
  • Unstructured Hat: Should feel tight, like the skin of a ripe orange.


If the strap is loose, the hat will flag. The needle will push the fabric into the throat plate, causing thread breaks and loss of registration.

Phase 2 Checklist: Setup & Pre-Flight

• Latch: Strap is fully engaged; buckle is snapped shut.
• Center: The red line on the gauge still matches the hat seam perfectly.
• Sweatband: The sweatband is smoothed flat underneath suitable clips, not bunched up.
• Surface: Tapping the front panel reveals a drum-like tension.
• Obstructions: The bill is pulled back straight, not twisted sideways.

8. Troubleshooting: The Cap Diagnostic Chart

When a cap fails, do not blame the "ghost in the machine." Consult this logic flow.

Speed Recommendation (SPM)

• Expert User: 1000 SPM (Stitches Per Minute)
• Intermediate: 750-850 SPM
• Beginner Sweet Spot: 600-650 SPM.
  • Why? Slower speeds reduce the whipping action of the thread and the deflection force on the needle, giving you a safety buffer while learning.

9. Digitizing for Curves: The "Center-Out" Rule

As the video notes, you cannot stitch a cap like a flat chest logo. A cap is a dome. If you stitch a long straight line from left to right, it will bow like a smile.

• Center-Out: Start the design in the middle and work toward the sides. This pushes the fabric "wave" outward rather than trapping a bubble in the middle.
• Bottom-Up: Stitch from the bill upwards towards the crown to maintain registration with the securest part of the frame (the strap).

10. Decision Tree: Stabilization Strategy

Don't guess. Use this logic flow to choose your consumables.

Start: Inspect Hat Front

1. Is it Structured (Hard Buckram)?
   • YES: Use Standard Cut-Away (3.0oz) + Standard Strap Tension.
   • NO: Go to Step 2.
2. Is it Unstructured (Varsity/Floppy)?
   • YES: Use Heavy Cut-Away OR Two layers of Standard.
   • Action: Apply Double-Sided Tape to frame wings.
   • Action: Use Super 77 Spray Adhesive to bond backing to fabric.
   • Action: Reduce Machine Speed to 600 SPM.
3. Is it a Slick Performance Fabric?
   • YES: Use a "Sticky" backing or water-soluble topping to prevent stitches sinking.

11. The Upgrade Path: Solving the "Wrist Pain" Bottleneck

Manual cap hooping is physically demanding. Twisting clamps and pulling straps creates repetitive strain. Furthermore, the variance in manual hooping is the #1 cause of rejected orders.

If you are doing 50+ hats a week, you will hit a wall. Here is how upgrading your toolkit solves specific business pains:

Level 1: Efficiency Tools

Advanced shops often research terms like hoop master embroidery hooping station or hoopmaster hooping station. These are magnetic alignment systems that replace the manual "eyeball" method with standardized placement, reducing load times by 30-40%.

Level 2: The Magnetic Shift

For flat goods (checking pockets, bags, sides of hats), traditional hoops cause "hoop burn" and are slow to frame.

• The Solution: SEWTECH Magnetic Hoops.
• The Benefit: They hold varying thicknesses automatically without adjusting screws. They eliminate hoop burn on delicate performance wear.

Warning: Magnetic Safety
High-end magnetic frames use intense industrial magnets.
1. Pinch Hazard: They snap shut instantly. Keep fingers clear.
2. Medical: They can disrupt pacemakers.
3. Electronics: Keep credit cards and phones at least 12 inches away.

Level 3: Production Scalability

If you are struggling with single-needle limitations (constant thread changes, slow speeds), no amount of perfect hooping will make you profitable on a 500-hat order.

• The Solution: SEWTECH Multi-Needle Machines.
• The Benefit: Pre-load 15 colors. Run caps at higher speeds with dedicated cap drivers. This is the difference between a hobby and a factory.

Whether you are using a standard Brother setup or a high-end tajima cap frame style driver, the principle remains: Stability dictates Quality.

12. Final Operation Checklist (Go / No-Go)

Do not press the green button until you can say "Yes" to all six:

1. [ ] Integration: Cap driver is securely locked onto the machine arm (no wiggle).
2. [ ] Design: File is oriented correctly (usually rotated 180 degrees for caps).
3. [ ] Pathing: Needle 1 is confirmed as the starting needle to avoid a frame collision.
4. [ ] Clearance: Press "Trace/Check Size." Watch the eye of the needle. Does it hit the metal frame?
5. [ ] Threads: Bobbin is full/checked. (Use the tajima embroidery frame logic: Check bobbin before you hoop).
6. [ ] Start Speed: Machine set to 600 SPM for the first test run.

Cap embroidery is a skill of repetition. By respecting the physics, verifying the sensory cues, and knowing when to upgrade your tools, you move from "hoping it works" to "knowing it will."

FAQ

• Q: How can a SEWTECH multi-needle embroidery machine operator confirm a cap frame is locked correctly on the cap jig before hooping a hat?
  A: Slide the empty cap frame onto the cap jig until it fully locks, then verify there is zero wobble.
  • Push/slide the frame onto the jig with intention (not gently) until a clear metallic “CLICK” or dull “THUD” is heard.
  • Grab the frame and try to wiggle it left/right; tighten the jig locking screws immediately if any movement is felt.
  • Success check: The frame feels “welded” to the jig and does not rotate or rock at all.
  • If it still fails: Inspect the jig adjustment points and frame wear; a loose lock here will cause off-center results even if the cap seam is aligned.
• Q: What backing and tape setup should a SEWTECH cap frame user prepare for cap embroidery to prevent shifting on structured and unstructured hats?
  A: Use 3.0 oz cut-away cap backing plus industrial double-sided embroidery tape on the frame wings, then increase stabilization for unstructured hats.
  • Pre-cut backing to about 4.5" × 12" and pre-cut 4 finger-length strips of double-sided embroidery tape.
  • Apply tape strips to the sides (wings) of the metal cap frame to add friction, then bridge the backing over the gauge.
  • Success check: The backing stays flat and does not curl or creep into the sew field while sliding the cap onto the frame.
  • If it still fails: For unstructured hats, switch to heavy cut-away or use two layers of standard, and consider a light mist of spray adhesive to bond backing to fabric.
• Q: How tight should the metal strap be on a Tajima-style cap frame to prevent cap “flagging” and registration problems during cap embroidery?
  A: The metal strap must be latched aggressively with strong resistance so the front panel feels drum-tight.
  • Pull the strap firmly over the bill and latch the buckle so it snaps shut with authority.
  • Smooth the sweatband flat under the locating tab so the cap does not bunch and loosen tension.
  • Success check: Tapping the front panel feels/sounds like a tight drum (structured hats sound hollow; unstructured hats feel tight like the skin of a ripe orange).
  • If it still fails: Add more side tape/backing stabilization and reduce stitch speed for unstructured hats to minimize vibration-induced movement.
• Q: How can a SEWTECH embroidery machine operator diagnose and fix birdnesting on cap embroidery caused by “cap gap” and fabric flagging?
  A: Treat cap birdnesting as a spacing/flagging problem and confirm the cap gap is about 2–3 mm (about a credit-card width).
  • Check the gap between the needle plate and the driver arm; adjust so the spacing is roughly 2–3 mm.
  • Increase stabilization on unstructured caps (heavier cut-away or double layer) to reduce fabric bounce.
  • Success check: The cap front panel does not bounce up/down during stitching and the underside thread forms clean stitches instead of nests.
  • If it still fails: Slow the machine down to a safer learning speed (600–650 SPM) and re-check strap tension and backing adhesion.
• Q: What should a SEWTECH cap embroidery operator do when a cap logo stitches off-center even after aligning the cap seam to the red line on the cap gauge?
  A: Re-check the mechanical lock on the jig and rule out a crooked bill that creates a visual illusion.
  • Confirm the cap frame “CLICK/THUD” lock on the jig and verify the frame cannot rotate on the jig.
  • Stand directly over the jig (not at an angle) and re-align the cap seam precisely to the red indicator line.
  • Success check: From directly overhead, the red line looks like a laser splitting the cap evenly and the frame stays fixed when pushed.
  • If it still fails: Inspect whether the cap bill is sewn on crooked (manufacturer defect), which can make correct alignment look wrong.
• Q: What safety steps should a SEWTECH cap frame operator follow when cutting backing and tape around metal cap frame teeth to avoid injury and equipment damage?
  A: Always cut on a flat surface and never trim “in the air” near a tensioned metal strap and teeth.
  • Move the cap frame to a stable surface before trimming tape/backing; keep fingers away from the strap teeth line.
  • Use sharp snips and make controlled cuts to avoid slips that can stab hands or gouge the driver track.
  • Success check: Trimming is completed without the frame shifting, and no tape/backing scraps are left near the strap teeth or driver path.
  • If it still fails: Stop and reset the work area—clearing the table reduces snagging and rushed handling that causes accidents.
• Q: When should an embroidery shop upgrade from manual cap hooping to SEWTECH magnetic hoops or a SEWTECH multi-needle embroidery machine for higher cap output?
  A: Upgrade when manual hooping variability or physical strain becomes the bottleneck—first improve technique, then upgrade tools, then upgrade production capacity.
  • Level 1 (technique): Standardize prep (cut-away backing, tape on wings), verify jig lock “CLICK,” and run a safer first-pass speed (600–650 SPM).
  • Level 2 (tool upgrade): Use SEWTECH magnetic hoops for flat goods where hoop burn and slow framing hurt quality and throughput.
  • Level 3 (capacity upgrade): Move to a SEWTECH multi-needle machine when constant thread changes and single-needle speed limitations prevent profitability on large cap orders.
  • Success check: Rejection rate drops and setup time becomes consistent across operators, not dependent on “perfect hands.”
  • If it still fails: Track where time is lost (hooping time vs. thread-change time vs. redo rate) and upgrade the specific bottleneck rather than guessing.
