Stop Fighting Your Embroidery Hoop: The Half-Turn Trick for Baby Lock/Brother Hoops + Bernina Ratchet Hooping That Won’t Pucker

Mastering the Art of Hooping: A Zero-Friction Guide to Perfect Tension

Hooping shouldn’t feel like a wrestling match—or a hand-strength test from the 1990s. If you’ve ever cranked a screw hoop until your white knuckles hurt, only to unhoop and find puckers around a beautiful design, you’re not alone. The friction is physical, but the fix is process, not brute force.

In this guide, we decompose the methods demonstrated by Sheldon and Kelly from OESD into a repeatable, industrial-grade workflow. We will cover two distinct hoop families:

• Standard screw-tightened hoops (common on Baby Lock/Brother machines).
• Bernina ratcheting hoops (mechanism-driven).

Below is the "how" and the "why" to stop chasing puckers, hoop burn, and machine-bed scratches forever.

The Calm-Down Truth About Embroidery Hooping Tension

If your last stitch-out puckered, it’s tempting to blame the digitizing file or the machine's tension disks. However, hooping is the first domino in the chain.

The single most important rule in professional embroidery is Neutral Tension:

• The Fabric State: Your fabric should sit in the hoop at a "resting state." It should be flat, but not stretched like a drum skin.
• The Hoop State: Your hoop should be tensioned before the fabric is fully loaded to prevent friction drag.

That’s why the old myth—"pull it tight enough to bounce a quarter"—is dangerous. It stretches the fabric fibers open; when you unhoop, the fibers snap back (relax), creating ripples around your stitches.

If you are building a consistent workflow around machine embroidery hoops, think of hooping as controlled clamping, never stretching.

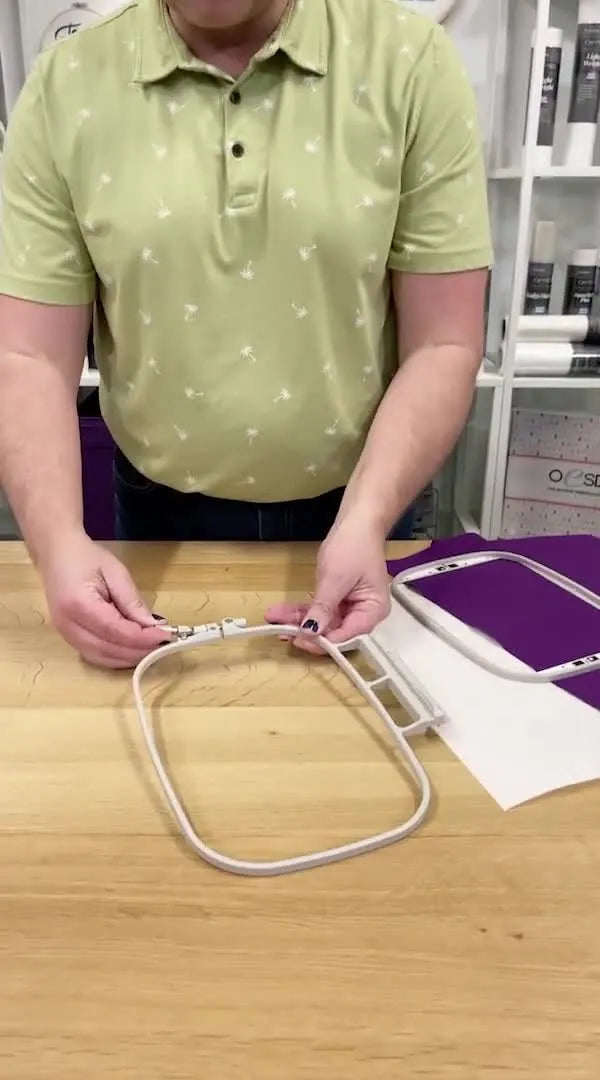

The “Pre-Tensioning” Ritual for Screw Hoops

Sheldon’s method for standard screw hoops (common on Brother/Baby Lock) protects your wrists and ensures even tension around the entire perimeter.

The Core Concept: "Ghost Hooping"

Instead of tightening the screw while the fabric is inside (fighting friction), you set the gap before the final seat.

Materials Needed

• Stabilizer: Medium-weight Cutaway (recommended for knits/unstable fabrics) or Tearaway (for stable wovens).
• Fabric: Cotton quilting fabric (for practice).
• Hoop: Standard screw-tightened hoop.


Step-by-Step Workflow

1. Open Wide: Loosen the screw until the outer hoop is significantly wider than the inner ring.
2. The Sandwich: Layer your stabilizer and fabric on a flat surface.
3. The Drop: Place the inner hoop into the outer hoop. It should drop in with zero resistance.
4. The Snug Up: Tighten the thumb screw just until it touches the hoop ring. Stop when you feel the slightest resistance. Do not crank it.
5. The Release: Pop the inner hoop back out.

Checkpoint: You have now calibrated the hoop to the exact thickness of your fabric+stabilizer without distorting the fibers.

Why This Works

When you tighten a screw while the fabric is under load, you are fighting friction, stabilizer density, and your own grip strength. Pre-tensioning eliminates the variable of drag.

Pro Tip: If you are doing a production run of 50+ shirts, manual screwing will cause repetitive strain injury (RSI). This is a precise trigger point to upgrade tools. A Magnetic Hoop eliminates the screw mechanism entirely, allowing the magnets to self-adjust to the fabric thickness instantly.

Prep Checklist: The "Pre-Flight" Safety Scan

• Surface Check: Is your table flat and stable? Hooping in the air leads to slippage.
• Residue Check: Run a finger inside the hoop rings. Old spray adhesive bumps will cause uneven grip. Clean with alcohol if gritty.
• Hardware Check: Does the screw turn smoothly? A rusted screw gives false feedback on tightness.
• Consumable Check: Have your "Hidden Consumables" ready—temporary adhesive spray (like Odif 505) and masking tape for excess fabric.


The Half-Turn Trick: Calibrating for Perfect Grip

This is the "Secret Sauce" for screw hoops. Once you have established the "snug" point in the previous step, you need to add the final clamping pressure without the fabric getting in the way.

The Algorithm

1. With the inner hoop removed (after the "snug" step above).
2. Turn the tightening screw exactly one half-turn (180 degrees) tighter.
3. Re-layer your fabric/stabilizer.
4. Press the inner hoop back in using even pressure from the palms of your hands.

Success Metric: You should feel a firm "thud" as it seats. The fabric should be taut and flat, but if you pull on a corner, it should not easily slide out.

For users of brother embroidery hoops, this half-turn method is the safest way to ensure the hoop holds firmly without causing "hoop burn" (the shiny ring mark left on crushed velvet or delicate poly).

Warning: Pinch Hazard.
Keep fingers flat on the rim of the inner hoop, never curled underneath or between the rings. When the inner hoop "pops" into place under tension, it can easily pinch skin.

Hooping Thick Materials: The Folded-Edge Gap Gauge

Hooping thick items like bath towels or Minky plush presents a new variable: Bulk. You cannot guess the screw gap by feel.

Sheldon’s workaround uses the project itself as a feeler gauge.

The Workflow

1. Fold & Measure: Fold the towel over to create a double thickness (representing the fabric + stabilizer).
2. Visual Gap: Hold the outer hoop up to eye level. Adjust the screw until the opening gap visually matches the folded towel thickness.
3. The Test: Place the unfolded towel and stabilizer over the outer hoop.
4. The Seat: Press the inner hoop in. It should require firm pressure but shouldn't feel like you are breaking the plastic.

The "Why": Thick textiles compress. If the hoop is too tight, you will crush the nap (pile) of the towel permanently. If too loose, the design will shift. This visual gauging prevents over-compression.

Commercial Insight: If you struggle with thick items regularly, this is a hardware limitation. Magnetic Hoops (such as those from SEWTECH) are superior here because the magnets apply vertical pressure rather than horizontal friction, holding towels securely without crushing the pile.

Bernina Ratchet Hooping: The "Click" System

Kelly demonstrates the Bernina style, which uses a mechanical ratchet rather than a screw. Success here creates a distinct auditory cue: the Click.

The Adhesive Advantage

Gravity is your enemy. To make the fabric and stabilizer act as one solid unit, use a light mist of temporary adhesive spray on the stabilizer before smoothing the fabric down.

If you are using a bernina snap hoop, alignment is critical. Standard screws are forgiving; ratchets are binary.

Setup Checklist: Bernina Prep

• Spray Check: "Mist, don't snow." Heavy spray gums up your needles.
• Alignment Check: Locate the arrow on the inner hoop and the notch on the outer mechanism. They must line up perfectly.
• Unit Check: Is the fabric smoothed completely flat onto the stabilizer? No ripples allowed before the hoop touches it.


The "Top-First" Seat + Re-Pop Reset

A common failure mode with ratchet hoops is a "bubble" of loose fabric forming near the mechanism as you tighten it.

The Sequence

1. Open: Release the ratchet mechanism fully.
2. Align: Place inner hoop over the fabric.
3. Engage Top: Seat the side opposite the ratchet mechanism first.
4. Engage Bottom: Press down the ratchet side.
5. Listen: Begin tightening.
6. The Reset (Crucial): If you see a bubble forming near the lock, stop. Pop the inner hoop out.
7. Re-Seat: Press it back in. The fabric will now spread evenly.
8. Final Lock: Tighten until you hit the mechanical limit (stop).


The Fingernail Countersink: Protecting Your Machine

This is a detail practiced by master technicians. The inner hoop should not sit flush with the outer hoop; it should sit slightly lower.

The Physical Check

1. After hooping, press the inner hoop down gently all around.
2. Run your fingernail over the transition from outer to inner hoop.
3. Metric: You should feel a "step down" of about a fingernail's width (1-2mm).


Why? This creates a "buffer zone." As the pantograph moves the hoop rapidly across the machine bed, the plastic outer rim won't drag or scratch the bed surface.

Warning: Magnet Safety.
If you upgrade to Magnetic Hoops, exercise extreme caution. Industrial magnets are powerful enough to pinch fingers severely or snap together unexpectedly. Keep them away from pacemakers, credit cards, and computerized machine screens.

The "Quarter Myth" Debunked

Let's bury this myth permanently.

• The Myth: "Tighten until you can bounce a quarter off the fabric."
• The Reality: This stretches the fabric fibers. Embroidery adds thousands of stitches, lock-stitching that stretch into place. When you remove the hoop, the fabric tries to return to its original shape, but the stitches hold it stretched. Result: Permanent puckering.
• The Rule: Hoop tight, but never stretch.

Troubleshooting: The Matrix

Use this logic flow to diagnose hooping failures immediately.

Note for babylock hoops users: The "Pre-Tension" method is specifically verified to solve the common issue of the screw stripping out over time due to over-torqueing.

Decision Tree: Fabric vs. Tool Selection

When setting up, ask these questions to choose your path:

1. Is the fabric unstable (T-shirt, Knit)?
   • Yes: Use Cutaway Stabilizer + Fusible Interfacing (optional) + Pre-Tension Method.
   • No: Proceed to 2.
2. Is the fabric thick/crushable (Velvet, Towel)?
   • Yes: Use Folded-Edge Gauge or upgrade to Magnetic Hoops.
   • No: Proceed to 3.
3. Are you doing production volume (10+ items)?
   • Yes: Discard screw hoops. Use Magnetic Frames to reduce hoop-time by 50% and save your wrists.
   • No: Standard hoops are fine; just pace yourself.

Commercial Upgrade Path: When to Switch Tools

Mastering the manual technique is essential, but tools limit your maximum speed and quality. Here is the professional progression:

• Pain Point: Hoop Burn on Delicate Garments.
  • Diagnosis: Screw hoops apply torque that twists fibers.
  • Solution: Magnetic Hoops. They clamp vertically, eliminating the "twist" and preventing burn marks.
• Pain Point: Production Bottlenecks.
  • Diagnosis: Hooping takes longer than stitching.
  • Solution: Hooping Stations + Magnetic Frames. A station ensures repeatability; a magnet ensures speed.
• Pain Point: Volume Scaling.
  • Diagnosis: You are turning away orders because your single-needle machine puts you to sleep.
  • Solution: SEWTECH Multi-Needle Machines. Moving from a 600 SPM (Stitches Per Minute) consumer machine to a 1000+ SPM commercial machine with a large embroidery field massively increases profitability.

If you utilize a hooping station for machine embroidery, the techniques above become even more reliable because the station acts as a third hand, holding the outer hoop rigid while you perform the "Pre-Tension" and "Re-Pop" maneuvers.

Operation Checklist: Final "Go" Status

• Fabric State: Smooth, neutral tension (not drum-tight).
• Seating: Inner hoop is fully bottomed out (or countersunk 1mm).
• Hardware: Screw is tight (or ratchet clicked); magnet acts as a clamp.
• Clearance: Double-check that no excess fabric is bunched under the hoop.
• Stabilizer: Correct type chosen (Cutaway for knits / Tearaway for wovens).

Even with a small field like a brother 4x4 embroidery hoop, these habits are non-negotiable. Small hoops magnify tension errors. Master the "Pre-Tension" and "Half-Turn" today, and your machine embroidery will transform from a struggle into a precise, enjoyable art.

FAQ

• Q: How can Brother or Baby Lock screw embroidery hoops be tightened without wrist pain and uneven tension?
  A: Use the pre-tension (“ghost hooping”) method so the screw is calibrated before the fabric is fully seated.
  • Loosen the thumb screw wide, then drop the inner ring into the outer ring with no fabric to confirm a zero-resistance fit.
  • Layer stabilizer + fabric on a flat table, then tighten the screw only until it just touches and you feel the first slight resistance—stop.
  • Pop the inner ring back out to “lock in” the correct gap for that fabric/stabilizer thickness.
  • Success check: The inner hoop drops in smoothly during calibration, and final hooping does not require brute force.
  • If it still fails… Clean adhesive residue from the hoop rings and confirm the screw turns smoothly (rust/grit gives false tightness feedback).
• Q: What is the “half-turn trick” for Brother or Baby Lock screw hoops, and how do I know the grip is correct?
  A: After finding the “snug” point with the inner hoop removed, tighten exactly a half-turn (180°) and then seat the fabric to get firm clamping without over-torque.
  • Remove the inner hoop after the “snug” calibration step.
  • Turn the screw exactly 180 degrees tighter.
  • Re-layer fabric + stabilizer and press the inner hoop in using even palm pressure.
  • Success check: A firm “thud” when the inner hoop seats, and the fabric stays flat; a gentle corner tug should not let the fabric slide out easily.
  • If it still fails… If hoop burn appears, back off slightly and prioritize even seating pressure over more screw torque.
• Q: How can thick towels or Minky be hooped in a standard screw hoop without crushing the pile or letting the design shift?
  A: Use the folded-edge gap gauge so the hoop gap matches the compressed bulk before final seating.
  • Fold the towel to create a double thickness that represents the project bulk (fabric + stabilizer).
  • Hold the outer hoop at eye level and adjust the screw gap to visually match the folded thickness.
  • Place the unfolded towel and stabilizer over the outer hoop and press the inner hoop in with firm, controlled pressure.
  • Success check: The towel pile is not visibly flattened into a shiny ring, and the hoop feels secure without “breaking plastic” force.
  • If it still fails… Consider switching to a magnetic hoop/frame for thick items because vertical clamping often holds bulk securely without over-compression.
• Q: How do Bernina ratcheting embroidery hoops avoid fabric bubbles near the locking mechanism during tightening?
  A: Seat “top-first,” then use the re-pop reset if a bubble forms so the fabric spreads evenly before final locking.
  • Lightly mist temporary adhesive spray on the stabilizer, then smooth fabric flat onto it before hooping.
  • Align the inner-hoop arrow with the outer-hoop notch, then seat the side opposite the ratchet first.
  • Press down the ratchet side, start tightening, and stop immediately if a bubble appears near the lock.
  • Pop the inner hoop out and re-seat it, then tighten to the mechanical stop.
  • Success check: You can tighten to the limit with no visible bubble/ripple near the ratchet side.
  • If it still fails… Reduce spray amount (“mist, don’t snow”) and re-check arrow/notch alignment before tightening.
• Q: How can the fingernail countersink test prevent embroidery hoop scratches on the machine bed?
  A: Make sure the inner hoop sits slightly lower than the outer hoop (about 1–2 mm) to create clearance during rapid hoop movement.
  • After hooping, press down gently all around the inner hoop to fully seat it.
  • Run a fingernail across the outer-to-inner hoop transition and feel for a small “step down.”
  • Re-seat if any section feels flush or raised compared to the rest.
  • Success check: A consistent step-down all around, roughly a fingernail’s width (1–2 mm).
  • If it still fails… Re-hoop with even pressure and confirm no fabric bulk is trapped under one side preventing full seating.
• Q: What pinch hazards should beginners watch for when seating a tight screw hoop inner ring?
  A: Keep fingers flat on the rim—never curled under the inner ring—because the inner hoop can “pop” into place under tension and pinch skin.
  • Place palms on the inner hoop rim and press evenly rather than pushing with fingertips underneath.
  • Seat the hoop on a stable, flat table instead of hooping in the air.
  • Pause and reposition hands if the hoop begins to bind or tilt.
  • Success check: The inner hoop seats with controlled pressure and no sudden snap onto fingers.
  • If it still fails… Reduce the screw tightness slightly and re-apply the half-turn method rather than forcing the seat.
• Q: What are the essential magnetic hoop safety rules for machine embroidery users who upgrade from screw or ratchet hoops?
  A: Treat magnetic hoops as industrial clamps—keep fingers clear and keep magnets away from pacemakers, credit cards, and machine screens.
  • Separate and bring magnets together slowly; do not let magnets snap together uncontrolled.
  • Keep fingertips out of the closing path when positioning the magnetic clamping pieces.
  • Store magnets secured so they cannot jump together unexpectedly.
  • Success check: The magnet closes in a controlled way with no finger contact and no sudden “slam.”
  • If it still fails… Stop and reposition; do not “fight” magnets—use a stable surface and deliberate hand placement.
• Q: If embroidery hooping causes hoop burn, slow production, or repetitive strain, how should embroidery users choose between technique fixes, magnetic hoops, and multi-needle machines?
  A: Use a three-level path: fix the process first, upgrade clamping second, and upgrade production speed last.
  • Level 1 (Technique): Switch to neutral tension (no drum-tight stretching) and use pre-tension + half-turn (screw hoops) or re-pop reset (ratchet hoops).
  • Level 2 (Tool): Move to magnetic hoops/frames when hoop burn persists, thick items are frequent, or wrist/thumb pain becomes a repeat issue.
  • Level 3 (Capacity): Consider a multi-needle machine when hooping/stitching volume becomes the bottleneck and orders exceed single-machine throughput.
  • Success check: Puckering and hoop marks reduce, and hooping time becomes predictable without pain.
  • If it still fails… Re-check stabilizer choice (cutaway for knits, tearaway for stable wovens) and confirm the fabric is hooped in a resting state, not stretched.
