Stop Fighting Your USB: A Calm, Repeatable Download-to-Stitch Workflow for Pfaff Creative 4.0 and Brother SE625

Mastering the Digital Chain: How to Transfer Embroidery Designs Without Losing Your Mind (or Your Files)

By: The Chief Embroidery Education Officer

If you’ve ever bought a stunning embroidery design, rushed to your machine, and then stared blankly at a screen that refuses to acknowledge the file exists, you know the specific flavor of frustration unique to our craft.

Embroidery is an engineering discipline disguised as art. The workflow requires precision not just in the needle and thread, but in the data pipeline. A missing file extension or an incompatible USB drive halts production just as effectively as a broken needle.

This guide reconstructs the workflow demonstrated in the source video—centered on the Pfaff Creative 4.0 and the Brother SE625—but creates an "Industry Standard" protocol. We will move you from "guessing" to "operating," ensuring that when you press Start, the machine sings that rhythmic thump-thump-thump of a perfect stitch-out.

1. The Hardware Reality Check: Respect the Limits (Pfaff & Legacy Machines)

Before you download a single pixel, we must address hardware compatibility. Modern computers use massive USB drives (32GB, 64GB+), but older embroidery machines—specifically the Pfaff Creative 4.0 mentioned in the video—have "digital claustrophobia."

The Golden Rule: The Pfaff Creative 4.0 (and many machines of its generation) cannot read USB drives larger than 2GB.

If you plug in a standard 16GB SanDisk, the machine will likely freeze or show an empty screen. This is not a glitch; it is a hardware limitation.

Expert Note:

• For Pfaff Creative 4.0: Hunt down 1GB or 2GB USB sticks. They are rare but essential. Label them clearly with a label maker.
• For Brother SE625: As shown in the video, this machine handles larger drives (like 32GB) with ease.
• Universal Safety: Format your USB to FAT32 (on Windows) before use. This is the universal language of embroidery machines.

2. The "Hidden" Prep: Verify Your Unzipping Capability

Most designs arrive in a .ZIP archive. Your embroidery machine speaks languages like .PES, .VP3, or .DST. It does not speak .ZIP. If you put a ZIP file on the stick, the machine sees nothing.

Create a "Pre-Flight" environment on your computer. You do not need expensive software; you just need a reliable extraction tool. The video host uses BreeZip, but Windows has a robust built-in extraction tool that works perfectly.

Prep Checklist (The Foundation):

• Unzip Verify: Confirm you can right-click a folder and see "Extract All" (Windows) or open BreeZip.
• Drive Formatting: Plug in your USB. Right-click > Properties. Ensure it is FAT32.
• Capacity Check: If you own a Pfaff Creative 4.0, verify the stick is 2GB or less.
• Master Storage: Connect your External Hard Drive. This is your Library; the USB is just a Shuttle.

Warning (Mechanical Safety): Before interacting with your machine screens/USB ports, ensure the machine is stopped. Never navigate file menus while the needle is in motion or your hands are near the needle bar. A surprising number of finger injuries occur during "multitasking" at the screen.

3. Folder Discipline: Organize Like a Production House

Searching for "Flower_05.pes" on a 3-inch monochrome screen is a nightmare. In the video, the host creates a structured folder hierarchy on the USB (Drive D:).

The Recommended Hierarchy:

• USB Root
  • Animals
  • Fonts
  • In-The-Hoop (ITH)
  • Quilts


Why this matters: Every minute your machine sits idle while you scroll is lost production time. If you decide to upgrade to SEWTECH multi-needle embroidery machines later to scale your business, this folder habit is mandatory for managing high-volume design databases.

4. The Acquisition: Creating the "Master Copy"

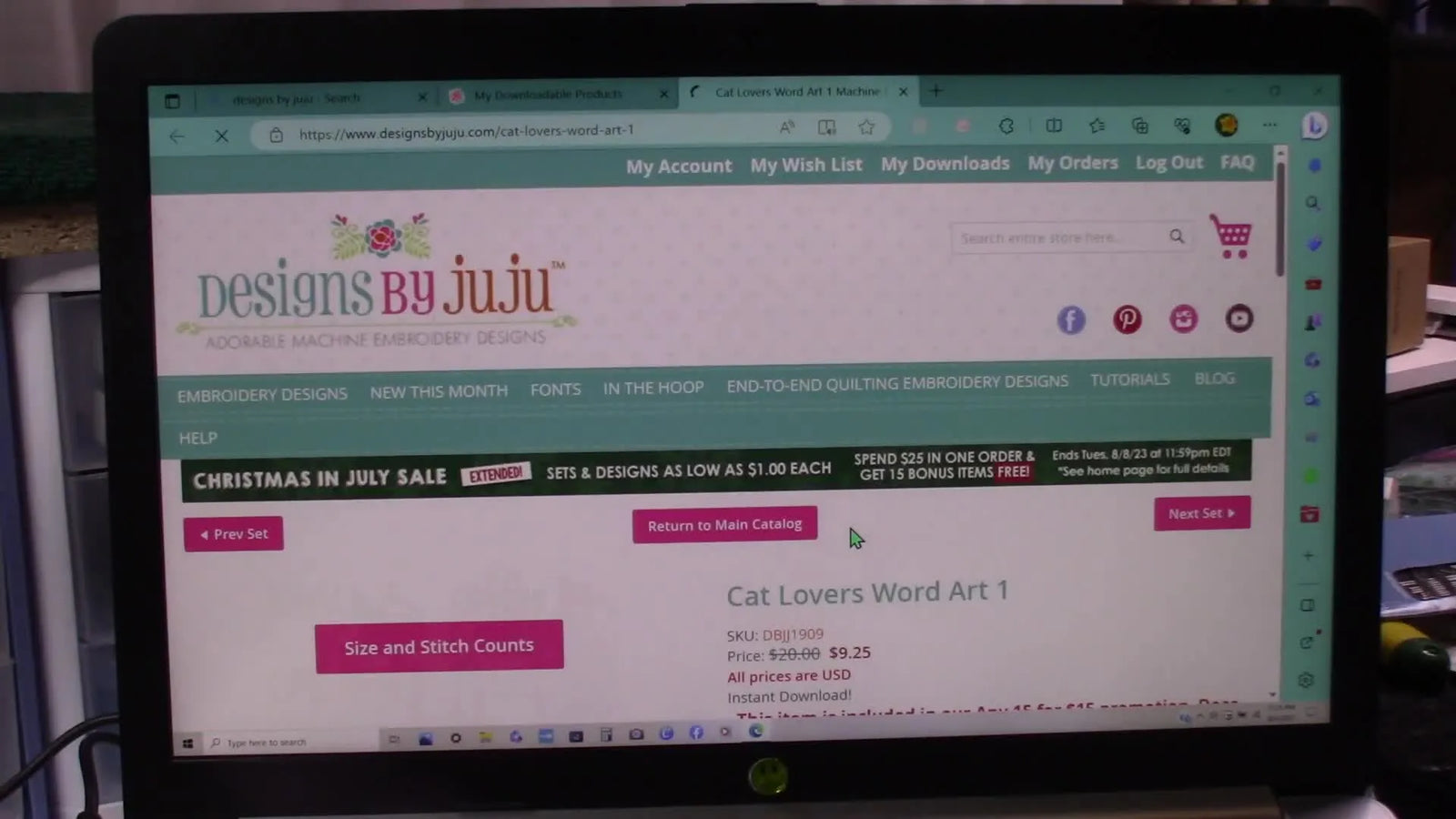

When downloading from vendors like Designs by JuJu, the host selects ALL FORMATS.

The Strategy: Always download All Formats, even if you only own a Brother machine today.

1. Future Proofing: You might buy a Pfaff or Bernina later.
2. Client Requests: You might stitch for a friend with a different machine.
3. Resilience: If a .PES file is corrupted, you can convert the .DST file.

Crucial Step: Rename the downloaded ZIP file immediately.

• Bad Name: dbjj_bundle_4.zip
• Good Name: DBJJ_Cat_Lovers_Word_Art_1.zip (Source_Content_Name)


Save this directly to your External Hard Drive (your Master Library).

Note for New Users: If you are setting up a brother embroidery machine for beginners, do not panic if Windows asks to "Replace existing file." It simply means you clicked download twice. Click "Yes."

5. Extraction & The "Design Card" (The Most Ignored Step)

Using BreeZip or Windows, extract the files on your external drive.

Once extracted, stop. Do not just drag files to the USB. Open the PDF document usually titled Design Card or Production Sheet.

This PDF is your engineering blueprint. It tells you:

1. True Dimensions: Is that "4x4" design actually 3.9" x 3.9" or 4.01" x 4.01"? (The latter won't fit a standard 4x4 hoop).
2. Color Stops: When to change thread.
3. Stitch Count: The density indicator.

Decision Tree: Stabilizer & Tool Selection

Use the data from the Design Card to make physical decisions before you transfer the file.

• Scenario A: High Stitch Count (Dense) + Knit Fabric (T-Shirt)
  • Risk: Pucker/Tunneling.
  • Rx: Cutaway Stabilizer (2 layers) + Ballpoint Needle.
  • Tool: Magnetic Hoop strongly recommended preventing fabric stretch during hooping.
• Scenario B: Low Stitch Count (Redwork) + Woven Fabric (Cotton)
  • Risk: Minimal.
  • Rx: Tearaway Stabilizer.
  • Tool: Standard Hoop is sufficient.
• Scenario C: Complex ITH Project (Zipper Pouch)
  • Risk: Hoop Burn / Alignment.
  • Rx: Mesh Stabilizer.
  • Tool: A hooping station for embroidery to ensure layers are perfectly aligned.

6. The Transfer: The "Verification" Protocol

Drag the unzipped folder from your External Drive to your USB drive.

The Sensory Check: Do not trust the green progress bar. Once the copy finishes, click into the USB folder.

• Visual: Can you see the specific file extension (e.g., .PES or .VP3)?
• Visual: is the file size non-zero? (A 0kb file is a ghost file).

If you are using a brother embroidery machine, ensure you are only transferring the specific size you need (e.g., 4x4) if your machine cannot resize onscreen. If you attempt to load a 5x7 file into a machine with only a brother 4x4 embroidery hoop, the machine will error out or simply refuse to display the file.

7. The Physical Gap: From USB to Hooping

Once the file is safely ejected ([FIG-15], [FIG-16]), you enter the physical realm. This is where most beginners fail—not because of the file, but because of the hooping.

The Upgrade Path: Solving Hoop Fatigue If you find yourself dreading the physical act of hooping—wrestling with screws, hurting your wrists, or leaving "hoop burn" (white rings) on delicate velvets—it is time to upgrade your tooling, not your skills.

1. Level 1 (Hobbyist): Master the "floating" technique with adhesive spray to avoid hoop burn.
2. Level 2 (Prosumer): Switch to Magnetic Hoops.
   • For Brother users, a brother 5x7 magnetic hoop allows you to slide fabric in and out instantly. The magnets clamp automatically, accommodating thick items like towels without adjusting screws.
   • Why? The tactile feedback of a magnet snapping shut guarantees even tension ("tight like a drum skin") without the distortion of pulling fabric.
3. Level 3 (Business): If you are consistently running orders of 12+ items, standard single-needle machines become the bottleneck. This is when you look at SEWTECH multi-needle machines, which utilize industrial-style magnetic frames to run continuous production.

Warning (Magnet Safety): High-quality Magnetic Embroidery Hoops use powerful neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.

8. Troubleshooting: The "Quick Fix" Matrix

If the machine doesn't behave, follow this logic flow to save time:

9. Operation Checklist (The Final Countdown)

Perform this mental check before every session to guarantee a "Zero-Fail" start.

• File Integrity: USB safely ejected (never just yanked).
• Dimension Check: Validated design size against actual hoop size using valid PDF data.
• Consumables: Stabilizer is cut to size (Hoop size + 1 inch margin).
• Tooling: Hoop is clean; if using embroidery machine pfaff specific hoops, ensure the connector clip is intact.
• Hardware: Bobbin area is dusted; fresh needle installed (Rule of thumb: New project = New needle).

By treating file management as the first step of the manufacturing process rather than a computer chore, you protect your time, your machine, and your peace of mind. Now, go load that USB and make something beautiful.

FAQ

• Q: Why does a Pfaff Creative 4.0 embroidery machine show “No Files” when a USB stick is plugged in?
  A: The most common cause is a USB drive larger than 2GB or a USB that is not formatted to FAT32.
  • Use a 1GB or 2GB USB stick for Pfaff Creative 4.0 and label it clearly.
  • Format the USB to FAT32 on a Windows PC before copying designs.
  • Copy only unzipped embroidery files (such as .VP3) onto the USB, not the .ZIP.
  • Success check: The Pfaff file browser shows folders/files instead of an empty screen.
  • If it still fails: Try a different 1–2GB stick and re-check that the files are extracted and not inside a ZIP.
• Q: Why does a Brother SE625 embroidery machine show “No Files” even though the design ZIP download is on the USB drive?
  A: Brother SE625 cannot read .ZIP archives, so the design must be extracted to embroidery formats first.
  • Extract the ZIP on the computer using Windows “Extract All” (or a tool like BreeZip).
  • Copy the extracted folder/files (for example .PES) to the USB, not the ZIP itself.
  • Open the USB folder after copying to confirm the real file extensions are visible.
  • Success check: The Brother SE625 design list displays the design files (not just a single ZIP filename).
  • If it still fails: Confirm the design format matches the Brother machine (avoid transferring only .VP3 meant for other brands).
• Q: How can a Brother SE625 prevent the “Pattern Too Large” / hoop mismatch problem when using a 4x4 hoop?
  A: Verify the design’s true dimensions in the Design Card (PDF) and transfer only the size that matches the Brother 4x4 hoop.
  • Open the extracted “Design Card” / “Production Sheet” PDF before transferring anything.
  • Select the 4x4 version of the file when multiple sizes are included in the download.
  • Avoid loading a 5x7 design onto a machine set up for a 4x4 hoop.
  • Success check: The Brother SE625 shows the design preview without size/hoop warnings and allows you to proceed to stitch.
  • If it still fails: Re-check that the chosen file is the correct size variant from the extracted folder (not just the first file you see).
• Q: What is the fastest way to verify a USB embroidery design transfer is not a “ghost file” (0KB) before loading it into a Brother SE625 or Pfaff Creative 4.0?
  A: After copying, open the USB folder and visually confirm the correct file extension and a non-zero file size.
  • Click into the USB directory after the copy finishes (do not trust only the progress bar).
  • Confirm the embroidery extension is present (such as .PES or .VP3), not .ZIP.
  • Check the file size is not 0KB.
  • Success check: You can see usable embroidery files with proper extensions and normal file sizes inside the USB folder.
  • If it still fails: Re-copy from the external hard drive “Master Library,” and safely eject the USB before moving it to the machine.
• Q: What is the safety rule for navigating USB menus on a Brother SE625 or Pfaff Creative 4.0 while the machine is running?
  A: Stop the embroidery machine before touching screens, ports, or file menus—do not multitask near a moving needle.
  • Press stop and wait for the needle bar to fully stop moving before using the screen or USB port.
  • Keep hands away from the needle area while selecting or loading designs.
  • Resume only after the design is loaded and hands are clear.
  • Success check: The needle is stationary any time fingers are near the needle bar or USB area.
  • If it still fails: If the workflow feels rushed, slow down and do the file selection step before threading/hooping to reduce “screen-time” during stitching.
• Q: What are the key safety precautions when using neodymium magnetic embroidery hoops on Brother machines or industrial multi-needle frames?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers or insulin pumps.
  • Handle magnetic hoop parts by the edges and bring pieces together slowly to avoid finger pinching.
  • Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Store magnetic hoops so the magnets cannot snap onto tools or other metal objects unexpectedly.
  • Success check: The hoop closes with a controlled “snap” without fingers being near the mating surfaces.
  • If it still fails: If hand fatigue or pinching keeps happening, adjust handling technique and consider using a structured hooping workflow before attempting faster production.
• Q: If hooping causes hoop burn, wrist strain, or slow setup, when should an embroiderer move from standard hoops to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Use a tiered upgrade path: improve technique first, then upgrade hooping tools, and only then upgrade machine capacity when order volume demands it.
  • Level 1 (Technique): Float fabric with adhesive spray to reduce hoop burn and reduce over-tightening.
  • Level 2 (Tooling): Switch to magnetic hoops to clamp evenly and speed loading/unloading, especially on thicker items like towels.
  • Level 3 (Capacity): If production frequently involves runs of 12+ items, consider a multi-needle machine to remove the single-needle bottleneck.
  • Success check: Hooping becomes faster with consistent tension and fewer visible hoop marks on delicate fabrics.
  • If it still fails: Re-check stabilizer choice using the Design Card (stitch count/density) and correct hoop size selection before assuming the machine is the problem.
