Stop Guessing on a 15-Needle Head: A Ricoma Needle Map That Saves Time, Needles, and Headaches

If you have ever stood in front of a multi-needle machine head and felt a wave of adrenaline mixed with dread, you are not alone. A 15-needle machine is a masterpiece of engineering, but without a plan, it feels like trying to play a piano where the keys change position every day.

The difference between a hobbyist and a production manager isn’t magic—it is systems. Ev Romero’s approach (demonstrated on a Ricoma head) cuts through the chaos with a simple philosophy: build a needle map that mirrors your weekly reality, and strictly protect your machine’s mechanics by rotating the heavy-lifting lanes.

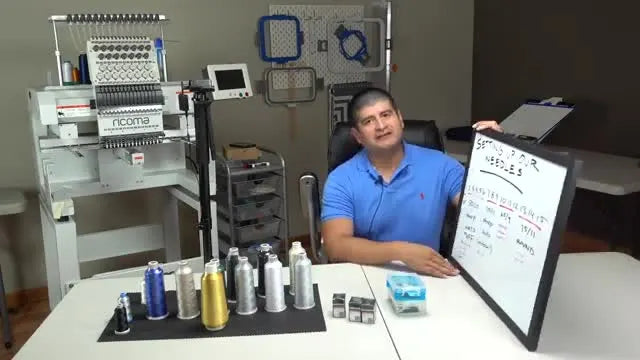

The Whiteboard Trick for a 15 needle embroidery machine: Give Every Needle a Job (So You Stop Re-threading All Day)

The "Whiteboard Trick" is not just about organization; it is about cognitive offloading. You shouldn't have to remember that "Needle 7 is currently set up for that weird polyester blend." You should be able to glance at a grid and know exactly what tool is loaded in the chamber.

Ev’s foundational concept is a static mapping chart. By assigning permanent roles to specific needles, you drastically reduce setup time. Here is the workflow he optimizes for, which likely mirrors many small business outputs:

1. 3D Puff Hats: High volume, high stress on needles.
2. Standard Hats & Flats: The "bread and butter" daily work.
3. Small Text & Detail: The technical precision work (tags, logos).
4. Delicates (Knits/Towels): Materials that are easily ruined by sharp points.

Why this matters for your bottom line: Every time you stop to unthread a needle, find a new cone, re-thread, and change a needle type, you are losing 5 to 10 minutes of production time. Over a week, that is hours of lost profit. A stable map turns your machine into a "Set and Forget" ecosystem.

The “Hidden” Prep Before You Touch Needle Bars on a ricoma embroidery machine

Before we assign a single needle, we must perform the "Pre-Flight Checks." Beginners often skip this and pay for it with "bird nests" (that horrific tangle of thread under the needle plate) or shattered needles.

Ev doesn't linger here, but as an educator, I must emphasize: Your needle map will fail if your mechanical baseline is dirty.

The Professional Pre-Map Routine:

• The "Floss" Test: Gently pull thread through the path near the needle. It should feel smooth, offering consistent resistance similar to flossing your teeth. If it jerks or snags, you have a burr in the path or lint in the tension discs.
• The Bobbin Audit: Open your bobbin case. Blow out the lint. A tiny speck of dust the size of a grain of rice can throw off your tension by 20%.
• Hidden Consumables: Do you have your "support squad" ready?
  • Precision Tweezers: For grabbing tails.
  • Temporary Spray Adhesive: For floating stabilizers.
  • Machine Oil: One drop on the hook race (follow your manual).

Warning: Mechanical Safety First. Always power down your machine or engage the "Emergency Stop" before putting your hands near the needle bars or reciprocator area. A machine can accidentally jog if a button is bumped, leading to severe finger injuries. Treat the needle zone like a table saw blade.

Prep Checklist (Do this BEFORE mapping)

• Visual Map: Whiteboard or printed chart ready with slots 1–15.
• Inventory Check: Correct needle packs on hand.
  • 75/11 Universal (General use)
  • 80/12 Sharp Titanium (Puff/Heavy duty)
  • 75/11 Sharp (RG) (Crisp flats)
  • 65/9 (Micro text)
  • 75/11 Ballpoint (FFG) (Knits)
• Path Hygiene: Bobbin area air-dusted; tension discs flossed with a folded piece of paper/fabric.
• Thread Staging: Cones checked for "wobble" (cones that sit unevenly cause tension spikes).


Needle #1 as Your “Swap Lane”: 75/11 Universal for Tracing and Oddball Colors

Ev assigns Needle 1 as the "Sacrificial Lamb" or the "Wildcard."

• Needle: 75/11 Universal.
• Purpose: Tracing designs/borders and accommodating that one weird Pantone color a client demands for a single run.

This is a veteran move. We develop "emotional attachment" to our perfect setups. If you have a perfectly tuned 15-needle map, you will hesitate to break it for a rush order. By designating Needle 1 as a "Swap Lane," you mentally permit yourself to change it constantly without disrupting the core ecosystem.

Sensory Tip: When tracing a design to check placement, listen to the machine. Current machines are quiet, but if the presser foot is clicking against a plastic hoop, Needle 1 is your warning system before the real stitching begins.

Needles #2–#6 for 3D Puff Hats: 80/12 Sharp Titanium + 3mm Foam (The Workhorse Block)

This is the most critical extraction from the video. Ev dedicates a massive block (5 needles) specifically for 3D Puff.

• Needles: 80/12 Sharp Titanium.
• Material: 3mm Foam (or 2mm/3mm stacks).
• Physics of the Choice: Why Titanium? Standard needles heat up due to friction as they punch through dense foam and cap buckram hundreds of times a minute. Hot needles melt foam, causing it to stick to the shaft, which leads to thread breaks. Titanium coatings disperse heat better and maintain a sharp point longer, slicing through foam "like butter."

The "Puff Pain": Beginners often try to run foam with a standard 75/11 needle. The result? The needle deflects (bends) slightly when hitting the foam, causing the hook to miss the thread loop. Result: Missed stitches and exposed foam. The thicker 80/12 shaft provides the rigidity needed to penetrate vertically.

Checkpoint: If hats are 80% of your business, this block is your profit center. Do not steal these needles for other jobs.

Needles #7–#9 for Standard Flats and Hard Fabrics: 75/11 Sharp (RG) for Cleaner Holes

Ev’s next block manages the "clean" work—structured hats without foam, denim, bags, and jacket backs.

• Needles: 75/11 Sharp (RG).
• Use Case: Crisp edges on woven fabrics.
• The Myth of "Bigger is Better": You might ask, "Why not use the 80/12 Titanium for everything?"
  • The Answer: A larger needle leaves a larger hole. On a white dad hat or a corporate jacket, an 80/12 needle can leave visible punctures around the embroidery. The 75/11 is the "Goldilocks" size—strong enough to penetrate, thin enough to leave a refined finish.

Clarification: "RG" stands for "Round point with a slightly sharp tip" (often called a standard sharp in the commercial world). It penetrates the fabric weave rather than pushing it aside.

Expected Outcome: Your logos will look "painted on" rather than "punched through."

The Color Rotation Habit That Saves Needle Bar Wear: Duplicate Black and Alternate Weekly

This insight protects your investment. If you run Black thread on Needle 15 for 8 hours a day, 5 days a week, the reciprocator (the mechanism driving the needle bar) and the springs for that specific bar wear out significantly faster than the others.

Ev’s Protocol:

1. Identify your high-volume colors (usually Black and White).
2. Duplicate them on the map (e.g., Needle 8 and Needle 9 are both Black).
3. Rotate Weekly: Use Needle 8 one week, Needle 9 the next.

Diagnostic Insight: If you hear a rhythmic clack-clack-clack distinct to one needle position even after changing the needle, you may have worn out the dampener or spring on that bar. Spreading the workload extends the time between expensive service calls.

Needles #10–#12 for Small Text: 65/9 + Thinner Thread When Details Actually Matter

This is where beginners struggle the most. You cannot sew 4mm tall letters with a standard setup and expect legibility.

• Needles: 65/9 (Very thin).
• Crucial Pairing: You must use 60wt Thread (thinner than the standard 40wt).
• The Physics: A standard 40wt thread is too thick for a #9 needle eye. It will shred, or the thread bulk will distort the tiny letters, making an "a" look like a "o".

Ev dedicates three lanes to this. Why? Because swapping to 60wt thread involves checking tension again. Having a dedicated "Detail Block" means you can switch from a big logo to a tiny tag on the back of a shirt in seconds, knowing the tension is already dialled for the thinner thread.

Sensory Success Metric: Look at the letter "e" or "a" in 4mm text. If the center hole is open and distinct, your setup is perfect. If it's a blob, switch to this lane.

Needles #13–#15 for Knits and Towels: 75/11 Round (FFG) to Prevent Holes

The "Safe Zone" for delicate items.

• Needles: 75/11 Round/Ballpoint (FFG).
• Use Case: Polos (pique knit), hoodies, beanies, towels.
• The Mechanism: A sharp needle cuts through fibers. On a knit fabric, cutting a fiber breaks the structural loop, which turns into a run or a hole after the customer washes the shirt. A Ballpoint needle pushes the fibers aside, slipping between the knit loops.

Checkpoint: Never let a sharp needle touch a customer's expensive hoodie. The damage is invisible until they wash it, but the return/refund request will be very visible.

Thread Choices That Match the Map: Polyester as the Daily Driver, Metallic as the “Learn It First” Thread

Romero Threads confirms the use of Polyester thread—the industry standard for strength and colorfastness. However, he treats Metallic Thread as a hazmat material: handle with caution.

Metallic thread is composed of a core wrapped in foil. It is stiff, abrasive, and prone to twisting.

The "Metallic Survival Guide":

1. Needle Up: Use a larger eye (Topstitch 80/12 or 90/14) to reduce friction on the foil.
2. Speed Down: Do not run metallics at 1000 SPM (Stitches Per Minute). Slow your machine to the 600-700 SPM sweet spot.
3. Tension Loose: Loosen the top tension slightly. If the thread is too tight, the foil strips off the core, creating a "bird nest."

One sentence that will save you money: If you’re planning to run ricoma mt 1501 embroidery machine jobs with metallic accents, quote a longer turnaround time to account for slower run speeds and potential testing.

Setup That Doesn’t Fight You: Hooping Speed, Consistency, and When magnetic embroidery hoops Make Sense

You can have the perfect needle map, but if your hooping is crooked or loose, the job is ruined. Hooping serves two physical inputs: Tension (keeping the fabric taut like a drum skin) and Placement (keeping it straight).

The Decision Tree: Fabric + Volume = Hooping Strategy

Use this logical flow to choose your tool:

Scenario A: The One-Off Custom

• Task: Single name on a baby blanket or towel.
• Tool: Standard plastic hoop + Water Soluble Topping.
• Action: Manual float or hoop. Low risk.

Scenario B: The Corporate Order (Polos)

• Task: 50 Left Chest Logos on Pique Knits.
• Pain Point: "Hoop Burn" (shiny rings left by plastic hoops) and wrist fatigue from clamping 50 times.
• Tool Upgrade: Magnetic Hoops.
• Why: Magnets hold firmly without crushing the fibers (no hoop burn). They self-align, speeding up the process significantly.

Scenario C: The Thick Jacket/Bag

• Task: heavy Carhartt jacket or leather bag.
• Pain Point: Physical inability to close a standard plastic hoop screw.
• Tool Upgrade: High-strength Magnetic Hoops (like SEWTECH or Mighty Hoop).
• Why: The magnetic force clamps through thick layers that standard hoops physically cannot handle.

Warning: Magnet Safety. Magnetic frames generate immense clamping force. Keep fingers clear of the "snap zone." Keep these magnets away from pacemakers, insulin pumps, and hard drives. They are industrial tools, not toys.

Tool upgrade path:

• Level 1 (Hobby): Master your standard hoops.
• Level 2 (Business): If you are doing batches >10 items, explore a magnetic hooping station to standardize placement.
• Level 3 (Production): Upgrade to magnetic frames to eliminate hoop burn and double your hooping speed.


“A Needle Acting Up” Isn’t Vague—Here’s What It Looks Like on the Machine (and What to Do First)

When Ev says a needle is "acting up," he is referring to specific symptoms. Let's translate "acting up" into a diagnostic table so you know exactly what to fix.

Symptoms → Likely Cause → The Fix

Pro Tip: If the problem persists, move the design to a different needle #. If it sews perfectly there, the issue is mechanical on the original needle bar (spring, worn guide), not the file.

The “Parameter Setup” Question: When People Ask About Mighty Hoop, They’re Really Asking About Repeatability

A viewer asked about parameter setups for generic magnetic hoops verses the brand name Mighty Hoop.

The machine needs to know the Safe Zone. If you are exploring a mighty hoop for ricoma workflow (or using compatible SEWTECH magnetic frames), you must tell the machine the inner dimensions of the hoop so it doesn't slam the needle bar into the metal frame.

The Workflow:

1. Measure: Measure the inner sewing area of your magnetic hoop.
2. Input: Go to your machine’s "Hoop Selection" or "Other/User Defined" setting.
3. Trace: Always run a trace (contour check) with the needle bar down (manually lowered) to visually verify clearance.
4. Listen: The trace should be silent. If you hear the foot tapping the frame, stop.

If you’re scaling up production, a generic or brand-name ricoma mighty hoop starter kit allows you to test the standardized sizes (like 5.5" square) that handle 90% of adult garment placements.

Setup Checklist (After needles are assigned, before you run production)

• Needle 1: 75/11 Universal (Swap Lane) - Threaded & Ready.
• Needles 2–6: 80/12 Titanium (Puff Block) - Checked for foam gum buildup.
• Needles 7–9: 75/11 Sharp RG (Flats) - Points verified (drag on fingernail).
• Needles 10–12: 65/9 (Detail Block) - Paired with 60wt thread.
• Needles 13–15: 75/11 Ballpoint (Knits) - Safety lane ready.
• Machine Config: Color sequence programmed to match the new map.
• Safety Trace: Hoops and arms clear of obstruction.


Operation Checklist (What to watch during the first run)

This is your "First Article Inspection." Do not walk away for coffee during the first run.

• Sound Check (0-500 stitches): Listen for rhythmic "thumping" (good) vs. "slapping" or "crunching" (bad).
• Puff Check: Is the foam being covered completely? If foam is peeking through, tighten density or check if needle is deflecting (needs 80/12).
• Text Legibility: Can you read the 4mm text from 3 feet away? If no, move to the 65/9 lane.
• Fabric Integrity: Lift the hoop slightly during a color change. Is the knit fabric puckering or looking perforated? Stop and switch to ballpoint.


The Upgrade Result: Turn Your Needle Map Into a Production System

Ev’s map works because it acknowledges reality: we do not sew just one thing. By segmenting your 15 needles into functional "Districts"—Heavy Industry (Puff), Commercial (Flats), Precision (Text), and Residential (Knits)—you eliminate the constant friction of setup.

The Commercial Evolution:

1. Optimize the Machine: Use this needle map.
2. Optimize the User: Use an embroidery hooping station to ensure every logo is placed identical to the last one.
3. Optimize the Tooling: When you consistently hit bottlenecks with thick garments or hoop burn, recognize that as the signal to invest in magnetic frames.

When you combine a stable needle map, high-quality polyester thread, and a repeatable hooping workflow, a 15-needle head stops being a source of anxiety and becomes what it was designed to be: a high-speed printing press for thread.

FAQ

• Q: What pre-flight checks should be done on a 15-needle commercial embroidery machine before changing needle bars or building a needle map?
  A: Do a quick “mechanical baseline” clean first, or the needle map will fail with bird nests and random breaks.
  • Power down the machine or engage Emergency Stop before hands go near needle bars/reciprocator.
  • “Floss” the thread path near the needle; fix any snag (lint in tension discs or a burr in the path).
  • Open the bobbin area, blow out lint, and stage support items (precision tweezers, temporary spray adhesive, machine oil per the manual).
  • Success check: Thread pulls with smooth, consistent resistance and the machine runs the first stitches without jerks or sudden tension spikes.
  • If it still fails: Re-thread carefully to confirm the thread is seated in the tension discs, then re-check bobbin lint and needle condition.
• Q: How should Needle 1 be used as a “swap lane” on a 15-needle embroidery machine to avoid constant re-threading and setup disruption?
  A: Keep Needle 1 permanently assigned as the wildcard lane (75/11 Universal) so rush colors and tracing do not break the rest of the map.
  • Load Needle 1 with a 75/11 Universal and expect to change only this position for oddball Pantone colors.
  • Use Needle 1 for tracing/border checks before committing the production needles.
  • Listen during trace and slow jogs to catch clearance issues early (before high-speed stitching).
  • Success check: The trace runs quietly and you can swap colors without touching the dedicated puff/text/knit lanes.
  • If it still fails: Stop and verify hoop/frame clearance and confirm Needle 1 is not bent.
• Q: What needle setup should be used on a 15-needle embroidery machine for 3D puff hats with 3mm foam to reduce missed stitches and thread breaks?
  A: Dedicate a block to 3D puff using 80/12 Sharp Titanium needles and keep them reserved for foam work.
  • Assign multiple needles (often 2–6) with 80/12 Sharp Titanium specifically for 3mm foam or stacked foam runs.
  • Avoid running foam with a standard 75/11 needle; switch immediately if you see missed stitches or exposed foam.
  • Inspect needles for foam gum/adhesive buildup and change needles quickly when shredding starts.
  • Success check: Foam is fully covered and stitching stays consistent without repeated missed stitches.
  • If it still fails: Slow down and re-check needle condition and deflection symptoms (bending/loop misses) before changing design settings.
• Q: How can duplicated black thread lanes on a 15-needle embroidery machine reduce needle bar and reciprocator wear in high-volume production?
  A: Duplicate high-volume colors (like black) on two needles and alternate weekly to spread mechanical wear.
  • Identify the color that runs most hours (commonly black/white) and load it on two needle numbers.
  • Rotate which black needle is used week-to-week instead of hammering a single needle position daily.
  • Pay attention to any rhythmic clacking isolated to one needle position as an early wear indicator.
  • Success check: The workload is distributed and the machine sound stays even across needle positions over time.
  • If it still fails: If one position still clacks after changing the needle, treat it as a needle-bar component wear issue (spring/dampener/guide) and schedule service.
• Q: What is the correct needle and thread pairing for 4mm small text on a 15-needle embroidery machine when 40wt thread makes letters look like blobs?
  A: Use a dedicated small-text lane with a 65/9 needle and 60wt thread to keep tiny letters open and readable.
  • Reserve needles (often 10–12) for 65/9 and keep them paired with 60wt thread so tension stays consistent.
  • Switch to this lane whenever counters (the holes inside “a/e”) close up or edges look swollen.
  • Run a quick test on the actual fabric before production so you don’t chase tension mid-run.
  • Success check: In 4mm text, the centers of “a” and “e” remain clearly open instead of filling in.
  • If it still fails: Re-check threading and tension for the 60wt lane and confirm the design is actually digitized for small text.
• Q: What should be checked first when a multi-needle embroidery machine creates bird nesting under the needle plate during startup or trims?
  A: Re-thread and stabilize the start—most bird nests come from lost top tension at the beginning or fabric bounce in the hoop.
  • Re-thread the top path and confirm the thread is seated in the tension discs (do not assume it is).
  • Check thread tail management at start/trim and avoid starting with an ultra-short tail.
  • Re-check hoop tension; tighten so the fabric stays drum-tight and does not “flag” up and down.
  • Success check: The first few hundred stitches run without a jam and the underside shows controlled bobbin/top balance (not a tangled ball).
  • If it still fails: Clean the tension discs and bobbin area lint again, then run a slow test stitch-out to isolate the problem needle lane.
• Q: What safety steps should be followed when using magnetic embroidery hoops/frames on commercial embroidery machines to prevent finger injuries and machine strikes?
  A: Treat magnetic hoops as industrial clamps and always verify the machine’s safe sewing area before running.
  • Keep fingers out of the snap zone when closing the magnetic frame; magnets can clamp suddenly with high force.
  • Keep magnetic hoops away from pacemakers, insulin pumps, hard drives, and sensitive electronics.
  • Measure the inner sewing area and input/select the correct hoop size so the machine does not hit the metal frame.
  • Success check: A full trace/contour check runs silently with no foot tapping and no near-contact with the frame.
  • If it still fails: Stop immediately, re-confirm the user-defined hoop dimensions, and re-trace with careful visual clearance before stitching at speed.
