Stop Guessing Placement: Personalizing Easter Towel Bags in PE-DESIGN 11 + Brother Stellaire (Without Scraping the Appliqué)

If you’ve ever hovered over the Start button thinking, “If this name lands on the bunny appliqué, I’m going to cry,” you’re not alone. The embroidery of pre-made items—especially thick toweling with existing decoration—is a high-stakes game. The good news: this project is absolutely repeatable once you lock in two things: clean text setup in PE-DESIGN 11 and bulletproof placement using the Brother Stellaire Trial/Trace feature.

This guide reconstructs the workflow for turning a towel with a pre-appliquéd bunny into a personalized Easter bag. However, I am going to overlay this tutorial with the "old hand" details that keep towels from shifting, ensure your text fights the fabric loft (and wins), and stop you from wasting a hooping session because of a simple measurement error.

The Calm-Down Moment: Why the Brother Stellaire Trial/Trace Saves Projects (and Nerves)

The video’s biggest lesson isn’t the font choice—it’s placement discipline. When you are stitching a name above an existing appliqué, your real enemy is false confidence. A design that looks perfectly centered on the LCD screen can still physically drift into the bunny's ears if the hooping is off by just a few millimeters.

On the Brother Stellaire, the Trial (often called Layout or Trace) function physically moves the hoop around the design perimeter so you can see the true stitch boundary before the needle drops. That is the difference between "pretty sure" and "I know."

Expert Tip: Don't just watch the screen. Watch the needle bar. As the machine traces the box, visualize the presser foot width. If the foot even grazes the appliqué during the trace, you are too close. If you are doing any hooping for embroidery machine work on pre-decorated blanks, the Trial/Trace function is not optional—it is your insurance policy.

The “Hidden” Prep Before PE-DESIGN 11: Set Yourself Up for Fast, Repeatable Names

The video uses PE-DESIGN 11 to create multiple names quickly (swap text, Save As, repeat). That is exactly how professional digitizers think. If you are making gifts for several kids, you want a "factory line" mental model.

Before you even open the software, perform a "Pre-Flight Check." This prevents the frustration of resizing, re-centering, and re-saving files later.

Prep Checklist (Do this BEFORE opening software)

• Hoop Verification: Confirm you actually own and have located the standard 5" x 7" hoop (SA439) shown in the video.
• Spatial Planning: Measure the gap above the bunny. Is it 3 inches? 2 inches? Write this number down.
• Thread Selection: Pick your thread colors now (the video uses blue). Pro Tip: Hold the spool against the towel in good lighting to ensure contrast.
• Consumables Check: Ensure you have stabilizer (tear-away or cut-away), spray adhesive (optional but recommended for towels), and a water-soluble topping (to keep stitches on top of the pile).
• Data Safety: Ensure your USB flash drive is empty enough for multiple files and formatted correctly for the machine.
• Font Asset: If using a downloaded font, locate the .ttf file on your hard drive first.


Lock the Hoop Size First in PE-DESIGN 11: 5" x 7" Is Your Guardrail

In the video, Robin starts by setting the design page to match the hoop: 5" x 7". Do not skip this. Beginners often design on a "blank canvas" (100mm x 100mm default) and get a shock when the machine refuses the file.

In PE-DESIGN 11:

1. Open Design Settings (the flower icon or file menu depending on version).
2. Select the 5" x 7" (130 x 180 mm) hoop size.

This acts as a "digital guardrail." Once set, every name you type will be constrained to these limits, ensuring you don't accidentally create a 7.1-inch name that requires a hoop upgrade mid-project.

Make the Name Readable on a Towel Bag: Text Height 2.00" + Center (Ctrl+M)

The video demonstrates typing a name and setting the height to 2.00 inches.

In PE-DESIGN 11:

1. Click the Text Tool and type the name (e.g., “Jaren”).
2. Select the text object (ensure the black box handles appear).
3. In the Text Attribute tab, enter 2.00 in the height field.
4. Press Ctrl+M on your keyboard to snap the design to the absolute center.

The Physics of Embroidery: Why 2.00 inches? Towels have "loft" (loops). Tiny text (under 0.5") tends to sink into the loops and disappear. Thick, bold letters at 2.00" provide enough surface area to mash down the loops and remain legible.

When you are comparing options like standard brother embroidery hoops versus magnetic upgrades, remember: while the hoop holds the fabric, the font size controls the readability. Large hoops allow for larger text, which is critical for fluffy substrates like terry cloth.

Install a TrueType Font the Same Way the Video Does: .TTF → Install → Shows After the Built-Ins

Robin installs a third-party TrueType font (“Pretty Butterfly”) by opening the .ttf file and clicking Install in Windows. This is a massive advantages of PE-DESIGN: it reads your Windows system fonts.

The Workflow:

1. Download the font (unzip it if it's in a .zip folder).
2. Right-click the .ttf file and select Install.
3. Critical Step: If PE-DESIGN was open, close it and restart it. The software scans for new fonts only on startup.
4. Scroll past the built-in fonts (usually ending with specific embroidery fonts) to find your new installed font alphabetically.

This method expands your creative library without costing a penny. Whether you are using standard frames or experimenting with snap hoops for faster production, the font sits at the digital layer—it’s the aesthetic styling that happens before the mechanical work begins.

Save Like a Production Person: “Save As” Each Name, Then Transfer to USB

The video demonstrates a "Batch Processing" workflow. Do not create a new file for every child.

1. Create "Jaren".
2. File > Save As > "Jaren.pes".
3. Double-click the text on screen to edit.
4. Backspace "Jaren", type "Wyatt". Use Ctrl+M to re-center.
5. File > Save As > "Wyatt.pes".
6. Transfer all PES files to your USB drive at once.

This reduces "clicks" and ensures that font size, density settings, and positioning are identical for every single bag. Consistency is the hallmark of a pro.

Cut and Hoop the Towel Bag Blank: Keep the Appliqué Clear of the Needle Zone

The video shows the towel being measured, cut using a rotary cutter, and then hooped with stabilizer underneath.

The Pain Point: Hooping towels is physically difficult. The fabric is thick, the seams are uneven, and trying to force the inner ring into the outer ring can cause "hoop burn" (permanent crushing of the fibers).

Stabilizer Strategy:

• Backing: Use a Medium Weight Cut-Away. Why? Towels stretch. Tear-away might disintegrate during a satin stitch, causing gaps. Cut-away holds the structure.
• Topping (Hidden Secret): Although not explicitly shown in every step, using a Water Soluble Topping text is standard practice for towels to prevent stitches from sinking.

This physical struggle is exactly why many hobbyists eventually invest in a magnetic hooping station. If you are fighting to close the hoop screw or catching your skin in the clamp, a magnetic system removes the friction—literally letting you "snap" the layered towel into place without distorting the weave.

Warning: Respect the Rotary Blade. Rotary cutters are razor-sharp. Always engage the safety latch immediately after the cut. Furthermore, never reach your hand into the hoop area while the embroidery machine is powered on; a sudden carriage movement can result in serious injury.

Mount the 5x7 Hoop on the Brother Stellaire: The Small Checks That Prevent Big Snags

In the video, Robin slides the hoop onto the arm until it locks. It sounds simple, but this is a major failure point for heavy items.

The "Click" Check: When you slide the hoop onto the carriage, push firmly until you hear a mechanical click or snap. Give the hoop a gentle tug back toward you. If it moves even 1mm, it is not locked. A loose hoop means a ruined design (and potentially a broken needle).

Fabric Management: Ensure the rest of the towel isn't bunched under the hoop. It should "float" freely. If you are using large brother stellaire hoops, the weight of a heavy towel hanging off the front can actually bend the needle during high-speed travel. Support the excess fabric with your table or a chair if necessary.

Match the On-Screen Frame to Reality: Set the Embroidery Frame Display to 5" x 7"

The video shows the machine settings screen where the frame is explicitly set to 5" x 7".

On the Brother Stellaire:

• Navigate to the Settings page (icon looking like a piece of paper).
• Locate the Frame Display option.
• Select the correct size (5" x 7").

Why this matters: This tells the machine where the physical plastic boundaries are. If you leave it on a larger setting (e.g., 9.5" x 9.5"), the machine might allow you to move the design into a zone where the needle will strike the plastic frame.

Don’t Let Speed Settings Trick You: 1050 SPM Is Fine—Placement Is the Real Risk

The video shows these machine settings:

• Max Speed: 1050 spm
• Tender: 00
• Foot Height: 1.5 mm

Expert Calibration: While the Stellaire can run at 1050 SPM (Stitches Per Minute), doing so on a heavy towel hanging off the machine arm introduces vibration.

• Beginner Recommendation: Dial the speed down to 600-700 SPM.
• Why? Slower speeds reduce the chance of the hoop slipping and give you more reaction time if the thread shreds.

Quality embroidery is rarely about max speed; it is about stability. If you find yourself needing speed for production runs (e.g., 50 bags), that is the time to consider upgrading tools. A magnetic hoop for brother stellaire helps by gripping the fabric firmly without the "drum skin" tension variance of screw hoops, but for the machine itself, slowing down ensures precision.

The Make-or-Break Move: Use Brother Stellaire Trial/Trace, Then Nudge the Design Up

This is the "Golden Moment" of the tutorial:

1. Robin taps the Trial button. The hoop moves, tracing the design box.
2. Observation: She visually confirms the bottom of the box is dangerously close to the bunny ear.
3. Action: She uses the on-screen Move arrows to nudge the design upward.
4. Verification: She runs the Trial trace again.

Never skip the second trace. Nuding a design up might clear the bunny at the bottom but push the name into the plastic frame at the top.

Setup Checklist (The "Green Light" Protocol)

• Design Orientation: Is the text right-side up relative to the towel?
• Hoop Lock: Is the physical hoop clicked in tight?
• Clearance Check: Perform the "Trial/Trace." Visual confirmation of 1/2 inch clearance from the appliqué.
• Bobbin Check: Do you have enough bobbin thread to finish the name? (Don't guess—check).
• Foot Height: For towels, set foot height to at least 1.5mm - 2.0mm to prevent dragging on the loops.


Stitch with Confidence: Presser Foot Down, Green Light On, Let the Machine Trim Jumps

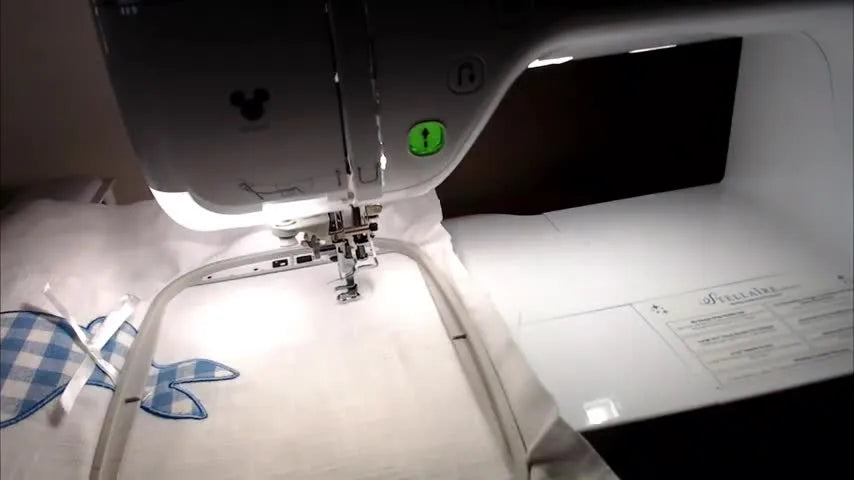

Robin lowers the presser foot (turning the light green) and hits Start.

Sensory Monitoring:

• Sound: You should hear a rhythmic thump-thump-thump. A hacking or grinding noise means stop immediately (bird nesting).
• Sight: Watch the fabric inside the hoop. It should be absolutely still. If the towel ripples effectively "waves" as the needle moves, your hooping is too loose.

This is the litmus test for your gear. If you are comparing a standard hoop versus a snap hoop for brother, the winner is whichever one holds the tension perfectly flat during this high-speed stitching phase.

Operation Checklist (During the Stitch-out)

• First 50 Stitches: Keep your finger near the Stop button. This is when thread shredding usually happens.
• Cable Management: Ensure the towel isn't dragging on the table.
• No Touching: Do not rest your hand on the embroidery arm or the table while it moves.
• Completion: Wait for the specific "Finished Embroidering" screen before raising the lever.


Finish Like a Pro: Trim Stabilizer, Hem the Opening, Sew Three Sides, Reinforce Handles with X’s

The video transitions from embroidery (decoration) to sewing (construction).

1. Cleanup: Remove the towel from the hoop. Tear away the stabilizer (or cut close if using cut-away). Tip: Use small curved scissors to avoid snipping a towel loop.
2. Hemming: Fold the top edge down 1/4 inch, press, and sew a straight stitch to create the bag opening.
3. Assembly: Fold the towel in half (right sides together), pin the three open sides, and sew.
4. Handles: Use ribbon or webbing. The video shows sewing a box with an X inside it at the attachment points. This distributes the stress so the handle doesn't rip out when the bag is full of Easter eggs.


A Simple Stabilizer Decision Tree for Towel Bags (So the Name Doesn’t Ripple)

The video shows generic stabilizer usage, but selecting the right one is crucial for longevity. Use this logic tree to decide what backs your towel.

Decision Tree: Stabilizer Selection for Toweling

1. Is the Towel Stretchy? (The Pull Test)
   • Yes: It stretches East-West -> Use Cut-Away. (Mandatory. Tear-away will distort).
   • No: It is a stable woven/waffle weave -> Proceed to 2.
2. Is the Design Dense? (Thick satin letters vs. thin run stitch)
   • Dense (Standard Names): -> Use Cut-Away or Firm Tear-Away + Spray Adhesive.
   • Light: -> Tear-Away is acceptable.
3. Is the Pile (Loop) High?
   • Yes: -> MUST use Water Soluble Topping on top of the towel + Backing underneath.
   • No: -> Backing only is fine.

If you are doing volume work, consistent tension is hard to maintain with standard screw hoops. A brother 5x7 magnetic hoop eliminates the variable of "how tight did I screw it?" by applying specific magnetic force, ensuring that whether you use Cut-Away or Tear-Away, the sandwich stays flat.

Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix (Based on What the Video Shows)

Warning: Magnetic Safety: If you upgrade to magnetic hoops, be aware they use neodymium magnets. They can pinch fingers severely (blood blisters) and should be kept at least 6 inches away from pacemakers. Never slide them near computerized screens or credit cards.

The Upgrade Path That Actually Makes Sense: When to Stick with Standard Hoops vs Go Magnetic vs Go Multi-Needle

This project represents the classic "Crossroads" for embroiderers. You are realizing that the sewing part is easy, but the hooping part is the bottleneck.

1. The Hobby Zone (1-5 Bags): Stick with the standard Brother hoops provided. Focus on using spray adhesive and mastering the Trial button. It is slow, but free.
2. The "Side Hustle" Zone (20+ Bags): You will get wrist fatigue from tightening hoop screws. This is the trigger point to invest in Magnetic Hoops. They snap on instantly, handle the thickness of towels without "unscrewing to the max," and prevent hoop burn.
3. The Production Zone (100+ Bags/Team Orders): If you are doing this commercially, the "single needle" nature of the Stellarie becomes a limitation (changing threads manually, cutting jump stitches). This is where shops upgrade to SEWTECH (or similar) Multi-Needle Machines. These allow you to set up 6-10 colors at once and hoop items differently, drastically increasing throughput.

The Result You’re After: Clean Names, Safe Clearance, and a Bag That Holds Up

The video ends with a finished bag on display—the text is bold, readable, and safely positioned above the bunny. That is the standard.

If you take only one habit from this tutorial, make it the Trial/Trace discipline. It is the only thing standing between a perfect gift and a ruined towel. Start with the safe settings (slower speed, cut-away stabilizer), and only increase your speed once you trust your hooping method.

FAQ

• Q: How do I use the Brother Stellaire Trial/Trace feature to keep a name design from stitching into an existing bunny appliqué on a towel bag?
  A: Run Trial/Trace before stitching, then nudge the design and run Trial/Trace again until the stitch boundary clears the appliqué.
  • Tap Trial to trace the design perimeter with the hoop movement.
  • Watch the needle bar/presser foot area, not only the screen, and account for the foot width.
  • Use on-screen Move arrows to shift the name upward if the traced box is close to the bunny.
  • Run Trial a second time after any move.
  • Success check: during the trace, the presser foot path stays clearly off the appliqué, with about 1/2 inch visual clearance.
  • If it still fails: re-hoop with better stabilization and re-check the physical alignment before moving the design further.
• Q: In PE-DESIGN 11, how do I lock the correct 5" x 7" (130 x 180 mm) hoop size so the Brother Stellaire won’t reject the file or mislead placement?
  A: Set the PE-DESIGN 11 design page to 5" x 7" (130 x 180 mm) first—this is the guardrail that prevents oversize layouts.
  • Open Design Settings and select 5" x 7" (130 x 180 mm) before typing any text.
  • Keep every name inside that page boundary and avoid designing on the default small canvas.
  • Save each name as its own .PES after the hoop size is set.
  • Success check: the name fits comfortably within the 5" x 7" page area and does not require resizing later.
  • If it still fails: confirm the machine-side frame display is also set to 5" x 7" before stitching.
• Q: In PE-DESIGN 11, what text height is a safe starting point for embroidering readable names on thick terry towel bags, and how do I center the text consistently?
  A: Use 2.00 inches text height and use Ctrl+M to center for repeatable placement on towel pile.
  • Type the name with the Text Tool, then select the text object so the handles show.
  • Set Height = 2.00 in Text Attribute.
  • Press Ctrl+M to snap the text to the absolute center.
  • Success check: the letters are bold enough to stand above towel loops instead of visually sinking into the pile.
  • If it still fails: add water-soluble topping and re-check that the towel is hooped firmly so the pile is controlled.
• Q: How do I install a TrueType (.TTF) font so PE-DESIGN 11 can use it for name embroidery files?
  A: Install the .TTF in Windows, then restart PE-DESIGN 11 so the font appears in the font list.
  • Right-click the downloaded .ttf file and choose Install (unzip first if needed).
  • Close PE-DESIGN 11 completely, then reopen it (it typically scans fonts on startup).
  • Scroll past the built-in fonts to find the newly installed font in alphabetical order.
  • Success check: the new font is selectable inside PE-DESIGN 11 and can be applied to the text object.
  • If it still fails: confirm the file is actually .ttf (not just a folder/preview) and repeat the restart step.
• Q: What stabilizer combination is recommended for embroidering names on a stretchy terry towel bag blank, and when should water-soluble topping be used?
  A: For stretchy towels, use medium weight cut-away backing, and use water-soluble topping when the pile is high to keep stitches from sinking.
  • Do a quick pull test: if the towel stretches, choose cut-away (tear-away often won’t hold dense letters well).
  • Place water-soluble topping on top when the towel loops are high.
  • Optionally use spray adhesive to help keep the towel/stabilizer sandwich from shifting during hooping.
  • Success check: stitches sit on top of the towel pile and the name does not ripple or look wavy after stitching.
  • If it still fails: re-hoop with more support and slow the machine speed to reduce vibration on heavy towels.
• Q: How do I prevent “hoop burn” ring marks when hooping thick towel bags with a Brother 5" x 7" screw hoop?
  A: Avoid over-tightening and treat the fabric gently; if marks happen, steam can often relax the crushed fibers.
  • Tighten only enough to hold firmly—do not crank the screw down on fluffy/damp toweling.
  • Keep the towel layers even so the hoop pressure isn’t concentrated on a seam ridge.
  • Use a hover-steam approach (do not press hard) to help lift ring marks after stitching.
  • Success check: after unhooping, the towel surface rebounds with minimal visible ring indentation.
  • If it still fails: consider switching to a magnetic-style hooping method to reduce clamp-pressure marks on thick pile fabrics.
• Q: What are the most important safety rules when using a rotary cutter and when stitching on the Brother Stellaire embroidery arm?
  A: Treat the rotary cutter and moving embroidery carriage as active hazards—lock blades and keep hands clear whenever power is on.
  • Engage the rotary cutter safety latch immediately after every cut.
  • Never reach into the hoop/needle area while the Brother Stellaire is powered on, because the carriage can move suddenly.
  • Keep excess towel fabric supported so it doesn’t pull into the stitching field.
  • Success check: hands stay outside the hoop zone during any carriage movement, and the towel does not drag into the machine path.
  • If it still fails: stop the machine first, wait for all motion to stop, then reposition fabric and restart only after a fresh clearance check.
