Stop Guessing the Center: Calibrate a Dime Snap Hoop Monster 5x7 on a Brother Machine (and Place the Rulers Once, Correctly)

THE LIE OF THE "VISUAL CENTER": WHY YOUR EYES DECEIVE YOU (AND HOW TO FIX IT)

If you have ever stared at your Brother embroidery machine screen thinking, "I swear that is centered," only to watch the needle land 5mm to the left, you are not crazy. You are simply discovering a mechanical truth that every professional embroiderer learns:

The digital center where the needle drops is rarely the physical center of the plastic frame.

Standard hoops mask this issue. But when you upgrade to magnetic frames—a necessary step for professional speed and eliminating "hoop burn"—this discrepancy becomes obvious.

In this white paper, we will calibrate the Dime Snap Hoop Monster (specifically for Brother machines) using the "Gary’s Method." We will move beyond guesswork and use a strict, evidence-based calibration process to align your adhesive rulers to the machine's true zero.

1. ANATOMY OF A MAGNETIC HOOP: KNOW YOUR TOOL

Before we snap anything together, we must understand the physics of the tool. A magnetic hoop is not just a frame; it is a sandwich of force and friction.

The set includes the hoop assembly, target stickers, and the critical component: adhesive centering rulers.

From a technician's perspective, observe these three distinct layers:

1. The Steel Base (Bottom): This holds the attachment key. Notice the felt glides underneath? They protect your machine bed. Sensory Check: Run your hand over the base; it should be rigid, not flexible.
2. The Magnetic Ring (Top): Contains industrial-strength magnets.
3. The Attachment Key: On the 5x7 version for Brother, this mimics the standard 130×180 hoop key so the sensors recognize the size immediately.


Why specific knowledge matters: If you do not distinguish the "Top" from the "Base," you will fight the magnetic polarity during alignment.

Warning: High-Force Pinch Hazard
Magnetic hoops generate over 10lbs of closing force instantly.
* Never place your fingers between the rings to "test" the grip.
* Always keep the path clear when snapping shut.
* Treat the top ring like a loaded mousetrap—respect the energy stored in those magnets.

2. THE "OFF-CENTER" REALITY CHECK

Gary’s demonstration reveals a startling metric: In a standard Brother setup, the machine's "Electronic Center" often creates a physical margin of 22mm on the left and 17mm on the right.

This is not a defect. It is a result of the pantograph arm geometry. However, it means that if you simply stick your ruler's "0" at the visual center of the plastic frame, every design you stitch will be off-center by 5mm.

If you are currently shopping for a magnetic hoop for brother, understand this: The hardware is perfect, but the calibration connects the hardware to your specific machine's personality.

3. PREP PHASE: TACTICAL SETUP

Calibration is a measurement task, not an art project. We need stability.

Required Arsenal:

• Stabilizer: Heavy-weight Cutaway (2.5oz - 3.0oz). Why? Tearaway shifts under tension; cutaway provides a stable engineering surface.
• Thread: High-contrast color (Blue or Black).
• Marking: Fine-point Red Marker.
• Straight Edge: A reliable metal ruler.
• Consumables: The adhesive rulers provided with the hoop.


Pre-Flight Checklist (Critical Pass/Fail)

• Hoop Size Verification: Ensure you have the 5x7 (130×180) frame matches your machine's limit.
• Stabilizer Material: Confirm you are using Cutaway. If you use tearaway, stop. Get cutaway.
• Surface Clear: Clear a flat table. You will need vertical clearance to "square" the hoop.
• Magnet Safety: Remove any digital watches or credit cards from the immediate work zone.

4. THE VERTICAL-STAND TECHNIQUE: SQUARING THE PHYSICS

Most alignment errors happen before the hoop touches the machine. If the Top Ring is slightly twisted relative to the Bottom Base, your rulers will be applied on a slant.

The Fix: Gravity-Assisted Squaring

1. Lay the Stabilizer between the top and bottom rings.
2. Allow the magnets to engage loosely.
3. Stand the hoop vertically on your flat table.
4. Tap down: Push the steel base down until you feel it hit the table level with the top ring.
5. Pinch Flush: Squeeze the sides until your fingers feel a continuous, flush surface between the top and bottom layers.




Sensory Anchor: You are looking for a "Monolith Feel." When you run your thumb across the seam of the rings, it should feel like one solid block, not steps.

Warning: Medical Device Safety
These hoops use Neodymium magnets. If you or anyone in your shop uses a pacemaker or insulin pump, maintain a safe distance (usually 6+ inches, check device manual) or delegate this task.

If you are using snap hoop monster frames for production, this "Vertical Tap" must become muscle memory every time you hoop a garment.

5. DIGITAL ZEROING: TEACHING THE MACHINE

Now we move to the screen. Gary loads the calibration template via USB.

The "Trust but Verify" Sequence:

1. Select the 5x7 (130×180) file.
2. Navigate to Layout > Move.
3. Press the "Center" icon (usually a dot in a square).


Why? Last week's project might have left your carriage nudged 2mm up. Pressing "Center" forces the stepper motors to physically reset to absolute (X0, Y0).

If you are setting up a dime magnetic hoop for brother, skipping this button press renders the entire calibration void.

Setup Checklist (Before Pressing Start)

• Digital Center: Have you physically pressed the "Center" button on the screen?
• Hoop Lock: Listen for the solid Click when inserting the hoop into the embroidery arm.
• Clearance: Rotate the handwheel manually (one full turn) to ensure the needle bar clears the magnetic edges.

6. THE STITCH & DIAGNOSIS

Stitch the template. Speed logic: Keep it moderate (600 SPM) for this test to ensure crisp corners.

Do NOT unlove the fabric yet. Remove the hoop from the machine, but keep the stabilizer magnetized in the frame.

The Technician's Analysis

Look at the stitched box. We are checking for Parallelism.

• Pass: The stitched lines are perfectly parallel to the metal edges of the frame.
• Fail: The lines look skewed or "rotated."
  • Diagnosis: You did not square the hoop correctly in Step 4.
  • Remedy: Strip it. Re-hoop using the Vertical Stand method. Do not apply markers until the lines are parallel.

Reality Check: You will likely see the stitched crosshair is closer to the right side than the left. This is the expected behavior we discussed in Section 2. Do not panic.

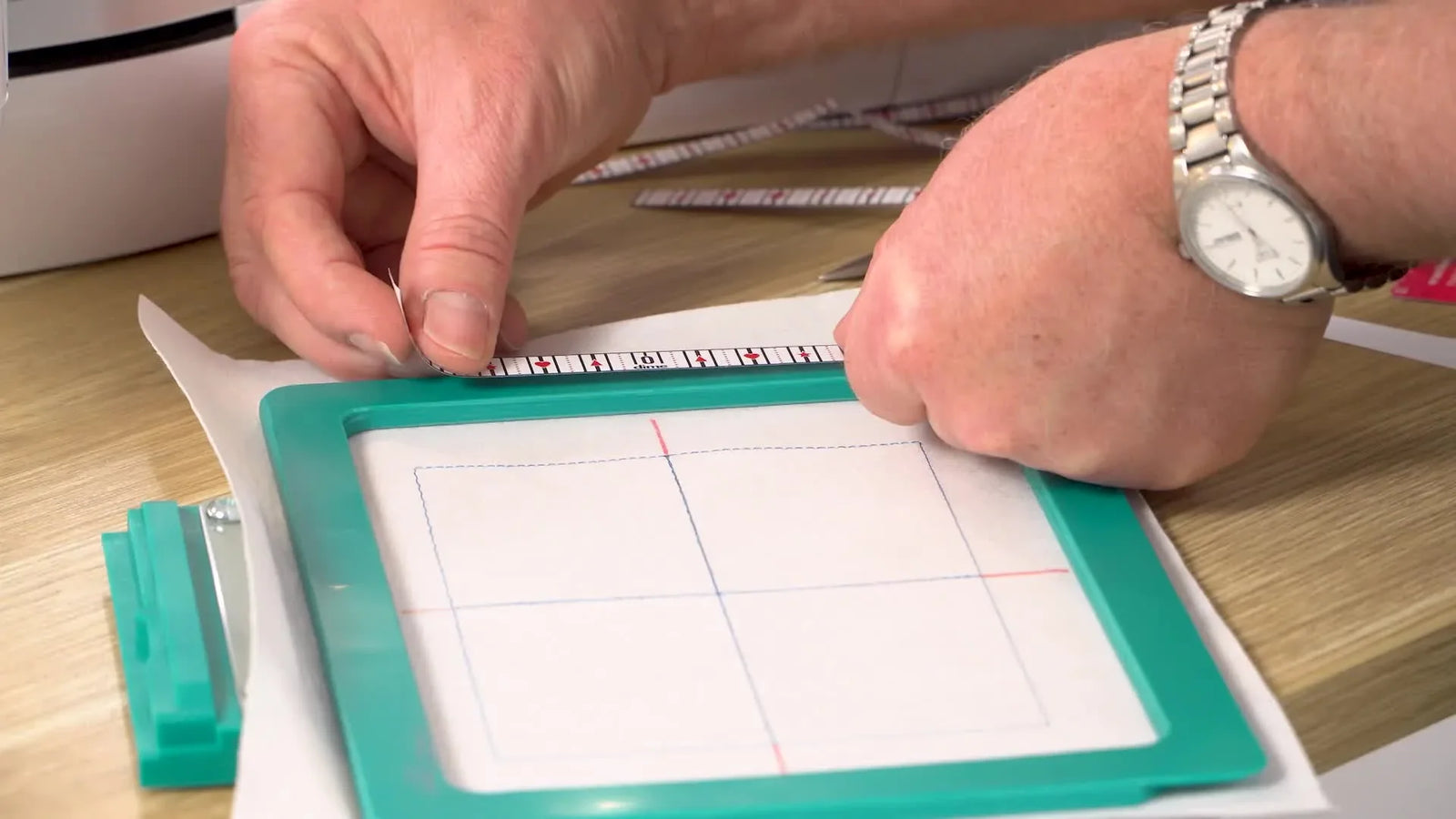

7. APPLYING THE RULERS: THE POINT OF NO RETURN

This is surgical. We are now going to bridge the gap between the "Visual Frame" and the "Stitched Reality."

1. Extension: Use your straight edge and red pen to extend the stitched crosshair lines all the way to the plastic rim of the hoop.


2. The Cut: locate the "0" (Zero) circle on the adhesive ruler. Take your scissors and cut exactly through the center of the Zero line.


3. The Bind: Align your cut ruler edge precisely with the red pen mark on the frame. adherence.




Now, your ruler reads "0" exactly where the Brother machine drops the needle at "Center."

If you rely on dime snap hoop accessories, this customized ruler is your new truth. Ignore the plastic molding; trust the sticker.

Operation Checklist (Post-Calibration)

• Verify Adhesion: Rub the stickers firmly to activate the pressure-sensitive adhesive.
• Test Run: Load a new design, center it, and verify the needle drops exactly at your new "0" mark.
• Storage: Insert the Corflute Separator (the plastic sheet) before putting the hoop away.


8. TROUBLESHOOTING LOGIC: SYMPTOM → FIX

Detailed diagnostics to save your afternoon.

9. UPGRADE PATH: WHEN TO LEAVE THE SINGLE-NEEDLE BEHIND

You have calibrated your hoop. You are now working with precision. But tools have limits. Use this decision matrix to determine if your current setup is the bottleneck for your business growth.

Scenario A: "I hate hooping thick items like hoodies."

• Trigger: The magnets pop off, or you can't get the inner ring of a plastic hoop to seat.
• The Upgrade: Stick with Magnetic Hoops. They are the only solution that accommodates variable thickness without adjusting screws.
• Product Path: Look for high-tension magnetic frames designed for production volume.

Scenario B: "I am spending more time changing threads than stitching."

• Trigger: You are doing 4+ color logos on 50 shirts. You are essentially a "human thread changer."
• The Upgrade: It is time for a Multi-Needle Machine.
• The Logic: A single-needle machine stops for every color change. A SEWTECH Multi-Needle system automates this. Combined with magnetic frames, you move from "Hobbyist" to "Production Line."

Scenario C: "My designs are centered, but the outline is off."

• Trigger: Gaps between the fill and the border.
• The Upgrade: This is usually a Stabilizer or Hooping issue, not a machine issue.
• The Logic: Upgrade to High-Quality Cutaway Stabilizer and verify you are not stretching the fabric during the magnetic snap.

Final Expert Note

If you are comparing options like the brother magnetic hoop 5x7 against third-party professional frames, remember: Calibration is the equalizer. A $300 hoop that isn't calibrated is useless; a calibrated hoop is a profit generator.

Square the ring. Trust the stitch. Ignore your eyes.

FAQ

• Q: Why does a Brother embroidery machine “Center” stitch land 5mm off-center in a Dime Snap Hoop Monster 5x7 magnetic hoop?
  A: This is common—Brother’s electronic center often does not match the physical center of the hoop, so the hoop must be calibrated to the machine’s true zero.
  • Press the on-screen Layout > Move > Center button to force a true X0/Y0 reset before testing.
  • Stitch the calibration template at a moderate speed (about 600 SPM) on heavy cutaway stabilizer.
  • Apply the adhesive rulers only after using the stitched crosshair as the true reference (not the plastic frame’s visual center).
  • Success check: the needle drop at “Center” aligns exactly with the ruler “0” mark after calibration.
  • If it still fails, re-do the hoop squaring step before reapplying any stickers.
• Q: How do you square a Dime Snap Hoop Monster magnetic hoop before calibrating it on a Brother embroidery machine?
  A: Use the vertical-stand method so the top ring and steel base are perfectly flush before any stitching or ruler placement.
  • Place stabilizer between the top magnetic ring and the steel base, letting magnets engage loosely.
  • Stand the hoop vertically on a flat table and tap/push the steel base down until it seats level.
  • Pinch the sides until the top and bottom layers feel fully flush all around.
  • Success check: the seam feels like one solid “monolith” when a thumb slides across it—no steps or twist.
  • If it still fails, re-hoop and repeat the vertical tap before running the stitch test again.
• Q: What stabilizer should be used to calibrate a Dime Snap Hoop Monster for Brother machines, and why does tearaway cause problems?
  A: Use heavy-weight cutaway stabilizer because tearaway can shift under tension and corrupt the measurement.
  • Choose heavy cutaway (about 2.5–3.0 oz) as the stable “engineering surface” for the calibration stitch-out.
  • Thread a high-contrast color so the crosshair and box edges are easy to measure and extend.
  • Mark with a fine-point red pen and extend stitched lines to the hoop rim before applying rulers.
  • Success check: the stitched box lines stay crisp and consistent without the stabilizer creeping or tearing.
  • If it still fails, stop using tearaway for calibration and re-run the template on cutaway from the start.
• Q: How can Brother users tell if the Dime Snap Hoop Monster calibration stitch is correct before applying the adhesive rulers?
  A: Do not place rulers until the stitched box is parallel to the hoop edges; parallelism is the pass/fail indicator.
  • Stitch the template, then remove the hoop from the machine while keeping the stabilizer magnetized in the frame.
  • Compare the stitched box lines to the metal edges to confirm the box is not rotated.
  • Re-hoop and re-stitch if the lines are skewed—sticker placement on a skewed stitch-out will lock in the error.
  • Success check: the stitched lines look perfectly parallel to the hoop’s edges (no “tilt”).
  • If it still fails, repeat the vertical-stand squaring technique before stitching again.
• Q: What is the safest way to separate a Dime Snap Hoop Monster magnetic hoop when it feels stuck?
  A: Slide the top ring laterally to break the magnetic hold—do not pull straight up against the magnet force.
  • Grip the lip and slide the top frame sideways (shear force) to release the magnets.
  • Keep fingers out of the closing path when re-snapping; the closing force is sudden and strong.
  • Clear the work area so nothing gets pinched as the magnets engage.
  • Success check: the hoop separates smoothly with a controlled sideways motion, without a sudden pop or finger pinch risk.
  • If it still fails, re-check hand placement and use a more deliberate lateral slide rather than lifting.
• Q: What magnetic hoop safety precautions should Brother embroidery users follow with Dime Snap Hoop Monster frames?
  A: Treat the magnetic top ring like a loaded trap—avoid pinch points and keep magnet-sensitive/medical devices at a safe distance.
  • Never place fingers between the rings “to test grip”; snap closure happens instantly.
  • Remove items like digital watches and credit cards from the immediate work zone.
  • Keep anyone with a pacemaker or insulin pump at a safe distance (follow the device manual guidance).
  • Success check: the hoop can be closed and opened with hands always outside the pinch zone.
  • If it still fails, stop and reorganize the work area for clearance before attempting to snap the hoop again.
• Q: When should a Brother single-needle embroidery owner upgrade from standard hoops to magnetic hoops or to a SEWTECH multi-needle machine for production work?
  A: Use a tiered approach: fix hooping technique first, then upgrade hoop hardware for thick items, then upgrade to multi-needle when thread changes become the bottleneck.
  • Level 1 (technique): Correct hoop squaring and use cutaway stabilizer to prevent skew and shifting.
  • Level 2 (tool): Move to magnetic hoops when thick garments (like hoodies) won’t hoop reliably or you want to reduce hoop burn/pinch marks with better handling.
  • Level 3 (capacity): Move to a multi-needle system when frequent color changes (e.g., 4+ colors across batches) are consuming more time than stitching.
  • Success check: hooping becomes repeatable (no re-hoops), centering is predictable, and the machine spends more time stitching than stopping.
  • If it still fails, identify the dominant symptom (thick-item hooping vs. color-change downtime vs. design distortion) and address that specific bottleneck first.
