The Anatomy of a Perfect Stitch: Mastering Placement on Bernina & Bernette Machines

By the Chief Embroidery Education Officer

There is a specific feeling every embroiderer knows. It’s the split second before you press the green button—a mix of excitement and terror. You look at that expensive denim jacket hooped on the machine and think: "If this lands crooked, I can’t un-stitch it."

Embroidery is an unforgiving art. Unlike writing code or editing a photo, we are working with physical substrates that scar. When you embroider on finished garments, you aren't just managing thread; you are managing physics, tension, and geometry.

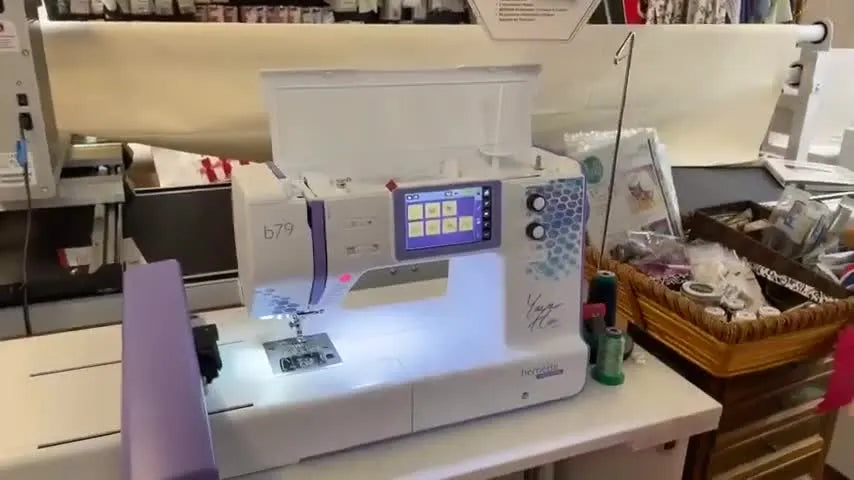

In this whitepaper, I am deconstructing a recent technical demo features of the Bernette 79 Yaya Han Edition and the Bernina 790 Pro. We are going to move beyond the basic "how-to" and dive into the commercial-grade "why." We will cover file management, the nuance of on-screen typography, and the absolute insurance policy that is laser verification.

The Psychology of Placement: Why Your Hands Shake (And How to Stop It)

When you embroider a scrap piece of cotton, you possess "Psychological Safety." If it fails, you toss it. When you embroider a finished garment—like the red denim jacket in our case study—the stakes change. Your brain starts calculating the cost of the jacket, the seam allowance thickness, and the grainline distortion.

The demo highlights two specific technologies designed to lower this cognitive load:

1. The Bernette 79 Workflow: A streamlined method to pull external designs via USB without menu-diving fatigue.
2. The Bernina 790 Pro Verification: A laser-guided reality check that physically traces the design boundary before a single needle drop.

This combination—clean input and verified output—is how professional shops operate. They don't guess; they verify.

The "Hidden" Prep: Physics, Fabrics, and The Myths of Hooping

Before we touch a screen, we must address the textile physics. Most "machine errors" are actually "hooping errors."

The Challenge of Denim

The denim jacket shown in the demo presents a classic conflict. Denim is a stable twill weave (low stretch), but it is heavy.

• The Trap: Beginners often over-tighten the hoop screw (the "thumbscrew of torque"), attempting to strangle the fabric into submission.
• The Consequence: This crushes the fibers. When you un-hoop, the fibers spring back, and your lettering instantly puckers. This is affectionately known as "The Pucker of Regret."

Commercial Calibration: The "Tabletop" Standard

Forget the advice "tight as a drum." Drums vibrate. You want your fabric "taut as a tabletop."

• Tactile Check: Run your fingertips over the hooped area. It should feel firm and unmoving, but you should not have to struggle to slide the inner ring into the outer ring.
• Visual Check: Look at the grainline of the denim. Is it bowing like a smile? If yes, you pulled too hard. It must remain a straight grid.

Prep Checklist: The "Pre-Flight" Protocol

Do not proceed until you check every box.

• Obstruction Check: Flip the hoop over. Are pockets, flaps, or excess jacket material pinned back? (Use a lint roller to tack back small flaps if you lack tape).
• Consumable Match: Verify you have installed a 90/14 Jeans Needle or Topstitch Needle. Standard 75/11 needles will deflect on denim seams, causing needle breaks.
• Stabilizer Selection: For a denim jacket back, use a med-weight Cutaway stabilizer. Tearaway is risky for high-stitch-count lettering as the perforations can collapse.
• Hoop Integrity: Check the inner hoop ring. Is it free of lint or old spray adhesive? A dirty hoop slips.
• Mechanism Lock: If using the Bernette 79 lever-style hoops, listen for a solid click or feel the cam lock engage fully.

Warning: Mechanical Safety
When attaching the hoop to the embroidery module, keep your fingers clear of the needle bar area. Upon initialization, the carriage will move rapidly to calibrate X/Y axes. A machine moving at 400mm/s does not stop for human fingers.

File Intelligence: Loading Designs on the Bernette 79

The Bernette 79 bridges the gap between domestic ease and creative capability. The demo illustrates loading from a USB drive. Here is the efficiency protocol.

The Optimized Workflow

1. Port logic: Insert the USB stick into the side port. The machine detects external storage immediately.
2. Navigation: Tap the USB icon.
3. Selection: Navigate folders to find your .EXP or .DST file.

Production Insight

If you are doing this once, the standard hoop is fine. However, if you are loading logos for a team set (e.g., 20 jackets), standard clamping becomes a bottleneck. Your wrists will fatigue, and alignment will drift. This is where the conversation shifts to magnetic hoop for bernette b79. A magnetic hoop allows you to "slap and stick" the garment without adjusting screws for thick seams. It transforms a 3-minute struggle into a 30-second task.

Typography on the Bernina 790 Pro: Why QWERTY Matters

Old embroidery machines used "ABC" scrolling keyboards—painfully slow. The Bernina 790 Pro utilizes a modern QWERTY layout. This seemingly small UI change drastically reduces frustration when typing multi-line text (like the "Margaret loves to sew!" example).

The Typography Hierarchy

The demo machine supports five lines of text. However, just because you can fit five lines doesn't mean you should.

• Rule of Thumb: On a jacket back, legibility drops after 3 lines unless the font is massive.


The Professional Polish: Kerning and Alignment

The difference between "Homemade" and "Custom Shop" is usually Kerning (spacing between letters).

The "Rivers of White" Problem

Standard fonts often leave wide gaps between letters (especially A, V, W, and T).

1. Center It: Use the 'i' menu to align the text block to center. This is your baseline.
2. Tighten It: Use the multifunction knob to reduce spacing.
3. Visual Check: Squint at the screen. Do the letters look like a cohesive unit, or distinct islands? You want a cohesive unit.


If you struggle to fit text within the hard plastic limits of a standard hoop, consider the internal area. Terms like bernina magnetic hoop sizes are relevant here—often, magnetic frames offer more usable sewing area because the walls are thinner than bulky plastic clamps.

The Laser Verification: The Only Way to Guarantee Success

The Bernina 790 Pro features a pinpoint laser. Use it. It is your best friend.

The "Check" Routine

1. Engage: Select the 'Check' function (usually an icon with arrows in 4 corners).
2. Watch: The machine moves the hoop so the needle (and laser) travels the absolute perimeter of your design box.
3. Verify: Watch the red dot on your black denim.
   • Does it cross a thick seam? Move the design.
   • Is it uncomfortably close to the collar? Move the design.

Operation Checklist: The "Go/No-Go" Decision

• Bobbin Status: Check your bobbin level. Running out of thread in the middle of a satin-stitch letter is a nightmare to patch invisibly.
• Clearance: Ensure the jacket sleeves aren't bunched under the hoop. (Use sewing clips to bundle excess fabric out of the way).
• Thread Path: Pull the top thread gently near the needle. You should feel resistance similar to flossing teeth—smooth, but firm. If it pulls freely, you missed the tension disks.
• Laser Confirmation: Did the laser verify the design is straight relative to the jacket yoke, not just the hoop?
• Speed Limit: For the first layer of denim embroidery, manually lower your max speed to 600-700 SPM. Speed kills needle accuracy on thick seams.

Many users searching for how to use bernina 790 pro laser discover that this tool alone saves them hundreds of dollars in ruined garments.

Decision Tree: The "Stabilizer Algorithm"

One size never fits all. Use this logic flow to determine your foundation.

variable: SUBSTRATE (Fabric Type)

• IF Fabric = Heavy Woven (Denim/Canvas)
  • AND Design is low density (Running stitch) → Use Tearaway (2 layers).
  • AND Design is high density (Satin logos) → Use Cutaway (Medium weight).
• IF Fabric = Stretchy Knit (T-Shirt/Jersey)
  • ALWAYS → Use Cutaway (Soft/Mesh type). Tearaway will result in distorted, bullet-hole lettering.
  • Add: Water Soluble Topping (Solvy) to prevent stitches sinking.
• IF Fabric = Unstable/Slippery (Performance Wear)
  • Consider → embroidery magnetic hoops to grip without crushing, paired with Fusible Mesh Cutaway.

Troubleshooting: From Symptoms to Solutions

When things go wrong, do not panic. Use this diagnostic table.

The Commercial Bridge: When to Upgrade Your Tools

At some point, skill hits a ceiling imposed by tools. If you are embroidering one jacket a month, standard plastic hoops and patience are sufficient.

However, if you are experiencing physical pain (wrist strain) or production bottlenecks (taking 5 minutes to hoop), you have crossed into the commercial threshold.

The Upgrade Logic

1. The Pain Point: "I hate hooping because I leave marks/burns on delicate items."
   • The Solution: Magnetic Hoops. They prevent "hoop burn" by using magnetic force rather than friction. You simply lay the top frame over the bottom.
   • Search Intent: Many professionals look for magnetic embroidery hoops for bernina specifically to solve the issue of crushing velvet or corduroy.
2. The Pain Point: "I can't get the logo in the exact same spot on 10 different shirts."
   • The Solution: A Hooping Station. This provides a grid fixture to hold the hoop while you align the garment.
   • Search Intent: For volume consistency, an embroidery hooping station or specifically a hoop master embroidery hooping station is the industry standard for repeatability.
3. The Pain Point: "I'm turning down orders because I can't stitch fast enough on my single-needle machine."
   • The Solution: It is time to look at SEWTECH Multi-Needle Machines. When you move from 1 needle to 10+, you eliminate thread change time and gain speed.

Warning: Magnet Safety
Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely causing blood blisters. Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards. Do not let two magnet frames snap together without a buffer layer.

Compatibility Check

Before buying, always check your machine model. A query regarding bernette 79 magnetic hoop compatibility is crucial, as the b79 uses a different attachment clip than the Bernina 7 series. Ensure you get the specific "b-series" connector.

Final Thoughts: Confidence is Engineering

The demo of the Bernette 79 and Bernina 790 Pro teaches us that successful embroidery isn't luck. It is a sequence of engineered steps:

1. Prep: Correct needle, stabilizer, and tension.
2. Input: Clean USB transfer.
3. Setup: QWERTY typing and kerning adjustments.
4. Verification: Laser check of the perimeter.

When you trust your prep works, you can press the green button and walk away. That is the definition of mastery.

FAQ

• Q: How do I hoop a denim jacket for embroidery on a Bernette 79 or Bernina 790 Pro without causing puckering after unhooping?
  A: Hoop denim “taut as a tabletop,” not “tight as a drum,” to avoid crushing fibers that rebound into puckers.
  • Reduce torque: Stop tightening as soon as the fabric feels firm and unmoving under your fingertips.
  • Check grainline: Look for a straight grid; if the denim bows like a smile, re-hoop with less pull.
  • Clean the hoop: Remove lint/old adhesive from the inner ring so the fabric doesn’t slip and tempt over-tightening.
  • Success check: The inner ring slides in without a fight, and the hooped area feels flat/solid with no visible distortion.
  • If it still fails: Switch from tearaway to a medium-weight cutaway stabilizer for high-density lettering.
• Q: What needle and stabilizer should be used for embroidery lettering on a denim jacket with a Bernette 79 or Bernina 790 Pro?
  A: Use a 90/14 Jeans Needle or Topstitch Needle and pair denim with stabilizer based on stitch density.
  • Match the needle: Install a 90/14 Jeans Needle or Topstitch Needle to reduce deflection on seams.
  • Choose stabilizer by density: Use 2 layers tearaway for low-density running stitch; use medium-weight cutaway for high-density satin/logo lettering.
  • Inspect hoop grip: Ensure the hoop ring is clean so denim doesn’t shift during dense stitching.
  • Success check: No needle deflection “ticks,” and the lettering sits flat without perforation collapse around satin areas.
  • If it still fails: Reduce maximum stitch speed and re-check hooping tension and seam clearance.
• Q: How do I stop birds nesting on a Bernette 79 or Bernina 790 Pro when the fabric gets stuck and the machine makes a loud “thump-thump” sound?
  A: Re-thread the top thread correctly—most birds nesting is top tension loss from incorrect threading.
  • Lift the presser foot: Thread with the presser foot UP so the thread seats in the tension disks.
  • Re-thread fully: Pull the thread out and re-thread the entire top path, then re-insert the needle thread if needed.
  • Verify thread path feel: Gently pull top thread near the needle; it should feel smooth but firm (not freely pulling).
  • Success check: Stitches form cleanly on the fabric and the underside stops forming a thread wad.
  • If it still fails: Stop and check for bobbin issues or incorrect bobbin installation per the machine manual.
• Q: How do I reduce hoop burn marks on delicate fabric when using Bernina or Bernette embroidery hoops?
  A: Reduce clamp pressure and avoid over-tightening; if hoop burn is recurring, consider a magnetic hoop to distribute pressure more evenly.
  • Loosen the clamp: Tighten only until the fabric is stable—over-tightening is the common cause of shiny outlines.
  • Recover the fabric: Steam gently to relax fibers after unhooping.
  • Improve consistency: When hooping thick seams or delicate piles, magnetic hoops often help because they grip without crushing (follow the correct connector for the machine model).
  • Success check: After unhooping, the hoop outline is minimal and fades with gentle steaming rather than staying shiny.
  • If it still fails: Re-evaluate stabilizer choice and hoop cleanliness; slipping often leads to over-clamping.
• Q: How do I use the Bernina 790 Pro laser “Check” function to verify embroidery placement before stitching on a finished jacket?
  A: Run the “Check” perimeter trace and confirm the red dot clears seams and aligns to the jacket yoke—not just the hoop.
  • Engage Check: Select the Check function so the machine traces the design boundary.
  • Watch seam/collar clearance: Ensure the laser dot doesn’t cross thick seams or land too close to the collar.
  • Control the garment: Clip and bundle sleeves/excess fabric so nothing is bunched under the hoop during tracing.
  • Success check: The traced perimeter sits exactly where the design should land on the garment, with safe clearance all around.
  • If it still fails: Reposition the design on-screen and re-run Check until the perimeter is correct.
• Q: What stitch speed should be used on a Bernina 790 Pro for the first pass of embroidery on thick denim seams to reduce needle breaks?
  A: Lower the maximum speed to 600–700 SPM as a safe starting point for thick denim so needle accuracy stays stable.
  • Reduce speed: Set max speed down before the first needle drops into thick areas.
  • Upgrade needle if needed: Switch to a Titanium Coated needle or stay with size 90/14 for seam-heavy zones.
  • Verify clearance: Ensure no bulky fabric is trapped under the hoop that could cause deflection.
  • Success check: The needle runs through seam transitions without a sharp “snap,” and stitches remain consistent.
  • If it still fails: Move the design to avoid the seam using the laser Check perimeter and re-test at reduced speed.
• Q: What safety steps should be followed when attaching an embroidery hoop to the Bernette 79 or Bernina 790 Pro embroidery module to avoid finger injury?
  A: Keep fingers away from the needle bar and carriage path because the machine will move rapidly during X/Y initialization.
  • Clear hands first: Hold the hoop by the edges and keep fingers out of the needle/carriage area.
  • Attach deliberately: Slide/lock the hoop into place without reaching under the needle bar.
  • Pause and observe: Let the machine complete its calibration movement before adjusting fabric or clips.
  • Success check: The carriage completes its fast movement without contact or pinched fingers, and the hoop is securely seated.
  • If it still fails: Stop the machine and reattach the hoop calmly—do not try to “catch” or guide the moving carriage by hand.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for Bernina or Bernette machines?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical implants and sensitive cards.
  • Control the snap: Do not let two magnetic frames slam together; place them down carefully with a buffer layer if needed.
  • Protect fingers: Keep fingertips out of the closing zone to avoid severe pinching.
  • Maintain distance: Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and credit cards.
  • Success check: Frames meet without a violent snap, and there are no pinch points during placement/removal.
  • If it still fails: Use slower, two-handed placement and consider a hooping station approach to keep hands out of the pinch area.
