Mastering the Wireless Appliqué Workflow: Brother Luminaire XP & ScanNCut DX Guide

Appliqué is often sold as the "shortcut" to luxury embroidery—less stitch time, more texture, and cleaner results. But for many beginners, the reality is a workshop floor littered with hand-cut scraps, frayed edges, and that sinking feeling when your fabric shape doesn't quite fit the placement line.

If you have ever held your breath while trimming fabric inside a hoop, praying you don't snip the base fabric, you know the anxiety. The cutting step is where most good projects go to die.

This guide documents a workflow that eliminates manual tracing and cutting fundamental. We will use the Brother Luminaire Innov-is XP embroidery machine and a ScanNCut DX (SDX325/SDX330D) with the My Connection ecosystem.

You will learn to convert specific color segments of a built-in design into cut data, background-scan your fabric for zero-error alignment, and cut with the Auto Blade. We will also address the physical reality of the process—stabilization, hooping mechanics, and the tools required to move from "hobbyist struggle" to "production precision."

The "Don’t Panic" Primer: What My Connection Actually Does

The interface of the Luminaire XP can look intimidating. If you are staring at the screen fearing one wrong button press will ruin the machine, let’s reset that expectation. Everything described here happens in a temporary editing buffer. You are editing a copy of the design; the original built-in file remains untouched.

My Connection is simply a digital bridge. It allows a wirelessly connected XP embroidery machine to talk directly to specific ScanNCut DX models. We are performing two specific mechanical actions:

1. On the Luminaire XP: We utilize the processor to isolate specific fill areas (color blocks) and convert their boundaries into cut lines.
2. On the ScanNCut DX: We retrieve that data and use the scanner to "see" the fabric on the mat, ensuring the blade cuts exactly where you placed your material.

Note: This workflow applies to standard built-in designs. Disney designs are digitally locked and unavailable for this process due to strict licensing protocols.

The "Hidden" Prep Pros Do First: Stabilization and Hooping Physics

Before you touch a screen, you must secure your physical materials. 90% of appliqué failures are not software glitches; they are physics failures. If your fabric stretches on the cutting mat, or your base fabric is loose in the embroidery hoop, the two will never match, no matter how precise the digital file is.

The Material Stack

For this tutorial, we are using standard quilting cotton. However, cotton is flexible. To cut it cleanly, it needs to be rigid.

• The Fusible: Apply a Brother Iron-On Fabric Appliqué Contact Sheet (or an industry equivalent like Lite Steam-A-Seam 2) to the wrong side of your appliqué fabric.
• The bond: When ironing, ensure you apply heat evenly. You want the sheet fused entirely so the fabric acts like cardstock, not cloth.
• The Mat: Use the Standard Tack Mat.

The Hooping Reality Check

While your appliqué pieces are being cut, your base fabric (the table runner or garment) must be hooped. This is the single biggest point of failure for beginners.

When you tighten a standard screw-hoop, you create "hoop burn"—that ring of crushed fibers—and often distort the fabric grain by pulling it too tight. If the fabric is stretched during hooping, it will relax after un-hooping, causing the appliqué to pucker.

If you find yourself wrestling with the inner ring, or if your wrists ache from tightening screws to get thick seams flat, this is where tool selection impacts quality. High-volume shops and experienced embroiderers often switch to magnetic embroidery hoops. Unlike traditional hoops that require force, these use magnetic force to clamp the fabric without pulling or distorting the grain. This ensures the "Placement Stitch" you sew is geometrically perfect, matching the cut piece exactly.

Prep Checklist: The Pre-Flight Safety Protocol

• Design Audit: Confirm the design has closed fill areas (solid shapes), not just open running stitches.
• Fabric rigidity: High-quality cotton with a fusible backing applied to the wrong side.
• Mat Physics: The fabric must lay 100% flat on the mat with no air bubbles.
• Hoop Integrity: Your base fabric is hooped with appropriate stabilizer (Medium Weight Cutaway for stability) and is drum-tight but not stretched.
• Tool Check: Have a spatula ready. Never peel fabric with fingernails.

Warning: Mechanical Safety. Keep fingers clear of the needle area at all times. Never reach into the hoop space while the machine is operating. If you are trimming threads manually, remove the hoop first to avoid accidental needle strikes.

Select the Design: Luminaire XP Category 1 → Subcategory 14 → Design 003

We start on the Luminaire home screen. Tap Embroidery to access the library. Navigate the path: Category 1 > Subcategory 14 > Design 003 (The Butterfly).

The Selection Rule: Look for designs with "islands" of color—distinct fill areas. These are the shapes that convert best. A design that is mostly thin lines or sketches will not work for this technique.

Tap Set to load it onto your workspace, then tap Edit.

The Money Button: “Create Appliqué Patch for Selected Colors”

This feature differentiates the XP workflow from older methods. Older machines could only create a patch for the entire outline of a design. The XP allows for surgical selection.

1. Tap the Appliqué key (shield icon).
2. Select Create Appliqué Patch for Selected Colors.
3. The Interface: Valid color tiles will appear. Use the stylus to select the Pink tiles (the wings).

By doing this, you are telling the machine: "Ignore the body and antennae; only turn the wings into fabric shapes." This layering technique reduces stitch density—you aren't stitching a massive fill under another fill, which prevents "bulletproof embroidery" (designs so dense they are stiff).

Light Zigzag vs. Satin: Engineering the Under-Layer

On the settings screen, you must choose how the machine stitches the edge of the appliqué before the visible topstitching is applied.

The Golden Rule: Choose Light Zigzag (or turn the covering stitch off).

• Why not Satin? A satin stitch is a dense column of thread. If you put a satin stitch under the final topstitch, you create a bulky ridge. This can break needles and cause the final design to look lumpy.
• The Goal: You want a tack-down stitch that is barely visible and flat, just enough to hold the fabric while the final decorative stitches run.


Clean the Design with “No Sew”: Optimization

We have converted the pink wings to appliqué. But the original design still thinks it needs to stitch the white decorative details on top of the old pink fill. Since we are using fabric for the wings, we may want to simplify.

1. In the edit screen, tap the White Color Tile.
2. Tap the No Sew button (often looks like a needle with a circle-slash).
3. Repeat for any other segments you wish to skip.


This is a production mindset. Eliminating unnecessary stitches saves time and thread. It also prevents white thread from potentially showing through your appliqué fabric if the registration is slightly off.

Wireless Transfer to ScanNCut DX: The Data Bridge

Once edited, the design is ready to move.

1. Tap Memory.
2. Tap the Transfer to ScanNCut icon.
3. The Overwrite Alert: The machine will warn you that the previous data will be deleted.

Important: The buffer only holds one file at a time. If you have a cut file sitting on your ScanNCut that you haven't used yet, this action will destroy it. Always finish your cutting job before sending a new one.

Retrieval on ScanNCut DX: The Handshake

Move to your ScanNCut DX (SDX325/SDX330D).

1. Tap My Connection on the home screen.
2. Tap Retrieve.
3. Select the Wireless LAN Device (the machine icon).


The machine will display the data. Select the Appliqué/Badge key. This tells the processor, "Treat these lines as cut paths, not draw paths."

Tap Set to place the butterfly wings on the virtual mat. Sanity Check: Look at the dimensions on the screen. The video example shows H 7.88" x W 8.79". If your numbers are tiny (e.g., 1 inch), you may have imported a wrong file or an icon.

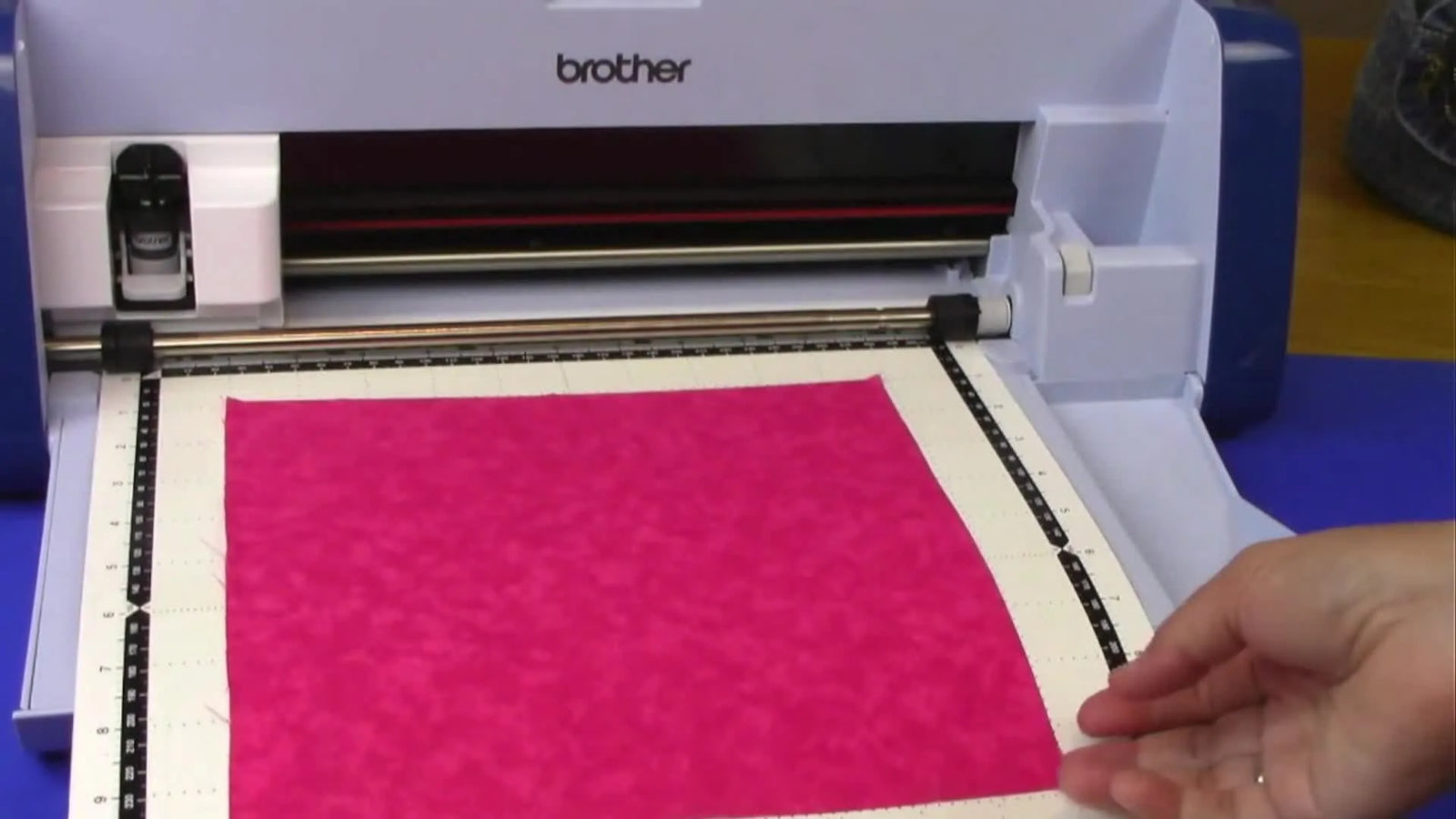

Loading the Mat: The "Two-Hand" Technique

Insert the Standard Auto Blade (Black Top) into the carriage.

The Mat Prep:

• Peel the paper backing off your fused fabric.
• Place fabric Right Side Up (Fusible side down) on the Standard Tack Mat.
• Sensory Check: Run your brayer or hand firmly over the fabric. You should feel no air pockets. It should feel like a sticker fused to the mat.

The Load: Do not just shove the mat in play.

1. Align the mat with the guides.
2. Support the tail: Place one hand flat under the mat to hold it level with the slot.
3. Press Load.
4. Only release your hand once the rollers have gripped the mat.




Gravity is your enemy here. If the mat droops, it enters at an angle. A crooked scan leads to a crooked cut, which leads to wasted fabric.

Background Scan: The "Cheat Code" for Alignment

Tap Background Scan.

The machine will pull the mat in, photograph your fabric, and display it on the screen. Now, simply touch and drag the butterfly wing shapes until they are sitting securely on your fabric image.

Optimization: You can rotate the shapes to fit odd scraps of fabric. As long as the cut lines (blue/red lines) are inside the boundaries of the fabric image, you are safe.

Setup Checklist: The "Cut" Pre-Check

• Blade: Standard Auto Blade is seated and locked.
• Mat: Loaded straight (check the grid lines against the roller bar).
• Data: Background scan confirms the cut lines are 100% inside the fabric area.

Cut Settings: Speed vs. Precision

Tap Cut.

Recommended Settings:

• Cut Speed: 5 (Do not go to Speed 9 for detailed appliqué; accuracy beats speed).
• Cut Pressure: Auto (The DX sensor detects thickness).
• Half Cut: OFF (We want to cut all the way through the fabric and the fusible backing).


The Test Cut: Always, always add a Test Cut (a small triangle or square). Move it to a scrap corner of the fabric.

1. Run the Test Cut.
2. Tactile Verification: Try to peel the triangle. It should lift cleanly with crisp edges. If it drags or hangs by a thread, increase pressure manually (+1) or check your blade sharpness.

Once the test passes, press Start for the main job.

Lifting the Appliqué: Spatula Discipline

When the cut is done, unload the mat. Do not peel the fabric by the corner with your fingers. This stretches the bias grain of cotton. Use a metal or plastic spatula. Slide it flat under the fusible backing and lift. This keeps the fabric geometry perfect.

Assembly: The "Drop-In" Moment

Back at the Luminaire XP:

1. Hoop your base fabric (garment/runner) with stabilizer.
2. Run the first color stop: The Placement Stitch.
3. Remove the hoop (or slide the frame out if using a magnetic system), but DO NOT un-hoop the fabric.
4. Lightly press your cut butterfly wings into the placement lines.
5. The Iron Trick: Because you used a fusible backing, you can use a small travel iron (Mini Iron) to fuse the wings in place right inside the hoop. This prevents shifting during stitching.


The Hooping Upgrade Path: If you find that your placement stitches look distorted (ovals instead of circles), your hooping tension is uneven. This is common with standard hoops. Professionals fighting this issue often switch to embroidery hoops magnetic. The vertical clamping force ensures that the fabric creates a flat plane without being stretched out of shape, making the "drop-in" alignment of your appliqué pieces nearly automatic.

Warning: Magnet Safety. Magnetic frames generate powerful pinching force. Keep them away from pacemakers, ICDs, and other implanted medical devices. Keep fingers clear of the clamping zone—let the magnets engage slowly to avoid pinching skin.

The Payoff: Why This Workflow Matters

Stitching the final tack-down and satin cover stitch is the easy part. Because your cut was precise (scan-verified) and your placement was fused, the satin stitch will perfectly cover the raw edges.

Scaling this up: If you are doing 50 shirts for a client, this workflow is a lifesaver. Cutting 100 wings by hand is inconsistent. Cutting them on the DX is identical every time. Furthermore, using tools like a brother luminaire magnetic hoop speeds up the reloading process between shirts, protecting your hands from repetitive strain injuries associated with tightening hoop screws.

Troubleshooting: The "Why Did It Fail?" Guide

Decision Tree: When to Upgrade Your Tools

Not every embroiderer needs every gadget. Use this logic to decide if you need to upgrade from specific standard tools.

Scenario A: The "Sunday Hobbyist"

• Volume: 1-2 gifts a month.
• Pain Point: Occasional misalignment.
• Prescription: Focus on Stabilizer technique and using the ScanNCut Background Scan. Standard hoops are fine if you take your time.

Scenario B: The "Etsy Seller / Team Gear"

• Volume: 20+ items per batch.
• Pain Point: Hand fatigue, "Hoop Burn" on delicate jagged fabric, slow reloading.
• Prescription:
  • Placement: Use hooping stations to ensure every logo is in the exact same spot on the shirt.
  • Hooping: Switch to a magnetic hoop for brother. The setup time drops from 2 minutes to 10 seconds per shirt, and the rejection rate due to hoop burn drops to near zero.
  • Integration: If you own the top-tier machine, pairing it with a magnetic hoops for brother luminaire maximizes the ROI of that high-speed motor by reducing downtime between color changes.

Operation Checklist: The Final "Go" Status

• Placement Stitch: Sewn and clearly visible.
• Appliqué Piece: Lifted with spatula, no frayed edges.
• Fusion: Piece is placed inside the line and fused with a mini-iron (optional but recommended).
• Hoop: Securely attached to the machine, no fabric bunching underneath.
• Presser Foot: Checked for clearance (ensure it won't snag the lifted fabric edge).

By following this protocol, you stop hoping for a good result and start manufacturing one. The combination of the Luminaire’s processing power and the ScanNCut’s vision system turns appliqué from a chore into your most profitable design style.

FAQ

• Q: How do I prevent fabric stretch when lifting Brother ScanNCut DX appliqué pieces from a Standard Tack Mat?
  A: Use a spatula to lift the cut pieces flat instead of peeling with fingers to avoid bias distortion.
  • Slide a metal or plastic spatula fully under the fusible-backed fabric and lift evenly.
  • Keep the appliqué fabric fused stiff (cardstock-like) before cutting so it lifts as one stable layer.
  • Avoid grabbing corners or “rolling” fabric off the mat, which can stretch cotton.
  • Success check: the appliqué piece keeps its exact shape (no wavy edges) and drops into the placement line without fighting.
  • If it still fails, re-check fusible adhesion (uneven ironing can let fabric flex) and confirm the cut fully separated cleanly.
• Q: Why does a Brother ScanNCut DX Standard Tack Mat load crooked and make a crinkling sound during loading?
  A: Support the mat level with one hand during loading so gravity does not pull the mat down and feed it at an angle.
  • Align the mat with the guides before pressing Load.
  • Hold the “tail” of the mat flat with your hand under it until the rollers grip.
  • Release only after the machine has firmly grabbed the mat.
  • Success check: the mat tracks straight and the grid lines stay parallel to the roller bar without wrinkling sounds.
  • If it still fails, unload and reload immediately—continuing with a crooked scan usually causes a crooked cut.
• Q: What Brother ScanNCut DX cut settings should be used for fused cotton appliqué with the Standard Auto Blade?
  A: Start with Cut Speed 5, Cut Pressure Auto, and Half Cut OFF for fused cotton appliqué.
  • Insert and lock the Standard Auto Blade (Black Top) properly before cutting.
  • Run a Test Cut and try to peel the small shape cleanly from a corner scrap area.
  • Increase pressure manually by +1 only if the test cut does not separate cleanly, or inspect blade sharpness.
  • Success check: the test triangle/square lifts cleanly with crisp edges and no hanging threads.
  • If it still fails, re-fuse the fabric more thoroughly (it must feel stiff) or replace/clean the blade if it is dragging.
• Q: How do I use Brother Luminaire Innov-is XP “Create Appliqué Patch for Selected Colors” with My Connection to generate cut lines for Brother ScanNCut DX?
  A: Select only the target color blocks (closed fill areas) on the Brother Luminaire XP, then transfer via My Connection to the Brother ScanNCut DX for cutting.
  • Choose a built-in design that contains closed fill “islands” (not only running-stitch sketches).
  • Tap Appliqué (shield icon) and choose “Create Appliqué Patch for Selected Colors,” then select the exact color tiles to convert.
  • Send the data via Memory → Transfer to ScanNCut, then on the ScanNCut DX use My Connection → Retrieve and choose the Appliqué/Badge option.
  • Success check: the ScanNCut DX shows realistic cut-file dimensions (not unexpectedly tiny) and displays the appliqué shapes ready to place on the mat preview.
  • If it still fails, confirm the design areas are closed fills and remember the transfer buffer holds only one file at a time (a new send overwrites the previous cut data).
• Q: Should Brother Luminaire Innov-is XP appliqué under-layer be Light Zigzag or Satin for the tack-down stitch?
  A: Use Light Zigzag (or turn the covering stitch off) to keep the under-layer flat and avoid a bulky ridge under the final topstitch.
  • Select Light Zigzag on the appliqué settings screen before stitching the tack-down step.
  • Avoid Satin under the final satin/cover stitch because density-on-density can create lumps and needle stress.
  • Keep the goal “just enough to hold” until the final decorative stitching runs.
  • Success check: the appliqué edge is held securely but the under-stitch is low-profile and not visibly raised.
  • If it still fails, reduce unnecessary layers by using No Sew on segments you do not want stitched over the appliqué.
• Q: How do I stop Brother Luminaire Innov-is XP appliqué pieces from not fitting the placement stitch line after cutting on Brother ScanNCut DX?
  A: Prevent distortion at two points—do not stretch fabric when lifting from the mat, and do not stretch base fabric during hooping.
  • Lift appliqué pieces with a spatula (no finger-peeling) to keep geometry stable.
  • Hoop the base fabric “drum-tight but not stretched” with appropriate stabilizer so the placement stitch stays true.
  • Use Background Scan on the ScanNCut DX so the cut lines are placed fully inside the real fabric image before cutting.
  • Success check: the cut shape drops inside the placement stitch without needing to force edges into position.
  • If it still fails, simplify the embroidery sequence by turning unwanted stitches to No Sew so extra stitches do not visually “fight” minor registration differences.
• Q: What safety steps should be followed to avoid needle-area injuries when running Brother Luminaire Innov-is XP appliqué placement stitches and tack-down stitches?
  A: Keep hands out of the needle/hoop zone during operation and remove the hoop before any manual trimming or adjustments.
  • Never reach into the hoop space while the Brother Luminaire XP is stitching.
  • Remove the hoop/frame from the machine before trimming threads manually to prevent accidental needle strikes.
  • Keep fingers clear any time the machine is active, even during slow or single-color steps.
  • Success check: all thread trimming and fabric handling happens with the hoop off the machine, and no hands enter the moving needle area.
  • If it still fails, pause the machine first and restart only after confirming the workspace is clear.
• Q: What magnetic hoop safety precautions should be used when using magnetic embroidery frames for Brother Luminaire Innov-is XP appliqué hooping?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from implanted medical devices.
  • Keep magnetic frames away from pacemakers, ICDs, and other implanted devices.
  • Let magnets engage slowly and keep fingers out of the clamping zone to prevent pinching.
  • Organize the work area so magnets do not snap onto tools or metal surfaces unexpectedly.
  • Success check: the hoop closes without finger contact in the clamp area and the fabric is held flat without forced stretching.
  • If it still fails, slow down the clamping action and re-position hands before bringing magnetic parts together.
