Stop Off-Center Logos: Calibrate a YunFu T-Shirt Frame on the Dahao A18 (and Make Every Hoop Land Dead-Center)

Off-center embroidery on a T-shirt isn’t just annoying—it’s a direct hit to your profit margin. One crooked left-chest logo on a bulk order can trigger a cascade of remakes, refunds, and the worst outcome of all: a customer who silently takes their business elsewhere.

If you are operating a YunFu or similar industrial machine equipped with the Dahao A18 control panel, here is the truth: off-center designs are rarely a "mystery." They are a calibration issue. The good news is that this is a predictable, mechanical variable you can fix in less than ten minutes. Once calibrated correctly, your placement becomes a repeatable science, not a guessing game.

This guide rebuilds the exact workflow shown in the video but layers on the "20-year technician" insights that prevent the two classic disasters: saving the wrong coordinates, and chasing placement issues that are actually hooping failures.

The Calm-Down Check: What “Frame Center” Means on a Dahao A18 Clothing Frame

Before we touch a button, we must align our definitions. When an operator screams, "My design is off-center," they are usually conflating three distinct definitions of "Center":

1. The Physical Center of the Hoop: The geometric center of the plastic ring you can touch.
2. The Machine's Current Origin (Zero): Where the Dahao computer thinks the center is right now.
3. The Saved Profile Center: The permanent coordinate data stored in the machine’s memory (Frame Parameter) that dictates where the needle goes every time you select that frame.

The gap between #1 and #3 is your problem. The video demonstrates how to bridge that gap using #2 as the test tool.

If you are working with a standard plastic embroidery frame, this calibration is the foundation of your business. Without it, you are essentially driving a car with the steering wheel aligned 20 degrees to the left.

The “Hidden” Prep Pros Do First: Marking Center on Stabilizer Before You Touch Any Parameters

The video begins with a step that many novices skip: creating a visual truth source. You cannot calibrate a machine by "eyeballing" the needle position. You need a physical target.

What the video does (and you must copy)

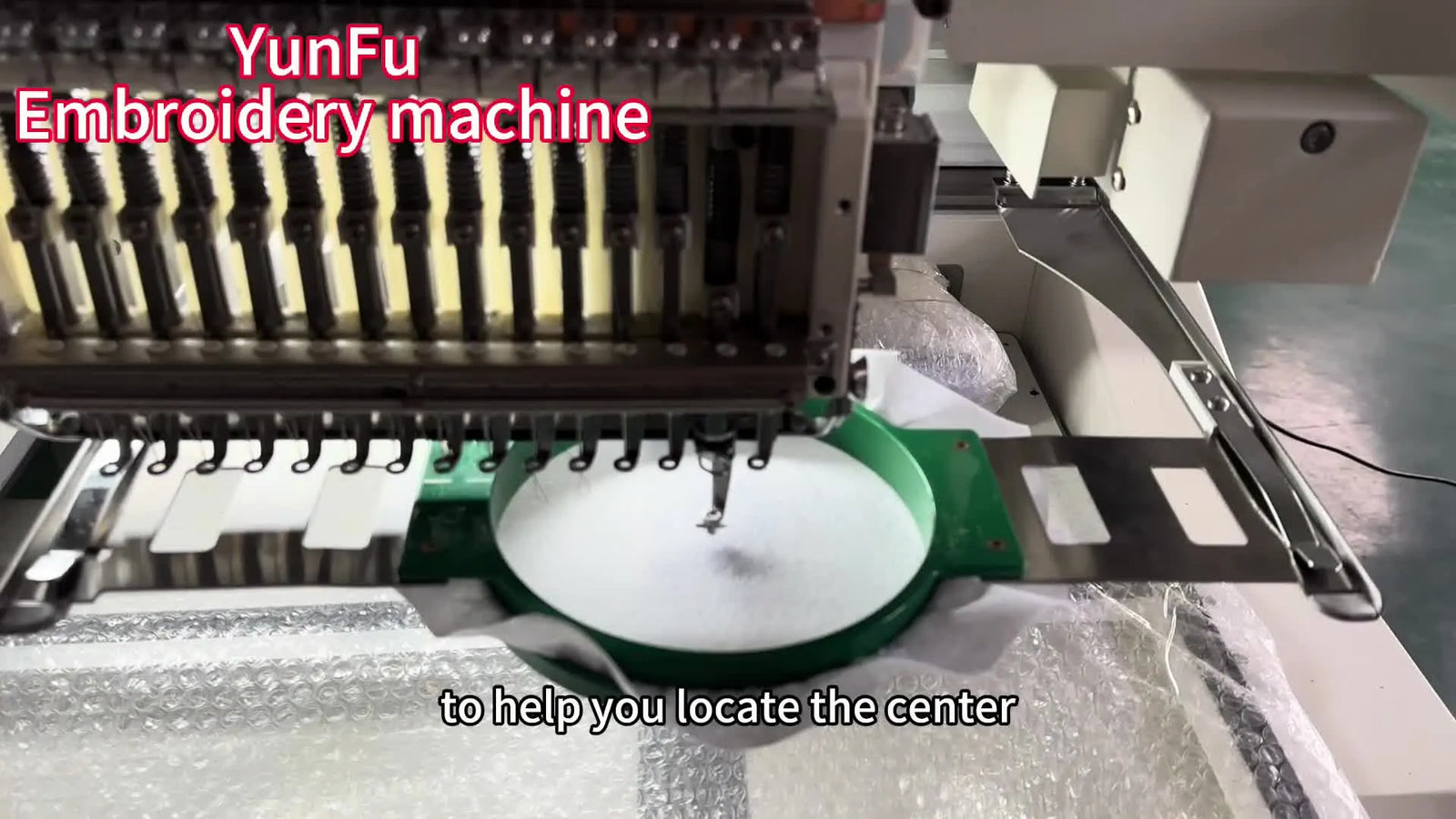

• Hoop a single sheet of stabilizer (backing) into the green round 150mm/180mm T-shirt frame. Do not use a t-shirt for this step; you want a taut, flat surface.
• Draw a precise Crosshair (+) exactly in the center of the stabilizer.
• Mount the frame securely onto the machine’s pantograph arms.

Why this works (expert insight)

Even high-quality machines have mechanical tolerances. Over time, pantograph linkages wear, and frame brackets develop play. A hand-drawn crosshair on drum-tight stabilizer gives you a sensory target. You aren't relying on a sensor; you are relying on physics.

Pro-Tip on Consumables: Use a fine-point permanent marker or a high-contrast pen. Do not use thick chalk, as the line is too wide for precision calibration.

Warning: Mechanical Safety Hazard. Keep fingers, loose clothing, and long hair away from the needle bar area. When performing manual checks, ensure the machine is in a stopped state. Never jog the pantograph at high speed while your hands are near the needle path.

Prep Checklist (Do this before touching the screen)

• Frame Inspection: Ensure the T-shirt frame brackets are not bent and click firmly into the pantograph arms. A loose frame will give you false data.
• Needle Logic: Verify your #1 needle (or whichever you are using for testing) is perfectly straight. A slightly bent needle will throw off your calibration by 2-3mm.
• Thread Check: Ensure there is no thread tension on the needle that might pull it slightly to the side during the drop test.
• Clearance: Clear the sewing deck of scissors, bobbins, or sprays to ensure the pantograph can move freely.


Use Dahao A18 “No.4 Auto Set Frame Origin” as a Test—Not as Blind Faith

In the Dahao interface, the operator navigates to:

1. Design
2. No.4 Auto Set Frame Origin

This function commands the pantograph to move to the coordinates currently saved for that frame.

What you’re looking for

After the machine moves, it stops at what it believes is the center. In the video, the operator immediately checks this against the crosshair and finds a discrepancy. The needle is not over the ink mark.

This is the psychological shift you must make: "Auto Set" is a diagnostic tool, not a solution. It shows you the error so you can measure it.

If you run a shop with multiple machines and embroidery machine hoops, do not assume they are interchangeable without checking this. One bent bracket can ruin a batch of shirts if you rely on blind faith.

The Needle-Bar Touch Test: Jog the Pantograph Until the Needle Hits Your Crosshair

This is the tactile phase of the calibration. You are now going to manually override the machine's brain to match the physical reality.

What the video does

1. Use the Directional Keys (Arrows) on the panel to jog the frame.
2. Visually align the needle over the crosshair.
3. The Touch Test: Manually depress the needle bar (turn the main shaft wheel or push the bar down) until the needle tip physically touches the intersection of your ink lines.
4. If it misses, lift the needle, jog slightly (micro-steps), and drop it again.


Expected outcome

You want the needle point to land dead-center on the "+". It should feel precise. If you lower the needle and the fabric pushes sideways, you are not centered.

Why experienced operators move slowly here

The pantograph is driven by stepper or servo motors. A quick tap can move the frame 1mm or 5mm depending on your speed settings.

• Sensory Check: Listen for the motor noise. A rhythmic "thump-thump" indicates micro-stepping. A continuous whine indicates high-speed travel—too fast for this step.
• The "Sweet Spot": Use the "Slow" jog speed setting. Overshooting and correcting back and forth introduces "backlash" (mechanical slack), which can skew your numbers. Approach the target from one direction if possible.


Capture the X/Y Offsets (Whole Numbers) and Save Them Like Your Job Depends on It

Once the needle is perfectly kissing the crosshair center, look at the Dahao screen. You will see X and Y coordinate offsets. These numbers represent the distance you have traveled away from the machine's mechanical zero to find your frame center.

The video highlights two non-negotiable rules for this step:

1. Whole Numbers Only: Ensure the X/Y values do not have decimals (e.g., 0.0 or 0.5).
2. The Photo Evidence: Take a picture of these numbers with your phone.


Why “whole numbers” matters (practical shop-floor reason)

While the machine can calculate decimals, humans are terrible at typing them under pressure.

• Risk: Typing 12.5 as 125 will crash your machine frame into the limitation bar.
• Fix: If your screen shows X: +5.3, jog the frame ever so slightly until it clicks over to X: +5.0 or X: +6.0. The 0.3mm difference is invisible to the eye but makes data entry safer.


Pro tip from the comments (what viewers really mean by “helpful”)

The comment section on these videos is often filled with relief. Why? Because operators were trying to fix this by re-hooping the shirt twenty times. Fixing the parameters fixes the root cause. Treat the photo of the coordinates as your insurance policy.

Write the Calibration into Dahao A18 Machine Parameter → Frame Parameter 1 (Clothing Frame A)

Now we must burn this new truth into the machine’s brain.

What the video does (exact navigation)

1. Press the Machine Parameter button.
2. Select Frame Parameter 1.
3. Scroll to finding G01 Clothing Frame A (or whichever frame slot you are calibrating).
4. Input the new Center X and Center Y values from your phone photo.
5. Critical: Press the Disk/Save Icon to lock it in.










Expected outcome

When you exit and re-enter, those numbers should remain. The machine now defines "Center" exactly where your crosshair is.

Warning: Data Integrity Risk. Do not guess the +/- signs. If your screen showed -15.0 and you type +15.0, the frame will move in the opposite direction, likely hitting the limit sensors violently. Always double-check the positive/negative sign before saving.

Setup Checklist (Before you press Save)

• Sign Verification: Does the screen match your photo (e.g., Is X negative? Is Y positive?)?
• Target Confirmation: Are you definitely editing "Clothing Frame A"? (Editing the Cap Frame details by mistake is a common error).
• Typo Check: Read the numbers aloud to yourself before pressing Enter.
• Save Confirmation: Listen for the "beep" or watch for the "Success" message after pressing the save icon.

Copy the Same Center to Clothing Frame B, C… Because the Physical T-Shirt Frame Geometry Is the Same

The video demonstrates copying these coordinate values to Clothing Frame B and C.

The Logic: You possess multiple identical green circular frames. Their physical geometry does not change. Therefore, the distance from the machine arm connection to the center of the hoop is constant.

Why this matters in production (efficiency insight)

In a busy shop, Operator A might select "Frame A" on the screen, while Operator B selects "Frame B" simply out of habit. If Frame A is calibrated but Frame B is old factory data, you will have inconsistent output on the same order.

• Best Practice: Standardize your settings across all "Round 15cm" frame slots.

This consistency is vital when you are optimizing hooping for embroidery machine workflows—you want the software to be a constant, not a variable.

The “Why It Was Off-Center” Reality Check: Calibration vs Hooping vs Fabric Behavior

You have calibrated the machine. But tomorrow, a logo might still look crooked. Why? Because machine calibration is only 50% of the equation.

1) Hooping tension and fabric distortion

A T-shirt is a fluid material. If you stretch the fabric 10% vertically while hooping, the logo will compress when you un-hoop it. The machine hits the mathematical center, but the visual center of the shirt moves as the fabric relaxes.

• Rule of Thumb: Hoop specifically tight (like a drum skin), but do not distort the ribbing of the fabric.

2) Stabilizer choice affects how the fabric holds position

The stabilizer is the foundation. The video uses stabilizer for marking, but in production, you are fighting physics.

• Knits/Polos: Use Cutaway stabilizer. No exceptions for beginners. Tearaway allows the stitches to pull the fabric inward, shifting the center during the sew-out.
• Decision: Heavier stitch count = Heavier stabilizer.

3) Machine “feel” matters (sensory checks)

If your machine is calibrated, but the design is "walking" (shifting) during the stitch:

• Listen: Is the machine pounding?
• Check: Is the hoop jumping?
• Action: Slow down. The video shows 1000 SPM (Stitches Per Minute), but for high-detail logos on loose knits, the "Sweet Spot" for quality is often 600-800 SPM.

A Simple Decision Tree: Is Your Placement Problem a Parameter Issue or a Hooping Workflow Issue?

Use this logic flow before you mess with the parameters again.

1. Run "Auto Set Frame Origin" without a uniform. Does the needle drop exactly on the center of the empty hoop (or your stabilizer crosshair)?
   • YES → The Software/Machine is fine. Stop changing parameters. Go to Step 2.
   • NO → Repeat the calibration process described in this article.
2. Examine the Hooped Garment. Is the fabric grain straight in the hoop?
   • YES → Go to Step 3.
   • NO → This is a hooping for embroidery machine technique error. Re-train on hooping straight.
3. After stitching, does the design look off-center?
   • YES → Check your stabilizer and hooping tension. The fabric shifted during the sew process.
   • NO → Congratulations, you have achieved stability.

Troubleshooting the Two Problems the Video Calls Out (Plus the Ones That Bite Later)

Here is a structured breakdown of common failures related to frame origin.

The Upgrade Path That Actually Saves Time: Faster Hooping, Less Rework, More Repeatability

Calibration fixes the precision of the machine. However, if your operators are exhausted, or if hooping takes longer than the actual sewing, you have a workflow bottleneck.

When you encounter these "Growth Pains," consider these solutions:

Scenario 1: "Hoop Burn" and Operator Fatigue

Standard plastic hoops require significant hand strength to clamp thick fabrics, and they often leave shiny rings ("hoop burn") on delicate performance wear.

• The Fix: Universal Magnetic Embroidery Hoops.
• Why: They use magnetic force to self-adjust to fabric thickness. This eliminates the need to adjust screws and reduces wrist strain.
• Context: Many professionals view the switch to a magnetic embroidery hoop as the single best investment for preventing garment damage and speeding up prep time.

Warning: Magnetic Safety. Industrial magnetic hoops are extremely powerful. They can pinch fingers severely if mishandled. ALWAYS keep them away from customers with pacemakers or sensitive electronics.

Scenario 2: Production Bottlenecks (The "Single-Head" Trap)

If you are spending 8 hours a day swapping threads on a single-needle machine, you are losing money.

• The Fix: SEWTECH Multi-Needle Machines.
• Why: Moving to a 10-needle or 15-needle machine allows you to set up complex colors once and walk away.
• Context: When high-volume orders arrive, a standardized embroidery hooping system combined with a multi-needle machine is the only way to scale without burnout.

Scenario 3: Inconsistent Placement Across Staff

• The Fix: Hooping Stations (Hooping Boards).
• Why: A physical board ensures the logo is exactly 4 inches down from the collar, every single time, regardless of who hoops the shirt. It pairs perfectly with magnetic frames.

Operation Checklist: The “One-Test Stitch” That Confirms You’re Truly Fixed

The video ends with the parameter save, but in the real world, you need one final verification.

• Mount the Frame: Put the stabilizer-only frame back on.
• Auto-Set Verification: Run "No.4 Auto Set Frame Origin."
• Visual Confirmation: DOES the needle land on your crosshair?
• The "Kill" Criteria: If it is off by more than 1mm, redo the calibration.
• The Sample Stitch: Load a simple design (a small distinct dot or cross). Stitch it. Measure it.

If you follow this "Mark, Test, Record, Save" discipline, you will eliminate the phantom "machine error" excuses from your shop floor. You will stop fighting the coordinates and start focusing on what gets you paid: clean, profitable embroidery.

FAQ

• Q: On a YunFu industrial embroidery machine with a Dahao A18 control panel, how can operators calibrate the clothing frame center to fix off-center left-chest logo placement?
  A: Calibrate the saved frame center using a stabilizer crosshair and the Dahao A18 Frame Parameter center X/Y values.
  • Hoop: Hoop one sheet of stabilizer only (no T-shirt) in the round 150mm/180mm clothing frame and draw a precise “+” at the physical center.
  • Test: Run Design → No.4 Auto Set Frame Origin, then compare the needle stop position to the crosshair.
  • Adjust: Jog with arrow keys, then do the needle-bar touch test (lower needle tip to physically kiss the crosshair intersection).
  • Record & Save: Read the X/Y offsets, take a phone photo, then write them into Machine Parameter → Frame Parameter 1 → G01 Clothing Frame A and press the disk/save icon.
  • Success check: After saving, re-run “Auto Set Frame Origin” and the needle lands on the crosshair (within about 1 mm).
  • If it still fails… Inspect for a loose/bent frame bracket or backlash from overshooting; repeat the touch test using slow jog and approach the target from one direction.
• Q: On a Dahao A18 control panel, why does “No.4 Auto Set Frame Origin” still land off-center on a clothing frame after operators think the hoop is centered?
  A: “Auto Set Frame Origin” moves to the currently saved frame center, so a mismatch usually means the stored Frame Parameter center does not match the hoop’s true physical center.
  • Mark: Create a stabilizer crosshair target in the mounted clothing frame to establish a physical truth source.
  • Verify: Run “No.4 Auto Set Frame Origin” and visually compare needle position to the crosshair.
  • Calibrate: Jog to the crosshair and capture the new X/Y offsets, then save them in the correct clothing frame slot under Frame Parameter.
  • Success check: The needle repeatedly returns to the crosshair every time “Auto Set Frame Origin” is used.
  • If it still fails… Stop “chasing parameters” and check hoop mounting security; a frame that is not clicked in firmly will produce false readings.
• Q: On a YunFu machine with a Dahao A18 panel, what should operators do if the frame center X/Y offsets show decimals (for example X +5.3) during clothing frame calibration?
  A: Convert the offsets to whole numbers by micro-jogging until the display rounds to X.0, then save only whole-number coordinates.
  • Jog: Tap arrow keys in slow mode until X and Y display as whole numbers (no decimals).
  • Document: Take a phone photo of the final whole-number X/Y before entering anything into parameters.
  • Enter: Type the values exactly (including +/- signs) into the correct clothing frame parameter and save.
  • Success check: The saved center values remain after exiting and re-entering the parameter screen, and “Auto Set Frame Origin” returns to the crosshair.
  • If it still fails… Re-do the touch test because stopping mid-step often means the needle was not truly on the crosshair when the numbers were captured.
• Q: On a Dahao A18 clothing frame setup, how can operators avoid saving the wrong frame slot or the wrong +/- sign when writing Center X and Center Y into Frame Parameter?
  A: Use the phone photo as the source of truth and confirm the exact clothing frame slot (for example G01 Clothing Frame A) before pressing save.
  • Confirm: Double-check the screen shows the correct clothing frame entry (not a cap frame or another frame type).
  • Match: Verify the +/- signs on X and Y match the photo exactly before hitting Enter.
  • Save: Press the disk/save icon and watch/listen for a save confirmation (beep or success message, depending on setup).
  • Success check: After power-cycling or exiting/re-entering the menu, the values are unchanged and the needle returns to center on “Auto Set Frame Origin.”
  • If it still fails… Do not guess—repeat the measurement and re-take the photo; incorrect signs can drive the frame the wrong direction into limits.
• Q: On a YunFu multi-needle machine with Dahao A18, why does a logo still look off-center or slanted even after clothing frame center calibration is correct?
  A: If “Auto Set Frame Origin” hits the crosshair but the stitched logo still looks wrong, the cause is usually hooping distortion, fabric grain, stabilizer choice, or sew-speed movement—not the frame parameters.
  • Check: Re-run “Auto Set Frame Origin” on stabilizer-only; if it hits center, stop changing parameters.
  • Re-hoop: Hoop the garment straight (watch fabric grain) and avoid stretching knit ribbing while tightening.
  • Stabilize: Use cutaway stabilizer for knits/polos as a safer starting point; tearaway can allow shifting during sew-out.
  • Slow down: Reduce speed if the hoop is “jumping” or the design is “walking” during stitches (often 600–800 SPM is a safer quality range than 1000 SPM, but follow the machine manual).
  • Success check: The garment stays stable in the hoop during sewing and the finished design does not “relax” into a new position after unhooping.
  • If it still fails… Treat it as a hooping workflow issue and standardize placement using a hooping station/board.
• Q: What mechanical safety steps should operators follow when doing the needle-bar touch test on a YunFu industrial embroidery machine during Dahao A18 frame-origin calibration?
  A: Keep hands clear and only do slow, controlled movements because the needle bar and pantograph can move unexpectedly and injure fingers.
  • Stop: Ensure the machine is in a stopped state before placing hands near the needle path.
  • Clear: Remove scissors, bobbins, sprays, and any objects from the sewing deck so the pantograph can travel freely.
  • Control: Use slow jog speed for positioning; avoid high-speed jogging during manual checks.
  • Lower safely: Depress the needle bar carefully to touch the crosshair—never “chase” the target with fast movements.
  • Success check: The needle can be lowered to the crosshair without any contact with hands, clothing, or obstructions.
  • If it still fails… Hit Emergency Stop immediately if anything binds or collides, then re-check frame bracket lock-in and clearance before retrying.
• Q: For T-shirt production workflow problems like hoop burn, operator fatigue, and inconsistent placement, when should shops move from technique fixes to magnetic hoops or a multi-needle SEWTECH embroidery machine?
  A: Use a tiered approach: optimize calibration and hooping first, then upgrade to magnetic hoops for faster/safer hooping, and consider a multi-needle SEWTECH machine when color changes and rework become the real bottleneck.
  • Level 1 (Technique): Calibrate Dahao A18 clothing frame center, standardize hooping tension, stabilize correctly, and verify with a one-test stitch.
  • Level 2 (Tool): Switch to magnetic hoops when hoop burn, clamping force, and repetitive hooping time are causing rework or staff strain.
  • Level 3 (Capacity): Move to a multi-needle machine when thread changes and single-head limitations are consuming most of the day and delaying orders.
  • Success check: Hooping time drops, remakes decrease, and different operators produce the same placement consistently.
  • If it still fails… Add a hooping station/board to lock placement distance (for example consistent left-chest drop) before changing more machine parameters.
