Stop Picking Stitches: Cover an Old Logo on a Jacket with a Baby Lock Enterprise Appliqué Patch That Looks Factory-Fresh

If you have ever stared at an old school logo or club emblem stitched into a perfectly good jacket and thought, “Do I really have to pick all of that out stitch by stitch?”—take a deep breath. Put down the seam ripper. You don’t, and often, you shouldn’t.

In the embroidery world, there is a fundamental rule we learn after ruining our first few garments: You cannot un-toast bread. Once a needle has penetrated fabric thousands of times, the structural integrity of that fabric is changed forever.

In Katie Bertrand’s demonstration, she covers unwanted embroidery (on a Charles River rain jacket and a quarter-zip sweatshirt) with a clean appliqué patch using a Baby Lock Enterprise multi-needle machine. The result is the kind of “no one will ever know” finish customers love—without the fabric damage, puckering, or “ghost holes” that inevitably come from removing dense stitching.

The “Don’t Touch That Seam Ripper” Moment: Why Covering a Dense Logo Beats Removing It

Katie starts by identifying the problem: a black jacket with a yellow school logo and a sweatshirt with a volleyball club logo. The garments are high quality and structurally sound, but the branding is obsolete.

Her call is the one I would make in a production shop 9 times out of 10: do not remove dense embroidery. When a logo is heavily filled, especially with a tatami (fill) stitch, the needle penetration is high. Stitch removal becomes a slow, risky surgical procedure that often scars the fabric, distorts the weave, or leaves a field of needle holes that looks like Swiss cheese.

Covering with an appliqué patch is the “save the garment” option because:

• Structure Preservation: You avoid tearing fibers or creating a weak spot in the fabric.
• Aesthetic Control: You dictate the final look (fabric texture, border color, monogram font).
• Scalability: You can repeat the workflow for jackets, gym bags, backpacks, and team gear without the unpredictability of manual removal.


What to look for before you decide

From the video, the decision is based on a visual inspection: the old logo is dense enough that removal would likely damage the waterproof coating of the rain jacket or unravel the knit of the sweatshirt.

In practice, use this “Reality Check” criteria before quoting a job:

1. Rub your thumb over the logo. Does it feel like a hard, solid coin? If yes, the underlay is too thick to remove safely. Cover it.
2. Check the fabric type. Is it performance wear, coated rainwear, or thin jersey knit? These show needle holes permanently. Cover it.
3. Check the backing. Look inside the garment. Is the stabilizer fused into a solid block with the thread? Attempting to rip this out will tear the garment 100% of the time. Cover it.

Warning: Stitch removal tools (seam rippers and electric shavers) are dangerous on finished garments. One slip can slice through the fabric, turning a $20 repair job into a $100 replacement claim. Never cut toward the garment surface; always lift the thread away before slicing.

The “Hidden” Prep Pros Do First: Fabric, Adhesive, and Coverage Planning That Prevents See-Through

Before you ever hit "Start," the patch has to fulfill its primary directive: total concealment. There is nothing worse than a professional-looking patch with a ghost image of yellow thread bleeding through the center.

Katie uses appliqué fabric (a chevron cotton) and prepares it with HeatnBond Lite. She peels the paper backing and lays the fabric flat in the hoop area, floating it over the old logo.

The coverage rule that saves you from redoing the whole job

Katie uses the camera and Trace function to confirm the stitch path goes around the old logo and doesn’t cut through it. That isn’t just a "nice-to-have" feature—it is the difference between a clean cover-up and an embarrassing disaster where the old logo peeks out from the satin edge.

If you are doing this commercially, you must build a "Pre-Flight" habit:

• The Opacity Test: Hold your patch fabric and HeatnBond combo up to a bright light. Put a dark object behind it. If you can see the shape of the object clearly, you need a thicker fabric or a layer of fusible interfacing.
• The Margin Rule: Your patch shape should extend at least 4mm to 5mm beyond the edges of the original logo in all directions. This creates a safety zone for your satin stitch.

The Hidden Consumables List

Beginners often focus on the machine, but the "magic" lies in these consumables:

• Double-Curved Embroidery Scissors (Duckbill or Offset): Essential for trimming appliqué without cutting the garment.
• HeatnBond Lite (Purple Pack): Provides adhesion without gumming up your needle.
• 75/11 Sharp Needle (for Woven) or Ballpoint (for Knits): Use a fresh needle to penetrate the extra layers cleanly.
• Temporary Spray Adhesive (Optional): If you don't use HeatnBond, you need this to prevent the patch from shifting.

This is also where hooping quality matters. Finished garments love to shift because you are not working with a flat quilt sandwich—you are battling sleeves, zippers, heavy seams, and linings.

If you routinely patch jackets and thick bags, the physical strain of forcing a standard hoop closed can be immense. Many professionals find that specific tools, such as magnetic hoops for babylock embroidery machines, can reduce hooping struggles. These tools allow you to clamp awkward, thick items consistently without the "pop-out" frustration of standard tubular hoops, especially when you are trying to avoid leaving "hoop burn" (pressure marks) on delicate rainwear.

Prep Checklist (do this before you touch the machine)

• Density Check: Confirm the old logo is too dense to remove safely.
• Opacity Check: Verify your patch fabric + HeatnBond block the high-contrast thread of the old logo.
• Adhesion: Pre-iron HeatnBond Lite to the back of the appliqué fabric (paper removed).
• Sizing: Cut the appliqué fabric piece at least 1 inch larger than the design on all sides.
• Tool Ready: Have double-curved scissors within reach.
• Obstruction Check: Verify the hoop area is clear of zippers, pockets, or drawstrings that could slide under the needle plate.

Baby Lock Enterprise Camera + Trace: The Calm Way to Align a Patch Over an Existing Logo

Katie pulls up the design on the Baby Lock Enterprise and activates the built-in camera so the LCD screen displays the actual jacket inside the hoop. She then uses the Trace function to watch the needle path outline and confirm coverage.

This is the phase that separates “I hope it covers” from “I know it covers.” When you are covering an existing logo, you do not get a second chance. If you miss alignment, you have just stitched a permanent frame around the mistake you were trying to hide.

Katie’s alignment flow is precise:

1. Visual Confirmation: Turn on the camera view to see the garment on-screen.
2. Digital Nudging: Move the design on the screen until it centers over the old logo.
3. Physical Trace: Run the Trace key. Watch the presser foot (or laser pointer), not just the screen. Ensure the foot travels physically outside the old embroidery.


Why this works (and why it fails when people rush)

Positioning failures usually happen because of "Hooping Drift." You think the garment is centered, but the weight of the sleeve pulls it 3mm to the left.

The camera positioning is your insurance policy. If your machine does not have a camera, you must use a physical template (print the design on paper) or use the "needle down" method to check the four corners of your design box manually.

Setup Checklist (before the first stitch)

• Load Design: Ensure the appliqué file (correct size) is loaded.
• Camera/Laser On: Activate visual aids to see the garment in the hoop.
• The "four Point" Check: Trace the design and verify clear clearance at Top, Bottom, Left, and Right of the old logo.
• Speed Check: Reduce machine speed to 600-700 SPM for the tack-down phase to ensure precision.
• Bobbin Check: Ensure you have enough bobbin thread to finish the job (you don't want to change bobbins mid-satin stitch).

HeatnBond Lite + Floating the Fabric: Getting a Flat Appliqué Lay Without Wrinkles or Drift

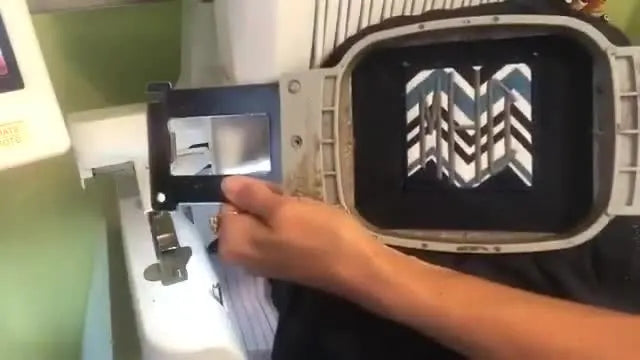

Katie peels the paper backing off the HeatnBond Lite and lays the appliqué fabric inside the hoop area, flat over the logo.

This “float and fuse” approach is fast and clean for finished garments because you are not trying to hoop the appliqué fabric alongside the jacket. The adhesive backing (HeatnBond) adds stiffness, helping the fabric behave during the tack-down run.

A practical note from the field: Synthetic fabrics like rain jackets can be slippery, and quarter-zips often have bulk near the chest seam. If you notice the garment wants to "spring" up or "tent" in the middle of the hoop, stop. Do not stitch over floating fabric. Re-smooth it.

If you are doing a lot of finished-garment work, mastering floating embroidery hoop techniques is useful. "Floating" generally means hooping only the stabilizer and attaching the garment to it (via adhesive or pins). However, for patch cover-ups, we are technically floating the patch material on top of the hooped garment. This requires careful alignment checks because the patch fabric isn't locked into the hoop rings.

The Tack-Down Run: Why Katie Uses a Single Needle First (and When You Should Too)

Katie runs a tack-down stitch: a simple running stitch outline that secures the appliqué fabric to the garment. The video notes she has a single needle active for tack down.

This is a smart workflow on a multi-needle machine, but the logic applies to single-needle users too:

• Function over Form: The tack-down is a utility stitch. It should be a long stitch length (e.g., 3.0mm - 4.0mm). If the stitches are too short (under 2mm), they can perforate the patch fabric like a stamp, causing it to tear during the satin finish.
• Control: Running this slowly ensures the fabric doesn't shift.

Sensory Check: Listen to the machine. A steady thump-thump-thump is good. If you hear a slap sound, your fabric might be flagging (bouncing) up and down.

Operation Checklist (end of tack-down)

• Complete Outline: Confirm the tack-down stitch is continuous (no skipped stitches).
• Perimeter Check: Look closely—does the stitch line fully encapsulate the old logo?
• Flatness: Check for bubbles or wrinkles in the patch fabric.
• Safety Stop: Stop the machine and slide the hoop out (or forward) for trimming. Do not try to trim while the needle is hovering over your hand.

The Trim That Makes or Breaks It: Double-Curved Scissors, Blade Angle, and “Don’t Cut the Stitch” Discipline

Katie removes the hoop (or pulls it forward) and trims the excess appliqué fabric using double-curved scissors. She lifts the fabric edge slightly with her fingers and keeps the scissor blades flat against the stabilizer/garment, cutting extremely close to the stitch line without cutting the stitching itself.

This is where beginners create expensive mistakes. The Goal: Trim within 1mm to 2mm of the tack-down line.

• Too close: You cut the tack-down thread, and the patch peels up later.
• Too far: The satin stitch won't cover the raw edge, leaving "whiskers" of fabric poking out.

Here is the trimming logic Katie demonstrates:

1. Lift & Snip: Lift the excess fabric to create tension.
2. Paddle-Down: Keep the "paddle" (curved part) of the scissors resting flat on the garment.
3. Glide: Cut smoothly. Do not chop.

The "Peek-Through" Audit: Before re-starting the machine, lift the edges of your trim. Can you see the yellow logo underneath? If yes, and it's outside the tack-down line, checking it now allows you to restart or abort. Once the satin stitch is down, it’s permanent.

Warning: Physical Safety Alert. Double-curved scissors are razor sharp at the tip. When trimming on a machine, ensure the garment isn't bunched up underneath your cutting area. It is terrifyingly easy to snip a clean hole through a sleeve that has folded itself under the hoop. Always feel underneath the hoop before you cut.

Satin Stitch Border + Monogram: The Finish That Seals Edges and Sells the “New Garment” Illusion

After trimming, Katie reattaches the hoop and runs the satin stitch border to seal the raw edges, followed by the monogram letters in the center.

A satin border does two jobs:

1. Structural: It locks the raw edge of the patch to the garment, preventing fraying during wash cycles.
2. Visual: It creates a "frame" that makes the patch look like an intentional badge.

Technical Specs for Success:

• Column Width: For a cover-up patch, your satin border should be at least 3.5mm to 4.0mm wide. Standard borders are often 2.5mm, which is too narrow to hide the trimmed edge and the old logo margin.
• Density: Increase density slightly (e.g., to 0.40mm spacing) to ensure no fabric shows through the thread.
• Underlay: Use an "Edge Run" or "Zig Zag" underlay to lift the satin stitches up, giving a 3D effect.

Katie also gives a vital practical reminder: make sure nothing is caught underneath the hoop before restarting. On finished garments, gravity works against you. Sleeves slide. Pocket bags flop.

If you are running this kind of job daily, investing in machine embroidery hoops that clamp evenly and release quickly can be a massive productivity lever. In production, "stitching time" is fixed by the machine speed, but "hooping time" is where your profit margin lives or dies.

The Reveal Test: How to Know the Old Logo Is Truly Gone (Not Just “Mostly Hidden”)

Katie unhoops and shows the finished patch completely hiding the original logo.

This is the moment of truth. A successful job isn't just about covering the logo—it's about the "Hand" (feel) and the drape.

The Pro-Level Inspection Routine:

1. The Arm's Length Test: Hold the jacket out. Does the patch look centered relative to the zipper and shoulder seam?
2. The Light Test: Tilt it under strong light to check for shadowing where the old logo might be raising the new patch.
3. The Edge Audit: Run your finger along the satin border. Is it smooth? Are there any "whiskers" or loose threads?


Fabric + Stabilizer Decision Tree: Picking What Prevents Show-Through and Puckering on Finished Garments

The video focuses on the appliqué process, but in a real shop, your choice of stabilizer determines if the patch survives the washing machine.

Use this decision tree to navigate the "Variables of Doom":

Decision Tree (Finished Garment Patch Jobs)

“Watch Out” Notes Shop Owners Learn the Hard Way (So You Don’t)

Even though the comments provided here are empty, the same questions come up every week in real embroidery shops. Here are the pitfalls that match Katie’s workflow—and how to avoid them.

Watch out: The "Ghost" text appears after washing

• Symptom: The patch looked great initially, but after one wash, you can see the texture of the old logo underneath.
• Likely Cause: The appliqué fabric was too thin, or no interfacing was used.
• Quick Fix: For this garment? Nothing. For the next one? Use a heavy twill fabric or iron-on interfacing behind your patch fabric.

Watch out: Pucker lines radiating from the patch

• Symptom: The fabric around the square patch looks rippled or pulled.
• Likely Cause: The garment was stretched too tight in the hoop during the tack-down. When un-hooped, it snapped back, causing ripples.
• Quick Fix: Steam the area (don't iron directly).
• Prevention: Don't pull the garment drum-tight. It should be taut, but not stretched.

Watch out: Needle breaks during the satin stitch

• Symptom: SNAP!
• Likely Cause: You are stitching through: Old Logo + Stabilizer + HeatnBond + Patch Fabric + Satin Stitch. That is a lot of glue and density.
• Quick Fix: Use a Titanium needle or a larger size (Size 90/14). Clean the needle if gummed up.

The Upgrade Path That Actually Makes You Money: Faster Hooping, Less Hoop Burn, More Repeatable Patch Jobs

Katie’s method is already a highly "sellable service." Customers bring in high-value jackets, gym bags, and sweatshirts they still love, and you give them a fresh life.

However, where shops lose money is not the stitching time—it’s the handling time:

1. Wrestling thick jackets into standard rounded hoops.
2. Fighting bulky seams that pop out of the outer ring.
3. Dealing with "Hoop Burn" that requires time-consuming steaming to remove.

If you are a hobbyist doing one jacket a month, a standard hoop is fine. But if you begin to see this as a revenue stream, tools that reduce friction are essential.

For many operators, upgrading to babylock magnetic embroidery hoops or generic magnetic frames for embroidery machine is the first logical step. Magnetic fasteners allow you to slide thick materials in and out without adjusting screws, and they drastically reduce the pressure marks left on sensitive waterproof fabrics.

Furthermore, if you are scaling beyond one-off jobs into steady production (e.g., updating 50 staff uniforms), the single-needle machine becomes the bottleneck. This is where the transition to a cost-effective production unit—like a SEWTECH multi-needle embroidery machine—transforms the business. A multi-needle machine allows you to set up the full color run (Tack-down > Stop > Satin Color 1 > Monogram Color 2) without changing threads, while the large throat space and compatible magnetic hoops make handling bulky jackets effortless.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely (causing blood blisters) and can interfere with pacemakers or insulin pumps. Keep them at least 6 inches away from medical devices, and never slide credit cards near them. Always Slide magnets apart; do not try to pull them directly apart.

The result you’re aiming for

A patch cover-up should look intentional, centered, and clean—like a brand new design choice, not a "Band-Aid" repair. Katie’s finished jacket is a perfect example: the old logo effectively vanishes, the satin border is crisp, and the monogram adds personal value.

By combining the right consumables (HeatnBond, Double-Curved Scissors), the right protocol (Trace before Stitching), and eventually the right production tools (Magnetic Hoops, Multi-needle machines), you turn a frustrating repair job into a high-margin service.

FAQ

• Q: How do I decide whether to remove dense embroidery or cover an old logo with an appliqué patch on a finished jacket?
  A: If the existing logo feels dense and “coin-hard,” covering with an appliqué patch is usually safer than stitch removal.
  • Rub-test the logo: If it feels solid and heavily filled, plan a cover-up instead of picking stitches.
  • Check garment type: If the item is coated rainwear, performance fabric, or thin knit, assume needle holes may stay permanently—cover it.
  • Inspect the inside backing: If stabilizer and thread are fused into a hard block, do not attempt removal.
  • Success check: The decision is “cover” when you can predict removal will leave holes, distortion, or coating damage.
  • If it still fails… Take a small test area on an inside seam allowance (if possible) before quoting; when in doubt, cover instead of remove.
• Q: How do I stop an appliqué cover-up patch from showing a “ghost image” of the old embroidery underneath after stitching?
  A: Use an opacity check before stitching and increase patch opacity if the old logo can be seen through the patch material.
  • Hold the patch fabric + fusible layer up to a bright light and place a dark object behind it to simulate contrast.
  • Upgrade opacity by choosing a thicker fabric or adding a layer of fusible interfacing behind the patch fabric before applying fusible adhesive.
  • Extend the patch shape 4–5 mm beyond the original logo edges to create a safe margin for the satin border.
  • Success check: Under bright light, the old logo color/shape does not clearly read through the prepared patch stack.
  • If it still fails… Rebuild the patch with heavier twill or add interfacing; once stitched, “ghosting” often cannot be fixed on the finished garment.
• Q: How do I align an appliqué patch so the satin border fully covers an old logo when using a multi-needle embroidery machine camera and Trace function?
  A: Use camera view plus Trace to confirm the presser foot travels outside the old embroidery before the first stitch.
  • Turn on the camera view (or laser/visual aid) and center the design directly over the existing logo.
  • Run Trace and watch the presser foot movement, not only the screen, to verify the stitch path stays outside the old logo.
  • Do a four-side clearance check (Top/Bottom/Left/Right) before committing to tack-down.
  • Success check: The traced path physically clears the old embroidery on all sides, with visible margin.
  • If it still fails… Use a paper template or “needle down” corner checks to verify placement manually, and slow down repositioning to prevent hooping drift.
• Q: What stitch settings and workflow prevent appliqué fabric from tearing during the tack-down run on a multi-needle embroidery machine?
  A: Run tack-down as a long running stitch and slow the machine down so the floating fabric does not shift.
  • Use a longer tack-down stitch length (often 3.0–4.0 mm) so the outline holds without perforating the fabric.
  • Run tack-down with a single needle first for control, then switch to the satin border and lettering.
  • Reduce speed to about 600–700 SPM during tack-down for accuracy on finished garments.
  • Success check: The outline is continuous (no skipped stitches) and the fabric lays flat without bubbles or shifting.
  • If it still fails… Stop and re-smooth the floating fabric; if you hear “slap” sounds, address fabric flagging before continuing.
• Q: How do I trim appliqué fabric close to the tack-down line without cutting the tack-down stitches or the garment?
  A: Use double-curved (duckbill/offset) embroidery scissors and trim to within 1–2 mm of the tack-down line without cutting the stitch.
  • Lift the excess fabric edge slightly to create tension, then cut with the scissor blades kept flat against the garment/stabilizer.
  • Glide in smooth cuts rather than chopping, and keep the scissors “paddle” resting down to protect the garment.
  • Pause and feel under the hoop area before trimming to make sure no sleeve or extra layer is folded under the cutting path.
  • Success check: No “whiskers” extend beyond the tack-down, and the tack-down thread remains intact all the way around.
  • If it still fails… If you nicked the tack-down, re-run tack-down (if possible) before satin stitching; if you trimmed too wide, widen the satin border in the design next time.
• Q: What causes needle breaks during the satin stitch when covering an old embroidered logo with HeatnBond and an appliqué patch, and what is the fastest fix?
  A: Needle breaks usually come from stitching through too much density and adhesive—switch to a stronger/larger needle and keep it clean.
  • Change to a larger needle size (often 90/14) or use a titanium needle when stitching through multiple dense layers.
  • Clean or replace the needle if adhesive residue is building up and increasing friction.
  • Confirm nothing bulky is caught under the hoop (sleeves/pocket bags) before restarting the satin border.
  • Success check: Satin stitching runs without repeated snaps and the sound stays steady (no harsh impact as the needle hits dense buildup).
  • If it still fails… Reduce speed for the satin phase and reassess the total layer stack (old logo + stabilizer + fusible + patch + satin density may be excessive).
• Q: What safety rules prevent accidents when using seam rippers, double-curved embroidery scissors, and magnetic embroidery hoops on finished garments?
  A: Treat cutting tools and magnets as high-risk shop tools: cut away from fabric surfaces, protect hidden layers, and handle magnets to avoid pinches and device interference.
  • Lift thread away before cutting with a seam ripper or shaver; never cut toward the garment surface.
  • Feel underneath the hoop before trimming so a folded sleeve or lining cannot be snipped.
  • Slide strong magnets apart (do not pull directly) and keep magnetic hoops at least 6 inches away from pacemakers/insulin pumps and away from cards.
  • Success check: No accidental nicks/holes in the garment, and no finger pinches when opening/closing magnetic clamps.
  • If it still fails… Stop and reset the work area: remove slack garment sections, re-check what’s underneath, and slow down—most accidents happen when rushing.
• Q: When should a shop upgrade from standard tubular embroidery hoops to magnetic hoops, or from a single-needle machine to a multi-needle embroidery machine for patch cover-up jobs?
  A: Upgrade when hooping time, hoop burn, or repeatability becomes the real bottleneck—not when stitching time feels slow.
  • Level 1 (technique): Improve prep checks (opacity, margin, trace/four-point clearance) and reduce speed for tack-down accuracy.
  • Level 2 (tool): Move to magnetic hoops when thick jackets/bags keep popping out of standard hoops or when delicate rainwear shows hoop burn.
  • Level 3 (capacity): Move to a multi-needle machine when frequent color changes (tack-down → satin → monogram) and handling time limit daily output.
  • Success check: Handling time drops (faster loading/unloading), fewer pressure marks appear, and placement becomes repeatable across batches.
  • If it still fails… Track where minutes are lost (hooping, trimming, re-aligning, thread changes); the biggest repeated time sink is the correct upgrade target.
