Stop Scanning Fabric: Trace-to-Appliqué on the Baby Lock Altair 2 (Plus the 7x12 Magnetic Hoop Upgrade That Saves Your Wrists)

The "No-Fail" Guide to Digitizing Printed Fabric: From Chaotic Scan to Perfect Appliqué

If you’ve ever tried to "just scan the fabric" to grab a cute printed motif, you already know the heartbreak: the software doesn’t only see the cat—it sees the weave, the lint, the texture, and every tiny speck it can interpret as a jagged line.

As someone who has taught embroidery digitizing for two decades, I call this "The Scanner Trap." Novices trust the scanner too much; experts trust their preparation.

Cathy’s method (demonstrated on the Baby Lock Altair 2, but applicable to any machine with Brother’s My Design Center or IQ Designer) is the industry-standard workaround for printed fabric appliqué: trace manually, digitize digitally, cut precisely, then stitch in layers. It’s the difference between a project that looks "homemade" and one that looks "hand-crafted."

Why Direct Scanning Fails (The Physics of Noise)

When you scan patterned cotton directly, the software tries to be "helpful" by detecting every high-contrast point. Unfortunately, the cross-hatch of a cotton weave creates thousands of micro-shadows. In the industry, we call this visual noise.

The tracing approach solves that by acting as a low-pass filter: you give the machine a high-contrast, solid line drawing instead of a noisy textile surface.

If you are currently researching magnetic hoops for babylock embroidery machines to solve alignment issues, understand this distinction: a magnetic hoop solves physical distortion (fabric moving), but it cannot fix digital distortion (bad input data). You need clean lines before you hoop.

Expert Note: Most in-machine "line design" tools use edge-detection algorithms. Fabric texture creates 10,000 competing edges; a bold Sharpie line creates one. You aren't cheating; you are optimizing the data input for the algorithm.

Phase 1: The "Hidden" Prep (Analog Filtering)

Cathy’s prep is simple, but it prevents 90% of the headaches. She creates a "master map" that forces the machine to see only what matters.

The "Clean Feed" Kit:

1. Semi-transparent tracing paper (or Vellum) placed over the fabric.
2. Fine-point Sharpie to create a solid, non-bleeding line.
3. Registration Marks (The "X"): Vital for re-aligning layers later.
4. Hidden Consumable: Water-soluble tape or a light spray adhesive to keep the paper from sliding on the fabric while tracing.


PREP CHECKLIST: Do This Before Powering On

• Isolate the Motif: Identify exactly which part of the print you want (e.g., the cat outline vs. the whiskers).
• The Friction Test: Tape the tracing paper down. If it shifts 1mm while tracing, your final stitch will be off by 1mm.
• Trace Boldly: Use a continuous stroke. Lift your pen as little as possible to avoid "hooks" or breaks in the line.
• Mark the Core: Draw a large "X" through the center of the design on all layers (outline layer and detail layer).
• Gap Check (Visual): Hold the tracing up to a window. Do you see any white light breaking through your black line? Fill those gaps now.

Warning (Mechanical Safety): When moving between paper prep and your embroidery machine, ensure your workspace is clear of blades (rotary cutters) and loose pins. In a multi-step workflow, it is easy to leave a pin under a hoop, which can shatter a needle or scratch your machine bed.

Phase 2: Capture & Transfer (Avoiding Parallax Error)

Cathy uses the IQ Positioning App to photograph the tracing inside the embroidery hoop. This is a critical moment for accuracy.

The Physics of the Shot: You must hold the device perfectly parallel to the hoop. If you tilt your phone, the app tries to compensate, but extreme angles introduce "keystoning" (where a square looks like a trapezoid).

Expert Tip on Stability: Your hoop acts as a reference plane. If the tracing paper ripples, the geometry distorts.

• Sensory Check: Tap the tracing paper inside the hoop. It should sound crisp, not dull. If it creates a "hill," pull it taut.

If you are teaching this workflow or doing small-batch production, using a magnetic hooping station can ensure your hoop remains perfectly flat and stable while you position the paper, freeing both your hands to manage the camera app.

Phase 3: Digitizing in IQ Designer ("Line Design" Secrets)

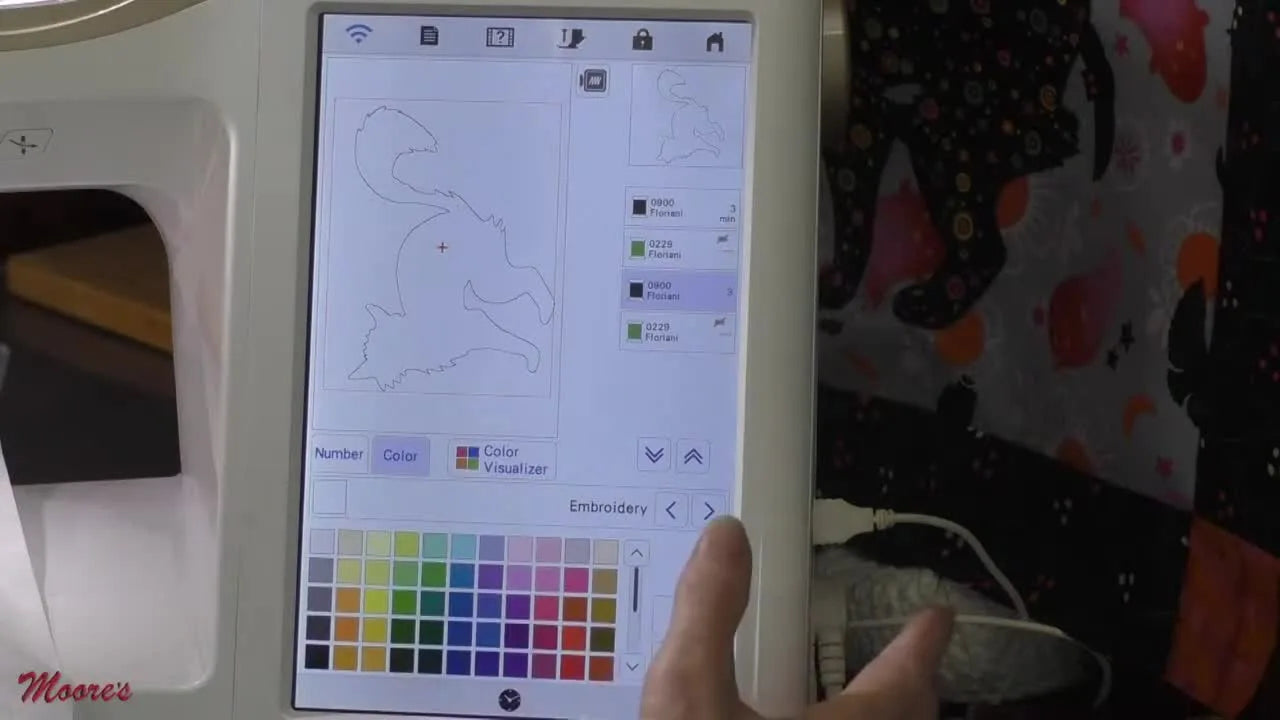

Once the image is in the machine, select Line Design (not illustration fill). Set the line property to Single Run.

The Grayscale Sweet Spot: Cathy adjusts the Grayscale Detection Level. This is the sensitivity slider.

• Slide to Light (Left): The machine becomes more "forgiving." It will bridge small gaps in your marker line.
• Slide to Dark (Right): The machine becomes "strict." It demands pitch-black lines and may ignore faint marker strokes.

The Ideal Setting: Move the slider toward Light just enough to close the loop, but not so far that you pick up paper grain.

SETUP CHECKLIST: The Digital Handshake

• Mode: Select Line Design (Planar data, not pixel data).
• Stitch Type: Confirm Single Run (0.0mm width) for the placement line.
• Crop: Drag the crop, handles tightly around the motif to reduce processing time.
• Gap Inspection: Zoom in 400% on the preview. Are there red dots indicating line breaks?
• Sensitivity Tuning: If you see breaks, nudge Grayscale to the Left. If you see random "fuzz," nudge to the Right.

Phase 4: Multi-Layer Alignment (The "No Sew" Trick)

Cathy imports the separate eyes/stripes scan and aligns it over the cat body using the center "X" registration mark.

The Critical Step: Once aligned, she uses the No Sew function (the bucket tool) to turn the "X" marks off.

• Why? You need the X to see the alignment, but you absolutely do not want to stitch a giant cross through your cat's face.


If layers shift during this process, the issue is often the hoop moving slightly on the table. When comparing babylock magnetic hoops for appliqué work, professionals often prefer them because the strong magnetic clamp prevents the "micro-shifts" that occur with traditional screw-tightened hoops during long editing sessions.

Phase 5: The "Perfect Cut" (Brother ScanNCut Workflow)

Cathy duplicates the cat outline and assigns it the Appliqué Material color (usually yellow/orange icon). This specific color tag tells the machine: "Don't stitch this. Send this geometry to the ScanNCut."

Video Detail: The design height is 11.04 inches.

Expert Insight: This integration is the "Killer App" of the Brother/Baby Lock ecosystem. It removes the human error of hand-cutting fabric.

Handling the Fabric:

• Tactile Check: When placing fabric on the cutting mat, use a brayer or your forearm to smooth it. It should feel uniform—no bubbles.
• The Peel: Remove the waste fabric slowly. If you yank it, you will stretch the bias of the fabric, changing the shape you just perfectly cut.

If you have been shopping for magnetic embroidery hoops, using them in conjunction with a digital cutter like this is a massive productivity booster. You cut perfectly, then magnetic-hoop the base fabric quickly, knowing the appliqué will fit exactly.

Phase 6: The Stitch Out (Layering Logic)

A professional appliqué isn't just one outline. It is a sequence.

The "Sandwich" Sequence:

1. Placement Line (Single Run): Shows you where to put the fabric.
2. Stop: Place your pre-cut fabric. Secure with spray or a glue stick.
3. Tack Down (Double Run): Stitches the fabric down comfortably.
4. Details: Eyes, nose, stripes.
5. Finish (Satin Stitch): The final border.

OPERATION CHECKLIST: The Run-Sheet

• Speed Check: Lower your machine speed to 600 SPM for the Satin Stitch. High speed on satin borders creates tension issues.
• Bobbin Check: Ensure you have enough bobbin thread before starting the final satin border. Running out halfway leaves a visible knot.
• Consumable Check: Use a sharp needle (Size 75/11 Embroidery or Topstitch). A dull needle will "hammer" the appliqué rather than piercing it, causing shifts.
• Monitor the Edge: Watch the tack-down stitch. If the fabric bubbles, pause and smooth it outward.
• Satin Inspection: The final satin stitch should cover the raw edge completely. If raw threads poke out, your tension may be too tight (pulling the edge in).

Troubleshooting: When It Doesn't Look Like YouTube

Real life is messy. Here are the simplified fixes for the issues Cathy highlights.

The Hooping Reality: Why Cathy Uses a 7x12 Magnetic Frame

The video concludes with a discussion on hoops. Appliqué on quilt blocks is notorious for being difficult to hoop because the layers are thick and uneven.

Cathy uses a 7x12 inch magnetic frame.

Why shift to magnets?

1. Uniform Pressure: Traditional hoops pinch firmly at the screw but loosely opposite the screw. Magnetic frames clamp with equal force on all sides.
2. No Distortion: Pushing a quilt block into a traditional hoop often warps the precise square into a "barrel" shape. Magnets lay flat.
3. Speed: If you are doing 12 blocks for a quilt, the snapping motion is 4x faster than unscrewing/rescrewing.

If you are looking for a brother magnetic hoop 7 x 12 equivalent, prioritize frames that offer high-strength magnets. Weak magnets will allow high-stitch-count satin borders to pull the fabric inward.

Warning (Magnetic Safety): Magnetic hoops are industrial tools. They pose a severe pinch hazard. Never place your fingers between the magnets as they snap shut. Keep them away from pacemakers and magnetic media (credit cards), and store them separated by the provided foam spacers.

Decision Tree: Fabric, Stabilizer, & Hooping Strategy

Use this logic flow to determine your setup for appliqué projects.

START: What is your Base Fabric?

• A. Stable Woven (Quilt Cotton/Canvas):
  • Stabilizer: Medium-weight Tear-away or Iron-on Tear-away.
  • Hooping: Standard hoop is okay, but baby lock magnetic embroidery hoops preferred for zero-burn.
• B. Stretchy/Unstable (T-Shirt/Jersey/Minky):
  • Stabilizer: MUST use Cut-away (e.g., PolyMesh).
  • Hooping: Do not stretch! Use a magnetic frame or "float" the fabric on adhesive stabilizer.
• C. High Pile (Towel/Velvet):
  • Stabilizer: Tear-away on back + Water Soluble Topping on front.
  • Hooping: magnetic frames for embroidery machine are essential here to avoid crushing the nap of the velvet.

The Upgrade Path: Moving from Hobby to Production

Cathy’s workflow is brilliant, but equipment choices dictate your speed.

• Level 1 (Skill): Master the "Trace & Scan" technique described here. It costs $0 and improves quality immediately.
• Level 2 (Tool): If you struggle with hoop burn or hand pain, a hooping station for embroidery machine paired with magnetic frames is the ergonomic solution. It standardizes your placement.
• Level 3 (Capacity): If you find yourself changing threads 50 times a day for these appliqués, you have outgrown a single-needle machine. This is when SEWTECH multi-needle embroidery machines become viable—allowing you to set up all 6-10 colors at once and let the machine run the entire appliqué sequence (Stop for fabric -> Tack -> Satin) without manual threading intervention.

Final Takeaway

The secret to the "perfect cat" wasn't just the IQ Designer software—it was the decision to trace first. By feeding the machine clean data (the tracing) and holding the fabric securely (the magnetic hoop), you eliminate the variables that cause failure.

FAQ

• Q: Why does Brother My Design Center / IQ Designer create random “background noise” lines when scanning printed cotton fabric for appliqué?
  A: This is usually visual noise from the fabric weave—trace the motif onto semi-transparent paper with a bold marker before capturing the image.
  • Trace: Tape vellum/tracing paper over the print and draw a solid continuous outline with a fine-point Sharpie.
  • Add: Draw a large center “X” registration mark on every traced layer for later alignment.
  • Capture: Photograph the tracing inside the hoop instead of scanning the fabric surface directly.
  • Success check: The preview shows one clean outline, not fuzzy extra edges from texture.
  • If it still fails: Re-trace with a bolder/newer marker and tighten the crop around the motif to reduce detected noise.
• Q: How do I prevent parallax (keystoning) errors when using the Baby Lock IQ Positioning App to photograph a traced design inside an embroidery hoop?
  A: Keep the phone perfectly parallel to the hoop plane and keep the tracing paper perfectly flat and taut.
  • Hold: Position the device directly above the hoop—avoid tilting during the shot.
  • Stabilize: Secure the tracing paper so it cannot ripple or form a “hill” inside the hoop.
  • Support: Use a flat, stable surface (a hooping station can help keep the hoop from shifting while you shoot).
  • Success check: Circles look round and squares look square—no trapezoid distortion in the app image.
  • If it still fails: Re-shoot with better lighting and re-tape the paper so it cannot move even 1 mm.
• Q: What settings should Brother IQ Designer “Line Design” use for a placement outline from a traced drawing, and how do I fix broken stitch paths?
  A: Use Line Design with Single Run, then tune the Grayscale Detection Level until the outline closes without picking up paper grain.
  • Set: Choose “Line Design” (not illustration fill) and set stitch type to “Single Run (0.0 mm width)” for the placement line.
  • Crop: Drag the crop handles tightly around the motif to reduce processing and false detection.
  • Inspect: Zoom in (e.g., 400%) and look for break indicators in the preview.
  • Success check: The outline is continuous with no visible gaps or random “fuzz” paths.
  • If it still fails: Nudge Grayscale toward Light to bridge small gaps; if fuzz appears, nudge toward Dark and re-trace any faint segments.
• Q: How do I align multiple traced layers in Baby Lock IQ Designer (body + eyes/stripes) without accidentally stitching the registration “X” through the appliqué?
  A: Use the center “X” only for alignment, then turn the “X” off using the No Sew (bucket) function before stitching.
  • Align: Import each layer and match them using the center “X” registration mark.
  • Disable: Apply “No Sew” to the “X” marks once alignment is confirmed.
  • Stabilize: Keep the hoop from micro-shifting on the table during editing (magnetic frames often reduce slips versus screw hoops).
  • Success check: The preview shows the layers aligned, and the “X” is not scheduled to stitch.
  • If it still fails: Re-check that every layer has the “X” drawn in the same true center and that the hoop did not move between captures.
• Q: What causes hoop burn (shiny rings) during appliqué on quilt cotton, and when should I switch from a standard hoop to a magnetic embroidery hoop?
  A: Hoop burn is typically friction and uneven clamping from traditional hoops—floating can help, but magnetic hoops often prevent the ring marks entirely.
  • Reduce: Try floating the fabric (secure it with adhesive methods) instead of tightly clamping delicate surfaces.
  • Choose: For thick or uneven quilt blocks, use a magnetic frame for uniform pressure and less distortion.
  • Monitor: Keep long satin borders slower (the blog recommends 600 SPM) to reduce pull that can worsen marks.
  • Success check: The fabric shows no shiny compression ring after unhooping, and the block remains square (not “barrel” shaped).
  • If it still fails: Check for excessive clamp pressure points (common near hoop screws) and consider upgrading to a stronger magnetic frame if fabric still creeps.
• Q: What are the key safety risks when moving between tracing/cutting tools and running an embroidery machine needle during an appliqué workflow?
  A: Clear the workspace between steps—pins or blades left near the hoop can cause needle strikes, broken needles, or bed scratches.
  • Remove: Sweep the hooping area for loose pins, rotary cutters, and scraps before mounting the hoop.
  • Confirm: Ensure no pin is trapped under the hoop or stabilizer before starting the stitch-out.
  • Slow: Reduce speed for satin borders (600 SPM is recommended in the blog) to maintain control and reduce sudden thread/needle stress.
  • Success check: The machine runs without sudden needle deflection, snapping sounds, or impact marks on the needle plate area.
  • If it still fails: Stop immediately, re-check under the hoop for hidden pins or hard objects, and replace the needle if it contacted anything.
• Q: What magnetic hoop safety precautions should be followed when using industrial-strength magnetic embroidery frames for appliqué?
  A: Treat magnetic hoops like industrial clamps—prevent pinch injuries and keep magnets away from pacemakers and magnetic media.
  • Keep: Fingers completely clear of the magnet mating area before letting the frame snap shut.
  • Store: Separate magnets using the provided foam spacers when not in use.
  • Protect: Keep frames away from pacemakers and items like credit cards or other magnetic-sensitive media.
  • Success check: The hoop closes with a controlled snap and no finger contact occurs during clamping.
  • If it still fails: Use a slower, two-handed closing technique and reposition the fabric so magnets do not “jump” unexpectedly.
