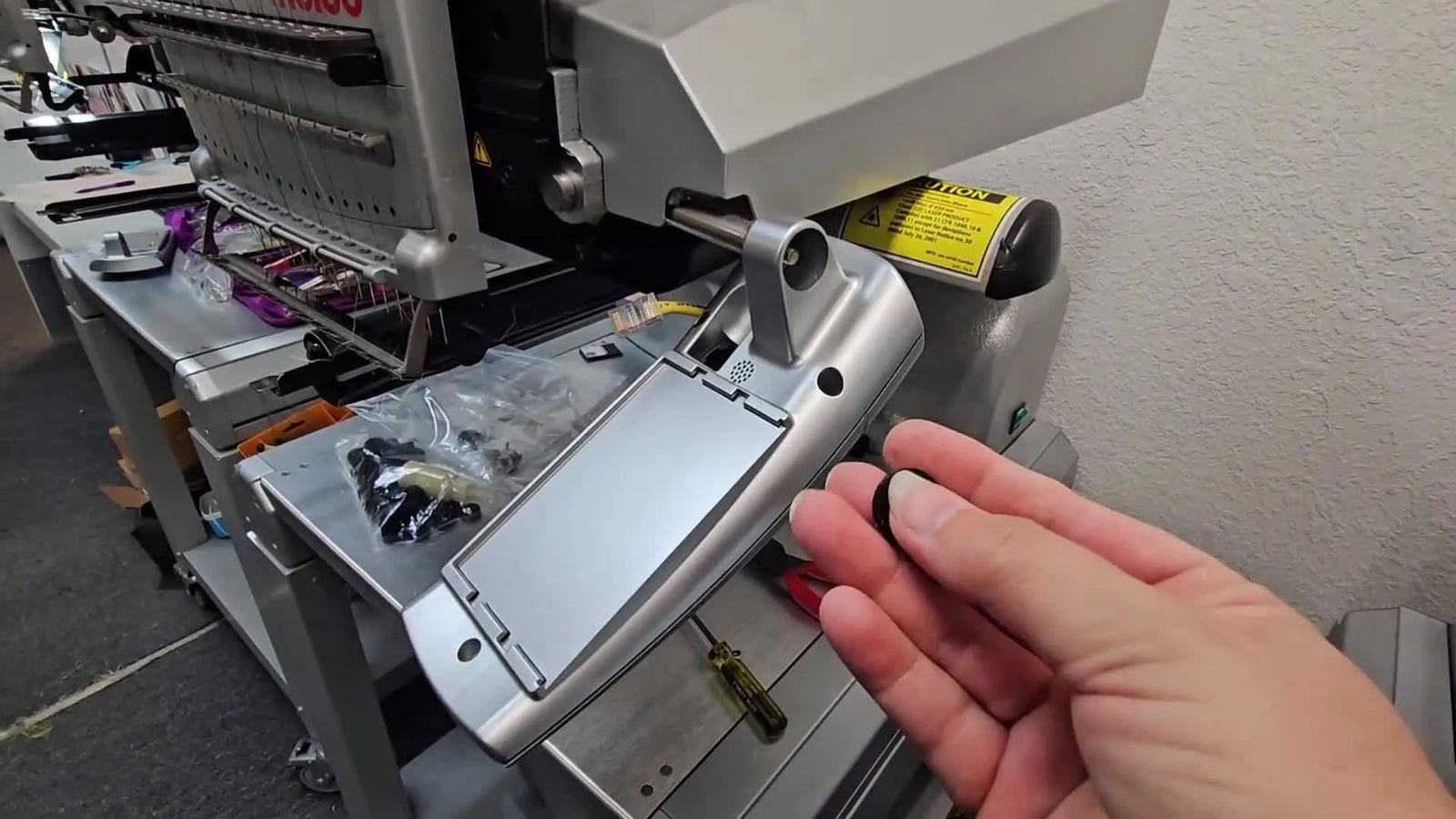

Stop Taping Your Melco Keypad: Replace the Back Housing (Part #34037) and Get That “Stays-Where-You-Set-It” Feel Back

Stop the Flop: The Definitive Guide to Fixing a Loose Keypad on Your Melco EMT16/AMAYA

A floppy keypad on a Melco isn’t just “one more annoying thing”—it is a production liability. In the high-speed world of embroidery, where an operator might interact with the interface 200 times a shift, a keypad that drifts or won't hold its angle is a subtle thief. It steals seconds during thread changes, causes input errors due to unstable screens, and frustrates your team.

If you have been tempted to tape it in place, stop. Tape is a temporary bandage on a structural failure. The plastic mounting boss has cracked, and no amount of adhesive will restore the necessary friction torque to hold the screen steady.

As someone who has managed production floors for two decades, I can tell you this: Mechanical stability precedes digital efficiency. You cannot run a high-output shop if your hardware is fighting you.

This guide is your "Level 3 Repair Manual." We will not just swap a part; we will restore the precise mechanical tension required for a professional feel, and we will do it safely.

The Anatomy of the Failure: Why It Feels Scary

When the keypad starts flopping, the tactile feedback changes. You set the angle, turn your back, and hear a thud as it drops. The root cause is almost always a cracked plastic mount on the rear keypad housing.

The fear for many owners of a high-value melco embroidery machine is that this is an electrical or screen failure. It is not. You are not chasing a ghost in the motherboard; you are replacing a $30 piece of plastic that acts as a physical hinge.

However, because this involves the machine's control center, the "fear factor" is high. We will lower that fear with a structured, safety-first approach.

The Pre-Flight Strategy: Order Part #34037

Do not disassemble your machine until the part is in your hand. This sounds obvious, but downtime is expensive.

1. Identify: You need the Rear User Interface Housing.
2. Verify: Search specifically for Part Number 34037.
3. Confirm: ensure the description reads "HOUSING, USER INTERFACE, BACK."

Cost Reality Check: At roughly $30-$35, this part is cheaper than one ruined garment caused by an operator fumbling with a sliding screen.

Phase 1: Preparation & Hidden Consumables

Most failures happen before the screwdriver touches the screw because of poor preparation. We are going to set up a "surgical field."

The "Must-Have" Tool Kit

• 10mm Socket Driver: Essential for the main mounting bolt. A wrench will work, but a driver gives you better torque control.
• Phillips Screwdriver (#1 or #0): The screws inside the housing are small and recessed. A standard #2 tip is too fat and will strip the heads. Sensory Check: The tip should seat fully into the screw head with zero "wobble."
• Magnetic Parts Tray: Hidden Essential. You will be dealing with concave washers that love to roll under heavy machinery.

The "Hidden" Consumables

• Lithium Grease (Optional): A tiny dab on the hinge pin can prevent future squeaking, though not strictly required.
• Masking Tape: Piece of tape to hold cables out of the way if needed.
• Phone Camera: Taking photos of the wire routing before unplugging is a pro move.

Checklist 1: The "No-Go" Pre-Flight Check

• Replacement Housing (Part #34037) is on the table.
• Machine is powered down completely (Switch OFF).
• You have touched a metal part of the frame to discharge static electricity.
• Magnetic tray is placed within arm's reach.
• You have identified a safe place to set the keypad face-down (use a soft towel to prevent scratching the screen).


Phase 2: Extraction (Controlled Disassembly)

Step A: The Support Grip

Juliet, the expert in the video, highlights the most critical safety step: Support the weight.

1. Locate the 10mm bolt on the side of the hinge.
2. Place your left hand firmly under the keypad.
3. Use your right hand to loosen the bolt.
4. Sensory Anchor: As the bolt loosens, you will feel the keypad suddenly become heavy in your left hand. Be ready for this weight shift.

Warning: Do not let the keypad dangle by the cable. The ethernet connector is a data port, not a load-bearing rope. One drop can snap the locking tab or damage the internal PCB headers.

Step B: The Disconnect

With the keypad free from the arm but still tethered by the yellow cable:

1. Rotate the keypad to access the back.
2. Locate the yellow ethernet cable.
3. Depress the plastic locking clip firmly.
4. Sensory Anchor: You should hear a distinct click as the lock releases. Pull gently straight out. If you have to yank, the clip is not depressed enough.


Step C: The "Washer Trap" (Critical Field Note)

This is where 40% of DIY repairs fail.

When you pull the keypad away, the mounting bolt and washers should come with it. Often, they do not. The grease inside the machine arm acts like glue, holding one or more washers hostage inside the hole.

• Action: Shine a light into the machine arm mounting hole.
• Check: Is it empty? If you see a silver ring, that is a washer.
• Remedy: Use your pinky finger or a small pick tool to dig it out.
• Why it matters: If you leave it there and add the new washers, the stack height will be wrong. You will never get the tension right, and you might crack the new housing by over-tightening.


Phase 3: The Transplant (Housing Swap)

We are now going to swap the brain (the screen/PCB) into the new skull (the plastic housing).

1. Lay the keypad face down on your soft towel.
2. Identify the three recessed screws: One top center, two deep in the bottom corners near the hinge.
3. Remove them with your small Phillips driver.
4. Gently lift the old back housing away.
5. Visual Check: Inspect the circuit board for dust. This is a great time to blow it off with compressed air (carefully).




Installing the New Shell

1. Align the new housing (Part #34037).
2. Press it down eagerly—it should seat with a satisfying snap or tight fit around the edges.
3. Reinstall the three screws.
4. Torque Rule: Tighten until you feel resistance, then turn 1/8th of a turn more. Do not crank these; you are threading metal screws into soft plastic.


Phase 4: Precision Reassembly (The Physics of Tension)

This is the most important section of this guide. We are rebuilding the friction hinge. The order and orientation of the hardware dictate the "feel" of the keypad.

The Component Stack

You have three critical components:

1. The Bolt
2. Two Concave Washers (Spring Washers/Belleville Washers)
3. The D-Shaped Spacer Ring

Step A: The D-Spacer rule

This ring prevents the bolt from rotating. It keys into the mounting arm.

• Orientation: The flat side of the "D" must face UP.
• Action: Insert it into the machine arm hole. Use the tip of your 10mm driver to push it back.
• Sensory Anchor: Push until you feel a solid thud or click as it seats against the back of the receptacle. It should not look crooked.




Step B: The "Cup In" Theory (The Secret Sauce)

The two washers are not flat; they are curved. They act as heavy-duty springs to maintain constant pressure on the hinge.

• The Rule: The concave (hollow) sides must face EACH OTHER.
  • Washer 1: Cup facing AWAY from the bolt head (towards the machine).
  • Washer 2: Cup facing TOWARDS the bolt head (away from the machine).
• Visual: They should look like this: ( ) or > <. They are "cupping" the friction point.
• Why: This creates a spring effect. As you tighten the bolt, you are compressing this spring, which provides smooth, consistent resistance. If you stack them (( or )), you lose the spring travel, and the keypad will be either loose or locked solid.


Step C: The Tension Tuning

1. Reconnect the yellow ethernet cable (Listen for the click).
2. Check for cable pinch points—ensure the wire loops cleanly into the housing.
3. Insert the bolt (with properly stacked washers) into the keypad hinge.
4. Mate it to the machine arm.
5. Hand-thread the bolt to avoid cross-threading.
6. Tighten with the 10mm driver.
7. The Tuning: Move the keypad up and down while tightening. You want to reach the "Goldilocks Zone": loose enough to move with one hand, tight enough to stop instantly when you let go.

Warning: Keep fingers clear of the hinge gap while testing movement. As you tighten, the gap closes. Pinch injuries here are painful and common.

Phase 5: Verification & Troubleshooting

Checklist 2: The Reassembly Audit

• Ethernet cable is clicked in and not pinched.
• D-Spacer was installed Flat-Side UP.
• No extra washers are left in the magnetic tray (or the machine arm).
• Keypad holds its position at 45 degrees without drifting.


Troubleshooting Logic: If It Still Feels Wrong

Beyond Repairs: Optimizing Your Production Workflow

Congratulations. You have successfully repaired your machine. The keypad is stable. But let’s look at why we do this: Production Efficiency.

If you are running a fleet, perhaps checking the health of a melco emt16x embroidery machine, you know that minimizing friction—both mechanical and operational—is the key to profitability. Mechanical repairs like this Keypad Fix are Level 1 maintenance.

However, many shops fix the machine but ignore the operator's struggle. Once the keypad is fixed, the next biggest bottleneck in your workflow is likely Hooping.

The "Hoop Burn" & Fatigue Audit

Traditional screw-tightened hoops are slow. They require force, they cause repetitive strain injuries (RSI) in your wrists, and they often leave permanent "hoop burn" marks on delicate fabrics.

Decision Tree: Is It Time to Upgrade Your Tooling?

1. Do you stitch sensitive fabrics (performance wear, satin)?
   • Yes: Traditional hoops damage fibers.
   • Solution: Magnetic Hoops. The flat pressure prevents hoop burn.
2. Are you producing orders of 50+ items?
   • Yes: Screw-tightening adds 30-60 seconds per garment.
   • Solution: SEWTECH Magnetic Hoops. Snap-on, snap-off mechanism increases throughput by up to 30%.
3. Do you struggle with thick items (Carhartt jackets, bags)?
   • Yes: Standard hoops pop off or won't close.
   • Solution: High-strength magnetic frames designed for industrial thickness.

Terms like magnetic embroidery hoop are not just buzzwords; they represent a shift from "manual labor" to "smart fixturing."

Warning (Magnetic Safety): Industrial magnetic hoops utilize powerful Neodymium magnets.
* Pacemakers: Keep at least 12 inches away from implanted medical devices.
* Pinch Hazard: Do not place fingers between the magnet rings. They snap together with enough force to cause blood blisters or bruising. Handle with intent.

Commercial Versatility

Just as you maintain your keypad for control, ensure you have the right localized tools. Whether it is a specialized melco hat hoop for structured caps or a melco xl hoop for jacket backs, matching the frame to the job is the hallmark of a professional shop. Many operators find that when they search for hoops for melco embroidery machine, migrating to magnetic compatible systems solves the consistency issues that even a fixed keypad can't address.

Checklist 3: Final Operational Sign-Off

Before you return this machine to the production line, perform this final 30-second stress test:

• The Lean Test: Lean gently on the keypad as if typing. Does it dip? (It should not).
• The Range Test: Move it from fully up to fully down. Is the resistance consistent (no loose dead spots)?
• The Power Test: Turn the machine on. Does the screen boot without flickering? (Confirms cable integrity).

You have now moved from "patching with tape" to "restoring factory spec." This is how professionals maintain uptime.

FAQ

• Q: How do I confirm the loose keypad problem on a Melco EMT16/AMAYA is the rear user interface housing (Part #34037) and not an electrical screen failure?
  A: In most cases, a Melco EMT16/AMAYA “floppy keypad” is a cracked rear user interface housing (Part #34037), not a display or motherboard issue.
  • Power OFF the machine and gently set the keypad angle, then release it.
  • Listen for the “thud” drop and feel for zero holding torque at the hinge—this points to a failed plastic mount.
  • Inspect the rear housing area for cracking around the hinge/boss once removed.
  • Success check: The keypad cannot hold a mid-angle position (around 45°) and drifts or drops under its own weight.
  • If it still fails: If the screen flickers only after reassembly, re-check the yellow ethernet cable seating before assuming an electronics fault.
• Q: What tools and “hidden consumables” should be ready before disassembling a Melco EMT16/AMAYA keypad hinge repair?
  A: Set up a small “surgical field” first—most mistakes happen before the first screw is turned.
  • Prepare a 10mm socket driver, a small Phillips (#1 or #0), and a magnetic parts tray.
  • Use a phone camera to photograph cable routing before unplugging anything.
  • Stage masking tape (for managing cables) and a soft towel (to place the keypad face-down without scratching).
  • Success check: The Phillips tip seats with zero wobble, and every removed washer/screw immediately lands in the magnetic tray.
  • If it still fails: If screw heads start to strip, stop and switch to the correct small Phillips size before continuing.
• Q: How do I safely remove the Melco EMT16/AMAYA keypad without damaging the yellow ethernet cable or connectors?
  A: Support the keypad weight during bolt removal and disconnect the ethernet cable by the lock—never let the keypad hang by the cable.
  • Grip under the keypad with one hand before loosening the 10mm hinge bolt with the other.
  • Rotate the keypad to access the back and depress the ethernet locking clip fully before pulling straight out.
  • Avoid yanking; re-press the clip until the connector releases cleanly.
  • Success check: You feel the keypad “get heavy” as the bolt loosens, and you hear/feel a distinct click when the ethernet lock releases.
  • If it still fails: If the connector won’t release, stop pulling and re-check that the locking tab is fully depressed to avoid snapping it.
• Q: What is the “double washer error” during a Melco EMT16/AMAYA keypad repair, and how do I prevent it?
  A: The “double washer error” happens when an old washer stays stuck inside the machine arm hole and you unknowingly add new washers—tension will never feel right.
  • Shine a light into the machine arm mounting hole after removing the keypad.
  • Probe for a stuck washer (often held by grease) and remove it with a finger or small pick tool.
  • Confirm the hole is truly empty before reassembly hardware goes back in.
  • Success check: The mounting hole is visibly clear—no silver ring left inside—and your washer count in the tray matches what you removed.
  • If it still fails: If the hinge still won’t tune correctly, disassemble again and re-check the arm hole for a hidden washer.
• Q: How should the concave (Belleville) washers be stacked on a Melco EMT16/AMAYA keypad hinge to stop the keypad from flopping?
  A: Stack the two concave washers with the hollow “cups” facing each other to create spring tension—wrong stacking is the most common cause of a still-floppy keypad.
  • Identify the curved (concave) side of each washer.
  • Install them as “cup-in” facing each other so they visually resemble ( ) (or > <).
  • Tighten while moving the keypad up/down to find the “Goldilocks” resistance.
  • Success check: The keypad moves smoothly with one hand and stops immediately when released (no drift).
  • If it still fails: If the keypad is still floppy, one washer is likely flipped—disassemble and flip the outer washer to restore ( ).
• Q: How do I install the D-shaped spacer ring on a Melco EMT16/AMAYA keypad hinge, and what does “not seated” feel like?
  A: Insert the D-shaped spacer into the arm with the flat side UP and push it fully home—if it isn’t seated flat, hinge movement often feels gritty or jerky.
  • Orient the spacer so the flat side of the “D” faces up.
  • Push it into the mounting arm hole using the tip of the 10mm driver until it seats firmly.
  • Re-check that it does not sit crooked before tightening the bolt.
  • Success check: You feel a solid “thud/click” as it seats, and hinge motion feels smooth (not gritty).
  • If it still fails: If movement is jerky, loosen and push the spacer deeper until it behaves like a stable bearing surface.
• Q: What are the key safety risks during a Melco EMT16/AMAYA keypad hinge repair, and how do I avoid pinch injuries?
  A: The main risks are dropping the keypad (cable damage) and pinching fingers at the hinge gap during tension tuning—both are common and preventable.
  • Keep one hand supporting the keypad any time the hinge bolt is being loosened or started.
  • Keep fingers out of the hinge gap while tightening and testing movement (the gap closes as tension increases).
  • Set the keypad face-down only on a soft towel to protect the screen.
  • Success check: The keypad never dangles by the cable, and you can adjust angle without any finger contact near the closing hinge gap.
  • If it still fails: If the keypad keeps shifting during work, pause and reposition your support hand—do not “catch it” by the cable.
• Q: After fixing a Melco EMT16/AMAYA loose keypad, how do I decide between Level 1 process tweaks, Level 2 magnetic hoops, or Level 3 production upgrades to reduce hooping bottlenecks?
  A: Use the repaired stable keypad as your baseline, then upgrade only where the next bottleneck is—hooping speed, fabric marking (“hoop burn”), or capacity.
  • Level 1 (technique): Audit hooping time and operator fatigue; if screw hoops are slowing changes or causing strain, that’s a workflow drag.
  • Level 2 (tooling): If delicate fabrics show hoop marks or high-volume orders make screw-tightening a time sink, magnetic hoops often reduce handling friction.
  • Level 3 (capacity): If order volume or multi-operator throughput is consistently constrained, consider a production-capacity upgrade path with a multi-needle setup.
  • Success check: You can measure improvement as fewer hoop marks, faster load/unload cycles, and less operator rework after hooping.
  • If it still fails: If quality issues persist after tooling changes, re-check hooping consistency and stabilization choices as the next diagnostic step.
